yaze::gui Namespace Reference

Graphical User Interface (GUI) components for the application. More...

Namespaces
namespace	anonymous_namespace{canvas.cc}
namespace	anonymous_namespace{canvas_context_menu.cc}
namespace	anonymous_namespace{canvas_interaction.cc}
namespace	anonymous_namespace{canvas_interaction_handler.cc}
namespace	anonymous_namespace{canvas_modals.cc}
namespace	anonymous_namespace{canvas_rendering.cc}
namespace	anonymous_namespace{style.cc}
namespace	anonymous_namespace{widget_id_registry.cc}
namespace	CanvasUtils
	Utility functions for canvas operations.

Classes
class	AgentChatWidget
	ImGui widget for conversational AI agent interaction. More...
struct	AssetObject
class	AutoWidgetScope
	RAII scope that enables automatic widget registration. More...
class	BackgroundRenderer
	Renders themed background effects for docking windows. More...
class	BppComparisonTool
	BPP format comparison tool. More...
class	BppConversionDialog
	BPP format conversion dialog. More...
struct	BppConversionOptions
	BPP conversion options. More...
class	BppFormatUI
	BPP format selection and conversion UI component. More...
class	Canvas
	Modern, robust canvas for drawing and manipulating graphics. More...
class	CanvasAutomationAPI
	Programmatic interface for controlling canvas operations. More...
struct	CanvasConfig
	Unified configuration for canvas display and interaction. More...
class	CanvasContextMenu
struct	CanvasContextMenuItem
	Context menu item configuration. More...
struct	CanvasGeometry
	Canvas geometry calculated per-frame. More...
struct	CanvasInteractionEvents
	Combined interaction result for a frame. More...
class	CanvasInteractionHandler
	Handles all tile-based interactions for Canvas. More...
class	CanvasMenuBuilder
	Builder pattern for constructing canvas menus fluently. More...
struct	CanvasMenuDefinition
	Complete menu definition. More...
struct	CanvasMenuItem
	Declarative menu item definition. More...
struct	CanvasMenuSection
	Menu section grouping related menu items. More...
class	CanvasModals
	Modal dialog management for canvas operations. More...
struct	CanvasPaletteManager
	Palette management state for canvas. More...
class	CanvasPerformanceIntegration
	Canvas performance integration with dashboard. More...
class	CanvasPerformanceManager
	Global canvas performance manager. More...
struct	CanvasPerformanceMetrics
	Canvas performance metrics. More...
struct	CanvasPopupDefinition
	Declarative popup definition for menu items. More...
struct	CanvasSelection
	Selection state for canvas interactions. More...
struct	CanvasState
	Complete canvas state snapshot. More...
class	CanvasUsageManager
	Global canvas usage tracker manager. More...
struct	CanvasUsageStats
	Canvas usage statistics. More...
class	CanvasUsageTracker
	Canvas usage tracking and analysis system. More...
class	CollaborationPanel
	ImGui panel for collaboration features. More...
struct	Color
struct	ColorAnalysisOptions
	Color analysis options. More...
class	DockSpaceRenderer
	Enhanced docking space with themed background effects. More...
struct	DungeonAsset
class	DungeonObjectEmulatorPreview
class	EditorCard
	Draggable, dockable card for editor sub-windows. More...
class	EditorLayout
	Modern layout manager for editor components. More...
struct	EnhancedTheme
	Comprehensive theme structure for YAZE. More...
struct	EntityInteractionEvent
	Event payload for entity interactions. More...
struct	ExampleSelectionWithDeletion
struct	FlagsMenu
struct	GfxSheetAssetBrowser
struct	HoverEvent
	Event payload for hover preview. More...
class	LayoutHelpers
	Theme-aware sizing helpers for consistent UI layout. More...
class	MultiSelect
struct	OverworldAsset
struct	PaletteEditorOptions
	Palette editor options. More...
class	PaletteEditorWidget
struct	PerformanceOptions
	Performance integration options. More...
class	PopupRegistry
	Registry for managing persistent popups. More...
struct	PopupState
	State for a single persistent popup. More...
struct	ProposalEntry
	Represents an AI-generated proposal. More...
struct	RectSelectionEvent
	Event payload for rectangle selection operations. More...
struct	RomSyncEntry
	Represents a ROM synchronization event. More...
class	ScopedCanvas
	RAII wrapper for Canvas (ImGui-style) More...
struct	SnapshotEntry
	Represents a shared snapshot (image, map state, etc.) More...
struct	SpriteAsset
struct	Table
struct	TextBox
class	ThemeManager
	Manages themes, loading, saving, and switching. More...
struct	TileInteractionResult
	Result of a tile interaction operation. More...
struct	TilePaintEvent
	Event payload for tile painting operations. More...
struct	TileSelectionEvent
	Event payload for single tile selection. More...
class	TileSelectorWidget
	Reusable tile selector built on top of Canvas. More...
class	Toolset
	Ultra-compact toolbar that merges mode buttons with settings. More...
struct	UnsortedAsset
class	WidgetIdRegistry
	Centralized registry for discoverable GUI widgets. More...
class	WidgetIdScope
	RAII helper for managing hierarchical ImGui ID scopes. More...
class	WidgetMeasurement
	Tracks widget dimensions for debugging and test automation. More...
struct	WidgetMetrics

Typedefs
using	ItemLabelFlags = enum ItemLabelFlag { Left=1u<< 0u, Right=1u<< 1u, Default=Left, }
using	GuiElement = std::variant< std::function< void()>, std::string >

Enumerations
enum class	CanvasType { kTile , kBlock , kMap }
enum class	CanvasMode { kPaint , kSelect }
enum class	CanvasGridSize { k8x8 , k16x16 , k32x32 , k64x64 }
enum class	TileInteractionMode {   kNone , kPaintSingle , kPaintDrag , kSelectSingle ,   kSelectRectangle , kColorPaint }
	Tile interaction mode for canvas. More...
enum class	MenuSectionPriority { kEditorSpecific = 0 , kBitmapPalette = 10 , kCanvasProperties = 20 , kDebug = 30 }
	Menu section priority for controlling rendering order. More...
enum class	CanvasUsage {   kTilePainting , kTileSelecting , kSelectRectangle , kColorPainting ,   kBitmapEditing , kPaletteEditing , kBppConversion , kPerformanceMode ,   kEntityManipulation , kUnknown }
	Canvas usage patterns and tracking. More...
enum class	CanvasInteraction {   kMouseClick , kMouseDrag , kMouseRelease , kKeyboardInput ,   kContextMenu , kModalOpen , kModalClose , kToolChange ,   kModeChange }
	Canvas interaction types. More...
enum class	ButtonType {   Default , Success , Warning , Error ,   Info }
enum class	StatusType { kSuccess , kWarning , kError , kInfo }

Functions

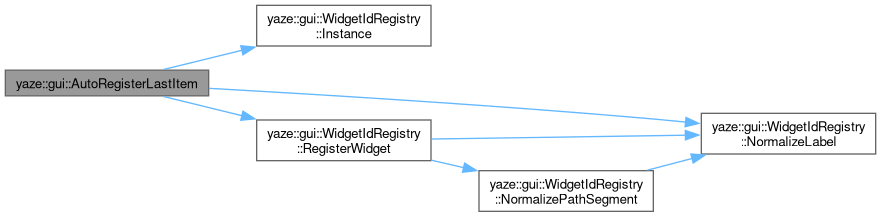

void	AutoRegisterLastItem (const std::string &widget_type, const std::string &explicit_label="", const std::string &description="")
	Automatically register the last ImGui item.
bool	AutoButton (const char *label, const ImVec2 &size=ImVec2(0, 0))
bool	AutoSmallButton (const char *label)

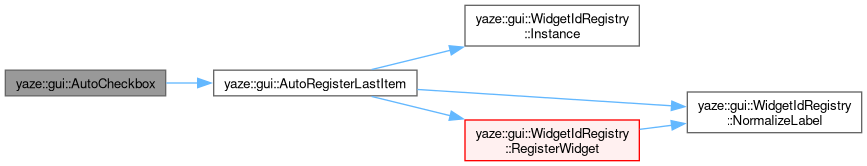

bool	AutoCheckbox (const char *label, bool *v)
bool	AutoRadioButton (const char *label, bool active)
bool	AutoRadioButton (const char *label, int *v, int v_button)
bool	AutoInputText (const char *label, char *buf, size_t buf_size, ImGuiInputTextFlags flags=0, ImGuiInputTextCallback callback=nullptr, void *user_data=nullptr)
bool	AutoInputTextMultiline (const char *label, char *buf, size_t buf_size, const ImVec2 &size=ImVec2(0, 0), ImGuiInputTextFlags flags=0, ImGuiInputTextCallback callback=nullptr, void *user_data=nullptr)
bool	AutoInputInt (const char *label, int *v, int step=1, int step_fast=100, ImGuiInputTextFlags flags=0)
bool	AutoInputFloat (const char *label, float *v, float step=0.0f, float step_fast=0.0f, const char *format="%.3f", ImGuiInputTextFlags flags=0)
bool	AutoSliderInt (const char *label, int *v, int v_min, int v_max, const char *format="%d", ImGuiSliderFlags flags=0)
bool	AutoSliderFloat (const char *label, float *v, float v_min, float v_max, const char *format="%.3f", ImGuiSliderFlags flags=0)
bool	AutoCombo (const char *label, int *current_item, const char *const items[], int items_count, int popup_max_height_in_items=-1)
bool	AutoSelectable (const char *label, bool selected=false, ImGuiSelectableFlags flags=0, const ImVec2 &size=ImVec2(0, 0))
bool	AutoSelectable (const char *label, bool *p_selected, ImGuiSelectableFlags flags=0, const ImVec2 &size=ImVec2(0, 0))

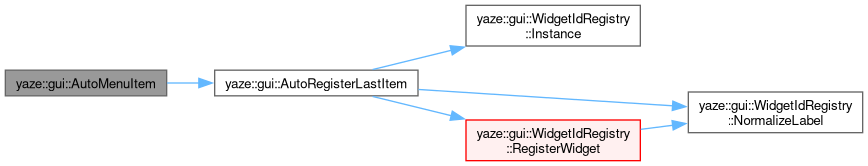

bool	AutoMenuItem (const char *label, const char *shortcut=nullptr, bool selected=false, bool enabled=true)
bool	AutoMenuItem (const char *label, const char *shortcut, bool *p_selected, bool enabled=true)
bool	AutoBeginMenu (const char *label, bool enabled=true)

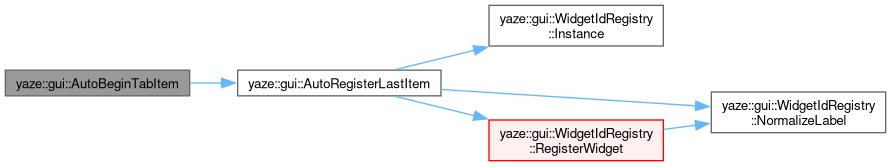

bool	AutoBeginTabItem (const char *label, bool *p_open=nullptr, ImGuiTabItemFlags flags=0)
bool	AutoTreeNode (const char *label)

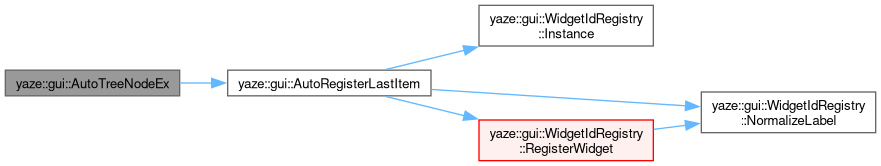

bool	AutoTreeNodeEx (const char *label, ImGuiTreeNodeFlags flags=0)

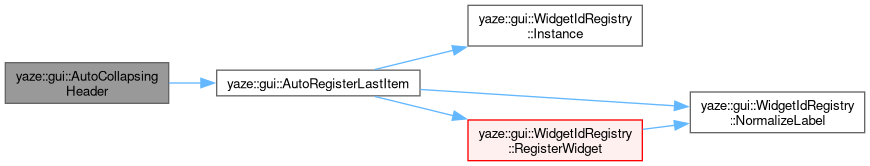

bool	AutoCollapsingHeader (const char *label, ImGuiTreeNodeFlags flags=0)
void	RegisterCanvas (const char *canvas_name, const std::string &description="")
	Register a canvas widget after BeginChild or similar.
void	RegisterTable (const char *table_name, const std::string &description="")
	Register a table after BeginTable.
void	BeginCanvas (Canvas &canvas, ImVec2 child_size)

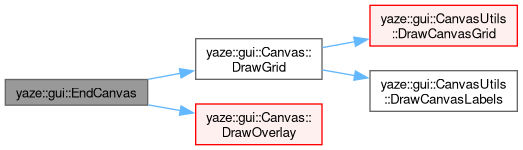

void	EndCanvas (Canvas &canvas)
void	GraphicsBinCanvasPipeline (int width, int height, int tile_size, int num_sheets_to_load, int canvas_id, bool is_loaded, gfx::BitmapTable &graphics_bin)
void	BitmapCanvasPipeline (gui::Canvas &canvas, gfx::Bitmap &bitmap, int width, int height, int tile_size, bool is_loaded, bool scrollbar, int canvas_id)
void	TableCanvasPipeline (gui::Canvas &canvas, gfx::Bitmap &bitmap, const std::string &label, bool auto_resize)
void	GraphicsBinCanvasPipeline (int width, int height, int tile_size, int num_sheets_to_load, int canvas_id, bool is_loaded, BitmapTable &graphics_bin)

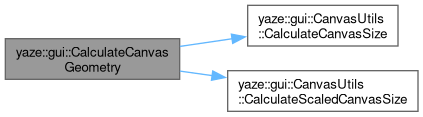

CanvasGeometry	CalculateCanvasGeometry (const CanvasConfig &config, ImVec2 requested_size, ImVec2 cursor_screen_pos, ImVec2 content_region_avail)
	Calculate canvas geometry from configuration and ImGui context.
ImVec2	CalculateMouseInCanvas (const CanvasGeometry &geometry, ImVec2 mouse_screen_pos)
	Calculate mouse position in canvas space.
bool	IsPointInCanvasBounds (const CanvasGeometry &geometry, ImVec2 point)
	Check if a point is within canvas bounds.
void	ApplyScrollDelta (CanvasGeometry &geometry, ImVec2 delta)
	Apply scroll delta to geometry.
ImVec2	GetCanvasOrigin (const CanvasGeometry &geometry)
	Get origin point (canvas top-left + scroll offset)
ImVec2	AlignToGrid (ImVec2 pos, float grid_step)
	Align position to grid.
ImVec2	GetMouseInCanvasSpace (const CanvasGeometry &geometry)
	Get mouse position in canvas space.
bool	IsMouseInCanvas (const CanvasGeometry &geometry)
	Check if mouse is in canvas bounds.
ImVec2	CanvasToTileGrid (ImVec2 canvas_pos, float tile_size, float global_scale)
	Calculate tile grid indices from canvas position.

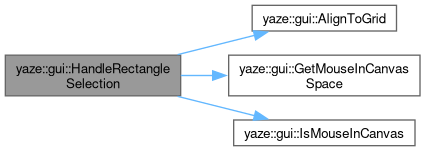

RectSelectionEvent	HandleRectangleSelection (const CanvasGeometry &geometry, int current_map, float tile_size, ImDrawList *draw_list, ImGuiMouseButton mouse_button=ImGuiMouseButton_Right)
	Handle rectangle selection interaction.

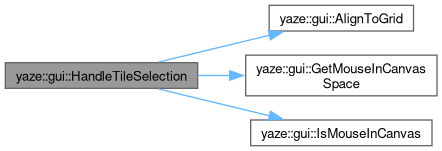

TileSelectionEvent	HandleTileSelection (const CanvasGeometry &geometry, int current_map, float tile_size, ImGuiMouseButton mouse_button=ImGuiMouseButton_Right)
	Handle single tile selection (right-click)

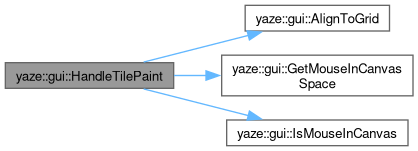

TilePaintEvent	HandleTilePaint (const CanvasGeometry &geometry, int tile_id, float tile_size, ImGuiMouseButton mouse_button=ImGuiMouseButton_Left)
	Handle tile painting interaction.
TilePaintEvent	HandleTilePaintWithPreview (const CanvasGeometry &geometry, const gfx::Bitmap &bitmap, float tile_size, ImDrawList *draw_list, ImGuiMouseButton mouse_button=ImGuiMouseButton_Left)
	Handle tile painter with bitmap preview.

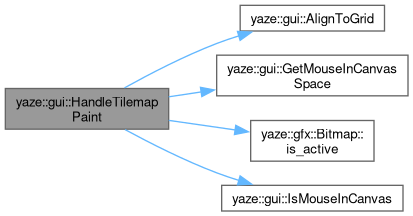

TilePaintEvent	HandleTilemapPaint (const CanvasGeometry &geometry, const gfx::Tilemap &tilemap, int current_tile, ImDrawList *draw_list, ImGuiMouseButton mouse_button=ImGuiMouseButton_Left)
	Handle tilemap painting interaction.

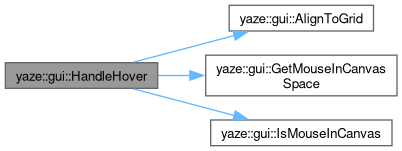

HoverEvent	HandleHover (const CanvasGeometry &geometry, float tile_size)
	Update hover state for canvas.
void	RenderHoverPreview (const CanvasGeometry &geometry, const HoverEvent &hover, float tile_size, ImDrawList *draw_list, ImU32 color=IM_COL32(255, 255, 255, 80))
	Render hover preview overlay.
EntityInteractionEvent	HandleEntityInteraction (const CanvasGeometry &geometry, int entity_id, ImVec2 entity_position)
	Handle entity interaction (hover, click, drag)
void	RenderMenuItem (const CanvasMenuItem &item, std::function< void(const std::string &, std::function< void()>)> popup_opened_callback=nullptr)
	Render a single menu item.
void	RenderMenuSection (const CanvasMenuSection &section, std::function< void(const std::string &, std::function< void()>)> popup_opened_callback=nullptr)
	Render a menu section.
void	RenderCanvasMenu (const CanvasMenuDefinition &menu, std::function< void(const std::string &, std::function< void()>)> popup_opened_callback=nullptr)
	Render a complete menu definition.
void	RenderCanvasBackground (ImDrawList *draw_list, const CanvasGeometry &geometry)
	Render canvas background and border.

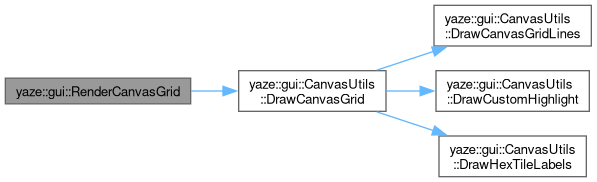

void	RenderCanvasGrid (ImDrawList *draw_list, const CanvasGeometry &geometry, const CanvasConfig &config, int highlight_tile_id=-1)
	Render canvas grid with optional highlighting.
void	RenderCanvasOverlay (ImDrawList *draw_list, const CanvasGeometry &geometry, const CanvasConfig &config, const ImVector< ImVec2 > &points, const ImVector< ImVec2 > &selected_points)
	Render canvas overlay (hover and selection points)
void	RenderCanvasLabels (ImDrawList *draw_list, const CanvasGeometry &geometry, const CanvasConfig &config, const ImVector< ImVector< std::string > > &labels, int current_labels, int tile_id_offset)
	Render canvas labels on grid.

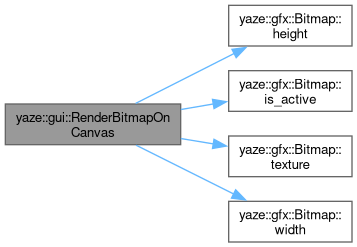

void	RenderBitmapOnCanvas (ImDrawList *draw_list, const CanvasGeometry &geometry, gfx::Bitmap &bitmap, int border_offset, float scale)
	Render bitmap on canvas (border offset variant)
void	RenderBitmapOnCanvas (ImDrawList *draw_list, const CanvasGeometry &geometry, gfx::Bitmap &bitmap, int x_offset, int y_offset, float scale, int alpha)
	Render bitmap on canvas (x/y offset variant)
void	RenderBitmapOnCanvas (ImDrawList *draw_list, const CanvasGeometry &geometry, gfx::Bitmap &bitmap, ImVec2 dest_pos, ImVec2 dest_size, ImVec2 src_pos, ImVec2 src_size)
	Render bitmap on canvas (custom source/dest regions)

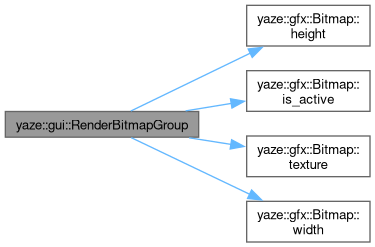

void	RenderBitmapGroup (ImDrawList *draw_list, const CanvasGeometry &geometry, std::vector< int > &group, gfx::Tilemap &tilemap, int tile_size, float scale, int local_map_size, ImVec2 total_map_size)
	Render group of bitmaps from tilemap.
ImVec4	ConvertSnesColorToImVec4 (const gfx::SnesColor &color)
	Convert SnesColor to standard ImVec4 for display.
gfx::SnesColor	ConvertImVec4ToSnesColor (const ImVec4 &color)
	Convert standard ImVec4 to SnesColor.

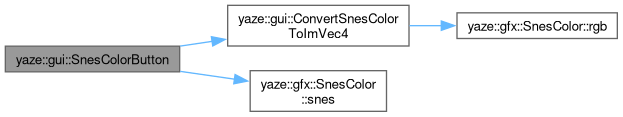

IMGUI_API bool	SnesColorButton (absl::string_view id, gfx::SnesColor &color, ImGuiColorEditFlags flags, const ImVec2 &size_arg)

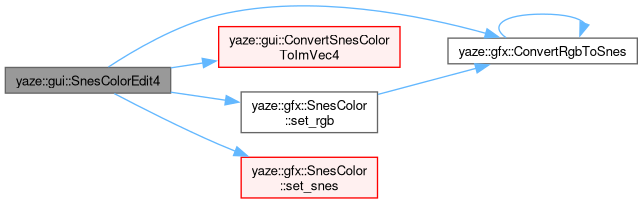

IMGUI_API bool	SnesColorEdit4 (absl::string_view label, gfx::SnesColor *color, ImGuiColorEditFlags flags)

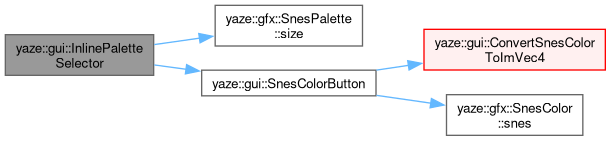

IMGUI_API bool	InlinePaletteSelector (gfx::SnesPalette &palette, int num_colors=8, int *selected_index=nullptr)
	Small inline palette selector - just color buttons for selection.

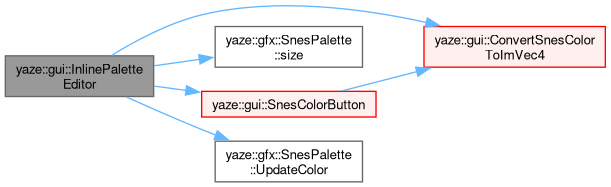

IMGUI_API absl::Status	InlinePaletteEditor (gfx::SnesPalette &palette, const std::string &title="", ImGuiColorEditFlags flags=0)
	Full inline palette editor with color picker and copy options.

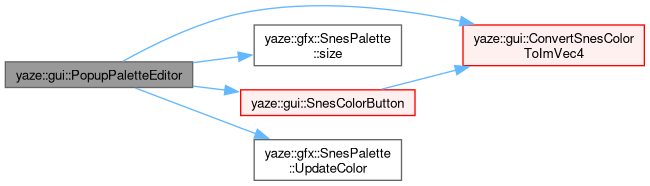

IMGUI_API bool	PopupPaletteEditor (const char *popup_id, gfx::SnesPalette &palette, ImGuiColorEditFlags flags=0)
	Popup palette editor - same as inline but in a popup.
IMGUI_API bool	DisplayPalette (gfx::SnesPalette &palette, bool loaded)

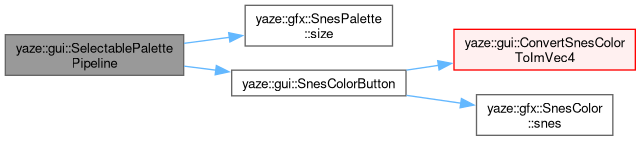

void	SelectablePalettePipeline (uint64_t &palette_id, bool &refresh_graphics, gfx::SnesPalette &palette)
absl::Status	DisplayEditablePalette (gfx::SnesPalette &palette, const std::string &title, bool show_color_picker, int colors_per_row, ImGuiColorEditFlags flags)

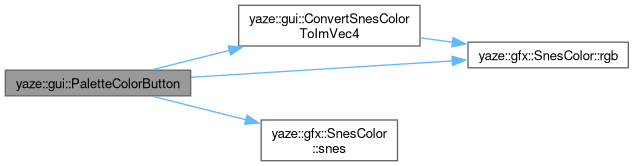

IMGUI_API bool	PaletteColorButton (const char *id, const gfx::SnesColor &color, bool is_selected, bool is_modified, const ImVec2 &size, ImGuiColorEditFlags flags)
ImVec4	ConvertColorToImVec4 (const Color &color)
std::string	ColorToHexString (const Color &color)
bool	InputHex (const char *label, uint64_t *data)
bool	InputHex (const char *label, int *data, int num_digits, float input_width)
bool	InputHexShort (const char *label, uint32_t *data)
bool	InputHexWord (const char *label, uint16_t *data, float input_width, bool no_step)
bool	InputHexWord (const char *label, int16_t *data, float input_width, bool no_step)
bool	InputHexByte (const char *label, uint8_t *data, float input_width, bool no_step)
bool	InputHexByte (const char *label, uint8_t *data, uint8_t max_value, float input_width, bool no_step)
void	Paragraph (const std::string &text)
bool	ClickableText (const std::string &text)
void	ItemLabel (absl::string_view title, ItemLabelFlags flags)
bool	ListBox (const char *label, int *current_item, const std::vector< std::string > &items, int height_in_items)
bool	InputTileInfo (const char *label, gfx::TileInfo *tile_info)
ImGuiID	GetID (const std::string &id)
ImGuiKey	MapKeyToImGuiKey (char key)
void	AddTableColumn (Table &table, const std::string &label, GuiElement element)
void	DrawTable (Table &params)
bool	OpenUrl (const std::string &url)
void	MemoryEditorPopup (const std::string &label, std::span< uint8_t > memory)
bool	InputHexByteCustom (const char *label, uint8_t *data, float input_width)
bool	InputHexWordCustom (const char *label, uint16_t *data, float input_width)
void	ColorsYaze ()

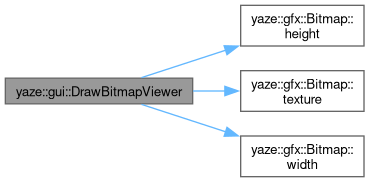

void	DrawBitmapViewer (const std::vector< gfx::Bitmap > &bitmaps, float scale, int &current_bitmap_id)
TextEditor::LanguageDefinition	GetAssemblyLanguageDef ()
void	BeginWindowWithDisplaySettings (const char *id, bool *active, const ImVec2 &size, ImGuiWindowFlags flags)
void	EndWindowWithDisplaySettings ()
void	BeginPadding (int i)
void	EndPadding ()
void	BeginNoPadding ()
void	EndNoPadding ()
void	BeginChildWithScrollbar (const char *str_id)
void	BeginChildWithScrollbar (const char *str_id, ImVec2 content_size)
void	BeginChildBothScrollbars (int id)
void	BeginTableCanvas (const char *table_id, int columns, ImVec2 canvas_size)
void	EndTableCanvas ()
void	SetupCanvasTableColumn (const char *label, float width_ratio)
void	BeginCanvasTableCell (ImVec2 min_size)

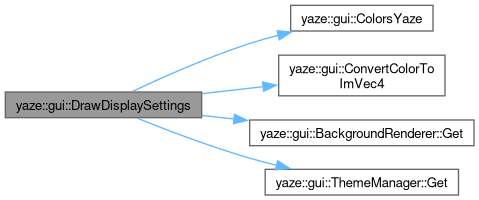

void	DrawDisplaySettings (ImGuiStyle *ref)

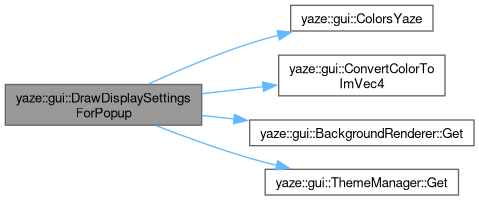

void	DrawDisplaySettingsForPopup (ImGuiStyle *ref)
void	TextWithSeparators (const absl::string_view &text)
void	DrawFontManager ()
Color	RGB (float r, float g, float b, float a=1.0f)
Color	RGBA (int r, int g, int b, int a=255)

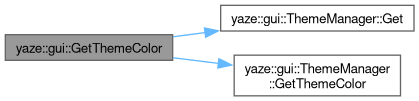

Color	GetThemeColor (const std::string &color_name)
ImVec4	GetThemeColorVec4 (const std::string &color_name)

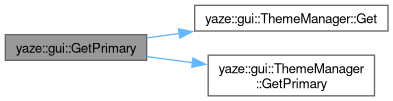

Color	GetPrimary ()
Color	GetPrimaryHover ()

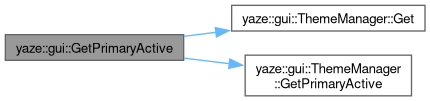

Color	GetPrimaryActive ()
Color	GetSecondary ()

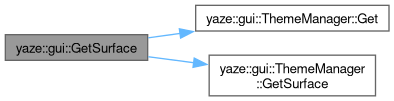

Color	GetSurface ()

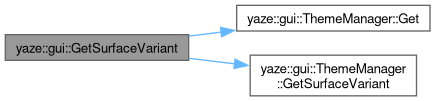

Color	GetSurfaceVariant ()
Color	GetSurfaceContainer ()

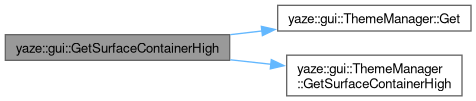

Color	GetSurfaceContainerHigh ()

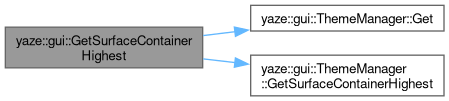

Color	GetSurfaceContainerHighest ()
Color	GetOnSurface ()

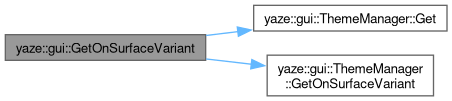

Color	GetOnSurfaceVariant ()
Color	GetOnPrimary ()

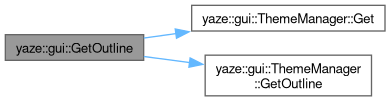

Color	GetOutline ()
Color	GetTextSecondary ()

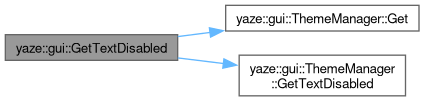

Color	GetTextDisabled ()

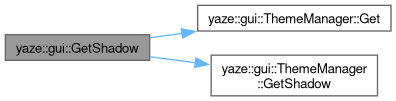

Color	GetShadow ()
ImVec4	GetPrimaryVec4 ()
ImVec4	GetPrimaryHoverVec4 ()

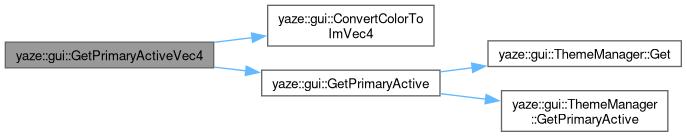

ImVec4	GetPrimaryActiveVec4 ()
ImVec4	GetSurfaceVec4 ()

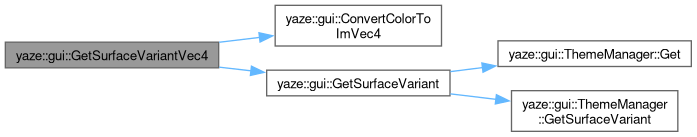

ImVec4	GetSurfaceVariantVec4 ()

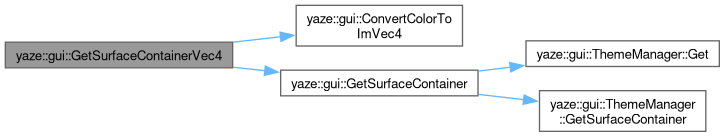

ImVec4	GetSurfaceContainerVec4 ()

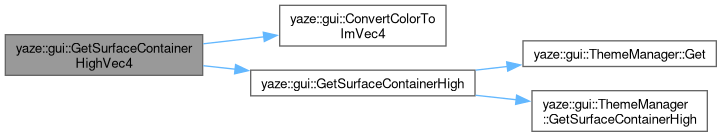

ImVec4	GetSurfaceContainerHighVec4 ()

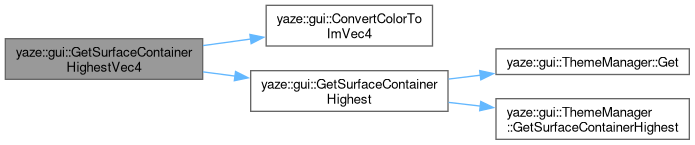

ImVec4	GetSurfaceContainerHighestVec4 ()

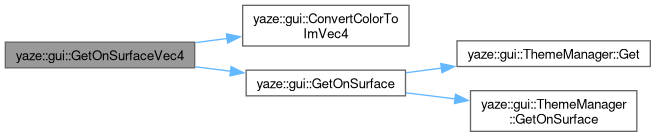

ImVec4	GetOnSurfaceVec4 ()

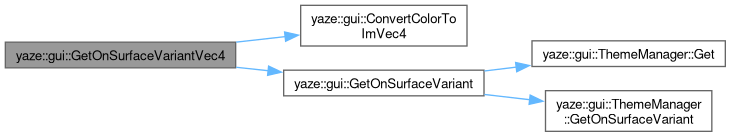

ImVec4	GetOnSurfaceVariantVec4 ()
ImVec4	GetOnPrimaryVec4 ()
ImVec4	GetOutlineVec4 ()
ImVec4	GetTextSecondaryVec4 ()
ImVec4	GetTextDisabledVec4 ()
ImVec4	GetShadowVec4 ()
ImVec4	GetThemeColor (ImGuiCol idx)

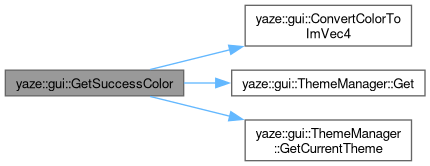

ImVec4	GetSuccessColor ()
ImVec4	GetWarningColor ()

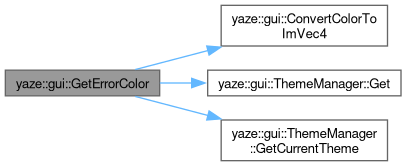

ImVec4	GetErrorColor ()

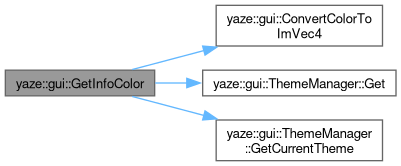

ImVec4	GetInfoColor ()

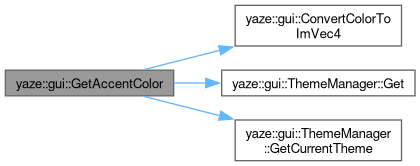

ImVec4	GetAccentColor ()
ImVec4	GetEntranceColor ()
ImVec4	GetExitColor ()
ImVec4	GetItemColor ()
ImVec4	GetSpriteColor ()
ImVec4	GetSelectedColor ()
ImVec4	GetLockedColor ()

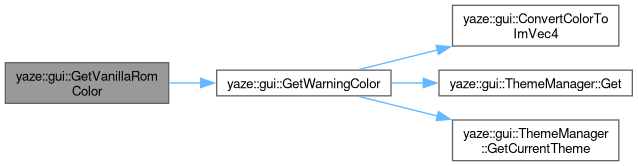

ImVec4	GetVanillaRomColor ()

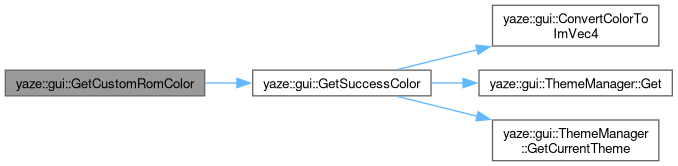

ImVec4	GetCustomRomColor ()
ImVec4	GetModifiedColor ()
void	BeginField (const char *label, float label_width)
void	EndField ()
bool	BeginPropertyTable (const char *id, int columns, ImGuiTableFlags extra_flags)
void	EndPropertyTable ()
void	PropertyRow (const char *label, const char *value)
void	PropertyRow (const char *label, int value)
void	PropertyRowHex (const char *label, uint8_t value)
void	PropertyRowHex (const char *label, uint16_t value)
void	SectionHeader (const char *icon, const char *label, const ImVec4 &color)
bool	IconButton (const char *icon, const char *label, const ImVec2 &size)
bool	ColoredButton (const char *label, ButtonType type, const ImVec2 &size)

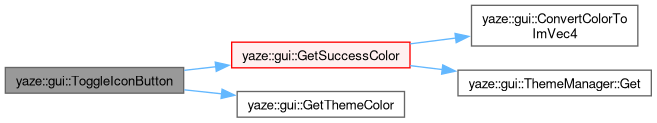

bool	ToggleIconButton (const char *icon_on, const char *icon_off, bool *state, const char *tooltip)
void	HelpMarker (const char *desc)
void	SeparatorText (const char *label)
void	StatusBadge (const char *text, ButtonType type)
void	BeginToolset (const char *id)
void	EndToolset ()

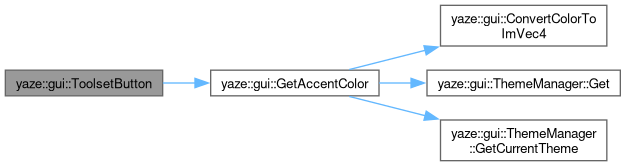

void	ToolsetButton (const char *icon, bool selected, const char *tooltip, std::function< void()> on_click)
void	BeginCanvasContainer (const char *id, bool scrollable)
void	EndCanvasContainer ()
bool	EditorTabItem (const char *icon, const char *label, bool *p_open)

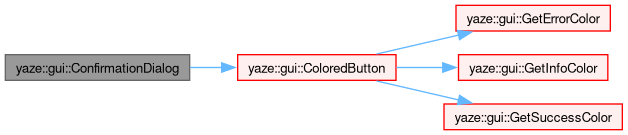

bool	ConfirmationDialog (const char *id, const char *title, const char *message, const char *confirm_text, const char *cancel_text)

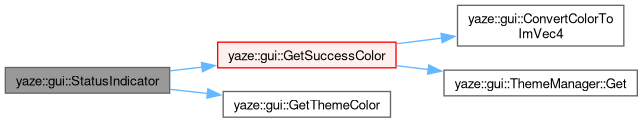

void	StatusIndicator (const char *label, bool active, const char *tooltip)

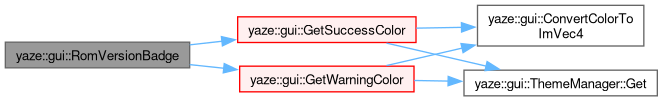

void	RomVersionBadge (const char *version, bool is_vanilla)
void	LockIndicator (bool locked, const char *label)
void	VerticalSpacing (float pixels)
void	HorizontalSpacing (float pixels)
void	CenterText (const char *text)
void	RightAlign (float width)
float	GetPulseAlpha (float speed)
float	GetFadeIn (float duration)
void	PushPulseEffect (float speed)
void	PopPulseEffect ()

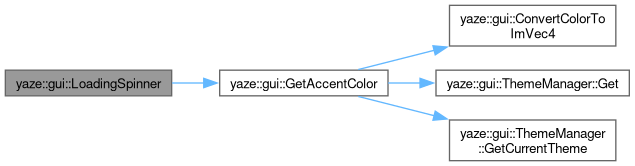

void	LoadingSpinner (const char *label, float radius)
float	GetResponsiveWidth (float min_width, float max_width, float ratio)
void	SetupResponsiveColumns (int count, float min_col_width)
void	BeginTwoColumns (const char *id, float split_ratio)
void	SwitchColumn ()
void	EndTwoColumns ()
bool	LabeledInputHex (const char *label, uint8_t *value)
bool	LabeledInputHex (const char *label, uint16_t *value)
bool	IconCombo (const char *icon, const char *label, int *current, const char *const items[], int count)
bool	ThemedButton (const char *label, const ImVec2 &size=ImVec2(0, 0))
	Theme-aware widget library.
bool	ThemedIconButton (const char *icon, const char *tooltip=nullptr)
	Themed button with icon (Material Design Icons)
bool	PrimaryButton (const char *label, const ImVec2 &size=ImVec2(0, 0))
	Primary action button (uses accent color)
bool	DangerButton (const char *label, const ImVec2 &size=ImVec2(0, 0))
	Danger/destructive action button (uses error color)

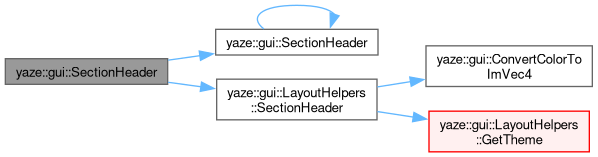

void	SectionHeader (const char *label)
	Themed section header with accent color.

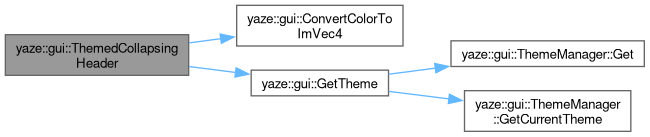

bool	ThemedCollapsingHeader (const char *label, ImGuiTreeNodeFlags flags=0)
	Collapsible section with themed header.

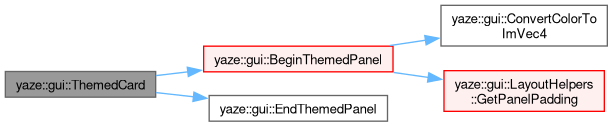

void	ThemedCard (const char *label, std::function< void()> content, const ImVec2 &size=ImVec2(0, 0))
	Themed card with rounded corners and shadow.

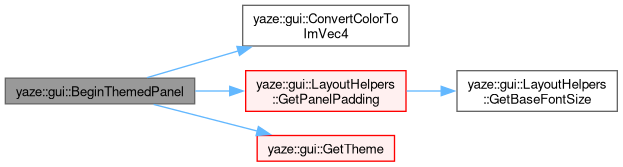

void	BeginThemedPanel (const char *label, const ImVec2 &size=ImVec2(0, 0))
	Begin themed panel (manual version of ThemedCard)
void	EndThemedPanel ()
	End themed panel.
bool	ThemedInputText (const char *label, char *buf, size_t buf_size, ImGuiInputTextFlags flags=0)
	Themed text input.

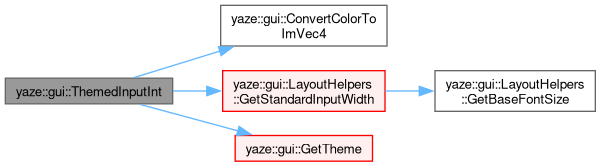

bool	ThemedInputInt (const char *label, int *v, int step=1, int step_fast=100, ImGuiInputTextFlags flags=0)
	Themed integer input.
bool	ThemedInputFloat (const char *label, float *v, float step=0.0f, float step_fast=0.0f, const char *format="%.3f", ImGuiInputTextFlags flags=0)
	Themed float input.

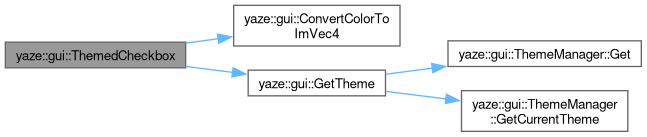

bool	ThemedCheckbox (const char *label, bool *v)
	Themed checkbox.

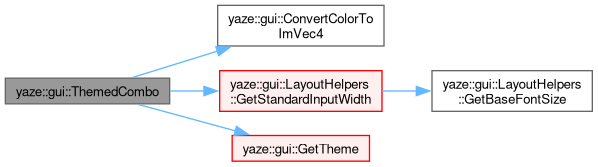

bool	ThemedCombo (const char *label, int *current_item, const char *const items[], int items_count, int popup_max_height_in_items=-1)
	Themed combo box.

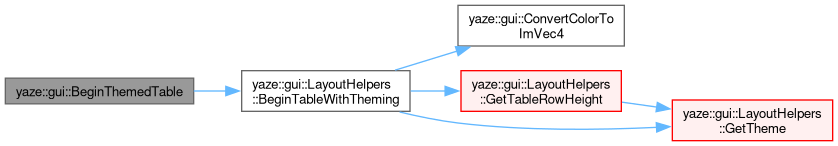

bool	BeginThemedTable (const char *str_id, int columns, ImGuiTableFlags flags=0, const ImVec2 &outer_size=ImVec2(0, 0), float inner_width=0.0f)
	Begin themed table with automatic styling.
void	EndThemedTable ()
	End themed table.
void	ThemedHelpMarker (const char *desc)
	Themed help marker with tooltip.

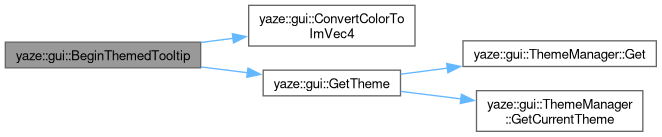

void	BeginThemedTooltip ()
	Begin themed tooltip.
void	EndThemedTooltip ()
	End themed tooltip.

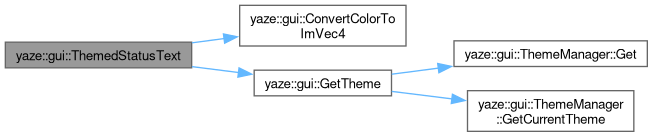

void	ThemedStatusText (const char *text, StatusType type)
	Themed status text (success, warning, error, info)

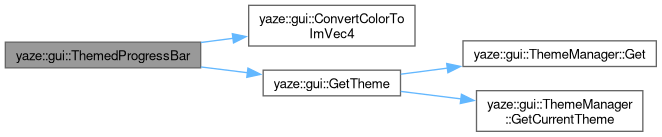

void	ThemedProgressBar (float fraction, const ImVec2 &size=ImVec2(-1, 0), const char *overlay=nullptr)
	Themed progress bar.

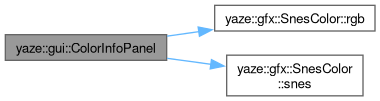

void	ColorInfoPanel (const yaze::gfx::SnesColor &color, bool show_snes_format=true, bool show_hex_format=true)
	Display color information with copy-to-clipboard functionality.

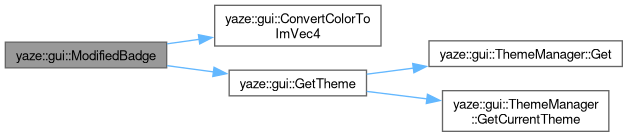

void	ModifiedBadge (bool is_modified, const char *text=nullptr)
	Modified indicator badge (displayed as text with icon)

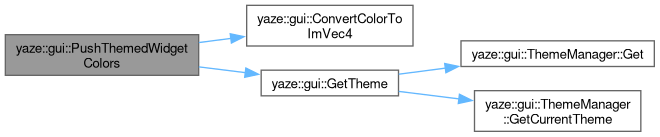

void	PushThemedWidgetColors ()
	Apply theme colors to next widget.
void	PopThemedWidgetColors ()
	Restore previous colors.

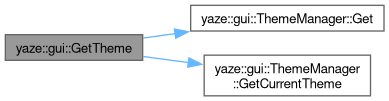

const EnhancedTheme &	GetTheme ()
	Get current theme (shortcut)

Variables
thread_local std::vector< std::string >	g_auto_scope_stack_
constexpr uint32_t	kRectangleColor = IM_COL32(32, 32, 32, 255)
constexpr uint32_t	kWhiteColor = IM_COL32(255, 255, 255, 255)
constexpr ImGuiButtonFlags	kMouseFlags
const int	kStepOneHex = 0x01
const int	kStepFastHex = 0x0F
constexpr ImVec2	kDefaultModalSize = ImVec2(200, 0)
constexpr ImVec2	kZeroPos = ImVec2(0, 0)

Detailed Description

Graphical User Interface (GUI) components for the application.

Typedef Documentation

ItemLabelFlags

using yaze::gui::ItemLabelFlags = typedef enum ItemLabelFlag { Left = 1u << 0u, Right = 1u << 1u, Default = Left, }

Definition at line 55 of file input.h.

GuiElement

using yaze::gui::GuiElement = typedef std::variant<std::function<void()>, std::string>

Definition at line 67 of file input.h.

Enumeration Type Documentation

CanvasType

enum class yaze::gui::CanvasType

strong

Enumerator
kTile
kBlock
kMap

Definition at line 44 of file canvas.h.

CanvasMode

enum class yaze::gui::CanvasMode

strong

Enumerator
kPaint
kSelect

Definition at line 45 of file canvas.h.

CanvasGridSize

enum class yaze::gui::CanvasGridSize

strong

Enumerator
k8x8
k16x16
k32x32
k64x64

Definition at line 46 of file canvas.h.

TileInteractionMode

enum class yaze::gui::TileInteractionMode

strong

Tile interaction mode for canvas.

Enumerator
kNone
kPaintSingle
kPaintDrag
kSelectSingle
kSelectRectangle
kColorPaint

Definition at line 15 of file canvas_interaction_handler.h.

MenuSectionPriority

enum class yaze::gui::MenuSectionPriority

strong

Menu section priority for controlling rendering order.

Lower values render first in the context menu:

• Editor-specific items (0) appear at the top
• Bitmap/palette operations (10) in the middle
• Canvas properties (20) near the bottom
• Debug/performance (30) at the bottom

Enumerator
kEditorSpecific
kBitmapPalette
kCanvasProperties
kDebug

Definition at line 23 of file canvas_menu.h.

CanvasUsage

enum class yaze::gui::CanvasUsage

strong

Canvas usage patterns and tracking.

Enumerator
kTilePainting
kTileSelecting
kSelectRectangle
kColorPainting
kBitmapEditing
kPaletteEditing
kBppConversion
kPerformanceMode
kEntityManipulation
kUnknown

Definition at line 17 of file canvas_usage_tracker.h.

CanvasInteraction

enum class yaze::gui::CanvasInteraction

strong

Canvas interaction types.

Enumerator
kMouseClick
kMouseDrag
kMouseRelease
kKeyboardInput
kContextMenu
kModalOpen
kModalClose
kToolChange
kModeChange

Definition at line 33 of file canvas_usage_tracker.h.

ButtonType

enum class yaze::gui::ButtonType

strong

Enumerator
Default
Success
Warning
Error
Info

Definition at line 73 of file ui_helpers.h.

StatusType

enum class yaze::gui::StatusType

strong

Enumerator
kSuccess
kWarning
kError
kInfo

Definition at line 168 of file themed_widgets.h.

Function Documentation

AutoRegisterLastItem()

void yaze::gui::AutoRegisterLastItem	(	const std::string &	widget_type,
		const std::string &	explicit_label = "",
		const std::string &	description = ""
	)

Automatically register the last ImGui item.

Call this after any ImGui widget creation to automatically register it. Captures widget type, bounds, visibility, and enabled state.

Parameters

widget_type	Type of widget ("button", "input", "checkbox", etc.)
explicit_label	Optional explicit label (uses ImGui::GetItemLabel() if empty)
description	Optional description for the test harness

Definition at line 26 of file widget_auto_register.cc.

References yaze::gui::WidgetIdRegistry::WidgetMetadata::bounds, yaze::gui::WidgetIdRegistry::WidgetMetadata::enabled, g_auto_scope_stack_, yaze::gui::WidgetIdRegistry::Instance(), yaze::gui::WidgetIdRegistry::WidgetMetadata::label, yaze::gui::WidgetIdRegistry::WidgetBounds::max_x, yaze::gui::WidgetIdRegistry::WidgetBounds::max_y, yaze::gui::WidgetIdRegistry::WidgetBounds::min_x, yaze::gui::WidgetIdRegistry::WidgetBounds::min_y, yaze::gui::WidgetIdRegistry::NormalizeLabel(), yaze::gui::WidgetIdRegistry::RegisterWidget(), yaze::gui::WidgetIdRegistry::WidgetBounds::valid, yaze::gui::WidgetIdRegistry::WidgetMetadata::visible, and yaze::gui::WidgetIdRegistry::WidgetMetadata::window_name.

Referenced by AutoBeginMenu(), AutoBeginTabItem(), AutoButton(), AutoCheckbox(), AutoCollapsingHeader(), AutoCombo(), AutoInputFloat(), AutoInputInt(), AutoInputText(), AutoInputTextMultiline(), AutoMenuItem(), AutoMenuItem(), AutoRadioButton(), AutoRadioButton(), AutoSelectable(), AutoSelectable(), AutoSliderFloat(), AutoSliderInt(), AutoSmallButton(), AutoTreeNode(), AutoTreeNodeEx(), RegisterCanvas(), and RegisterTable().

Here is the call graph for this function:

AutoButton()

bool yaze::gui::AutoButton ( const char *  label, const ImVec2 &  size = ImVec2(0, 0)  )

inline

Definition at line 77 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoSmallButton()

bool yaze::gui::AutoSmallButton ( const char *  label )

inline

Definition at line 83 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoCheckbox()

bool yaze::gui::AutoCheckbox ( const char *  label, bool *  v  )

inline

Definition at line 89 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoRadioButton() [1/2]

bool yaze::gui::AutoRadioButton ( const char *  label, bool  active  )

inline

Definition at line 95 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoRadioButton() [2/2]

bool yaze::gui::AutoRadioButton ( const char *  label, int *  v, int  v_button  )

inline

Definition at line 101 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoInputText()

bool yaze::gui::AutoInputText ( const char *  label, char *  buf, size_t  buf_size, ImGuiInputTextFlags  flags = 0, ImGuiInputTextCallback  callback = nullptr, void *  user_data = nullptr  )

inline

Definition at line 107 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoInputTextMultiline()

bool yaze::gui::AutoInputTextMultiline ( const char *  label, char *  buf, size_t  buf_size, const ImVec2 &  size = ImVec2(0, 0), ImGuiInputTextFlags  flags = 0, ImGuiInputTextCallback  callback = nullptr, void *  user_data = nullptr  )

inline

Definition at line 116 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoInputInt()

bool yaze::gui::AutoInputInt ( const char *  label, int *  v, int  step = 1, int  step_fast = 100, ImGuiInputTextFlags  flags = 0  )

inline

Definition at line 126 of file widget_auto_register.h.

References AutoRegisterLastItem().

Referenced by yaze::gui::DungeonObjectEmulatorPreview::RenderControls().

Here is the call graph for this function:

AutoInputFloat()

bool yaze::gui::AutoInputFloat ( const char *  label, float *  v, float  step = 0.0f, float  step_fast = 0.0f, const char *  format = "%.3f", ImGuiInputTextFlags  flags = 0  )

inline

Definition at line 133 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoSliderInt()

bool yaze::gui::AutoSliderInt ( const char *  label, int *  v, int  v_min, int  v_max, const char *  format = "%d", ImGuiSliderFlags  flags = 0  )

inline

Definition at line 141 of file widget_auto_register.h.

References AutoRegisterLastItem().

Referenced by yaze::gui::DungeonObjectEmulatorPreview::RenderControls().

Here is the call graph for this function:

AutoSliderFloat()

bool yaze::gui::AutoSliderFloat ( const char *  label, float *  v, float  v_min, float  v_max, const char *  format = "%.3f", ImGuiSliderFlags  flags = 0  )

inline

Definition at line 148 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoCombo()

bool yaze::gui::AutoCombo ( const char *  label, int *  current_item, const char *const  items[], int  items_count, int  popup_max_height_in_items = -1  )

inline

Definition at line 155 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoSelectable() [1/2]

bool yaze::gui::AutoSelectable ( const char *  label, bool  selected = false, ImGuiSelectableFlags  flags = 0, const ImVec2 &  size = ImVec2(0, 0)  )

inline

Definition at line 162 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoSelectable() [2/2]

bool yaze::gui::AutoSelectable ( const char *  label, bool *  p_selected, ImGuiSelectableFlags  flags = 0, const ImVec2 &  size = ImVec2(0, 0)  )

inline

Definition at line 170 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoMenuItem() [1/2]

bool yaze::gui::AutoMenuItem ( const char *  label, const char *  shortcut = nullptr, bool  selected = false, bool  enabled = true  )

inline

Definition at line 178 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoMenuItem() [2/2]

bool yaze::gui::AutoMenuItem ( const char *  label, const char *  shortcut, bool *  p_selected, bool  enabled = true  )

inline

Definition at line 185 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoBeginMenu()

bool yaze::gui::AutoBeginMenu ( const char *  label, bool  enabled = true  )

inline

Definition at line 192 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoBeginTabItem()

bool yaze::gui::AutoBeginTabItem ( const char *  label, bool *  p_open = nullptr, ImGuiTabItemFlags  flags = 0  )

inline

Definition at line 200 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoTreeNode()

bool yaze::gui::AutoTreeNode ( const char *  label )

inline

Definition at line 209 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoTreeNodeEx()

bool yaze::gui::AutoTreeNodeEx ( const char *  label, ImGuiTreeNodeFlags  flags = 0  )

inline

Definition at line 217 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

AutoCollapsingHeader()

bool yaze::gui::AutoCollapsingHeader ( const char *  label, ImGuiTreeNodeFlags  flags = 0  )

inline

Definition at line 225 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

RegisterCanvas()

void yaze::gui::RegisterCanvas ( const char *  canvas_name, const std::string &  description = ""  )

inline

Register a canvas widget after BeginChild or similar.

Canvases typically use BeginChild which doesn't have a return value, so we provide a separate registration helper.

Parameters

canvas_name	Name of the canvas (should match BeginChild name)
description	Optional description of the canvas purpose

Definition at line 246 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

RegisterTable()

void yaze::gui::RegisterTable ( const char *  table_name, const std::string &  description = ""  )

inline

Register a table after BeginTable.

Parameters

table_name	Name of the table (should match BeginTable name)
description	Optional description

Definition at line 256 of file widget_auto_register.h.

References AutoRegisterLastItem().

Here is the call graph for this function:

BeginCanvas()

void yaze::gui::BeginCanvas	(	Canvas &	canvas,
		ImVec2	child_size
	)

Definition at line 1391 of file canvas.cc.

References BeginPadding(), yaze::gui::Canvas::canvas_id(), yaze::gui::Canvas::DrawBackground(), yaze::gui::Canvas::DrawContextMenu(), EndPadding(), yaze::gui::Canvas::GetCurrentSize(), yaze::gui::Canvas::GetPreferredSize(), and yaze::gui::Canvas::IsAutoResize().

Referenced by yaze::editor::MessageEditor::DrawFontAtlas().

EndCanvas()

void yaze::gui::EndCanvas

(

Canvas &

canvas

)

Definition at line 1412 of file canvas.cc.

References yaze::gui::Canvas::DrawGrid(), and yaze::gui::Canvas::DrawOverlay().

Referenced by yaze::editor::MessageEditor::DrawFontAtlas().

Here is the call graph for this function:

GraphicsBinCanvasPipeline() [1/2]

void yaze::gui::GraphicsBinCanvasPipeline	(	int	width,
		int	height,
		int	tile_size,
		int	num_sheets_to_load,
		int	canvas_id,
		bool	is_loaded,
		gfx::BitmapTable &	graphics_bin
	)

Definition at line 1418 of file canvas.cc.

References yaze::gui::Canvas::draw_list(), yaze::gui::Canvas::DrawBackground(), yaze::gui::Canvas::DrawContextMenu(), yaze::gui::Canvas::DrawGrid(), yaze::gui::Canvas::DrawOverlay(), yaze::gui::Canvas::DrawTileSelector(), yaze::gui::Canvas::RenderPersistentPopups(), and yaze::gui::Canvas::zero_point().

BitmapCanvasPipeline()

void yaze::gui::BitmapCanvasPipeline	(	gui::Canvas &	canvas,
		gfx::Bitmap &	bitmap,
		int	width,
		int	height,
		int	tile_size,
		bool	is_loaded,
		bool	scrollbar,
		int	canvas_id
	)

Definition at line 1451 of file canvas.cc.

References yaze::gui::Canvas::DrawBackground(), yaze::gui::Canvas::DrawBitmap(), yaze::gui::Canvas::DrawContextMenu(), yaze::gui::Canvas::DrawGrid(), yaze::gui::Canvas::DrawOverlay(), yaze::gui::Canvas::DrawTileSelector(), and yaze::gui::Canvas::RenderPersistentPopups().

Referenced by yaze::editor::GfxGroupEditor::DrawBlocksetViewer(), yaze::editor::GfxGroupEditor::DrawRoomsetViewer(), yaze::editor::GfxGroupEditor::DrawSpritesetViewer(), and yaze::editor::GraphicsEditor::UpdateScadView().

TableCanvasPipeline()

void yaze::gui::TableCanvasPipeline	(	gui::Canvas &	canvas,
		gfx::Bitmap &	bitmap,
		const std::string &	label,
		bool	auto_resize
	)

Definition at line 1479 of file canvas.cc.

References yaze::gui::Canvas::BeginTableCanvas(), yaze::gui::CanvasUtils::CalculatePreferredCanvasSize(), yaze::gui::Canvas::DrawBackground(), yaze::gui::Canvas::DrawBitmap(), yaze::gui::Canvas::DrawContextMenu(), yaze::gui::Canvas::DrawGrid(), yaze::gui::Canvas::DrawOverlay(), yaze::gui::Canvas::EndTableCanvas(), yaze::gui::Canvas::GetGlobalScale(), yaze::gfx::Bitmap::height(), yaze::gfx::Bitmap::is_active(), yaze::gui::Canvas::RenderPersistentPopups(), yaze::gui::Canvas::SetAutoResize(), yaze::gui::Canvas::SetCanvasSize(), and yaze::gfx::Bitmap::width().

GraphicsBinCanvasPipeline() [2/2]

void yaze::gui::GraphicsBinCanvasPipeline	(	int	width,
		int	height,
		int	tile_size,
		int	num_sheets_to_load,
		int	canvas_id,
		bool	is_loaded,
		BitmapTable &	graphics_bin
	)

CalculateCanvasGeometry()

CanvasGeometry yaze::gui::CalculateCanvasGeometry	(	const CanvasConfig &	config,
		ImVec2	requested_size,
		ImVec2	cursor_screen_pos,
		ImVec2	content_region_avail
	)

Calculate canvas geometry from configuration and ImGui context.

Extracts the geometry calculation logic from Canvas::DrawBackground(). Computes screen-space positions, sizes, and scroll offsets for a canvas based on its configuration and the current ImGui layout state.

Parameters

config	Canvas configuration (size, scale, custom size flag)
requested_size	Explicitly requested canvas size (0,0 = use config)
cursor_screen_pos	Current ImGui cursor position (from GetCursorScreenPos)
content_region_avail	Available content region (from GetContentRegionAvail)

Returns

Calculated geometry for this frame

Definition at line 9 of file canvas_geometry.cc.

References yaze::gui::CanvasUtils::CalculateCanvasSize(), yaze::gui::CanvasUtils::CalculateScaledCanvasSize(), yaze::gui::CanvasGeometry::canvas_p0, yaze::gui::CanvasGeometry::canvas_p1, yaze::gui::CanvasConfig::canvas_size, yaze::gui::CanvasGeometry::canvas_sz, yaze::gui::CanvasConfig::custom_canvas_size, yaze::gui::CanvasConfig::global_scale, yaze::gui::CanvasGeometry::scaled_size, yaze::gui::CanvasGeometry::scrolling, and yaze::gui::CanvasConfig::scrolling.

Referenced by yaze::gui::Canvas::DrawBackground().

Here is the call graph for this function:

CalculateMouseInCanvas()

ImVec2 yaze::gui::CalculateMouseInCanvas	(	const CanvasGeometry &	geometry,
		ImVec2	mouse_screen_pos
	)

Calculate mouse position in canvas space.

Converts screen-space mouse coordinates to canvas-space coordinates, accounting for canvas position and scroll offset. This is the correct coordinate system for tile/entity placement calculations.

Parameters

geometry	Canvas geometry (must be current frame)
mouse_screen_pos	Mouse position in screen space

Returns

Mouse position in canvas space

Definition at line 54 of file canvas_geometry.cc.

References GetCanvasOrigin().

Referenced by yaze::gui::Canvas::DrawBackground().

Here is the call graph for this function:

IsPointInCanvasBounds()

bool yaze::gui::IsPointInCanvasBounds	(	const CanvasGeometry &	geometry,
		ImVec2	point
	)

Check if a point is within canvas bounds.

Tests whether a screen-space point lies within the canvas rectangle. Useful for hit testing and hover detection.

Parameters

geometry	Canvas geometry (must be current frame)
point	Point in screen space to test

Returns

True if point is within canvas bounds

Definition at line 67 of file canvas_geometry.cc.

References yaze::gui::CanvasGeometry::canvas_p0, and yaze::gui::CanvasGeometry::canvas_p1.

ApplyScrollDelta()

void yaze::gui::ApplyScrollDelta	(	CanvasGeometry &	geometry,
		ImVec2	delta
	)

Apply scroll delta to geometry.

Updates the scroll offset in the geometry. Used for pan operations.

Parameters

geometry	Canvas geometry to update
delta	Scroll delta (typically ImGui::GetIO().MouseDelta)

Definition at line 77 of file canvas_geometry.cc.

References yaze::gui::CanvasGeometry::scrolling.

Referenced by yaze::gui::Canvas::DrawBackground().

GetCanvasOrigin()

ImVec2 yaze::gui::GetCanvasOrigin ( const CanvasGeometry &  geometry )

inline

Get origin point (canvas top-left + scroll offset)

Computes the "locked scrolled origin" used throughout canvas rendering. This is the reference point for all canvas-space to screen-space conversions.

Parameters

geometry

Canvas geometry

Returns

Origin point in screen space

Definition at line 78 of file canvas_geometry.h.

References yaze::gui::CanvasGeometry::canvas_p0, and yaze::gui::CanvasGeometry::scrolling.

Referenced by CalculateMouseInCanvas().

AlignToGrid()

ImVec2 yaze::gui::AlignToGrid	(	ImVec2	pos,
		float	grid_step
	)

Align position to grid.

Snaps canvas position to nearest grid cell.

Parameters

pos	Canvas position
grid_step	Grid cell size

Returns

Grid-aligned position

Definition at line 28 of file canvas_interaction.cc.

Referenced by yaze::gui::CanvasInteractionHandler::DrawSolidTilePainter(), yaze::gui::CanvasInteractionHandler::DrawTilemapPainter(), HandleHover(), HandleRectangleSelection(), HandleTilemapPaint(), HandleTilePaint(), HandleTilePaintWithPreview(), and HandleTileSelection().

GetMouseInCanvasSpace()

ImVec2 yaze::gui::GetMouseInCanvasSpace

(

const CanvasGeometry &

geometry

)

Get mouse position in canvas space.

Converts screen-space mouse position to canvas-space coordinates.

Parameters

geometry

Canvas geometry (includes origin)

Returns

Mouse position in canvas space

Definition at line 33 of file canvas_interaction.cc.

References yaze::gui::CanvasGeometry::canvas_p0, and yaze::gui::CanvasGeometry::scrolling.

Referenced by HandleHover(), HandleRectangleSelection(), HandleTilemapPaint(), HandleTilePaint(), HandleTilePaintWithPreview(), and HandleTileSelection().

IsMouseInCanvas()

bool yaze::gui::IsMouseInCanvas

(

const CanvasGeometry &

geometry

)

Check if mouse is in canvas bounds.

Parameters

geometry

Canvas geometry

Returns

True if mouse is within canvas

Definition at line 40 of file canvas_interaction.cc.

References yaze::gui::CanvasGeometry::canvas_p0, and yaze::gui::CanvasGeometry::canvas_p1.

Referenced by HandleEntityInteraction(), HandleHover(), HandleRectangleSelection(), HandleTilemapPaint(), HandleTilePaint(), HandleTilePaintWithPreview(), and HandleTileSelection().

CanvasToTileGrid()

ImVec2 yaze::gui::CanvasToTileGrid	(	ImVec2	canvas_pos,
		float	tile_size,
		float	global_scale
	)

Calculate tile grid indices from canvas position.

Parameters

canvas_pos	Canvas-space position
tile_size	Logical tile size
global_scale	Canvas scale factor

Returns

Tile grid position (x, y)

Definition at line 48 of file canvas_interaction.cc.

HandleRectangleSelection()

RectSelectionEvent yaze::gui::HandleRectangleSelection	(	const CanvasGeometry &	geometry,
		int	current_map,
		float	tile_size,
		ImDrawList *	draw_list,
		ImGuiMouseButton	mouse_button = ImGuiMouseButton_Right
	)

Handle rectangle selection interaction.

Processes right-click drag to select multiple tiles in a rectangular region. Returns event when selection completes.

Parameters

geometry	Canvas geometry (position, size, scale)
current_map	Current map ID for coordinate calculation
tile_size	Logical tile size (before scaling)
draw_list	ImGui draw list for preview rendering
mouse_button	Mouse button for selection (default: right)

Returns

RectSelectionEvent with selection results

Definition at line 58 of file canvas_interaction.cc.

References AlignToGrid(), yaze::gui::CanvasGeometry::canvas_p0, yaze::gui::CanvasGeometry::canvas_sz, yaze::gui::RectSelectionEvent::current_map, yaze::gui::anonymous_namespace{canvas_interaction.cc}::SelectRectState::drag_start_pos, GetMouseInCanvasSpace(), yaze::gui::anonymous_namespace{canvas_interaction.cc}::SelectRectState::is_dragging, IsMouseInCanvas(), and yaze::gui::CanvasGeometry::scaled_size.

Referenced by yaze::gui::CanvasInteractionHandler::DrawSelectRect().

Here is the call graph for this function:

HandleTileSelection()

TileSelectionEvent yaze::gui::HandleTileSelection	(	const CanvasGeometry &	geometry,
		int	current_map,
		float	tile_size,
		ImGuiMouseButton	mouse_button = ImGuiMouseButton_Right
	)

Handle single tile selection (right-click)

Processes single right-click to select one tile.

Parameters

geometry	Canvas geometry
current_map	Current map ID
tile_size	Logical tile size
mouse_button	Mouse button for selection

Returns

TileSelectionEvent with selected tile

Definition at line 170 of file canvas_interaction.cc.

References AlignToGrid(), yaze::gui::CanvasGeometry::canvas_sz, GetMouseInCanvasSpace(), IsMouseInCanvas(), and yaze::gui::CanvasGeometry::scaled_size.

Here is the call graph for this function:

HandleTilePaint()

TilePaintEvent yaze::gui::HandleTilePaint	(	const CanvasGeometry &	geometry,
		int	tile_id,
		float	tile_size,
		ImGuiMouseButton	mouse_button = ImGuiMouseButton_Left
	)

Handle tile painting interaction.

Processes left-click/drag to paint tiles on tilemap. Returns event when paint action occurs.

Parameters

geometry	Canvas geometry
tile_id	Current tile ID to paint
tile_size	Logical tile size
mouse_button	Mouse button for painting

Returns

TilePaintEvent with paint results

Definition at line 221 of file canvas_interaction.cc.

References AlignToGrid(), yaze::gui::CanvasGeometry::canvas_sz, GetMouseInCanvasSpace(), IsMouseInCanvas(), yaze::gui::CanvasGeometry::scaled_size, and yaze::gui::TilePaintEvent::tile_id.

Here is the call graph for this function:

HandleTilePaintWithPreview()

TilePaintEvent yaze::gui::HandleTilePaintWithPreview	(	const CanvasGeometry &	geometry,
		const gfx::Bitmap &	bitmap,
		float	tile_size,
		ImDrawList *	draw_list,
		ImGuiMouseButton	mouse_button = ImGuiMouseButton_Left
	)

Handle tile painter with bitmap preview.

Renders preview of tile at hover position and handles paint interaction.

Parameters

geometry	Canvas geometry
bitmap	Tile bitmap to paint
tile_size	Logical tile size
draw_list	ImGui draw list for preview
mouse_button	Mouse button for painting

Returns

TilePaintEvent with paint results

Definition at line 253 of file canvas_interaction.cc.

References AlignToGrid(), yaze::gui::CanvasGeometry::canvas_p0, yaze::gui::CanvasGeometry::canvas_sz, GetMouseInCanvasSpace(), yaze::gfx::Bitmap::is_active(), IsMouseInCanvas(), yaze::gui::CanvasGeometry::scaled_size, yaze::gui::CanvasGeometry::scrolling, and yaze::gfx::Bitmap::texture().

HandleTilemapPaint()

TilePaintEvent yaze::gui::HandleTilemapPaint	(	const CanvasGeometry &	geometry,
		const gfx::Tilemap &	tilemap,
		int	current_tile,
		ImDrawList *	draw_list,
		ImGuiMouseButton	mouse_button = ImGuiMouseButton_Left
	)

Handle tilemap painting interaction.

Processes painting with tilemap data (multiple tiles).

Parameters

geometry	Canvas geometry
tilemap	Tilemap containing tile data
current_tile	Current tile index in tilemap
draw_list	ImGui draw list for preview
mouse_button	Mouse button for painting

Returns

TilePaintEvent with paint results

Definition at line 296 of file canvas_interaction.cc.

References AlignToGrid(), yaze::gfx::Tilemap::atlas, yaze::gui::CanvasGeometry::canvas_p0, yaze::gui::CanvasGeometry::canvas_sz, GetMouseInCanvasSpace(), yaze::gfx::Bitmap::is_active(), IsMouseInCanvas(), yaze::gui::CanvasGeometry::scaled_size, yaze::gui::CanvasGeometry::scrolling, and yaze::gui::TilePaintEvent::tile_id.

Here is the call graph for this function:

HandleHover()

HoverEvent yaze::gui::HandleHover	(	const CanvasGeometry &	geometry,
		float	tile_size
	)

Update hover state for canvas.

Calculates hover position and grid-aligned preview position.

Parameters

geometry	Canvas geometry
tile_size	Logical tile size

Returns

HoverEvent with hover state

Definition at line 338 of file canvas_interaction.cc.

References AlignToGrid(), yaze::gui::CanvasGeometry::canvas_sz, GetMouseInCanvasSpace(), IsMouseInCanvas(), and yaze::gui::CanvasGeometry::scaled_size.

Here is the call graph for this function:

RenderHoverPreview()

void yaze::gui::RenderHoverPreview	(	const CanvasGeometry &	geometry,
		const HoverEvent &	hover,
		float	tile_size,
		ImDrawList *	draw_list,
		ImU32	color = IM_COL32(255, 255, 255, 80)
	)

Render hover preview overlay.

Draws preview rectangle at hover position.

Parameters

geometry	Canvas geometry
hover	Hover event from HandleHover
tile_size	Logical tile size
draw_list	ImGui draw list
color	Preview color (default: white with alpha)

Definition at line 355 of file canvas_interaction.cc.

References yaze::gui::CanvasGeometry::canvas_p0, yaze::gui::CanvasGeometry::canvas_sz, yaze::gui::HoverEvent::grid_position, yaze::gui::HoverEvent::is_valid, yaze::gui::CanvasGeometry::scaled_size, and yaze::gui::CanvasGeometry::scrolling.

HandleEntityInteraction()

EntityInteractionEvent yaze::gui::HandleEntityInteraction	(	const CanvasGeometry &	geometry,
		int	entity_id,
		ImVec2	entity_position
	)

Handle entity interaction (hover, click, drag)

Processes entity manipulation events.

Parameters

geometry	Canvas geometry
entity_id	Entity being interacted with
entity_position	Current entity position

Returns

EntityInteractionEvent with interaction results

Definition at line 382 of file canvas_interaction.cc.

References yaze::gui::EntityInteractionEvent::entity_id, and IsMouseInCanvas().

Here is the call graph for this function:

RenderMenuItem()

void yaze::gui::RenderMenuItem	(	const CanvasMenuItem &	item,
		std::function< void(const std::string &, std::function< void()>)>	popup_opened_callback = nullptr
	)

Render a single menu item.

Handles visibility, enabled state, subitems, and popup linkage.

Parameters

item	Menu item to render
popup_opened_callback	Optional callback invoked when popup is opened

Definition at line 6 of file canvas_menu.cc.

References yaze::gui::CanvasMenuItem::callback, yaze::gui::CanvasMenuItem::color, yaze::gui::CanvasMenuItem::enabled_condition, yaze::gui::CanvasMenuItem::icon, yaze::gui::CanvasMenuItem::label, yaze::gui::CanvasMenuItem::popup, RenderMenuItem(), yaze::gui::CanvasMenuItem::separator_after, yaze::gui::CanvasMenuItem::shortcut, yaze::gui::CanvasMenuItem::subitems, and yaze::gui::CanvasMenuItem::visible_condition.

Referenced by yaze::gui::Canvas::DrawContextMenuItem(), yaze::gui::CanvasContextMenu::RenderMenuItem(), RenderMenuItem(), and RenderMenuSection().

Here is the call graph for this function:

RenderMenuSection()

void yaze::gui::RenderMenuSection	(	const CanvasMenuSection &	section,
		std::function< void(const std::string &, std::function< void()>)>	popup_opened_callback = nullptr
	)

Render a menu section.

Renders section title (if present), all items, and separator.

Parameters

section	Menu section to render
popup_opened_callback	Optional callback invoked when popup is opened

Definition at line 75 of file canvas_menu.cc.

References yaze::gui::CanvasMenuSection::items, RenderMenuItem(), yaze::gui::CanvasMenuSection::separator_after, yaze::gui::CanvasMenuSection::title, and yaze::gui::CanvasMenuSection::title_color.

Referenced by RenderCanvasMenu().

Here is the call graph for this function:

RenderCanvasMenu()

void yaze::gui::RenderCanvasMenu	(	const CanvasMenuDefinition &	menu,
		std::function< void(const std::string &, std::function< void()>)>	popup_opened_callback = nullptr
	)

Render a complete menu definition.

Renders all sections in order. Does not handle ImGui::BeginPopup/EndPopup - caller is responsible for popup context.

Parameters

menu	Menu definition to render
popup_opened_callback	Optional callback invoked when popup is opened

Definition at line 100 of file canvas_menu.cc.

References yaze::gui::CanvasMenuDefinition::enabled, RenderMenuSection(), and yaze::gui::CanvasMenuDefinition::sections.

Referenced by yaze::gui::CanvasContextMenu::Render().

Here is the call graph for this function:

RenderCanvasBackground()

void yaze::gui::RenderCanvasBackground	(	ImDrawList *	draw_list,
		const CanvasGeometry &	geometry
	)

Render canvas background and border.

Draws the canvas background rectangle (dark) and border (white) at the calculated geometry positions. Extracted from Canvas::DrawBackground().

Parameters

draw_list	ImGui draw list for rendering
geometry	Canvas geometry for this frame

Definition at line 16 of file canvas_rendering.cc.

References yaze::gui::CanvasGeometry::canvas_p0, yaze::gui::CanvasGeometry::canvas_p1, kRectangleColor, and kWhiteColor.

Referenced by yaze::gui::Canvas::DrawBackground().

RenderCanvasGrid()

void yaze::gui::RenderCanvasGrid	(	ImDrawList *	draw_list,
		const CanvasGeometry &	geometry,
		const CanvasConfig &	config,
		int	highlight_tile_id = -1
	)

Render canvas grid with optional highlighting.

Draws grid lines, hex labels, and optional tile highlighting. Extracted from Canvas::DrawGrid().

Parameters

draw_list	ImGui draw list for rendering
geometry	Canvas geometry
config	Canvas configuration (grid settings)
highlight_tile_id	Tile ID to highlight (-1 = no highlight)

Definition at line 25 of file canvas_rendering.cc.

References yaze::gui::CanvasGeometry::canvas_p0, yaze::gui::CanvasGeometry::canvas_p1, yaze::gui::CanvasUtils::CanvasRenderContext::draw_list, yaze::gui::CanvasUtils::DrawCanvasGrid(), yaze::gui::CanvasConfig::enable_grid, yaze::gui::CanvasConfig::enable_hex_labels, yaze::gui::CanvasConfig::global_scale, yaze::gui::CanvasConfig::grid_step, and yaze::gui::CanvasGeometry::scrolling.

Here is the call graph for this function:

RenderCanvasOverlay()

void yaze::gui::RenderCanvasOverlay	(	ImDrawList *	draw_list,
		const CanvasGeometry &	geometry,
		const CanvasConfig &	config,
		const ImVector< ImVec2 > &	points,
		const ImVector< ImVec2 > &	selected_points
	)

Render canvas overlay (hover and selection points)

Draws hover preview points and selection rectangle points. Extracted from Canvas::DrawOverlay().

Parameters

draw_list	ImGui draw list for rendering
geometry	Canvas geometry
config	Canvas configuration (scale)
points	Hover preview points
selected_points	Selection rectangle points

Definition at line 50 of file canvas_rendering.cc.

References yaze::gui::CanvasGeometry::canvas_p0, yaze::gui::CanvasGeometry::canvas_p1, yaze::gui::CanvasUtils::CanvasRenderContext::draw_list, yaze::gui::CanvasUtils::DrawCanvasOverlay(), yaze::gui::CanvasConfig::enable_grid, yaze::gui::CanvasConfig::enable_hex_labels, yaze::gui::CanvasConfig::global_scale, yaze::gui::CanvasConfig::grid_step, and yaze::gui::CanvasGeometry::scrolling.

Here is the call graph for this function:

RenderCanvasLabels()

void yaze::gui::RenderCanvasLabels	(	ImDrawList *	draw_list,
		const CanvasGeometry &	geometry,
		const CanvasConfig &	config,
		const ImVector< ImVector< std::string > > &	labels,
		int	current_labels,
		int	tile_id_offset
	)

Render canvas labels on grid.

Draws custom text labels on canvas tiles. Extracted from Canvas::DrawInfoGrid().

Parameters

draw_list	ImGui draw list for rendering
geometry	Canvas geometry
config	Canvas configuration
labels	Label arrays (one per label set)
current_labels	Active label set index
tile_id_offset	Tile ID offset for calculation

Definition at line 72 of file canvas_rendering.cc.

References yaze::gui::CanvasGeometry::canvas_p0, yaze::gui::CanvasGeometry::canvas_p1, yaze::gui::CanvasUtils::CanvasRenderContext::draw_list, yaze::gui::CanvasUtils::DrawCanvasLabels(), yaze::gui::CanvasConfig::enable_custom_labels, yaze::gui::CanvasConfig::enable_grid, yaze::gui::CanvasConfig::enable_hex_labels, yaze::gui::CanvasConfig::global_scale, yaze::gui::CanvasConfig::grid_step, and yaze::gui::CanvasGeometry::scrolling.

Here is the call graph for this function:

RenderBitmapOnCanvas() [1/3]

void yaze::gui::RenderBitmapOnCanvas	(	ImDrawList *	draw_list,
		const CanvasGeometry &	geometry,
		gfx::Bitmap &	bitmap,
		int	border_offset,
		float	scale
	)

Render bitmap on canvas (border offset variant)

Draws a bitmap with a border offset from canvas origin. Extracted from Canvas::DrawBitmap().

Parameters

draw_list	ImGui draw list
geometry	Canvas geometry
bitmap	Bitmap to render
border_offset	Offset from canvas edges
scale	Rendering scale

Definition at line 104 of file canvas_rendering.cc.

References yaze::gui::CanvasGeometry::canvas_p0, yaze::gui::CanvasGeometry::canvas_p1, yaze::gfx::Bitmap::height(), yaze::gfx::Bitmap::is_active(), kWhiteColor, yaze::gfx::Bitmap::texture(), and yaze::gfx::Bitmap::width().

Referenced by yaze::gui::Canvas::DrawBitmap(), yaze::gui::Canvas::DrawBitmap(), and yaze::gui::Canvas::DrawBitmap().

Here is the call graph for this function:

RenderBitmapOnCanvas() [2/3]

void yaze::gui::RenderBitmapOnCanvas	(	ImDrawList *	draw_list,
		const CanvasGeometry &	geometry,
		gfx::Bitmap &	bitmap,
		int	x_offset,
		int	y_offset,
		float	scale,
		int	alpha
	)

Render bitmap on canvas (x/y offset variant)

Draws a bitmap at specified x/y offset with optional alpha. Extracted from Canvas::DrawBitmap().

Parameters

draw_list	ImGui draw list
geometry	Canvas geometry
bitmap	Bitmap to render
x_offset	X offset from canvas origin
y_offset	Y offset from canvas origin
scale	Rendering scale
alpha	Alpha transparency (0-255)

Definition at line 124 of file canvas_rendering.cc.

References yaze::gui::CanvasGeometry::canvas_p0, yaze::gfx::Bitmap::height(), yaze::gfx::Bitmap::is_active(), yaze::gui::CanvasGeometry::scrolling, yaze::gfx::Bitmap::texture(), and yaze::gfx::Bitmap::width().

Here is the call graph for this function:

RenderBitmapOnCanvas() [3/3]

void yaze::gui::RenderBitmapOnCanvas	(	ImDrawList *	draw_list,
		const CanvasGeometry &	geometry,
		gfx::Bitmap &	bitmap,
		ImVec2	dest_pos,
		ImVec2	dest_size,
		ImVec2	src_pos,
		ImVec2	src_size
	)

Render bitmap on canvas (custom source/dest regions)

Draws a bitmap with explicit source and destination rectangles. Extracted from Canvas::DrawBitmap().

Parameters

draw_list	ImGui draw list
geometry	Canvas geometry
bitmap	Bitmap to render
dest_pos	Destination position (canvas-relative)
dest_size	Destination size
src_pos	Source position in bitmap
src_size	Source size in bitmap

Definition at line 154 of file canvas_rendering.cc.

References yaze::gui::CanvasGeometry::canvas_p0, yaze::gfx::Bitmap::height(), yaze::gfx::Bitmap::is_active(), yaze::gfx::Bitmap::texture(), and yaze::gfx::Bitmap::width().

Here is the call graph for this function:

RenderBitmapGroup()

void yaze::gui::RenderBitmapGroup	(	ImDrawList *	draw_list,
		const CanvasGeometry &	geometry,
		std::vector< int > &	group,
		gfx::Tilemap &	tilemap,
		int	tile_size,
		float	scale,
		int	local_map_size,
		ImVec2	total_map_size
	)

Render group of bitmaps from tilemap.

Draws multiple tiles for multi-tile selection preview. Extracted from Canvas::DrawBitmapGroup().

Parameters

draw_list	ImGui draw list
geometry	Canvas geometry
group	Vector of tile IDs to draw
tilemap	Tilemap containing the tiles
tile_size	Size of each tile
scale	Rendering scale
local_map_size	Size of local map in pixels (default 512)
total_map_size	Total map size for boundary clamping

Definition at line 178 of file canvas_rendering.cc.

References yaze::gfx::Tilemap::atlas, yaze::gui::CanvasGeometry::canvas_p0, yaze::gfx::Bitmap::height(), yaze::gfx::Bitmap::is_active(), yaze::gfx::Tilemap::map_size, yaze::gui::CanvasGeometry::scrolling, yaze::gfx::Bitmap::texture(), yaze::gfx::Tilemap::tile_size, yaze::gfx::Bitmap::width(), yaze::gfx::Pair::x, and yaze::gfx::Pair::y.

Here is the call graph for this function:

ConvertSnesColorToImVec4()

ImVec4 yaze::gui::ConvertSnesColorToImVec4

(

const gfx::SnesColor &

color

)

Convert SnesColor to standard ImVec4 for display.

IMPORTANT: SnesColor.rgb() returns 0-255 values in ImVec4 (unconventional!) This function converts them to standard ImGui format (0.0-1.0)

Parameters

color

SnesColor with internal 0-255 storage

Returns

ImVec4 with standard 0.0-1.0 RGBA values for ImGui

Definition at line 19 of file color.cc.

References yaze::gfx::SnesColor::rgb().

Referenced by DisplayEditablePalette(), yaze::editor::PaletteGroupCard::DrawColorPicker(), yaze::editor::MapPropertiesSystem::DrawCustomBackgroundColorEditor(), yaze::editor::PaletteEditor::DrawCustomPalette(), yaze::editor::PaletteEditor::DrawCustomPaletteCard(), yaze::editor::palette_utility::DrawInlineColorEdit(), yaze::editor::PaletteEditor::DrawPaletteGroup(), yaze::editor::palette_utility::DrawPalettePreview(), yaze::editor::PaletteEditor::DrawQuickAccessCard(), yaze::editor::PaletteEditor::DrawQuickAccessTab(), InlinePaletteEditor(), PaletteColorButton(), PopupPaletteEditor(), SnesColorButton(), and SnesColorEdit4().

Here is the call graph for this function:

ConvertImVec4ToSnesColor()

gfx::SnesColor yaze::gui::ConvertImVec4ToSnesColor

(

const ImVec4 &

color

)

Convert standard ImVec4 to SnesColor.

Parameters

color

ImVec4 with standard 0.0-1.0 RGBA values

Returns

SnesColor with converted values

Definition at line 32 of file color.cc.

Referenced by DisplayEditablePalette(), yaze::editor::PaletteGroupCard::DrawColorPicker(), yaze::editor::MapPropertiesSystem::DrawCustomBackgroundColorEditor(), yaze::editor::palette_utility::DrawInlineColorEdit(), yaze::editor::PaletteEditor::EditColorInPalette(), and yaze::editor::PaletteEditor::ResetColorToOriginal().

SnesColorButton()

IMGUI_API bool yaze::gui::SnesColorButton	(	absl::string_view	id,
		gfx::SnesColor &	color,
		ImGuiColorEditFlags	flags,
		const ImVec2 &	size_arg
	)

Definition at line 37 of file color.cc.

References ConvertSnesColorToImVec4(), and yaze::gfx::SnesColor::snes().

Referenced by DisplayEditablePalette(), yaze::editor::anonymous_namespace{gfx_group_editor.cc}::DrawPaletteFromPaletteGroup(), InlinePaletteEditor(), InlinePaletteSelector(), PopupPaletteEditor(), and SelectablePalettePipeline().

Here is the call graph for this function:

SnesColorEdit4()

IMGUI_API bool yaze::gui::SnesColorEdit4	(	absl::string_view	label,
		gfx::SnesColor *	color,
		ImGuiColorEditFlags	flags
	)

Definition at line 54 of file color.cc.

References ConvertSnesColorToImVec4(), and yaze::gfx::SnesColor::set_rgb().

Referenced by yaze::editor::PaletteEditor::DrawCustomPalette(), yaze::editor::PaletteEditor::DrawCustomPaletteCard(), yaze::editor::PaletteEditor::DrawQuickAccessCard(), yaze::editor::PaletteEditor::DrawQuickAccessTab(), and yaze::editor::PaletteEditor::HandleColorPopup().

Here is the call graph for this function:

InlinePaletteSelector()

IMGUI_API bool yaze::gui::InlinePaletteSelector	(	gfx::SnesPalette &	palette,
		int	num_colors = 8,
		int *	selected_index = nullptr
	)

Small inline palette selector - just color buttons for selection.

Parameters

palette	Palette to display
num_colors	Number of colors to show (default 8)
selected_index	Pointer to store selected color index (optional)

Returns

True if a color was selected

Definition at line 77 of file color.cc.

References yaze::gfx::SnesPalette::size(), and SnesColorButton().

Here is the call graph for this function:

InlinePaletteEditor()

IMGUI_API absl::Status yaze::gui::InlinePaletteEditor	(	gfx::SnesPalette &	palette,
		const std::string &	title = "",
		ImGuiColorEditFlags	flags = 0
	)

Full inline palette editor with color picker and copy options.

Parameters

palette	Palette to edit
title	Display title
flags	ImGui color edit flags

Returns

Status of the operation

Definition at line 117 of file color.cc.

References ConvertSnesColorToImVec4(), yaze::gfx::SnesPalette::size(), SnesColorButton(), and yaze::gfx::SnesPalette::UpdateColor().

Referenced by yaze::editor::ScreenEditor::DrawOverworldMapEditor().

Here is the call graph for this function:

PopupPaletteEditor()

IMGUI_API bool yaze::gui::PopupPaletteEditor	(	const char *	popup_id,
		gfx::SnesPalette &	palette,
		ImGuiColorEditFlags	flags = 0
	)

Popup palette editor - same as inline but in a popup.

Parameters

popup_id	ID for the popup window
palette	Palette to edit
flags	ImGui color edit flags

Returns

True if palette was modified

Definition at line 183 of file color.cc.

References ConvertSnesColorToImVec4(), yaze::gfx::SnesPalette::size(), SnesColorButton(), and yaze::gfx::SnesPalette::UpdateColor().

Here is the call graph for this function:

DisplayPalette()

IMGUI_API bool yaze::gui::DisplayPalette	(	gfx::SnesPalette &	palette,
		bool	loaded
	)

Definition at line 232 of file color.cc.

References yaze::gfx::SnesPalette::size().

Referenced by yaze::editor::MessageEditor::DrawCurrentMessage(), and yaze::editor::ScreenEditor::DrawInventoryMenuEditor().

Here is the call graph for this function:

SelectablePalettePipeline()

void yaze::gui::SelectablePalettePipeline	(	uint64_t &	palette_id,
		bool &	refresh_graphics,
		gfx::SnesPalette &	palette
	)

Definition at line 305 of file color.cc.

References yaze::gfx::SnesPalette::size(), and SnesColorButton().

Referenced by yaze::editor::GraphicsEditor::DrawPaletteControls(), and yaze::editor::GraphicsEditor::UpdatePaletteColumn().

Here is the call graph for this function:

DisplayEditablePalette()

IMGUI_API absl::Status yaze::gui::DisplayEditablePalette	(	gfx::SnesPalette &	palette,
		const std::string &	title,
		bool	show_color_picker,
		int	colors_per_row,
		ImGuiColorEditFlags	flags
	)

Definition at line 348 of file color.cc.

References ConvertImVec4ToSnesColor(), ConvertSnesColorToImVec4(), yaze::gfx::SnesPalette::size(), SnesColorButton(), and yaze::gfx::SnesPalette::UpdateColor().

Referenced by yaze::gui::CanvasContextMenu::RenderPaletteOperationsMenu().

PaletteColorButton()

IMGUI_API bool yaze::gui::PaletteColorButton	(	const char *	id,
		const gfx::SnesColor &	color,
		bool	is_selected,
		bool	is_modified,
		const ImVec2 &	size,
		ImGuiColorEditFlags	flags
	)

Definition at line 445 of file color.cc.

References ConvertSnesColorToImVec4(), yaze::gfx::SnesColor::rgb(), and yaze::gfx::SnesColor::snes().

Referenced by yaze::editor::OverworldMainPaletteCard::DrawPaletteGrid(), yaze::editor::OverworldAnimatedPaletteCard::DrawPaletteGrid(), yaze::editor::DungeonMainPaletteCard::DrawPaletteGrid(), yaze::editor::SpritePaletteCard::DrawPaletteGrid(), yaze::editor::SpritesAux1PaletteCard::DrawPaletteGrid(), yaze::editor::SpritesAux2PaletteCard::DrawPaletteGrid(), yaze::editor::SpritesAux3PaletteCard::DrawPaletteGrid(), and yaze::editor::EquipmentPaletteCard::DrawPaletteGrid().

Here is the call graph for this function:

ConvertColorToImVec4()

ImVec4 yaze::gui::ConvertColorToImVec4 ( const Color &  color )

inline

Definition at line 21 of file color.h.

References yaze::gui::Color::alpha, yaze::gui::Color::blue, yaze::gui::Color::green, and yaze::gui::Color::red.

Referenced by yaze::gui::EnhancedTheme::ApplyToImGui(), yaze::gui::LayoutHelpers::BeginCanvasPanel(), yaze::gui::LayoutHelpers::BeginTableWithTheming(), BeginThemedPanel(), BeginThemedTooltip(), yaze::gui::LayoutHelpers::BeginToolbar(), yaze::gui::BackgroundRenderer::BlendColorWithFade(), DangerButton(), yaze::editor::UICoordinator::DrawCommandPalette(), DrawDisplaySettings(), DrawDisplaySettingsForPopup(), yaze::editor::SessionCoordinator::DrawSessionIndicator(), yaze::editor::EditorCardRegistry::DrawSidebar(), yaze::editor::AgentUITheme::FromCurrentTheme(), GetAccentColor(), GetErrorColor(), GetInfoColor(), GetModifiedColor(), GetOnPrimaryVec4(), GetOnSurfaceVariantVec4(), GetOnSurfaceVec4(), GetOutlineVec4(), GetPrimaryActiveVec4(), GetPrimaryHoverVec4(), GetPrimaryVec4(), GetSelectedColor(), GetShadowVec4(), GetSuccessColor(), GetSurfaceContainerHighestVec4(), GetSurfaceContainerHighVec4(), GetSurfaceContainerVec4(), GetSurfaceVariantVec4(), GetSurfaceVec4(), GetTextDisabledVec4(), GetTextSecondaryVec4(), GetWarningColor(), ModifiedBadge(), PrimaryButton(), PushThemedWidgetColors(), yaze::emu::ui::RenderAIAgentPanel(), yaze::emu::ui::RenderApuDebugger(), yaze::emu::ui::RenderBreakpointList(), yaze::emu::ui::RenderCpuInstructionLog(), yaze::gui::BackgroundRenderer::RenderDockingBackground(), yaze::emu::ui::RenderEmulatorInterface(), yaze::emu::ui::RenderKeyboardShortcuts(), yaze::emu::ui::RenderMemoryViewer(), yaze::emu::ui::RenderModernCpuDebugger(), yaze::emu::ui::RenderNavBar(), yaze::emu::ui::RenderPerformanceMonitor(), yaze::gui::BackgroundRenderer::RenderRadialGradient(), yaze::emu::ui::RenderSnesPpu(), yaze::gui::LayoutHelpers::SectionHeader(), yaze::gui::ThemeManager::ShowSimpleThemeEditor(), yaze::gui::ThemeManager::ShowThemeSelector(), ThemedButton(), ThemedCheckbox(), ThemedCollapsingHeader(), ThemedCombo(), ThemedInputFloat(), ThemedInputInt(), ThemedInputText(), ThemedProgressBar(), and ThemedStatusText().

ColorToHexString()

std::string yaze::gui::ColorToHexString ( const Color &  color )

inline

Definition at line 25 of file color.h.

References yaze::gui::Color::alpha, yaze::gui::Color::blue, yaze::gui::Color::green, and yaze::gui::Color::red.

InputHex() [1/2]

IMGUI_API bool yaze::gui::InputHex	(	const char *	label,
		uint64_t *	data
	)

Definition at line 156 of file input.cc.

References kStepFastHex, and kStepOneHex.

Referenced by yaze::editor::GraphicsEditor::DrawClipboardImport(), yaze::editor::DrawEntranceInserterPopup(), yaze::editor::DrawExitEditorPopup(), yaze::editor::DrawExitInserterPopup(), yaze::editor::GraphicsEditor::DrawFileImport(), yaze::editor::DrawOverworldEntrancePopup(), yaze::editor::GraphicsEditor::DrawPaletteControls(), yaze::editor::DrawSpriteInserterPopup(), yaze::editor::MemoryEditorWithDiffChecker::Update(), and yaze::editor::GraphicsEditor::UpdatePaletteColumn().

InputHex() [2/2]

IMGUI_API bool yaze::gui::InputHex	(	const char *	label,
		int *	data,
		int	num_digits,
		float	input_width
	)

Definition at line 162 of file input.cc.

References ImGui::InputScalarLeft(), kStepFastHex, and kStepOneHex.

Here is the call graph for this function:

InputHexShort()

IMGUI_API bool yaze::gui::InputHexShort	(	const char *	label,
		uint32_t *	data
	)

Definition at line 169 of file input.cc.

References kStepFastHex, and kStepOneHex.

InputHexWord() [1/2]

IMGUI_API bool yaze::gui::InputHexWord	(	const char *	label,
		uint16_t *	data,
		float	input_width,
		bool	no_step
	)

Definition at line 175 of file input.cc.

References ImGui::InputScalarLeft(), kStepFastHex, and kStepOneHex.

Referenced by yaze::gui::Toolset::AddProperty(), yaze::editor::MapPropertiesSystem::DrawBasicPropertiesTab(), yaze::editor::MapPropertiesSystem::DrawCustomFeaturesTab(), yaze::editor::DungeonCanvasViewer::DrawDungeonCanvas(), yaze::editor::ScreenEditor::DrawDungeonMapsTabs(), yaze::editor::DungeonRoomSelector::DrawEntranceSelector(), yaze::editor::DungeonEditorV2::DrawEntrancesListCard(), yaze::editor::DrawExitEditorPopup(), yaze::editor::MapPropertiesSystem::DrawOverlayControls(), yaze::editor::MapPropertiesSystem::DrawOverlayEditor(), yaze::editor::DrawOverworldEntrancePopup(), yaze::editor::DungeonRoomSelector::DrawRoomSelector(), yaze::editor::SpriteEditor::DrawSpriteCanvas(), and InputTileInfo().

Here is the call graph for this function:

InputHexWord() [2/2]

IMGUI_API bool yaze::gui::InputHexWord	(	const char *	label,
		int16_t *	data,
		float	input_width,
		bool	no_step
	)

Definition at line 182 of file input.cc.

References ImGui::InputScalarLeft(), kStepFastHex, and kStepOneHex.

Here is the call graph for this function:

InputHexByte() [1/2]

IMGUI_API bool yaze::gui::InputHexByte	(	const char *	label,
		uint8_t *	data,
		float	input_width,
		bool	no_step
	)

Definition at line 189 of file input.cc.

References ImGui::InputScalarLeft(), kStepFastHex, and kStepOneHex.

Referenced by yaze::gui::Toolset::AddProperty(), yaze::editor::MapPropertiesSystem::DrawBasicPropertiesTab(), yaze::editor::GfxGroupEditor::DrawBlocksetViewer(), yaze::editor::SpriteEditor::DrawCurrentSheets(), yaze::editor::MapPropertiesSystem::DrawCustomFeaturesTab(), yaze::editor::DungeonCanvasViewer::DrawDungeonCanvas(), yaze::editor::ScreenEditor::DrawDungeonMapsTabs(), yaze::editor::DungeonRoomSelector::DrawEntranceSelector(), yaze::editor::DungeonEditorV2::DrawEntrancesListCard(), yaze::editor::GraphicsEditor::DrawGfxEditToolset(), yaze::editor::MapPropertiesSystem::DrawGraphicsPopup(), yaze::editor::MapPropertiesSystem::DrawMusicTab(), yaze::editor::DrawOverworldEntrancePopup(), yaze::editor::MapPropertiesSystem::DrawPalettesPopup(), yaze::editor::GfxGroupEditor::DrawPaletteViewer(), yaze::editor::GfxGroupEditor::DrawRoomsetViewer(), yaze::editor::SpriteEditor::DrawSpriteCanvas(), yaze::editor::MapPropertiesSystem::DrawSpritePropertiesTab(), yaze::editor::GfxGroupEditor::DrawSpritesetViewer(), yaze::editor::MessageEditor::DrawTextCommands(), yaze::editor::MapPropertiesSystem::DrawTileGraphicsTab(), InputTileInfo(), and yaze::editor::GfxGroupEditor::Update().

Here is the call graph for this function:

InputHexByte() [2/2]

IMGUI_API bool yaze::gui::InputHexByte	(	const char *	label,
		uint8_t *	data,
		uint8_t	max_value,
		float	input_width,
		bool	no_step
	)

Definition at line 196 of file input.cc.

References ImGui::InputScalarLeft(), kStepFastHex, and kStepOneHex.

Here is the call graph for this function:

Paragraph()

IMGUI_API void yaze::gui::Paragraph

(

const std::string &

text

)

Definition at line 209 of file input.cc.

ClickableText()

IMGUI_API bool yaze::gui::ClickableText

(

const std::string &

text

)

Todo:

Setup themes and text/clickable colors

Definition at line 214 of file input.cc.

ItemLabel()

IMGUI_API void yaze::gui::ItemLabel	(	absl::string_view	title,
		ItemLabelFlags	flags
	)

Definition at line 268 of file input.cc.

Referenced by yaze::editor::MusicEditor::DrawToolset().

ListBox()

IMGUI_API bool yaze::gui::ListBox	(	const char *	label,
		int *	current_item,
		const std::vector< std::string > &	items,
		int	height_in_items
	)

Definition at line 313 of file input.cc.

InputTileInfo()

bool yaze::gui::InputTileInfo	(	const char *	label,
		gfx::TileInfo *	tile_info
	)

Definition at line 325 of file input.cc.

References yaze::gfx::TileInfo::horizontal_mirror_, yaze::gfx::TileInfo::id_, InputHexByte(), InputHexWord(), yaze::gfx::TileInfo::over_, yaze::gfx::TileInfo::palette_, and yaze::gfx::TileInfo::vertical_mirror_.

Referenced by yaze::editor::ScreenEditor::DrawDungeonMapsRoomGfx().

Here is the call graph for this function:

GetID()

IMGUI_API ImGuiID yaze::gui::GetID

(

const std::string &

id

)

Definition at line 339 of file input.cc.

Referenced by yaze::editor::SpriteEditor::DrawCurrentSheets(), yaze::editor::SpriteEditor::DrawSpriteCanvas(), and yaze::editor::SpriteEditor::DrawSpritesList().

MapKeyToImGuiKey()

ImGuiKey yaze::gui::MapKeyToImGuiKey

(

char

key

)

Definition at line 343 of file input.cc.

Referenced by yaze::editor::CommandManager::HandleWhichKeyInput(), and yaze::editor::ParseShortcut().

AddTableColumn()

void yaze::gui::AddTableColumn	(	Table &	table,
		const std::string &	label,
		GuiElement	element
	)

Definition at line 406 of file input.cc.

References yaze::gui::Table::column_contents, and yaze::gui::Table::column_labels.

Referenced by yaze::editor::Tile16Editor::Initialize().

DrawTable()

void yaze::gui::DrawTable

(

Table &

params

)

Definition at line 412 of file input.cc.

References yaze::gui::Table::column_contents, yaze::gui::Table::column_labels, yaze::gui::Table::flags, yaze::gui::Table::id, yaze::gui::Table::num_columns, and yaze::gui::Table::size.

OpenUrl()

IMGUI_API bool yaze::gui::OpenUrl

(

const std::string &

url

)

Definition at line 433 of file input.cc.

MemoryEditorPopup()

void yaze::gui::MemoryEditorPopup	(	const std::string &	label,
		std::span< uint8_t >	memory
	)

Definition at line 455 of file input.cc.

Referenced by yaze::editor::MessageEditor::DrawCurrentMessage().

InputHexByteCustom()

IMGUI_API bool yaze::gui::InputHexByteCustom	(	const char *	label,
		uint8_t *	data,
		float	input_width
	)

Definition at line 469 of file input.cc.

InputHexWordCustom()

IMGUI_API bool yaze::gui::InputHexWordCustom	(	const char *	label,
		uint16_t *	data,
		float	input_width
	)

Definition at line 492 of file input.cc.

Referenced by yaze::editor::MapPropertiesSystem::DrawPropertiesPopup().

ColorsYaze()

void yaze::gui::ColorsYaze

(

)

Definition at line 32 of file style.cc.

Referenced by yaze::gui::ThemeManager::ApplyClassicYazeTheme(), yaze::core::CreateWindow(), DrawDisplaySettings(), DrawDisplaySettingsForPopup(), yaze::test::EditorIntegrationTest::Initialize(), and yaze::test::RunIntegrationTest().

DrawBitmapViewer()

void yaze::gui::DrawBitmapViewer	(	const std::vector< gfx::Bitmap > &	bitmaps,
		float	scale,
		int &	current_bitmap_id
	)

Definition at line 131 of file style.cc.

References yaze::gfx::Bitmap::height(), yaze::gfx::Bitmap::texture(), and yaze::gfx::Bitmap::width().

Here is the call graph for this function:

GetAssemblyLanguageDef()

TextEditor::LanguageDefinition yaze::gui::GetAssemblyLanguageDef

(

)

Definition at line 192 of file style.cc.

References TextEditor::CharLiteral, TextEditor::Identifier, TextEditor::LanguageDefinition::mAutoIndentation, TextEditor::LanguageDefinition::mCaseSensitive, TextEditor::LanguageDefinition::mCommentEnd, TextEditor::LanguageDefinition::mCommentStart, TextEditor::Identifier::mDeclaration, TextEditor::LanguageDefinition::mIdentifiers, TextEditor::LanguageDefinition::mKeywords, TextEditor::LanguageDefinition::mName, TextEditor::LanguageDefinition::mSingleLineComment, TextEditor::LanguageDefinition::mTokenRegexStrings, TextEditor::Number, TextEditor::Preprocessor, TextEditor::Punctuation, and TextEditor::String.

Referenced by yaze::editor::AssemblyEditor::ChangeActiveFile(), and yaze::editor::AssemblyEditor::Initialize().

BeginWindowWithDisplaySettings()

void yaze::gui::BeginWindowWithDisplaySettings	(	const char *	id,
		bool *	active,
		const ImVec2 &	size,
		ImGuiWindowFlags	flags
	)

Todo:

Add more display settings to popup windows.

Definition at line 247 of file style.cc.

Referenced by yaze::editor::OverworldEditor::DrawOverworldProperties().

EndWindowWithDisplaySettings()

void yaze::gui::EndWindowWithDisplaySettings

(

)

Definition at line 267 of file style.cc.

Referenced by yaze::editor::OverworldEditor::DrawOverworldProperties().

BeginPadding()

void yaze::gui::BeginPadding

(

int

i

)

Definition at line 272 of file style.cc.

Referenced by BeginCanvas(), yaze::editor::OverworldEditor::DrawAreaGraphics(), yaze::editor::MessageEditor::DrawCurrentMessage(), yaze::editor::OverworldEditor::DrawScratchSpace(), yaze::editor::OverworldEditor::DrawTile16Selector(), yaze::editor::OverworldEditor::Update(), and yaze::editor::Tile16Editor::UpdateBlockset().

EndPadding()

void yaze::gui::EndPadding

(

)

Definition at line 276 of file style.cc.

References EndNoPadding().

Referenced by BeginCanvas(), yaze::editor::OverworldEditor::DrawAreaGraphics(), yaze::editor::MessageEditor::DrawCurrentMessage(), yaze::editor::OverworldEditor::DrawScratchSpace(), yaze::editor::OverworldEditor::DrawTile16Selector(), and yaze::editor::Tile16Editor::UpdateBlockset().

Here is the call graph for this function:

BeginNoPadding()

void yaze::gui::BeginNoPadding

(

)

Definition at line 278 of file style.cc.

Referenced by yaze::editor::MessageEditor::DrawMessageList(), and yaze::editor::OverworldEditor::DrawOverworldCanvas().

EndNoPadding()

void yaze::gui::EndNoPadding

(

)

Definition at line 282 of file style.cc.

Referenced by yaze::editor::MessageEditor::DrawMessageList(), yaze::editor::OverworldEditor::DrawOverworldCanvas(), EndPadding(), and yaze::editor::OverworldEditor::Update().

BeginChildWithScrollbar() [1/2]

void yaze::gui::BeginChildWithScrollbar

(

const char *

str_id

)

Definition at line 284 of file style.cc.

Referenced by yaze::editor::OverworldEditor::DrawAreaGraphics(), yaze::editor::OverworldEditor::DrawScratchSpace(), yaze::editor::OverworldEditor::DrawTile16Selector(), yaze::editor::OverworldEditor::Update(), and yaze::editor::Tile16Editor::UpdateBlockset().

BeginChildWithScrollbar() [2/2]

void yaze::gui::BeginChildWithScrollbar	(	const char *	str_id,
		ImVec2	content_size
	)

Definition at line 294 of file style.cc.

BeginChildBothScrollbars()

void yaze::gui::BeginChildBothScrollbars

(

int

id

)

Definition at line 309 of file style.cc.

Referenced by yaze::editor::OverworldEditor::DrawOverworldCanvas().

BeginTableCanvas()

void yaze::gui::BeginTableCanvas	(	const char *	table_id,
		int	columns,
		ImVec2	canvas_size
	)

Definition at line 317 of file style.cc.

EndTableCanvas()

void yaze::gui::EndTableCanvas

(

)

Definition at line 331 of file style.cc.

SetupCanvasTableColumn()

void yaze::gui::SetupCanvasTableColumn	(	const char *	label,
		float	width_ratio
	)

Definition at line 335 of file style.cc.

BeginCanvasTableCell()

void yaze::gui::BeginCanvasTableCell

(

ImVec2

min_size

)

Definition at line 343 of file style.cc.

DrawDisplaySettings()

void yaze::gui::DrawDisplaySettings

(

ImGuiStyle *

ref

)

Definition at line 360 of file style.cc.

References ColorsYaze(), ConvertColorToImVec4(), yaze::gui::BackgroundRenderer::Get(), yaze::gui::ThemeManager::Get(), and ICON_MD_PALETTE.

Here is the call graph for this function:

DrawDisplaySettingsForPopup()

void yaze::gui::DrawDisplaySettingsForPopup

(

ImGuiStyle *

ref

)

Definition at line 842 of file style.cc.

References ColorsYaze(), ConvertColorToImVec4(), yaze::gui::BackgroundRenderer::Get(), yaze::gui::ThemeManager::Get(), and ICON_MD_PALETTE.

Referenced by yaze::editor::PopupManager::DrawDisplaySettingsPopup().

Here is the call graph for this function:

TextWithSeparators()

void yaze::gui::TextWithSeparators

(

const absl::string_view &

text

)

Definition at line 1280 of file style.cc.

Referenced by yaze::editor::GraphicsEditor::DrawCgxImport(), yaze::editor::GraphicsEditor::DrawClipboardImport(), yaze::editor::PopupManager::DrawDisplaySettingsPopup(), yaze::editor::DrawExitEditorPopup(), yaze::editor::GraphicsEditor::DrawExperimentalFeatures(), yaze::editor::GraphicsEditor::DrawFileImport(), yaze::editor::GraphicsEditor::DrawObjImport(), yaze::editor::GraphicsEditor::DrawPaletteControls(), yaze::editor::GraphicsEditor::DrawTilemapImport(), and yaze::editor::GraphicsEditor::UpdatePaletteColumn().

DrawFontManager()

void yaze::gui::DrawFontManager

(

)

Definition at line 1286 of file style.cc.

Referenced by yaze::editor::PopupManager::DrawDisplaySettingsPopup(), and yaze::editor::SettingsEditor::Update().

RGB()

Color yaze::gui::RGB	(	float	r,
		float	g,
		float	b,
		float	a = 1.0f
	)

Definition at line 24 of file theme_manager.cc.

RGBA()

Color yaze::gui::RGBA	(	int	r,
		int	g,
		int	b,
		int	a = 255
	)

Definition at line 28 of file theme_manager.cc.

Referenced by yaze::gui::ThemeManager::ApplyClassicYazeTheme(), yaze::gui::ThemeManager::CreateFallbackYazeClassic(), and yaze::gui::ThemeManager::ParseColorFromString().

GetThemeColor() [1/2]

Color yaze::gui::GetThemeColor ( const std::string &  color_name )

inline

Definition at line 262 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetThemeColor().

Referenced by yaze::gui::EditorCard::Begin(), ColoredButton(), StatusBadge(), StatusIndicator(), and ToggleIconButton().

Here is the call graph for this function:

GetThemeColorVec4()

ImVec4 yaze::gui::GetThemeColorVec4 ( const std::string &  color_name )

inline

Definition at line 266 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetThemeColorVec4().

Here is the call graph for this function:

GetPrimary()

Color yaze::gui::GetPrimary ( )

inline

Definition at line 271 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetPrimary().

Referenced by GetPrimaryVec4().

Here is the call graph for this function:

GetPrimaryHover()

Color yaze::gui::GetPrimaryHover ( )

inline

Definition at line 272 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetPrimaryHover().

Referenced by GetPrimaryHoverVec4().

Here is the call graph for this function:

GetPrimaryActive()

Color yaze::gui::GetPrimaryActive ( )

inline

Definition at line 273 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetPrimaryActive().

Referenced by GetPrimaryActiveVec4().

Here is the call graph for this function:

GetSecondary()

Color yaze::gui::GetSecondary ( )

inline

Definition at line 274 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetSecondary().

Here is the call graph for this function:

GetSurface()

Color yaze::gui::GetSurface ( )

inline

Definition at line 275 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetSurface().

Referenced by GetSurfaceVec4().

Here is the call graph for this function:

GetSurfaceVariant()

Color yaze::gui::GetSurfaceVariant ( )

inline

Definition at line 276 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetSurfaceVariant().

Referenced by GetSurfaceVariantVec4().

Here is the call graph for this function:

GetSurfaceContainer()

Color yaze::gui::GetSurfaceContainer ( )

inline

Definition at line 277 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetSurfaceContainer().

Referenced by GetSurfaceContainerVec4().

Here is the call graph for this function:

GetSurfaceContainerHigh()

Color yaze::gui::GetSurfaceContainerHigh ( )

inline

Definition at line 278 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetSurfaceContainerHigh().

Referenced by GetSurfaceContainerHighVec4().

Here is the call graph for this function:

GetSurfaceContainerHighest()

Color yaze::gui::GetSurfaceContainerHighest ( )

inline

Definition at line 279 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetSurfaceContainerHighest().

Referenced by GetSurfaceContainerHighestVec4().

Here is the call graph for this function:

GetOnSurface()

Color yaze::gui::GetOnSurface ( )

inline

Definition at line 280 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetOnSurface().

Referenced by GetOnSurfaceVec4().

Here is the call graph for this function:

GetOnSurfaceVariant()

Color yaze::gui::GetOnSurfaceVariant ( )

inline

Definition at line 281 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetOnSurfaceVariant().

Referenced by GetOnSurfaceVariantVec4().

Here is the call graph for this function:

GetOnPrimary()

Color yaze::gui::GetOnPrimary ( )

inline

Definition at line 282 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetOnPrimary().

Referenced by GetOnPrimaryVec4().

Here is the call graph for this function:

GetOutline()

Color yaze::gui::GetOutline ( )

inline

Definition at line 283 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetOutline().

Referenced by GetOutlineVec4().

Here is the call graph for this function:

GetTextSecondary()

Color yaze::gui::GetTextSecondary ( )

inline

Definition at line 284 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetTextSecondary().

Referenced by GetTextSecondaryVec4().

Here is the call graph for this function:

GetTextDisabled()

Color yaze::gui::GetTextDisabled ( )

inline

Definition at line 285 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetTextDisabled().

Referenced by GetTextDisabledVec4().

Here is the call graph for this function:

GetShadow()

Color yaze::gui::GetShadow ( )

inline

Definition at line 286 of file theme_manager.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetShadow().

Referenced by GetShadowVec4().

Here is the call graph for this function:

GetPrimaryVec4()

ImVec4 yaze::gui::GetPrimaryVec4 ( )

inline

Definition at line 289 of file theme_manager.h.

References ConvertColorToImVec4(), and GetPrimary().

Referenced by yaze::editor::EditorCardRegistry::DrawCardInSidebar(), and yaze::editor::UICoordinator::DrawMenuBarExtras().

Here is the call graph for this function:

GetPrimaryHoverVec4()

ImVec4 yaze::gui::GetPrimaryHoverVec4 ( )

inline

Definition at line 290 of file theme_manager.h.

References ConvertColorToImVec4(), and GetPrimaryHover().

Referenced by yaze::editor::UICoordinator::DrawMenuBarExtras().

Here is the call graph for this function:

GetPrimaryActiveVec4()

ImVec4 yaze::gui::GetPrimaryActiveVec4 ( )

inline

Definition at line 291 of file theme_manager.h.

References ConvertColorToImVec4(), and GetPrimaryActive().

Referenced by yaze::editor::UICoordinator::DrawMenuBarExtras().

Here is the call graph for this function:

GetSurfaceVec4()

ImVec4 yaze::gui::GetSurfaceVec4 ( )

inline

Definition at line 292 of file theme_manager.h.

References ConvertColorToImVec4(), and GetSurface().

Here is the call graph for this function:

GetSurfaceVariantVec4()

ImVec4 yaze::gui::GetSurfaceVariantVec4 ( )

inline

Definition at line 293 of file theme_manager.h.

References ConvertColorToImVec4(), and GetSurfaceVariant().

Here is the call graph for this function:

GetSurfaceContainerVec4()

ImVec4 yaze::gui::GetSurfaceContainerVec4 ( )

inline

Definition at line 294 of file theme_manager.h.

References ConvertColorToImVec4(), and GetSurfaceContainer().

Here is the call graph for this function:

GetSurfaceContainerHighVec4()

ImVec4 yaze::gui::GetSurfaceContainerHighVec4 ( )

inline

Definition at line 295 of file theme_manager.h.

References ConvertColorToImVec4(), and GetSurfaceContainerHigh().

Referenced by yaze::editor::UICoordinator::DrawContextSensitiveCardControl().

Here is the call graph for this function:

GetSurfaceContainerHighestVec4()

ImVec4 yaze::gui::GetSurfaceContainerHighestVec4 ( )

inline

Definition at line 296 of file theme_manager.h.

References ConvertColorToImVec4(), and GetSurfaceContainerHighest().

Referenced by yaze::editor::UICoordinator::DrawContextSensitiveCardControl(), and yaze::editor::UICoordinator::DrawMaterialButton().

Here is the call graph for this function:

GetOnSurfaceVec4()

ImVec4 yaze::gui::GetOnSurfaceVec4 ( )

inline

Definition at line 297 of file theme_manager.h.

References ConvertColorToImVec4(), and GetOnSurface().

Here is the call graph for this function:

GetOnSurfaceVariantVec4()

ImVec4 yaze::gui::GetOnSurfaceVariantVec4 ( )

inline

Definition at line 298 of file theme_manager.h.

References ConvertColorToImVec4(), and GetOnSurfaceVariant().

Referenced by yaze::editor::UICoordinator::DrawMaterialButton().

Here is the call graph for this function:

GetOnPrimaryVec4()

ImVec4 yaze::gui::GetOnPrimaryVec4 ( )

inline

Definition at line 299 of file theme_manager.h.

References ConvertColorToImVec4(), and GetOnPrimary().

Here is the call graph for this function:

GetOutlineVec4()

ImVec4 yaze::gui::GetOutlineVec4 ( )

inline

Definition at line 300 of file theme_manager.h.

References ConvertColorToImVec4(), and GetOutline().

Here is the call graph for this function:

GetTextSecondaryVec4()

ImVec4 yaze::gui::GetTextSecondaryVec4 ( )

inline

Definition at line 301 of file theme_manager.h.

References ConvertColorToImVec4(), and GetTextSecondary().

Referenced by yaze::editor::UICoordinator::DrawMenuBarExtras().

Here is the call graph for this function:

GetTextDisabledVec4()

ImVec4 yaze::gui::GetTextDisabledVec4 ( )

inline

Definition at line 302 of file theme_manager.h.

References ConvertColorToImVec4(), and GetTextDisabled().

Referenced by yaze::editor::UICoordinator::DrawMenuBarExtras().

Here is the call graph for this function:

GetShadowVec4()

ImVec4 yaze::gui::GetShadowVec4 ( )

inline

Definition at line 303 of file theme_manager.h.

References ConvertColorToImVec4(), and GetShadow().

Here is the call graph for this function:

GetThemeColor() [2/2]

ImVec4 yaze::gui::GetThemeColor

(

ImGuiCol

idx

)

Definition at line 17 of file ui_helpers.cc.

GetSuccessColor()

ImVec4 yaze::gui::GetSuccessColor

(

)

Definition at line 21 of file ui_helpers.cc.

References ConvertColorToImVec4(), yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetCurrentTheme().

Referenced by ColoredButton(), GetCustomRomColor(), yaze::gui::BppFormatUI::RenderAnalysisPanel(), yaze::gui::BppFormatUI::RenderFormatSelector(), yaze::gui::BppFormatUI::RenderSheetAnalysis(), RomVersionBadge(), StatusBadge(), StatusIndicator(), and ToggleIconButton().

Here is the call graph for this function:

GetWarningColor()

ImVec4 yaze::gui::GetWarningColor

(

)

Definition at line 26 of file ui_helpers.cc.

References ConvertColorToImVec4(), yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetCurrentTheme().

Referenced by ColoredButton(), GetVanillaRomColor(), yaze::gui::BppFormatUI::RenderAnalysisPanel(), yaze::gui::BppFormatUI::RenderFormatSelector(), yaze::gui::BppFormatUI::RenderSheetAnalysis(), RomVersionBadge(), and StatusBadge().

Here is the call graph for this function:

GetErrorColor()

ImVec4 yaze::gui::GetErrorColor

(

)

Definition at line 31 of file ui_helpers.cc.

References ConvertColorToImVec4(), yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetCurrentTheme().

Referenced by ColoredButton(), yaze::gui::BppFormatUI::RenderFormatSelector(), and StatusBadge().

Here is the call graph for this function:

GetInfoColor()

ImVec4 yaze::gui::GetInfoColor

(

)

Definition at line 36 of file ui_helpers.cc.

References ConvertColorToImVec4(), yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetCurrentTheme().

Referenced by ColoredButton(), and StatusBadge().

Here is the call graph for this function:

GetAccentColor()

ImVec4 yaze::gui::GetAccentColor

(

)

Definition at line 41 of file ui_helpers.cc.

References ConvertColorToImVec4(), yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetCurrentTheme().

Referenced by yaze::gui::EditorCard::Begin(), LoadingSpinner(), yaze::gui::Toolset::ModeButton(), and ToolsetButton().

Here is the call graph for this function:

GetEntranceColor()

ImVec4 yaze::gui::GetEntranceColor

(

)

Definition at line 47 of file ui_helpers.cc.

Referenced by yaze::editor::OverworldEntityRenderer::DrawEntrances().

GetExitColor()

ImVec4 yaze::gui::GetExitColor

(

)

Definition at line 52 of file ui_helpers.cc.

Referenced by yaze::editor::OverworldEntityRenderer::DrawExits().

GetItemColor()

ImVec4 yaze::gui::GetItemColor

(

)

Definition at line 57 of file ui_helpers.cc.

Referenced by yaze::editor::OverworldEntityRenderer::DrawItems().

GetSpriteColor()

ImVec4 yaze::gui::GetSpriteColor

(

)

Definition at line 62 of file ui_helpers.cc.

Referenced by yaze::editor::OverworldEntityRenderer::DrawSprites().

GetSelectedColor()

ImVec4 yaze::gui::GetSelectedColor

(

)

Definition at line 67 of file ui_helpers.cc.

References ConvertColorToImVec4(), yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetCurrentTheme().

Referenced by yaze::editor::OverworldEditor::DrawUsageGrid().

Here is the call graph for this function:

GetLockedColor()

ImVec4 yaze::gui::GetLockedColor

(

)

Definition at line 72 of file ui_helpers.cc.

Referenced by LockIndicator().

GetVanillaRomColor()

ImVec4 yaze::gui::GetVanillaRomColor

(

)

Definition at line 77 of file ui_helpers.cc.

References GetWarningColor().

Here is the call graph for this function:

GetCustomRomColor()

ImVec4 yaze::gui::GetCustomRomColor

(

)

Definition at line 81 of file ui_helpers.cc.

References GetSuccessColor().

Here is the call graph for this function:

GetModifiedColor()

ImVec4 yaze::gui::GetModifiedColor

(

)

Definition at line 85 of file ui_helpers.cc.

References ConvertColorToImVec4(), yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetCurrentTheme().

Here is the call graph for this function:

BeginField()

void yaze::gui::BeginField	(	const char *	label,
		float	label_width
	)

Definition at line 94 of file ui_helpers.cc.

Referenced by LabeledInputHex(), and LabeledInputHex().

EndField()

void yaze::gui::EndField

(

)

Definition at line 106 of file ui_helpers.cc.

Referenced by LabeledInputHex(), and LabeledInputHex().

BeginPropertyTable()

bool yaze::gui::BeginPropertyTable	(	const char *	id,
		int	columns,
		ImGuiTableFlags	extra_flags
	)

Definition at line 111 of file ui_helpers.cc.

EndPropertyTable()

void yaze::gui::EndPropertyTable

(

)

Definition at line 123 of file ui_helpers.cc.

PropertyRow() [1/2]

void yaze::gui::PropertyRow	(	const char *	label,
		const char *	value
	)

Definition at line 127 of file ui_helpers.cc.

PropertyRow() [2/2]

void yaze::gui::PropertyRow	(	const char *	label,
		int	value
	)

Definition at line 134 of file ui_helpers.cc.

PropertyRowHex() [1/2]

void yaze::gui::PropertyRowHex	(	const char *	label,
		uint8_t	value
	)

Definition at line 141 of file ui_helpers.cc.

PropertyRowHex() [2/2]

void yaze::gui::PropertyRowHex	(	const char *	label,
		uint16_t	value
	)

Definition at line 148 of file ui_helpers.cc.

SectionHeader() [1/2]

void yaze::gui::SectionHeader	(	const char *	icon,
		const char *	label,
		const ImVec4 &	color
	)

Definition at line 155 of file ui_helpers.cc.

References SectionHeader().

Referenced by yaze::editor::PaletteGroupCard::DrawBatchOperationsPopup(), yaze::editor::PaletteGroupCard::DrawColorInfo(), yaze::editor::PaletteGroupCard::DrawColorPicker(), yaze::editor::SpritePaletteCard::DrawCustomPanels(), yaze::editor::PaletteGroupCard::DrawMetadataInfo(), SectionHeader(), and SectionHeader().

Here is the call graph for this function:

IconButton()

bool yaze::gui::IconButton	(	const char *	icon,
		const char *	label,
		const ImVec2 &	size
	)

Definition at line 164 of file ui_helpers.cc.

ColoredButton()

bool yaze::gui::ColoredButton	(	const char *	label,
		ButtonType	type,
		const ImVec2 &	size
	)

Definition at line 169 of file ui_helpers.cc.

References Error, GetErrorColor(), GetInfoColor(), GetSuccessColor(), GetThemeColor(), GetWarningColor(), Info, Success, and Warning.

Referenced by ConfirmationDialog().

ToggleIconButton()

bool yaze::gui::ToggleIconButton	(	const char *	icon_on,
		const char *	icon_off,
		bool *	state,
		const char *	tooltip
	)

Definition at line 191 of file ui_helpers.cc.

References GetSuccessColor(), and GetThemeColor().

Referenced by yaze::gui::Toolset::AddToggle().

Here is the call graph for this function:

HelpMarker()

void yaze::gui::HelpMarker

(

const char *

desc

)

Definition at line 209 of file ui_helpers.cc.

References ICON_MD_HELP_OUTLINE.

Referenced by yaze::editor::ObjectEditorCard::DrawEmulatorPreview().

SeparatorText()

void yaze::gui::SeparatorText

(

const char *

label

)

Definition at line 220 of file ui_helpers.cc.

Referenced by yaze::gui::GfxSheetAssetBrowser::Draw().

StatusBadge()

void yaze::gui::StatusBadge	(	const char *	text,
		ButtonType	type
	)

Definition at line 224 of file ui_helpers.cc.

References Error, GetErrorColor(), GetInfoColor(), GetSuccessColor(), GetThemeColor(), GetWarningColor(), Info, Success, and Warning.

Referenced by yaze::gui::Toolset::AddV3StatusBadge().

BeginToolset()

void yaze::gui::BeginToolset

(

const char *

id

)

Definition at line 246 of file ui_helpers.cc.

EndToolset()

void yaze::gui::EndToolset

(

)

Definition at line 251 of file ui_helpers.cc.

ToolsetButton()

void yaze::gui::ToolsetButton	(	const char *	icon,
		bool	selected,
		const char *	tooltip,
		std::function< void()>	on_click
	)

Definition at line 256 of file ui_helpers.cc.

References GetAccentColor().

Here is the call graph for this function:

BeginCanvasContainer()

void yaze::gui::BeginCanvasContainer	(	const char *	id,
		bool	scrollable
	)

Definition at line 277 of file ui_helpers.cc.

EndCanvasContainer()

void yaze::gui::EndCanvasContainer

(

)

Definition at line 284 of file ui_helpers.cc.

EditorTabItem()

bool yaze::gui::EditorTabItem	(	const char *	icon,
		const char *	label,
		bool *	p_open
	)

Definition at line 288 of file ui_helpers.cc.

ConfirmationDialog()

bool yaze::gui::ConfirmationDialog	(	const char *	id,
		const char *	title,
		const char *	message,
		const char *	confirm_text,
		const char *	cancel_text
	)

Definition at line 294 of file ui_helpers.cc.

References ColoredButton(), and Warning.

Here is the call graph for this function:

StatusIndicator()

void yaze::gui::StatusIndicator	(	const char *	label,
		bool	active,
		const char *	tooltip
	)

Definition at line 324 of file ui_helpers.cc.

References GetSuccessColor(), and GetThemeColor().

Here is the call graph for this function:

RomVersionBadge()

void yaze::gui::RomVersionBadge	(	const char *	version,
		bool	is_vanilla
	)

Definition at line 344 of file ui_helpers.cc.

References GetSuccessColor(), GetWarningColor(), ICON_MD_CHECK_CIRCLE, and ICON_MD_INFO.

Referenced by yaze::gui::Toolset::AddRomBadge().

Here is the call graph for this function:

LockIndicator()

void yaze::gui::LockIndicator	(	bool	locked,
		const char *	label
	)

Definition at line 353 of file ui_helpers.cc.

References GetLockedColor(), ICON_MD_LOCK, and ICON_MD_LOCK_OPEN.

Here is the call graph for this function:

VerticalSpacing()

void yaze::gui::VerticalSpacing

(

float

pixels

)

Definition at line 365 of file ui_helpers.cc.

Referenced by yaze::editor::AssemblyEditor::UpdateCodeView().

HorizontalSpacing()

void yaze::gui::HorizontalSpacing

(

float

pixels

)

Definition at line 369 of file ui_helpers.cc.

CenterText()

void yaze::gui::CenterText

(

const char *

text

)

Definition at line 374 of file ui_helpers.cc.

Referenced by yaze::editor::OverworldEditor::Update().

RightAlign()

void yaze::gui::RightAlign

(

float

width

)

Definition at line 380 of file ui_helpers.cc.

GetPulseAlpha()

float yaze::gui::GetPulseAlpha

(

float

speed

)

Definition at line 389 of file ui_helpers.cc.

Referenced by PushPulseEffect().

GetFadeIn()

float yaze::gui::GetFadeIn

(

float

duration

)

Definition at line 393 of file ui_helpers.cc.

PushPulseEffect()

void yaze::gui::PushPulseEffect

(

float

speed

)

Definition at line 412 of file ui_helpers.cc.

References GetPulseAlpha().

Here is the call graph for this function:

PopPulseEffect()

void yaze::gui::PopPulseEffect

(

)

Definition at line 417 of file ui_helpers.cc.

LoadingSpinner()

void yaze::gui::LoadingSpinner	(	const char *	label,
		float	radius
	)

Definition at line 421 of file ui_helpers.cc.

References GetAccentColor(), and IM_PI.

Here is the call graph for this function:

GetResponsiveWidth()

float yaze::gui::GetResponsiveWidth	(	float	min_width,
		float	max_width,
		float	ratio
	)

Definition at line 449 of file ui_helpers.cc.

SetupResponsiveColumns()

void yaze::gui::SetupResponsiveColumns	(	int	count,
		float	min_col_width
	)

Definition at line 458 of file ui_helpers.cc.

BeginTwoColumns()

void yaze::gui::BeginTwoColumns	(	const char *	id,
		float	split_ratio
	)

Definition at line 473 of file ui_helpers.cc.

SwitchColumn()

void yaze::gui::SwitchColumn

(

)

Definition at line 490 of file ui_helpers.cc.

EndTwoColumns()

void yaze::gui::EndTwoColumns

(

)

Definition at line 494 of file ui_helpers.cc.

LabeledInputHex() [1/2]

bool yaze::gui::LabeledInputHex	(	const char *	label,
		uint8_t *	value
	)

Definition at line 503 of file ui_helpers.cc.

References BeginField(), and EndField().

Here is the call graph for this function:

LabeledInputHex() [2/2]

bool yaze::gui::LabeledInputHex	(	const char *	label,
		uint16_t *	value
	)

Definition at line 514 of file ui_helpers.cc.

References BeginField(), and EndField().

Here is the call graph for this function:

IconCombo()

bool yaze::gui::IconCombo	(	const char *	icon,
		const char *	label,
		int *	current,
		const char *const	items[],
		int	count
	)

Definition at line 525 of file ui_helpers.cc.

ThemedButton()

bool yaze::gui::ThemedButton	(	const char *	label,
		const ImVec2 &	size = ImVec2(0, 0)
	)

Theme-aware widget library.

All widgets in this file automatically use the current theme from ThemeManager. These are drop-in replacements for standard ImGui widgets with automatic theming.

Usage:

using namespace yaze::gui;

if (ThemedButton("Save")) {
    // Button uses theme colors automatically
}

SectionHeader("Settings");  // Themed section header

ThemedCard("Properties", [&]() {
    // Content inside themed card
});

Themed button with automatic color application

Definition at line 13 of file themed_widgets.cc.

References ConvertColorToImVec4(), GetTheme(), and ThemedButton().

Referenced by yaze::editor::PaletteGroupCard::DrawBatchOperationsPopup(), yaze::editor::PaletteGroupCard::DrawColorPicker(), ThemedButton(), and ThemedIconButton().

Here is the call graph for this function:

ThemedIconButton()

bool yaze::gui::ThemedIconButton	(	const char *	icon,
		const char *	tooltip
	)

Themed button with icon (Material Design Icons)

Definition at line 25 of file themed_widgets.cc.

References BeginThemedTooltip(), EndThemedTooltip(), yaze::gui::LayoutHelpers::GetStandardWidgetHeight(), ThemedButton(), and ThemedIconButton().

Referenced by yaze::editor::PaletteGroupCard::DrawPaletteSelector(), yaze::editor::PaletteGroupCard::DrawToolbar(), and ThemedIconButton().

PrimaryButton()

bool yaze::gui::PrimaryButton	(	const char *	label,
		const ImVec2 &	size
	)

Primary action button (uses accent color)

Definition at line 36 of file themed_widgets.cc.

References ConvertColorToImVec4(), GetTheme(), and PrimaryButton().

Referenced by yaze::editor::PaletteGroupCard::DrawToolbar(), and PrimaryButton().

Here is the call graph for this function:

DangerButton()

bool yaze::gui::DangerButton	(	const char *	label,
		const ImVec2 &	size
	)

Danger/destructive action button (uses error color)

Definition at line 52 of file themed_widgets.cc.

References ConvertColorToImVec4(), DangerButton(), and GetTheme().

Referenced by DangerButton(), and yaze::editor::PaletteGroupCard::DrawToolbar().

Here is the call graph for this function:

SectionHeader() [2/2]

void yaze::gui::SectionHeader

(

const char *

label

)

Themed section header with accent color.

Definition at line 72 of file themed_widgets.cc.

References SectionHeader(), and yaze::gui::LayoutHelpers::SectionHeader().

Here is the call graph for this function:

ThemedCollapsingHeader()

bool yaze::gui::ThemedCollapsingHeader	(	const char *	label,
		ImGuiTreeNodeFlags	flags
	)

Collapsible section with themed header.

Definition at line 76 of file themed_widgets.cc.

References ConvertColorToImVec4(), and GetTheme().

Here is the call graph for this function:

ThemedCard()

void yaze::gui::ThemedCard	(	const char *	label,
		std::function< void()>	content,
		const ImVec2 &	size = ImVec2(0, 0)
	)

Themed card with rounded corners and shadow.

Parameters

label	Unique ID for the card
content	Callback function to render card content
size	Card size (0, 0 for auto-size)

Definition at line 92 of file themed_widgets.cc.

References BeginThemedPanel(), and EndThemedPanel().

Here is the call graph for this function:

BeginThemedPanel()

void yaze::gui::BeginThemedPanel	(	const char *	label,
		const ImVec2 &	size
	)

Begin themed panel (manual version of ThemedCard)

Definition at line 98 of file themed_widgets.cc.

References ConvertColorToImVec4(), yaze::gui::LayoutHelpers::GetPanelPadding(), and GetTheme().

Referenced by ThemedCard().

Here is the call graph for this function:

EndThemedPanel()

void yaze::gui::EndThemedPanel

(

)

End themed panel.

Definition at line 110 of file themed_widgets.cc.

Referenced by ThemedCard().

ThemedInputText()

bool yaze::gui::ThemedInputText	(	const char *	label,
		char *	buf,
		size_t	buf_size,
		ImGuiInputTextFlags	flags
	)

Themed text input.

Definition at line 120 of file themed_widgets.cc.

References ConvertColorToImVec4(), yaze::gui::LayoutHelpers::GetStandardInputWidth(), and GetTheme().

Here is the call graph for this function:

ThemedInputInt()

bool yaze::gui::ThemedInputInt	(	const char *	label,
		int *	v,
		int	step,
		int	step_fast,
		ImGuiInputTextFlags	flags
	)

Themed integer input.

Definition at line 134 of file themed_widgets.cc.

References ConvertColorToImVec4(), yaze::gui::LayoutHelpers::GetStandardInputWidth(), and GetTheme().

Here is the call graph for this function:

ThemedInputFloat()

bool yaze::gui::ThemedInputFloat	(	const char *	label,
		float *	v,
		float	step,
		float	step_fast,
		const char *	format,
		ImGuiInputTextFlags	flags
	)

Themed float input.

Definition at line 148 of file themed_widgets.cc.

References ConvertColorToImVec4(), yaze::gui::LayoutHelpers::GetStandardInputWidth(), and GetTheme().

Here is the call graph for this function:

ThemedCheckbox()

bool yaze::gui::ThemedCheckbox	(	const char *	label,
		bool *	v
	)

Themed checkbox.

Definition at line 162 of file themed_widgets.cc.

References ConvertColorToImVec4(), and GetTheme().

Here is the call graph for this function:

ThemedCombo()

bool yaze::gui::ThemedCombo	(	const char *	label,
		int *	current_item,
		const char *const	items[],
		int	items_count,
		int	popup_max_height_in_items
	)

Themed combo box.

Definition at line 172 of file themed_widgets.cc.

References ConvertColorToImVec4(), yaze::gui::LayoutHelpers::GetStandardInputWidth(), and GetTheme().

Here is the call graph for this function:

BeginThemedTable()

bool yaze::gui::BeginThemedTable	(	const char *	str_id,
		int	columns,
		ImGuiTableFlags	flags,
		const ImVec2 &	outer_size,
		float	inner_width
	)

Begin themed table with automatic styling.

Definition at line 191 of file themed_widgets.cc.

References yaze::gui::LayoutHelpers::BeginTableWithTheming().

Here is the call graph for this function:

EndThemedTable()

void yaze::gui::EndThemedTable

(

)

End themed table.

Definition at line 196 of file themed_widgets.cc.

References yaze::gui::LayoutHelpers::EndTable().

Here is the call graph for this function:

ThemedHelpMarker()

void yaze::gui::ThemedHelpMarker

(

const char *

desc

)

Themed help marker with tooltip.

Definition at line 204 of file themed_widgets.cc.

References yaze::gui::LayoutHelpers::HelpMarker().

Here is the call graph for this function:

BeginThemedTooltip()

void yaze::gui::BeginThemedTooltip

(

)

Begin themed tooltip.

Definition at line 208 of file themed_widgets.cc.

References ConvertColorToImVec4(), and GetTheme().

Referenced by ThemedIconButton().

Here is the call graph for this function:

EndThemedTooltip()

void yaze::gui::EndThemedTooltip

(

)

End themed tooltip.

Definition at line 214 of file themed_widgets.cc.

Referenced by ThemedIconButton().

ThemedStatusText()

void yaze::gui::ThemedStatusText	(	const char *	text,
		StatusType	type
	)

Themed status text (success, warning, error, info)

Definition at line 223 of file themed_widgets.cc.

References ConvertColorToImVec4(), GetTheme(), kError, kInfo, kSuccess, and kWarning.

Here is the call graph for this function:

ThemedProgressBar()

void yaze::gui::ThemedProgressBar	(	float	fraction,
		const ImVec2 &	size,
		const char *	overlay
	)

Themed progress bar.

Definition at line 245 of file themed_widgets.cc.

References ConvertColorToImVec4(), and GetTheme().

Here is the call graph for this function:

ColorInfoPanel()

void yaze::gui::ColorInfoPanel	(	const yaze::gfx::SnesColor &	color,
		bool	show_snes_format = true,
		bool	show_hex_format = true
	)

Display color information with copy-to-clipboard functionality.

Parameters

color	SNES color to display info for
show_snes_format	Show SNES $xxxx format
show_hex_format	Show #xxxxxx hex format

Definition at line 259 of file themed_widgets.cc.

References yaze::gfx::SnesColor::rgb(), and yaze::gfx::SnesColor::snes().

Here is the call graph for this function:

ModifiedBadge()

void yaze::gui::ModifiedBadge	(	bool	is_modified,
		const char *	text = nullptr
	)

Modified indicator badge (displayed as text with icon)

Parameters

is_modified	Whether to show the badge
text	Optional text to display after badge

Definition at line 304 of file themed_widgets.cc.

References ConvertColorToImVec4(), and GetTheme().

Here is the call graph for this function:

PushThemedWidgetColors()

void yaze::gui::PushThemedWidgetColors

(

)

Apply theme colors to next widget.

Definition at line 321 of file themed_widgets.cc.

References ConvertColorToImVec4(), and GetTheme().

Here is the call graph for this function:

PopThemedWidgetColors()

void yaze::gui::PopThemedWidgetColors

(

)

Restore previous colors.

Definition at line 331 of file themed_widgets.cc.

GetTheme()

const EnhancedTheme & yaze::gui::GetTheme ( )

inline

Get current theme (shortcut)

Definition at line 210 of file themed_widgets.h.

References yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetCurrentTheme().

Referenced by BeginThemedPanel(), BeginThemedTooltip(), DangerButton(), ModifiedBadge(), PrimaryButton(), PushThemedWidgetColors(), ThemedButton(), ThemedCheckbox(), ThemedCollapsingHeader(), ThemedCombo(), ThemedInputFloat(), ThemedInputInt(), ThemedInputText(), ThemedProgressBar(), and ThemedStatusText().

Here is the call graph for this function:

Variable Documentation

g_auto_scope_stack_

thread_local std::vector<std::string> yaze::gui::g_auto_scope_stack_

Definition at line 13 of file widget_auto_register.cc.

Referenced by AutoRegisterLastItem(), yaze::gui::AutoWidgetScope::AutoWidgetScope(), and yaze::gui::AutoWidgetScope::~AutoWidgetScope().

kRectangleColor

constexpr uint32_t yaze::gui::kRectangleColor = IM_COL32(32, 32, 32, 255)

constexpr

Definition at line 95 of file canvas.cc.

Referenced by RenderCanvasBackground().

kWhiteColor

constexpr uint32_t yaze::gui::kWhiteColor = IM_COL32(255, 255, 255, 255)

constexpr

Definition at line 96 of file canvas.cc.

Referenced by yaze::gui::Canvas::DrawInfoGrid(), yaze::gui::Canvas::DrawSelectRect(), RenderBitmapOnCanvas(), and RenderCanvasBackground().

kMouseFlags

constexpr ImGuiButtonFlags yaze::gui::kMouseFlags

constexpr

Initial value:

=
    ImGuiButtonFlags_MouseButtonLeft | ImGuiButtonFlags_MouseButtonRight

Definition at line 98 of file canvas.cc.

Referenced by yaze::gui::Canvas::DrawBackground().

kStepOneHex

const int yaze::gui::kStepOneHex = 0x01

Definition at line 153 of file input.cc.

Referenced by InputHex(), InputHex(), InputHexByte(), InputHexByte(), InputHexShort(), InputHexWord(), and InputHexWord().

kStepFastHex

const int yaze::gui::kStepFastHex = 0x0F

Definition at line 154 of file input.cc.

Referenced by InputHex(), InputHex(), InputHexByte(), InputHexByte(), InputHexShort(), InputHexWord(), and InputHexWord().

kDefaultModalSize

constexpr ImVec2 yaze::gui::kDefaultModalSize = ImVec2(200, 0)

constexpr

Definition at line 21 of file input.h.

Referenced by yaze::editor::PopupManager::DrawAboutPopup(), yaze::editor::PopupManager::DrawAsarIntegrationPopup(), yaze::editor::PopupManager::DrawBuildInstructionsPopup(), yaze::editor::PopupManager::DrawCLIUsagePopup(), yaze::editor::PopupManager::DrawContributingPopup(), yaze::editor::PopupManager::DrawDataIntegrityPopup(), yaze::editor::PopupManager::DrawDisplaySettingsPopup(), yaze::editor::PopupManager::DrawFeatureFlagsPopup(), yaze::editor::PopupManager::DrawGettingStartedPopup(), yaze::editor::PopupManager::DrawLayoutResetConfirmPopup(), yaze::editor::PopupManager::DrawManageProjectPopup(), yaze::editor::PopupManager::DrawNewProjectPopup(), yaze::editor::PopupManager::DrawOpenRomHelpPopup(), yaze::editor::PopupManager::DrawRomInfoPopup(), yaze::editor::PopupManager::DrawSaveAsPopup(), yaze::editor::PopupManager::DrawSessionLimitWarningPopup(), yaze::editor::PopupManager::DrawStatusPopup(), yaze::editor::PopupManager::DrawSupportedFeaturesPopup(), yaze::editor::PopupManager::DrawTroubleshootingPopup(), yaze::editor::PopupManager::DrawWhatsNewPopup(), yaze::editor::PopupManager::DrawWorkspaceHelpPopup(), and yaze::editor::UICoordinator::DrawWorkspacePresetDialogs().

kZeroPos

constexpr ImVec2 yaze::gui::kZeroPos = ImVec2(0, 0)

constexpr

Definition at line 22 of file input.h.
