yaze::gui::DungeonObjectEmulatorPreview Class Reference

#include <dungeon_object_emulator_preview.h>

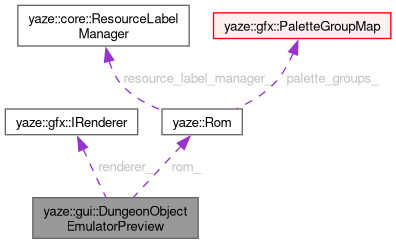

Collaboration diagram for yaze::gui::DungeonObjectEmulatorPreview:

Public Member Functions
	DungeonObjectEmulatorPreview ()
	~DungeonObjectEmulatorPreview ()
void	Initialize (gfx::IRenderer *renderer, Rom *rom)
void	Render ()

Private Member Functions
void	RenderControls ()
void	TriggerEmulatedRender ()

Private Attributes
gfx::IRenderer *	renderer_ = nullptr
Rom *	rom_ = nullptr
std::unique_ptr< emu::Snes >	snes_instance_
void *	object_texture_ = nullptr
int	object_id_ = 0
int	room_id_ = 0
int	object_x_ = 16
int	object_y_ = 16
bool	show_window_ = true
int	last_cycle_count_ = 0
std::string	last_error_

Detailed Description

Definition at line 16 of file dungeon_object_emulator_preview.h.

Constructor & Destructor Documentation

DungeonObjectEmulatorPreview()

yaze::gui::DungeonObjectEmulatorPreview::DungeonObjectEmulatorPreview

(

)

Definition at line 13 of file dungeon_object_emulator_preview.cc.

References snes_instance_.

~DungeonObjectEmulatorPreview()

yaze::gui::DungeonObjectEmulatorPreview::~DungeonObjectEmulatorPreview

(

)

Definition at line 17 of file dungeon_object_emulator_preview.cc.

Member Function Documentation

Initialize()

void yaze::gui::DungeonObjectEmulatorPreview::Initialize	(	gfx::IRenderer *	renderer,
		Rom *	rom
	)

Definition at line 23 of file dungeon_object_emulator_preview.cc.

References renderer_, rom_, snes_instance_, and yaze::Rom::vector().

Referenced by yaze::editor::DungeonEditorV2::Load(), yaze::editor::ObjectEditorCard::ObjectEditorCard(), and yaze::editor::DungeonEditorV2::set_rom().

Here is the call graph for this function:

Render()

void yaze::gui::DungeonObjectEmulatorPreview::Render

(

)

Definition at line 33 of file dungeon_object_emulator_preview.cc.

References yaze::Rom::is_loaded(), last_cycle_count_, last_error_, object_texture_, RenderControls(), rom_, and show_window_.

Referenced by yaze::editor::ObjectEditorCard::DrawEmulatorPreview().

Here is the call graph for this function:

RenderControls()

void yaze::gui::DungeonObjectEmulatorPreview::RenderControls ( )

private

Definition at line 85 of file dungeon_object_emulator_preview.cc.

References yaze::gui::AutoInputInt(), yaze::gui::AutoSliderInt(), object_id_, object_x_, object_y_, room_id_, and TriggerEmulatedRender().

Referenced by Render().

Here is the call graph for this function:

TriggerEmulatedRender()

void yaze::gui::DungeonObjectEmulatorPreview::TriggerEmulatedRender ( )

private

Definition at line 123 of file dungeon_object_emulator_preview.cc.

References yaze::zelda3::Room::blockset, yaze::zelda3::Room::CopyRoomGraphicsToBuffer(), yaze::Rom::data(), yaze::zelda3::RoomObject::EncodeObjectToBytes(), yaze::zelda3::Room::get_gfx_buffer(), yaze::Rom::is_loaded(), last_cycle_count_, last_error_, yaze::zelda3::LoadRoomFromRom(), yaze::zelda3::Room::LoadRoomGraphics(), yaze::gfx::IRenderer::LockTexture(), object_id_, object_texture_, object_x_, object_y_, yaze::zelda3::Room::palette, yaze::Rom::palette_group(), renderer_, rom_, room_id_, snes_instance_, and yaze::gfx::IRenderer::UnlockTexture().

Referenced by RenderControls().

Member Data Documentation

renderer_

gfx::IRenderer* yaze::gui::DungeonObjectEmulatorPreview::renderer_ = nullptr

private

Definition at line 28 of file dungeon_object_emulator_preview.h.

Referenced by Initialize(), and TriggerEmulatedRender().

rom_

Rom* yaze::gui::DungeonObjectEmulatorPreview::rom_ = nullptr

private

Definition at line 29 of file dungeon_object_emulator_preview.h.

Referenced by Initialize(), Render(), and TriggerEmulatedRender().

snes_instance_

std::unique_ptr<emu::Snes> yaze::gui::DungeonObjectEmulatorPreview::snes_instance_

private

Definition at line 30 of file dungeon_object_emulator_preview.h.

Referenced by DungeonObjectEmulatorPreview(), Initialize(), and TriggerEmulatedRender().

object_texture_

void* yaze::gui::DungeonObjectEmulatorPreview::object_texture_ = nullptr

private

Definition at line 31 of file dungeon_object_emulator_preview.h.

Referenced by Render(), and TriggerEmulatedRender().

object_id_

int yaze::gui::DungeonObjectEmulatorPreview::object_id_ = 0

private

Definition at line 33 of file dungeon_object_emulator_preview.h.

Referenced by RenderControls(), and TriggerEmulatedRender().

room_id_

int yaze::gui::DungeonObjectEmulatorPreview::room_id_ = 0

private

Definition at line 34 of file dungeon_object_emulator_preview.h.

Referenced by RenderControls(), and TriggerEmulatedRender().

object_x_

int yaze::gui::DungeonObjectEmulatorPreview::object_x_ = 16

private

Definition at line 35 of file dungeon_object_emulator_preview.h.

Referenced by RenderControls(), and TriggerEmulatedRender().

object_y_

int yaze::gui::DungeonObjectEmulatorPreview::object_y_ = 16

private

Definition at line 36 of file dungeon_object_emulator_preview.h.

Referenced by RenderControls(), and TriggerEmulatedRender().

show_window_

bool yaze::gui::DungeonObjectEmulatorPreview::show_window_ = true

private

Definition at line 37 of file dungeon_object_emulator_preview.h.

Referenced by Render().

last_cycle_count_

int yaze::gui::DungeonObjectEmulatorPreview::last_cycle_count_ = 0

private

Definition at line 40 of file dungeon_object_emulator_preview.h.

Referenced by Render(), and TriggerEmulatedRender().

last_error_

std::string yaze::gui::DungeonObjectEmulatorPreview::last_error_

private

Definition at line 41 of file dungeon_object_emulator_preview.h.

Referenced by Render(), and TriggerEmulatedRender().

---

The documentation for this class was generated from the following files:

• src/app/gui/widgets/dungeon_object_emulator_preview.h
• src/app/gui/widgets/dungeon_object_emulator_preview.cc
