yaze::gui::BppConversionDialog Class Reference

BPP format conversion dialog. More...

#include <bpp_format_ui.h>

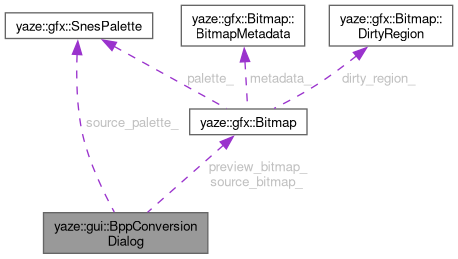

Collaboration diagram for yaze::gui::BppConversionDialog:

Public Member Functions
	BppConversionDialog (const std::string &id)
	Constructor.
void	Show (const gfx::Bitmap &bitmap, const gfx::SnesPalette &palette, std::function< void(gfx::BppFormat, bool)> on_convert)
	Show the conversion dialog.
bool	Render ()
	Render the dialog.
bool	IsOpen () const
	Check if dialog is open.
void	Close ()
	Close the dialog.

Private Member Functions
void	UpdatePreview ()
void	RenderFormatSelector ()
void	RenderPreview ()
void	RenderOptions ()
void	RenderButtons ()

Private Attributes
std::string	id_
bool	is_open_
gfx::Bitmap	source_bitmap_
gfx::SnesPalette	source_palette_
gfx::BppFormat	target_format_
bool	preserve_palette_
std::function< void(gfx::BppFormat, bool)>	convert_callback_
std::vector< uint8_t >	preview_data_
gfx::Bitmap	preview_bitmap_
bool	preview_valid_
bool	show_preview_
float	preview_scale_

Detailed Description

BPP format conversion dialog.

Definition at line 119 of file bpp_format_ui.h.

Constructor & Destructor Documentation

BppConversionDialog()

yaze::gui::BppConversionDialog::BppConversionDialog ( const std::string &  id )

explicit

Constructor.

Parameters

id	Unique identifier

Definition at line 384 of file bpp_format_ui.cc.

Member Function Documentation

Show()

void yaze::gui::BppConversionDialog::Show	(	const gfx::Bitmap &	bitmap,
		const gfx::SnesPalette &	palette,
		std::function< void(gfx::BppFormat, bool)>	on_convert
	)

Show the conversion dialog.

Parameters

bitmap	Bitmap to convert
palette	Palette to use
on_convert	Callback when conversion is confirmed

Definition at line 389 of file bpp_format_ui.cc.

References convert_callback_, is_open_, preview_valid_, source_bitmap_, and source_palette_.

Render()

bool yaze::gui::BppConversionDialog::Render

(

)

Render the dialog.

Returns

True if dialog should remain open

Definition at line 398 of file bpp_format_ui.cc.

References is_open_, RenderButtons(), RenderFormatSelector(), RenderOptions(), RenderPreview(), and show_preview_.

Here is the call graph for this function:

IsOpen()

bool yaze::gui::BppConversionDialog::IsOpen ( ) const

inline

Check if dialog is open.

Returns

True if dialog is open

Definition at line 146 of file bpp_format_ui.h.

References is_open_.

Close()

void yaze::gui::BppConversionDialog::Close ( )

inline

Close the dialog.

Definition at line 151 of file bpp_format_ui.h.

References is_open_.

UpdatePreview()

void yaze::gui::BppConversionDialog::UpdatePreview ( )

private

Definition at line 424 of file bpp_format_ui.cc.

References yaze::gfx::BppFormatManager::ConvertFormat(), yaze::gfx::Bitmap::depth(), yaze::gfx::BppFormatManager::DetectFormat(), yaze::gfx::BppFormatManager::Get(), yaze::gfx::Bitmap::height(), preview_bitmap_, preview_valid_, source_bitmap_, source_palette_, target_format_, yaze::gfx::Bitmap::vector(), and yaze::gfx::Bitmap::width().

Referenced by RenderPreview().

RenderFormatSelector()

void yaze::gui::BppConversionDialog::RenderFormatSelector ( )

private

Definition at line 445 of file bpp_format_ui.cc.

References yaze::gfx::BppFormatManager::Get(), yaze::gfx::BppFormatManager::GetFormatInfo(), preview_valid_, and target_format_.

Referenced by Render().

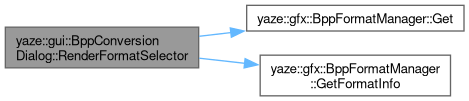

Here is the call graph for this function:

RenderPreview()

void yaze::gui::BppConversionDialog::RenderPreview ( )

private

Definition at line 461 of file bpp_format_ui.cc.

References preview_bitmap_, preview_scale_, preview_valid_, yaze::gfx::Bitmap::texture(), and UpdatePreview().

Referenced by Render().

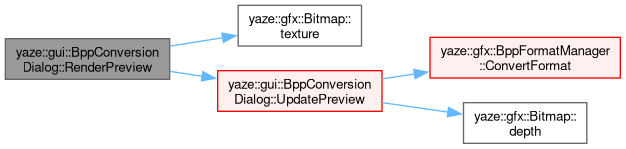

Here is the call graph for this function:

RenderOptions()

void yaze::gui::BppConversionDialog::RenderOptions ( )

private

Definition at line 477 of file bpp_format_ui.cc.

References preserve_palette_, and show_preview_.

Referenced by Render().

RenderButtons()

void yaze::gui::BppConversionDialog::RenderButtons ( )

private

Definition at line 483 of file bpp_format_ui.cc.

References convert_callback_, is_open_, preserve_palette_, and target_format_.

Referenced by Render().

Member Data Documentation

id_

std::string yaze::gui::BppConversionDialog::id_

private

Definition at line 154 of file bpp_format_ui.h.

is_open_

bool yaze::gui::BppConversionDialog::is_open_

private

Definition at line 155 of file bpp_format_ui.h.

Referenced by Close(), IsOpen(), Render(), RenderButtons(), and Show().

source_bitmap_

gfx::Bitmap yaze::gui::BppConversionDialog::source_bitmap_

private

Definition at line 156 of file bpp_format_ui.h.

Referenced by Show(), and UpdatePreview().

source_palette_

gfx::SnesPalette yaze::gui::BppConversionDialog::source_palette_

private

Definition at line 157 of file bpp_format_ui.h.

Referenced by Show(), and UpdatePreview().

target_format_

gfx::BppFormat yaze::gui::BppConversionDialog::target_format_

private

Definition at line 158 of file bpp_format_ui.h.

Referenced by RenderButtons(), RenderFormatSelector(), and UpdatePreview().

preserve_palette_

bool yaze::gui::BppConversionDialog::preserve_palette_

private

Definition at line 159 of file bpp_format_ui.h.

Referenced by RenderButtons(), and RenderOptions().

convert_callback_

std::function<void(gfx::BppFormat, bool)> yaze::gui::BppConversionDialog::convert_callback_

private

Definition at line 160 of file bpp_format_ui.h.

Referenced by RenderButtons(), and Show().

preview_data_

std::vector<uint8_t> yaze::gui::BppConversionDialog::preview_data_

private

Definition at line 163 of file bpp_format_ui.h.

preview_bitmap_

gfx::Bitmap yaze::gui::BppConversionDialog::preview_bitmap_

private

Definition at line 164 of file bpp_format_ui.h.

Referenced by RenderPreview(), and UpdatePreview().

preview_valid_

bool yaze::gui::BppConversionDialog::preview_valid_

private

Definition at line 165 of file bpp_format_ui.h.

Referenced by RenderFormatSelector(), RenderPreview(), Show(), and UpdatePreview().

show_preview_

bool yaze::gui::BppConversionDialog::show_preview_

private

Definition at line 168 of file bpp_format_ui.h.

Referenced by Render(), and RenderOptions().

preview_scale_

float yaze::gui::BppConversionDialog::preview_scale_

private

Definition at line 169 of file bpp_format_ui.h.

Referenced by RenderPreview().

---

The documentation for this class was generated from the following files:

• src/app/gui/canvas/bpp_format_ui.h
• src/app/gui/canvas/bpp_format_ui.cc
