yaze::gui::ScopedCanvas Class Reference

RAII wrapper for Canvas (ImGui-style) More...

#include <canvas.h>

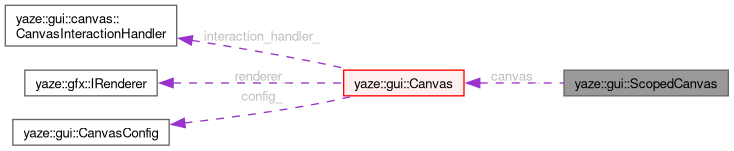

Collaboration diagram for yaze::gui::ScopedCanvas:

Public Member Functions
	ScopedCanvas (const std::string &id, ImVec2 canvas_size=ImVec2(0, 0))
	Construct and begin a new canvas (legacy constructor without renderer)
	ScopedCanvas (gfx::IRenderer *renderer, const std::string &id, ImVec2 canvas_size=ImVec2(0, 0))
	Construct and begin a new canvas (with optional renderer)
	ScopedCanvas (Canvas &canvas)
	Wrap existing canvas with RAII.
	~ScopedCanvas ()
	Destructor automatically calls End()
	ScopedCanvas (const ScopedCanvas &)=delete
ScopedCanvas &	operator= (const ScopedCanvas &)=delete
	ScopedCanvas (ScopedCanvas &&other) noexcept
Canvas *	operator-> ()
	Arrow operator for clean syntax: scoped->DrawBitmap(...)
const Canvas *	operator-> () const
Canvas &	operator* ()
	Dereference operator for direct access: (*scoped).DrawBitmap(...)
const Canvas &	operator* () const
Canvas *	get ()
	Get underlying canvas.
const Canvas *	get () const

Private Attributes
Canvas *	canvas_
bool	owned_
bool	active_

Detailed Description

RAII wrapper for Canvas (ImGui-style)

Automatically calls Begin() on construction and End() on destruction, preventing forgotten End() calls and ensuring proper cleanup.

Usage:

{
  gui::ScopedCanvas canvas("MyCanvas", ImVec2(512, 512));
  canvas->DrawBitmap(bitmap);
  if (canvas->DrawTilePainter(tile, 16)) {
    HandlePaint(canvas->drawn_tile_position());
  }
} // Automatic End() and cleanup

Or wrap existing canvas:

Canvas my_canvas("Editor");
{
  ScopedCanvas scoped(my_canvas);
  scoped->DrawBitmap(bitmap);
} // Automatic End()

Definition at line 503 of file canvas.h.

Constructor & Destructor Documentation

ScopedCanvas() [1/5]

yaze::gui::ScopedCanvas::ScopedCanvas ( const std::string &  id, ImVec2  canvas_size = ImVec2(0, 0)  )

inlineexplicit

Construct and begin a new canvas (legacy constructor without renderer)

Definition at line 508 of file canvas.h.

References yaze::gui::Canvas::Begin(), and canvas_.

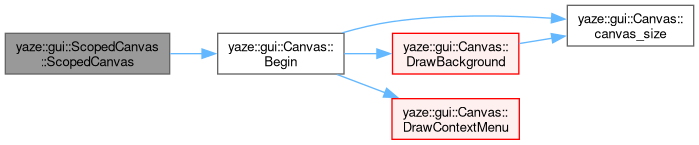

Here is the call graph for this function:

ScopedCanvas() [2/5]

yaze::gui::ScopedCanvas::ScopedCanvas ( gfx::IRenderer *  renderer, const std::string &  id, ImVec2  canvas_size = ImVec2(0, 0)  )

inlineexplicit

Construct and begin a new canvas (with optional renderer)

Definition at line 516 of file canvas.h.

References yaze::gui::Canvas::Begin(), and canvas_.

Here is the call graph for this function:

ScopedCanvas() [3/5]

yaze::gui::ScopedCanvas::ScopedCanvas ( Canvas &  canvas )

inlineexplicit

Wrap existing canvas with RAII.

Definition at line 524 of file canvas.h.

References yaze::gui::Canvas::Begin(), and canvas_.

Here is the call graph for this function:

~ScopedCanvas()

yaze::gui::ScopedCanvas::~ScopedCanvas ( )

inline

Destructor automatically calls End()

Definition at line 532 of file canvas.h.

References active_, canvas_, yaze::gui::Canvas::End(), and owned_.

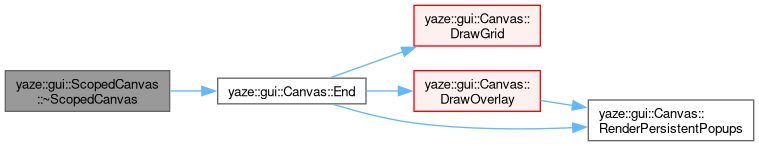

Here is the call graph for this function:

ScopedCanvas() [4/5]

yaze::gui::ScopedCanvas::ScopedCanvas ( const ScopedCanvas &  )

delete

ScopedCanvas() [5/5]

yaze::gui::ScopedCanvas::ScopedCanvas ( ScopedCanvas &&  other )

inlinenoexcept

Definition at line 545 of file canvas.h.

Member Function Documentation

operator=()

ScopedCanvas & yaze::gui::ScopedCanvas::operator= ( const ScopedCanvas &  )

delete

operator->() [1/2]

Canvas * yaze::gui::ScopedCanvas::operator-> ( )

inline

Arrow operator for clean syntax: scoped->DrawBitmap(...)

Definition at line 554 of file canvas.h.

References canvas_.

operator->() [2/2]

const Canvas * yaze::gui::ScopedCanvas::operator-> ( ) const

inline

Definition at line 555 of file canvas.h.

References canvas_.

operator*() [1/2]

Canvas & yaze::gui::ScopedCanvas::operator* ( )

inline

Dereference operator for direct access: (*scoped).DrawBitmap(...)

Definition at line 560 of file canvas.h.

References canvas_.

operator*() [2/2]

const Canvas & yaze::gui::ScopedCanvas::operator* ( ) const

inline

Definition at line 561 of file canvas.h.

References canvas_.

get() [1/2]

Canvas * yaze::gui::ScopedCanvas::get ( )

inline

Get underlying canvas.

Definition at line 566 of file canvas.h.

References canvas_.

get() [2/2]

const Canvas * yaze::gui::ScopedCanvas::get ( ) const

inline

Definition at line 567 of file canvas.h.

References canvas_.

Member Data Documentation

canvas_

Canvas* yaze::gui::ScopedCanvas::canvas_

private

Definition at line 570 of file canvas.h.

Referenced by get(), get(), operator*(), operator*(), operator->(), operator->(), ScopedCanvas(), ScopedCanvas(), ScopedCanvas(), and ~ScopedCanvas().

owned_

bool yaze::gui::ScopedCanvas::owned_

private

Definition at line 571 of file canvas.h.

Referenced by ~ScopedCanvas().

active_

bool yaze::gui::ScopedCanvas::active_

private

Definition at line 572 of file canvas.h.

Referenced by ~ScopedCanvas().

---

The documentation for this class was generated from the following file:

• src/app/gui/canvas/canvas.h
