yaze::gui::CanvasMenuBuilder Class Reference

Builder pattern for constructing canvas menus fluently. More...

#include <canvas_menu_builder.h>

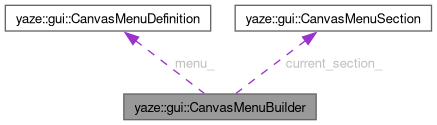

Collaboration diagram for yaze::gui::CanvasMenuBuilder:

Public Member Functions
	CanvasMenuBuilder ()=default
CanvasMenuBuilder &	AddItem (const std::string &label, std::function< void()> callback)
	Add a simple menu item.
CanvasMenuBuilder &	AddItem (const std::string &label, const std::string &icon, std::function< void()> callback)
	Add a menu item with icon.
CanvasMenuBuilder &	AddItem (const std::string &label, const std::string &icon, const std::string &shortcut, std::function< void()> callback)
	Add a menu item with icon and shortcut hint.
CanvasMenuBuilder &	AddPopupItem (const std::string &label, const std::string &popup_id, std::function< void()> render_callback)
	Add a menu item that opens a persistent popup.
CanvasMenuBuilder &	AddPopupItem (const std::string &label, const std::string &icon, const std::string &popup_id, std::function< void()> render_callback)
	Add a menu item with icon that opens a persistent popup.
CanvasMenuBuilder &	AddConditionalItem (const std::string &label, std::function< void()> callback, std::function< bool()> condition)
	Add a conditional menu item (enabled only when condition is true)
CanvasMenuBuilder &	AddSubmenu (const std::string &label, const std::vector< CanvasMenuItem > &subitems)
	Add a submenu with nested items.
CanvasMenuBuilder &	AddSeparator ()
	Add a separator to visually group items.
CanvasMenuBuilder &	BeginSection (const std::string &title="", MenuSectionPriority priority=MenuSectionPriority::kEditorSpecific)
	Start a new section with optional title.
CanvasMenuBuilder &	EndSection ()
	End the current section.
CanvasMenuDefinition	Build ()
	Build the final menu definition.
CanvasMenuBuilder &	Reset ()
	Reset the builder to start building a new menu.

Private Member Functions
void	FlushPendingItems ()

Private Attributes
CanvasMenuDefinition	menu_
CanvasMenuSection *	current_section_ = nullptr
std::vector< CanvasMenuItem >	pending_items_

Detailed Description

Builder pattern for constructing canvas menus fluently.

Phase 4: Simplifies menu construction with chainable methods.

Example usage:

CanvasMenuBuilder builder;
builder
  .AddItem("Cut", ICON_MD_CONTENT_CUT, []() { DoCut(); })
  .AddItem("Copy", ICON_MD_CONTENT_COPY, []() { DoCopy(); })
  .AddSeparator()
  .AddPopupItem("Properties", ICON_MD_SETTINGS, "props_popup",
                []() { RenderPropertiesPopup(); })
  .Build();

Definition at line 30 of file canvas_menu_builder.h.

Constructor & Destructor Documentation

CanvasMenuBuilder()

yaze::gui::CanvasMenuBuilder::CanvasMenuBuilder ( )

default

Member Function Documentation

AddItem() [1/3]

CanvasMenuBuilder & yaze::gui::CanvasMenuBuilder::AddItem	(	const std::string &	label,
		std::function< void()>	callback
	)

Add a simple menu item.

Parameters

label	Menu item label
callback	Action to perform when selected

Returns

Reference to this builder for chaining

Definition at line 6 of file canvas_menu_builder.cc.

References yaze::gui::CanvasMenuItem::callback, yaze::gui::CanvasMenuItem::label, and pending_items_.

AddItem() [2/3]

CanvasMenuBuilder & yaze::gui::CanvasMenuBuilder::AddItem	(	const std::string &	label,
		const std::string &	icon,
		std::function< void()>	callback
	)

Add a menu item with icon.

Parameters

label	Menu item label
icon	Material Design icon or Unicode glyph
callback	Action to perform when selected

Returns

Reference to this builder for chaining

Definition at line 15 of file canvas_menu_builder.cc.

References yaze::gui::CanvasMenuItem::callback, yaze::gui::CanvasMenuItem::icon, yaze::gui::CanvasMenuItem::label, and pending_items_.

AddItem() [3/3]

CanvasMenuBuilder & yaze::gui::CanvasMenuBuilder::AddItem	(	const std::string &	label,
		const std::string &	icon,
		const std::string &	shortcut,
		std::function< void()>	callback
	)

Add a menu item with icon and shortcut hint.

Parameters

label	Menu item label
icon	Material Design icon or Unicode glyph
shortcut	Keyboard shortcut hint (e.g., "Ctrl+S")
callback	Action to perform when selected

Returns

Reference to this builder for chaining

Definition at line 26 of file canvas_menu_builder.cc.

References yaze::gui::CanvasMenuItem::callback, yaze::gui::CanvasMenuItem::icon, yaze::gui::CanvasMenuItem::label, pending_items_, and yaze::gui::CanvasMenuItem::shortcut.

AddPopupItem() [1/2]

CanvasMenuBuilder & yaze::gui::CanvasMenuBuilder::AddPopupItem	(	const std::string &	label,
		const std::string &	popup_id,
		std::function< void()>	render_callback
	)

Add a menu item that opens a persistent popup.

Parameters

label	Menu item label
popup_id	Unique popup identifier
render_callback	Callback to render popup content

Returns

Reference to this builder for chaining

Definition at line 39 of file canvas_menu_builder.cc.

References pending_items_, and yaze::gui::CanvasMenuItem::WithPopup().

Here is the call graph for this function:

AddPopupItem() [2/2]

CanvasMenuBuilder & yaze::gui::CanvasMenuBuilder::AddPopupItem	(	const std::string &	label,
		const std::string &	icon,
		const std::string &	popup_id,
		std::function< void()>	render_callback
	)

Add a menu item with icon that opens a persistent popup.

Parameters

label	Menu item label
icon	Material Design icon or Unicode glyph
popup_id	Unique popup identifier
render_callback	Callback to render popup content

Returns

Reference to this builder for chaining

Definition at line 47 of file canvas_menu_builder.cc.

References yaze::gui::CanvasMenuItem::icon, pending_items_, and yaze::gui::CanvasMenuItem::WithPopup().

Here is the call graph for this function:

AddConditionalItem()

CanvasMenuBuilder & yaze::gui::CanvasMenuBuilder::AddConditionalItem	(	const std::string &	label,
		std::function< void()>	callback,
		std::function< bool()>	condition
	)

Add a conditional menu item (enabled only when condition is true)

Parameters

label	Menu item label
callback	Action to perform when selected
condition	Function that returns true when item should be enabled

Returns

Reference to this builder for chaining

Definition at line 56 of file canvas_menu_builder.cc.

References yaze::gui::CanvasMenuItem::Conditional(), and pending_items_.

Here is the call graph for this function:

AddSubmenu()

CanvasMenuBuilder & yaze::gui::CanvasMenuBuilder::AddSubmenu	(	const std::string &	label,
		const std::vector< CanvasMenuItem > &	subitems
	)

Add a submenu with nested items.

Parameters

label	Submenu label
subitems	Nested menu items

Returns

Reference to this builder for chaining

Definition at line 64 of file canvas_menu_builder.cc.

References yaze::gui::CanvasMenuItem::label, pending_items_, and yaze::gui::CanvasMenuItem::subitems.

AddSeparator()

CanvasMenuBuilder & yaze::gui::CanvasMenuBuilder::AddSeparator

(

)

Add a separator to visually group items.

Returns

Reference to this builder for chaining

Definition at line 73 of file canvas_menu_builder.cc.

References pending_items_.

BeginSection()

CanvasMenuBuilder & yaze::gui::CanvasMenuBuilder::BeginSection	(	const std::string &	title = "",
		MenuSectionPriority	priority = MenuSectionPriority::kEditorSpecific
	)

Start a new section with optional title.

Parameters

title	Section title (empty for no title)
priority	Section priority (controls rendering order)

Returns

Reference to this builder for chaining

Definition at line 80 of file canvas_menu_builder.cc.

References current_section_, FlushPendingItems(), menu_, yaze::gui::CanvasMenuSection::priority, yaze::gui::CanvasMenuDefinition::sections, yaze::gui::CanvasMenuSection::separator_after, and yaze::gui::CanvasMenuSection::title.

Here is the call graph for this function:

EndSection()

CanvasMenuBuilder & yaze::gui::CanvasMenuBuilder::EndSection

(

)

End the current section.

Returns

Reference to this builder for chaining

Definition at line 98 of file canvas_menu_builder.cc.

References current_section_, and FlushPendingItems().

Here is the call graph for this function:

Build()

CanvasMenuDefinition yaze::gui::CanvasMenuBuilder::Build

(

)

Build the final menu definition.

Returns

Complete menu definition ready for rendering

Definition at line 104 of file canvas_menu_builder.cc.

References FlushPendingItems(), and menu_.

Here is the call graph for this function:

Reset()

CanvasMenuBuilder & yaze::gui::CanvasMenuBuilder::Reset

(

)

Reset the builder to start building a new menu.

Returns

Reference to this builder for chaining

Definition at line 109 of file canvas_menu_builder.cc.

References current_section_, menu_, pending_items_, and yaze::gui::CanvasMenuDefinition::sections.

FlushPendingItems()

void yaze::gui::CanvasMenuBuilder::FlushPendingItems ( )

private

Definition at line 116 of file canvas_menu_builder.cc.

References current_section_, yaze::gui::CanvasMenuSection::items, yaze::gui::kEditorSpecific, menu_, pending_items_, yaze::gui::CanvasMenuSection::priority, yaze::gui::CanvasMenuDefinition::sections, and yaze::gui::CanvasMenuSection::separator_after.

Referenced by BeginSection(), Build(), and EndSection().

Member Data Documentation

menu_

CanvasMenuDefinition yaze::gui::CanvasMenuBuilder::menu_

private

Definition at line 146 of file canvas_menu_builder.h.

Referenced by BeginSection(), Build(), FlushPendingItems(), and Reset().

current_section_

CanvasMenuSection* yaze::gui::CanvasMenuBuilder::current_section_ = nullptr

private

Definition at line 147 of file canvas_menu_builder.h.

Referenced by BeginSection(), EndSection(), FlushPendingItems(), and Reset().

pending_items_

std::vector<CanvasMenuItem> yaze::gui::CanvasMenuBuilder::pending_items_

private

Definition at line 148 of file canvas_menu_builder.h.

Referenced by AddConditionalItem(), AddItem(), AddItem(), AddItem(), AddPopupItem(), AddPopupItem(), AddSeparator(), AddSubmenu(), FlushPendingItems(), and Reset().

---

The documentation for this class was generated from the following files:

• src/app/gui/canvas/canvas_menu_builder.h
• src/app/gui/canvas/canvas_menu_builder.cc
