Handles all tile-based interactions for Canvas. More...

#include <canvas_interaction_handler.h>

Public Member Functions
	CanvasInteractionHandler ()=default

void	Initialize (const std::string &canvas_id)
	Initialize the interaction handler.

void	SetMode (TileInteractionMode mode)
	Set the interaction mode.

TileInteractionMode	GetMode () const

TileInteractionResult	Update (ImVec2 canvas_p0, ImVec2 scrolling, float global_scale, float tile_size, ImVec2 canvas_size, bool is_hovered)
	Update interaction state (call once per frame)

bool	DrawTilePainter (const gfx::Bitmap &bitmap, ImDrawList *draw_list, ImVec2 canvas_p0, ImVec2 scrolling, float global_scale, float tile_size, bool is_hovered)
	Draw tile painter (preview + interaction)

bool	DrawTilemapPainter (gfx::Tilemap &tilemap, int current_tile, ImDrawList *draw_list, ImVec2 canvas_p0, ImVec2 scrolling, float global_scale, bool is_hovered)
	Draw tilemap painter (preview + interaction)

bool	DrawSolidTilePainter (const ImVec4 &color, ImDrawList *draw_list, ImVec2 canvas_p0, ImVec2 scrolling, float global_scale, float tile_size, bool is_hovered)
	Draw solid color painter.

bool	DrawTileSelector (ImDrawList *draw_list, ImVec2 canvas_p0, ImVec2 scrolling, float tile_size, bool is_hovered)
	Draw tile selector (single tile selection)

bool	DrawSelectRect (int current_map, ImDrawList *draw_list, ImVec2 canvas_p0, ImVec2 scrolling, float global_scale, float tile_size, bool is_hovered)
	Draw rectangle selector (multi-tile selection)

const ImVector< ImVec2 > &	GetHoverPoints () const
	Get current hover points (for DrawOverlay)

const ImVector< ImVec2 > &	GetSelectedPoints () const
	Get selected points (for DrawOverlay)

const std::vector< ImVec2 > &	GetSelectedTiles () const
	Get selected tiles from last rectangle selection.

ImVec2	GetDrawnTilePosition () const
	Get last drawn tile position.

ImVec2	GetMousePositionInCanvas () const
	Get current mouse position in canvas space.

void	ClearState ()
	Clear all interaction state.

bool	IsRectSelectActive () const
	Check if rectangle selection is active.

ImVec2	GetSelectedTilePosition () const
	Get selected tile position (for single selection)

void	SetSelectedTilePosition (ImVec2 pos)
	Set selected tile position.

Private Member Functions
ImVec2	AlignPosToGrid (ImVec2 pos, float grid_step)

ImVec2	GetMousePosition (ImVec2 canvas_p0, ImVec2 scrolling)

bool	IsMouseClicked (ImGuiMouseButton button)

bool	IsMouseDoubleClicked (ImGuiMouseButton button)

bool	IsMouseDragging (ImGuiMouseButton button)

bool	IsMouseReleased (ImGuiMouseButton button)

Private Attributes
std::string	canvas_id_

TileInteractionMode	current_mode_ = TileInteractionMode::kNone

ImVector< ImVec2 >	hover_points_

ImVector< ImVec2 >	selected_points_

std::vector< ImVec2 >	selected_tiles_

ImVec2	drawn_tile_pos_ = ImVec2(-1, -1)

ImVec2	mouse_pos_in_canvas_ = ImVec2(0, 0)

ImVec2	selected_tile_pos_ = ImVec2(-1, -1)

bool	rect_select_active_ = false

Detailed Description

Handles all tile-based interactions for Canvas.

Consolidates tile painting, selection, and multi-selection logic that was previously scattered across Canvas methods. Provides a unified interface for common tile interaction patterns.

Key Features:

Single tile painting with preview
Drag painting for continuous tile placement
Single tile selection
Rectangle selection for multi-tile operations
Color painting mode
Grid-aligned positioning
Hover preview

Definition at line 57 of file canvas_interaction_handler.h.

Constructor & Destructor Documentation

◆ CanvasInteractionHandler()

yaze::gui::CanvasInteractionHandler::CanvasInteractionHandler ( )

default

Member Function Documentation

◆ Initialize()

void yaze::gui::CanvasInteractionHandler::Initialize ( const std::string & canvas_id )

Initialize the interaction handler.

Definition at line 20 of file canvas_interaction_handler.cc.

References canvas_id_, and ClearState().

Referenced by yaze::gui::Canvas::InitializeDefaults().

Here is the call graph for this function:

◆ SetMode()

void yaze::gui::CanvasInteractionHandler::SetMode ( TileInteractionMode mode )

inline

Set the interaction mode.

Definition at line 69 of file canvas_interaction_handler.h.

References current_mode_.

◆ GetMode()

TileInteractionMode yaze::gui::CanvasInteractionHandler::GetMode ( ) const

inline

Definition at line 70 of file canvas_interaction_handler.h.

References current_mode_.

◆ Update()

TileInteractionResult yaze::gui::CanvasInteractionHandler::Update	(	ImVec2	canvas_p0,
		ImVec2	scrolling,
		float	global_scale,
		float	tile_size,
		ImVec2	canvas_size,
		bool	is_hovered
	)

Update interaction state (call once per frame)

Parameters

canvas_p0	Canvas top-left screen position
scrolling	Canvas scroll offset
global_scale	Canvas zoom scale
tile_size	Logical tile size
canvas_size	Canvas dimensions
is_hovered	Whether mouse is over canvas

Returns: Interaction result for this frame

Definition at line 35 of file canvas_interaction_handler.cc.

References current_mode_, hover_points_, and mouse_pos_in_canvas_.

◆ DrawTilePainter()

bool yaze::gui::CanvasInteractionHandler::DrawTilePainter	(	const gfx::Bitmap &	bitmap,
		ImDrawList *	draw_list,
		ImVec2	canvas_p0,
		ImVec2	scrolling,
		float	global_scale,
		float	tile_size,
		bool	is_hovered
	)

Draw tile painter (preview + interaction)

Parameters

bitmap	Tile bitmap to paint
draw_list	ImGui draw list
canvas_p0	Canvas top-left position
scrolling	Canvas scroll offset
global_scale	Canvas zoom scale
tile_size	Logical tile size
is_hovered	Whether mouse is over canvas

Returns: True if tile was painted

Definition at line 57 of file canvas_interaction_handler.cc.

References drawn_tile_pos_, hover_points_, yaze::gfx::Bitmap::is_active(), mouse_pos_in_canvas_, and yaze::gfx::Bitmap::texture().

Here is the call graph for this function:

◆ DrawTilemapPainter()

bool yaze::gui::CanvasInteractionHandler::DrawTilemapPainter	(	gfx::Tilemap &	tilemap,
		int	current_tile,
		ImDrawList *	draw_list,
		ImVec2	canvas_p0,
		ImVec2	scrolling,
		float	global_scale,
		bool	is_hovered
	)

Draw tilemap painter (preview + interaction)

Definition at line 101 of file canvas_interaction_handler.cc.

References yaze::gui::AlignToGrid(), yaze::gfx::Tilemap::atlas, drawn_tile_pos_, yaze::gfx::Bitmap::height(), hover_points_, yaze::gfx::Bitmap::is_active(), mouse_pos_in_canvas_, yaze::gfx::Bitmap::texture(), yaze::gfx::Tilemap::tile_size, yaze::gfx::Bitmap::width(), yaze::gfx::Pair::x, and yaze::gfx::Pair::y.

◆ DrawSolidTilePainter()

bool yaze::gui::CanvasInteractionHandler::DrawSolidTilePainter	(	const ImVec4 &	color,
		ImDrawList *	draw_list,
		ImVec2	canvas_p0,
		ImVec2	scrolling,
		float	global_scale,
		float	tile_size,
		bool	is_hovered
	)

Draw solid color painter.

Definition at line 162 of file canvas_interaction_handler.cc.

References yaze::gui::AlignToGrid(), drawn_tile_pos_, hover_points_, and mouse_pos_in_canvas_.

Here is the call graph for this function:

◆ DrawTileSelector()

bool yaze::gui::CanvasInteractionHandler::DrawTileSelector	(	ImDrawList *	draw_list,
		ImVec2	canvas_p0,
		ImVec2	scrolling,
		float	tile_size,
		bool	is_hovered
	)

Draw tile selector (single tile selection)

Definition at line 211 of file canvas_interaction_handler.cc.

References hover_points_, and mouse_pos_in_canvas_.

◆ DrawSelectRect()

bool yaze::gui::CanvasInteractionHandler::DrawSelectRect	(	int	current_map,
		ImDrawList *	draw_list,
		ImVec2	canvas_p0,
		ImVec2	scrolling,
		float	global_scale,
		float	tile_size,
		bool	is_hovered
	)

Draw rectangle selector (multi-tile selection)

Parameters

current_map	Map ID for coordinate calculation
draw_list	ImGui draw list
canvas_p0	Canvas position
scrolling	Scroll offset
global_scale	Zoom scale
tile_size	Tile size
is_hovered	Whether mouse is over canvas

Returns: True if selection was made

Definition at line 235 of file canvas_interaction_handler.cc.

References yaze::gui::CanvasGeometry::canvas_p0, yaze::gui::CanvasGeometry::canvas_sz, yaze::gui::HandleRectangleSelection(), rect_select_active_, yaze::gui::CanvasGeometry::scaled_size, yaze::gui::CanvasGeometry::scrolling, selected_points_, selected_tile_pos_, and selected_tiles_.

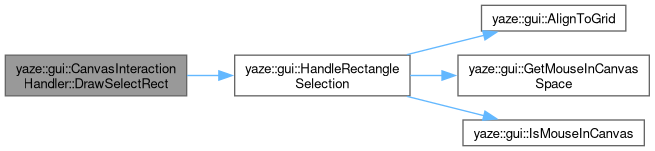

Here is the call graph for this function:

◆ GetHoverPoints()

const ImVector< ImVec2 > & yaze::gui::CanvasInteractionHandler::GetHoverPoints ( ) const

inline

Get current hover points (for DrawOverlay)

Definition at line 139 of file canvas_interaction_handler.h.

References hover_points_.

◆ GetSelectedPoints()

const ImVector< ImVec2 > & yaze::gui::CanvasInteractionHandler::GetSelectedPoints ( ) const

inline

Get selected points (for DrawOverlay)

Definition at line 144 of file canvas_interaction_handler.h.

References selected_points_.

◆ GetSelectedTiles()

const std::vector< ImVec2 > & yaze::gui::CanvasInteractionHandler::GetSelectedTiles ( ) const

inline

Get selected tiles from last rectangle selection.

Definition at line 149 of file canvas_interaction_handler.h.

References selected_tiles_.

◆ GetDrawnTilePosition()

ImVec2 yaze::gui::CanvasInteractionHandler::GetDrawnTilePosition ( ) const

inline

Get last drawn tile position.

Definition at line 154 of file canvas_interaction_handler.h.

References drawn_tile_pos_.

◆ GetMousePositionInCanvas()

ImVec2 yaze::gui::CanvasInteractionHandler::GetMousePositionInCanvas ( ) const

inline

Get current mouse position in canvas space.

Definition at line 159 of file canvas_interaction_handler.h.

References mouse_pos_in_canvas_.

◆ ClearState()

void yaze::gui::CanvasInteractionHandler::ClearState ( )

Clear all interaction state.

Definition at line 25 of file canvas_interaction_handler.cc.

References drawn_tile_pos_, hover_points_, mouse_pos_in_canvas_, rect_select_active_, selected_points_, selected_tile_pos_, and selected_tiles_.

Referenced by Initialize().

◆ IsRectSelectActive()

bool yaze::gui::CanvasInteractionHandler::IsRectSelectActive ( ) const

inline

Check if rectangle selection is active.

Definition at line 169 of file canvas_interaction_handler.h.

References rect_select_active_.

◆ GetSelectedTilePosition()

ImVec2 yaze::gui::CanvasInteractionHandler::GetSelectedTilePosition ( ) const

inline

Get selected tile position (for single selection)

Definition at line 174 of file canvas_interaction_handler.h.

References selected_tile_pos_.

◆ SetSelectedTilePosition()

void yaze::gui::CanvasInteractionHandler::SetSelectedTilePosition ( ImVec2 pos )

inline

Set selected tile position.

Definition at line 179 of file canvas_interaction_handler.h.

References selected_tile_pos_.

◆ AlignPosToGrid()

ImVec2 yaze::gui::CanvasInteractionHandler::AlignPosToGrid	(	ImVec2	pos,
		float	grid_step
	)

private

Definition at line 278 of file canvas_interaction_handler.cc.

◆ GetMousePosition()

ImVec2 yaze::gui::CanvasInteractionHandler::GetMousePosition	(	ImVec2	canvas_p0,
		ImVec2	scrolling
	)

private

Definition at line 282 of file canvas_interaction_handler.cc.

◆ IsMouseClicked()

bool yaze::gui::CanvasInteractionHandler::IsMouseClicked ( ImGuiMouseButton button )

private

Definition at line 288 of file canvas_interaction_handler.cc.

◆ IsMouseDoubleClicked()

bool yaze::gui::CanvasInteractionHandler::IsMouseDoubleClicked ( ImGuiMouseButton button )

private

Definition at line 292 of file canvas_interaction_handler.cc.

◆ IsMouseDragging()

bool yaze::gui::CanvasInteractionHandler::IsMouseDragging ( ImGuiMouseButton button )

private

Definition at line 296 of file canvas_interaction_handler.cc.

◆ IsMouseReleased()

bool yaze::gui::CanvasInteractionHandler::IsMouseReleased ( ImGuiMouseButton button )

private

Definition at line 300 of file canvas_interaction_handler.cc.

Member Data Documentation

◆ canvas_id_

std::string yaze::gui::CanvasInteractionHandler::canvas_id_

private

Definition at line 182 of file canvas_interaction_handler.h.

Referenced by Initialize().

◆ current_mode_

TileInteractionMode yaze::gui::CanvasInteractionHandler::current_mode_ = TileInteractionMode::kNone

private

Definition at line 183 of file canvas_interaction_handler.h.

Referenced by GetMode(), SetMode(), and Update().

◆ hover_points_

ImVector<ImVec2> yaze::gui::CanvasInteractionHandler::hover_points_

private

Definition at line 186 of file canvas_interaction_handler.h.

Referenced by ClearState(), DrawSolidTilePainter(), DrawTilemapPainter(), DrawTilePainter(), DrawTileSelector(), GetHoverPoints(), and Update().

◆ selected_points_

ImVector<ImVec2> yaze::gui::CanvasInteractionHandler::selected_points_

private

Definition at line 187 of file canvas_interaction_handler.h.

Referenced by ClearState(), DrawSelectRect(), and GetSelectedPoints().

◆ selected_tiles_

std::vector<ImVec2> yaze::gui::CanvasInteractionHandler::selected_tiles_

private

Definition at line 188 of file canvas_interaction_handler.h.

Referenced by ClearState(), DrawSelectRect(), and GetSelectedTiles().

◆ drawn_tile_pos_

ImVec2 yaze::gui::CanvasInteractionHandler::drawn_tile_pos_ = ImVec2(-1, -1)

private

Definition at line 189 of file canvas_interaction_handler.h.

Referenced by ClearState(), DrawSolidTilePainter(), DrawTilemapPainter(), DrawTilePainter(), and GetDrawnTilePosition().

◆ mouse_pos_in_canvas_

ImVec2 yaze::gui::CanvasInteractionHandler::mouse_pos_in_canvas_ = ImVec2(0, 0)

private

Definition at line 190 of file canvas_interaction_handler.h.

Referenced by ClearState(), DrawSolidTilePainter(), DrawTilemapPainter(), DrawTilePainter(), DrawTileSelector(), GetMousePositionInCanvas(), and Update().

◆ selected_tile_pos_

ImVec2 yaze::gui::CanvasInteractionHandler::selected_tile_pos_ = ImVec2(-1, -1)

private

Definition at line 191 of file canvas_interaction_handler.h.

Referenced by ClearState(), DrawSelectRect(), GetSelectedTilePosition(), and SetSelectedTilePosition().

◆ rect_select_active_

bool yaze::gui::CanvasInteractionHandler::rect_select_active_ = false

private

Definition at line 192 of file canvas_interaction_handler.h.

Referenced by ClearState(), DrawSelectRect(), and IsRectSelectActive().

The documentation for this class was generated from the following files:

src/app/gui/canvas/canvas_interaction_handler.h
src/app/gui/canvas/canvas_interaction_handler.cc

	yaze 0.3.2 Link to the Past ROM Editor

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ CanvasInteractionHandler()

Member Function Documentation

◆ Initialize()

◆ SetMode()

◆ GetMode()

◆ Update()

◆ DrawTilePainter()

◆ DrawTilemapPainter()

◆ DrawSolidTilePainter()

◆ DrawTileSelector()

◆ DrawSelectRect()

◆ GetHoverPoints()

◆ GetSelectedPoints()

◆ GetSelectedTiles()

◆ GetDrawnTilePosition()

◆ GetMousePositionInCanvas()

◆ ClearState()

◆ IsRectSelectActive()

◆ GetSelectedTilePosition()

◆ SetSelectedTilePosition()

◆ AlignPosToGrid()

◆ GetMousePosition()

◆ IsMouseClicked()

◆ IsMouseDoubleClicked()

◆ IsMouseDragging()

◆ IsMouseReleased()

Member Data Documentation

◆ canvas_id_

◆ current_mode_

◆ hover_points_

◆ selected_points_

◆ selected_tiles_

◆ drawn_tile_pos_

◆ mouse_pos_in_canvas_

◆ selected_tile_pos_

◆ rect_select_active_
