Programmatic interface for controlling canvas operations. More...

#include <canvas_automation_api.h>

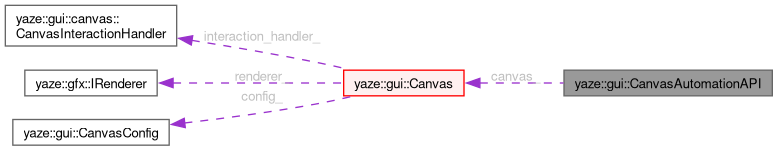

Collaboration diagram for yaze::gui::CanvasAutomationAPI:

[legend]

Classes
struct	Dimensions
	Canvas dimensions in logical tile units. More...

struct	SelectionState
	Selection state returned by GetSelection(). More...

struct	VisibleRegion
	Visible region in logical tile coordinates. More...

Public Types
using	TilePaintCallback = std::function< bool(int x, int y, int tile_id)>
	Set callback for tile painting operations. Allows external systems (CLI, AI agents) to implement custom tile logic.

using	TileQueryCallback = std::function< int(int x, int y)>
	Set callback for tile querying operations. Allows external systems to provide tile data.

Public Member Functions
	CanvasAutomationAPI (Canvas *canvas)

bool	SetTileAt (int x, int y, int tile_id)
	Paint a single tile at logical coordinates.

int	GetTileAt (int x, int y) const
	Query tile ID at logical coordinates.

bool	SetTiles (const std::vector< std::tuple< int, int, int > > &tiles)
	Paint multiple tiles in a batch operation.

void	SelectTile (int x, int y)
	Select a single tile.

void	SelectTileRect (int x1, int y1, int x2, int y2)
	Select a rectangular region of tiles.

SelectionState	GetSelection () const
	Query current selection state.

void	ClearSelection ()
	Clear current selection.

void	ScrollToTile (int x, int y, bool center=false)
	Scroll canvas to make tile visible.

void	CenterOn (int x, int y)
	Center canvas view on a specific tile.

void	SetZoom (float zoom)
	Set canvas zoom level.

float	GetZoom () const
	Get current zoom level.

Dimensions	GetDimensions () const
	Get canvas dimensions in logical tile units.

VisibleRegion	GetVisibleRegion () const
	Get currently visible tile region.

bool	IsTileVisible (int x, int y) const
	Check if a tile is currently visible.

bool	IsInBounds (int x, int y) const
	Check if coordinates are within canvas bounds.

ImVec2	TileToCanvas (int x, int y) const
	Convert logical tile coordinates to canvas pixel coordinates.

ImVec2	CanvasToTile (ImVec2 canvas_pos) const
	Convert canvas pixel coordinates to logical tile coordinates.

void	SetTilePaintCallback (TilePaintCallback callback)

void	SetTileQueryCallback (TileQueryCallback callback)

Private Attributes
Canvas *	canvas_

TilePaintCallback	tile_paint_callback_

TileQueryCallback	tile_query_callback_

Detailed Description

Programmatic interface for controlling canvas operations.

Enables z3ed CLI, AI agents, GUI automation, and remote control via gRPC. All operations work with logical tile coordinates, independent of zoom/scroll.

Definition at line 22 of file canvas_automation_api.h.

Member Typedef Documentation

◆ TilePaintCallback

using yaze::gui::CanvasAutomationAPI::TilePaintCallback = std::function<bool(int x, int y, int tile_id)>

Set callback for tile painting operations. Allows external systems (CLI, AI agents) to implement custom tile logic.

Definition at line 204 of file canvas_automation_api.h.

◆ TileQueryCallback

using yaze::gui::CanvasAutomationAPI::TileQueryCallback = std::function<int(int x, int y)>

Set callback for tile querying operations. Allows external systems to provide tile data.

Definition at line 211 of file canvas_automation_api.h.

Constructor & Destructor Documentation

◆ CanvasAutomationAPI()

yaze::gui::CanvasAutomationAPI::CanvasAutomationAPI ( Canvas * canvas )

explicit

Definition at line 11 of file canvas_automation_api.cc.

Member Function Documentation

◆ SetTileAt()

bool yaze::gui::CanvasAutomationAPI::SetTileAt	(	int	x,
		int	y,
		int	tile_id
	)

Paint a single tile at logical coordinates.

Parameters

x	Logical X coordinate (tile units)
y	Logical Y coordinate (tile units)
tile_id	Tile ID to paint

Returns: true if successful, false if out of bounds

Definition at line 17 of file canvas_automation_api.cc.

References canvas_, IsInBounds(), yaze::gui::Canvas::mutable_points(), tile_paint_callback_, and TileToCanvas().

Referenced by SetTiles().

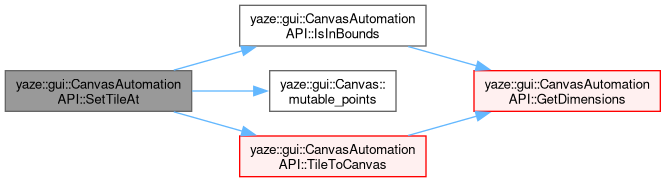

Here is the call graph for this function:

◆ GetTileAt()

int yaze::gui::CanvasAutomationAPI::GetTileAt	(	int	x,
		int	y
	)		const

Query tile ID at logical coordinates.

Parameters

x	Logical X coordinate
y	Logical Y coordinate

Returns: Tile ID at position, or -1 if out of bounds

Definition at line 33 of file canvas_automation_api.cc.

References IsInBounds(), and tile_query_callback_.

Here is the call graph for this function:

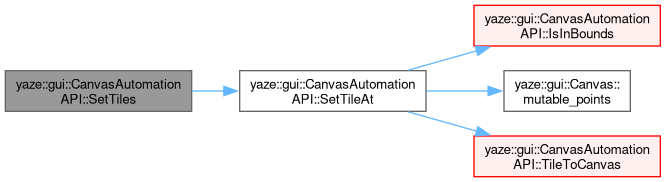

◆ SetTiles()

bool yaze::gui::CanvasAutomationAPI::SetTiles ( const std::vector< std::tuple< int, int, int > > & tiles )

Paint multiple tiles in a batch operation.

Parameters

tiles Vector of (x, y, tile_id) tuples

Returns: true if all tiles painted successfully

Definition at line 46 of file canvas_automation_api.cc.

References SetTileAt().

Here is the call graph for this function:

◆ SelectTile()

void yaze::gui::CanvasAutomationAPI::SelectTile	(	int	x,
		int	y
	)

Select a single tile.

Parameters

x	Logical X coordinate
y	Logical Y coordinate

Definition at line 61 of file canvas_automation_api.cc.

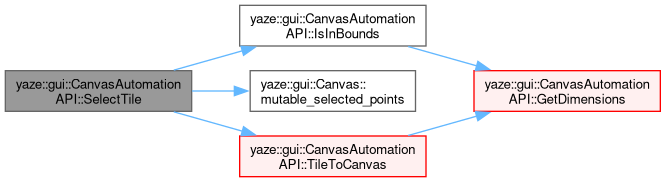

References canvas_, IsInBounds(), yaze::gui::Canvas::mutable_selected_points(), and TileToCanvas().

Here is the call graph for this function:

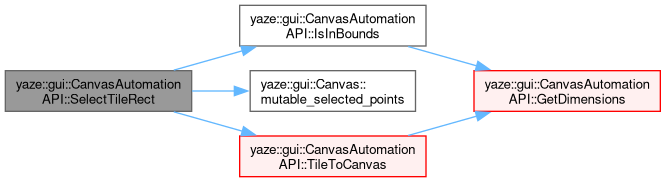

◆ SelectTileRect()

void yaze::gui::CanvasAutomationAPI::SelectTileRect	(	int	x1,
		int	y1,
		int	x2,
		int	y2
	)

Select a rectangular region of tiles.

Parameters

x1	Top-left X coordinate (logical)
y1	Top-left Y coordinate (logical)
x2	Bottom-right X coordinate (logical)
y2	Bottom-right Y coordinate (logical)

Definition at line 72 of file canvas_automation_api.cc.

References canvas_, IsInBounds(), yaze::gui::Canvas::mutable_selected_points(), and TileToCanvas().

Here is the call graph for this function:

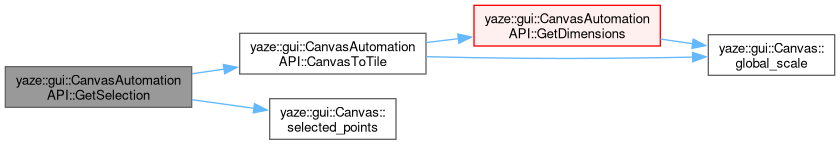

◆ GetSelection()

CanvasAutomationAPI::SelectionState yaze::gui::CanvasAutomationAPI::GetSelection ( ) const

Query current selection state.

Returns: Selection state with all selected tiles

Definition at line 89 of file canvas_automation_api.cc.

References canvas_, CanvasToTile(), yaze::gui::CanvasAutomationAPI::SelectionState::has_selection, yaze::gui::Canvas::selected_points(), yaze::gui::CanvasAutomationAPI::SelectionState::selected_tiles, yaze::gui::CanvasAutomationAPI::SelectionState::selection_end, and yaze::gui::CanvasAutomationAPI::SelectionState::selection_start.

Here is the call graph for this function:

◆ ClearSelection()

void yaze::gui::CanvasAutomationAPI::ClearSelection ( )

Clear current selection.

Definition at line 124 of file canvas_automation_api.cc.

References canvas_, and yaze::gui::Canvas::mutable_selected_points().

Here is the call graph for this function:

◆ ScrollToTile()

void yaze::gui::CanvasAutomationAPI::ScrollToTile	(	int	x,
		int	y,
		bool	center = `false`
	)

Scroll canvas to make tile visible.

Parameters

x	Logical X coordinate
y	Logical Y coordinate
center	If true, center the tile; otherwise just ensure visibility

Definition at line 132 of file canvas_automation_api.cc.

References canvas_, yaze::gui::Canvas::canvas_size(), CenterOn(), IsInBounds(), IsTileVisible(), yaze::gui::Canvas::scrolling(), yaze::gui::Canvas::set_scrolling(), and TileToCanvas().

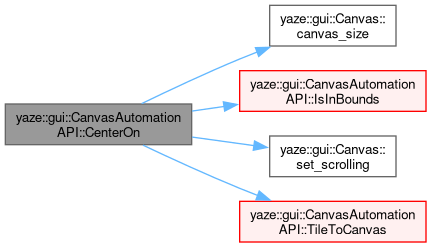

◆ CenterOn()

void yaze::gui::CanvasAutomationAPI::CenterOn	(	int	x,
		int	y
	)

Center canvas view on a specific tile.

Parameters

x	Logical X coordinate
y	Logical Y coordinate

Definition at line 161 of file canvas_automation_api.cc.

References canvas_, yaze::gui::Canvas::canvas_size(), IsInBounds(), yaze::gui::Canvas::set_scrolling(), and TileToCanvas().

Referenced by ScrollToTile().

Here is the call graph for this function:

◆ SetZoom()

void yaze::gui::CanvasAutomationAPI::SetZoom ( float zoom )

Set canvas zoom level.

Parameters

zoom	Zoom factor (0.25 to 4.0, default 1.0)

Definition at line 176 of file canvas_automation_api.cc.

References canvas_, and yaze::gui::Canvas::set_global_scale().

Here is the call graph for this function:

◆ GetZoom()

float yaze::gui::CanvasAutomationAPI::GetZoom ( ) const

Get current zoom level.

Returns: Current zoom factor

Definition at line 182 of file canvas_automation_api.cc.

References canvas_, and yaze::gui::Canvas::global_scale().

Here is the call graph for this function:

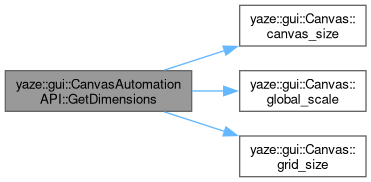

◆ GetDimensions()

CanvasAutomationAPI::Dimensions yaze::gui::CanvasAutomationAPI::GetDimensions ( ) const

Get canvas dimensions in logical tile units.

Returns: Canvas dimensions

Definition at line 190 of file canvas_automation_api.cc.

References canvas_, yaze::gui::Canvas::canvas_size(), yaze::gui::Canvas::global_scale(), yaze::gui::Canvas::grid_size(), yaze::gui::CanvasAutomationAPI::Dimensions::height_tiles, yaze::gui::k16x16, yaze::gui::k32x32, yaze::gui::k64x64, yaze::gui::k8x8, yaze::gui::CanvasAutomationAPI::Dimensions::tile_size, and yaze::gui::CanvasAutomationAPI::Dimensions::width_tiles.

Referenced by CanvasToTile(), GetVisibleRegion(), IsInBounds(), and TileToCanvas().

Here is the call graph for this function:

◆ GetVisibleRegion()

CanvasAutomationAPI::VisibleRegion yaze::gui::CanvasAutomationAPI::GetVisibleRegion ( ) const

Get currently visible tile region.

Returns: Visible region bounds in logical coordinates

Definition at line 221 of file canvas_automation_api.cc.

References canvas_, yaze::gui::Canvas::canvas_size(), CanvasToTile(), GetDimensions(), yaze::gui::Canvas::global_scale(), yaze::gui::CanvasAutomationAPI::Dimensions::height_tiles, yaze::gui::CanvasAutomationAPI::VisibleRegion::max_x, yaze::gui::CanvasAutomationAPI::VisibleRegion::max_y, yaze::gui::CanvasAutomationAPI::VisibleRegion::min_x, yaze::gui::CanvasAutomationAPI::VisibleRegion::min_y, yaze::gui::Canvas::scrolling(), yaze::gui::CanvasAutomationAPI::Dimensions::tile_size, and yaze::gui::CanvasAutomationAPI::Dimensions::width_tiles.

Referenced by IsTileVisible().

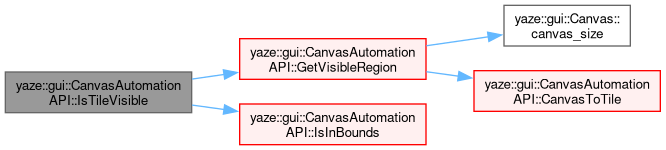

◆ IsTileVisible()

bool yaze::gui::CanvasAutomationAPI::IsTileVisible	(	int	x,
		int	y
	)		const

Check if a tile is currently visible.

Parameters

x	Logical X coordinate
y	Logical Y coordinate

Returns: true if tile is visible on canvas

Definition at line 246 of file canvas_automation_api.cc.

References GetVisibleRegion(), IsInBounds(), yaze::gui::CanvasAutomationAPI::VisibleRegion::max_x, yaze::gui::CanvasAutomationAPI::VisibleRegion::max_y, yaze::gui::CanvasAutomationAPI::VisibleRegion::min_x, and yaze::gui::CanvasAutomationAPI::VisibleRegion::min_y.

Referenced by ScrollToTile().

Here is the call graph for this function:

◆ IsInBounds()

bool yaze::gui::CanvasAutomationAPI::IsInBounds	(	int	x,
		int	y
	)		const

Check if coordinates are within canvas bounds.

Parameters

x	Logical X coordinate
y	Logical Y coordinate

Returns: true if coordinates are valid

Definition at line 256 of file canvas_automation_api.cc.

References GetDimensions(), yaze::gui::CanvasAutomationAPI::Dimensions::height_tiles, and yaze::gui::CanvasAutomationAPI::Dimensions::width_tiles.

Referenced by CenterOn(), GetTileAt(), IsTileVisible(), ScrollToTile(), SelectTile(), SelectTileRect(), and SetTileAt().

Here is the call graph for this function:

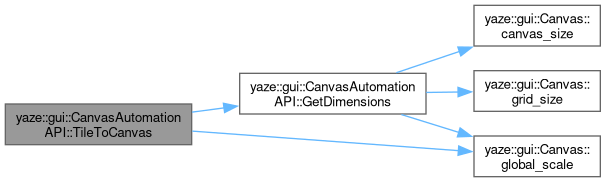

◆ TileToCanvas()

ImVec2 yaze::gui::CanvasAutomationAPI::TileToCanvas	(	int	x,
		int	y
	)		const

Convert logical tile coordinates to canvas pixel coordinates.

Parameters

x	Logical X coordinate
y	Logical Y coordinate

Returns: Canvas pixel position

Definition at line 269 of file canvas_automation_api.cc.

References canvas_, GetDimensions(), yaze::gui::Canvas::global_scale(), and yaze::gui::CanvasAutomationAPI::Dimensions::tile_size.

Referenced by CenterOn(), ScrollToTile(), SelectTile(), SelectTileRect(), SetTileAt(), and yaze::test::TEST_F().

Here is the call graph for this function:

◆ CanvasToTile()

ImVec2 yaze::gui::CanvasAutomationAPI::CanvasToTile ( ImVec2 canvas_pos ) const

Convert canvas pixel coordinates to logical tile coordinates.

Parameters

canvas_pos Canvas pixel position

Returns: Logical tile position

Definition at line 279 of file canvas_automation_api.cc.

References canvas_, GetDimensions(), yaze::gui::Canvas::global_scale(), and yaze::gui::CanvasAutomationAPI::Dimensions::tile_size.

Referenced by GetSelection(), and GetVisibleRegion().

Here is the call graph for this function:

◆ SetTilePaintCallback()

void yaze::gui::CanvasAutomationAPI::SetTilePaintCallback ( TilePaintCallback callback )

Definition at line 293 of file canvas_automation_api.cc.

References tile_paint_callback_.

Referenced by yaze::editor::OverworldEditor::SetupCanvasAutomation().

◆ SetTileQueryCallback()

void yaze::gui::CanvasAutomationAPI::SetTileQueryCallback ( TileQueryCallback callback )

Definition at line 297 of file canvas_automation_api.cc.

References tile_query_callback_.

Member Data Documentation

◆ canvas_

Canvas* yaze::gui::CanvasAutomationAPI::canvas_

private

Definition at line 215 of file canvas_automation_api.h.

Referenced by CanvasToTile(), CenterOn(), ClearSelection(), GetDimensions(), GetSelection(), GetVisibleRegion(), GetZoom(), ScrollToTile(), SelectTile(), SelectTileRect(), SetTileAt(), SetZoom(), and TileToCanvas().

◆ tile_paint_callback_

TilePaintCallback yaze::gui::CanvasAutomationAPI::tile_paint_callback_

private

Definition at line 216 of file canvas_automation_api.h.

Referenced by SetTileAt(), and SetTilePaintCallback().

◆ tile_query_callback_

TileQueryCallback yaze::gui::CanvasAutomationAPI::tile_query_callback_

private

Definition at line 217 of file canvas_automation_api.h.

Referenced by GetTileAt(), and SetTileQueryCallback().

The documentation for this class was generated from the following files:

src/app/gui/canvas/canvas_automation_api.h
src/app/gui/canvas/canvas_automation_api.cc

	yaze 0.3.2 Link to the Past ROM Editor

Classes

Public Types

Public Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ TilePaintCallback

◆ TileQueryCallback

Constructor & Destructor Documentation

◆ CanvasAutomationAPI()

Member Function Documentation

◆ SetTileAt()

◆ GetTileAt()

◆ SetTiles()

◆ SelectTile()

◆ SelectTileRect()

◆ GetSelection()

◆ ClearSelection()

◆ ScrollToTile()

◆ CenterOn()

◆ SetZoom()

◆ GetZoom()

◆ GetDimensions()

◆ GetVisibleRegion()

◆ IsTileVisible()

◆ IsInBounds()

◆ TileToCanvas()

◆ CanvasToTile()

◆ SetTilePaintCallback()

◆ SetTileQueryCallback()

Member Data Documentation

◆ canvas_

◆ tile_paint_callback_

◆ tile_query_callback_
