yaze::editor::Editor Class Referenceabstract

Interface for editor classes. More...

#include <editor.h>

Inherited by yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::MemoryEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::PaletteEditor, yaze::editor::ScreenEditor, yaze::editor::SettingsPanel, and yaze::editor::SpriteEditor.

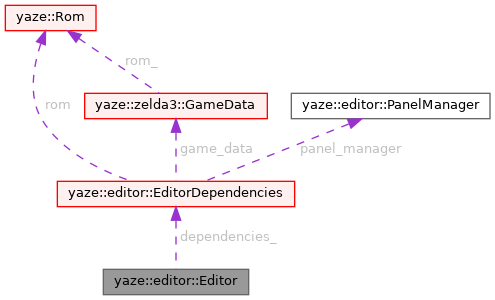

Collaboration diagram for yaze::editor::Editor:
Collaboration graph
[legend]

Public Member Functions

 Editor ()=default

virtual ~Editor ()=default

virtual void SetDependencies (const EditorDependencies &deps)

virtual void SetGameData (zelda3::GameData *game_data)

virtual void Initialize ()=0

virtual absl::Status Load ()=0

virtual absl::Status Save ()=0

virtual absl::Status Update ()=0

virtual absl::Status Cut ()=0

virtual absl::Status Copy ()=0

virtual absl::Status Paste ()=0

virtual absl::Status Undo ()=0

virtual absl::Status Redo ()=0

virtual std::string GetUndoDescription () const

virtual std::string GetRedoDescription () const

const UndoManager & undo_manager () const

virtual absl::Status Find ()=0

virtual absl::Status Clear ()

EditorType type () const

bool * active ()

void set_active (bool active)

void toggle_active ()

virtual bool IsRomLoaded () const

virtual std::string GetRomStatus () const

Rom * rom () const

zelda3::GameData * game_data () const

EditorContext context () const

bool HasContext () const


Protected Member Functions

std::string MakePanelTitle (const std::string &base_title) const

std::string MakePanelId (const std::string &base_id) const

template<typename T >
absl::StatusOr< T > SafeRomAccess (std::function< T()> accessor, const std::string &operation="") const


Protected Attributes

bool active_ = false

EditorType type_

EditorDependencies dependencies_

UndoManager undo_manager_


Detailed Description

Interface for editor classes.

Provides basic editing operations that each editor should implement.

Definition at line 236 of file editor.h.

Constructor & Destructor Documentation

◆ Editor()

yaze::editor::Editor::Editor ( )
default

◆ ~Editor()

virtual yaze::editor::Editor::~Editor ( )
virtualdefault

Member Function Documentation

◆ SetDependencies()

virtual void yaze::editor::Editor::SetDependencies ( const EditorDependencies & deps)
inlinevirtual

Reimplemented in yaze::editor::MemoryEditor, yaze::editor::MusicEditor, and yaze::editor::SettingsPanel.

Definition at line 241 of file editor.h.

References dependencies_.

Referenced by yaze::editor::MemoryEditor::SetDependencies(), yaze::editor::MusicEditor::SetDependencies(), and yaze::editor::SettingsPanel::SetDependencies().

◆ SetGameData()

virtual void yaze::editor::Editor::SetGameData ( zelda3::GameData * game_data)
inlinevirtual

Reimplemented in yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::MessageEditor, yaze::editor::OverworldEditor, and yaze::editor::PaletteEditor.

Definition at line 246 of file editor.h.

References dependencies_, yaze::editor::EditorDependencies::game_data, and game_data().

Referenced by yaze::editor::MessageEditor::SetGameData(), and yaze::editor::PaletteEditor::SetGameData().

Here is the call graph for this function:

◆ Initialize()

virtual void yaze::editor::Editor::Initialize ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::MemoryEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::PaletteEditor, yaze::editor::SpriteEditor, and yaze::editor::SettingsPanel.

◆ Load()

virtual absl::Status yaze::editor::Editor::Load ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::MemoryEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::PaletteEditor, yaze::editor::SpriteEditor, and yaze::editor::SettingsPanel.

◆ Save()

virtual absl::Status yaze::editor::Editor::Save ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::MemoryEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::PaletteEditor, yaze::editor::SpriteEditor, and yaze::editor::SettingsPanel.

◆ Update()

virtual absl::Status yaze::editor::Editor::Update ( )
pure virtual

Implemented in yaze::editor::OverworldEditor, yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::MemoryEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::PaletteEditor, yaze::editor::SpriteEditor, and yaze::editor::SettingsPanel.

◆ Cut()

virtual absl::Status yaze::editor::Editor::Cut ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::MemoryEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::PaletteEditor, yaze::editor::SpriteEditor, and yaze::editor::SettingsPanel.

Referenced by yaze::editor::MenuOrchestrator::OnCut().

◆ Copy()

virtual absl::Status yaze::editor::Editor::Copy ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::MemoryEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::PaletteEditor, yaze::editor::SpriteEditor, and yaze::editor::SettingsPanel.

Referenced by yaze::editor::MenuOrchestrator::OnCopy().

◆ Paste()

virtual absl::Status yaze::editor::Editor::Paste ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::MemoryEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::PaletteEditor, yaze::editor::SpriteEditor, and yaze::editor::SettingsPanel.

Referenced by yaze::editor::MenuOrchestrator::OnPaste().

◆ Undo()

virtual absl::Status yaze::editor::Editor::Undo ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::MemoryEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::PaletteEditor, yaze::editor::SpriteEditor, and yaze::editor::SettingsPanel.

Referenced by yaze::editor::EditorManager::HandleUIActionRequest(), and yaze::editor::MenuOrchestrator::OnUndo().

◆ Redo()

virtual absl::Status yaze::editor::Editor::Redo ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::MemoryEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::PaletteEditor, yaze::editor::SpriteEditor, and yaze::editor::SettingsPanel.

Referenced by yaze::editor::EditorManager::HandleUIActionRequest(), and yaze::editor::MenuOrchestrator::OnRedo().

◆ GetUndoDescription()

virtual std::string yaze::editor::Editor::GetUndoDescription ( ) const
inlinevirtual

Definition at line 270 of file editor.h.

References yaze::editor::UndoManager::GetUndoDescription(), and undo_manager_.

Referenced by yaze::editor::MenuOrchestrator::OnUndo().

Here is the call graph for this function:

◆ GetRedoDescription()

virtual std::string yaze::editor::Editor::GetRedoDescription ( ) const
inlinevirtual

Definition at line 273 of file editor.h.

References yaze::editor::UndoManager::GetRedoDescription(), and undo_manager_.

Referenced by yaze::editor::MenuOrchestrator::OnRedo().

Here is the call graph for this function:

◆ undo_manager()

const UndoManager & yaze::editor::Editor::undo_manager ( ) const
inline

Definition at line 277 of file editor.h.

References undo_manager_.

◆ Find()

virtual absl::Status yaze::editor::Editor::Find ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::MemoryEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::PaletteEditor, yaze::editor::SpriteEditor, and yaze::editor::SettingsPanel.

Referenced by yaze::editor::MenuOrchestrator::OnFind().

◆ Clear()

virtual absl::Status yaze::editor::Editor::Clear ( )
inlinevirtual

Reimplemented in yaze::editor::OverworldEditor.

Definition at line 281 of file editor.h.

◆ type()

EditorType yaze::editor::Editor::type ( ) const
inline

Definition at line 283 of file editor.h.

References type_.

Referenced by yaze::editor::EditorManager::ApplyLayoutProfile(), yaze::editor::PopupManager::DrawLayoutPresetsPopup(), yaze::editor::EditorManager::ResetCurrentEditorLayout(), yaze::editor::EditorManager::SetCurrentEditor(), and yaze::editor::EditorManager::UpdateEditorState().

◆ active()

bool * yaze::editor::Editor::active ( )
inline

Definition at line 285 of file editor.h.

References active_.

Referenced by set_active(), and yaze::editor::AgentEditor::SetChatActive().

◆ set_active()

void yaze::editor::Editor::set_active ( bool active)
inline

Definition at line 286 of file editor.h.

References active(), and active_.

Here is the call graph for this function:

◆ toggle_active()

void yaze::editor::Editor::toggle_active ( )
inline

Definition at line 287 of file editor.h.

References active_.

◆ IsRomLoaded()

virtual bool yaze::editor::Editor::IsRomLoaded ( ) const
inlinevirtual

Reimplemented in yaze::editor::DungeonEditorV2, and yaze::editor::OverworldEditor.

Definition at line 290 of file editor.h.

Referenced by SafeRomAccess().

◆ GetRomStatus()

virtual std::string yaze::editor::Editor::GetRomStatus ( ) const
inlinevirtual

Reimplemented in yaze::editor::DungeonEditorV2, and yaze::editor::OverworldEditor.

Definition at line 291 of file editor.h.

◆ rom()

Rom * yaze::editor::Editor::rom ( ) const
inline

Definition at line 296 of file editor.h.

References dependencies_, and yaze::editor::EditorDependencies::rom.

Referenced by yaze::editor::AgentEditor::InitializeWithDependencies(), yaze::editor::SettingsPanel::SetRom(), and yaze::editor::AgentEditor::SetRomContext().

◆ game_data()

zelda3::GameData * yaze::editor::Editor::game_data ( ) const
inline

Definition at line 297 of file editor.h.

References dependencies_, and yaze::editor::EditorDependencies::game_data.

Referenced by yaze::editor::GraphicsEditor::DecompressImportData(), yaze::editor::GraphicsEditor::DecompressSuperDonkey(), yaze::editor::ScreenEditor::DrawDungeonMapsRoomGfx(), yaze::editor::ScreenEditor::DrawInventoryMenuEditor(), yaze::editor::PaletteEditor::DrawPaletteGroup(), yaze::editor::ScreenEditor::DrawTitleScreenEditor(), yaze::editor::DungeonEditorV2::Load(), yaze::editor::GraphicsEditor::Load(), yaze::editor::ScreenEditor::Load(), yaze::editor::PaletteEditor::Load(), yaze::editor::ScreenEditor::LoadBinaryGfx(), yaze::editor::SpriteEditor::LoadSpritePalettes(), yaze::editor::DungeonEditorV2::OnRoomSelected(), yaze::editor::MessageEditor::ResolveFontPalette(), yaze::editor::GraphicsEditor::Save(), SetGameData(), yaze::editor::DungeonEditorV2::SetGameData(), yaze::editor::GraphicsEditor::SetGameData(), yaze::editor::MessageEditor::SetGameData(), yaze::editor::OverworldEditor::SetGameData(), and yaze::editor::PaletteEditor::SetGameData().

◆ context()

EditorContext yaze::editor::Editor::context ( ) const
inline

Definition at line 300 of file editor.h.

References yaze::editor::EditorDependencies::context(), and dependencies_.

Referenced by yaze::editor::AgentEditor::SetContext().

Here is the call graph for this function:

◆ HasContext()

bool yaze::editor::Editor::HasContext ( ) const
inline

Definition at line 301 of file editor.h.

References dependencies_, and yaze::editor::EditorDependencies::HasContext().

Here is the call graph for this function:

◆ MakePanelTitle()

std::string yaze::editor::Editor::MakePanelTitle ( const std::string & base_title) const
inlineprotected

Definition at line 310 of file editor.h.

References dependencies_, and yaze::editor::EditorDependencies::session_id.

◆ MakePanelId()

std::string yaze::editor::Editor::MakePanelId ( const std::string & base_id) const
inlineprotected

Definition at line 318 of file editor.h.

References dependencies_, and yaze::editor::EditorDependencies::session_id.

◆ SafeRomAccess()

template<typename T >
absl::StatusOr< T > yaze::editor::Editor::SafeRomAccess ( std::function< T()> accessor,
const std::string & operation = "" ) const
inlineprotected

Definition at line 327 of file editor.h.

References IsRomLoaded().

Here is the call graph for this function:

Member Data Documentation

◆ active_

bool yaze::editor::Editor::active_ = false
protected

Definition at line 304 of file editor.h.

Referenced by active(), yaze::editor::AgentEditor::DrawDashboard(), set_active(), toggle_active(), yaze::editor::AgentEditor::Update(), yaze::editor::AssemblyEditor::Update(), and yaze::editor::MemoryEditor::Update().

◆ type_

EditorType yaze::editor::Editor::type_
protected

Definition at line 305 of file editor.h.

Referenced by yaze::editor::AgentEditor::AgentEditor(), yaze::editor::AssemblyEditor::AssemblyEditor(), yaze::editor::DungeonEditorV2::DungeonEditorV2(), yaze::editor::GraphicsEditor::GraphicsEditor(), yaze::editor::MemoryEditor::MemoryEditor(), yaze::editor::MessageEditor::MessageEditor(), yaze::editor::MusicEditor::MusicEditor(), yaze::editor::OverworldEditor::OverworldEditor(), yaze::editor::PaletteEditor::PaletteEditor(), yaze::editor::ScreenEditor::ScreenEditor(), yaze::editor::SettingsPanel::SettingsPanel(), yaze::editor::SpriteEditor::SpriteEditor(), and type().

◆ dependencies_

EditorDependencies yaze::editor::Editor::dependencies_
protected

Definition at line 306 of file editor.h.

Referenced by yaze::editor::AgentEditor::ApplyUserSettingsDefaults(), context(), yaze::editor::OverworldEditor::Copy(), yaze::editor::AssemblyEditor::DrawAssembleMenu(), yaze::editor::AssemblyEditor::DrawBuildOutput(), yaze::editor::AgentEditor::DrawConfigurationPanel(), yaze::editor::PaletteEditor::DrawControlPanel(), yaze::editor::AssemblyEditor::DrawCurrentFolder(), yaze::editor::MessageEditor::DrawExpandedMessageSettings(), yaze::editor::AgentEditor::DrawFeatureFlagPanel(), yaze::editor::AssemblyEditor::DrawFileBrowser(), yaze::editor::AgentEditor::DrawManifestPanel(), yaze::editor::OverworldCanvasRenderer::DrawOverworldCanvas(), yaze::editor::DungeonEditorV2::DrawRoomPanels(), yaze::editor::DungeonEditorV2::DrawRoomTab(), yaze::editor::OverworldEditor::DrawScratchSpacePattern(), yaze::editor::AgentEditor::DrawSramViewerPanel(), yaze::editor::OverworldCanvasRenderer::DrawTile16Selector(), game_data(), yaze::editor::DungeonEditorV2::GetViewerForRoom(), yaze::editor::OverworldEditor::HandleKeyboardShortcuts(), yaze::editor::DungeonEditorV2::HandleObjectPlaced(), yaze::editor::OverworldEditor::HandleTile16Edit(), HasContext(), yaze::editor::AgentEditor::Initialize(), yaze::editor::AssemblyEditor::Initialize(), yaze::editor::DungeonEditorV2::Initialize(), yaze::editor::GraphicsEditor::Initialize(), yaze::editor::ScreenEditor::Initialize(), yaze::editor::MessageEditor::Initialize(), yaze::editor::MusicEditor::Initialize(), yaze::editor::OverworldEditor::Initialize(), yaze::editor::PaletteEditor::Initialize(), yaze::editor::SpriteEditor::Initialize(), yaze::editor::DungeonEditorV2::IsWorkbenchWorkflowEnabled(), yaze::editor::PaletteEditor::JumpToPalette(), yaze::editor::AssemblyEditor::JumpToReference(), yaze::editor::AssemblyEditor::JumpToSymbolDefinition(), yaze::editor::DungeonEditorV2::Load(), yaze::editor::PaletteEditor::Load(), MakePanelId(), MakePanelTitle(), yaze::editor::AgentEditor::MaybeAutoDetectLocalProviders(), yaze::editor::MessageEditor::MessageEditor(), yaze::editor::DungeonEditorV2::OnRoomSelected(), yaze::editor::DungeonEditorV2::OpenGraphicsEditorForObject(), yaze::editor::MessageEditor::OpenMessageById(), yaze::editor::MusicEditor::OpenSong(), yaze::editor::MusicEditor::OpenSongPianoRoll(), yaze::editor::OverworldEditor::OverworldEditor(), yaze::editor::OverworldEditor::Paste(), yaze::editor::DungeonEditorV2::ProcessPendingSwap(), yaze::editor::AgentEditor::RefreshModelCache(), yaze::editor::MessageEditor::ResolveExpandedMessageBaseId(), rom(), yaze::editor::OverworldEditor::Save(), yaze::editor::DungeonEditorV2::SaveAllRooms(), yaze::editor::DungeonEditorV2::SaveRoomData(), yaze::editor::DungeonEditorV2::SetAgentMode(), SetDependencies(), SetGameData(), yaze::editor::DungeonEditorV2::SetGameData(), yaze::editor::DungeonEditorV2::SetWorkbenchWorkflowMode(), yaze::editor::DungeonEditorV2::ShowPanel(), yaze::editor::OverworldEditor::Update(), and yaze::editor::MusicEditor::Update().

◆ undo_manager_

UndoManager yaze::editor::Editor::undo_manager_
protected

Definition at line 307 of file editor.h.

Referenced by yaze::editor::OverworldEditor::FinalizePaintOperation(), yaze::editor::MessageEditor::FinalizePendingUndo(), yaze::editor::MusicEditor::FinalizePendingUndo(), GetRedoDescription(), GetUndoDescription(), yaze::editor::DungeonEditorV2::Initialize(), yaze::editor::GraphicsEditor::Initialize(), yaze::editor::OverworldEditor::Load(), yaze::editor::GraphicsEditor::Redo(), yaze::editor::MessageEditor::Redo(), yaze::editor::MusicEditor::Redo(), yaze::editor::OverworldEditor::Redo(), yaze::editor::GraphicsEditor::Undo(), yaze::editor::MessageEditor::Undo(), yaze::editor::MusicEditor::Undo(), yaze::editor::OverworldEditor::Undo(), and undo_manager().

The documentation for this class was generated from the following file:
