yaze::editor::SettingsPanel Class Reference

Manages the settings UI displayed in the right sidebar. More...

#include <settings_panel.h>

Public Member Functions
	SettingsPanel ()=default
void	SetUserSettings (UserSettings *settings)
void	SetPanelManager (PanelManager *registry)
void	SetPanelRegistry (PanelManager *registry)
void	SetShortcutManager (ShortcutManager *manager)
void	SetStatusBar (StatusBar *bar)
void	SetRom (Rom *rom)
void	SetProject (project::YazeProject *project)
void	Draw ()

Private Member Functions
void	DrawGeneralSettings ()
void	DrawAppearanceSettings ()
void	DrawEditorBehavior ()
void	DrawPerformanceSettings ()
void	DrawAIAgentSettings ()
void	DrawKeyboardShortcuts ()
void	DrawGlobalShortcuts ()
void	DrawEditorShortcuts ()
void	DrawPanelShortcuts ()
void	DrawPatchSettings ()
void	DrawProjectSettings ()
void	DrawPatchList (const std::string &folder)
void	DrawPatchDetails ()
void	DrawParameterWidget (core::PatchParameter *param)

Private Attributes
UserSettings *	user_settings_ = nullptr
PanelManager *	panel_manager_ = nullptr
ShortcutManager *	shortcut_manager_ = nullptr
StatusBar *	status_bar_ = nullptr
Rom *	rom_ = nullptr
project::YazeProject *	project_ = nullptr
char	shortcut_edit_buffer_ [64] = {}
std::string	editing_card_id_
bool	is_editing_shortcut_ = false
core::PatchManager	patch_manager_
std::string	selected_folder_
core::AsmPatch *	selected_patch_ = nullptr
bool	patches_loaded_ = false

Detailed Description

Manages the settings UI displayed in the right sidebar.

Replaces the old SettingsEditor. Handles configuration of:

• General settings (feature flags)
• Appearance (themes, fonts)
• Editor behavior
• Performance
• AI Agent
• Keyboard shortcuts
• Project configuration

Definition at line 33 of file settings_panel.h.

Constructor & Destructor Documentation

SettingsPanel()

yaze::editor::SettingsPanel::SettingsPanel ( )

default

Member Function Documentation

SetUserSettings()

void yaze::editor::SettingsPanel::SetUserSettings ( UserSettings * settings )

inline

Definition at line 37 of file settings_panel.h.

References user_settings_.

SetPanelManager()

void yaze::editor::SettingsPanel::SetPanelManager ( PanelManager * registry )

inline

Definition at line 38 of file settings_panel.h.

References panel_manager_.

Referenced by SetPanelRegistry().

SetPanelRegistry()

void yaze::editor::SettingsPanel::SetPanelRegistry ( PanelManager * registry )

inline

Definition at line 40 of file settings_panel.h.

References SetPanelManager().

Here is the call graph for this function:

SetShortcutManager()

void yaze::editor::SettingsPanel::SetShortcutManager ( ShortcutManager * manager )

inline

Definition at line 41 of file settings_panel.h.

References shortcut_manager_.

SetStatusBar()

void yaze::editor::SettingsPanel::SetStatusBar ( StatusBar * bar )

inline

Definition at line 42 of file settings_panel.h.

References status_bar_.

SetRom()

void yaze::editor::SettingsPanel::SetRom ( Rom * rom )

inline

Definition at line 43 of file settings_panel.h.

References rom_.

SetProject()

void yaze::editor::SettingsPanel::SetProject ( project::YazeProject * project )

inline

Definition at line 44 of file settings_panel.h.

References project_.

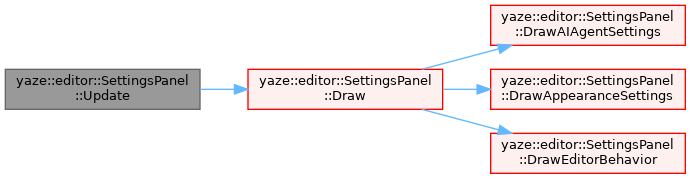

Draw()

void yaze::editor::SettingsPanel::Draw

(

)

Definition at line 28 of file settings_panel.cc.

References DrawAIAgentSettings(), DrawAppearanceSettings(), DrawEditorBehavior(), DrawGeneralSettings(), DrawKeyboardShortcuts(), DrawPatchSettings(), DrawPerformanceSettings(), DrawProjectSettings(), ICON_MD_EXTENSION, ICON_MD_FOLDER, ICON_MD_KEYBOARD, ICON_MD_PALETTE, ICON_MD_SETTINGS, ICON_MD_SMART_TOY, ICON_MD_SPEED, ICON_MD_TUNE, and user_settings_.

Referenced by yaze::editor::RightPanelManager::DrawSettingsPanel().

DrawGeneralSettings()

void yaze::editor::SettingsPanel::DrawGeneralSettings ( )

private

Definition at line 94 of file settings_panel.cc.

References yaze::gui::FlagsMenu::DrawDungeonFlags(), yaze::gui::FlagsMenu::DrawOverworldFlags(), yaze::gui::FlagsMenu::DrawResourceFlags(), yaze::gui::FlagsMenu::DrawSystemFlags(), yaze::gui::FlagsMenu::DrawZSCustomOverworldFlags(), ICON_MD_CASTLE, ICON_MD_EXTENSION, ICON_MD_FLAG, ICON_MD_FOLDER_SPECIAL, ICON_MD_MAP, and rom_.

Referenced by Draw().

DrawAppearanceSettings()

void yaze::editor::SettingsPanel::DrawAppearanceSettings ( )

private

Definition at line 176 of file settings_panel.cc.

References yaze::gui::DrawFontManager(), yaze::gui::ThemeManager::Get(), ICON_MD_HORIZONTAL_RULE, ICON_MD_PALETTE, yaze::editor::UserSettings::prefs(), yaze::editor::UserSettings::Save(), yaze::editor::StatusBar::SetEnabled(), yaze::editor::UserSettings::Preferences::show_status_bar, status_bar_, and user_settings_.

Referenced by Draw().

DrawEditorBehavior()

void yaze::editor::SettingsPanel::DrawEditorBehavior ( )

private

Definition at line 228 of file settings_panel.cc.

References yaze::editor::UserSettings::Preferences::autosave_enabled, yaze::editor::UserSettings::Preferences::autosave_interval, yaze::editor::UserSettings::Preferences::backup_before_save, yaze::editor::UserSettings::Preferences::default_editor, ICON_MD_EDIT, ICON_MD_HISTORY, ICON_MD_LABEL, ICON_MD_SAVE, yaze::editor::UserSettings::Preferences::prefer_hmagic_sprite_names, yaze::editor::UserSettings::prefs(), yaze::editor::UserSettings::Preferences::recent_files_limit, yaze::editor::UserSettings::Save(), yaze::zelda3::SetPreferHmagicSpriteNames(), and user_settings_.

Referenced by Draw().

Here is the call graph for this function:

DrawPerformanceSettings()

void yaze::editor::SettingsPanel::DrawPerformanceSettings ( )

private

Definition at line 282 of file settings_panel.cc.

References yaze::editor::UserSettings::Preferences::cache_size_mb, ICON_MD_IMAGE, ICON_MD_MEMORY, yaze::editor::UserSettings::prefs(), yaze::editor::UserSettings::Save(), yaze::editor::UserSettings::Preferences::target_fps, yaze::editor::UserSettings::Preferences::undo_history_size, user_settings_, and yaze::editor::UserSettings::Preferences::vsync.

Referenced by Draw().

Here is the call graph for this function:

DrawAIAgentSettings()

void yaze::editor::SettingsPanel::DrawAIAgentSettings ( )

private

Definition at line 316 of file settings_panel.cc.

References yaze::editor::UserSettings::Preferences::ai_auto_learn, yaze::editor::UserSettings::Preferences::ai_max_tokens, yaze::editor::UserSettings::Preferences::ai_multimodal, yaze::editor::UserSettings::Preferences::ai_proactive, yaze::editor::UserSettings::Preferences::ai_provider, yaze::editor::UserSettings::Preferences::ai_temperature, yaze::editor::UserSettings::Preferences::gemini_api_key, ICON_MD_CLOUD, ICON_MD_PSYCHOLOGY, ICON_MD_TERMINAL, ICON_MD_TUNE, yaze::editor::UserSettings::Preferences::log_level, yaze::editor::UserSettings::Preferences::ollama_url, yaze::editor::UserSettings::prefs(), yaze::editor::UserSettings::Save(), and user_settings_.

Referenced by Draw().

Here is the call graph for this function:

DrawKeyboardShortcuts()

void yaze::editor::SettingsPanel::DrawKeyboardShortcuts ( )

private

Definition at line 398 of file settings_panel.cc.

References DrawEditorShortcuts(), DrawGlobalShortcuts(), DrawPanelShortcuts(), and ICON_MD_KEYBOARD.

Referenced by Draw().

Here is the call graph for this function:

DrawGlobalShortcuts()

void yaze::editor::SettingsPanel::DrawGlobalShortcuts ( )

private

Definition at line 417 of file settings_panel.cc.

References yaze::editor::ShortcutManager::GetShortcutsByScope(), yaze::editor::UserSettings::Preferences::global_shortcuts, yaze::editor::Shortcut::kGlobal, yaze::editor::ParseShortcut(), yaze::editor::UserSettings::prefs(), yaze::editor::PrintShortcut(), yaze::editor::UserSettings::Save(), shortcut_manager_, yaze::editor::ShortcutManager::UpdateShortcutKeys(), and user_settings_.

Referenced by DrawKeyboardShortcuts().

DrawEditorShortcuts()

void yaze::editor::SettingsPanel::DrawEditorShortcuts ( )

private

Definition at line 467 of file settings_panel.cc.

References yaze::editor::UserSettings::Preferences::editor_shortcuts, yaze::editor::ShortcutManager::GetShortcutsByScope(), yaze::editor::Shortcut::kEditor, yaze::editor::ParseShortcut(), yaze::editor::UserSettings::prefs(), yaze::editor::PrintShortcut(), yaze::editor::UserSettings::Save(), shortcut_manager_, yaze::editor::ShortcutManager::UpdateShortcutKeys(), and user_settings_.

Referenced by DrawKeyboardShortcuts().

DrawPanelShortcuts()

void yaze::editor::SettingsPanel::DrawPanelShortcuts ( )

private

Definition at line 517 of file settings_panel.cc.

References editing_card_id_, yaze::editor::PanelManager::GetAllCategories(), yaze::editor::PanelManager::GetPanelsInCategory(), ICON_MD_CLOSE, is_editing_shortcut_, panel_manager_, yaze::editor::UserSettings::Preferences::panel_shortcuts, yaze::editor::ParseShortcut(), yaze::editor::UserSettings::prefs(), yaze::editor::PrintShortcut(), yaze::editor::UserSettings::Save(), shortcut_edit_buffer_, and user_settings_.

Referenced by DrawKeyboardShortcuts().

DrawPatchSettings()

void yaze::editor::SettingsPanel::DrawPatchSettings ( )

private

Todo

File browser for patches folder

Definition at line 591 of file settings_panel.cc.

References yaze::core::PatchManager::ApplyEnabledPatches(), DrawPatchDetails(), DrawPatchList(), yaze::util::PlatformPaths::FindAsset(), yaze::core::PatchManager::folders(), yaze::core::PatchManager::GetEnabledPatchCount(), ICON_MD_CHECK, ICON_MD_EXTENSION, ICON_MD_REFRESH, ICON_MD_SAVE, yaze::Rom::is_loaded(), yaze::core::PatchManager::LoadPatches(), LOG_ERROR, LOG_INFO, LOG_WARN, patch_manager_, yaze::core::PatchManager::patches(), patches_loaded_, rom_, yaze::core::PatchManager::SaveAllPatches(), selected_folder_, and selected_patch_.

Referenced by Draw().

DrawProjectSettings()

void yaze::editor::SettingsPanel::DrawProjectSettings ( )

private

Definition at line 127 of file settings_panel.cc.

References yaze::project::YazeProject::build_target, yaze::project::YazeProject::filepath, yaze::project::YazeProject::git_repository, ICON_MD_BUILD, ICON_MD_FOLDER_OPEN, ICON_MD_INFO, yaze::project::YazeProject::name, yaze::project::YazeProject::output_folder, project_, yaze::project::YazeProject::Save(), and yaze::project::YazeProject::symbols_filename.

Referenced by Draw().

Here is the call graph for this function:

DrawPatchList()

void yaze::editor::SettingsPanel::DrawPatchList ( const std::string & folder )

private

Definition at line 683 of file settings_panel.cc.

References yaze::core::PatchManager::GetPatchesInFolder(), patch_manager_, and selected_patch_.

Referenced by DrawPatchSettings().

Here is the call graph for this function:

DrawPatchDetails()

void yaze::editor::SettingsPanel::DrawPatchDetails ( )

private

Definition at line 716 of file settings_panel.cc.

References yaze::core::AsmPatch::author(), yaze::core::AsmPatch::description(), DrawParameterWidget(), ICON_MD_INFO, ICON_MD_TUNE, yaze::core::AsmPatch::mutable_parameters(), yaze::core::AsmPatch::name(), selected_patch_, and yaze::core::AsmPatch::version().

Referenced by DrawPatchSettings().

DrawParameterWidget()

void yaze::editor::SettingsPanel::DrawParameterWidget ( core::PatchParameter * param )

private

Todo

Implement item dropdown using game item names

Definition at line 749 of file settings_panel.cc.

References yaze::core::PatchParameter::checked_value, yaze::core::PatchParameter::choices, yaze::core::PatchParameter::define_name, yaze::core::PatchParameter::display_name, yaze::core::kBitfield, yaze::core::kBool, yaze::core::kByte, yaze::core::kChoice, yaze::core::kItem, yaze::core::kLong, yaze::core::kWord, yaze::core::PatchParameter::max_value, yaze::core::PatchParameter::min_value, yaze::core::PatchParameter::type, yaze::core::PatchParameter::unchecked_value, yaze::core::PatchParameter::use_decimal, and yaze::core::PatchParameter::value.

Referenced by DrawPatchDetails().

Member Data Documentation

user_settings_

UserSettings* yaze::editor::SettingsPanel::user_settings_ = nullptr

private

Definition at line 65 of file settings_panel.h.

Referenced by Draw(), DrawAIAgentSettings(), DrawAppearanceSettings(), DrawEditorBehavior(), DrawEditorShortcuts(), DrawGlobalShortcuts(), DrawPanelShortcuts(), DrawPerformanceSettings(), and SetUserSettings().

panel_manager_

PanelManager* yaze::editor::SettingsPanel::panel_manager_ = nullptr

private

Definition at line 66 of file settings_panel.h.

Referenced by DrawPanelShortcuts(), and SetPanelManager().

shortcut_manager_

ShortcutManager* yaze::editor::SettingsPanel::shortcut_manager_ = nullptr

private

Definition at line 67 of file settings_panel.h.

Referenced by DrawEditorShortcuts(), DrawGlobalShortcuts(), and SetShortcutManager().

status_bar_

StatusBar* yaze::editor::SettingsPanel::status_bar_ = nullptr

private

Definition at line 68 of file settings_panel.h.

Referenced by DrawAppearanceSettings(), and SetStatusBar().

rom_

Rom* yaze::editor::SettingsPanel::rom_ = nullptr

private

Definition at line 69 of file settings_panel.h.

Referenced by DrawGeneralSettings(), DrawPatchSettings(), and SetRom().

project_

project::YazeProject* yaze::editor::SettingsPanel::project_ = nullptr

private

Definition at line 70 of file settings_panel.h.

Referenced by DrawProjectSettings(), and SetProject().

shortcut_edit_buffer_

char yaze::editor::SettingsPanel::shortcut_edit_buffer_[64] = {}

private

Definition at line 73 of file settings_panel.h.

Referenced by DrawPanelShortcuts().

editing_card_id_

std::string yaze::editor::SettingsPanel::editing_card_id_

private

Definition at line 74 of file settings_panel.h.

Referenced by DrawPanelShortcuts().

is_editing_shortcut_

bool yaze::editor::SettingsPanel::is_editing_shortcut_ = false

private

Definition at line 75 of file settings_panel.h.

Referenced by DrawPanelShortcuts().

patch_manager_

core::PatchManager yaze::editor::SettingsPanel::patch_manager_

private

Definition at line 78 of file settings_panel.h.

Referenced by DrawPatchList(), and DrawPatchSettings().

selected_folder_

std::string yaze::editor::SettingsPanel::selected_folder_

private

Definition at line 79 of file settings_panel.h.

Referenced by DrawPatchSettings().

selected_patch_

core::AsmPatch* yaze::editor::SettingsPanel::selected_patch_ = nullptr

private

Definition at line 80 of file settings_panel.h.

Referenced by DrawPatchDetails(), DrawPatchList(), and DrawPatchSettings().

patches_loaded_

bool yaze::editor::SettingsPanel::patches_loaded_ = false

private

Definition at line 81 of file settings_panel.h.

Referenced by DrawPatchSettings().

---

The documentation for this class was generated from the following files:

• src/app/editor/ui/settings_panel.h
• src/app/editor/ui/settings_panel.cc
