Represents a ZScream-compatible ASM patch file. More...

#include <asm_patch.h>

Public Member Functions
	AsmPatch (const std::string &file_path, const std::string &folder)
	Construct a patch from a file path.

const std::string &	name () const

const std::string &	author () const

const std::string &	version () const

const std::string &	description () const

const std::string &	folder () const

const std::string &	filename () const

const std::string &	file_path () const

bool	enabled () const

void	set_enabled (bool enabled)

const std::vector< PatchParameter > &	parameters () const

std::vector< PatchParameter > &	mutable_parameters ()

bool	SetParameterValue (const std::string &define_name, int value)
	Set the value of a parameter by its define name.

PatchParameter *	GetParameter (const std::string &define_name)
	Get a parameter by its define name.

const PatchParameter *	GetParameter (const std::string &define_name) const

std::string	GenerateContent () const
	Generate the patch file content with current parameter values.

absl::Status	Save ()
	Save the patch to its original file location.

absl::Status	SaveToPath (const std::string &output_path)
	Save the patch to a specific path.

bool	is_valid () const
	Check if the patch was loaded successfully.

Private Member Functions
void	ParseMetadata (const std::string &content)
	Parse metadata from the patch file content.

Static Private Member Functions
static PatchParameterType	ParseType (const std::string &type_str)
	Parse a parameter type from a string.

static int	ParseValue (const std::string &value_str)
	Parse an integer value from a string (handles $hex and decimal)

static void	UpdateLine (std::string &content, const std::string &prefix, const std::string &new_value)
	Update a line in the content that starts with a prefix.

static void	UpdateDefineLine (std::string &content, const std::string &define_name, int value)
	Update an Asar define line with a new value.

Private Attributes
std::string	name_

std::string	author_

std::string	version_

std::string	description_

std::string	folder_

std::string	filename_

std::string	file_path_

std::string	original_content_

bool	enabled_ = true

bool	is_valid_ = false

std::vector< PatchParameter >	parameters_

Detailed Description

Represents a ZScream-compatible ASM patch file.

ZScream uses comment-based metadata in ASM files to define patch properties and configurable parameters. This class parses that metadata and provides methods to modify parameter values and regenerate the file content.

Example patch file format:

;#PATCH_NAME=My Patch
;#PATCH_AUTHOR=Author Name
;#PATCH_VERSION=1.0
;#PATCH_DESCRIPTION
; Multi-line description
;#ENDPATCH_DESCRIPTION
;#ENABLED=true

;#DEFINE_START
;#name=My Value
;#type=byte
;#range=0,$FF
!MY_DEFINE = $10
;#DEFINE_END

lorom
; ASM code...

Definition at line 74 of file asm_patch.h.

Constructor & Destructor Documentation

◆ AsmPatch()

yaze::core::AsmPatch::AsmPatch	(	const std::string &	file_path,
		const std::string &	folder )

Construct a patch from a file path.

Parameters

file_path	Full path to the .asm file
folder	Category folder name (e.g., "Sprites", "Misc")

Definition at line 35 of file asm_patch.cc.

References file_path(), filename_, is_valid_, original_content_, and ParseMetadata().

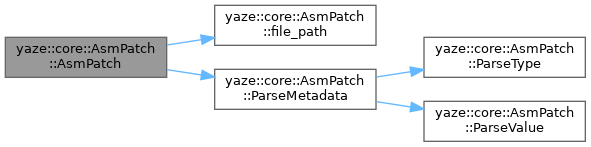

Here is the call graph for this function:

Member Function Documentation

◆ name()

const std::string & yaze::core::AsmPatch::name ( ) const

inline

Definition at line 84 of file asm_patch.h.

References name_.

Referenced by yaze::editor::SettingsPanel::DrawPatchDetails().

◆ author()

const std::string & yaze::core::AsmPatch::author ( ) const

inline

Definition at line 85 of file asm_patch.h.

References author_.

Referenced by yaze::editor::SettingsPanel::DrawPatchDetails().

◆ version()

const std::string & yaze::core::AsmPatch::version ( ) const

inline

Definition at line 86 of file asm_patch.h.

References version_.

Referenced by yaze::editor::SettingsPanel::DrawPatchDetails().

◆ description()

const std::string & yaze::core::AsmPatch::description ( ) const

inline

Definition at line 87 of file asm_patch.h.

References description_.

Referenced by yaze::editor::SettingsPanel::DrawPatchDetails().

◆ folder()

const std::string & yaze::core::AsmPatch::folder ( ) const

inline

Definition at line 88 of file asm_patch.h.

References folder_.

◆ filename()

const std::string & yaze::core::AsmPatch::filename ( ) const

inline

Definition at line 89 of file asm_patch.h.

References filename_.

◆ file_path()

const std::string & yaze::core::AsmPatch::file_path ( ) const

inline

Definition at line 90 of file asm_patch.h.

References file_path_.

Referenced by AsmPatch().

◆ enabled()

bool yaze::core::AsmPatch::enabled ( ) const

inline

Definition at line 93 of file asm_patch.h.

References enabled_.

Referenced by set_enabled().

◆ set_enabled()

void yaze::core::AsmPatch::set_enabled ( bool enabled )

inline

Definition at line 94 of file asm_patch.h.

References enabled(), and enabled_.

Here is the call graph for this function:

◆ parameters()

const std::vector< PatchParameter > & yaze::core::AsmPatch::parameters ( ) const

inline

Definition at line 97 of file asm_patch.h.

References parameters_.

◆ mutable_parameters()

std::vector< PatchParameter > & yaze::core::AsmPatch::mutable_parameters ( )

inline

Definition at line 98 of file asm_patch.h.

References parameters_.

Referenced by yaze::editor::SettingsPanel::DrawPatchDetails().

◆ SetParameterValue()

bool yaze::core::AsmPatch::SetParameterValue	(	const std::string &	define_name,
		int	value )

Set the value of a parameter by its define name.

Parameters

define_name	The Asar define name (e.g., "!MY_DEFINE")
value	The new value to set

Returns: true if the parameter was found and updated

Definition at line 300 of file asm_patch.cc.

References parameters_.

◆ GetParameter() [1/2]

PatchParameter * yaze::core::AsmPatch::GetParameter ( const std::string & define_name )

Get a parameter by its define name.

Parameters

define_name The Asar define name

Returns: Pointer to the parameter, or nullptr if not found

Definition at line 310 of file asm_patch.cc.

References parameters_.

◆ GetParameter() [2/2]

const PatchParameter * yaze::core::AsmPatch::GetParameter ( const std::string & define_name ) const

Definition at line 319 of file asm_patch.cc.

References parameters_.

◆ GenerateContent()

std::string yaze::core::AsmPatch::GenerateContent ( ) const

Generate the patch file content with current parameter values.

Returns: The complete .asm file content

Definition at line 329 of file asm_patch.cc.

References enabled_, original_content_, parameters_, UpdateDefineLine(), and UpdateLine().

Referenced by SaveToPath().

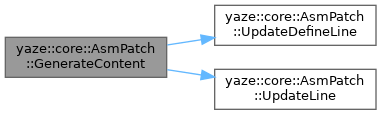

Here is the call graph for this function:

◆ Save()

absl::Status yaze::core::AsmPatch::Save ( )

Save the patch to its original file location.

Returns: Status indicating success or failure

Definition at line 375 of file asm_patch.cc.

References file_path_, and SaveToPath().

Here is the call graph for this function:

◆ SaveToPath()

absl::Status yaze::core::AsmPatch::SaveToPath ( const std::string & output_path )

Save the patch to a specific path.

Parameters

output_path The path to save to

Returns: Status indicating success or failure

Definition at line 379 of file asm_patch.cc.

References GenerateContent().

Referenced by Save().

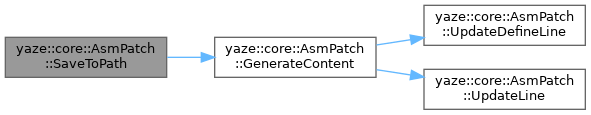

Here is the call graph for this function:

◆ is_valid()

bool yaze::core::AsmPatch::is_valid ( ) const

inline

Check if the patch was loaded successfully.

Definition at line 138 of file asm_patch.h.

References is_valid_.

◆ ParseMetadata()

void yaze::core::AsmPatch::ParseMetadata ( const std::string & content )

private

Parse metadata from the patch file content.

Parameters

content The full file content

Definition at line 60 of file asm_patch.cc.

Referenced by AsmPatch().

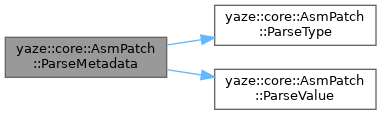

Here is the call graph for this function:

◆ ParseType()

PatchParameterType yaze::core::AsmPatch::ParseType ( const std::string & type_str )

staticprivate

Parse a parameter type from a string.

Parameters

type_str The type string (e.g., "byte", "bool", "choice")

Returns: The corresponding PatchParameterType

Definition at line 247 of file asm_patch.cc.

References yaze::core::kBitfield, yaze::core::kBool, yaze::core::kByte, yaze::core::kChoice, yaze::core::kItem, yaze::core::kLong, and yaze::core::kWord.

Referenced by ParseMetadata().

◆ ParseValue()

int yaze::core::AsmPatch::ParseValue ( const std::string & value_str )

staticprivate

Parse an integer value from a string (handles $hex and decimal)

Parameters

value_str The value string (e.g., "$10" or "16")

Returns: The parsed integer value

Definition at line 269 of file asm_patch.cc.

Referenced by ParseMetadata().

◆ UpdateLine()

void yaze::core::AsmPatch::UpdateLine	(	std::string &	content,
		const std::string &	prefix,
		const std::string &	new_value )

staticprivate

Update a line in the content that starts with a prefix.

Parameters

content	The content to modify
prefix	The line prefix to find
new_value	The new value to set after the '='

Definition at line 343 of file asm_patch.cc.

Referenced by GenerateContent().

◆ UpdateDefineLine()

void yaze::core::AsmPatch::UpdateDefineLine	(	std::string &	content,
		const std::string &	define_name,
		int	value )

staticprivate

Update an Asar define line with a new value.

Parameters

content	The content to modify
define_name	The define name to find
value	The new value

Definition at line 358 of file asm_patch.cc.

Referenced by GenerateContent().

Member Data Documentation

◆ name_

std::string yaze::core::AsmPatch::name_

private

Definition at line 180 of file asm_patch.h.

Referenced by name(), and ParseMetadata().

◆ author_

std::string yaze::core::AsmPatch::author_

private

Definition at line 181 of file asm_patch.h.

Referenced by author(), and ParseMetadata().

◆ version_

std::string yaze::core::AsmPatch::version_

private

Definition at line 182 of file asm_patch.h.

Referenced by ParseMetadata(), and version().

◆ description_

std::string yaze::core::AsmPatch::description_

private

Definition at line 183 of file asm_patch.h.

Referenced by description(), and ParseMetadata().

◆ folder_

std::string yaze::core::AsmPatch::folder_

private

Definition at line 184 of file asm_patch.h.

Referenced by folder().

◆ filename_

std::string yaze::core::AsmPatch::filename_

private

Definition at line 185 of file asm_patch.h.

Referenced by AsmPatch(), filename(), and ParseMetadata().

◆ file_path_

std::string yaze::core::AsmPatch::file_path_

private

Definition at line 186 of file asm_patch.h.

Referenced by file_path(), and Save().

◆ original_content_

std::string yaze::core::AsmPatch::original_content_

private

Definition at line 187 of file asm_patch.h.

Referenced by AsmPatch(), and GenerateContent().

◆ enabled_

bool yaze::core::AsmPatch::enabled_ = true

private

Definition at line 188 of file asm_patch.h.

Referenced by enabled(), GenerateContent(), ParseMetadata(), and set_enabled().

◆ is_valid_

bool yaze::core::AsmPatch::is_valid_ = false

private

Definition at line 189 of file asm_patch.h.

Referenced by AsmPatch(), and is_valid().

◆ parameters_

std::vector<PatchParameter> yaze::core::AsmPatch::parameters_

private

Definition at line 192 of file asm_patch.h.

Referenced by GenerateContent(), GetParameter(), GetParameter(), mutable_parameters(), parameters(), ParseMetadata(), and SetParameterValue().

The documentation for this class was generated from the following files:

src/core/patch/asm_patch.h
src/core/patch/asm_patch.cc

	yaze 0.3.2 Link to the Past ROM Editor

Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ AsmPatch()

Member Function Documentation

◆ name()

◆ author()

◆ version()

◆ description()

◆ folder()

◆ filename()

◆ file_path()

◆ enabled()

◆ set_enabled()

◆ parameters()

◆ mutable_parameters()

◆ SetParameterValue()

◆ GetParameter() [1/2]

◆ GetParameter() [2/2]

◆ GenerateContent()

◆ Save()

◆ SaveToPath()

◆ is_valid()

◆ ParseMetadata()

◆ ParseType()

◆ ParseValue()

◆ UpdateLine()

◆ UpdateDefineLine()

Member Data Documentation

◆ name_

◆ author_

◆ version_

◆ description_

◆ folder_

◆ filename_

◆ file_path_

◆ original_content_

◆ enabled_

◆ is_valid_

◆ parameters_
