yaze Namespace Reference

Namespaces
namespace	agent
namespace	anonymous_namespace{font_loader.cc}
namespace	anonymous_namespace{rom.cc}
namespace	anonymous_namespace{rom_old.cc}
namespace	app
namespace	cli
	Namespace for the command line interface.
namespace	core
namespace	editor
	Editors are the view controllers for the application.
namespace	emu
	SNES Emulation and debugging tools.
namespace	gfx
	Contains classes for handling graphical data.
namespace	gui
	Graphical User Interface (GUI) components for the application.
namespace	net
namespace	platform
namespace	project
namespace	rom
namespace	test
namespace	util
namespace	zelda3
	Zelda 3 specific classes and functions.

Classes
struct	AppConfig
	Configuration options for the application startup. More...
class	Application
	Main application singleton managing lifecycle and global state. More...
class	AssetLoader
	Cross-platform asset file loading utility. More...
class	Controller
	Main controller for the application. More...
struct	Event
class	EventBus
struct	FontConfig
struct	FontState
struct	GraphicsLoadDiagnostics
class	Json
class	Rom
	The Rom class is used to load, save, and modify Rom data. This is a generic SNES ROM container and does not contain game-specific logic. More...
struct	RomLoadOptions
struct	SheetDiagnostics
class	TimingManager
	Provides accurate timing for animations and frame pacing. More...
class	Transaction

Enumerations
enum class	StartupVisibility { kAuto , kShow , kHide }
	Tri-state toggle used for startup UI visibility controls. More...

Functions
absl::Status	LoadPackageFonts ()
absl::Status	ReloadPackageFont (const FontConfig &config)
absl::Status	LoadFontFromMemory (const std::string &name, const std::string &data, float size_pixels)
void	LoadSystemFonts ()
StartupVisibility	StartupVisibilityFromString (absl::string_view value)
std::string	StartupVisibilityToString (StartupVisibility value)
uint32_t	GetGraphicsAddress (const uint8_t *data, uint8_t addr, uint32_t ptr1, uint32_t ptr2, uint32_t ptr3, size_t rom_size)
	Calculates ROM offset for a graphics sheet using pointer tables.
absl::StatusOr< std::vector< uint8_t > >	Load2BppGraphics (const Rom &rom)
	Loads 2bpp graphics from Rom data.
absl::StatusOr< std::array< gfx::Bitmap, kNumLinkSheets > >	LoadLinkGraphics (const Rom &rom)
	Loads the players 4bpp graphics sheet from Rom data.
absl::StatusOr< gfx::Bitmap >	LoadFontGraphics (const Rom &rom)
absl::StatusOr< std::array< gfx::Bitmap, kNumGfxSheets > >	LoadAllGraphicsData (Rom &rom, bool defer_render=false)
	This function iterates over all graphics sheets in the Rom and loads them into memory. Depending on the sheet's index, it may be uncompressed or compressed using the LC-LZ2 algorithm. The uncompressed sheets are 3 bits per pixel (BPP), while the compressed sheets are 4 BPP. The loaded graphics data is converted to 8 BPP and stored in a bitmap.
absl::Status	SaveAllGraphicsData (Rom &rom, std::array< gfx::Bitmap, kNumGfxSheets > &gfx_sheets)
uint32_t	SnesToPc (uint32_t addr) noexcept
uint32_t	PcToSnes (uint32_t addr)
uint32_t	Get24LocalFromPC (uint8_t *data, int addr, bool pc=true)
int	AddressFromBytes (uint8_t bank, uint8_t high, uint8_t low) noexcept
uint32_t	MapBankToWordAddress (uint8_t bank, uint16_t addr) noexcept

Variables
constexpr int	Uncompressed3BPPSize = 0x0600
constexpr uint32_t	kNumGfxSheets = 223
constexpr uint32_t	kNumLinkSheets = 14
constexpr uint32_t	kTile16Ptr = 0x78000
constexpr uint32_t	kNormalGfxSpaceStart = 0x87000
constexpr uint32_t	kNormalGfxSpaceEnd = 0xC4200
constexpr uint32_t	kFontSpriteLocation = 0x70000
constexpr uint32_t	kGfxGroupsPointer = 0x6237
constexpr uint32_t	kUncompressedSheetSize = 0x0800
constexpr uint32_t	kNumMainBlocksets = 37
constexpr uint32_t	kNumRoomBlocksets = 82
constexpr uint32_t	kNumSpritesets = 144
constexpr uint32_t	kNumPalettesets = 72
constexpr uint32_t	kEntranceGfxGroup = 0x5D97
constexpr uint32_t	kMaxGraphics = 0x0C3FFF

Enumeration Type Documentation

StartupVisibility

enum class yaze::StartupVisibility

strong

Tri-state toggle used for startup UI visibility controls.

kAuto - Use existing runtime logic (legacy behavior) kShow - Force the element to be shown on startup kHide - Force the element to be hidden on startup

Enumerator
kAuto
kShow
kHide

Definition at line 18 of file startup_flags.h.

Function Documentation

LoadPackageFonts()

absl::Status yaze::LoadPackageFonts

(

)

Definition at line 98 of file font_loader.cc.

References RETURN_IF_ERROR.

Referenced by yaze::core::CreateWindow(), and yaze::platform::SDL2WindowBackend::InitializeImGui().

ReloadPackageFont()

absl::Status yaze::ReloadPackageFont

(

const FontConfig &

config

)

Definition at line 120 of file font_loader.cc.

References yaze::FontConfig::font_path, yaze::FontConfig::font_size, and RETURN_IF_ERROR.

LoadFontFromMemory()

absl::Status yaze::LoadFontFromMemory	(	const std::string &	name,
		const std::string &	data,
		float	size_pixels )

Definition at line 133 of file font_loader.cc.

LoadSystemFonts()

void yaze::LoadSystemFonts

(

)

StartupVisibilityFromString()

StartupVisibility yaze::StartupVisibilityFromString ( absl::string_view value )

inline

Definition at line 24 of file startup_flags.h.

References kAuto, kHide, and kShow.

Referenced by main().

StartupVisibilityToString()

std::string yaze::StartupVisibilityToString ( StartupVisibility value )

inline

Definition at line 36 of file startup_flags.h.

References kAuto, kHide, and kShow.

GetGraphicsAddress()

uint32_t yaze::GetGraphicsAddress	(	const uint8_t *	data,
		uint8_t	addr,
		uint32_t	ptr1,
		uint32_t	ptr2,
		uint32_t	ptr3,
		size_t	rom_size )

Calculates ROM offset for a graphics sheet using pointer tables.

Resolves a graphics sheet index to its PC (file) offset in the ROM.

ALTTP stores graphics sheet addresses using three separate pointer tables, where each table contains one byte of the 24-bit SNES address:

• ptr1 table: Low byte of address (bits 0-7)
• ptr2 table: High byte of address (bits 8-15)
• ptr3 table: Bank byte of address (bits 16-23)

For US ROMs, these tables are located at:

• kOverworldGfxPtr1 = 0x4F80 (low bytes)
• kOverworldGfxPtr2 = 0x505F (high bytes)
• kOverworldGfxPtr3 = 0x513E (bank bytes)

Example for sheet index 0: SNES addr = (data[0x513E] << 16) | (data[0x505F] << 8) | data[0x4F80] PC offset = SnesToPc(SNES addr)

Parameters

data	Pointer to ROM data buffer
addr	Graphics sheet index (0-222)
ptr1	Offset of low-byte pointer table in ROM
ptr2	Offset of high-byte pointer table in ROM
ptr3	Offset of bank-byte pointer table in ROM
rom_size	ROM size for bounds checking

Returns

PC offset where the graphics sheet data begins, or rom_size if out of bounds

Warning

Callers must verify the returned offset is within ROM bounds before attempting to read or decompress data at that location.

Parameters

data	ROM data buffer
addr	Sheet index (0-222)
ptr1	Bank byte pointer table offset
ptr2	High byte pointer table offset
ptr3	Low byte pointer table offset
rom_size	ROM size for bounds checking (unused)

Returns

PC address (offset from start of ROM)

Definition at line 175 of file rom_old.cc.

References AddressFromBytes(), and SnesToPc().

Referenced by Load2BppGraphics(), LoadAllGraphicsData(), and SaveAllGraphicsData().

Here is the call graph for this function:

Load2BppGraphics()

absl::StatusOr< std::vector< uint8_t > > yaze::Load2BppGraphics

(

const Rom &

rom

)

Loads 2bpp graphics from Rom data.

Loads and decompresses 2-bit-per-pixel graphics sheets.

These sheets are used for fonts and certain UI elements that only need 4 colors (2^2 = 4). The specific sheet IDs loaded are:

• 0x71, 0x72: Font graphics
• 0xDA-0xDE: Additional 2BPP assets

Parameters

rom	The loaded ROM to read graphics from

Returns

Combined 8BPP pixel data for all 2BPP sheets, or error status

Note

The decompressed 2BPP data is converted to 8BPP format for consistent handling in the graphics pipeline.

This function loads 2bpp graphics from Rom data by iterating over a list of sheet IDs, decompressing the sheet data, converting it to 8bpp format, and appending the converted sheet data to a byte vector.

Definition at line 206 of file rom_old.cc.

References ASSIGN_OR_RETURN, yaze::Rom::data(), yaze::gfx::lc_lz2::DecompressV2(), GetGraphicsAddress(), zelda3_version_pointers::kOverworldGfxPtr1, zelda3_version_pointers::kOverworldGfxPtr2, zelda3_version_pointers::kOverworldGfxPtr3, yaze::Rom::size(), yaze::gfx::SnesTo8bppSheet(), and yaze::Rom::version_constants().

LoadLinkGraphics()

absl::StatusOr< std::array< gfx::Bitmap, kNumLinkSheets > > yaze::LoadLinkGraphics

(

const Rom &

rom

)

Loads the players 4bpp graphics sheet from Rom data.

Definition at line 235 of file rom_old.cc.

References ASSIGN_OR_RETURN, kNumLinkSheets, yaze::gfx::kTilesheetDepth, yaze::gfx::kTilesheetHeight, yaze::gfx::kTilesheetWidth, yaze::Rom::palette_group(), yaze::Rom::ReadByteVector(), and yaze::gfx::SnesTo8bppSheet().

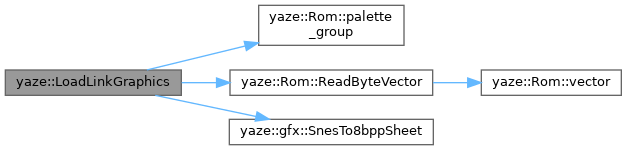

Here is the call graph for this function:

LoadFontGraphics()

absl::StatusOr< gfx::Bitmap > yaze::LoadFontGraphics

(

const Rom &

rom

)

Definition at line 256 of file rom_old.cc.

References yaze::gfx::Bitmap::Create(), yaze::Rom::data(), and yaze::Rom::size().

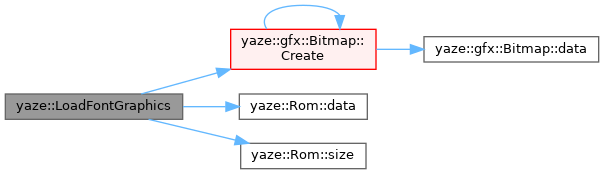

Here is the call graph for this function:

LoadAllGraphicsData()

absl::StatusOr< std::array< gfx::Bitmap, kNumGfxSheets > > yaze::LoadAllGraphicsData	(	Rom &	rom,
		bool	defer_render )

This function iterates over all graphics sheets in the Rom and loads them into memory. Depending on the sheet's index, it may be uncompressed or compressed using the LC-LZ2 algorithm. The uncompressed sheets are 3 bits per pixel (BPP), while the compressed sheets are 4 BPP. The loaded graphics data is converted to 8 BPP and stored in a bitmap.

Loads all 223 graphics sheets from the ROM into bitmap format.

ALTTP uses 223 graphics sheets (kNumGfxSheets) stored in three formats:

Sheet Categories:

• Sheets 0-112: Compressed 3BPP (overworld, dungeons, sprites)
• Sheets 113-114: 2BPP sheets (skipped here, loaded separately)
• Sheets 115-126: Uncompressed 3BPP (special graphics)
• Sheets 127-217: Compressed 3BPP (additional graphics)
• Sheets 218+: 2BPP sheets (skipped here)

Compression Format: Graphics data is compressed using Nintendo's LC-LZ2 algorithm. Each sheet is decompressed to a 0x800 (2048) byte buffer, then converted from SNES planar format to linear 8BPP for easier manipulation.

Graphics Buffer: All sheet data is also appended to rom.graphics_buffer() for legacy compatibility. Sheets that fail to load are filled with 0xFF bytes to maintain correct indexing.

Parameters

rom	The loaded ROM (modified: graphics_buffer populated)
defer_render	If true, defer texture creation for progressive loading

Returns

Array of 223 Bitmap objects, or error status

Warning

The DecompressV2 size parameter MUST be 0x800, not 0. Passing size=0 causes immediate return of empty data, which was a regression bug that caused all graphics to appear as solid purple/brown (0xFF fill).

The graphics sheets are divided into the following ranges:

Range	Compression Type	Decompressed Size	Number of Chars
0-112	Compressed 3bpp BGR	0x600 chars	Decompressed each
113-114	Compressed 2bpp	0x800 chars	Decompressed each
115-126	Uncompressed 3bpp sprites	0x600 chars	Each
127-217	Compressed 3bpp sprites	0x600 chars	Decompressed each
218-222	Compressed 2bpp	0x800 chars	Decompressed each

Definition at line 352 of file rom_old.cc.

References AddressFromBytes(), yaze::Rom::data(), yaze::gfx::lc_lz2::DecompressV2(), yaze::gfx::SnesPalette::empty(), GetGraphicsAddress(), yaze::Rom::GetMutableDiagnostics(), kNumGfxSheets, zelda3_version_pointers::kOverworldGfxPtr1, zelda3_version_pointers::kOverworldGfxPtr2, zelda3_version_pointers::kOverworldGfxPtr3, yaze::gfx::kTilesheetDepth, yaze::gfx::kTilesheetHeight, yaze::gfx::kTilesheetWidth, LOG_DEBUG, LOG_INFO, LOG_WARN, yaze::Rom::mutable_graphics_buffer(), yaze::Rom::palette_group(), PcToSnes(), yaze::GraphicsLoadDiagnostics::rom_size, yaze::Rom::size(), yaze::gfx::SnesTo8bppSheet(), SnesToPc(), Uncompressed3BPPSize, and yaze::Rom::version_constants().

SaveAllGraphicsData()

absl::Status yaze::SaveAllGraphicsData	(	Rom &	rom,
		std::array< gfx::Bitmap, kNumGfxSheets > &	gfx_sheets )

Definition at line 663 of file rom_old.cc.

References yaze::Rom::begin(), yaze::gfx::Bpp8SnesToIndexed(), yaze::Rom::data(), GetGraphicsAddress(), yaze::gfx::HyruleMagicCompress(), kNumGfxSheets, zelda3_version_pointers::kOverworldGfxPtr1, zelda3_version_pointers::kOverworldGfxPtr2, zelda3_version_pointers::kOverworldGfxPtr3, yaze::Rom::size(), and yaze::Rom::version_constants().

SnesToPc()

uint32_t yaze::SnesToPc ( uint32_t addr )

inlinenoexcept

Definition at line 8 of file snes.h.

Referenced by yaze::editor::BuildDictionaryEntries(), yaze::zelda3::TitleScreen::BuildTileset(), yaze::zelda3::Overworld::DecompressAllMapTilesParallel(), Get24LocalFromPC(), GetGraphicsAddress(), yaze::zelda3::GetGraphicsAddress(), yaze::zelda3::RoomLayout::GetLayoutAddress(), LoadAllGraphicsData(), yaze::zelda3::Room::LoadAnimatedGraphics(), yaze::zelda3::Room::LoadChests(), yaze::zelda3::LoadDungeonMaps(), yaze::Rom::LoadGfxGroups(), yaze::zelda3::LoadGfxGroups(), yaze::zelda3::Inventory::LoadItemIcons(), yaze::zelda3::LoadItems(), yaze::zelda3::Room::LoadObjects(), yaze::zelda3::Room::LoadPits(), yaze::zelda3::Room::LoadPotItems(), yaze::zelda3::LoadRoomFromRom(), yaze::zelda3::LoadRoomHeaderFromRom(), yaze::zelda3::Room::LoadSprites(), yaze::zelda3::Overworld::LoadSpritesFromMap(), yaze::zelda3::TitleScreen::LoadTitleScreen(), yaze::zelda3::TitleScreen::Save(), yaze::zelda3::SaveDungeonMaps(), yaze::Rom::SaveGfxGroups(), yaze::zelda3::SaveGfxGroups(), yaze::zelda3::Overworld::SaveMap16Expanded(), yaze::zelda3::Room::SaveObjects(), yaze::zelda3::Room::SaveSprites(), yaze::editor::PolyhedralEditorPanel::TablePc(), yaze::editor::anonymous_namespace{polyhedral_editor_panel.cc}::ToPc(), yaze::gui::DungeonObjectEmulatorPreview::TriggerEmulatedRender(), yaze::gui::DungeonObjectEmulatorPreview::TriggerStaticRender(), yaze::editor::MemoryEditor::Update(), and yaze::cli::anonymous_namespace{overworld_doctor_commands.cc}::ValidateMapPointers().

PcToSnes()

uint32_t yaze::PcToSnes ( uint32_t addr )

inline

Definition at line 17 of file snes.h.

Referenced by Get24LocalFromPC(), LoadAllGraphicsData(), yaze::zelda3::SaveItems(), yaze::zelda3::Overworld::SaveMap16Expanded(), yaze::zelda3::Overworld::SaveMap32Expanded(), yaze::zelda3::Overworld::SaveMapOverlays(), and yaze::zelda3::Overworld::SaveOverworldMaps().

Get24LocalFromPC()

uint32_t yaze::Get24LocalFromPC ( uint8_t * data, int addr, bool pc = true )

inline

Definition at line 30 of file snes.h.

References PcToSnes(), and SnesToPc().

Referenced by yaze::editor::ParseSingleMessage(), and yaze::editor::ReadAllTextData().

Here is the call graph for this function:

AddressFromBytes()

int yaze::AddressFromBytes ( uint8_t bank, uint8_t high, uint8_t low )

inlinenoexcept

Definition at line 39 of file snes.h.

Referenced by GetGraphicsAddress(), yaze::zelda3::GetGraphicsAddress(), and LoadAllGraphicsData().

MapBankToWordAddress()

uint32_t yaze::MapBankToWordAddress ( uint8_t bank, uint16_t addr )

inlinenoexcept

Definition at line 43 of file snes.h.

Variable Documentation

Uncompressed3BPPSize

constexpr int yaze::Uncompressed3BPPSize = 0x0600

constexpr

Size of uncompressed 3BPP graphics sheet data (1536 bytes = 0x600) Used for graphics sheets 115-126 which are stored uncompressed in the ROM.

Definition at line 51 of file rom_old.cc.

Referenced by LoadAllGraphicsData().

kNumGfxSheets

constexpr uint32_t yaze::kNumGfxSheets = 223

constexpr

Definition at line 32 of file rom_old.h.

Referenced by yaze::cli::anonymous_namespace{graphics_doctor_commands.cc}::CheckSheetIntegrity(), yaze::cli::GraphicsDoctorCommandHandler::Execute(), LoadAllGraphicsData(), SaveAllGraphicsData(), yaze::cli::anonymous_namespace{graphics_doctor_commands.cc}::ValidateBlocksets(), yaze::cli::anonymous_namespace{graphics_doctor_commands.cc}::ValidateCompression(), yaze::cli::anonymous_namespace{graphics_doctor_commands.cc}::ValidateGraphicsPointerTable(), and yaze::cli::anonymous_namespace{sprite_doctor_commands.cc}::ValidateSpritesets().

kNumLinkSheets

constexpr uint32_t yaze::kNumLinkSheets = 14

constexpr

Definition at line 33 of file rom_old.h.

Referenced by LoadLinkGraphics().

kTile16Ptr

constexpr uint32_t yaze::kTile16Ptr = 0x78000

constexpr

Definition at line 34 of file rom_old.h.

Referenced by yaze::Rom::ReadTile16(), and yaze::Rom::WriteTile16().

kNormalGfxSpaceStart

constexpr uint32_t yaze::kNormalGfxSpaceStart = 0x87000

constexpr

Definition at line 35 of file rom_old.h.

kNormalGfxSpaceEnd

constexpr uint32_t yaze::kNormalGfxSpaceEnd = 0xC4200

constexpr

Definition at line 36 of file rom_old.h.

kFontSpriteLocation

constexpr uint32_t yaze::kFontSpriteLocation = 0x70000

constexpr

Definition at line 49 of file rom_old.h.

kGfxGroupsPointer

constexpr uint32_t yaze::kGfxGroupsPointer = 0x6237

constexpr

Definition at line 50 of file rom_old.h.

Referenced by yaze::Rom::LoadGfxGroups(), and yaze::Rom::SaveGfxGroups().

kUncompressedSheetSize

constexpr uint32_t yaze::kUncompressedSheetSize = 0x0800

constexpr

Definition at line 51 of file rom_old.h.

Referenced by yaze::cli::anonymous_namespace{graphics_doctor_commands.cc}::CheckSheetIntegrity(), yaze::cli::GraphicsDoctorCommandHandler::Execute(), and yaze::cli::anonymous_namespace{graphics_doctor_commands.cc}::ValidateCompression().

kNumMainBlocksets

constexpr uint32_t yaze::kNumMainBlocksets = 37

constexpr

Definition at line 52 of file rom_old.h.

Referenced by yaze::Rom::LoadGfxGroups(), and yaze::Rom::SaveGfxGroups().

kNumRoomBlocksets

constexpr uint32_t yaze::kNumRoomBlocksets = 82

constexpr

Definition at line 53 of file rom_old.h.

Referenced by yaze::Rom::LoadGfxGroups(), yaze::Rom::SaveGfxGroups(), and yaze::cli::anonymous_namespace{graphics_doctor_commands.cc}::ValidateBlocksets().

kNumSpritesets

constexpr uint32_t yaze::kNumSpritesets = 144

constexpr

Definition at line 54 of file rom_old.h.

Referenced by yaze::Rom::LoadGfxGroups(), yaze::Rom::SaveGfxGroups(), and yaze::cli::anonymous_namespace{sprite_doctor_commands.cc}::ValidateSpritesets().

kNumPalettesets

constexpr uint32_t yaze::kNumPalettesets = 72

constexpr

Definition at line 55 of file rom_old.h.

Referenced by yaze::Rom::LoadGfxGroups(), and yaze::Rom::SaveGfxGroups().

kEntranceGfxGroup

constexpr uint32_t yaze::kEntranceGfxGroup = 0x5D97

constexpr

Definition at line 56 of file rom_old.h.

Referenced by yaze::Rom::LoadGfxGroups(), and yaze::Rom::SaveGfxGroups().

kMaxGraphics

constexpr uint32_t yaze::kMaxGraphics = 0x0C3FFF

constexpr

Definition at line 57 of file rom_old.h.
