yaze::Controller Class Reference

Main controller for the application. More...

#include <controller.h>

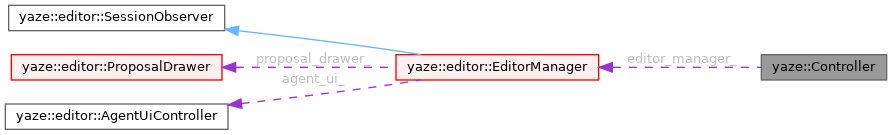

Collaboration diagram for yaze::Controller:

Classes
struct	ScreenshotRequest

Public Member Functions
bool	IsActive () const
absl::Status	OnEntry (std::string filename="")
void	OnInput ()
absl::Status	OnLoad ()
void	DoRender () const
void	OnExit ()
void	RequestScreenshot (const ScreenshotRequest &request)
absl::StatusOr< std::string >	RequestEditorControl (const std::string &request)
void	SetStartupEditor (const std::string &editor_name, const std::string &cards)
void	ShowWindow ()
void	HideWindow ()
auto	window () -> SDL_Window *
void	set_active (bool active)
auto	active () const
auto	overworld () -> yaze::zelda3::Overworld *
auto	GetCurrentRom () -> Rom *
auto	renderer () -> gfx::IRenderer *
editor::EditorManager *	editor_manager ()
platform::IWindowBackend *	window_backend ()
void	SetWindowBackendForTesting (std::unique_ptr< platform::IWindowBackend > window_backend)
absl::Status	LoadRomForTesting (const std::string &rom_path)

Private Member Functions
friend	int::main (int argc, char **argv)
void	ProcessScreenshotRequests () const

Private Attributes
bool	active_ = false
std::chrono::steady_clock::time_point	last_event_time_
bool	window_hidden_ = false
std::chrono::steady_clock::time_point	last_frame_end_
std::unique_ptr< platform::IWindowBackend >	window_backend_
editor::EditorManager	editor_manager_
std::unique_ptr< gfx::IRenderer >	renderer_
std::mutex	screenshot_mutex_
std::queue< ScreenshotRequest >	screenshot_requests_
app::EditorControlQueue	editor_control_queue_

Detailed Description

Main controller for the application.

This class is responsible for managing the main window and the main editor. It is the main entry point for the application.

Definition at line 36 of file controller.h.

Member Function Documentation

IsActive()

bool yaze::Controller::IsActive ( ) const

inline

Definition at line 46 of file controller.h.

References active_.

OnEntry()

absl::Status yaze::Controller::OnEntry

(

std::string

filename = ""

)

Definition at line 214 of file controller.cc.

References active_, yaze::gfx::RendererFactory::Create(), yaze::platform::WindowBackendFactory::Create(), editor_manager_, yaze::editor::EditorManager::emulator(), yaze::gfx::Arena::Get(), yaze::test::TestManager::Get(), yaze::util::UiThreadQueue::Get(), yaze::Application::GetConfig(), yaze::gfx::RendererFactory::GetDefaultBackendType(), yaze::platform::WindowBackendFactory::GetDefaultType(), yaze::platform::WindowConfig::hidden, yaze::platform::WindowConfig::high_dpi, yaze::editor::EditorManager::Initialize(), yaze::gfx::Arena::Initialize(), yaze::test::TestManager::InitializeUITesting(), yaze::Application::Instance(), yaze::platform::IOS, yaze::editor::ContentRegistry::Context::layout_manager(), LOG_INFO, yaze::gfx::Metal, yaze::gfx::Null, yaze::platform::Null, renderer_, yaze::platform::WindowConfig::resizable, RETURN_IF_ERROR, yaze::editor::EditorManager::SetAssetLoadMode(), yaze::util::UiThreadQueue::SetWaker(), yaze::platform::WindowConfig::title, and window_backend_.

OnInput()

void yaze::Controller::OnInput

(

)

Definition at line 317 of file controller.cc.

References yaze::util::MainLoopIdleState::busy, yaze::platform::Close, editor_control_queue_, editor_manager_, yaze::editor::EditorManager::emulator(), yaze::platform::Exposed, yaze::util::LogManager::Flush(), yaze::platform::FocusGained, yaze::platform::FocusLost, yaze::test::TestManager::Get(), yaze::util::UiThreadQueue::Get(), yaze::editor::EditorManager::HandleHostVisibilityChanged(), yaze::platform::WindowEvent::has_native_event, yaze::util::UiThreadQueue::HasPendingTasks(), yaze::platform::Hidden, yaze::util::LogManager::instance(), yaze::platform::IsWakeEvent(), last_event_time_, yaze::util::MainLoopEventWaitMs(), yaze::platform::Minimized, yaze::platform::WindowEvent::native_event, yaze::app::EditorControlQueue::pending(), yaze::util::MainLoopIdleState::quiet_for, yaze::editor::EditorManager::Quit(), yaze::platform::Quit, yaze::platform::Restored, screenshot_mutex_, screenshot_requests_, yaze::platform::Shown, yaze::platform::WindowEvent::type, yaze::util::MainLoopIdleState::ui_tasks_pending, yaze::editor::EditorManager::WantsContinuousFrames(), window_backend_, yaze::util::MainLoopIdleState::window_hidden, and window_hidden_.

OnLoad()

absl::Status yaze::Controller::OnLoad

(

)

Definition at line 434 of file controller.cc.

References active_, yaze::gui::DockSpaceRenderer::BeginEnhancedDockSpace(), yaze::gui::WidgetIdRegistry::BeginFrame(), yaze::platform::ios::EditorStateSnapshot::can_redo, yaze::platform::ios::EditorStateSnapshot::can_save, yaze::platform::ios::EditorStateSnapshot::can_undo, yaze::editor::FrameGuiBeginEvent::Create(), yaze::Rom::dirty(), yaze::util::UiThreadQueue::Drain(), yaze::editor::LayoutManager::DrawEditorHost(), yaze::editor::EditorManager::DrawMainMenuBar(), yaze::editor::UICoordinator::DrawMenuBarRestoreButton(), editor_control_queue_, editor_manager_, yaze::platform::ios::EditorStateSnapshot::editor_type, yaze::editor::EditorTypeIndex(), yaze::gui::DockSpaceRenderer::EndEnhancedDockSpace(), yaze::gui::WidgetIdRegistry::EndFrame(), yaze::editor::ContentRegistry::Context::event_bus(), yaze::editor::EditorManager::ExecuteEditorControl(), yaze::gui::ThemeManager::Get(), yaze::util::UiThreadQueue::Get(), yaze::editor::EditorManager::GetBottomLayoutOffset(), yaze::editor::EditorManager::GetCurrentEditor(), yaze::editor::EditorManager::GetCurrentRom(), yaze::editor::EditorManager::GetLeftLayoutOffset(), yaze::platform::ios::GetOverlayTopInset(), yaze::editor::EditorManager::GetRightLayoutOffset(), yaze::platform::ios::GetSafeAreaInsets(), yaze::gui::WidgetIdRegistry::Instance(), yaze::platform::ios::EditorStateSnapshot::is_dirty, yaze::Rom::is_loaded(), yaze::editor::UICoordinator::IsMenuBarVisible(), yaze::editor::kEditorNames, yaze::editor::ContentRegistry::Context::layout_manager(), yaze::editor::LayoutManager::OuterDockspaceId(), yaze::platform::ios::PostEditorStateUpdate(), yaze::app::EditorControlQueue::ProcessOne(), yaze::editor::EditorManager::quit(), RETURN_IF_ERROR, yaze::platform::ios::EditorStateSnapshot::rom_title, yaze::util::UiThreadQueue::Shutdown(), yaze::Rom::title(), yaze::editor::EditorManager::ui_coordinator(), yaze::editor::EditorManager::Update(), yaze::gui::ThemeManager::UpdateTransition(), yaze::editor::ContentRegistry::Context::user_settings(), and window_backend_.

DoRender()

void yaze::Controller::DoRender

(

)

const

Definition at line 596 of file controller.cc.

References yaze::gfx::Arena::DrainRetiredBitmaps(), editor_manager_, yaze::gfx::Arena::Get(), yaze::test::TestManager::Get(), yaze::editor::EditorManager::GetUiSyncStateSnapshot(), yaze::Application::Instance(), last_frame_end_, yaze::editor::EditorManager::UiSyncState::layout_rebuild_pending, yaze::test::TestManager::OnPostSwap(), ProcessScreenshotRequests(), yaze::gfx::Arena::ProcessTextureQueue(), yaze::gfx::Arena::ProcessTextureQueueWithBudget(), renderer_, and window_backend_.

OnExit()

void yaze::Controller::OnExit

(

)

Definition at line 653 of file controller.cc.

References yaze::test::TestManager::DestroyUITestingContext(), yaze::gfx::Arena::DrainRetiredBitmaps(), yaze::gfx::Arena::Get(), yaze::test::TestManager::Get(), yaze::util::UiThreadQueue::Get(), yaze::gfx::Arena::Initialize(), renderer_, yaze::test::TestManager::StopUITesting(), and window_backend_.

RequestScreenshot()

void yaze::Controller::RequestScreenshot

(

const ScreenshotRequest &

request

)

Definition at line 9 of file controller_screenshot.cc.

References yaze::util::UiThreadQueue::Get(), yaze::util::UiThreadQueue::Post(), screenshot_mutex_, and screenshot_requests_.

Here is the call graph for this function:

RequestEditorControl()

absl::StatusOr< std::string > yaze::Controller::RequestEditorControl

(

const std::string &

request

)

Definition at line 429 of file controller.cc.

References editor_control_queue_, and yaze::app::EditorControlQueue::Submit().

Here is the call graph for this function:

SetStartupEditor()

void yaze::Controller::SetStartupEditor	(	const std::string &	editor_name,
		const std::string &	cards )

Definition at line 308 of file controller.cc.

References editor_manager_, and yaze::editor::EditorManager::OpenEditorAndPanelsFromFlags().

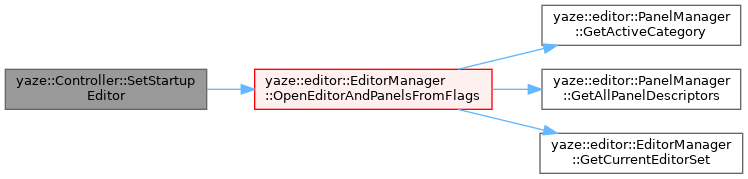

Here is the call graph for this function:

ShowWindow()

void yaze::Controller::ShowWindow ( )

inline

Definition at line 64 of file controller.h.

References window_backend_.

HideWindow()

void yaze::Controller::HideWindow ( )

inline

Definition at line 68 of file controller.h.

References window_backend_.

window()

auto yaze::Controller::window ( ) -> SDL_Window*

inline

Definition at line 73 of file controller.h.

References window_backend_.

set_active()

void yaze::Controller::set_active ( bool active )

inline

Definition at line 76 of file controller.h.

References active(), and active_.

Here is the call graph for this function:

active()

auto yaze::Controller::active ( ) const

inline

Definition at line 77 of file controller.h.

References active_.

Referenced by set_active().

overworld()

auto yaze::Controller::overworld ( ) -> yaze::zelda3::Overworld*

inline

Definition at line 78 of file controller.h.

References editor_manager_, and yaze::editor::EditorManager::overworld().

Here is the call graph for this function:

GetCurrentRom()

auto yaze::Controller::GetCurrentRom ( ) -> Rom*

inline

Definition at line 81 of file controller.h.

References editor_manager_, and yaze::editor::EditorManager::GetCurrentRom().

Here is the call graph for this function:

renderer()

auto yaze::Controller::renderer ( ) -> gfx::IRenderer*

inline

Definition at line 82 of file controller.h.

References renderer_.

editor_manager()

editor::EditorManager * yaze::Controller::editor_manager ( )

inline

Definition at line 85 of file controller.h.

References editor_manager_.

Referenced by yaze::app::GetGlobalEditorManager(), yaze::app::GetGlobalEmulator(), and main().

window_backend()

platform::IWindowBackend * yaze::Controller::window_backend ( )

inline

Definition at line 88 of file controller.h.

References window_backend_.

Referenced by SetWindowBackendForTesting().

SetWindowBackendForTesting()

void yaze::Controller::SetWindowBackendForTesting ( std::unique_ptr< platform::IWindowBackend > window_backend )

inline

Definition at line 91 of file controller.h.

References window_backend(), and window_backend_.

Here is the call graph for this function:

LoadRomForTesting()

absl::Status yaze::Controller::LoadRomForTesting

(

const std::string &

rom_path

)

Definition at line 686 of file controller.cc.

References yaze::editor::EditorManager::asset_load_mode(), editor_manager_, yaze::kFull, yaze::editor::EditorManager::kNoPrompt, yaze::editor::EditorManager::OpenRomOrProject(), and yaze::editor::EditorManager::SetAssetLoadMode().

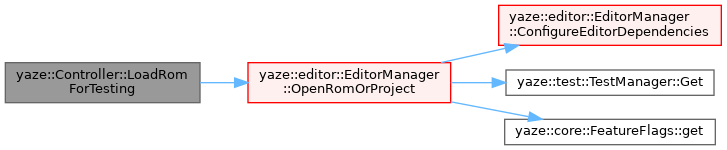

Here is the call graph for this function:

int::main()

yaze::Controller::int::main ( int argc, char ** argv )

private

ProcessScreenshotRequests()

void yaze::Controller::ProcessScreenshotRequests ( ) const

private

Definition at line 700 of file controller.cc.

References yaze::Application::Instance(), screenshot_mutex_, and screenshot_requests_.

Referenced by DoRender().

Here is the call graph for this function:

Member Data Documentation

active_

bool yaze::Controller::active_ = false

private

Definition at line 109 of file controller.h.

Referenced by active(), IsActive(), OnEntry(), OnLoad(), and set_active().

last_event_time_

std::chrono::steady_clock::time_point yaze::Controller::last_event_time_

private

Initial value:

=
      std::chrono::steady_clock::now()

Definition at line 112 of file controller.h.

Referenced by OnInput().

window_hidden_

bool yaze::Controller::window_hidden_ = false

private

Definition at line 114 of file controller.h.

Referenced by OnInput().

last_frame_end_

std::chrono::steady_clock::time_point yaze::Controller::last_frame_end_

mutableprivate

Initial value:

=
      std::chrono::steady_clock::now()

Definition at line 116 of file controller.h.

Referenced by DoRender().

window_backend_

std::unique_ptr<platform::IWindowBackend> yaze::Controller::window_backend_

private

Definition at line 118 of file controller.h.

Referenced by DoRender(), HideWindow(), OnEntry(), OnExit(), OnInput(), OnLoad(), SetWindowBackendForTesting(), ShowWindow(), window(), and window_backend().

editor_manager_

editor::EditorManager yaze::Controller::editor_manager_

private

Definition at line 119 of file controller.h.

Referenced by DoRender(), editor_manager(), GetCurrentRom(), LoadRomForTesting(), OnEntry(), OnInput(), OnLoad(), overworld(), and SetStartupEditor().

renderer_

std::unique_ptr<gfx::IRenderer> yaze::Controller::renderer_

private

Definition at line 120 of file controller.h.

Referenced by DoRender(), OnEntry(), OnExit(), and renderer().

screenshot_mutex_

std::mutex yaze::Controller::screenshot_mutex_

mutableprivate

Definition at line 123 of file controller.h.

Referenced by OnInput(), ProcessScreenshotRequests(), and RequestScreenshot().

screenshot_requests_

std::queue<ScreenshotRequest> yaze::Controller::screenshot_requests_

mutableprivate

Definition at line 124 of file controller.h.

Referenced by OnInput(), ProcessScreenshotRequests(), and RequestScreenshot().

editor_control_queue_

app::EditorControlQueue yaze::Controller::editor_control_queue_

private

Definition at line 126 of file controller.h.

Referenced by OnInput(), OnLoad(), and RequestEditorControl().

---

The documentation for this class was generated from the following files:

• src/app/controller.h
• src/app/controller.cc
• src/app/controller_screenshot.cc
