A session-aware status bar displayed at the bottom of the application. More...

#include <status_bar.h>

Collaboration diagram for yaze::editor::StatusBar:

[legend]

Public Member Functions
	StatusBar ()=default

	~StatusBar ()=default

void	Initialize (GlobalEditorContext *context)

void	SetEnabled (bool enabled)
	Enable or disable the status bar.

bool	IsEnabled () const

void	SetRom (Rom *rom)
	Set the current ROM for dirty status and filename display.

void	SetSessionInfo (size_t session_id, size_t total_sessions)
	Set session information.

void	SetCursorPosition (int x, int y, const char *label="Pos")
	Set cursor/mouse position in editor coordinates.

void	ClearCursorPosition ()
	Clear cursor position (no cursor in editor)

void	SetSelection (int count, int width=0, int height=0)
	Set selection information.

void	ClearSelection ()
	Clear selection info.

void	SetZoom (float level)
	Set current zoom level.

void	ClearZoom ()
	Clear zoom display.

void	SetEditorMode (const std::string &mode)
	Set the current editor mode or tool.

void	ClearEditorMode ()
	Clear editor mode display.

void	SetCustomSegment (const std::string &key, const std::string &value)
	Set a custom segment with key-value pair.

void	ClearCustomSegment (const std::string &key)
	Remove a custom segment.

void	ClearAllContext ()
	Clear all context (cursor, selection, zoom, mode, custom)

void	SetAgentInfo (const std::string &provider, const std::string &model, bool active)

void	ClearAgentInfo ()

void	SetAgentToggleCallback (std::function< void()> callback)

void	Draw ()
	Draw the status bar.

float	GetHeight () const
	Get the height of the status bar.

Static Public Attributes
static constexpr float	kStatusBarHeight = 24.0f

static constexpr float	kStatusBarTouchHeight = 44.0f

Private Member Functions
void	HandleStatusUpdate (const StatusUpdateEvent &event)

void	DrawRomSegment ()

void	DrawSessionSegment ()

void	DrawCursorSegment ()

void	DrawSelectionSegment ()

void	DrawZoomSegment ()

void	DrawModeSegment ()

void	DrawAgentSegment ()

void	DrawCustomSegments ()

void	DrawSeparator ()

Private Attributes
GlobalEditorContext *	context_ = nullptr

bool	enabled_ = false

Rom *	rom_ = nullptr

size_t	session_id_ = 0

size_t	total_sessions_ = 1

bool	has_cursor_ = false

int	cursor_x_ = 0

int	cursor_y_ = 0

std::string	cursor_label_ = "Pos"

bool	has_selection_ = false

int	selection_count_ = 0

int	selection_width_ = 0

int	selection_height_ = 0

bool	has_zoom_ = false

float	zoom_level_ = 1.0f

bool	has_mode_ = false

std::string	editor_mode_

std::unordered_map< std::string, std::string >	custom_segments_

bool	has_agent_ = false

bool	agent_active_ = false

std::string	agent_provider_

std::string	agent_model_

std::function< void()>	agent_toggle_callback_

Detailed Description

A session-aware status bar displayed at the bottom of the application.

The StatusBar sits outside the ImGui dockspace (like the sidebars) and displays:

ROM filename and dirty status indicator
Session number (when multiple ROMs open)
Cursor position (context-aware based on active editor)
Selection info (count, dimensions)
Zoom level
Current editor mode/tool

Each editor can update its relevant segments by calling the Set* methods or publishing StatusUpdateEvents to the event bus.

Usage:

status_bar_.Initialize(&editor_context);
// ...
editor_context.GetEventBus().Publish(StatusUpdateEvent::Cursor(x, y));

Definition at line 39 of file status_bar.h.

Constructor & Destructor Documentation

◆ StatusBar()

yaze::editor::StatusBar::StatusBar ( )

default

◆ ~StatusBar()

yaze::editor::StatusBar::~StatusBar ( )

default

Member Function Documentation

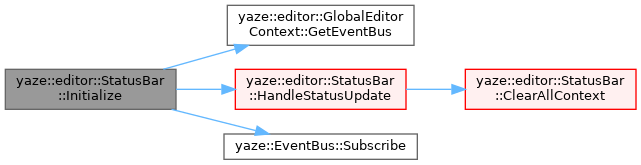

◆ Initialize()

void yaze::editor::StatusBar::Initialize ( GlobalEditorContext * context )

Definition at line 30 of file status_bar.cc.

References ClearSelection(), context_, yaze::editor::GlobalEditorContext::GetEventBus(), HandleStatusUpdate(), SetSelection(), SetZoom(), and yaze::EventBus::Subscribe().

Referenced by yaze::editor::EditorManager::EditorManager().

◆ SetEnabled()

void yaze::editor::StatusBar::SetEnabled ( bool enabled )

inline

Enable or disable the status bar.

Definition at line 53 of file status_bar.h.

References enabled_.

Referenced by yaze::editor::MenuOrchestrator::AddAppearanceMenuItems(), yaze::editor::SettingsPanel::DrawAppearanceSettings(), yaze::editor::EditorManager::LoadAssets(), and yaze::editor::EditorManager::LoadAssetsLazy().

◆ IsEnabled()

bool yaze::editor::StatusBar::IsEnabled ( ) const

inline

Definition at line 54 of file status_bar.h.

References enabled_.

◆ SetRom()

void yaze::editor::StatusBar::SetRom ( Rom * rom )

inline

Set the current ROM for dirty status and filename display.

Definition at line 59 of file status_bar.h.

References rom_.

Referenced by yaze::editor::EditorManager::DrawInterface().

◆ SetSessionInfo()

void yaze::editor::StatusBar::SetSessionInfo	(	size_t	session_id,
		size_t	total_sessions )

Set session information.

Parameters

session_id	Current session index (0-based)
total_sessions	Total number of open sessions

Definition at line 75 of file status_bar.cc.

References session_id_, and total_sessions_.

Referenced by yaze::editor::EditorManager::DrawInterface().

◆ SetCursorPosition()

void yaze::editor::StatusBar::SetCursorPosition	(	int	x,
		int	y,
		const char *	label = "Pos" )

Set cursor/mouse position in editor coordinates.

Parameters

x	X coordinate (tile, pixel, or editor-specific)
y	Y coordinate (tile, pixel, or editor-specific)
label	Optional label (e.g., "Tile", "Pos", "Map")

Definition at line 80 of file status_bar.cc.

References cursor_label_, cursor_x_, cursor_y_, and has_cursor_.

Referenced by HandleStatusUpdate().

◆ ClearCursorPosition()

void yaze::editor::StatusBar::ClearCursorPosition ( )

Clear cursor position (no cursor in editor)

Definition at line 87 of file status_bar.cc.

References has_cursor_.

Referenced by ClearAllContext().

◆ SetSelection()

void yaze::editor::StatusBar::SetSelection	(	int	count,
		int	width = 0,
		int	height = 0 )

Set selection information.

Parameters

count	Number of selected items
width	Width of selection (optional, 0 to hide)
height	Height of selection (optional, 0 to hide)

Definition at line 91 of file status_bar.cc.

References has_selection_, selection_count_, selection_height_, and selection_width_.

Referenced by HandleStatusUpdate(), and Initialize().

◆ ClearSelection()

void yaze::editor::StatusBar::ClearSelection ( )

Clear selection info.

Definition at line 98 of file status_bar.cc.

References has_selection_.

Referenced by ClearAllContext(), and Initialize().

◆ SetZoom()

void yaze::editor::StatusBar::SetZoom ( float level )

Set current zoom level.

Parameters

level Zoom multiplier (e.g., 1.0, 2.0, 0.5)

Definition at line 102 of file status_bar.cc.

References has_zoom_, and zoom_level_.

Referenced by HandleStatusUpdate(), and Initialize().

◆ ClearZoom()

void yaze::editor::StatusBar::ClearZoom ( )

Clear zoom display.

Definition at line 107 of file status_bar.cc.

References has_zoom_.

Referenced by ClearAllContext().

◆ SetEditorMode()

void yaze::editor::StatusBar::SetEditorMode ( const std::string & mode )

Set the current editor mode or tool.

Parameters

mode	Mode string (e.g., "Draw", "Select", "Entity")

Definition at line 111 of file status_bar.cc.

References editor_mode_, and has_mode_.

Referenced by HandleStatusUpdate().

◆ ClearEditorMode()

void yaze::editor::StatusBar::ClearEditorMode ( )

Clear editor mode display.

Definition at line 116 of file status_bar.cc.

References editor_mode_, and has_mode_.

Referenced by ClearAllContext().

◆ SetCustomSegment()

void yaze::editor::StatusBar::SetCustomSegment	(	const std::string &	key,
		const std::string &	value )

Set a custom segment with key-value pair.

Parameters

key	Segment identifier
value	Value to display

Definition at line 121 of file status_bar.cc.

References custom_segments_.

◆ ClearCustomSegment()

void yaze::editor::StatusBar::ClearCustomSegment ( const std::string & key )

Remove a custom segment.

Definition at line 126 of file status_bar.cc.

References custom_segments_.

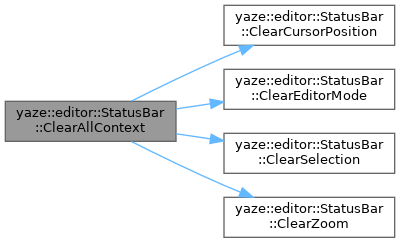

◆ ClearAllContext()

void yaze::editor::StatusBar::ClearAllContext ( )

Clear all context (cursor, selection, zoom, mode, custom)

Definition at line 130 of file status_bar.cc.

References ClearCursorPosition(), ClearEditorMode(), ClearSelection(), ClearZoom(), and custom_segments_.

Referenced by HandleStatusUpdate().

Here is the call graph for this function:

◆ SetAgentInfo()

void yaze::editor::StatusBar::SetAgentInfo	(	const std::string &	provider,
		const std::string &	model,
		bool	active )

Definition at line 138 of file status_bar.cc.

References agent_active_, agent_model_, agent_provider_, and has_agent_.

Referenced by yaze::editor::EditorManager::DrawInterface().

◆ ClearAgentInfo()

void yaze::editor::StatusBar::ClearAgentInfo ( )

Definition at line 146 of file status_bar.cc.

References agent_active_, agent_model_, agent_provider_, and has_agent_.

Referenced by yaze::editor::EditorManager::DrawInterface().

◆ SetAgentToggleCallback()

void yaze::editor::StatusBar::SetAgentToggleCallback ( std::function< void()> callback )

inline

Definition at line 144 of file status_bar.h.

References agent_toggle_callback_.

Referenced by yaze::editor::EditorManager::InitializeSubsystems().

◆ Draw()

void yaze::editor::StatusBar::Draw ( )

Draw the status bar.

Should be called each frame. The status bar positions itself at the bottom of the viewport, outside the dockspace.

Definition at line 153 of file status_bar.cc.

References agent_model_, agent_provider_, yaze::gui::LayoutHelpers::SafeAreaInsets::bottom, DrawAgentSegment(), DrawCursorSegment(), DrawCustomSegments(), DrawModeSegment(), DrawRomSegment(), DrawSelectionSegment(), DrawSeparator(), DrawSessionSegment(), DrawZoomSegment(), editor_mode_, enabled_, GetHeight(), yaze::gui::GetOutlineVec4(), yaze::gui::LayoutHelpers::GetSafeAreaInsets(), yaze::gui::GetSurfaceContainerVec4(), has_agent_, has_cursor_, has_mode_, has_selection_, has_zoom_, ICON_MD_SMART_TOY, yaze::gui::LayoutHelpers::IsTouchDevice(), and total_sessions_.

Referenced by yaze::editor::EditorManager::DrawInterface().

◆ GetHeight()

float yaze::editor::StatusBar::GetHeight ( ) const

Get the height of the status bar.

Returns: Height in pixels (0 if disabled)

Definition at line 20 of file status_bar.cc.

References enabled_, yaze::gui::LayoutHelpers::IsTouchDevice(), kStatusBarHeight, and kStatusBarTouchHeight.

Referenced by Draw(), and yaze::editor::LayoutCoordinator::GetBottomLayoutOffset().

Here is the call graph for this function:

◆ HandleStatusUpdate()

void yaze::editor::StatusBar::HandleStatusUpdate ( const StatusUpdateEvent & event )

private

◆ DrawRomSegment()

void yaze::editor::StatusBar::DrawRomSegment ( )

private

Definition at line 304 of file status_bar.cc.

References yaze::gui::ColoredText(), yaze::gui::ColoredTextF(), yaze::gui::ConvertColorToImVec4(), yaze::Rom::dirty(), yaze::gui::ThemeManager::Get(), yaze::gui::ThemeManager::GetCurrentTheme(), yaze::gui::GetTextSecondaryVec4(), ICON_MD_DESCRIPTION, ICON_MD_FIBER_MANUAL_RECORD, yaze::Rom::is_loaded(), rom_, and yaze::Rom::short_name().

Referenced by Draw().

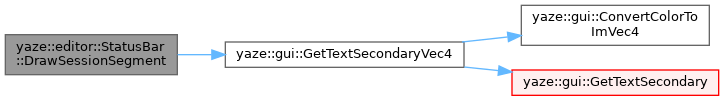

◆ DrawSessionSegment()

void yaze::editor::StatusBar::DrawSessionSegment ( )

private

Definition at line 329 of file status_bar.cc.

References yaze::gui::ColoredTextF(), yaze::gui::GetTextSecondaryVec4(), ICON_MD_LAYERS, session_id_, and total_sessions_.

Referenced by Draw().

Here is the call graph for this function:

◆ DrawCursorSegment()

void yaze::editor::StatusBar::DrawCursorSegment ( )

private

Definition at line 339 of file status_bar.cc.

References yaze::gui::ColoredTextF(), cursor_label_, cursor_x_, cursor_y_, and yaze::gui::GetTextSecondaryVec4().

Referenced by Draw().

Here is the call graph for this function:

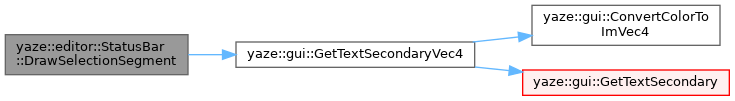

◆ DrawSelectionSegment()

void yaze::editor::StatusBar::DrawSelectionSegment ( )

private

Definition at line 344 of file status_bar.cc.

References yaze::gui::GetTextSecondaryVec4(), ICON_MD_SELECT_ALL, selection_count_, selection_height_, and selection_width_.

Referenced by Draw().

Here is the call graph for this function:

◆ DrawZoomSegment()

void yaze::editor::StatusBar::DrawZoomSegment ( )

private

Definition at line 356 of file status_bar.cc.

References yaze::gui::ColoredTextF(), yaze::gui::GetTextSecondaryVec4(), ICON_MD_ZOOM_IN, and zoom_level_.

Referenced by Draw().

Here is the call graph for this function:

◆ DrawModeSegment()

void yaze::editor::StatusBar::DrawModeSegment ( )

private

Definition at line 366 of file status_bar.cc.

References yaze::gui::ColoredTextF(), editor_mode_, and yaze::gui::GetTextSecondaryVec4().

Referenced by Draw().

Here is the call graph for this function:

◆ DrawAgentSegment()

void yaze::editor::StatusBar::DrawAgentSegment ( )

private

Definition at line 266 of file status_bar.cc.

References agent_active_, agent_model_, agent_provider_, agent_toggle_callback_, yaze::gui::GetPrimaryVec4(), yaze::gui::GetSurfaceContainerHighestVec4(), yaze::gui::GetSurfaceContainerHighVec4(), yaze::gui::GetTextSecondaryVec4(), ICON_MD_SMART_TOY, and yaze::gui::ThemedButton().

Referenced by Draw().

◆ DrawCustomSegments()

void yaze::editor::StatusBar::DrawCustomSegments ( )

private

Definition at line 370 of file status_bar.cc.

References yaze::gui::ColoredTextF(), custom_segments_, DrawSeparator(), and yaze::gui::GetTextSecondaryVec4().

Referenced by Draw().

Here is the call graph for this function:

◆ DrawSeparator()

void yaze::editor::StatusBar::DrawSeparator ( )

private

Definition at line 378 of file status_bar.cc.

References yaze::gui::ColoredText(), and yaze::gui::GetOutlineVec4().

Referenced by Draw(), and DrawCustomSegments().

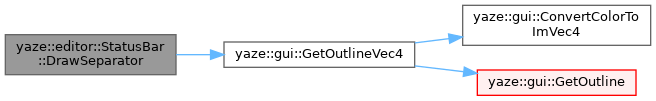

Here is the call graph for this function:

Member Data Documentation

◆ kStatusBarHeight

constexpr float yaze::editor::StatusBar::kStatusBarHeight = 24.0f

staticconstexpr

Definition at line 166 of file status_bar.h.

Referenced by GetHeight().

◆ kStatusBarTouchHeight

constexpr float yaze::editor::StatusBar::kStatusBarTouchHeight = 44.0f

staticconstexpr

Definition at line 167 of file status_bar.h.

Referenced by GetHeight().

◆ context_

GlobalEditorContext* yaze::editor::StatusBar::context_ = nullptr

private

Definition at line 182 of file status_bar.h.

Referenced by Initialize().

◆ enabled_

bool yaze::editor::StatusBar::enabled_ = false

private

Definition at line 183 of file status_bar.h.

Referenced by Draw(), GetHeight(), IsEnabled(), and SetEnabled().

◆ rom_

Rom* yaze::editor::StatusBar::rom_ = nullptr

private

Definition at line 184 of file status_bar.h.

Referenced by DrawRomSegment(), and SetRom().

◆ session_id_

size_t yaze::editor::StatusBar::session_id_ = 0

private

Definition at line 187 of file status_bar.h.

Referenced by DrawSessionSegment(), and SetSessionInfo().

◆ total_sessions_

size_t yaze::editor::StatusBar::total_sessions_ = 1

private

Definition at line 188 of file status_bar.h.

Referenced by Draw(), DrawSessionSegment(), and SetSessionInfo().

◆ has_cursor_

bool yaze::editor::StatusBar::has_cursor_ = false

private

Definition at line 191 of file status_bar.h.

Referenced by ClearCursorPosition(), Draw(), and SetCursorPosition().

◆ cursor_x_

int yaze::editor::StatusBar::cursor_x_ = 0

private

Definition at line 192 of file status_bar.h.

Referenced by DrawCursorSegment(), and SetCursorPosition().

◆ cursor_y_

int yaze::editor::StatusBar::cursor_y_ = 0

private

Definition at line 193 of file status_bar.h.

Referenced by DrawCursorSegment(), and SetCursorPosition().

◆ cursor_label_

std::string yaze::editor::StatusBar::cursor_label_ = "Pos"

private

Definition at line 194 of file status_bar.h.

Referenced by DrawCursorSegment(), and SetCursorPosition().

◆ has_selection_

bool yaze::editor::StatusBar::has_selection_ = false

private

Definition at line 197 of file status_bar.h.

Referenced by ClearSelection(), Draw(), and SetSelection().

◆ selection_count_

int yaze::editor::StatusBar::selection_count_ = 0

private

Definition at line 198 of file status_bar.h.

Referenced by DrawSelectionSegment(), and SetSelection().

◆ selection_width_

int yaze::editor::StatusBar::selection_width_ = 0

private

Definition at line 199 of file status_bar.h.

Referenced by DrawSelectionSegment(), and SetSelection().

◆ selection_height_

int yaze::editor::StatusBar::selection_height_ = 0

private

Definition at line 200 of file status_bar.h.

Referenced by DrawSelectionSegment(), and SetSelection().

◆ has_zoom_

bool yaze::editor::StatusBar::has_zoom_ = false

private

Definition at line 203 of file status_bar.h.

Referenced by ClearZoom(), Draw(), and SetZoom().

◆ zoom_level_

float yaze::editor::StatusBar::zoom_level_ = 1.0f

private

Definition at line 204 of file status_bar.h.

Referenced by DrawZoomSegment(), and SetZoom().

◆ has_mode_

bool yaze::editor::StatusBar::has_mode_ = false

private

Definition at line 207 of file status_bar.h.

Referenced by ClearEditorMode(), Draw(), and SetEditorMode().

◆ editor_mode_

std::string yaze::editor::StatusBar::editor_mode_

private

Definition at line 208 of file status_bar.h.

Referenced by ClearEditorMode(), Draw(), DrawModeSegment(), and SetEditorMode().

◆ custom_segments_

std::unordered_map<std::string, std::string> yaze::editor::StatusBar::custom_segments_

private

Definition at line 211 of file status_bar.h.

Referenced by ClearAllContext(), ClearCustomSegment(), DrawCustomSegments(), and SetCustomSegment().

◆ has_agent_

bool yaze::editor::StatusBar::has_agent_ = false

private

Definition at line 214 of file status_bar.h.

Referenced by ClearAgentInfo(), Draw(), and SetAgentInfo().

◆ agent_active_

bool yaze::editor::StatusBar::agent_active_ = false

private

Definition at line 215 of file status_bar.h.

Referenced by ClearAgentInfo(), DrawAgentSegment(), and SetAgentInfo().

◆ agent_provider_

std::string yaze::editor::StatusBar::agent_provider_

private

Definition at line 216 of file status_bar.h.

Referenced by ClearAgentInfo(), Draw(), DrawAgentSegment(), and SetAgentInfo().

◆ agent_model_

std::string yaze::editor::StatusBar::agent_model_

private

Definition at line 217 of file status_bar.h.

Referenced by ClearAgentInfo(), Draw(), DrawAgentSegment(), and SetAgentInfo().

◆ agent_toggle_callback_

std::function<void()> yaze::editor::StatusBar::agent_toggle_callback_

private

Definition at line 218 of file status_bar.h.

Referenced by DrawAgentSegment(), and SetAgentToggleCallback().

The documentation for this class was generated from the following files:

src/app/editor/menu/status_bar.h
src/app/editor/menu/status_bar.cc

	yaze 0.3.2 Link to the Past ROM Editor

Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ StatusBar()

◆ ~StatusBar()

Member Function Documentation

◆ Initialize()

◆ SetEnabled()

◆ IsEnabled()

◆ SetRom()

◆ SetSessionInfo()

◆ SetCursorPosition()

◆ ClearCursorPosition()

◆ SetSelection()

◆ ClearSelection()

◆ SetZoom()

◆ ClearZoom()

◆ SetEditorMode()

◆ ClearEditorMode()

◆ SetCustomSegment()

◆ ClearCustomSegment()

◆ ClearAllContext()

◆ SetAgentInfo()

◆ ClearAgentInfo()

◆ SetAgentToggleCallback()

◆ Draw()

◆ GetHeight()

◆ HandleStatusUpdate()

◆ DrawRomSegment()

◆ DrawSessionSegment()

◆ DrawCursorSegment()

◆ DrawSelectionSegment()

◆ DrawZoomSegment()

◆ DrawModeSegment()

◆ DrawAgentSegment()

◆ DrawCustomSegments()

◆ DrawSeparator()

Member Data Documentation

◆ kStatusBarHeight

◆ kStatusBarTouchHeight

◆ context_

◆ enabled_

◆ rom_

◆ session_id_

◆ total_sessions_

◆ has_cursor_

◆ cursor_x_

◆ cursor_y_

◆ cursor_label_

◆ has_selection_

◆ selection_count_

◆ selection_width_

◆ selection_height_

◆ has_zoom_

◆ zoom_level_

◆ has_mode_

◆ editor_mode_

◆ custom_segments_

◆ has_agent_

◆ agent_active_

◆ agent_provider_

◆ agent_model_

◆ agent_toggle_callback_
