The ScreenEditor class allows the user to edit a variety of screens in the game or create a custom menu. More...

#include <screen_editor.h>

Inheritance diagram for yaze::editor::ScreenEditor:

Public Member Functions
	ScreenEditor (Rom *rom=nullptr)

void	Initialize () override

absl::Status	Load () override

absl::Status	Update () override

absl::Status	Undo () override

absl::Status	Redo () override

absl::Status	Cut () override

absl::Status	Copy () override

absl::Status	Paste () override

absl::Status	Find () override

absl::Status	Save () override

void	set_rom (Rom *rom)

Rom *	rom () const

Public Member Functions inherited from yaze::editor::Editor
	Editor ()=default

virtual	~Editor ()=default

virtual absl::Status	Clear ()

EditorType	type () const

void	set_context (EditorContext *context)

bool *	active ()

void	set_active (bool active)

virtual bool	IsRomLoaded () const

virtual std::string	GetRomStatus () const

Public Attributes
std::vector< zelda3::DungeonMap >	dungeon_maps_

Private Types
enum class	EditingMode { DRAW , EDIT }

Private Member Functions
void	DrawTitleScreenEditor ()

void	DrawNamingScreenEditor ()

void	DrawOverworldMapEditor ()

void	DrawInventoryMenuEditor ()

void	DrawToolset ()

void	DrawDungeonMapToolset ()

void	DrawInventoryToolset ()

absl::Status	LoadDungeonMapTile16 (const std::vector< uint8_t > &gfx_data, bool bin_mode=false)

absl::Status	SaveDungeonMapTile16 ()

void	DrawDungeonMapScreen (int i)

void	DrawDungeonMapsTabs ()

void	DrawDungeonMapsEditor ()
	Draw dungeon maps editor with enhanced ROM hacking features.

void	DrawDungeonMapsRoomGfx ()
	Draw dungeon room graphics editor with enhanced tile16 editing.

void	LoadBinaryGfx ()

Private Attributes
EditingMode	current_mode_ = EditingMode::DRAW

bool	show_dungeon_maps_ = false

bool	show_inventory_menu_ = false

bool	show_overworld_map_ = false

bool	show_title_screen_ = false

bool	show_naming_screen_ = false

bool	binary_gfx_loaded_ = false

uint8_t	selected_room = 0

int	selected_tile16_ = 0

int	selected_tile8_ = 0

int	selected_dungeon = 0

int	floor_number = 1

bool	copy_button_pressed = false

bool	paste_button_pressed = false

std::vector< gfx::Bitmap >	tile8_individual_

zelda3::DungeonMapLabels	dungeon_map_labels_

gfx::SnesPalette	palette_

gfx::BitmapTable	sheets_

gfx::Tilemap	tile16_blockset_

std::array< gfx::TileInfo, 4 >	current_tile16_info

gui::Canvas	current_tile_canvas_

gui::Canvas	screen_canvas_

gui::Canvas	tilesheet_canvas_

gui::Canvas	tilemap_canvas_

zelda3::Inventory	inventory_

Rom *	rom_

absl::Status	status_

Additional Inherited Members
Protected Member Functions inherited from yaze::editor::Editor
std::string	MakeCardTitle (const std::string &base_title) const

template<typename T >
absl::StatusOr< T >	SafeRomAccess (std::function< T()> accessor, const std::string &operation="") const

Protected Attributes inherited from yaze::editor::Editor
bool	active_ = false

EditorType	type_

EditorContext *	context_ = nullptr

Detailed Description

The ScreenEditor class allows the user to edit a variety of screens in the game or create a custom menu.

This class is currently a work in progress (WIP) and provides functionality for updating the screens, saving dungeon maps, drawing different types of screens, loading dungeon maps, and managing various properties related to the editor.

The screens that can be edited include the title screen, naming screen, overworld map, inventory menu, and more.

Definition at line 34 of file screen_editor.h.

Member Enumeration Documentation

◆ EditingMode

enum class yaze::editor::ScreenEditor::EditingMode

strongprivate

Enumerator
DRAW
EDIT

Definition at line 77 of file screen_editor.h.

Constructor & Destructor Documentation

◆ ScreenEditor()

yaze::editor::ScreenEditor::ScreenEditor ( Rom * rom = nullptr )

inlineexplicit

Definition at line 36 of file screen_editor.h.

References yaze::editor::kScreen, screen_canvas_, yaze::gui::Canvas::SetCanvasSize(), and yaze::editor::Editor::type_.

Here is the call graph for this function:

Member Function Documentation

◆ Initialize()

void yaze::editor::ScreenEditor::Initialize ( )

overridevirtual

Implements yaze::editor::Editor.

Definition at line 32 of file screen_editor.cc.

References yaze::gui::EditorCardManager::Get(), ICON_MD_EDIT, ICON_MD_INVENTORY, ICON_MD_MAP, ICON_MD_PUBLIC, ICON_MD_TITLE, show_dungeon_maps_, show_inventory_menu_, show_naming_screen_, show_overworld_map_, and show_title_screen_.

Here is the call graph for this function:

◆ Load()

absl::Status yaze::editor::ScreenEditor::Load ( )

overridevirtual

Todo:: Load roomset gfx based on dungeon ID

int current_tile8 = 0; int tile_data_offset = 0; for (int i = 0; i < 4; ++i) { for (int j = 0; j < 32; j++) { std::vector<uint8_t> tile_data(64, 0); // 8x8 tile (64 bytes int tile_index = current_tile8 + j; int x = (j % 8) * 8; int y = (j / 8) * 8; sheets_[i].Get8x8Tile(tile_index, x, y, tile_data, tile_data_offset); tile8_individual_.emplace_back(gfx::Bitmap(8, 8, 4, tile_data)); tile8_individual_.back().SetPalette(*rom()->mutable_dungeon_palette(3)); Queue texture creation via Arena's deferred system gfx::Arena::Get().QueueTextureCommand( gfx::Arena::TextureCommandType::CREATE, &tile8_individual_.back()); } tile_data_offset = 0; }

Implements yaze::editor::Editor.

Definition at line 87 of file screen_editor.cc.

References ASSIGN_OR_RETURN, dungeon_map_labels_, dungeon_maps_, yaze::gfx::Arena::Get(), yaze::zelda3::LoadDungeonMaps(), yaze::zelda3::LoadDungeonMapTile16(), RETURN_IF_ERROR, rom(), sheets_, and tile16_blockset_.

Referenced by yaze::editor::EditorManager::LoadAssets().

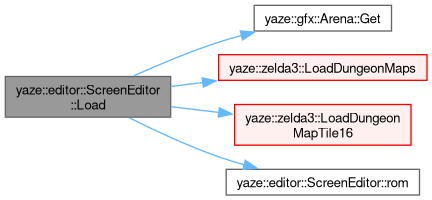

Here is the call graph for this function:

◆ Update()

absl::Status yaze::editor::ScreenEditor::Update ( )

overridevirtual

◆ Undo()

absl::Status yaze::editor::ScreenEditor::Undo ( )

inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 44 of file screen_editor.h.

◆ Redo()

absl::Status yaze::editor::ScreenEditor::Redo ( )

inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 45 of file screen_editor.h.

◆ Cut()

absl::Status yaze::editor::ScreenEditor::Cut ( )

inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 46 of file screen_editor.h.

◆ Copy()

absl::Status yaze::editor::ScreenEditor::Copy ( )

inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 47 of file screen_editor.h.

◆ Paste()

absl::Status yaze::editor::ScreenEditor::Paste ( )

inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 48 of file screen_editor.h.

◆ Find()

absl::Status yaze::editor::ScreenEditor::Find ( )

inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 49 of file screen_editor.h.

◆ Save()

absl::Status yaze::editor::ScreenEditor::Save ( )

inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 50 of file screen_editor.h.

◆ set_rom()

void yaze::editor::ScreenEditor::set_rom ( Rom * rom )

inline

Definition at line 51 of file screen_editor.h.

References rom(), and rom_.

Here is the call graph for this function:

◆ rom()

Rom * yaze::editor::ScreenEditor::rom ( ) const

inline

Definition at line 52 of file screen_editor.h.

References rom_.

Referenced by DrawDungeonMapsEditor(), DrawDungeonMapsRoomGfx(), DrawInventoryMenuEditor(), Load(), LoadBinaryGfx(), and set_rom().

◆ DrawTitleScreenEditor()

void yaze::editor::ScreenEditor::DrawTitleScreenEditor ( )

private

Definition at line 617 of file screen_editor.cc.

Referenced by Update().

◆ DrawNamingScreenEditor()

void yaze::editor::ScreenEditor::DrawNamingScreenEditor ( )

private

Definition at line 620 of file screen_editor.cc.

Referenced by Update().

◆ DrawOverworldMapEditor()

void yaze::editor::ScreenEditor::DrawOverworldMapEditor ( )

private

Definition at line 623 of file screen_editor.cc.

Referenced by Update().

◆ DrawInventoryMenuEditor()

void yaze::editor::ScreenEditor::DrawInventoryMenuEditor ( )

private

◆ DrawToolset()

void yaze::editor::ScreenEditor::DrawToolset ( )

private

Definition at line 166 of file screen_editor.cc.

References yaze::gui::Toolset::AddAction(), yaze::gui::Toolset::Begin(), yaze::gui::Toolset::End(), ICON_MD_EDIT_ATTRIBUTES, ICON_MD_INVENTORY, ICON_MD_MAP, ICON_MD_PUBLIC, ICON_MD_TITLE, show_dungeon_maps_, show_inventory_menu_, show_naming_screen_, show_overworld_map_, and show_title_screen_.

Referenced by Update().

Here is the call graph for this function:

◆ DrawDungeonMapToolset()

void yaze::editor::ScreenEditor::DrawDungeonMapToolset ( )

private

Definition at line 626 of file screen_editor.cc.

◆ DrawInventoryToolset()

void yaze::editor::ScreenEditor::DrawInventoryToolset ( )

private

Definition at line 227 of file screen_editor.cc.

References current_mode_, DRAW, ICON_MD_BUILD, ICON_MD_DRAW, ICON_MD_MORE_VERT, ICON_MD_REDO, ICON_MD_UNDO, ICON_MD_ZOOM_IN, ICON_MD_ZOOM_OUT, screen_canvas_, yaze::gui::Canvas::ZoomIn(), and yaze::gui::Canvas::ZoomOut().

Referenced by DrawInventoryMenuEditor().

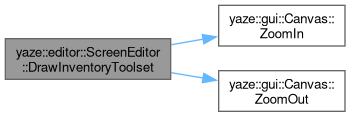

Here is the call graph for this function:

◆ LoadDungeonMapTile16()

absl::Status yaze::editor::ScreenEditor::LoadDungeonMapTile16	(	const std::vector< uint8_t > &	gfx_data,
		bool	bin_mode = `false`
	)

private

◆ SaveDungeonMapTile16()

absl::Status yaze::editor::ScreenEditor::SaveDungeonMapTile16 ( )

private

◆ DrawDungeonMapScreen()

void yaze::editor::ScreenEditor::DrawDungeonMapScreen ( int i )

private

◆ DrawDungeonMapsTabs()

void yaze::editor::ScreenEditor::DrawDungeonMapsTabs ( )

private

Definition at line 350 of file screen_editor.cc.

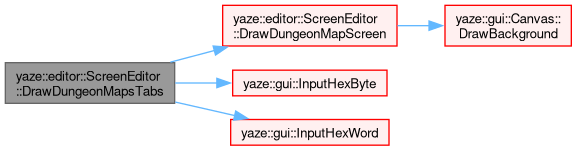

References copy_button_pressed, DrawDungeonMapScreen(), dungeon_map_labels_, dungeon_maps_, floor_number, yaze::gui::InputHexByte(), yaze::gui::InputHexWord(), paste_button_pressed, selected_dungeon, and selected_room.

Referenced by DrawDungeonMapsEditor().

Here is the call graph for this function:

◆ DrawDungeonMapsEditor()

void yaze::editor::ScreenEditor::DrawDungeonMapsEditor ( )

private

Draw dungeon maps editor with enhanced ROM hacking features.

Enhanced Features:

Multi-mode editing (DRAW, EDIT, SELECT)
Real-time tile16 preview and editing
Floor/basement management for complex dungeons
Copy/paste operations for floor layouts
Integration with ROM tile16 data

Performance Notes:

Lazy loading of dungeon graphics
Cached tile16 rendering for fast updates
Batch operations for multiple tile changes
Efficient memory management for large dungeons

Definition at line 517 of file screen_editor.cc.

References current_mode_, DRAW, yaze::gui::Canvas::DrawBackground(), yaze::gui::Canvas::DrawBitmapTable(), yaze::gui::Canvas::DrawContextMenu(), DrawDungeonMapsRoomGfx(), DrawDungeonMapsTabs(), yaze::gui::Canvas::DrawGrid(), yaze::gui::Canvas::DrawOverlay(), yaze::gui::Canvas::DrawTileSelector(), EDIT, yaze::gui::Canvas::GetTileIdFromMousePos(), ICON_MD_DRAW, ICON_MD_EDIT, ICON_MD_SAVE, LoadBinaryGfx(), PRINT_IF_ERROR, yaze::Rom::resource_label(), rom(), yaze::zelda3::SaveDungeonMapTile16(), yaze::core::ResourceLabelManager::SelectableLabelWithNameEdit(), selected_dungeon, selected_tile8_, sheets_, tile16_blockset_, and tilemap_canvas_.

Referenced by Update().

◆ DrawDungeonMapsRoomGfx()

void yaze::editor::ScreenEditor::DrawDungeonMapsRoomGfx ( )

private

Draw dungeon room graphics editor with enhanced tile16 editing.

Enhanced Features:

Interactive tile16 selector with visual feedback
Real-time tile16 composition from 4x 8x8 tiles
Tile metadata editing (mirroring, palette, etc.)
Integration with ROM graphics buffer
Undo/redo support for tile modifications

Performance Notes:

Cached tile16 rendering to avoid repeated composition
Efficient tile selector with grid-based snapping
Batch tile updates to minimize ROM writes
Lazy loading of tile graphics data

Definition at line 427 of file screen_editor.cc.

References yaze::gfx::Tilemap::atlas, yaze::gfx::Arena::CREATE, current_tile16_info, current_tile_canvas_, yaze::gui::Canvas::DrawBackground(), yaze::gui::Canvas::DrawBitmap(), yaze::gui::Canvas::DrawContextMenu(), yaze::gui::Canvas::DrawGrid(), yaze::gui::Canvas::DrawOverlay(), yaze::gui::Canvas::DrawTilePainter(), yaze::gui::Canvas::DrawTileSelector(), dungeon_maps_, floor_number, yaze::gfx::Arena::Get(), yaze::gfx::TileCache::GetTile(), yaze::gui::InputTileInfo(), yaze::gfx::ModifyTile16(), yaze::gui::Canvas::mutable_points(), yaze::gui::Canvas::points(), yaze::gfx::Arena::QueueTextureCommand(), yaze::gfx::RenderTile16(), rom(), screen_canvas_, selected_dungeon, selected_room, selected_tile16_, selected_tile8_, tile16_blockset_, tile8_individual_, yaze::gfx::Tilemap::tile_cache, yaze::gfx::Tilemap::tile_info, tilesheet_canvas_, and yaze::gfx::UpdateTile16().

Referenced by DrawDungeonMapsEditor().

◆ LoadBinaryGfx()

void yaze::editor::ScreenEditor::LoadBinaryGfx ( )

private

Definition at line 585 of file screen_editor.cc.

References binary_gfx_loaded_, yaze::gfx::Arena::CREATE, yaze::gfx::Arena::Get(), yaze::zelda3::LoadDungeonMapTile16(), yaze::Rom::mutable_dungeon_palette(), yaze::gfx::Arena::QueueTextureCommand(), rom(), sheets_, yaze::util::FileDialogWrapper::ShowOpenFileDialog(), yaze::gfx::SnesTo8bppSheet(), status_, and tile16_blockset_.

Referenced by DrawDungeonMapsEditor().

Member Data Documentation

◆ dungeon_maps_

std::vector<zelda3::DungeonMap> yaze::editor::ScreenEditor::dungeon_maps_

Definition at line 54 of file screen_editor.h.

Referenced by DrawDungeonMapScreen(), DrawDungeonMapsRoomGfx(), DrawDungeonMapsTabs(), Load(), yaze::editor::EditorManager::SaveRom(), and yaze::editor::EditorManager::SaveRomAs().

◆ current_mode_

EditingMode yaze::editor::ScreenEditor::current_mode_ = EditingMode::DRAW

private

Definition at line 79 of file screen_editor.h.

Referenced by DrawDungeonMapsEditor(), and DrawInventoryToolset().

◆ show_dungeon_maps_

bool yaze::editor::ScreenEditor::show_dungeon_maps_ = false

private

Definition at line 83 of file screen_editor.h.

Referenced by DrawToolset(), Initialize(), and Update().

◆ show_inventory_menu_

bool yaze::editor::ScreenEditor::show_inventory_menu_ = false

private

Definition at line 84 of file screen_editor.h.

Referenced by DrawToolset(), Initialize(), and Update().

◆ show_overworld_map_

bool yaze::editor::ScreenEditor::show_overworld_map_ = false

private

Definition at line 85 of file screen_editor.h.

Referenced by DrawToolset(), Initialize(), and Update().

◆ show_title_screen_

bool yaze::editor::ScreenEditor::show_title_screen_ = false

private

Definition at line 86 of file screen_editor.h.

Referenced by DrawToolset(), Initialize(), and Update().

◆ show_naming_screen_

bool yaze::editor::ScreenEditor::show_naming_screen_ = false

private

Definition at line 87 of file screen_editor.h.

Referenced by DrawToolset(), Initialize(), and Update().

◆ binary_gfx_loaded_

bool yaze::editor::ScreenEditor::binary_gfx_loaded_ = false

private

Definition at line 89 of file screen_editor.h.

Referenced by LoadBinaryGfx().

◆ selected_room

uint8_t yaze::editor::ScreenEditor::selected_room = 0

private

Definition at line 91 of file screen_editor.h.

Referenced by DrawDungeonMapScreen(), DrawDungeonMapsRoomGfx(), and DrawDungeonMapsTabs().

◆ selected_tile16_

int yaze::editor::ScreenEditor::selected_tile16_ = 0

private

Definition at line 93 of file screen_editor.h.

Referenced by DrawDungeonMapsRoomGfx().

◆ selected_tile8_

int yaze::editor::ScreenEditor::selected_tile8_ = 0

private

Definition at line 94 of file screen_editor.h.

Referenced by DrawDungeonMapsEditor(), and DrawDungeonMapsRoomGfx().

◆ selected_dungeon

int yaze::editor::ScreenEditor::selected_dungeon = 0

private

Definition at line 95 of file screen_editor.h.

Referenced by DrawDungeonMapScreen(), DrawDungeonMapsEditor(), DrawDungeonMapsRoomGfx(), and DrawDungeonMapsTabs().

◆ floor_number

int yaze::editor::ScreenEditor::floor_number = 1

private

Definition at line 96 of file screen_editor.h.

Referenced by DrawDungeonMapScreen(), DrawDungeonMapsRoomGfx(), and DrawDungeonMapsTabs().

◆ copy_button_pressed

bool yaze::editor::ScreenEditor::copy_button_pressed = false

private

Definition at line 98 of file screen_editor.h.

Referenced by DrawDungeonMapsTabs().

◆ paste_button_pressed

bool yaze::editor::ScreenEditor::paste_button_pressed = false

private

Definition at line 99 of file screen_editor.h.

Referenced by DrawDungeonMapsTabs().

◆ tile8_individual_

std::vector<gfx::Bitmap> yaze::editor::ScreenEditor::tile8_individual_

private

Definition at line 101 of file screen_editor.h.

Referenced by DrawDungeonMapsRoomGfx().

◆ dungeon_map_labels_

zelda3::DungeonMapLabels yaze::editor::ScreenEditor::dungeon_map_labels_

private

Definition at line 102 of file screen_editor.h.

Referenced by DrawDungeonMapScreen(), DrawDungeonMapsTabs(), and Load().

◆ palette_

gfx::SnesPalette yaze::editor::ScreenEditor::palette_

private

Definition at line 104 of file screen_editor.h.

Referenced by DrawInventoryMenuEditor().

◆ sheets_

gfx::BitmapTable yaze::editor::ScreenEditor::sheets_

private

Definition at line 105 of file screen_editor.h.

Referenced by DrawDungeonMapsEditor(), Load(), and LoadBinaryGfx().

◆ tile16_blockset_

gfx::Tilemap yaze::editor::ScreenEditor::tile16_blockset_

private

Definition at line 106 of file screen_editor.h.

Referenced by DrawDungeonMapScreen(), DrawDungeonMapsEditor(), DrawDungeonMapsRoomGfx(), Load(), and LoadBinaryGfx().

◆ current_tile16_info

std::array<gfx::TileInfo, 4> yaze::editor::ScreenEditor::current_tile16_info

private

Definition at line 107 of file screen_editor.h.

Referenced by DrawDungeonMapsRoomGfx().

◆ current_tile_canvas_

gui::Canvas yaze::editor::ScreenEditor::current_tile_canvas_

private

Initial value:

{"##CurrentTileCanvas", ImVec2(32, 32),

gui::CanvasGridSize::k16x16, 2.0f}

yaze::gui::CanvasGridSize::k16x16

@ k16x16

Definition at line 109 of file screen_editor.h.

Referenced by DrawDungeonMapsRoomGfx().

◆ screen_canvas_

gui::Canvas yaze::editor::ScreenEditor::screen_canvas_

private

Definition at line 111 of file screen_editor.h.

Referenced by DrawDungeonMapScreen(), DrawDungeonMapsRoomGfx(), DrawInventoryMenuEditor(), DrawInventoryToolset(), and ScreenEditor().

◆ tilesheet_canvas_

gui::Canvas yaze::editor::ScreenEditor::tilesheet_canvas_

private

Definition at line 112 of file screen_editor.h.

Referenced by DrawDungeonMapsRoomGfx(), and DrawInventoryMenuEditor().

◆ tilemap_canvas_

gui::Canvas yaze::editor::ScreenEditor::tilemap_canvas_

private

Initial value:

{"##TilemapCanvas", ImVec2(128 + 2, (192) + 4),

gui::CanvasGridSize::k8x8, 2.f}

yaze::gui::CanvasGridSize::k8x8

@ k8x8

Definition at line 113 of file screen_editor.h.

Referenced by DrawDungeonMapsEditor().

◆ inventory_

zelda3::Inventory yaze::editor::ScreenEditor::inventory_

private

Definition at line 116 of file screen_editor.h.

Referenced by DrawInventoryMenuEditor().

◆ rom_

Rom* yaze::editor::ScreenEditor::rom_

private

Definition at line 117 of file screen_editor.h.

Referenced by rom(), and set_rom().

◆ status_

absl::Status yaze::editor::ScreenEditor::status_

private

Definition at line 118 of file screen_editor.h.

Referenced by DrawInventoryMenuEditor(), LoadBinaryGfx(), and Update().

The documentation for this class was generated from the following files:

src/app/editor/graphics/screen_editor.h
src/app/editor/graphics/screen_editor.cc

	yaze 0.3.2 Link to the Past ROM Editor

Public Member Functions

Public Attributes

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ EditingMode

Constructor & Destructor Documentation

◆ ScreenEditor()

Member Function Documentation

◆ Initialize()

◆ Load()

◆ Update()

◆ Undo()

◆ Redo()

◆ Cut()

◆ Copy()

◆ Paste()

◆ Find()

◆ Save()

◆ set_rom()

◆ rom()

◆ DrawTitleScreenEditor()

◆ DrawNamingScreenEditor()

◆ DrawOverworldMapEditor()

◆ DrawInventoryMenuEditor()

◆ DrawToolset()

◆ DrawDungeonMapToolset()

◆ DrawInventoryToolset()

◆ LoadDungeonMapTile16()

◆ SaveDungeonMapTile16()

◆ DrawDungeonMapScreen()

◆ DrawDungeonMapsTabs()

◆ DrawDungeonMapsEditor()

◆ DrawDungeonMapsRoomGfx()

◆ LoadBinaryGfx()

Member Data Documentation

◆ dungeon_maps_

◆ current_mode_

◆ show_dungeon_maps_

◆ show_inventory_menu_

◆ show_overworld_map_

◆ show_title_screen_

◆ show_naming_screen_

◆ binary_gfx_loaded_

◆ selected_room

◆ selected_tile16_

◆ selected_tile8_

◆ selected_dungeon

◆ floor_number

◆ copy_button_pressed

◆ paste_button_pressed

◆ tile8_individual_

◆ dungeon_map_labels_

◆ palette_

◆ sheets_

◆ tile16_blockset_

◆ current_tile16_info

◆ current_tile_canvas_

◆ screen_canvas_

◆ tilesheet_canvas_

◆ tilemap_canvas_

◆ inventory_

◆ rom_

◆ status_
