TitleScreen manages the title screen graphics and tilemap data. More...

#include <title_screen.h>

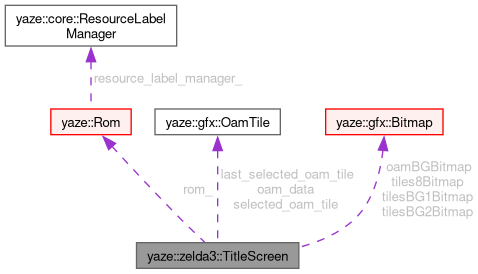

Collaboration diagram for yaze::zelda3::TitleScreen:

[legend]

Public Member Functions
absl::Status	Create (Rom *rom)
	Initialize and load title screen data from ROM.

auto &	bg1_buffer ()

auto &	bg2_buffer ()

auto &	oam_buffer ()

auto &	mutable_bg1_buffer ()

auto &	mutable_bg2_buffer ()

auto &	bg1_bitmap ()

auto &	bg2_bitmap ()

auto &	oam_bitmap ()

auto &	tiles8_bitmap ()

auto &	composite_bitmap ()

auto &	blockset ()

auto &	palette ()

absl::Status	Save (Rom *rom)

absl::Status	RenderBG1Layer ()
	Render BG1 tilemap into bitmap pixels Converts tile IDs from tiles_bg1_buffer_ into pixel data.

absl::Status	RenderBG2Layer ()
	Render BG2 tilemap into bitmap pixels Converts tile IDs from tiles_bg2_buffer_ into pixel data.

absl::Status	RenderCompositeLayer (bool show_bg1, bool show_bg2)
	Render composite layer with BG1 on top of BG2 with transparency.

Private Member Functions
absl::Status	BuildTileset (Rom *rom)
	Build the tile16 blockset from ROM graphics.

absl::Status	LoadTitleScreen (Rom *rom)
	Load title screen tilemap data from ROM.

Private Attributes
int	pal_selected_ = 2

std::array< uint16_t, 0x1000 >	tiles_bg1_buffer_

std::array< uint16_t, 0x1000 >	tiles_bg2_buffer_

gfx::OamTile	oam_data_ [10]

gfx::Bitmap	tiles_bg1_bitmap_

gfx::Bitmap	tiles_bg2_bitmap_

gfx::Bitmap	oam_bg_bitmap_

gfx::Bitmap	tiles8_bitmap_

gfx::Bitmap	title_composite_bitmap_

gfx::Tilemap	tile16_blockset_

gfx::SnesPalette	palette_

Detailed Description

TitleScreen manages the title screen graphics and tilemap data.

The title screen consists of three layers:

BG1: Main logo and graphics
BG2: Background elements
OAM: Sprite layer (sword, etc.)

Each layer is stored as a 32x32 tilemap (0x400 tiles = 0x1000 bytes as words)

Definition at line 24 of file title_screen.h.

Member Function Documentation

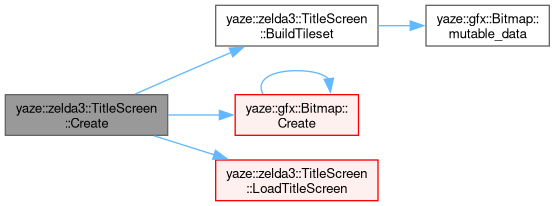

◆ Create()

absl::Status yaze::zelda3::TitleScreen::Create ( Rom * rom )

Initialize and load title screen data from ROM.

Parameters

rom	ROM instance to read data from

Definition at line 13 of file title_screen.cc.

References yaze::gfx::SnesPalette::AddColor(), BuildTileset(), yaze::gfx::Bitmap::Create(), yaze::Rom::is_loaded(), LoadTitleScreen(), LOG_INFO, yaze::gfx::Bitmap::metadata(), oam_bg_bitmap_, palette_, yaze::gfx::Bitmap::BitmapMetadata::palette_colors, yaze::gfx::Bitmap::BitmapMetadata::palette_format, yaze::Rom::palette_group(), RETURN_IF_ERROR, yaze::gfx::SnesPalette::size(), yaze::gfx::Bitmap::BitmapMetadata::source_bpp, yaze::gfx::Bitmap::BitmapMetadata::source_type, tiles8_bitmap_, tiles_bg1_bitmap_, tiles_bg1_buffer_, tiles_bg2_bitmap_, tiles_bg2_buffer_, and title_composite_bitmap_.

Referenced by yaze::editor::ScreenEditor::DrawTitleScreenEditor().

◆ bg1_buffer()

auto & yaze::zelda3::TitleScreen::bg1_buffer ( )

inline

Definition at line 33 of file title_screen.h.

References tiles_bg1_buffer_.

◆ bg2_buffer()

auto & yaze::zelda3::TitleScreen::bg2_buffer ( )

inline

Definition at line 34 of file title_screen.h.

References tiles_bg2_buffer_.

◆ oam_buffer()

auto & yaze::zelda3::TitleScreen::oam_buffer ( )

inline

Definition at line 35 of file title_screen.h.

References oam_data_.

◆ mutable_bg1_buffer()

auto & yaze::zelda3::TitleScreen::mutable_bg1_buffer ( )

inline

Definition at line 38 of file title_screen.h.

References tiles_bg1_buffer_.

Referenced by yaze::editor::ScreenEditor::DrawTitleScreenBG1Canvas(), and yaze::editor::ScreenEditor::DrawTitleScreenCompositeCanvas().

◆ mutable_bg2_buffer()

auto & yaze::zelda3::TitleScreen::mutable_bg2_buffer ( )

inline

Definition at line 39 of file title_screen.h.

References tiles_bg2_buffer_.

Referenced by yaze::editor::ScreenEditor::DrawTitleScreenBG2Canvas().

◆ bg1_bitmap()

auto & yaze::zelda3::TitleScreen::bg1_bitmap ( )

inline

Definition at line 42 of file title_screen.h.

References tiles_bg1_bitmap_.

Referenced by yaze::editor::ScreenEditor::DrawTitleScreenBG1Canvas(), and yaze::editor::ScreenEditor::DrawTitleScreenCompositeCanvas().

◆ bg2_bitmap()

auto & yaze::zelda3::TitleScreen::bg2_bitmap ( )

inline

Definition at line 43 of file title_screen.h.

References tiles_bg2_bitmap_.

Referenced by yaze::editor::ScreenEditor::DrawTitleScreenBG2Canvas().

◆ oam_bitmap()

auto & yaze::zelda3::TitleScreen::oam_bitmap ( )

inline

Definition at line 44 of file title_screen.h.

References oam_bg_bitmap_.

◆ tiles8_bitmap()

auto & yaze::zelda3::TitleScreen::tiles8_bitmap ( )

inline

Definition at line 45 of file title_screen.h.

References tiles8_bitmap_.

Referenced by yaze::editor::ScreenEditor::DrawTitleScreenBlocksetSelector().

◆ composite_bitmap()

auto & yaze::zelda3::TitleScreen::composite_bitmap ( )

inline

Definition at line 46 of file title_screen.h.

References title_composite_bitmap_.

Referenced by yaze::editor::ScreenEditor::DrawTitleScreenCompositeCanvas(), and yaze::editor::ScreenEditor::DrawTitleScreenEditor().

◆ blockset()

auto & yaze::zelda3::TitleScreen::blockset ( )

inline

Definition at line 47 of file title_screen.h.

References tile16_blockset_.

◆ palette()

auto & yaze::zelda3::TitleScreen::palette ( )

inline

Definition at line 50 of file title_screen.h.

References palette_.

Referenced by RenderBG1Layer(), and RenderBG2Layer().

◆ Save()

absl::Status yaze::zelda3::TitleScreen::Save ( Rom * rom )

Definition at line 590 of file title_screen.cc.

References ASSIGN_OR_RETURN, yaze::Rom::is_loaded(), yaze::Rom::ReadByte(), RETURN_IF_ERROR, yaze::SnesToPc(), tiles_bg1_buffer_, tiles_bg2_buffer_, and yaze::Rom::WriteByte().

Referenced by yaze::editor::ScreenEditor::DrawTitleScreenEditor().

Here is the call graph for this function:

◆ RenderBG1Layer()

absl::Status yaze::zelda3::TitleScreen::RenderBG1Layer ( )

Render BG1 tilemap into bitmap pixels Converts tile IDs from tiles_bg1_buffer_ into pixel data.

Definition at line 456 of file title_screen.cc.

References yaze::gfx::Arena::Get(), LOG_WARN, yaze::gfx::Bitmap::mutable_data(), palette(), yaze::gfx::Arena::QueueTextureCommand(), tiles8_bitmap_, tiles_bg1_bitmap_, tiles_bg1_buffer_, yaze::gfx::Arena::UPDATE, yaze::gfx::Bitmap::UpdateSurfacePixels(), and yaze::gfx::Bitmap::vector().

Referenced by yaze::editor::ScreenEditor::DrawTitleScreenBG1Canvas(), yaze::editor::ScreenEditor::DrawTitleScreenCompositeCanvas(), and LoadTitleScreen().

◆ RenderBG2Layer()

absl::Status yaze::zelda3::TitleScreen::RenderBG2Layer ( )

Render BG2 tilemap into bitmap pixels Converts tile IDs from tiles_bg2_buffer_ into pixel data.

Definition at line 526 of file title_screen.cc.

References yaze::gfx::Arena::Get(), yaze::gfx::Bitmap::mutable_data(), palette(), yaze::gfx::Arena::QueueTextureCommand(), tiles8_bitmap_, tiles_bg2_bitmap_, tiles_bg2_buffer_, yaze::gfx::Arena::UPDATE, yaze::gfx::Bitmap::UpdateSurfacePixels(), and yaze::gfx::Bitmap::vector().

Referenced by yaze::editor::ScreenEditor::DrawTitleScreenBG2Canvas(), and LoadTitleScreen().

◆ RenderCompositeLayer()

absl::Status yaze::zelda3::TitleScreen::RenderCompositeLayer	(	bool	show_bg1,
		bool	show_bg2
	)

Render composite layer with BG1 on top of BG2 with transparency.

Parameters

show_bg1	Whether to include BG1 layer
show_bg2	Whether to include BG2 layer

Definition at line 680 of file title_screen.cc.

References yaze::gfx::Arena::Get(), yaze::gfx::Bitmap::mutable_data(), yaze::gfx::Arena::QueueTextureCommand(), tiles_bg1_bitmap_, tiles_bg2_bitmap_, title_composite_bitmap_, yaze::gfx::Arena::UPDATE, yaze::gfx::Bitmap::UpdateSurfacePixels(), and yaze::gfx::Bitmap::vector().

Referenced by yaze::editor::ScreenEditor::DrawTitleScreenCompositeCanvas(), yaze::editor::ScreenEditor::DrawTitleScreenEditor(), and LoadTitleScreen().

◆ BuildTileset()

absl::Status yaze::zelda3::TitleScreen::BuildTileset ( Rom * rom )

private

Build the tile16 blockset from ROM graphics.

Parameters

rom	ROM instance to read graphics from

Todo:: Build tile16 blockset from tile8 data

Definition at line 170 of file title_screen.cc.

References ASSIGN_OR_RETURN, yaze::gfx::Arena::CREATE, yaze::gfx::Arena::Get(), yaze::Rom::graphics_buffer(), yaze::zelda3::kGfxGroupsPointer, LOG_ERROR, LOG_INFO, yaze::gfx::Bitmap::mutable_data(), palette_, yaze::gfx::Arena::QueueTextureCommand(), yaze::Rom::ReadByte(), yaze::Rom::ReadWord(), yaze::gfx::Bitmap::SetPalette(), yaze::gfx::SnesPalette::size(), yaze::SnesToPc(), and tiles8_bitmap_.

Referenced by Create().

◆ LoadTitleScreen()

absl::Status yaze::zelda3::TitleScreen::LoadTitleScreen ( Rom * rom )

private

Load title screen tilemap data from ROM.

Parameters

rom	ROM instance to read tilemap from

Definition at line 284 of file title_screen.cc.

References ASSIGN_OR_RETURN, yaze::gfx::Arena::CREATE, yaze::gfx::Arena::Get(), LOG_INFO, oam_bg_bitmap_, pal_selected_, palette_, yaze::gfx::Arena::QueueTextureCommand(), yaze::Rom::ReadByte(), yaze::Rom::ReadWord(), RenderBG1Layer(), RenderBG2Layer(), RenderCompositeLayer(), RETURN_IF_ERROR, yaze::gfx::Bitmap::set_active(), yaze::gfx::Bitmap::SetPalette(), yaze::SnesToPc(), tiles_bg1_bitmap_, tiles_bg1_buffer_, tiles_bg2_bitmap_, tiles_bg2_buffer_, and title_composite_bitmap_.

Referenced by Create().

Member Data Documentation

◆ pal_selected_

int yaze::zelda3::TitleScreen::pal_selected_ = 2

private

Definition at line 87 of file title_screen.h.

Referenced by LoadTitleScreen().

◆ tiles_bg1_buffer_

std::array<uint16_t, 0x1000> yaze::zelda3::TitleScreen::tiles_bg1_buffer_

private

Definition at line 89 of file title_screen.h.

Referenced by bg1_buffer(), Create(), LoadTitleScreen(), mutable_bg1_buffer(), RenderBG1Layer(), and Save().

◆ tiles_bg2_buffer_

std::array<uint16_t, 0x1000> yaze::zelda3::TitleScreen::tiles_bg2_buffer_

private

Definition at line 90 of file title_screen.h.

Referenced by bg2_buffer(), Create(), LoadTitleScreen(), mutable_bg2_buffer(), RenderBG2Layer(), and Save().

◆ oam_data_

gfx::OamTile yaze::zelda3::TitleScreen::oam_data_[10]

private

Definition at line 92 of file title_screen.h.

Referenced by oam_buffer().

◆ tiles_bg1_bitmap_

gfx::Bitmap yaze::zelda3::TitleScreen::tiles_bg1_bitmap_

private

Definition at line 94 of file title_screen.h.

Referenced by bg1_bitmap(), Create(), LoadTitleScreen(), RenderBG1Layer(), and RenderCompositeLayer().

◆ tiles_bg2_bitmap_

gfx::Bitmap yaze::zelda3::TitleScreen::tiles_bg2_bitmap_

private

Definition at line 95 of file title_screen.h.

Referenced by bg2_bitmap(), Create(), LoadTitleScreen(), RenderBG2Layer(), and RenderCompositeLayer().

◆ oam_bg_bitmap_

gfx::Bitmap yaze::zelda3::TitleScreen::oam_bg_bitmap_

private

Definition at line 96 of file title_screen.h.

Referenced by Create(), LoadTitleScreen(), and oam_bitmap().

◆ tiles8_bitmap_

gfx::Bitmap yaze::zelda3::TitleScreen::tiles8_bitmap_

private

Definition at line 97 of file title_screen.h.

Referenced by BuildTileset(), Create(), RenderBG1Layer(), RenderBG2Layer(), and tiles8_bitmap().

◆ title_composite_bitmap_

gfx::Bitmap yaze::zelda3::TitleScreen::title_composite_bitmap_

private

Definition at line 98 of file title_screen.h.

Referenced by composite_bitmap(), Create(), LoadTitleScreen(), and RenderCompositeLayer().

◆ tile16_blockset_

gfx::Tilemap yaze::zelda3::TitleScreen::tile16_blockset_

private

Definition at line 100 of file title_screen.h.

Referenced by blockset().

◆ palette_

gfx::SnesPalette yaze::zelda3::TitleScreen::palette_

private

Definition at line 101 of file title_screen.h.

Referenced by BuildTileset(), Create(), LoadTitleScreen(), and palette().

The documentation for this class was generated from the following files:

src/zelda3/screen/title_screen.h
src/zelda3/screen/title_screen.cc
