yaze::gfx::Arena Class Reference

Resource management arena for efficient graphics memory handling. More...

#include <arena.h>

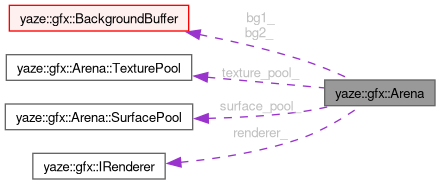

Collaboration diagram for yaze::gfx::Arena:

Classes
struct	SurfacePool
struct	TextureCommand
struct	TexturePool

Public Types
enum class	TextureCommandType { CREATE , UPDATE , DESTROY }

Public Member Functions
void	Initialize (IRenderer *renderer)
	~Arena ()
void	QueueTextureCommand (TextureCommandType type, Bitmap *bitmap)
void	ProcessTextureQueue (IRenderer *renderer)
SDL_Surface *	AllocateSurface (int width, int height, int depth, int format)
void	FreeSurface (SDL_Surface *surface)
void	Shutdown ()
size_t	GetTextureCount () const
size_t	GetSurfaceCount () const
size_t	GetPooledTextureCount () const
size_t	GetPooledSurfaceCount () const
std::array< gfx::Bitmap, 223 > &	gfx_sheets ()
	Get reference to all graphics sheets.
auto	gfx_sheet (int i)
	Get a specific graphics sheet by index.
auto	mutable_gfx_sheet (int i)
	Get mutable reference to a specific graphics sheet.
auto	mutable_gfx_sheets ()
	Get mutable reference to all graphics sheets.
void	NotifySheetModified (int sheet_index)
	Notify Arena that a graphics sheet has been modified.
auto &	bg1 ()
	Get reference to background layer 1 buffer.
auto &	bg2 ()
	Get reference to background layer 2 buffer.

Static Public Member Functions
static Arena &	Get ()

Private Member Functions
	Arena ()

Private Attributes
BackgroundBuffer	bg1_
BackgroundBuffer	bg2_
std::array< uint16_t, kTotalTiles >	layer1_buffer_
std::array< uint16_t, kTotalTiles >	layer2_buffer_
std::array< gfx::Bitmap, 223 >	gfx_sheets_
std::unordered_map< TextureHandle, std::unique_ptr< SDL_Texture, util::SDL_Texture_Deleter > >	textures_
std::unordered_map< SDL_Surface *, std::unique_ptr< SDL_Surface, util::SDL_Surface_Deleter > >	surfaces_
struct yaze::gfx::Arena::TexturePool	texture_pool_
struct yaze::gfx::Arena::SurfacePool	surface_pool_
std::vector< TextureCommand >	texture_command_queue_
IRenderer *	renderer_ = nullptr

Static Private Attributes
static constexpr int	kTilesPerRow = 64
static constexpr int	kTilesPerColumn = 64
static constexpr int	kTotalTiles = kTilesPerRow * kTilesPerColumn

Detailed Description

Resource management arena for efficient graphics memory handling.

The Arena class provides centralized management of SDL textures and surfaces for the YAZE ROM hacking editor. It implements several key optimizations:

Key Features:

• Singleton pattern for global access across all graphics components
• Automatic resource cleanup with RAII-style management
• Memory pooling to reduce allocation overhead
• Support for 223 graphics sheets (YAZE's full graphics space)
• Background buffer management for SNES layer rendering

Performance Optimizations:

• Unique_ptr with custom deleters for automatic SDL resource cleanup
• Hash map storage for O(1) texture/surface lookup
• Batch resource management to minimize SDL calls
• Pre-allocated graphics sheet array for fast access

ROM Hacking Specific:

• Fixed-size graphics sheet array (223 sheets) matching YAZE's graphics space
• Background buffer support for SNES layer 1 and layer 2 rendering
• Tile buffer management for 64x64 tile grids
• Integration with SNES graphics format requirements

Definition at line 44 of file arena.h.

Member Enumeration Documentation

TextureCommandType

enum class yaze::gfx::Arena::TextureCommandType

strong

Enumerator
CREATE
UPDATE
DESTROY

Definition at line 52 of file arena.h.

Constructor & Destructor Documentation

~Arena()

yaze::gfx::Arena::~Arena

(

)

Definition at line 25 of file arena.cc.

References Shutdown().

Here is the call graph for this function:

Arena()

yaze::gfx::Arena::Arena ( )

private

Definition at line 20 of file arena.cc.

References layer1_buffer_, and layer2_buffer_.

Member Function Documentation

Get()

Arena & yaze::gfx::Arena::Get ( )

static

Definition at line 15 of file arena.cc.

Referenced by yaze::gui::CanvasUtils::ApplyPaletteGroup(), yaze::gui::PaletteWidget::ApplyROMPalette(), yaze::gfx::Bitmap::Bitmap(), yaze::editor::OverworldEditor::ClearScratchSpace(), yaze::editor::Tile16Editor::ClearTile16(), yaze::test::TestManager::CollectResourceStats(), yaze::editor::Tile16Editor::CommitChangesToBlockset(), yaze::editor::Tile16Editor::CommitChangesToOverworld(), yaze::editor::Tile16Editor::CopyTile16ToClipboard(), yaze::gfx::Bitmap::Create(), yaze::gfx::Bitmap::CreateTexture(), yaze::gfx::CreateTilemap(), yaze::editor::GraphicsEditor::DecompressImportData(), yaze::editor::GraphicsEditor::DecompressSuperDonkey(), yaze::core::Controller::DoRender(), yaze::editor::GfxGroupEditor::DrawBlocksetViewer(), yaze::editor::GraphicsEditor::DrawCgxImport(), yaze::editor::SpriteEditor::DrawCurrentSheets(), yaze::editor::DungeonEditorV2::DrawDebugControlsCard(), yaze::editor::DungeonCanvasViewer::DrawDungeonCanvas(), yaze::editor::ScreenEditor::DrawDungeonMapScreen(), yaze::editor::ScreenEditor::DrawDungeonMapsRoomGfx(), yaze::editor::GraphicsEditor::DrawGfxEditToolset(), yaze::editor::MessageEditor::DrawMessagePreview(), yaze::editor::DungeonCanvasViewer::DrawRoomBackgroundLayers(), yaze::editor::DungeonObjectSelector::DrawRoomGraphics(), yaze::editor::DungeonEditorV2::DrawRoomGraphicsCard(), yaze::editor::GfxGroupEditor::DrawRoomsetViewer(), yaze::editor::OverworldEditor::DrawScratchSpace(), yaze::editor::GraphicsEditor::DrawScrImport(), yaze::editor::GfxGroupEditor::DrawSpritesetViewer(), yaze::editor::OverworldEditor::DrawTile8Selector(), yaze::editor::Tile16Editor::DrawToCurrentTile16(), yaze::editor::OverworldEditor::EnsureMapTexture(), yaze::editor::Tile16Editor::FillTile16WithTile8(), yaze::editor::Tile16Editor::FlipTile16Horizontal(), yaze::editor::Tile16Editor::FlipTile16Vertical(), yaze::cli::HandleGfxExportLegacy(), yaze::cli::HandleGfxImportLegacy(), yaze::editor::MessageEditor::Initialize(), yaze::editor::GraphicsEditor::Load(), yaze::editor::ScreenEditor::Load(), yaze::editor::EditorManager::LoadAssets(), yaze::editor::ScreenEditor::LoadBinaryGfx(), yaze::editor::OverworldEditor::LoadGraphics(), yaze::editor::Tile16Editor::LoadTile16FromScratchSpace(), yaze::editor::Tile16Editor::LoadTile8(), yaze::core::Controller::OnEntry(), yaze::gfx::Bitmap::operator=(), yaze::editor::Tile16Editor::PasteTile16FromClipboard(), yaze::editor::Tile16Editor::PreviewPaletteChange(), yaze::editor::DungeonEditorV2::ProcessDeferredTextures(), yaze::editor::OverworldEditor::ProcessDeferredTextures(), yaze::editor::Tile16Editor::Redo(), yaze::gfx::Bitmap::Reformat(), yaze::editor::Tile16Editor::RefreshAllPalettes(), yaze::editor::OverworldEditor::RefreshChildMapOnDemand(), yaze::editor::OverworldEditor::RefreshMultiAreaMapsSafely(), yaze::editor::OverworldEditor::RefreshTile16Blockset(), yaze::editor::Tile16Editor::RefreshTile16Blockset(), yaze::editor::Tile16Editor::RegenerateTile16BitmapFromROM(), yaze::gui::canvas::CanvasContextMenu::RenderBitmapOperationsMenu(), yaze::zelda3::Room::RenderRoomGraphics(), yaze::gfx::RenderTilesBatch(), yaze::gfx::Bitmap::Resize(), yaze::editor::Tile16Editor::RotateTile16(), yaze::test::ArenaTestSuite::RunArenaAllocationTest(), yaze::test::ArenaTestSuite::RunArenaCleanupTest(), yaze::test::IntegratedTestSuite::RunArenaIntegrityTest(), yaze::test::IntegratedTestSuite::RunArenaResourceManagementTest(), yaze::test::ArenaTestSuite::RunArenaResourceTrackingTest(), yaze::test::IntegratedTestSuite::RunGraphicsValidationTest(), yaze::test::PerformanceTestSuite::RunMemoryUsageTest(), yaze::test::PerformanceTestSuite::RunResourceLeakTest(), yaze::editor::OverworldEditor::SaveCurrentSelectionToScratch(), yaze::editor::EditorManager::SaveRom(), yaze::editor::EditorManager::SaveRomAs(), yaze::editor::Tile16Editor::SaveTile16ToScratchSpace(), yaze::editor::Tile16Editor::SetCurrentTile(), yaze::gfx::GraphicsOptimizationBenchmarks::SetUp(), yaze::editor::test::Tile16EditorIntegrationTest::SetUp(), yaze::core::ShutdownWindow(), yaze::gfx::TEST_F(), yaze::gfx::TEST_F(), yaze::editor::Tile16Editor::Undo(), yaze::editor::GraphicsEditor::Update(), yaze::editor::Tile16Editor::UpdateBlocksetBitmap(), yaze::editor::GraphicsEditor::UpdateGfxSheetList(), yaze::editor::GraphicsEditor::UpdateGfxTabView(), yaze::editor::Tile16Editor::UpdateOverworldTilemap(), yaze::editor::GraphicsEditor::UpdatePaletteColumn(), yaze::editor::OverworldEditor::UpdateScratchBitmapTile(), yaze::gfx::Bitmap::UpdateTexture(), yaze::gfx::UpdateTile16(), yaze::editor::Tile16Editor::UpdateTile16Edit(), yaze::editor::Tile16Editor::UpdateTile8Palette(), and yaze::gfx::UpdateTilemap().

Initialize()

void yaze::gfx::Arena::Initialize

(

IRenderer *

renderer

)

Definition at line 13 of file arena.cc.

References renderer_.

Referenced by yaze::core::Controller::OnEntry().

QueueTextureCommand()

void yaze::gfx::Arena::QueueTextureCommand	(	TextureCommandType	type,
		Bitmap *	bitmap
	)

Definition at line 32 of file arena.cc.

References texture_command_queue_.

Referenced by yaze::gui::CanvasUtils::ApplyPaletteGroup(), yaze::gui::PaletteWidget::ApplyROMPalette(), yaze::editor::OverworldEditor::ClearScratchSpace(), yaze::editor::Tile16Editor::ClearTile16(), yaze::editor::Tile16Editor::CommitChangesToBlockset(), yaze::editor::Tile16Editor::CommitChangesToOverworld(), yaze::editor::Tile16Editor::CopyTile16ToClipboard(), yaze::gfx::Bitmap::CreateTexture(), yaze::gfx::CreateTilemap(), yaze::editor::GraphicsEditor::DecompressImportData(), yaze::editor::GraphicsEditor::DecompressSuperDonkey(), yaze::editor::GraphicsEditor::DrawCgxImport(), yaze::editor::ScreenEditor::DrawDungeonMapScreen(), yaze::editor::ScreenEditor::DrawDungeonMapsRoomGfx(), yaze::editor::MessageEditor::DrawMessagePreview(), yaze::editor::DungeonCanvasViewer::DrawRoomBackgroundLayers(), yaze::editor::DungeonEditorV2::DrawRoomGraphicsCard(), yaze::editor::OverworldEditor::DrawScratchSpace(), yaze::editor::GraphicsEditor::DrawScrImport(), yaze::editor::Tile16Editor::DrawToCurrentTile16(), yaze::editor::OverworldEditor::EnsureMapTexture(), yaze::editor::Tile16Editor::FillTile16WithTile8(), yaze::editor::Tile16Editor::FlipTile16Horizontal(), yaze::editor::Tile16Editor::FlipTile16Vertical(), yaze::editor::MessageEditor::Initialize(), yaze::editor::GraphicsEditor::Load(), yaze::editor::ScreenEditor::LoadBinaryGfx(), yaze::editor::OverworldEditor::LoadGraphics(), yaze::editor::Tile16Editor::LoadTile16FromScratchSpace(), yaze::editor::Tile16Editor::LoadTile8(), NotifySheetModified(), yaze::editor::Tile16Editor::PasteTile16FromClipboard(), yaze::editor::Tile16Editor::PreviewPaletteChange(), yaze::editor::Tile16Editor::Redo(), yaze::editor::Tile16Editor::RefreshAllPalettes(), yaze::editor::OverworldEditor::RefreshChildMapOnDemand(), yaze::editor::OverworldEditor::RefreshMultiAreaMapsSafely(), yaze::editor::OverworldEditor::RefreshTile16Blockset(), yaze::editor::Tile16Editor::RefreshTile16Blockset(), yaze::editor::Tile16Editor::RegenerateTile16BitmapFromROM(), yaze::gui::canvas::CanvasContextMenu::RenderBitmapOperationsMenu(), yaze::zelda3::Room::RenderRoomGraphics(), yaze::gfx::RenderTilesBatch(), yaze::editor::Tile16Editor::RotateTile16(), yaze::editor::OverworldEditor::SaveCurrentSelectionToScratch(), yaze::editor::Tile16Editor::SaveTile16ToScratchSpace(), yaze::editor::Tile16Editor::SetCurrentTile(), yaze::editor::test::Tile16EditorIntegrationTest::SetUp(), yaze::gfx::TEST_F(), yaze::editor::Tile16Editor::Undo(), yaze::editor::Tile16Editor::UpdateBlocksetBitmap(), yaze::editor::GraphicsEditor::UpdateGfxSheetList(), yaze::editor::Tile16Editor::UpdateOverworldTilemap(), yaze::editor::OverworldEditor::UpdateScratchBitmapTile(), yaze::gfx::Bitmap::UpdateTexture(), yaze::gfx::UpdateTile16(), yaze::editor::Tile16Editor::UpdateTile16Edit(), yaze::editor::Tile16Editor::UpdateTile8Palette(), and yaze::gfx::UpdateTilemap().

ProcessTextureQueue()

void yaze::gfx::Arena::ProcessTextureQueue

(

IRenderer *

renderer

)

Definition at line 36 of file arena.cc.

References CREATE, yaze::gfx::IRenderer::CreateTexture(), DESTROY, yaze::gfx::IRenderer::DestroyTexture(), LOG_ERROR, renderer_, texture_command_queue_, UPDATE, and yaze::gfx::IRenderer::UpdateTexture().

Referenced by yaze::core::Controller::DoRender(), yaze::editor::DungeonEditorV2::DrawDebugControlsCard(), yaze::editor::DungeonCanvasViewer::DrawDungeonCanvas(), yaze::editor::DungeonEditorV2::DrawRoomGraphicsCard(), yaze::editor::DungeonEditorV2::ProcessDeferredTextures(), yaze::editor::OverworldEditor::ProcessDeferredTextures(), Shutdown(), and yaze::gfx::TEST_F().

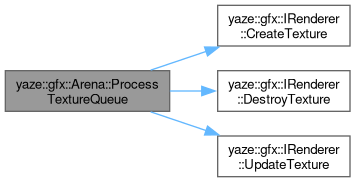

Here is the call graph for this function:

AllocateSurface()

SDL_Surface * yaze::gfx::Arena::AllocateSurface	(	int	width,
		int	height,
		int	depth,
		int	format
	)

Definition at line 125 of file arena.cc.

References yaze::gfx::Arena::SurfacePool::available_surfaces_, yaze::gfx::GetSnesPixelFormat(), yaze::gfx::Arena::SurfacePool::surface_info_, surface_pool_, and surfaces_.

Referenced by yaze::gfx::Bitmap::Bitmap(), yaze::gfx::Bitmap::Create(), yaze::gfx::Bitmap::operator=(), yaze::gfx::Bitmap::Reformat(), and yaze::gfx::Bitmap::Resize().

Here is the call graph for this function:

FreeSurface()

void yaze::gfx::Arena::FreeSurface

(

SDL_Surface *

surface

)

Definition at line 151 of file arena.cc.

References yaze::gfx::Arena::SurfacePool::available_surfaces_, yaze::gfx::Arena::SurfacePool::MAX_POOL_SIZE, yaze::gfx::Arena::SurfacePool::surface_info_, surface_pool_, and surfaces_.

Shutdown()

void yaze::gfx::Arena::Shutdown

(

)

Definition at line 164 of file arena.cc.

References yaze::gfx::Arena::SurfacePool::available_surfaces_, yaze::gfx::Arena::TexturePool::available_textures_, ProcessTextureQueue(), renderer_, yaze::gfx::Arena::SurfacePool::surface_info_, surface_pool_, surfaces_, texture_command_queue_, texture_pool_, yaze::gfx::Arena::TexturePool::texture_sizes_, and textures_.

Referenced by yaze::core::ShutdownWindow(), and ~Arena().

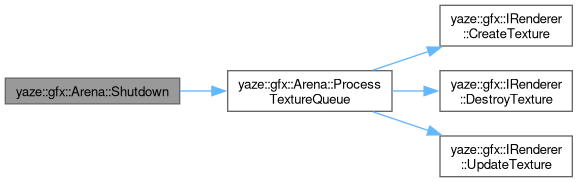

Here is the call graph for this function:

GetTextureCount()

size_t yaze::gfx::Arena::GetTextureCount ( ) const

inline

Definition at line 68 of file arena.h.

References textures_.

GetSurfaceCount()

size_t yaze::gfx::Arena::GetSurfaceCount ( ) const

inline

Definition at line 69 of file arena.h.

References surfaces_.

GetPooledTextureCount()

size_t yaze::gfx::Arena::GetPooledTextureCount ( ) const

inline

Definition at line 70 of file arena.h.

References yaze::gfx::Arena::TexturePool::available_textures_, and texture_pool_.

GetPooledSurfaceCount()

size_t yaze::gfx::Arena::GetPooledSurfaceCount ( ) const

inline

Definition at line 71 of file arena.h.

References yaze::gfx::Arena::SurfacePool::available_surfaces_, and surface_pool_.

gfx_sheets()

std::array< gfx::Bitmap, 223 > & yaze::gfx::Arena::gfx_sheets ( )

inline

Get reference to all graphics sheets.

Returns

Reference to array of 223 Bitmap objects

Definition at line 78 of file arena.h.

References gfx_sheets_.

Referenced by yaze::editor::GraphicsEditor::DrawGfxEditToolset(), yaze::editor::DungeonObjectSelector::DrawRoomGraphics(), yaze::editor::DungeonEditorV2::DrawRoomGraphicsCard(), yaze::editor::OverworldEditor::DrawTile8Selector(), yaze::editor::GraphicsEditor::Load(), and yaze::editor::GraphicsEditor::UpdateGfxSheetList().

gfx_sheet()

auto yaze::gfx::Arena::gfx_sheet ( int  i )

inline

Get a specific graphics sheet by index.

Parameters

i	Sheet index (0-222)

Returns

Copy of the Bitmap at index i

Definition at line 85 of file arena.h.

References gfx_sheets_.

mutable_gfx_sheet()

auto yaze::gfx::Arena::mutable_gfx_sheet ( int  i )

inline

Get mutable reference to a specific graphics sheet.

Parameters

i	Sheet index (0-222)

Returns

Pointer to mutable Bitmap at index i

Definition at line 92 of file arena.h.

References gfx_sheets_.

mutable_gfx_sheets()

auto yaze::gfx::Arena::mutable_gfx_sheets ( )

inline

Get mutable reference to all graphics sheets.

Returns

Pointer to mutable array of 223 Bitmap objects

Definition at line 98 of file arena.h.

References gfx_sheets_.

Referenced by yaze::editor::GfxGroupEditor::DrawBlocksetViewer(), yaze::editor::GfxGroupEditor::DrawRoomsetViewer(), yaze::editor::GfxGroupEditor::DrawSpritesetViewer(), yaze::editor::GraphicsEditor::UpdateGfxTabView(), and yaze::editor::GraphicsEditor::UpdatePaletteColumn().

NotifySheetModified()

void yaze::gfx::Arena::NotifySheetModified

(

int

sheet_index

)

Notify Arena that a graphics sheet has been modified.

Parameters

sheet_index

Index of the modified sheet (0-222)

This ensures textures are updated across all editors

Definition at line 183 of file arena.cc.

References CREATE, gfx_sheets_, LOG_DEBUG, LOG_WARN, QueueTextureCommand(), and UPDATE.

Referenced by yaze::editor::GraphicsEditor::UpdateGfxTabView(), and yaze::editor::GraphicsEditor::UpdatePaletteColumn().

Here is the call graph for this function:

bg1()

auto & yaze::gfx::Arena::bg1 ( )

inline

Get reference to background layer 1 buffer.

Returns

Reference to BackgroundBuffer for layer 1

Definition at line 112 of file arena.h.

References bg1_.

bg2()

auto & yaze::gfx::Arena::bg2 ( )

inline

Get reference to background layer 2 buffer.

Returns

Reference to BackgroundBuffer for layer 2

Definition at line 118 of file arena.h.

References bg2_.

Member Data Documentation

bg1_

BackgroundBuffer yaze::gfx::Arena::bg1_

private

Definition at line 123 of file arena.h.

Referenced by bg1().

bg2_

BackgroundBuffer yaze::gfx::Arena::bg2_

private

Definition at line 124 of file arena.h.

Referenced by bg2().

kTilesPerRow

constexpr int yaze::gfx::Arena::kTilesPerRow = 64

staticconstexprprivate

Definition at line 126 of file arena.h.

kTilesPerColumn

constexpr int yaze::gfx::Arena::kTilesPerColumn = 64

staticconstexprprivate

Definition at line 127 of file arena.h.

kTotalTiles

constexpr int yaze::gfx::Arena::kTotalTiles = kTilesPerRow * kTilesPerColumn

staticconstexprprivate

Definition at line 128 of file arena.h.

layer1_buffer_

std::array<uint16_t, kTotalTiles> yaze::gfx::Arena::layer1_buffer_

private

Definition at line 130 of file arena.h.

Referenced by Arena().

layer2_buffer_

std::array<uint16_t, kTotalTiles> yaze::gfx::Arena::layer2_buffer_

private

Definition at line 131 of file arena.h.

Referenced by Arena().

gfx_sheets_

std::array<gfx::Bitmap, 223> yaze::gfx::Arena::gfx_sheets_

private

Definition at line 133 of file arena.h.

Referenced by gfx_sheet(), gfx_sheets(), mutable_gfx_sheet(), mutable_gfx_sheets(), and NotifySheetModified().

textures_

std::unordered_map<TextureHandle, std::unique_ptr<SDL_Texture, util::SDL_Texture_Deleter> > yaze::gfx::Arena::textures_

private

Definition at line 137 of file arena.h.

Referenced by GetTextureCount(), and Shutdown().

surfaces_

std::unordered_map<SDL_Surface*, std::unique_ptr<SDL_Surface, util::SDL_Surface_Deleter> > yaze::gfx::Arena::surfaces_

private

Definition at line 141 of file arena.h.

Referenced by AllocateSurface(), FreeSurface(), GetSurfaceCount(), and Shutdown().

texture_pool_

struct yaze::gfx::Arena::TexturePool yaze::gfx::Arena::texture_pool_

private

Referenced by GetPooledTextureCount(), and Shutdown().

surface_pool_

struct yaze::gfx::Arena::SurfacePool yaze::gfx::Arena::surface_pool_

private

Referenced by AllocateSurface(), FreeSurface(), GetPooledSurfaceCount(), and Shutdown().

texture_command_queue_

std::vector<TextureCommand> yaze::gfx::Arena::texture_command_queue_

private

Definition at line 156 of file arena.h.

Referenced by ProcessTextureQueue(), QueueTextureCommand(), and Shutdown().

renderer_

IRenderer* yaze::gfx::Arena::renderer_ = nullptr

private

Definition at line 157 of file arena.h.

Referenced by Initialize(), ProcessTextureQueue(), and Shutdown().

---

The documentation for this class was generated from the following files:

• src/app/gfx/arena.h
• src/app/gfx/arena.cc
