yaze::editor::Editor Class Referenceabstract

Interface for editor classes. More...

#include <editor.h>

Inherited by yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::PaletteEditor, yaze::editor::ScreenEditor, yaze::editor::SettingsEditor, yaze::editor::SpriteEditor, and yaze::test::TestEditor.

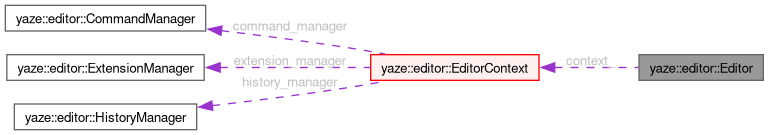

Collaboration diagram for yaze::editor::Editor:
Collaboration graph
[legend]

Public Member Functions

 Editor ()=default

virtual ~Editor ()=default

virtual void Initialize ()=0

virtual absl::Status Load ()=0

virtual absl::Status Save ()=0

virtual absl::Status Update ()=0

virtual absl::Status Cut ()=0

virtual absl::Status Copy ()=0

virtual absl::Status Paste ()=0

virtual absl::Status Undo ()=0

virtual absl::Status Redo ()=0

virtual absl::Status Find ()=0

virtual absl::Status Clear ()

EditorType type () const

void set_context (EditorContext *context)

bool * active ()

void set_active (bool active)

virtual bool IsRomLoaded () const

virtual std::string GetRomStatus () const


Protected Member Functions

std::string MakeCardTitle (const std::string &base_title) const

template<typename T >
absl::StatusOr< T > SafeRomAccess (std::function< T()> accessor, const std::string &operation="") const


Protected Attributes

bool active_ = false

EditorType type_

EditorContext * context_ = nullptr


Detailed Description

Interface for editor classes.

Provides basic editing operations that each editor should implement.

Definition at line 82 of file editor.h.

Constructor & Destructor Documentation

◆ Editor()

yaze::editor::Editor::Editor ( )
default

◆ ~Editor()

virtual yaze::editor::Editor::~Editor ( )
virtualdefault

Member Function Documentation

◆ Initialize()

virtual void yaze::editor::Editor::Initialize ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::PaletteEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::SpriteEditor, yaze::editor::SettingsEditor, and yaze::test::TestEditor.

Referenced by yaze::test::EditorIntegrationTest::TestEditorInitialize().

◆ Load()

virtual absl::Status yaze::editor::Editor::Load ( )
pure virtual

Implemented in yaze::editor::DungeonEditorV2, yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::GraphicsEditor, yaze::editor::PaletteEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::SpriteEditor, yaze::editor::SettingsEditor, and yaze::test::TestEditor.

Referenced by yaze::test::EditorIntegrationTest::TestEditorLoad().

◆ Save()

virtual absl::Status yaze::editor::Editor::Save ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::PaletteEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::SpriteEditor, yaze::editor::SettingsEditor, and yaze::test::TestEditor.

Referenced by yaze::test::EditorIntegrationTest::TestEditorSave().

◆ Update()

virtual absl::Status yaze::editor::Editor::Update ( )
pure virtual

Implemented in yaze::editor::OverworldEditor, yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::PaletteEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::SpriteEditor, yaze::editor::SettingsEditor, and yaze::test::TestEditor.

Referenced by yaze::test::EditorIntegrationTest::TestEditorUpdate().

◆ Cut()

virtual absl::Status yaze::editor::Editor::Cut ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::PaletteEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::SpriteEditor, yaze::editor::SettingsEditor, and yaze::test::TestEditor.

Referenced by yaze::editor::EditorManager::BuildModernMenu(), yaze::editor::EditorManager::Initialize(), and yaze::test::EditorIntegrationTest::TestEditorCut().

◆ Copy()

virtual absl::Status yaze::editor::Editor::Copy ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::PaletteEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::SpriteEditor, yaze::editor::SettingsEditor, and yaze::test::TestEditor.

Referenced by yaze::editor::EditorManager::BuildModernMenu(), yaze::editor::EditorManager::Initialize(), and yaze::test::EditorIntegrationTest::TestEditorCopy().

◆ Paste()

virtual absl::Status yaze::editor::Editor::Paste ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::PaletteEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::SpriteEditor, yaze::editor::SettingsEditor, and yaze::test::TestEditor.

Referenced by yaze::editor::EditorManager::BuildModernMenu(), yaze::editor::EditorManager::Initialize(), and yaze::test::EditorIntegrationTest::TestEditorPaste().

◆ Undo()

virtual absl::Status yaze::editor::Editor::Undo ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::PaletteEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::SpriteEditor, yaze::editor::SettingsEditor, and yaze::test::TestEditor.

Referenced by yaze::editor::EditorManager::BuildModernMenu(), yaze::editor::EditorManager::Initialize(), and yaze::test::EditorIntegrationTest::TestEditorUndo().

◆ Redo()

virtual absl::Status yaze::editor::Editor::Redo ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::PaletteEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::SpriteEditor, yaze::editor::SettingsEditor, and yaze::test::TestEditor.

Referenced by yaze::editor::EditorManager::BuildModernMenu(), yaze::editor::EditorManager::Initialize(), and yaze::test::EditorIntegrationTest::TestEditorRedo().

◆ Find()

virtual absl::Status yaze::editor::Editor::Find ( )
pure virtual

Implemented in yaze::editor::AgentEditor, yaze::editor::AssemblyEditor, yaze::editor::DungeonEditorV2, yaze::editor::GraphicsEditor, yaze::editor::PaletteEditor, yaze::editor::ScreenEditor, yaze::editor::MessageEditor, yaze::editor::MusicEditor, yaze::editor::OverworldEditor, yaze::editor::SpriteEditor, yaze::editor::SettingsEditor, and yaze::test::TestEditor.

Referenced by yaze::editor::EditorManager::BuildModernMenu(), yaze::editor::EditorManager::Initialize(), and yaze::test::EditorIntegrationTest::TestEditorFind().

◆ Clear()

virtual absl::Status yaze::editor::Editor::Clear ( )
inlinevirtual

Reimplemented in yaze::editor::OverworldEditor.

Definition at line 108 of file editor.h.

Referenced by yaze::test::EditorIntegrationTest::TestEditorClear().

◆ type()

EditorType yaze::editor::Editor::type ( ) const
inline

Definition at line 110 of file editor.h.

References type_.

Referenced by yaze::editor::EditorManager::DrawContextSensitiveCardControl().

◆ set_context()

void yaze::editor::Editor::set_context ( EditorContext *  context)
inline

Definition at line 112 of file editor.h.

References context_.

◆ active()

bool * yaze::editor::Editor::active ( )
inline

Definition at line 114 of file editor.h.

References active_.

Referenced by set_active(), yaze::editor::AgentEditor::SetChatActive(), and yaze::editor::GraphicsEditor::UpdateGfxTabView().

◆ set_active()

void yaze::editor::Editor::set_active ( bool  active)
inline

Definition at line 115 of file editor.h.

References active(), and active_.

Referenced by yaze::editor::EditorManager::BuildModernMenu(), yaze::editor::EditorManager::Initialize(), yaze::editor::EditorManager::LoadDesignerLayout(), yaze::editor::EditorManager::LoadDeveloperLayout(), yaze::editor::EditorManager::LoadModderLayout(), and yaze::editor::EditorManager::Update().

Here is the call graph for this function:

◆ IsRomLoaded()

virtual bool yaze::editor::Editor::IsRomLoaded ( ) const
inlinevirtual

Reimplemented in yaze::editor::DungeonEditorV2, yaze::editor::OverworldEditor, and yaze::editor::SettingsEditor.

Definition at line 118 of file editor.h.

Referenced by SafeRomAccess().

◆ GetRomStatus()

virtual std::string yaze::editor::Editor::GetRomStatus ( ) const
inlinevirtual

Reimplemented in yaze::editor::DungeonEditorV2, and yaze::editor::OverworldEditor.

Definition at line 119 of file editor.h.

◆ MakeCardTitle()

std::string yaze::editor::Editor::MakeCardTitle ( const std::string &  base_title) const
inlineprotected

Definition at line 127 of file editor.h.

References context_, and yaze::editor::EditorContext::session_id.

Referenced by yaze::editor::DungeonEditorV2::DrawDebugControlsCard(), yaze::editor::DungeonEditorV2::DrawEntrancesListCard(), yaze::editor::DungeonEditorV2::DrawLayout(), yaze::editor::DungeonEditorV2::DrawRoomGraphicsCard(), yaze::editor::DungeonEditorV2::DrawRoomMatrixCard(), yaze::editor::DungeonEditorV2::DrawRoomsListCard(), yaze::editor::OverworldEditor::Update(), yaze::editor::GraphicsEditor::Update(), yaze::editor::ScreenEditor::Update(), yaze::editor::SpriteEditor::Update(), and yaze::editor::AssemblyEditor::UpdateCodeView().

◆ SafeRomAccess()

template<typename T >
absl::StatusOr< T > yaze::editor::Editor::SafeRomAccess ( std::function< T()>  accessor,
const std::string &  operation = ""
) const
inlineprotected

Definition at line 136 of file editor.h.

References IsRomLoaded().

Here is the call graph for this function:

Member Data Documentation

◆ active_

bool yaze::editor::Editor::active_ = false
protected

Definition at line 122 of file editor.h.

Referenced by active(), yaze::editor::AgentEditor::DrawDashboard(), set_active(), and yaze::editor::AgentEditor::Update().

◆ type_

EditorType yaze::editor::Editor::type_
protected

Definition at line 123 of file editor.h.

Referenced by yaze::editor::AgentEditor::AgentEditor(), yaze::editor::AssemblyEditor::AssemblyEditor(), yaze::editor::DungeonEditorV2::DungeonEditorV2(), yaze::editor::GraphicsEditor::GraphicsEditor(), yaze::editor::MessageEditor::MessageEditor(), yaze::editor::MusicEditor::MusicEditor(), yaze::editor::OverworldEditor::OverworldEditor(), yaze::editor::PaletteEditor::PaletteEditor(), yaze::editor::ScreenEditor::ScreenEditor(), yaze::editor::SettingsEditor::SettingsEditor(), yaze::editor::SpriteEditor::SpriteEditor(), and type().

◆ context_

EditorContext* yaze::editor::Editor::context_ = nullptr
protected

Definition at line 124 of file editor.h.

Referenced by yaze::editor::OverworldEditor::Copy(), yaze::editor::MessageEditor::DrawExpandedMessageSettings(), yaze::editor::OverworldEditor::DrawScratchSpace(), yaze::editor::OverworldEditor::DrawScratchSpacePattern(), MakeCardTitle(), yaze::editor::OverworldEditor::Paste(), and set_context().

The documentation for this class was generated from the following file:
