A class for editing music data in a Rom. More...

#include <music_editor.h>

Inheritance diagram for yaze::editor::MusicEditor:

Public Member Functions
	MusicEditor (Rom *rom=nullptr)

void	Initialize () override

absl::Status	Load () override

absl::Status	Save () override

absl::Status	Update () override

absl::Status	Cut () override

absl::Status	Copy () override

absl::Status	Paste () override

absl::Status	Undo () override

absl::Status	Redo () override

absl::Status	Find () override

void	set_rom (Rom *rom)

Rom *	rom () const

void	set_emulator (emu::Emulator *emulator)

emu::Emulator *	emulator () const

void	PlaySong (int song_id)

void	StopSong ()

void	SetVolume (float volume)

Public Member Functions inherited from yaze::editor::Editor
	Editor ()=default

virtual	~Editor ()=default

void	SetDependencies (const EditorDependencies &deps)

virtual absl::Status	Clear ()

EditorType	type () const

bool *	active ()

void	set_active (bool active)

void	toggle_active ()

virtual bool	IsRomLoaded () const

virtual std::string	GetRomStatus () const

Private Member Functions
void	DrawTrackerView ()

void	DrawInstrumentEditor ()

void	DrawSampleEditor ()

void	DrawToolset ()

void	StartPlayback ()

void	StopPlayback ()

void	UpdatePlayback ()

Private Attributes
AssemblyEditor	assembly_editor_

zelda3::music::Tracker	music_tracker_

int	current_song_index_ = 0

int	current_pattern_index_ = 0

int	current_channel_index_ = 0

bool	is_playing_ = false

std::vector< bool >	channel_muted_ = std::vector<bool>(8, false)

std::vector< bool >	channel_soloed_ = std::vector<bool>(8, false)

std::vector< std::string >	song_names_

ImGuiTableFlags	music_editor_flags_

ImGuiTableFlags	toolset_table_flags_

Rom *	rom_

emu::Emulator *	emulator_ = nullptr

Additional Inherited Members
Protected Member Functions inherited from yaze::editor::Editor
std::string	MakeCardTitle (const std::string &base_title) const

std::string	MakeCardId (const std::string &base_id) const

template<typename T >
absl::StatusOr< T >	SafeRomAccess (std::function< T()> accessor, const std::string &operation="") const

Protected Attributes inherited from yaze::editor::Editor
bool	active_ = false

EditorType	type_

EditorDependencies	dependencies_

Detailed Description

A class for editing music data in a Rom.

Definition at line 65 of file music_editor.h.

Constructor & Destructor Documentation

◆ MusicEditor()

yaze::editor::MusicEditor::MusicEditor ( Rom * rom = nullptr )

inlineexplicit

Definition at line 67 of file music_editor.h.

References yaze::editor::kMusic, and yaze::editor::Editor::type_.

Member Function Documentation

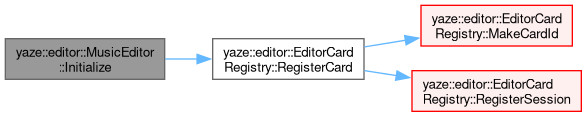

◆ Initialize()

void yaze::editor::MusicEditor::Initialize ( )

overridevirtual

Implements yaze::editor::Editor.

Definition at line 16 of file music_editor.cc.

References yaze::editor::EditorDependencies::card_registry, yaze::editor::Editor::dependencies_, ICON_MD_CODE, ICON_MD_MUSIC_NOTE, ICON_MD_PIANO, and yaze::editor::EditorCardRegistry::RegisterCard().

Here is the call graph for this function:

◆ Load()

absl::Status yaze::editor::MusicEditor::Load ( )

overridevirtual

Implements yaze::editor::Editor.

Definition at line 34 of file music_editor.cc.

◆ Save()

absl::Status yaze::editor::MusicEditor::Save ( )

inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 73 of file music_editor.h.

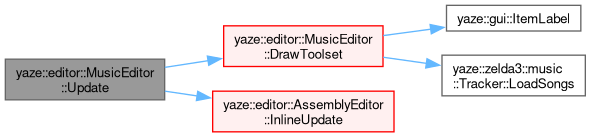

◆ Update()

absl::Status yaze::editor::MusicEditor::Update ( )

overridevirtual

Implements yaze::editor::Editor.

Definition at line 39 of file music_editor.cc.

References assembly_editor_, yaze::gui::EditorCard::Begin(), yaze::editor::EditorDependencies::card_registry, yaze::editor::Editor::dependencies_, DrawInstrumentEditor(), DrawTrackerView(), yaze::gui::EditorCard::End(), ICON_MD_CODE, ICON_MD_MUSIC_NOTE, ICON_MD_PIANO, yaze::editor::AssemblyEditor::InlineUpdate(), and yaze::gui::EditorCard::SetDefaultSize().

◆ Cut()

absl::Status yaze::editor::MusicEditor::Cut ( )

inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 75 of file music_editor.h.

◆ Copy()

absl::Status yaze::editor::MusicEditor::Copy ( )

inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 76 of file music_editor.h.

◆ Paste()

absl::Status yaze::editor::MusicEditor::Paste ( )

inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 77 of file music_editor.h.

◆ Undo()

absl::Status yaze::editor::MusicEditor::Undo ( )

inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 78 of file music_editor.h.

◆ Redo()

absl::Status yaze::editor::MusicEditor::Redo ( )

inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 79 of file music_editor.h.

◆ Find()

absl::Status yaze::editor::MusicEditor::Find ( )

inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 80 of file music_editor.h.

◆ set_rom()

void yaze::editor::MusicEditor::set_rom ( Rom * rom )

inline

Definition at line 83 of file music_editor.h.

References rom(), and rom_.

Here is the call graph for this function:

◆ rom()

Rom * yaze::editor::MusicEditor::rom ( ) const

inline

Definition at line 86 of file music_editor.h.

References rom_.

Referenced by DrawToolset(), and set_rom().

◆ set_emulator()

void yaze::editor::MusicEditor::set_emulator ( emu::Emulator * emulator )

inline

Definition at line 89 of file music_editor.h.

References emulator(), and emulator_.

Here is the call graph for this function:

◆ emulator()

emu::Emulator * yaze::editor::MusicEditor::emulator ( ) const

inline

Definition at line 90 of file music_editor.h.

References emulator_.

Referenced by set_emulator().

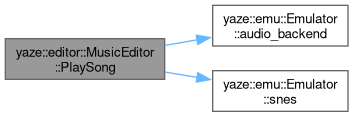

◆ PlaySong()

void yaze::editor::MusicEditor::PlaySong ( int song_id )

Definition at line 271 of file music_editor.cc.

References yaze::emu::Emulator::audio_backend(), emulator_, is_playing_, LOG_ERROR, LOG_INFO, LOG_WARN, and yaze::emu::Emulator::snes().

Here is the call graph for this function:

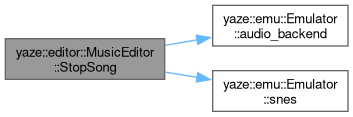

◆ StopSong()

void yaze::editor::MusicEditor::StopSong ( )

Definition at line 304 of file music_editor.cc.

References yaze::emu::Emulator::audio_backend(), emulator_, is_playing_, LOG_ERROR, LOG_INFO, and yaze::emu::Emulator::snes().

Here is the call graph for this function:

◆ SetVolume()

void yaze::editor::MusicEditor::SetVolume ( float volume )

Definition at line 323 of file music_editor.cc.

References yaze::emu::Emulator::audio_backend(), emulator_, LOG_DEBUG, and LOG_WARN.

Here is the call graph for this function:

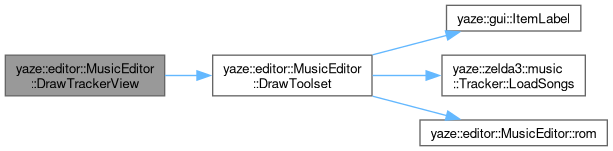

◆ DrawTrackerView()

void yaze::editor::MusicEditor::DrawTrackerView ( )

private

Todo:: Add music channel view

Definition at line 186 of file music_editor.cc.

References DrawToolset().

Referenced by Update().

Here is the call graph for this function:

◆ DrawInstrumentEditor()

void yaze::editor::MusicEditor::DrawInstrumentEditor ( )

private

Todo:: Implement instrument editor UI

Definition at line 194 of file music_editor.cc.

Referenced by Update().

◆ DrawSampleEditor()

void yaze::editor::MusicEditor::DrawSampleEditor ( )

private

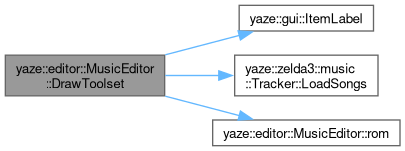

◆ DrawToolset()

void yaze::editor::MusicEditor::DrawToolset ( )

private

Definition at line 201 of file music_editor.cc.

References ICON_MD_ACCESS_TIME, ICON_MD_FAST_FORWARD, ICON_MD_FAST_REWIND, ICON_MD_PLAY_ARROW, ICON_MD_STOP, ICON_MD_VOLUME_UP, yaze::gui::ItemLabel(), yaze::zelda3::music::Tracker::LoadSongs(), music_tracker_, rom(), and toolset_table_flags_.

Referenced by DrawTrackerView().

Here is the call graph for this function:

◆ StartPlayback()

void yaze::editor::MusicEditor::StartPlayback ( )

private

◆ StopPlayback()

void yaze::editor::MusicEditor::StopPlayback ( )

private

◆ UpdatePlayback()

void yaze::editor::MusicEditor::UpdatePlayback ( )

private

Member Data Documentation

◆ assembly_editor_

AssemblyEditor yaze::editor::MusicEditor::assembly_editor_

private

Definition at line 109 of file music_editor.h.

Referenced by Update().

◆ music_tracker_

zelda3::music::Tracker yaze::editor::MusicEditor::music_tracker_

private

Definition at line 110 of file music_editor.h.

Referenced by DrawToolset().

◆ current_song_index_

int yaze::editor::MusicEditor::current_song_index_ = 0

private

Definition at line 114 of file music_editor.h.

◆ current_pattern_index_

int yaze::editor::MusicEditor::current_pattern_index_ = 0

private

Definition at line 115 of file music_editor.h.

◆ current_channel_index_

int yaze::editor::MusicEditor::current_channel_index_ = 0

private

Definition at line 116 of file music_editor.h.

◆ is_playing_

bool yaze::editor::MusicEditor::is_playing_ = false

private

Definition at line 117 of file music_editor.h.

Referenced by PlaySong(), and StopSong().

◆ channel_muted_

std::vector<bool> yaze::editor::MusicEditor::channel_muted_ = std::vector<bool>(8, false)

private

Definition at line 118 of file music_editor.h.

◆ channel_soloed_

std::vector<bool> yaze::editor::MusicEditor::channel_soloed_ = std::vector<bool>(8, false)

private

Definition at line 119 of file music_editor.h.

◆ song_names_

std::vector<std::string> yaze::editor::MusicEditor::song_names_

private

Definition at line 120 of file music_editor.h.

◆ music_editor_flags_

ImGuiTableFlags yaze::editor::MusicEditor::music_editor_flags_

private

Initial value:

=
      ImGuiTableFlags_Resizable | ImGuiTableFlags_BordersOuter |
      ImGuiTableFlags_BordersV | ImGuiTableFlags_SizingFixedFit

Definition at line 122 of file music_editor.h.

◆ toolset_table_flags_

ImGuiTableFlags yaze::editor::MusicEditor::toolset_table_flags_

private

Initial value:

=
      ImGuiTableFlags_SizingFixedFit | ImGuiTableFlags_BordersOuter |
      ImGuiTableFlags_BordersV | ImGuiTableFlags_PadOuterX

Definition at line 126 of file music_editor.h.

Referenced by DrawToolset().

◆ rom_

Rom* yaze::editor::MusicEditor::rom_

private

Definition at line 130 of file music_editor.h.

Referenced by rom(), and set_rom().

◆ emulator_

emu::Emulator* yaze::editor::MusicEditor::emulator_ = nullptr

private

Definition at line 131 of file music_editor.h.

Referenced by emulator(), PlaySong(), set_emulator(), SetVolume(), and StopSong().

The documentation for this class was generated from the following files:

src/app/editor/music/music_editor.h
src/app/editor/music/music_editor.cc
