#include <tracker.h>

Public Member Functions
SongSpcBlock *	AllocSpcBlock (int len, int bank)
	Allocates a new SongSpcBlock for holding generated SPC data. These blocks are the building blocks for the final binary output that will be written to the ROM and eventually loaded into the APU.

unsigned char *	GetSpcAddr (Rom &rom, unsigned short addr, short bank)
	Gets a direct pointer to music data within the ROM. This function is critical for parsing. It correctly resolves a virtual SPC address and bank into a physical offset within the loaded ROM file, handling the game's specific sound bank mapping.

short	AllocSpcCommand ()
	Allocates a new SpcCommand from a pre-allocated pool. This uses a classic free-list implementation for efficient memory management without repeated malloc/free calls.

short	GetBlockTime (Rom &rom, short num, short prevtime)
	Calculates the total time (duration) of a block of SpcCommands. This is essential for synchronization and editor display. It works backwards from the end of a command list, calculating and caching the duration.

short	SaveSpcCommand (Rom &rom, short num, short songtime, short endtr)
	Saves a block of edited SpcCommands back into a binary format. This is the serializer, the inverse of LoadSpcCommand. It walks the linked list of commands and writes the corresponding bytes into a new SongSpcBlock.

short	LoadSpcCommand (Rom &rom, unsigned short addr, short bank, int t)
	Loads a block of music data from a given ROM address. This is the main parser. It reads the raw byte stream from the ROM and converts it into a doubly-linked list of SpcCommand structs.

void	SaveSongs (Rom &rom)
	High-level function to save all modified song data back to the ROM. (Currently commented out, but this would orchestrate the entire save process.) This function would be responsible for taking all the edited, in-memory SongSpcBlocks, arranging them into a final binary layout, patching all the relocated pointers, and writing the result back into the ROM file using WriteSpcData.

void	LoadSongs (Rom &rom)
	High-level function to load all song data from the ROM. (Currently commented out, but this would be the main entry point for parsing.) It would iterate through the main song table in the ROM, and for each song, recursively load all its parts and commands using LoadSpcCommand. It would also load instrument and sample data.

int	WriteSpcData (Rom &rom, void *buf, int len, int addr, int spc, int limit)
	Writes a prepared data block into the ROM file. This is a utility for SaveSongs, formatting the data with a header containing the length and target SPC address.

void	EditTrack (Rom &rom, short i)
	Opens an editor window for a specific track. (Legacy UI-related function)

void	NewSR (Rom &rom, int bank)
	Creates a new, empty song range (SongRange) and opens it for editing. (Legacy UI-related function)

Private Member Functions
const SpcCommand &	GetSpcCommand (short index) const

Private Attributes
int	modf

int	mark_sr

int	mark_start

int	mark_end

int	mark_first

int	mark_last

int	numwave

int	numinst

int	numsndinst

int	sndinit = 0

int	sndlen1

int	sndlen2

int	m_ofs

int	w_modf

int	ss_num

int	ss_size

char	op_len [32]

char *	snddat1

char *	snddat2

unsigned short	ss_next = 0

unsigned short	spclen

unsigned short	numseg

short	spcbank

short	lastsr

short	ss_lasttime

short	srnum

short	srsize

short	numsong [3]

short	m_size

short	m_free

short	m_modf

short	m_loaded

short	t_loaded

short	t_modf

short	withhead

size_t	t_number

std::vector< Song >	songs

SongPart *	sp_mark

SongRange *	song_range_

SpcCommand *	current_spc_command_

SongSpcBlock **	ssblt

ZeldaWave *	waves

ZeldaInstrument *	insts

ZeldaSfxInstrument *	sndinsts

Detailed Description

Definition at line 188 of file tracker.h.

Member Function Documentation

◆ AllocSpcBlock()

SongSpcBlock * yaze::zelda3::music::Tracker::AllocSpcBlock	(	int	len,
		int	bank
	)

Allocates a new SongSpcBlock for holding generated SPC data. These blocks are the building blocks for the final binary output that will be written to the ROM and eventually loaded into the APU.

Parameters

len	The size of the data buffer to allocate for this block.
bank	The target sound bank for this block.

Returns: A pointer to the newly allocated SongSpcBlock.

Definition at line 42 of file tracker.cc.

References yaze::zelda3::music::SongSpcBlock::bank, yaze::zelda3::music::SongSpcBlock::buf, yaze::zelda3::music::SongSpcBlock::flag, yaze::zelda3::music::SongSpcBlock::len, yaze::zelda3::music::SongSpcBlock::relnum, yaze::zelda3::music::SongSpcBlock::relocs, yaze::zelda3::music::SongSpcBlock::relsz, ss_next, ss_num, ss_size, ssblt, and yaze::zelda3::music::SongSpcBlock::start.

Referenced by SaveSpcCommand().

◆ GetSpcAddr()

unsigned char * yaze::zelda3::music::Tracker::GetSpcAddr	(	Rom &	rom,
		unsigned short	addr,
		short	bank
	)

Gets a direct pointer to music data within the ROM. This function is critical for parsing. It correctly resolves a virtual SPC address and bank into a physical offset within the loaded ROM file, handling the game's specific sound bank mapping.

Parameters

rom	The ROM object.
addr	The 16-bit virtual address of the data.
bank	The sound bank where the data resides.

Returns: A pointer to the data within the ROM buffer, or nullptr if not found.

Definition at line 75 of file tracker.cc.

References yaze::Rom::mutable_data(), spcbank, and spclen.

Referenced by LoadSpcCommand().

Here is the call graph for this function:

◆ AllocSpcCommand()

short yaze::zelda3::music::Tracker::AllocSpcCommand ( )

Allocates a new SpcCommand from a pre-allocated pool. This uses a classic free-list implementation for efficient memory management without repeated malloc/free calls.

Returns: The index of the newly allocated command.

Definition at line 115 of file tracker.cc.

References current_spc_command_, m_free, m_size, yaze::zelda3::music::SpcCommand::next, and yaze::zelda3::music::SpcCommand::prev.

Referenced by NewSR().

◆ GetBlockTime()

short yaze::zelda3::music::Tracker::GetBlockTime	(	Rom &	rom,
		short	num,
		short	prevtime
	)

Calculates the total time (duration) of a block of SpcCommands. This is essential for synchronization and editor display. It works backwards from the end of a command list, calculating and caching the duration.

Parameters

rom	The ROM object.
num	The starting command index.
prevtime	The duration of the subsequent block.

Returns: The total duration in ticks.

Definition at line 148 of file tracker.cc.

References yaze::zelda3::music::SpcCommand::b1, yaze::zelda3::music::SpcCommand::cmd, current_spc_command_, yaze::zelda3::music::SpcCommand::flag, GetBlockTime(), m_modf, m_size, yaze::zelda3::music::SpcCommand::next, yaze::zelda3::music::SpcCommand::p1, yaze::zelda3::music::SpcCommand::p3, yaze::zelda3::music::SpcCommand::prev, ss_lasttime, yaze::zelda3::music::SpcCommand::tim, and yaze::zelda3::music::SpcCommand::tim2.

Referenced by GetBlockTime(), LoadSpcCommand(), and SaveSpcCommand().

Here is the call graph for this function:

◆ SaveSpcCommand()

short yaze::zelda3::music::Tracker::SaveSpcCommand	(	Rom &	rom,
		short	num,
		short	songtime,
		short	endtr
	)

Saves a block of edited SpcCommands back into a binary format. This is the serializer, the inverse of LoadSpcCommand. It walks the linked list of commands and writes the corresponding bytes into a new SongSpcBlock.

Parameters

rom	The ROM object.
num	The index of the first command to save.
songtime	The total duration of the song, used for padding.
endtr	Flag indicating if this is the end of a track.

Returns: The new virtual address of the saved block.

Definition at line 711 of file tracker.cc.

Referenced by SaveSpcCommand().

Here is the call graph for this function:

◆ LoadSpcCommand()

short yaze::zelda3::music::Tracker::LoadSpcCommand	(	Rom &	rom,
		unsigned short	addr,
		short	bank,
		int	t
	)

Loads a block of music data from a given ROM address. This is the main parser. It reads the raw byte stream from the ROM and converts it into a doubly-linked list of SpcCommand structs.

Parameters

rom	The ROM object.
addr	The starting address in the ROM.
bank	The sound bank.
t	A time limit for parsing, to handle potentially infinite loops.

Returns: The index of the first command in the newly loaded block.

Definition at line 250 of file tracker.cc.

Referenced by LoadSpcCommand().

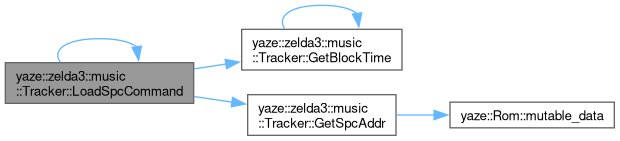

Here is the call graph for this function:

◆ SaveSongs()

void yaze::zelda3::music::Tracker::SaveSongs ( Rom & rom )

High-level function to save all modified song data back to the ROM. (Currently commented out, but this would orchestrate the entire save process.) This function would be responsible for taking all the edited, in-memory SongSpcBlocks, arranging them into a final binary layout, patching all the relocated pointers, and writing the result back into the ROM file using WriteSpcData.

Definition at line 880 of file tracker.cc.

◆ LoadSongs()

void yaze::zelda3::music::Tracker::LoadSongs ( Rom & rom )

High-level function to load all song data from the ROM. (Currently commented out, but this would be the main entry point for parsing.) It would iterate through the main song table in the ROM, and for each song, recursively load all its parts and commands using LoadSpcCommand. It would also load instrument and sample data.

Definition at line 431 of file tracker.cc.

Referenced by yaze::editor::MusicEditor::DrawToolset().

◆ WriteSpcData()

int yaze::zelda3::music::Tracker::WriteSpcData	(	Rom &	rom,
		void *	buf,
		int	len,
		int	addr,
		int	spc,
		int	limit
	)

Writes a prepared data block into the ROM file. This is a utility for SaveSongs, formatting the data with a header containing the length and target SPC address.

Parameters

rom	The ROM object.
buf	The data to write.
len	The length of the data.
addr	The ROM address to write to.
spc	The target SPC address for this data.
limit	The upper bound for writing in the ROM.

Returns: The next available ROM address after writing.

Definition at line 844 of file tracker.cc.

References m_modf, and yaze::Rom::mutable_data().

Here is the call graph for this function:

◆ EditTrack()

void yaze::zelda3::music::Tracker::EditTrack	(	Rom &	rom,
		short	i
	)

Opens an editor window for a specific track. (Legacy UI-related function)

Parameters

rom	The ROM object.
i	The index of the first command of the track to edit.

Definition at line 1334 of file tracker.cc.

References current_spc_command_, yaze::zelda3::music::SongRange::first, m_size, song_range_, and srnum.

Referenced by NewSR().

◆ NewSR()

void yaze::zelda3::music::Tracker::NewSR	(	Rom &	rom,
		int	bank
	)

Creates a new, empty song range (SongRange) and opens it for editing. (Legacy UI-related function)

Parameters

rom	The ROM object.
bank	The target bank for the new song.

Definition at line 1390 of file tracker.cc.

References AllocSpcCommand(), yaze::zelda3::music::SongRange::bank, yaze::zelda3::music::SpcCommand::cmd, current_spc_command_, yaze::zelda3::music::SongRange::editor, EditTrack(), yaze::zelda3::music::SongRange::first, yaze::zelda3::music::SpcCommand::flag, yaze::zelda3::music::SpcCommand::next, yaze::zelda3::music::SpcCommand::prev, song_range_, srnum, and srsize.

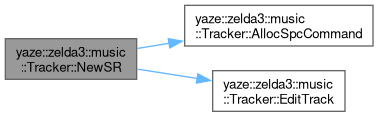

Here is the call graph for this function:

◆ GetSpcCommand()

const SpcCommand & yaze::zelda3::music::Tracker::GetSpcCommand ( short index ) const

inlineprivate

Definition at line 268 of file tracker.h.

References current_spc_command_.

Member Data Documentation

◆ modf

int yaze::zelda3::music::Tracker::modf

private

Definition at line 214 of file tracker.h.

◆ mark_sr

int yaze::zelda3::music::Tracker::mark_sr

private

Definition at line 216 of file tracker.h.

◆ mark_start

int yaze::zelda3::music::Tracker::mark_start

private

Definition at line 218 of file tracker.h.

◆ mark_end

int yaze::zelda3::music::Tracker::mark_end

private

Definition at line 219 of file tracker.h.

◆ mark_first

int yaze::zelda3::music::Tracker::mark_first

private

Definition at line 220 of file tracker.h.

◆ mark_last

int yaze::zelda3::music::Tracker::mark_last

private

Definition at line 221 of file tracker.h.

◆ numwave

int yaze::zelda3::music::Tracker::numwave

private

Definition at line 223 of file tracker.h.

◆ numinst

int yaze::zelda3::music::Tracker::numinst

private

Definition at line 224 of file tracker.h.

◆ numsndinst

int yaze::zelda3::music::Tracker::numsndinst

private

Definition at line 225 of file tracker.h.

◆ sndinit

int yaze::zelda3::music::Tracker::sndinit = 0

private

Definition at line 227 of file tracker.h.

◆ sndlen1

int yaze::zelda3::music::Tracker::sndlen1

private

Definition at line 229 of file tracker.h.

◆ sndlen2

int yaze::zelda3::music::Tracker::sndlen2

private

Definition at line 230 of file tracker.h.

◆ m_ofs

int yaze::zelda3::music::Tracker::m_ofs

private

Definition at line 231 of file tracker.h.

◆ w_modf

int yaze::zelda3::music::Tracker::w_modf

private

Definition at line 232 of file tracker.h.

◆ ss_num

int yaze::zelda3::music::Tracker::ss_num

private

Definition at line 234 of file tracker.h.

Referenced by AllocSpcBlock().

◆ ss_size

int yaze::zelda3::music::Tracker::ss_size

private

Definition at line 235 of file tracker.h.

Referenced by AllocSpcBlock().

◆ op_len

char yaze::zelda3::music::Tracker::op_len[32]

private

Definition at line 237 of file tracker.h.

Referenced by LoadSpcCommand(), and SaveSpcCommand().

◆ snddat1

char* yaze::zelda3::music::Tracker::snddat1

private

Definition at line 239 of file tracker.h.

◆ snddat2

char* yaze::zelda3::music::Tracker::snddat2

private

Definition at line 240 of file tracker.h.

◆ ss_next

unsigned short yaze::zelda3::music::Tracker::ss_next = 0

private

Definition at line 242 of file tracker.h.

Referenced by AllocSpcBlock().

◆ spclen

unsigned short yaze::zelda3::music::Tracker::spclen

private

Definition at line 243 of file tracker.h.

Referenced by GetSpcAddr().

◆ numseg

unsigned short yaze::zelda3::music::Tracker::numseg

private

Definition at line 244 of file tracker.h.

◆ spcbank

short yaze::zelda3::music::Tracker::spcbank

private

Definition at line 246 of file tracker.h.

Referenced by GetSpcAddr(), and LoadSpcCommand().

◆ lastsr

short yaze::zelda3::music::Tracker::lastsr

private

Definition at line 247 of file tracker.h.

Referenced by LoadSpcCommand().

◆ ss_lasttime

short yaze::zelda3::music::Tracker::ss_lasttime

private

Definition at line 248 of file tracker.h.

Referenced by GetBlockTime().

◆ srnum

short yaze::zelda3::music::Tracker::srnum

private

Definition at line 249 of file tracker.h.

Referenced by EditTrack(), LoadSpcCommand(), NewSR(), and SaveSpcCommand().

◆ srsize

short yaze::zelda3::music::Tracker::srsize

private

Definition at line 250 of file tracker.h.

Referenced by LoadSpcCommand(), and NewSR().

◆ numsong

short yaze::zelda3::music::Tracker::numsong[3]

private

Definition at line 251 of file tracker.h.

◆ m_size

short yaze::zelda3::music::Tracker::m_size

private

Definition at line 252 of file tracker.h.

Referenced by AllocSpcCommand(), EditTrack(), GetBlockTime(), LoadSpcCommand(), and SaveSpcCommand().

◆ m_free

short yaze::zelda3::music::Tracker::m_free

private

Definition at line 253 of file tracker.h.

Referenced by AllocSpcCommand(), and LoadSpcCommand().

◆ m_modf

short yaze::zelda3::music::Tracker::m_modf

private

Definition at line 254 of file tracker.h.

Referenced by GetBlockTime(), SaveSpcCommand(), and WriteSpcData().

◆ m_loaded

short yaze::zelda3::music::Tracker::m_loaded

private

Definition at line 255 of file tracker.h.

◆ t_loaded

short yaze::zelda3::music::Tracker::t_loaded

private

Definition at line 257 of file tracker.h.

◆ t_modf

short yaze::zelda3::music::Tracker::t_modf

private

Definition at line 258 of file tracker.h.

◆ withhead

short yaze::zelda3::music::Tracker::withhead

private

Definition at line 259 of file tracker.h.

◆ t_number

size_t yaze::zelda3::music::Tracker::t_number

private

Definition at line 261 of file tracker.h.

◆ songs

std::vector<Song> yaze::zelda3::music::Tracker::songs

private

Definition at line 263 of file tracker.h.

◆ sp_mark

SongPart* yaze::zelda3::music::Tracker::sp_mark

private

Definition at line 264 of file tracker.h.

◆ song_range_

SongRange* yaze::zelda3::music::Tracker::song_range_

private

Definition at line 265 of file tracker.h.

Referenced by EditTrack(), LoadSpcCommand(), NewSR(), and SaveSpcCommand().

◆ current_spc_command_

SpcCommand* yaze::zelda3::music::Tracker::current_spc_command_

private

Definition at line 266 of file tracker.h.

Referenced by AllocSpcCommand(), EditTrack(), GetBlockTime(), GetSpcCommand(), LoadSpcCommand(), NewSR(), and SaveSpcCommand().

◆ ssblt

SongSpcBlock** yaze::zelda3::music::Tracker::ssblt

private

Definition at line 272 of file tracker.h.

Referenced by AllocSpcBlock().

◆ waves

ZeldaWave* yaze::zelda3::music::Tracker::waves

private

Definition at line 274 of file tracker.h.

◆ insts

ZeldaInstrument* yaze::zelda3::music::Tracker::insts

private

Definition at line 275 of file tracker.h.

◆ sndinsts

ZeldaSfxInstrument* yaze::zelda3::music::Tracker::sndinsts

private

Definition at line 276 of file tracker.h.

The documentation for this class was generated from the following files:

src/app/zelda3/music/tracker.h
src/app/zelda3/music/tracker.cc

	yaze 0.3.2 Link to the Past ROM Editor

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Function Documentation

◆ AllocSpcBlock()

◆ GetSpcAddr()

◆ AllocSpcCommand()

◆ GetBlockTime()

◆ SaveSpcCommand()

◆ LoadSpcCommand()

◆ SaveSongs()

◆ LoadSongs()

◆ WriteSpcData()

◆ EditTrack()

◆ NewSR()

◆ GetSpcCommand()

Member Data Documentation

◆ modf

◆ mark_sr

◆ mark_start

◆ mark_end

◆ mark_first

◆ mark_last

◆ numwave

◆ numinst

◆ numsndinst

◆ sndinit

◆ sndlen1

◆ sndlen2

◆ m_ofs

◆ w_modf

◆ ss_num

◆ ss_size

◆ op_len

◆ snddat1

◆ snddat2

◆ ss_next

◆ spclen

◆ numseg

◆ spcbank

◆ lastsr

◆ ss_lasttime

◆ srnum

◆ srsize

◆ numsong

◆ m_size

◆ m_free

◆ m_modf

◆ m_loaded

◆ t_loaded

◆ t_modf

◆ withhead

◆ t_number

◆ songs

◆ sp_mark

◆ song_range_

◆ current_spc_command_

◆ ssblt

◆ waves

◆ insts

◆ sndinsts
