yaze::editor::WaterFillPanel Class Reference

#include <water_fill_panel.h>

Inheritance diagram for yaze::editor::WaterFillPanel:

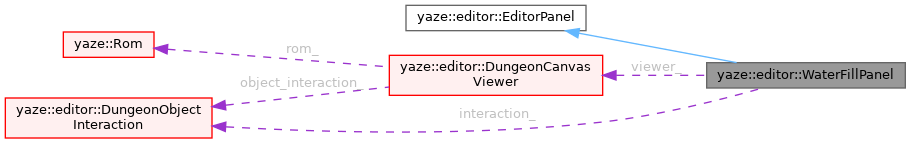

Collaboration diagram for yaze::editor::WaterFillPanel:

Public Member Functions
	WaterFillPanel (DungeonCanvasViewer *viewer, DungeonObjectInteraction *interaction)
std::string	GetId () const override
	Unique identifier for this panel.
std::string	GetDisplayName () const override
	Human-readable name shown in menus and title bars.
std::string	GetIcon () const override
	Material Design icon for this panel.
std::string	GetEditorCategory () const override
	Editor category this panel belongs to.
void	SetCanvasViewer (DungeonCanvasViewer *viewer)
void	SetInteraction (DungeonObjectInteraction *interaction)
void	Draw (bool *p_open) override
	Draw the panel content.
Public Member Functions inherited from yaze::editor::EditorPanel
virtual	~EditorPanel ()=default
virtual void	OnFirstDraw ()
	Called once before the first Draw() in a session.
virtual bool	RequiresLazyInit () const
	Whether this panel uses lazy initialization.
void	InvalidateLazyInit ()
	Reset lazy init state so OnFirstDraw() runs again.
virtual void	OnOpen ()
	Called when panel becomes visible.
virtual void	OnClose ()
	Called when panel is hidden.
virtual void	OnFocus ()
	Called when panel receives focus.
virtual PanelCategory	GetPanelCategory () const
	Get the lifecycle category for this panel.
virtual PanelContextScope	GetContextScope () const
	Optional context binding for this panel (room/selection/etc)
virtual PanelScope	GetScope () const
	Get the registration scope for this panel.
virtual bool	IsEnabled () const
	Check if this panel is currently enabled.
virtual std::string	GetDisabledTooltip () const
	Get tooltip text when panel is disabled.
virtual std::string	GetShortcutHint () const
	Get keyboard shortcut hint for display.
virtual int	GetPriority () const
	Get display priority for menu ordering.
virtual float	GetPreferredWidth () const
	Get preferred width for this panel (optional)
virtual bool	IsVisibleByDefault () const
	Whether this panel should be visible by default.
virtual std::string	GetParentPanelId () const
	Get parent panel ID for cascade behavior.
virtual bool	CascadeCloseChildren () const
	Whether closing this panel should close child panels.
void	DrawWithLazyInit (bool *p_open)
	Execute lazy initialization if needed, then call Draw()

Static Private Member Functions
static std::vector< zelda3::WaterFillZoneEntry >	CollectZones (const std::array< zelda3::Room, 0x128 > &rooms)
static void	ApplyZoneToRoom (const zelda3::WaterFillZoneEntry &z, zelda3::Room *room)

Private Attributes
std::string	last_io_status_
std::string	last_io_error_
DungeonCanvasViewer *	viewer_ = nullptr
DungeonObjectInteraction *	interaction_ = nullptr

Additional Inherited Members
Protected Member Functions inherited from yaze::editor::EditorPanel
void	InvalidateCache ()
	Invalidate all cached computations.
template<typename T >
T &	GetCached (const std::string &key, std::function< T()> compute)
	Get or compute a cached value.
bool	IsCacheValid () const
	Check if cache has been invalidated.
void	ClearCache ()
	Clear all cached values (more aggressive than InvalidateCache)

Detailed Description

Definition at line 25 of file water_fill_panel.h.

Constructor & Destructor Documentation

WaterFillPanel()

yaze::editor::WaterFillPanel::WaterFillPanel ( DungeonCanvasViewer * viewer, DungeonObjectInteraction * interaction )

inline

Definition at line 27 of file water_fill_panel.h.

Member Function Documentation

GetId()

std::string yaze::editor::WaterFillPanel::GetId ( ) const

inlineoverridevirtual

Unique identifier for this panel.

Returns

Panel ID in format "{category}.{name}" (e.g., "dungeon.room_selector")

IDs should be:

• Lowercase with underscores
• Prefixed with editor category
• Unique across all panels

Implements yaze::editor::EditorPanel.

Definition at line 31 of file water_fill_panel.h.

GetDisplayName()

std::string yaze::editor::WaterFillPanel::GetDisplayName ( ) const

inlineoverridevirtual

Human-readable name shown in menus and title bars.

Returns

Display name (e.g., "Room Selector")

Implements yaze::editor::EditorPanel.

Definition at line 32 of file water_fill_panel.h.

GetIcon()

std::string yaze::editor::WaterFillPanel::GetIcon ( ) const

inlineoverridevirtual

Material Design icon for this panel.

Returns

Icon constant (e.g., ICON_MD_LIST)

Implements yaze::editor::EditorPanel.

Definition at line 33 of file water_fill_panel.h.

References ICON_MD_WATER_DROP.

GetEditorCategory()

std::string yaze::editor::WaterFillPanel::GetEditorCategory ( ) const

inlineoverridevirtual

Editor category this panel belongs to.

Returns

Category name matching EditorType (e.g., "Dungeon", "Overworld")

Implements yaze::editor::EditorPanel.

Definition at line 34 of file water_fill_panel.h.

SetCanvasViewer()

void yaze::editor::WaterFillPanel::SetCanvasViewer ( DungeonCanvasViewer * viewer )

inline

Definition at line 36 of file water_fill_panel.h.

References viewer_.

Referenced by yaze::editor::DungeonEditorV2::~DungeonEditorV2().

SetInteraction()

void yaze::editor::WaterFillPanel::SetInteraction ( DungeonObjectInteraction * interaction )

inline

Definition at line 37 of file water_fill_panel.h.

References interaction_.

Referenced by yaze::editor::DungeonEditorV2::~DungeonEditorV2().

Draw()

void yaze::editor::WaterFillPanel::Draw ( bool * p_open )

inlineoverridevirtual

Draw the panel content.

Parameters

p_open

Pointer to visibility flag (nullptr if not closable)

Called by PanelManager when the panel is visible. Do NOT call ImGui::Begin/End - the PanelWindow wrapper handles that. Just draw your content directly.

Implements yaze::editor::EditorPanel.

Definition at line 41 of file water_fill_panel.h.

References ApplyZoneToRoom(), yaze::editor::DungeonCanvasViewer::CanNavigateRooms(), CollectZones(), yaze::editor::DungeonCanvasViewer::current_room_id(), yaze::zelda3::DumpWaterFillZonesToJsonString(), yaze::util::FileDialogOptions::filters, yaze::editor::InteractionModeManager::GetMode(), yaze::editor::InteractionModeManager::GetModeState(), yaze::editor::AgentUI::GetTheme(), yaze::editor::DungeonCanvasViewer::HasRooms(), yaze::zelda3::HasWaterFillReservedRegion(), ICON_MD_CHECK_CIRCLE, ICON_MD_DOWNLOAD, ICON_MD_ERROR, ICON_MD_INFO, ICON_MD_TUNE, ICON_MD_UPLOAD, ICON_MD_WARNING, interaction_, yaze::Rom::is_loaded(), yaze::zelda3::kWaterFillTableEnd, last_io_error_, last_io_status_, yaze::util::LoadFile(), yaze::zelda3::LoadWaterFillZonesFromJsonString(), yaze::editor::DungeonObjectInteraction::mode_manager(), yaze::editor::DungeonCanvasViewer::NavigateToRoom(), yaze::zelda3::NormalizeWaterFillZoneMasks(), yaze::editor::PaintWaterFill, yaze::editor::DungeonCanvasViewer::rom(), yaze::editor::DungeonCanvasViewer::rooms(), yaze::editor::Select, yaze::editor::DungeonCanvasViewer::set_show_water_fill_overlay(), yaze::editor::InteractionModeManager::SetMode(), yaze::editor::DungeonCanvasViewer::show_water_fill_overlay(), yaze::util::FileDialogWrapper::ShowOpenFileDialog(), yaze::util::FileDialogWrapper::ShowSaveFileDialog(), yaze::Rom::vector(), and viewer_.

CollectZones()

static std::vector< zelda3::WaterFillZoneEntry > yaze::editor::WaterFillPanel::CollectZones ( const std::array< zelda3::Room, 0x128 > & rooms )

inlinestaticprivate

Definition at line 420 of file water_fill_panel.h.

References yaze::zelda3::WaterFillZoneEntry::fill_offsets, yaze::zelda3::WaterFillZoneEntry::room_id, and yaze::zelda3::WaterFillZoneEntry::sram_bit_mask.

Referenced by Draw().

ApplyZoneToRoom()

static void yaze::editor::WaterFillPanel::ApplyZoneToRoom ( const zelda3::WaterFillZoneEntry & z, zelda3::Room * room )

inlinestaticprivate

Definition at line 447 of file water_fill_panel.h.

References yaze::zelda3::Room::ClearWaterFillZone(), yaze::zelda3::WaterFillZoneEntry::fill_offsets, yaze::zelda3::Room::set_water_fill_sram_bit_mask(), yaze::zelda3::Room::SetWaterFillTile(), and yaze::zelda3::WaterFillZoneEntry::sram_bit_mask.

Referenced by Draw().

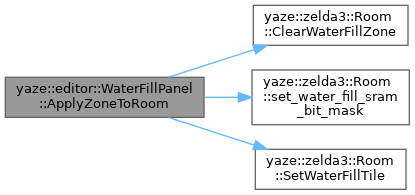

Here is the call graph for this function:

Member Data Documentation

last_io_status_

std::string yaze::editor::WaterFillPanel::last_io_status_

private

Definition at line 461 of file water_fill_panel.h.

Referenced by Draw().

last_io_error_

std::string yaze::editor::WaterFillPanel::last_io_error_

private

Definition at line 462 of file water_fill_panel.h.

Referenced by Draw().

viewer_

DungeonCanvasViewer* yaze::editor::WaterFillPanel::viewer_ = nullptr

private

Definition at line 464 of file water_fill_panel.h.

Referenced by Draw(), and SetCanvasViewer().

interaction_

DungeonObjectInteraction* yaze::editor::WaterFillPanel::interaction_ = nullptr

private

Definition at line 465 of file water_fill_panel.h.

Referenced by Draw(), and SetInteraction().

---

The documentation for this class was generated from the following file:

• src/app/editor/dungeon/panels/water_fill_panel.h
