yaze::editor::InteractionContext Struct Reference

Shared context for all interaction handlers. More...

#include <interaction_context.h>

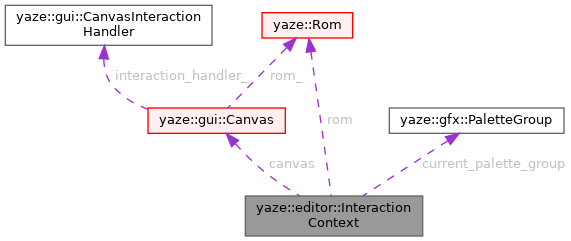

Collaboration diagram for yaze::editor::InteractionContext:

Public Member Functions
bool	IsValid () const
	Check if context has required dependencies.
zelda3::Room *	GetCurrentRoom () const
	Get pointer to current room.
const zelda3::Room *	GetCurrentRoomConst () const
	Get const pointer to current room.
void	NotifyMutation (MutationDomain domain=MutationDomain::kUnknown) const
	Notify that a mutation is about to happen.
void	NotifyInvalidateCache (MutationDomain domain=MutationDomain::kUnknown) const
	Notify that cache invalidation is needed.
void	NotifySelectionChanged () const
	Notify that selection has changed.
void	NotifyEntityChanged () const
	Notify that entity has changed.

Public Attributes
gui::Canvas *	canvas = nullptr
Rom *	rom = nullptr
std::array< zelda3::Room, dungeon_coords::kRoomCount > *	rooms = nullptr
int	current_room_id = 0
ObjectSelection *	selection = nullptr
gfx::PaletteGroup	current_palette_group
std::function< void()>	on_mutation
std::function< void()>	on_invalidate_cache
std::function< void()>	on_selection_changed
std::function< void()>	on_entity_changed
MutationDomain	last_mutation_domain = MutationDomain::kUnknown
MutationDomain	last_invalidation_domain = MutationDomain::kUnknown

Detailed Description

Shared context for all interaction handlers.

This struct provides a unified way to pass dependencies and callbacks to all interaction handlers, replacing the previous pattern of multiple individual setter methods.

Usage: InteractionContext ctx; ctx.canvas = &canvas_; ctx.rom = rom_; ctx.rooms = &rooms_; ctx.current_room_id = room_id; ctx.on_mutation = [this]() { PushUndoSnapshot(); }; handler.SetContext(&ctx);

Definition at line 75 of file interaction_context.h.

Member Function Documentation

IsValid()

bool yaze::editor::InteractionContext::IsValid ( ) const

inline

Check if context has required dependencies.

Definition at line 107 of file interaction_context.h.

References canvas, and rooms.

Referenced by yaze::editor::BaseEntityHandler::HasValidContext().

GetCurrentRoom()

zelda3::Room * yaze::editor::InteractionContext::GetCurrentRoom ( ) const

inline

Get pointer to current room.

Returns

Pointer to room, or nullptr if invalid

Definition at line 113 of file interaction_context.h.

References current_room_id, yaze::editor::dungeon_coords::IsValidRoomId(), and rooms.

Referenced by yaze::editor::BaseEntityHandler::GetCurrentRoom().

Here is the call graph for this function:

GetCurrentRoomConst()

const zelda3::Room * yaze::editor::InteractionContext::GetCurrentRoomConst ( ) const

inline

Get const pointer to current room.

Returns

Const pointer to room, or nullptr if invalid

Definition at line 124 of file interaction_context.h.

References current_room_id, yaze::editor::dungeon_coords::IsValidRoomId(), and rooms.

Referenced by yaze::editor::DoorInteractionHandler::GetEntityAtPosition(), yaze::editor::ItemInteractionHandler::GetEntityAtPosition(), and yaze::editor::SpriteInteractionHandler::GetEntityAtPosition().

Here is the call graph for this function:

NotifyMutation()

void yaze::editor::InteractionContext::NotifyMutation ( MutationDomain domain = MutationDomain::kUnknown ) const

inline

Notify that a mutation is about to happen.

Call this before making any changes to room data. This allows the editor to capture undo snapshots.

Definition at line 137 of file interaction_context.h.

References last_mutation_domain, and on_mutation.

Referenced by yaze::editor::TileObjectHandler::DeleteAllObjects(), yaze::editor::TileObjectHandler::DeleteObjects(), yaze::editor::DoorInteractionHandler::DeleteSelected(), yaze::editor::ItemInteractionHandler::DeleteSelected(), yaze::editor::SpriteInteractionHandler::DeleteSelected(), yaze::editor::TileObjectHandler::DuplicateObjects(), yaze::editor::TileObjectHandler::HandleDrag(), yaze::editor::DoorInteractionHandler::HandleRelease(), yaze::editor::ItemInteractionHandler::HandleRelease(), yaze::editor::SpriteInteractionHandler::HandleRelease(), yaze::editor::TileObjectHandler::MoveBackward(), yaze::editor::TileObjectHandler::MoveForward(), yaze::editor::TileObjectHandler::MoveObjects(), yaze::editor::TileObjectHandler::PasteFromClipboard(), yaze::editor::DoorInteractionHandler::PlaceDoorAtSnappedPosition(), yaze::editor::ItemInteractionHandler::PlaceItemAtPosition(), yaze::editor::TileObjectHandler::PlaceObjectAt(), yaze::editor::SpriteInteractionHandler::PlaceSpriteAtPosition(), yaze::editor::TileObjectHandler::ResizeObjects(), yaze::editor::TileObjectHandler::SendToBack(), yaze::editor::TileObjectHandler::SendToFront(), yaze::editor::DungeonObjectInteraction::UpdateCollisionPainting(), yaze::editor::TileObjectHandler::UpdateObjectsId(), yaze::editor::TileObjectHandler::UpdateObjectsLayer(), and yaze::editor::TileObjectHandler::UpdateObjectsSize().

NotifyInvalidateCache()

void yaze::editor::InteractionContext::NotifyInvalidateCache ( MutationDomain domain = MutationDomain::kUnknown ) const

inline

Notify that cache invalidation is needed.

Call this after changes that require re-rendering.

Definition at line 147 of file interaction_context.h.

References last_invalidation_domain, and on_invalidate_cache.

Referenced by yaze::editor::DoorInteractionHandler::DeleteSelected(), yaze::editor::ItemInteractionHandler::DeleteSelected(), yaze::editor::SpriteInteractionHandler::DeleteSelected(), yaze::editor::DoorInteractionHandler::HandleRelease(), yaze::editor::TileObjectHandler::HandleRelease(), yaze::editor::TileObjectHandler::NotifyChange(), yaze::editor::DoorInteractionHandler::PlaceDoorAtSnappedPosition(), yaze::editor::ItemInteractionHandler::PlaceItemAtPosition(), yaze::editor::SpriteInteractionHandler::PlaceSpriteAtPosition(), and yaze::editor::DungeonObjectInteraction::UpdateCollisionPainting().

NotifySelectionChanged()

void yaze::editor::InteractionContext::NotifySelectionChanged ( ) const

inline

Notify that selection has changed.

Definition at line 156 of file interaction_context.h.

References on_selection_changed.

NotifyEntityChanged()

void yaze::editor::InteractionContext::NotifyEntityChanged ( ) const

inline

Notify that entity has changed.

Definition at line 163 of file interaction_context.h.

References on_entity_changed.

Referenced by yaze::editor::InteractionCoordinator::ClearEntitySelection(), yaze::editor::ItemInteractionHandler::HandleRelease(), yaze::editor::SpriteInteractionHandler::HandleRelease(), yaze::editor::DoorInteractionHandler::SelectDoor(), yaze::editor::ItemInteractionHandler::SelectItem(), and yaze::editor::SpriteInteractionHandler::SelectSprite().

Member Data Documentation

canvas

gui::Canvas* yaze::editor::InteractionContext::canvas = nullptr

Definition at line 77 of file interaction_context.h.

Referenced by yaze::editor::DoorInteractionHandler::DrawGhostPreview(), yaze::editor::ItemInteractionHandler::DrawGhostPreview(), yaze::editor::SpriteInteractionHandler::DrawGhostPreview(), yaze::editor::TileObjectHandler::DrawSelectionHighlight(), yaze::editor::DungeonObjectInteraction::DungeonObjectInteraction(), yaze::editor::BaseEntityHandler::GetCanvasScale(), yaze::editor::BaseEntityHandler::GetCanvasZeroPoint(), yaze::editor::TileObjectHandler::HandleMarqueeSelection(), IsValid(), and yaze::editor::DungeonObjectInteraction::SetContext().

rom

Rom* yaze::editor::InteractionContext::rom = nullptr

Definition at line 78 of file interaction_context.h.

Referenced by yaze::editor::TileObjectHandler::RenderGhostPreviewBitmap(), and yaze::editor::DungeonObjectInteraction::SetRom().

rooms

std::array<zelda3::Room, dungeon_coords::kRoomCount>* yaze::editor::InteractionContext::rooms = nullptr

Definition at line 79 of file interaction_context.h.

Referenced by GetCurrentRoom(), GetCurrentRoomConst(), yaze::editor::TileObjectHandler::GetRoom(), and IsValid().

current_room_id

int yaze::editor::InteractionContext::current_room_id = 0

Definition at line 80 of file interaction_context.h.

Referenced by yaze::editor::TileObjectHandler::DrawGhostPreview(), GetCurrentRoom(), GetCurrentRoomConst(), yaze::editor::TileObjectHandler::GetEntityAtPosition(), yaze::editor::TileObjectHandler::HandleClick(), yaze::editor::TileObjectHandler::HandleDrag(), yaze::editor::TileObjectHandler::HandleMarqueeSelection(), yaze::editor::TileObjectHandler::HandleMouseWheel(), and yaze::editor::TileObjectHandler::RenderGhostPreviewBitmap().

selection

ObjectSelection* yaze::editor::InteractionContext::selection = nullptr

Definition at line 81 of file interaction_context.h.

Referenced by yaze::editor::TileObjectHandler::BeginMarqueeSelection(), yaze::editor::TileObjectHandler::DrawSelectionHighlight(), yaze::editor::DungeonObjectInteraction::DungeonObjectInteraction(), yaze::editor::TileObjectHandler::GetEntityAtPosition(), yaze::editor::InteractionCoordinator::HandleClick(), yaze::editor::TileObjectHandler::HandleClick(), yaze::editor::InteractionCoordinator::HandleDrag(), yaze::editor::TileObjectHandler::HandleDrag(), yaze::editor::TileObjectHandler::HandleMarqueeSelection(), yaze::editor::TileObjectHandler::HandleMouseWheel(), yaze::editor::InteractionCoordinator::SelectEntity(), and yaze::editor::DungeonObjectInteraction::SetContext().

current_palette_group

gfx::PaletteGroup yaze::editor::InteractionContext::current_palette_group

Definition at line 84 of file interaction_context.h.

Referenced by yaze::editor::TileObjectHandler::RenderGhostPreviewBitmap(), and yaze::editor::DungeonObjectInteraction::SetCurrentPaletteGroup().

on_mutation

std::function<void()> yaze::editor::InteractionContext::on_mutation

Definition at line 88 of file interaction_context.h.

Referenced by NotifyMutation(), and yaze::editor::DungeonObjectInteraction::SetMutationCallback().

on_invalidate_cache

std::function<void()> yaze::editor::InteractionContext::on_invalidate_cache

Definition at line 91 of file interaction_context.h.

Referenced by NotifyInvalidateCache(), and yaze::editor::DungeonObjectInteraction::SetCacheInvalidationCallback().

on_selection_changed

std::function<void()> yaze::editor::InteractionContext::on_selection_changed

Definition at line 94 of file interaction_context.h.

Referenced by NotifySelectionChanged().

on_entity_changed

std::function<void()> yaze::editor::InteractionContext::on_entity_changed

Definition at line 97 of file interaction_context.h.

Referenced by NotifyEntityChanged(), and yaze::editor::DungeonObjectInteraction::SetEntityChangedCallback().

last_mutation_domain

MutationDomain yaze::editor::InteractionContext::last_mutation_domain = MutationDomain::kUnknown

mutable

Definition at line 101 of file interaction_context.h.

Referenced by yaze::editor::DungeonObjectInteraction::last_mutation_domain(), and NotifyMutation().

last_invalidation_domain

MutationDomain yaze::editor::InteractionContext::last_invalidation_domain = MutationDomain::kUnknown

mutable

Definition at line 102 of file interaction_context.h.

Referenced by yaze::editor::DungeonObjectInteraction::last_invalidation_domain(), and NotifyInvalidateCache().

---

The documentation for this struct was generated from the following file:

• src/app/editor/dungeon/interaction/interaction_context.h
