Coordinate conversion utilities for dungeon editing. More...

Classes
struct	CameraToLocalResult
	Convert camera coordinates back to room ID and local position. More...

Functions
std::pair< int, int >	RoomToCanvas (int room_x, int room_y)
	Convert room tile coordinates to canvas pixel coordinates.

std::pair< int, int >	CanvasToRoom (int canvas_x, int canvas_y)
	Convert canvas pixel coordinates to room tile coordinates.

std::pair< int, int >	ScreenToCanvas (int screen_x, int screen_y, float scale)
	Convert screen coordinates to canvas coordinates (undo scale)

std::pair< int, int >	CanvasToScreen (int canvas_x, int canvas_y, float scale)
	Convert canvas coordinates to screen coordinates (apply scale)

bool	IsWithinBounds (int canvas_x, int canvas_y, int margin=0)
	Check if coordinates are within room bounds.

std::pair< int, int >	ClampToRoom (int room_x, int room_y)
	Clamp room tile coordinates to valid range.

bool	IsValidRoomId (int room_id)
	Validate room ID is within valid range.

std::pair< int, int >	RoomIdToGridPosition (int room_id)
	Get the grid position (column, row) for a room ID.

uint16_t	CalculateCameraX (int room_id, int local_pixel_x)
	Calculate absolute camera X coordinate from room and local position.

uint16_t	CalculateCameraY (int room_id, int local_pixel_y)
	Calculate absolute camera Y coordinate from room and local position.

std::pair< uint16_t, uint16_t >	TileToCameraCoords (int room_id, int tile_x, int tile_y)
	Calculate camera coordinates from room and tile position.

CameraToLocalResult	CameraToLocalCoords (uint16_t camera_x, uint16_t camera_y)

std::pair< uint16_t, uint16_t >	SpriteToCameraCoords (int room_id, int sprite_x, int sprite_y)
	Calculate sprite-format coordinates (16-pixel units)

Variables
constexpr int	kTileSize = 8

constexpr int	kRoomTileWidth = 64

constexpr int	kRoomTileHeight = 64

constexpr int	kRoomPixelWidth = 512

constexpr int	kRoomPixelHeight = 512

constexpr int	kRoomCount = 0x128

constexpr int	kEntranceCount = 0x8C

constexpr int	kSpriteTileSize = 16

constexpr int	kSpriteGridMax = 31

constexpr uint16_t	kCameraBaseOffset = 0x1000

constexpr int	kDungeonGridWidth = 16

Detailed Description

Coordinate conversion utilities for dungeon editing.

Dungeon coordinate systems:

Room coordinates: Tile units (0-63 per axis, 8px per tile)
Canvas coordinates: Unscaled pixels relative to canvas origin
Screen coordinates: Scaled pixels relative to window
Camera coordinates: Absolute world position (16-bit, used by sprites/tracks)

Camera Coordinate System:

Base offset: $1000 (4096) for dungeons
Room grid: 16 columns x 16 rows (256 room slots, though not all used)
Each room is 512x512 pixels (2 "screens" in each dimension)
Camera X = base + (room_col * 512) + local_pixel_x
Camera Y = base + (room_row * 512) + local_pixel_y

All conversion functions work with UNSCALED canvas coordinates. Canvas drawing functions apply scale internally.

Function Documentation

◆ RoomToCanvas()

std::pair< int, int > yaze::editor::dungeon_coords::RoomToCanvas	(	int	room_x,
		int	room_y )

inline

Convert room tile coordinates to canvas pixel coordinates.

Parameters

room_x	Room X coordinate (0-63)
room_y	Room Y coordinate (0-63)

Returns: Unscaled canvas pixel coordinates

Definition at line 54 of file dungeon_coordinates.h.

References kTileSize.

Referenced by yaze::editor::BaseEntityHandler::RoomToCanvas().

◆ CanvasToRoom()

std::pair< int, int > yaze::editor::dungeon_coords::CanvasToRoom	(	int	canvas_x,
		int	canvas_y )

inline

Convert canvas pixel coordinates to room tile coordinates.

Parameters

canvas_x	Canvas X coordinate (unscaled pixels)
canvas_y	Canvas Y coordinate (unscaled pixels)

Returns: Room tile coordinates (0-63)

Definition at line 64 of file dungeon_coordinates.h.

References kTileSize.

Referenced by yaze::editor::BaseEntityHandler::CanvasToRoom().

◆ ScreenToCanvas()

std::pair< int, int > yaze::editor::dungeon_coords::ScreenToCanvas	(	int	screen_x,
		int	screen_y,
		float	scale )

inline

Convert screen coordinates to canvas coordinates (undo scale)

Parameters

screen_x	Screen X position (scaled)
screen_y	Screen Y position (scaled)
scale	Current canvas scale factor

Returns: Unscaled canvas coordinates

Definition at line 75 of file dungeon_coordinates.h.

◆ CanvasToScreen()

std::pair< int, int > yaze::editor::dungeon_coords::CanvasToScreen	(	int	canvas_x,
		int	canvas_y,
		float	scale )

inline

Convert canvas coordinates to screen coordinates (apply scale)

Parameters

canvas_x	Canvas X coordinate (unscaled)
canvas_y	Canvas Y coordinate (unscaled)
scale	Current canvas scale factor

Returns: Scaled screen coordinates

Definition at line 89 of file dungeon_coordinates.h.

◆ IsWithinBounds()

bool yaze::editor::dungeon_coords::IsWithinBounds	(	int	canvas_x,
		int	canvas_y,
		int	margin = 0 )

inline

Check if coordinates are within room bounds.

Parameters

canvas_x	Canvas X coordinate (unscaled pixels)
canvas_y	Canvas Y coordinate (unscaled pixels)
margin	Optional margin in pixels (default 0)

Definition at line 101 of file dungeon_coordinates.h.

References kRoomPixelHeight, and kRoomPixelWidth.

Referenced by yaze::editor::BaseEntityHandler::IsWithinBounds().

◆ ClampToRoom()

std::pair< int, int > yaze::editor::dungeon_coords::ClampToRoom	(	int	room_x,
		int	room_y )

inline

Clamp room tile coordinates to valid range.

Parameters

room_x	Room X coordinate (will be clamped to 0-63)
room_y	Room Y coordinate (will be clamped to 0-63)

Returns: Clamped room coordinates

Definition at line 113 of file dungeon_coordinates.h.

References kRoomTileHeight, and kRoomTileWidth.

◆ IsValidRoomId()

bool yaze::editor::dungeon_coords::IsValidRoomId ( int room_id )

inline

Validate room ID is within valid range.

Parameters

room_id Room ID to validate

Returns: true if valid (0 to 295)

Definition at line 126 of file dungeon_coordinates.h.

References kRoomCount.

Referenced by yaze::editor::InteractionContext::GetCurrentRoom(), and yaze::editor::InteractionContext::GetCurrentRoomConst().

◆ RoomIdToGridPosition()

std::pair< int, int > yaze::editor::dungeon_coords::RoomIdToGridPosition ( int room_id )

inline

Get the grid position (column, row) for a room ID.

Parameters

room_id Room ID (0-295)

Returns: Pair of (column, row) in dungeon grid

Definition at line 139 of file dungeon_coordinates.h.

References kDungeonGridWidth.

Referenced by CalculateCameraX(), and CalculateCameraY().

◆ CalculateCameraX()

uint16_t yaze::editor::dungeon_coords::CalculateCameraX	(	int	room_id,
		int	local_pixel_x )

inline

Calculate absolute camera X coordinate from room and local position.

This is the format used by sprites, minecart tracks, and other game entities that need absolute world positioning.

Parameters

room_id	Room ID (0-295)
local_pixel_x	Local X position within room (0-511 pixels)

Returns: 16-bit camera X coordinate

Definition at line 153 of file dungeon_coordinates.h.

References kCameraBaseOffset, kRoomPixelWidth, and RoomIdToGridPosition().

Referenced by SpriteToCameraCoords(), and TileToCameraCoords().

Here is the call graph for this function:

◆ CalculateCameraY()

uint16_t yaze::editor::dungeon_coords::CalculateCameraY	(	int	room_id,
		int	local_pixel_y )

inline

Calculate absolute camera Y coordinate from room and local position.

Parameters

room_id	Room ID (0-295)
local_pixel_y	Local Y position within room (0-511 pixels)

Returns: 16-bit camera Y coordinate

Definition at line 165 of file dungeon_coordinates.h.

References kCameraBaseOffset, kRoomPixelWidth, and RoomIdToGridPosition().

Referenced by SpriteToCameraCoords(), and TileToCameraCoords().

Here is the call graph for this function:

◆ TileToCameraCoords()

std::pair< uint16_t, uint16_t > yaze::editor::dungeon_coords::TileToCameraCoords	(	int	room_id,
		int	tile_x,
		int	tile_y )

inline

Calculate camera coordinates from room and tile position.

Convenience function that converts tile coordinates to camera coordinates.

Parameters

room_id	Room ID (0-295)
tile_x	Tile X position within room (0-63)
tile_y	Tile Y position within room (0-63)

Returns: Pair of (camera_x, camera_y) 16-bit coordinates

Definition at line 180 of file dungeon_coordinates.h.

References CalculateCameraX(), CalculateCameraY(), and kTileSize.

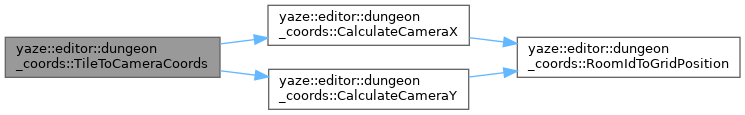

Here is the call graph for this function:

◆ CameraToLocalCoords()

CameraToLocalResult yaze::editor::dungeon_coords::CameraToLocalCoords	(	uint16_t	camera_x,
		uint16_t	camera_y )

inline

Definition at line 204 of file dungeon_coordinates.h.

References kCameraBaseOffset, kDungeonGridWidth, kRoomPixelHeight, kRoomPixelWidth, and kTileSize.

◆ SpriteToCameraCoords()

std::pair< uint16_t, uint16_t > yaze::editor::dungeon_coords::SpriteToCameraCoords	(	int	room_id,
		int	sprite_x,
		int	sprite_y )

inline

Calculate sprite-format coordinates (16-pixel units)

Sprites use a different coordinate format with 16-pixel granularity.

Parameters

room_id	Room ID (0-295)
sprite_x	Sprite X position (0-31)
sprite_y	Sprite Y position (0-31)

Returns: Pair of (camera_x, camera_y) 16-bit coordinates

Definition at line 241 of file dungeon_coordinates.h.

References CalculateCameraX(), CalculateCameraY(), and kSpriteTileSize.

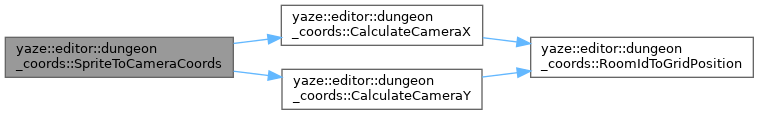

Here is the call graph for this function:

Variable Documentation

◆ kTileSize

constexpr int yaze::editor::dungeon_coords::kTileSize = 8

constexpr

Definition at line 32 of file dungeon_coordinates.h.

Referenced by CameraToLocalCoords(), CanvasToRoom(), yaze::editor::ItemInteractionHandler::DrawGhostPreview(), yaze::editor::ItemInteractionHandler::DrawSelectionHighlight(), RoomToCanvas(), and TileToCameraCoords().

◆ kRoomTileWidth

constexpr int yaze::editor::dungeon_coords::kRoomTileWidth = 64

constexpr

Definition at line 33 of file dungeon_coordinates.h.

Referenced by ClampToRoom().

◆ kRoomTileHeight

constexpr int yaze::editor::dungeon_coords::kRoomTileHeight = 64

constexpr

Definition at line 34 of file dungeon_coordinates.h.

Referenced by ClampToRoom().

◆ kRoomPixelWidth

constexpr int yaze::editor::dungeon_coords::kRoomPixelWidth = 512

constexpr

Definition at line 35 of file dungeon_coordinates.h.

Referenced by CalculateCameraX(), CalculateCameraY(), CameraToLocalCoords(), and IsWithinBounds().

◆ kRoomPixelHeight

constexpr int yaze::editor::dungeon_coords::kRoomPixelHeight = 512

constexpr

Definition at line 36 of file dungeon_coordinates.h.

Referenced by CameraToLocalCoords(), and IsWithinBounds().

◆ kRoomCount

constexpr int yaze::editor::dungeon_coords::kRoomCount = 0x128

constexpr

Definition at line 37 of file dungeon_coordinates.h.

Referenced by IsValidRoomId().

◆ kEntranceCount

constexpr int yaze::editor::dungeon_coords::kEntranceCount = 0x8C

constexpr

Definition at line 38 of file dungeon_coordinates.h.

◆ kSpriteTileSize

constexpr int yaze::editor::dungeon_coords::kSpriteTileSize = 16

constexpr

Definition at line 41 of file dungeon_coordinates.h.

Referenced by yaze::editor::SpriteInteractionHandler::CanvasToSpriteCoords(), yaze::editor::SpriteInteractionHandler::DrawGhostPreview(), yaze::editor::SpriteInteractionHandler::DrawSelectionHighlight(), yaze::editor::SpriteInteractionHandler::GetEntityAtPosition(), and SpriteToCameraCoords().

◆ kSpriteGridMax

constexpr int yaze::editor::dungeon_coords::kSpriteGridMax = 31

constexpr

Definition at line 42 of file dungeon_coordinates.h.

Referenced by yaze::editor::SpriteInteractionHandler::DrawSelectionHighlight(), yaze::editor::SpriteInteractionHandler::HandleRelease(), and yaze::editor::SpriteInteractionHandler::PlaceSpriteAtPosition().

◆ kCameraBaseOffset

constexpr uint16_t yaze::editor::dungeon_coords::kCameraBaseOffset = 0x1000

constexpr

Definition at line 45 of file dungeon_coordinates.h.

Referenced by CalculateCameraX(), CalculateCameraY(), and CameraToLocalCoords().

◆ kDungeonGridWidth

constexpr int yaze::editor::dungeon_coords::kDungeonGridWidth = 16

constexpr

Definition at line 46 of file dungeon_coordinates.h.

Referenced by CameraToLocalCoords(), and RoomIdToGridPosition().

	yaze 0.3.2 Link to the Past ROM Editor

Classes

Functions

Variables

Detailed Description

Function Documentation

◆ RoomToCanvas()

◆ CanvasToRoom()

◆ ScreenToCanvas()

◆ CanvasToScreen()

◆ IsWithinBounds()

◆ ClampToRoom()

◆ IsValidRoomId()

◆ RoomIdToGridPosition()

◆ CalculateCameraX()

◆ CalculateCameraY()

◆ TileToCameraCoords()

◆ CameraToLocalCoords()

◆ SpriteToCameraCoords()

Variable Documentation

◆ kTileSize

◆ kRoomTileWidth

◆ kRoomTileHeight

◆ kRoomPixelWidth

◆ kRoomPixelHeight

◆ kRoomCount

◆ kEntranceCount

◆ kSpriteTileSize

◆ kSpriteGridMax

◆ kCameraBaseOffset

◆ kDungeonGridWidth
