EditorPanel for placing and managing dungeon pot items. More...

#include <item_editor_panel.h>

Inheritance diagram for yaze::editor::ItemEditorPanel:

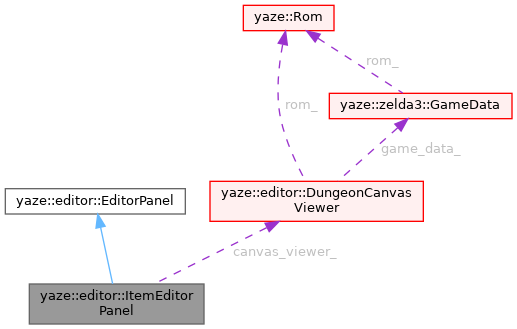

Collaboration diagram for yaze::editor::ItemEditorPanel:

[legend]

Public Member Functions
	ItemEditorPanel (int current_room_id, std::array< zelda3::Room, 0x128 > rooms, DungeonCanvasViewer *canvas_viewer=nullptr)

std::string	GetId () const override
	Unique identifier for this panel.

std::string	GetDisplayName () const override
	Human-readable name shown in menus and title bars.

std::string	GetIcon () const override
	Material Design icon for this panel.

std::string	GetEditorCategory () const override
	Editor category this panel belongs to.

int	GetPriority () const override
	Get display priority for menu ordering.

void	Draw (bool *p_open) override
	Draw the panel content.

void	SetCanvasViewer (DungeonCanvasViewer *viewer)

void	SetItemPlacedCallback (std::function< void(const zelda3::PotItem &)> callback)

Public Member Functions inherited from yaze::editor::EditorPanel
virtual	~EditorPanel ()=default

virtual void	OnFirstDraw ()
	Called once before the first Draw() in a session.

virtual bool	RequiresLazyInit () const
	Whether this panel uses lazy initialization.

void	InvalidateLazyInit ()
	Reset lazy init state so OnFirstDraw() runs again.

virtual void	OnOpen ()
	Called when panel becomes visible.

virtual void	OnClose ()
	Called when panel is hidden.

virtual void	OnFocus ()
	Called when panel receives focus.

virtual PanelCategory	GetPanelCategory () const
	Get the lifecycle category for this panel.

virtual PanelContextScope	GetContextScope () const
	Optional context binding for this panel (room/selection/etc)

virtual PanelScope	GetScope () const
	Get the registration scope for this panel.

virtual bool	IsEnabled () const
	Check if this panel is currently enabled.

virtual std::string	GetDisabledTooltip () const
	Get tooltip text when panel is disabled.

virtual std::string	GetShortcutHint () const
	Get keyboard shortcut hint for display.

virtual float	GetPreferredWidth () const
	Get preferred width for this panel (optional)

virtual bool	IsVisibleByDefault () const
	Whether this panel should be visible by default.

virtual std::string	GetParentPanelId () const
	Get parent panel ID for cascade behavior.

virtual bool	CascadeCloseChildren () const
	Whether closing this panel should close child panels.

void	DrawWithLazyInit (bool *p_open)
	Execute lazy initialization if needed, then call Draw()

Private Member Functions
void	DrawPlacementControls ()

void	DrawItemSelector ()

void	DrawRoomItems ()

ImVec4	GetItemTypeColor (int item_id, const AgentUITheme &theme)

const char *	GetItemTypeIcon (int item_id)

Private Attributes
int *	current_room_id_ = nullptr

std::array< zelda3::Room, 0x128 > *	rooms_ = nullptr

DungeonCanvasViewer *	canvas_viewer_ = nullptr

int	selected_item_id_ = 0

bool	placement_mode_ = false

std::function< void(const zelda3::PotItem &)	item_placed_callback_ )

Static Private Attributes
static constexpr const char *	kPotItemNames []

static constexpr size_t	kPotItemCount = sizeof(kPotItemNames) / sizeof(kPotItemNames[0])

Additional Inherited Members
Protected Member Functions inherited from yaze::editor::EditorPanel
void	InvalidateCache ()
	Invalidate all cached computations.

template<typename T >
T &	GetCached (const std::string &key, std::function< T()> compute)
	Get or compute a cached value.

bool	IsCacheValid () const
	Check if cache has been invalidated.

void	ClearCache ()
	Clear all cached values (more aggressive than InvalidateCache)

Detailed Description

EditorPanel for placing and managing dungeon pot items.

This panel provides item selection and placement functionality for dungeon rooms, similar to ObjectEditorPanel and SpriteEditorPanel.

See also: EditorPanel - Base interface; ObjectEditorPanel - Similar panel for tile objects; SpriteEditorPanel - Similar panel for sprites

Definition at line 32 of file item_editor_panel.h.

Constructor & Destructor Documentation

◆ ItemEditorPanel()

yaze::editor::ItemEditorPanel::ItemEditorPanel	(	int *	current_room_id,
		std::array< zelda3::Room, 0x128 > *	rooms,
		DungeonCanvasViewer *	canvas_viewer = nullptr )

inline

Definition at line 34 of file item_editor_panel.h.

Member Function Documentation

◆ GetId()

std::string yaze::editor::ItemEditorPanel::GetId ( ) const

inlineoverridevirtual

Unique identifier for this panel.

Returns: Panel ID in format "{category}.{name}" (e.g., "dungeon.room_selector")

IDs should be:

Lowercase with underscores
Prefixed with editor category
Unique across all panels

Implements yaze::editor::EditorPanel.

Definition at line 45 of file item_editor_panel.h.

◆ GetDisplayName()

std::string yaze::editor::ItemEditorPanel::GetDisplayName ( ) const

inlineoverridevirtual

Human-readable name shown in menus and title bars.

Returns: Display name (e.g., "Room Selector")

Implements yaze::editor::EditorPanel.

Definition at line 46 of file item_editor_panel.h.

◆ GetIcon()

std::string yaze::editor::ItemEditorPanel::GetIcon ( ) const

inlineoverridevirtual

Material Design icon for this panel.

Returns: Icon constant (e.g., ICON_MD_LIST)

Implements yaze::editor::EditorPanel.

Definition at line 47 of file item_editor_panel.h.

References ICON_MD_INVENTORY.

◆ GetEditorCategory()

std::string yaze::editor::ItemEditorPanel::GetEditorCategory ( ) const

inlineoverridevirtual

Editor category this panel belongs to.

Returns: Category name matching EditorType (e.g., "Dungeon", "Overworld")

Implements yaze::editor::EditorPanel.

Definition at line 48 of file item_editor_panel.h.

◆ GetPriority()

int yaze::editor::ItemEditorPanel::GetPriority ( ) const

inlineoverridevirtual

Get display priority for menu ordering.

Returns: Priority value (lower = higher in list, default 50)

Reimplemented from yaze::editor::EditorPanel.

Definition at line 49 of file item_editor_panel.h.

◆ Draw()

void yaze::editor::ItemEditorPanel::Draw ( bool * p_open )

inlineoverridevirtual

Draw the panel content.

Parameters

p_open Pointer to visibility flag (nullptr if not closable)

Called by PanelManager when the panel is visible. Do NOT call ImGui::Begin/End - the PanelWindow wrapper handles that. Just draw your content directly.

Implements yaze::editor::EditorPanel.

Definition at line 55 of file item_editor_panel.h.

References current_room_id_, DrawItemSelector(), DrawPlacementControls(), DrawRoomItems(), and rooms_.

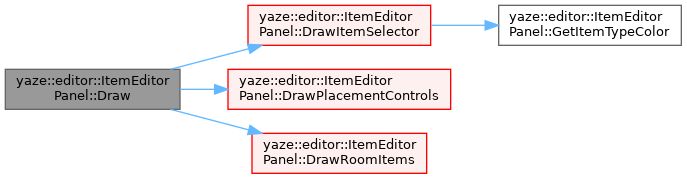

Here is the call graph for this function:

◆ SetCanvasViewer()

void yaze::editor::ItemEditorPanel::SetCanvasViewer ( DungeonCanvasViewer * viewer )

inline

Definition at line 78 of file item_editor_panel.h.

References canvas_viewer_.

Referenced by yaze::editor::DungeonEditorV2::~DungeonEditorV2().

◆ SetItemPlacedCallback()

void yaze::editor::ItemEditorPanel::SetItemPlacedCallback ( std::function< void(const zelda3::PotItem &)> callback )

inline

Definition at line 82 of file item_editor_panel.h.

References item_placed_callback_.

◆ DrawPlacementControls()

void yaze::editor::ItemEditorPanel::DrawPlacementControls ( )

inlineprivate

Definition at line 121 of file item_editor_panel.h.

References canvas_viewer_, yaze::editor::AgentUI::GetTheme(), ICON_MD_CANCEL, ICON_MD_INFO, ICON_MD_PLACE, kPotItemCount, kPotItemNames, yaze::editor::DungeonCanvasViewer::object_interaction(), placement_mode_, selected_item_id_, and yaze::editor::DungeonObjectInteraction::SetItemPlacementMode().

Referenced by Draw().

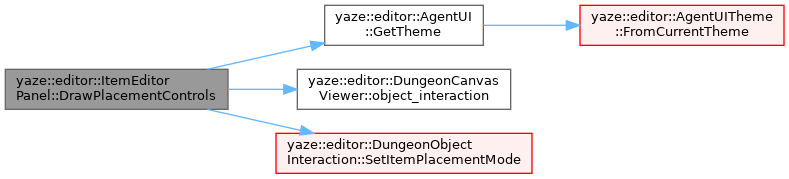

Here is the call graph for this function:

◆ DrawItemSelector()

void yaze::editor::ItemEditorPanel::DrawItemSelector ( )

inlineprivate

Definition at line 142 of file item_editor_panel.h.

References canvas_viewer_, GetItemTypeColor(), GetItemTypeIcon(), yaze::editor::AgentUI::GetTheme(), ICON_MD_INVENTORY, kPotItemCount, kPotItemNames, yaze::editor::DungeonCanvasViewer::object_interaction(), placement_mode_, selected_item_id_, and yaze::editor::DungeonObjectInteraction::SetItemPlacementMode().

Referenced by Draw().

◆ DrawRoomItems()

void yaze::editor::ItemEditorPanel::DrawRoomItems ( )

inlineprivate

Definition at line 228 of file item_editor_panel.h.

References current_room_id_, yaze::editor::AgentUI::GetTheme(), ICON_MD_DELETE, ICON_MD_INFO, ICON_MD_LIST, kPotItemCount, and kPotItemNames.

Referenced by Draw().

Here is the call graph for this function:

◆ GetItemTypeColor()

ImVec4 yaze::editor::ItemEditorPanel::GetItemTypeColor	(	int	item_id,
		const AgentUITheme &	theme )

inlineprivate

Definition at line 270 of file item_editor_panel.h.

References yaze::editor::AgentUITheme::dungeon_object_chest, yaze::editor::AgentUITheme::dungeon_object_default, yaze::editor::AgentUITheme::dungeon_object_pot, yaze::editor::AgentUITheme::dungeon_object_stairs, yaze::editor::AgentUITheme::dungeon_sprite_layer0, and yaze::editor::AgentUITheme::status_error.

Referenced by DrawItemSelector().

◆ GetItemTypeIcon()

const char * yaze::editor::ItemEditorPanel::GetItemTypeIcon ( int item_id )

inlineprivate

Definition at line 286 of file item_editor_panel.h.

References ICON_MD_ARROW_UPWARD, ICON_MD_AUTO_AWESOME, ICON_MD_BLOCK, ICON_MD_BROKEN_IMAGE, ICON_MD_BUG_REPORT, ICON_MD_CIRCLE, ICON_MD_EGG, ICON_MD_FAVORITE, ICON_MD_FLUTTER_DASH, ICON_MD_HELP, ICON_MD_KEY, ICON_MD_LANDSCAPE, ICON_MD_MONETIZATION_ON, ICON_MD_PERSON, ICON_MD_STAIRS, ICON_MD_SWAP_HORIZ, ICON_MD_TERRAIN, ICON_MD_TOGGLE_ON, and ICON_MD_WARNING.

Referenced by DrawItemSelector().

Member Data Documentation

◆ kPotItemNames

constexpr const char* yaze::editor::ItemEditorPanel::kPotItemNames[]

staticconstexprprivate

Initial value:

= {
      "Nothing",
      "Green Rupee",
      "Rock",
      "Bee",
      "Health",
      "Bomb",
      "Heart",
      "Blue Rupee",
      "Key",
      "Arrow",
      "Bomb",
      "Heart",
      "Magic",
      "Full Magic",
      "Cucco",
      "Green Soldier",
      "Bush Stal",
      "Blue Soldier",
      "Landmine",
      "Heart",
      "Fairy",
      "Heart",
      "Nothing",
      "Hole",
      "Warp",
      "Staircase",
      "Bombable",
      "Switch"
  }

Definition at line 89 of file item_editor_panel.h.

Referenced by DrawItemSelector(), DrawPlacementControls(), and DrawRoomItems().

◆ kPotItemCount

constexpr size_t yaze::editor::ItemEditorPanel::kPotItemCount = sizeof(kPotItemNames) / sizeof(kPotItemNames[0])

staticconstexprprivate

Definition at line 119 of file item_editor_panel.h.

Referenced by DrawItemSelector(), DrawPlacementControls(), and DrawRoomItems().

◆ current_room_id_

int* yaze::editor::ItemEditorPanel::current_room_id_ = nullptr

private

Definition at line 328 of file item_editor_panel.h.

Referenced by Draw(), and DrawRoomItems().

◆ rooms_

std::array<zelda3::Room, 0x128>* yaze::editor::ItemEditorPanel::rooms_ = nullptr

private

Definition at line 329 of file item_editor_panel.h.

Referenced by Draw().

◆ canvas_viewer_

DungeonCanvasViewer* yaze::editor::ItemEditorPanel::canvas_viewer_ = nullptr

private

Definition at line 330 of file item_editor_panel.h.

Referenced by DrawItemSelector(), DrawPlacementControls(), and SetCanvasViewer().

◆ selected_item_id_

int yaze::editor::ItemEditorPanel::selected_item_id_ = 0

private

Definition at line 333 of file item_editor_panel.h.

Referenced by DrawItemSelector(), and DrawPlacementControls().

◆ placement_mode_

bool yaze::editor::ItemEditorPanel::placement_mode_ = false

private

Definition at line 334 of file item_editor_panel.h.

Referenced by DrawItemSelector(), and DrawPlacementControls().

◆ item_placed_callback_

std::function<void(const zelda3::PotItem&) yaze::editor::ItemEditorPanel::item_placed_callback_)

private

Definition at line 336 of file item_editor_panel.h.

Referenced by SetItemPlacedCallback().

The documentation for this class was generated from the following file:

src/app/editor/dungeon/panels/item_editor_panel.h
