yaze::editor::TilePaintingManager Class Reference

Manages tile painting, fill, selection, and eyedropper operations. More...

#include <tile_painting_manager.h>

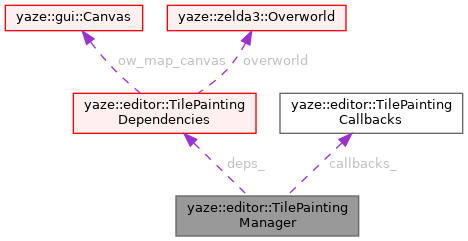

Collaboration diagram for yaze::editor::TilePaintingManager:

Public Member Functions
	TilePaintingManager (const TilePaintingDependencies &deps, const TilePaintingCallbacks &callbacks)
void	CheckForOverworldEdits ()
	Main entry point: check for tile edits (paint, fill, stamp).
void	CheckForSelectRectangle ()
	Draw and create the tile16 IDs that are currently selected.
void	RenderUpdatedMapBitmap (const ImVec2 &click_position, const std::vector< uint8_t > &tile_data)
	Update bitmap pixels after a single tile paint.
bool	PickTile16FromHoveredCanvas ()
	Eyedropper: pick the tile16 under the hovered canvas position.
void	ToggleBrushTool ()
	Toggle between DRAW_TILE and MOUSE modes.
void	ActivateFillTool ()
	Toggle FILL_TILE mode on/off.

Private Member Functions
void	DrawOverworldEdits ()
	Handle the actual drawing of a single tile (called by CheckForOverworldEdits when DrawTilemapPainter triggers).

Private Attributes
TilePaintingDependencies	deps_
TilePaintingCallbacks	callbacks_

Detailed Description

Manages tile painting, fill, selection, and eyedropper operations.

Extracted from OverworldEditor to encapsulate the ~349 lines of tile editing logic. Operates on shared state through TilePaintingDependencies and delegates undo/refresh through TilePaintingCallbacks.

Definition at line 55 of file tile_painting_manager.h.

Constructor & Destructor Documentation

TilePaintingManager()

yaze::editor::TilePaintingManager::TilePaintingManager	(	const TilePaintingDependencies &	deps,
		const TilePaintingCallbacks &	callbacks )

Definition at line 21 of file tile_painting_manager.cc.

Member Function Documentation

CheckForOverworldEdits()

void yaze::editor::TilePaintingManager::CheckForOverworldEdits

(

)

Main entry point: check for tile edits (paint, fill, stamp).

Definition at line 190 of file tile_painting_manager.cc.

References callbacks_, CheckForSelectRectangle(), yaze::editor::TilePaintingCallbacks::create_undo_point, yaze::editor::TilePaintingDependencies::current_map, yaze::editor::TilePaintingDependencies::current_mode, yaze::editor::TilePaintingDependencies::current_tile16, yaze::editor::TilePaintingDependencies::current_world, deps_, yaze::editor::DRAW_TILE, DrawOverworldEdits(), yaze::gui::Canvas::DrawTilemapPainter(), yaze::editor::FILL_TILE, yaze::editor::TilePaintingCallbacks::finalize_paint_operation, yaze::core::FeatureFlags::get(), yaze::zelda3::Overworld::GetTile(), yaze::gfx::GetTilemapData(), yaze::gui::Canvas::global_scale(), yaze::gui::Canvas::hover_mouse_pos(), yaze::gui::Canvas::IsMouseHovering(), yaze::core::FeatureFlags::Flags::Overworld::kEnableSpecialWorldExpansion, yaze::zelda3::kNumOverworldMaps, yaze::editor::kOverworldMapSize, yaze::editor::kTile16Size, LOG_DEBUG, LOG_ERROR, yaze::zelda3::Overworld::mutable_map_tiles(), yaze::editor::TilePaintingDependencies::overworld, yaze::core::FeatureFlags::Flags::overworld, yaze::editor::TilePaintingDependencies::ow_map_canvas, yaze::editor::TilePaintingCallbacks::refresh_overworld_map, yaze::editor::TilePaintingCallbacks::refresh_overworld_map_on_demand, RenderUpdatedMapBitmap(), yaze::editor::TilePaintingDependencies::rom, yaze::gui::Canvas::select_rect_active(), yaze::gui::Canvas::selected_points(), yaze::editor::TilePaintingDependencies::selected_tile16_ids, yaze::zelda3::Overworld::set_current_map(), yaze::zelda3::Overworld::set_current_world(), yaze::Rom::set_dirty(), and yaze::editor::TilePaintingDependencies::tile16_blockset.

CheckForSelectRectangle()

void yaze::editor::TilePaintingManager::CheckForSelectRectangle

(

)

Draw and create the tile16 IDs that are currently selected.

Definition at line 431 of file tile_painting_manager.cc.

References callbacks_, yaze::editor::TilePaintingDependencies::current_map, yaze::editor::TilePaintingDependencies::current_tile16, yaze::editor::TilePaintingDependencies::current_world, deps_, yaze::gui::Canvas::DrawBitmapGroup(), yaze::gui::Canvas::DrawSelectRect(), yaze::zelda3::Overworld::GetTileFromPosition(), yaze::gui::Canvas::global_scale(), yaze::editor::TilePaintingDependencies::overworld, yaze::editor::TilePaintingDependencies::ow_map_canvas, yaze::editor::TilePaintingCallbacks::scroll_blockset_to_current_tile, yaze::gui::Canvas::select_rect_active(), yaze::editor::TilePaintingDependencies::selected_tile16_ids, yaze::gui::Canvas::selected_tile_pos(), yaze::gui::Canvas::selected_tiles(), yaze::zelda3::Overworld::set_current_map(), yaze::zelda3::Overworld::set_current_world(), yaze::gui::Canvas::set_selected_tile_pos(), and yaze::editor::TilePaintingDependencies::tile16_blockset.

Referenced by CheckForOverworldEdits().

RenderUpdatedMapBitmap()

void yaze::editor::TilePaintingManager::RenderUpdatedMapBitmap	(	const ImVec2 &	click_position,
		const std::vector< uint8_t > &	tile_data )

Update bitmap pixels after a single tile paint.

Definition at line 111 of file tile_painting_manager.cc.

References yaze::editor::TilePaintingDependencies::current_map, deps_, yaze::gfx::Arena::Get(), yaze::gfx::Bitmap::is_active(), yaze::editor::kOverworldMapSize, yaze::editor::kTile16Size, LOG_ERROR, yaze::editor::TilePaintingDependencies::maps_bmp, yaze::gfx::Arena::QueueTextureCommand(), yaze::gfx::Bitmap::set_modified(), yaze::gfx::Bitmap::size(), yaze::gfx::Arena::UPDATE, and yaze::gfx::Bitmap::WriteToPixel().

Referenced by CheckForOverworldEdits(), and DrawOverworldEdits().

PickTile16FromHoveredCanvas()

bool yaze::editor::TilePaintingManager::PickTile16FromHoveredCanvas

(

)

Eyedropper: pick the tile16 under the hovered canvas position.

Definition at line 473 of file tile_painting_manager.cc.

References callbacks_, yaze::editor::TilePaintingDependencies::current_tile16, yaze::editor::TilePaintingDependencies::current_world, deps_, yaze::core::FeatureFlags::get(), yaze::gui::Canvas::global_scale(), yaze::gui::Canvas::hover_mouse_pos(), yaze::gui::Canvas::IsMouseHovering(), yaze::core::FeatureFlags::Flags::Overworld::kEnableSpecialWorldExpansion, yaze::editor::kOverworldMapSize, yaze::editor::kTile16Size, yaze::util::logf(), yaze::zelda3::Overworld::mutable_map_tiles(), yaze::editor::TilePaintingDependencies::overworld, yaze::core::FeatureFlags::Flags::overworld, yaze::editor::TilePaintingDependencies::ow_map_canvas, yaze::editor::TilePaintingCallbacks::scroll_blockset_to_current_tile, yaze::editor::Tile16Editor::SetCurrentTile(), and yaze::editor::TilePaintingDependencies::tile16_editor.

ToggleBrushTool()

void yaze::editor::TilePaintingManager::ToggleBrushTool

(

)

Toggle between DRAW_TILE and MOUSE modes.

Definition at line 543 of file tile_painting_manager.cc.

References yaze::editor::TilePaintingDependencies::current_mode, deps_, yaze::editor::DRAW_TILE, yaze::gui::kEntityManipulation, yaze::gui::kTilePainting, yaze::editor::MOUSE, yaze::editor::TilePaintingDependencies::ow_map_canvas, and yaze::gui::Canvas::SetUsageMode().

Here is the call graph for this function:

ActivateFillTool()

void yaze::editor::TilePaintingManager::ActivateFillTool

(

)

Toggle FILL_TILE mode on/off.

Definition at line 560 of file tile_painting_manager.cc.

References yaze::editor::TilePaintingDependencies::current_mode, deps_, yaze::editor::DRAW_TILE, yaze::editor::FILL_TILE, yaze::gui::kTilePainting, yaze::editor::TilePaintingDependencies::ow_map_canvas, and yaze::gui::Canvas::SetUsageMode().

Here is the call graph for this function:

DrawOverworldEdits()

void yaze::editor::TilePaintingManager::DrawOverworldEdits ( )

private

Handle the actual drawing of a single tile (called by CheckForOverworldEdits when DrawTilemapPainter triggers).

Definition at line 29 of file tile_painting_manager.cc.

References yaze::gfx::Tilemap::atlas, callbacks_, yaze::editor::TilePaintingCallbacks::create_undo_point, yaze::editor::TilePaintingDependencies::current_map, yaze::editor::TilePaintingDependencies::current_tile16, yaze::editor::TilePaintingDependencies::current_world, deps_, yaze::gui::Canvas::drawn_tile_position(), yaze::gfx::GetTilemapData(), yaze::gui::Canvas::global_scale(), yaze::gfx::Bitmap::is_active(), yaze::editor::kOverworldMapSize, LOG_ERROR, yaze::editor::TilePaintingDependencies::maps_bmp, yaze::zelda3::Overworld::mutable_map_tiles(), yaze::editor::TilePaintingDependencies::overworld, yaze::editor::TilePaintingDependencies::ow_map_canvas, RenderUpdatedMapBitmap(), yaze::editor::TilePaintingDependencies::rom, yaze::Rom::set_dirty(), yaze::editor::TilePaintingDependencies::tile16_blockset, and yaze::gfx::Bitmap::vector().

Referenced by CheckForOverworldEdits().

Member Data Documentation

deps_

TilePaintingDependencies yaze::editor::TilePaintingManager::deps_

private

Definition at line 84 of file tile_painting_manager.h.

Referenced by ActivateFillTool(), CheckForOverworldEdits(), CheckForSelectRectangle(), DrawOverworldEdits(), PickTile16FromHoveredCanvas(), RenderUpdatedMapBitmap(), and ToggleBrushTool().

callbacks_

TilePaintingCallbacks yaze::editor::TilePaintingManager::callbacks_

private

Definition at line 85 of file tile_painting_manager.h.

Referenced by CheckForOverworldEdits(), CheckForSelectRectangle(), DrawOverworldEdits(), and PickTile16FromHoveredCanvas().

---

The documentation for this class was generated from the following files:

• src/app/editor/overworld/tile_painting_manager.h
• src/app/editor/overworld/tile_painting_manager.cc
