yaze::gfx::Arena Class Reference

Resource management arena for efficient graphics memory handling. More...

#include <arena.h>

Classes
struct	SheetCacheStats
	Statistics for sheet cache performance. More...
struct	SurfacePool
struct	TextureCommand
struct	TexturePool
struct	TextureQueueStats
	Statistics for texture queue processing. More...

Public Types
enum class	TextureCommandType { CREATE , UPDATE , DESTROY }
using	PaletteChangeCallback

Public Member Functions
void	Initialize (IRenderer *renderer)
	~Arena ()
void	QueueTextureCommand (TextureCommandType type, Bitmap *bitmap)
void	ProcessTextureQueue (IRenderer *renderer)
void	ClearTextureQueue ()
bool	HasPendingTextures () const
	Check if there are pending textures to process.
bool	ProcessSingleTexture (IRenderer *renderer)
	Process a single texture command for frame-budget-aware loading.
bool	ProcessTextureQueueWithBudget (IRenderer *renderer, float budget_ms)
	Process texture queue with a time budget.
const TextureQueueStats &	GetTextureQueueStats () const
	Get texture queue processing statistics.
void	ResetTextureQueueStats ()
	Reset texture queue statistics.
SDL_Surface *	AllocateSurface (int width, int height, int depth, int format)
void	FreeSurface (SDL_Surface *surface)
void	Shutdown ()
size_t	GetTextureCount () const
size_t	GetSurfaceCount () const
size_t	GetPooledTextureCount () const
size_t	GetPooledSurfaceCount () const
size_t	texture_command_queue_size () const
std::array< gfx::Bitmap, 223 > &	gfx_sheets ()
	Get reference to all graphics sheets.
auto	gfx_sheet (int i)
	Get a specific graphics sheet by index.
auto	mutable_gfx_sheet (int i)
	Get mutable reference to a specific graphics sheet.
auto	mutable_gfx_sheets ()
	Get mutable reference to all graphics sheets.
void	NotifySheetModified (int sheet_index)
	Notify Arena that a graphics sheet has been modified.
void	NotifyPaletteModified (const std::string &group_name, int palette_index=-1)
	Notify all listeners that a palette has been modified.
int	RegisterPaletteListener (PaletteChangeCallback callback)
	Register a callback for palette change notifications.
void	UnregisterPaletteListener (int listener_id)
	Unregister a palette change listener.
auto &	bg1 ()
	Get reference to background layer 1 buffer.
auto &	bg2 ()
	Get reference to background layer 2 buffer.
void	TouchSheet (int sheet_index)
	Mark a graphics sheet as recently accessed.

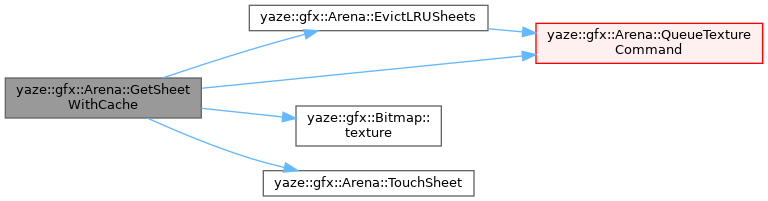

Bitmap *	GetSheetWithCache (int sheet_index)
	Get a sheet with automatic LRU tracking and texture creation.
void	SetSheetCacheSize (size_t max_size)
	Set the maximum number of sheet textures to keep cached.
size_t	GetSheetCacheSize () const
	Get current sheet cache size limit.
size_t	GetCachedSheetCount () const
	Get number of sheets currently with textures.
size_t	EvictLRUSheets (size_t count=0)
	Evict least recently used sheet textures.
void	ClearSheetCache ()
	Clear all sheet texture cache tracking.
const SheetCacheStats &	GetSheetCacheStats () const
	Get sheet cache statistics.
void	ResetSheetCacheStats ()
	Reset sheet cache statistics.

Static Public Member Functions
static Arena &	Get ()

Private Member Functions
	Arena ()

Private Attributes
BackgroundBuffer	bg1_
BackgroundBuffer	bg2_
std::array< uint16_t, kTotalTiles >	layer1_buffer_
std::array< uint16_t, kTotalTiles >	layer2_buffer_
std::array< gfx::Bitmap, 223 >	gfx_sheets_
std::unordered_map< TextureHandle, std::unique_ptr< SDL_Texture, util::SDL_Texture_Deleter > >	textures_
std::unordered_map< SDL_Surface *, std::unique_ptr< SDL_Surface, util::SDL_Surface_Deleter > >	surfaces_
struct yaze::gfx::Arena::TexturePool	texture_pool_
struct yaze::gfx::Arena::SurfacePool	surface_pool_
std::vector< TextureCommand >	texture_command_queue_
IRenderer *	renderer_ = nullptr
TextureQueueStats	texture_queue_stats_
std::unordered_map< int, PaletteChangeCallback >	palette_listeners_
int	next_palette_listener_id_ = 1
std::list< int >	sheet_lru_list_
std::unordered_map< int, std::list< int >::iterator >	sheet_lru_map_
size_t	sheet_cache_max_size_ = 64
SheetCacheStats	sheet_cache_stats_

Static Private Attributes
static constexpr int	kTilesPerRow = 64
static constexpr int	kTilesPerColumn = 64
static constexpr int	kTotalTiles = kTilesPerRow * kTilesPerColumn

Detailed Description

Resource management arena for efficient graphics memory handling.

The Arena class provides centralized management of SDL textures and surfaces for the YAZE ROM hacking editor. It implements several key optimizations:

Key Features:

• Singleton pattern for global access across all graphics components
• Automatic resource cleanup with RAII-style management
• Memory pooling to reduce allocation overhead
• Support for 223 graphics sheets (YAZE's full graphics space)
• Background buffer management for SNES layer rendering

Performance Optimizations:

• Unique_ptr with custom deleters for automatic SDL resource cleanup
• Hash map storage for O(1) texture/surface lookup
• Batch resource management to minimize SDL calls
• Pre-allocated graphics sheet array for fast access

ROM Hacking Specific:

• Fixed-size graphics sheet array (223 sheets) matching YAZE's graphics space
• Background buffer support for SNES layer 1 and layer 2 rendering
• Tile buffer management for 64x64 tile grids
• Integration with SNES graphics format requirements

Definition at line 47 of file arena.h.

Member Typedef Documentation

PaletteChangeCallback

using yaze::gfx::Arena::PaletteChangeCallback

Initial value:


      std::function<void(const std::string& group_name, int palette_index)>

Callback type for palette change listeners

Parameters

group_name	The palette group that changed (e.g., "ow_main")
palette_index	The specific palette that changed, or -1 for all

Definition at line 192 of file arena.h.

Member Enumeration Documentation

TextureCommandType

enum class yaze::gfx::Arena::TextureCommandType

strong

Enumerator
CREATE
UPDATE
DESTROY

Definition at line 55 of file arena.h.

Constructor & Destructor Documentation

~Arena()

yaze::gfx::Arena::~Arena

(

)

Definition at line 31 of file arena.cc.

References Shutdown().

Here is the call graph for this function:

Arena()

yaze::gfx::Arena::Arena ( )

private

Definition at line 26 of file arena.cc.

References layer1_buffer_, and layer2_buffer_.

Member Function Documentation

Get()

Arena & yaze::gfx::Arena::Get ( )

static

Definition at line 21 of file arena.cc.

Referenced by yaze::editor::PixelEditorPanel::ApplyBrush(), yaze::editor::PixelEditorPanel::ApplyEraser(), yaze::editor::PixelEditorPanel::ApplyEyedropper(), yaze::editor::PixelEditorPanel::ApplyFill(), yaze::editor::MessageEditor::ApplyFontPalette(), yaze::gui::CanvasUtils::ApplyPaletteGroup(), yaze::editor::PaletteControlsPanel::ApplyPaletteToAllSheets(), yaze::editor::Tile16Editor::ApplyPaletteToCurrentTile16Bitmap(), yaze::editor::PaletteControlsPanel::ApplyPaletteToSheet(), yaze::editor::PixelEditorPanel::ApplyPencil(), yaze::gui::CanvasUtils::ApplyPendingPaletteUpdates(), yaze::gfx::PaletteManager::ApplyPreviewChanges(), yaze::gui::PaletteEditorWidget::ApplyROMPalette(), yaze::editor::LinkSpritePanel::ApplySelectedPalette(), yaze::gfx::Bitmap::Bitmap(), yaze::zelda3::Inventory::BuildTileset(), yaze::zelda3::TitleScreen::BuildTileset(), yaze::editor::CanvasNavigationManager::CheckForCurrentMap(), yaze::editor::OverworldEditor::Clear(), yaze::editor::OverworldEditor::ClearScratchSpace(), yaze::test::TestManager::CollectResourceStats(), yaze::editor::Tile16Editor::CommitChangesToBlockset(), yaze::editor::Tile16Editor::CopyTile16ToAtlas(), yaze::editor::Tile16Editor::CopyTile16ToClipboard(), yaze::gfx::Bitmap::Create(), yaze::zelda3::OverworldMapScreen::Create(), yaze::zelda3::Inventory::Create(), yaze::gfx::Bitmap::CreateTexture(), yaze::gfx::CreateTilemap(), yaze::editor::GraphicsEditor::DecompressImportData(), yaze::editor::GraphicsEditor::DecompressSuperDonkey(), yaze::Controller::DoRender(), yaze::editor::DungeonRoomGraphicsPanel::Draw(), yaze::editor::OverworldCanvasRenderer::DrawAreaGraphics(), yaze::gui::DrawBitmap(), yaze::gui::DrawBitmapPreview(), yaze::editor::GfxGroupEditor::DrawBlocksetViewer(), yaze::editor::PixelEditorPanel::DrawCanvas(), yaze::editor::GraphicsEditor::DrawCgxImport(), yaze::editor::PixelEditorPanel::DrawColorPicker(), yaze::editor::SpriteEditor::DrawCurrentSheets(), yaze::editor::ScreenEditor::DrawDungeonMapScreen(), yaze::editor::ScreenEditor::DrawDungeonMapsRoomGfx(), yaze::editor::PixelEditorPanel::DrawLine(), yaze::editor::MessageEditor::DrawMessagePreview(), yaze::editor::PixelEditorPanel::DrawMiniMap(), yaze::editor::ScreenEditor::DrawOverworldMapEditor(), yaze::editor::PixelEditorPanel::DrawRectangle(), yaze::editor::DungeonCanvasViewer::DrawRoomBackgroundLayers(), yaze::editor::DungeonObjectSelector::DrawRoomGraphics(), yaze::editor::GfxGroupEditor::DrawRoomsetViewer(), yaze::editor::OverworldEditor::DrawScratchSpace(), yaze::editor::GraphicsEditor::DrawScrImport(), yaze::editor::SheetBrowserPanel::DrawSheetGrid(), yaze::editor::LinkSpritePanel::DrawSheetThumbnail(), yaze::editor::GfxGroupEditor::DrawSpritesetViewer(), yaze::editor::OverworldCanvasRenderer::DrawTile8Selector(), yaze::editor::ScreenEditor::DrawTitleScreenBG1Canvas(), yaze::editor::ScreenEditor::DrawTitleScreenBG2Canvas(), yaze::editor::ScreenEditor::DrawTitleScreenCompositeCanvas(), yaze::editor::ScreenEditor::DrawTitleScreenEditor(), yaze::editor::Tile16Editor::DrawToCurrentTile16(), yaze::editor::PixelEditorPanel::EndSelection(), yaze::editor::MessageEditor::EnsureFontTexturesReady(), yaze::editor::EditorManager::EnsureGameDataLoaded(), yaze::editor::OverworldEditor::EnsureMapTexture(), yaze::cli::agent::tools::VisualAnalysisBase::ExtractTileAtPosition(), yaze::editor::PixelEditorPanel::FinalizeUndoAction(), getArenaStatus(), getGfxSheetInfo(), yaze::editor::DungeonObjectSelector::GetOrCreatePreview(), yaze::editor::PixelEditorPanel::HandleCanvasInput(), yaze::cli::HandleGfxExportLegacy(), yaze::cli::HandleGfxImportLegacy(), yaze::editor::Tile16Editor::Initialize(), yaze::editor::GraphicsEditor::Load(), yaze::editor::ScreenEditor::Load(), yaze::editor::OverworldEditor::Load(), yaze::editor::EditorManager::LoadAssets(), yaze::editor::ScreenEditor::LoadBinaryGfx(), yaze::zelda3::OverworldMapScreen::LoadCustomMap(), yaze::zelda3::LoadDungeonMapGfxFromBinary(), yaze::zelda3::LoadDungeonMapTile16(), yaze::editor::OverworldEditor::LoadGraphics(), yaze::editor::OverworldEditor::LoadSpriteGraphics(), yaze::editor::SpriteEditor::LoadSpriteGraphicsBuffer(), yaze::editor::Tile16Editor::LoadTile16FromScratchSpace(), yaze::editor::Tile16Editor::LoadTile8(), yaze::zelda3::TitleScreen::LoadTitleScreen(), yaze::Controller::OnEntry(), yaze::editor::ObjectEditorPanel::OpenStaticObjectEditor(), yaze::gfx::Bitmap::operator=(), yaze::gfx::Bitmap::operator=(), yaze::editor::PixelEditorPanel::PasteSelection(), yaze::editor::Tile16Editor::PasteTile16FromClipboard(), yaze::editor::Tile16Editor::PreviewPaletteChange(), yaze::editor::DungeonEditorV2::ProcessDeferredTextures(), yaze::editor::OverworldEditor::ProcessDeferredTextures(), yaze::editor::GraphicsPixelEditAction::Redo(), yaze::gfx::Bitmap::Reformat(), yaze::editor::Tile16Editor::RefreshAllPalettes(), yaze::editor::MapRefreshCoordinator::RefreshChildMapOnDemand(), yaze::editor::MessageEditor::RefreshFontAtlasBitmap(), yaze::editor::MapRefreshCoordinator::RefreshMapPalette(), yaze::editor::MapRefreshCoordinator::RefreshMultiAreaMapsSafely(), yaze::editor::MapRefreshCoordinator::RefreshTile16Blockset(), yaze::editor::Tile16Editor::RefreshTile16Blockset(), yaze::editor::Tile16Editor::RegenerateTile16BitmapFromROM(), yaze::zelda3::TitleScreen::RenderBG1Layer(), yaze::zelda3::TitleScreen::RenderBG2Layer(), yaze::gui::CanvasContextMenu::RenderBitmapOperationsMenu(), yaze::zelda3::TitleScreen::RenderCompositeLayer(), yaze::editor::TileObjectHandler::RenderGhostPreviewBitmap(), yaze::gui::RenderPreviewPanel(), yaze::zelda3::Room::RenderRoomGraphics(), yaze::gfx::RenderTilesBatch(), yaze::editor::TilePaintingManager::RenderUpdatedMapBitmap(), yaze::gfx::Bitmap::Resize(), yaze::editor::Tile16Editor::RestoreFromSnapshot(), yaze::test::ArenaTestSuite::RunArenaAllocationTest(), yaze::test::ArenaTestSuite::RunArenaCleanupTest(), yaze::test::IntegratedTestSuite::RunArenaIntegrityTest(), yaze::test::IntegratedTestSuite::RunArenaResourceManagementTest(), yaze::test::ArenaTestSuite::RunArenaResourceTrackingTest(), yaze::test::IntegratedTestSuite::RunGraphicsValidationTest(), yaze::test::PerformanceTestSuite::RunMemoryUsageTest(), yaze::test::PerformanceTestSuite::RunResourceLeakTest(), yaze::editor::GraphicsEditor::Save(), yaze::editor::OverworldEditor::SaveCurrentSelectionToScratch(), yaze::gfx::PaletteManager::SaveGroup(), yaze::editor::EditorManager::SaveRom(), yaze::editor::Tile16Editor::SaveTile16ToScratchSpace(), yaze::editor::PixelEditorPanel::SaveUndoState(), yaze::editor::Tile16Editor::SetCurrentTile(), yaze::platform::NullWindowBackend::Shutdown(), yaze::platform::SDL2WindowBackend::Shutdown(), yaze::core::ShutdownWindow(), yaze::editor::GraphicsPixelEditAction::Undo(), yaze::editor::Tile16Editor::UpdateBlocksetBitmap(), yaze::editor::MapRefreshCoordinator::UpdateBlocksetWithPendingTileChanges(), yaze::editor::Tile16Editor::UpdateLivePreview(), yaze::editor::OverworldEditor::UpdateScratchBitmapTile(), yaze::gfx::Bitmap::UpdateTexture(), yaze::gfx::UpdateTile16(), yaze::editor::Tile16Editor::UpdateTile16Edit(), yaze::editor::Tile16Editor::UpdateTile8Palette(), and yaze::gfx::UpdateTilemap().

Initialize()

void yaze::gfx::Arena::Initialize

(

IRenderer *

renderer

)

Definition at line 17 of file arena.cc.

References renderer_.

Referenced by yaze::Controller::OnEntry().

QueueTextureCommand()

void yaze::gfx::Arena::QueueTextureCommand	(	TextureCommandType	type,
		Bitmap *	bitmap )

Definition at line 36 of file arena.cc.

References yaze::gfx::Bitmap::generation(), and texture_command_queue_.

Referenced by yaze::editor::MessageEditor::ApplyFontPalette(), yaze::gui::CanvasUtils::ApplyPaletteGroup(), yaze::editor::Tile16Editor::ApplyPaletteToCurrentTile16Bitmap(), yaze::gui::CanvasUtils::ApplyPendingPaletteUpdates(), yaze::gui::PaletteEditorWidget::ApplyROMPalette(), yaze::editor::LinkSpritePanel::ApplySelectedPalette(), yaze::zelda3::Inventory::BuildTileset(), yaze::zelda3::TitleScreen::BuildTileset(), yaze::editor::CanvasNavigationManager::CheckForCurrentMap(), yaze::editor::OverworldEditor::ClearScratchSpace(), yaze::editor::Tile16Editor::CommitChangesToBlockset(), yaze::editor::Tile16Editor::CopyTile16ToAtlas(), yaze::editor::Tile16Editor::CopyTile16ToClipboard(), yaze::zelda3::OverworldMapScreen::Create(), yaze::zelda3::Inventory::Create(), yaze::gfx::Bitmap::CreateTexture(), yaze::gfx::CreateTilemap(), yaze::editor::GraphicsEditor::DecompressImportData(), yaze::editor::GraphicsEditor::DecompressSuperDonkey(), yaze::editor::OverworldCanvasRenderer::DrawAreaGraphics(), yaze::gui::DrawBitmap(), yaze::gui::DrawBitmapPreview(), yaze::editor::GraphicsEditor::DrawCgxImport(), yaze::editor::ScreenEditor::DrawDungeonMapScreen(), yaze::editor::ScreenEditor::DrawDungeonMapsRoomGfx(), yaze::editor::MessageEditor::DrawMessagePreview(), yaze::editor::ScreenEditor::DrawOverworldMapEditor(), yaze::editor::DungeonCanvasViewer::DrawRoomBackgroundLayers(), yaze::editor::OverworldEditor::DrawScratchSpace(), yaze::editor::GraphicsEditor::DrawScrImport(), yaze::editor::LinkSpritePanel::DrawSheetThumbnail(), yaze::editor::ScreenEditor::DrawTitleScreenBG1Canvas(), yaze::editor::ScreenEditor::DrawTitleScreenBG2Canvas(), yaze::editor::ScreenEditor::DrawTitleScreenCompositeCanvas(), yaze::editor::ScreenEditor::DrawTitleScreenEditor(), yaze::editor::Tile16Editor::DrawToCurrentTile16(), yaze::editor::MessageEditor::EnsureFontTexturesReady(), yaze::editor::OverworldEditor::EnsureMapTexture(), EvictLRUSheets(), yaze::editor::DungeonObjectSelector::GetOrCreatePreview(), GetSheetWithCache(), yaze::editor::Tile16Editor::Initialize(), yaze::editor::GraphicsEditor::Load(), yaze::editor::ScreenEditor::Load(), yaze::editor::ScreenEditor::LoadBinaryGfx(), yaze::zelda3::OverworldMapScreen::LoadCustomMap(), yaze::zelda3::LoadDungeonMapGfxFromBinary(), yaze::zelda3::LoadDungeonMapTile16(), yaze::editor::OverworldEditor::LoadGraphics(), yaze::editor::OverworldEditor::LoadSpriteGraphics(), yaze::editor::Tile16Editor::LoadTile16FromScratchSpace(), yaze::editor::Tile16Editor::LoadTile8(), yaze::zelda3::TitleScreen::LoadTitleScreen(), NotifySheetModified(), yaze::editor::ObjectEditorPanel::OpenStaticObjectEditor(), yaze::gfx::Bitmap::operator=(), yaze::editor::Tile16Editor::PasteTile16FromClipboard(), yaze::editor::Tile16Editor::PreviewPaletteChange(), yaze::editor::Tile16Editor::RefreshAllPalettes(), yaze::editor::MapRefreshCoordinator::RefreshChildMapOnDemand(), yaze::editor::MessageEditor::RefreshFontAtlasBitmap(), yaze::editor::MapRefreshCoordinator::RefreshMapPalette(), yaze::editor::MapRefreshCoordinator::RefreshMultiAreaMapsSafely(), yaze::editor::MapRefreshCoordinator::RefreshTile16Blockset(), yaze::editor::Tile16Editor::RefreshTile16Blockset(), yaze::editor::Tile16Editor::RegenerateTile16BitmapFromROM(), yaze::zelda3::TitleScreen::RenderBG1Layer(), yaze::zelda3::TitleScreen::RenderBG2Layer(), yaze::gui::CanvasContextMenu::RenderBitmapOperationsMenu(), yaze::zelda3::TitleScreen::RenderCompositeLayer(), yaze::editor::TileObjectHandler::RenderGhostPreviewBitmap(), yaze::gui::RenderPreviewPanel(), yaze::zelda3::Room::RenderRoomGraphics(), yaze::gfx::RenderTilesBatch(), yaze::editor::TilePaintingManager::RenderUpdatedMapBitmap(), yaze::editor::Tile16Editor::RestoreFromSnapshot(), yaze::editor::OverworldEditor::SaveCurrentSelectionToScratch(), yaze::editor::Tile16Editor::SaveTile16ToScratchSpace(), yaze::editor::Tile16Editor::SetCurrentTile(), yaze::editor::Tile16Editor::UpdateBlocksetBitmap(), yaze::editor::MapRefreshCoordinator::UpdateBlocksetWithPendingTileChanges(), yaze::editor::Tile16Editor::UpdateLivePreview(), yaze::editor::OverworldEditor::UpdateScratchBitmapTile(), yaze::gfx::Bitmap::UpdateTexture(), yaze::gfx::UpdateTile16(), yaze::editor::Tile16Editor::UpdateTile16Edit(), yaze::editor::Tile16Editor::UpdateTile8Palette(), and yaze::gfx::UpdateTilemap().

Here is the call graph for this function:

ProcessTextureQueue()

void yaze::gfx::Arena::ProcessTextureQueue

(

IRenderer *

renderer

)

Definition at line 116 of file arena.cc.

References CREATE, yaze::gfx::IRenderer::CreateTexture(), DESTROY, yaze::gfx::IRenderer::DestroyTexture(), yaze::zelda3::PaletteDebugger::Get(), yaze::platform::GetSurfacePalette(), LOG_DEBUG, LOG_ERROR, LOG_WARN, yaze::zelda3::PaletteDebugger::LogPaletteApplication(), yaze::zelda3::PaletteDebugger::LogSurfaceState(), yaze::zelda3::PaletteDebugger::LogTextureCreation(), renderer_, texture_command_queue_, UPDATE, and yaze::gfx::IRenderer::UpdateTexture().

Referenced by yaze::Controller::DoRender(), yaze::editor::DungeonRoomGraphicsPanel::Draw(), yaze::editor::DungeonObjectSelector::GetOrCreatePreview(), yaze::editor::ObjectEditorPanel::OpenStaticObjectEditor(), yaze::editor::DungeonEditorV2::ProcessDeferredTextures(), yaze::editor::OverworldEditor::ProcessDeferredTextures(), yaze::editor::TileObjectHandler::RenderGhostPreviewBitmap(), and Shutdown().

ClearTextureQueue()

void yaze::gfx::Arena::ClearTextureQueue

(

)

Definition at line 42 of file arena.cc.

References texture_command_queue_.

HasPendingTextures()

bool yaze::gfx::Arena::HasPendingTextures ( ) const

inline

Check if there are pending textures to process.

Returns

true if texture queue has pending commands

Definition at line 70 of file arena.h.

References texture_command_queue_.

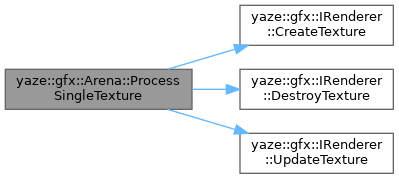

ProcessSingleTexture()

bool yaze::gfx::Arena::ProcessSingleTexture

(

IRenderer *

renderer

)

Process a single texture command for frame-budget-aware loading.

Parameters

renderer

The renderer to use for texture operations

Returns

true if a texture was processed, false if queue was empty

Definition at line 46 of file arena.cc.

References CREATE, yaze::gfx::IRenderer::CreateTexture(), DESTROY, yaze::gfx::IRenderer::DestroyTexture(), LOG_DEBUG, LOG_ERROR, renderer_, texture_command_queue_, UPDATE, and yaze::gfx::IRenderer::UpdateTexture().

Referenced by ProcessTextureQueueWithBudget().

Here is the call graph for this function:

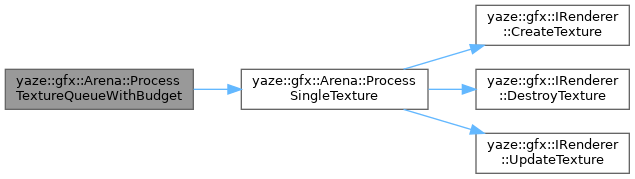

ProcessTextureQueueWithBudget()

bool yaze::gfx::Arena::ProcessTextureQueueWithBudget	(	IRenderer *	renderer,
		float	budget_ms )

Process texture queue with a time budget.

Processes texture commands until either the queue is empty or the time budget is exceeded. Uses microsecond precision timing to avoid overshooting frame budgets.

Parameters

renderer	The renderer to use for texture operations
budget_ms	Maximum time in milliseconds to spend processing

Returns

true if queue is now empty, false if more work remains

Example usage for 60 FPS (16.67ms frame time): // Allow up to 4ms for texture loading per frame arena.ProcessTextureQueueWithBudget(renderer, 4.0f);

Definition at line 261 of file arena.cc.

References yaze::gfx::Arena::TextureQueueStats::avg_texture_time_ms, yaze::gfx::Arena::TextureQueueStats::frames_with_work, LOG_DEBUG, yaze::gfx::Arena::TextureQueueStats::max_frame_time_ms, ProcessSingleTexture(), renderer_, texture_command_queue_, texture_queue_stats_, yaze::gfx::Arena::TextureQueueStats::textures_processed, and yaze::gfx::Arena::TextureQueueStats::total_time_ms.

Referenced by yaze::Controller::DoRender().

Here is the call graph for this function:

GetTextureQueueStats()

const TextureQueueStats & yaze::gfx::Arena::GetTextureQueueStats ( ) const

inline

Get texture queue processing statistics.

Returns

Reference to current statistics

Definition at line 119 of file arena.h.

References texture_queue_stats_.

ResetTextureQueueStats()

void yaze::gfx::Arena::ResetTextureQueueStats ( )

inline

Reset texture queue statistics.

Definition at line 126 of file arena.h.

References yaze::gfx::Arena::TextureQueueStats::Reset(), and texture_queue_stats_.

Here is the call graph for this function:

AllocateSurface()

SDL_Surface * yaze::gfx::Arena::AllocateSurface	(	int	width,
		int	height,
		int	depth,
		int	format )

Definition at line 327 of file arena.cc.

References yaze::gfx::Arena::SurfacePool::available_surfaces_, yaze::platform::CreateSurface(), yaze::gfx::GetSnesPixelFormat(), yaze::gfx::Arena::SurfacePool::surface_info_, surface_pool_, and surfaces_.

Referenced by yaze::gfx::Bitmap::Bitmap(), yaze::gfx::Bitmap::Create(), yaze::gfx::Bitmap::operator=(), yaze::gfx::Bitmap::Reformat(), and yaze::gfx::Bitmap::Resize().

Here is the call graph for this function:

FreeSurface()

void yaze::gfx::Arena::FreeSurface

(

SDL_Surface *

surface

)

Definition at line 357 of file arena.cc.

References yaze::gfx::Arena::SurfacePool::available_surfaces_, yaze::gfx::Arena::SurfacePool::MAX_POOL_SIZE, yaze::gfx::Arena::SurfacePool::surface_info_, surface_pool_, and surfaces_.

Referenced by yaze::gfx::Bitmap::operator=(), and yaze::gfx::Bitmap::operator=().

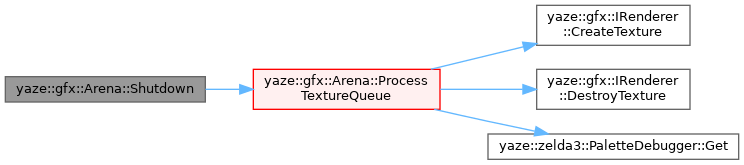

Shutdown()

void yaze::gfx::Arena::Shutdown

(

)

Definition at line 371 of file arena.cc.

References yaze::gfx::Arena::SurfacePool::available_surfaces_, yaze::gfx::Arena::TexturePool::available_textures_, ClearSheetCache(), ProcessTextureQueue(), renderer_, yaze::gfx::Arena::SurfacePool::surface_info_, surface_pool_, surfaces_, texture_command_queue_, texture_pool_, yaze::gfx::Arena::TexturePool::texture_sizes_, and textures_.

Referenced by yaze::platform::NullWindowBackend::Shutdown(), yaze::platform::SDL2WindowBackend::Shutdown(), yaze::core::ShutdownWindow(), and ~Arena().

Here is the call graph for this function:

GetTextureCount()

size_t yaze::gfx::Arena::GetTextureCount ( ) const

inline

Definition at line 135 of file arena.h.

References textures_.

GetSurfaceCount()

size_t yaze::gfx::Arena::GetSurfaceCount ( ) const

inline

Definition at line 136 of file arena.h.

References surfaces_.

GetPooledTextureCount()

size_t yaze::gfx::Arena::GetPooledTextureCount ( ) const

inline

Definition at line 137 of file arena.h.

References yaze::gfx::Arena::TexturePool::available_textures_, and texture_pool_.

GetPooledSurfaceCount()

size_t yaze::gfx::Arena::GetPooledSurfaceCount ( ) const

inline

Definition at line 140 of file arena.h.

References yaze::gfx::Arena::SurfacePool::available_surfaces_, and surface_pool_.

texture_command_queue_size()

size_t yaze::gfx::Arena::texture_command_queue_size ( ) const

inline

Definition at line 143 of file arena.h.

References texture_command_queue_.

gfx_sheets()

std::array< gfx::Bitmap, 223 > & yaze::gfx::Arena::gfx_sheets ( )

inline

Get reference to all graphics sheets.

Returns

Reference to array of 223 Bitmap objects

Definition at line 152 of file arena.h.

References gfx_sheets_.

Referenced by yaze::editor::PixelEditorPanel::ApplyEyedropper(), yaze::editor::DungeonRoomGraphicsPanel::Draw(), yaze::editor::DungeonObjectSelector::DrawRoomGraphics(), yaze::editor::SheetBrowserPanel::DrawSheetGrid(), yaze::editor::OverworldCanvasRenderer::DrawTile8Selector(), yaze::editor::PixelEditorPanel::EndSelection(), yaze::cli::agent::tools::VisualAnalysisBase::ExtractTileAtPosition(), yaze::editor::PixelEditorPanel::FinalizeUndoAction(), yaze::editor::GraphicsEditor::Load(), yaze::editor::SpriteEditor::LoadSpriteGraphicsBuffer(), yaze::editor::GraphicsEditor::Save(), and yaze::editor::PixelEditorPanel::SaveUndoState().

gfx_sheet()

auto yaze::gfx::Arena::gfx_sheet ( int i )

inline

Get a specific graphics sheet by index.

Parameters

i	Sheet index (0-222)

Returns

Copy of the Bitmap at index i, or empty Bitmap if out of bounds

Definition at line 159 of file arena.h.

References gfx_sheets_.

mutable_gfx_sheet()

auto yaze::gfx::Arena::mutable_gfx_sheet ( int i )

inline

Get mutable reference to a specific graphics sheet.

Parameters

i	Sheet index (0-222)

Returns

Pointer to mutable Bitmap at index i, or nullptr if out of bounds

Definition at line 169 of file arena.h.

References gfx_sheets_.

mutable_gfx_sheets()

auto yaze::gfx::Arena::mutable_gfx_sheets ( )

inline

Get mutable reference to all graphics sheets.

Returns

Pointer to mutable array of 223 Bitmap objects

Definition at line 178 of file arena.h.

References gfx_sheets_.

Referenced by yaze::editor::PixelEditorPanel::ApplyBrush(), yaze::editor::PixelEditorPanel::ApplyEraser(), yaze::editor::PixelEditorPanel::ApplyFill(), yaze::editor::PaletteControlsPanel::ApplyPaletteToAllSheets(), yaze::editor::PaletteControlsPanel::ApplyPaletteToSheet(), yaze::editor::PixelEditorPanel::ApplyPencil(), yaze::editor::GfxGroupEditor::DrawBlocksetViewer(), yaze::editor::PixelEditorPanel::DrawCanvas(), yaze::editor::PixelEditorPanel::DrawColorPicker(), yaze::editor::PixelEditorPanel::DrawLine(), yaze::editor::PixelEditorPanel::DrawMiniMap(), yaze::editor::PixelEditorPanel::DrawRectangle(), yaze::editor::GfxGroupEditor::DrawRoomsetViewer(), yaze::editor::GfxGroupEditor::DrawSpritesetViewer(), yaze::editor::EditorManager::EnsureGameDataLoaded(), yaze::editor::PixelEditorPanel::HandleCanvasInput(), yaze::editor::EditorManager::LoadAssets(), yaze::editor::PixelEditorPanel::PasteSelection(), yaze::editor::GraphicsPixelEditAction::Redo(), and yaze::editor::GraphicsPixelEditAction::Undo().

NotifySheetModified()

void yaze::gfx::Arena::NotifySheetModified

(

int

sheet_index

)

Notify Arena that a graphics sheet has been modified.

Parameters

sheet_index

Index of the modified sheet (0-222)

This ensures textures are updated across all editors

Definition at line 393 of file arena.cc.

References CREATE, gfx_sheets_, LOG_DEBUG, LOG_WARN, QueueTextureCommand(), and UPDATE.

Referenced by yaze::editor::PixelEditorPanel::ApplyBrush(), yaze::editor::PixelEditorPanel::ApplyEraser(), yaze::editor::PixelEditorPanel::ApplyFill(), yaze::editor::PaletteControlsPanel::ApplyPaletteToAllSheets(), yaze::editor::PaletteControlsPanel::ApplyPaletteToSheet(), yaze::editor::PixelEditorPanel::ApplyPencil(), yaze::editor::GfxGroupEditor::DrawBlocksetViewer(), yaze::editor::PixelEditorPanel::DrawLine(), yaze::editor::PixelEditorPanel::DrawRectangle(), yaze::editor::GfxGroupEditor::DrawRoomsetViewer(), yaze::editor::GfxGroupEditor::DrawSpritesetViewer(), yaze::editor::PixelEditorPanel::PasteSelection(), yaze::editor::GraphicsPixelEditAction::Redo(), and yaze::editor::GraphicsPixelEditAction::Undo().

Here is the call graph for this function:

NotifyPaletteModified()

void yaze::gfx::Arena::NotifyPaletteModified	(	const std::string &	group_name,
		int	palette_index = -1 )

Notify all listeners that a palette has been modified.

Parameters

group_name	The palette group name (e.g., "ow_main", "dungeon_main")
palette_index	Specific palette index, or -1 for entire group

This triggers bitmap refresh in editors using these palettes

Definition at line 423 of file arena.cc.

References LOG_DEBUG, LOG_ERROR, and palette_listeners_.

Referenced by yaze::gfx::PaletteManager::ApplyPreviewChanges(), and yaze::gfx::PaletteManager::SaveGroup().

RegisterPaletteListener()

int yaze::gfx::Arena::RegisterPaletteListener

(

PaletteChangeCallback

callback

)

Register a callback for palette change notifications.

Parameters

callback

Function to call when palettes change

Returns

Unique ID for this listener (use to unregister)

Definition at line 441 of file arena.cc.

References LOG_DEBUG, next_palette_listener_id_, and palette_listeners_.

Referenced by yaze::editor::OverworldEditor::Load().

UnregisterPaletteListener()

void yaze::gfx::Arena::UnregisterPaletteListener

(

int

listener_id

)

Unregister a palette change listener.

Parameters

listener_id

The ID returned from RegisterPaletteListener

Definition at line 448 of file arena.cc.

References LOG_DEBUG, and palette_listeners_.

Referenced by yaze::editor::OverworldEditor::Clear().

bg1()

auto & yaze::gfx::Arena::bg1 ( )

inline

Get reference to background layer 1 buffer.

Returns

Reference to BackgroundBuffer for layer 1

Definition at line 222 of file arena.h.

References bg1_.

bg2()

auto & yaze::gfx::Arena::bg2 ( )

inline

Get reference to background layer 2 buffer.

Returns

Reference to BackgroundBuffer for layer 2

Definition at line 228 of file arena.h.

References bg2_.

TouchSheet()

void yaze::gfx::Arena::TouchSheet

(

int

sheet_index

)

Mark a graphics sheet as recently accessed.

Parameters

sheet_index

Index of the sheet being accessed (0-222)

Call this when a sheet is displayed or its texture is used. This moves the sheet to the front of the LRU list.

Definition at line 458 of file arena.cc.

References sheet_lru_list_, and sheet_lru_map_.

Referenced by GetSheetWithCache().

GetSheetWithCache()

Bitmap * yaze::gfx::Arena::GetSheetWithCache

(

int

sheet_index

)

Get a sheet with automatic LRU tracking and texture creation.

Parameters

sheet_index

Index of the sheet (0-222)

Returns

Pointer to the Bitmap, or nullptr if out of bounds

This is the preferred way to access sheets when you need their textures. It automatically:

• Marks the sheet as recently used
• Queues texture creation if not yet created
• Evicts LRU sheets if cache is full

Definition at line 476 of file arena.cc.

References CREATE, yaze::gfx::Arena::SheetCacheStats::current_size, EvictLRUSheets(), gfx_sheets_, yaze::gfx::Arena::SheetCacheStats::hits, yaze::gfx::Arena::SheetCacheStats::misses, QueueTextureCommand(), sheet_cache_max_size_, sheet_cache_stats_, sheet_lru_map_, yaze::gfx::Bitmap::texture(), and TouchSheet().

Here is the call graph for this function:

SetSheetCacheSize()

void yaze::gfx::Arena::SetSheetCacheSize

(

size_t

max_size

)

Set the maximum number of sheet textures to keep cached.

Parameters

max_size

Maximum cache size (default 64, min 16, max 223)

When more sheets than this have textures, the least recently used textures will be destroyed to free GPU memory.

Definition at line 509 of file arena.cc.

References EvictLRUSheets(), LOG_INFO, sheet_cache_max_size_, and sheet_lru_map_.

Here is the call graph for this function:

GetSheetCacheSize()

size_t yaze::gfx::Arena::GetSheetCacheSize ( ) const

inline

Get current sheet cache size limit.

Returns

Maximum number of cached sheet textures

Definition at line 267 of file arena.h.

References sheet_cache_max_size_.

GetCachedSheetCount()

size_t yaze::gfx::Arena::GetCachedSheetCount ( ) const

inline

Get number of sheets currently with textures.

Returns

Count of sheets that have active textures

Definition at line 273 of file arena.h.

References sheet_lru_map_.

EvictLRUSheets()

size_t yaze::gfx::Arena::EvictLRUSheets

(

size_t

count = 0

)

Evict least recently used sheet textures.

Parameters

count

Number of textures to evict (0 = evict until under max)

Returns

Number of textures actually evicted

Useful for proactive memory management before loading new content.

Definition at line 521 of file arena.cc.

References yaze::gfx::Arena::SheetCacheStats::current_size, DESTROY, yaze::gfx::Arena::SheetCacheStats::evictions, gfx_sheets_, LOG_DEBUG, QueueTextureCommand(), sheet_cache_max_size_, sheet_cache_stats_, sheet_lru_list_, and sheet_lru_map_.

Referenced by GetSheetWithCache(), and SetSheetCacheSize().

Here is the call graph for this function:

ClearSheetCache()

void yaze::gfx::Arena::ClearSheetCache

(

)

Clear all sheet texture cache tracking.

Does NOT destroy textures - use this when manually managing textures or during shutdown.

Definition at line 558 of file arena.cc.

References yaze::gfx::Arena::SheetCacheStats::current_size, LOG_DEBUG, sheet_cache_stats_, sheet_lru_list_, and sheet_lru_map_.

Referenced by Shutdown().

GetSheetCacheStats()

const SheetCacheStats & yaze::gfx::Arena::GetSheetCacheStats ( ) const

inline

Get sheet cache statistics.

Returns

Reference to current statistics

Definition at line 318 of file arena.h.

References sheet_cache_stats_.

ResetSheetCacheStats()

void yaze::gfx::Arena::ResetSheetCacheStats ( )

inline

Reset sheet cache statistics.

Definition at line 325 of file arena.h.

References yaze::gfx::Arena::SheetCacheStats::Reset(), and sheet_cache_stats_.

Here is the call graph for this function:

Member Data Documentation

bg1_

BackgroundBuffer yaze::gfx::Arena::bg1_

private

Definition at line 330 of file arena.h.

Referenced by bg1().

bg2_

BackgroundBuffer yaze::gfx::Arena::bg2_

private

Definition at line 331 of file arena.h.

Referenced by bg2().

kTilesPerRow

constexpr int yaze::gfx::Arena::kTilesPerRow = 64

staticconstexprprivate

Definition at line 333 of file arena.h.

kTilesPerColumn

constexpr int yaze::gfx::Arena::kTilesPerColumn = 64

staticconstexprprivate

Definition at line 334 of file arena.h.

kTotalTiles

constexpr int yaze::gfx::Arena::kTotalTiles = kTilesPerRow * kTilesPerColumn

staticconstexprprivate

Definition at line 335 of file arena.h.

layer1_buffer_

std::array<uint16_t, kTotalTiles> yaze::gfx::Arena::layer1_buffer_

private

Definition at line 337 of file arena.h.

Referenced by Arena().

layer2_buffer_

std::array<uint16_t, kTotalTiles> yaze::gfx::Arena::layer2_buffer_

private

Definition at line 338 of file arena.h.

Referenced by Arena().

gfx_sheets_

std::array<gfx::Bitmap, 223> yaze::gfx::Arena::gfx_sheets_

private

Definition at line 340 of file arena.h.

Referenced by EvictLRUSheets(), GetSheetWithCache(), gfx_sheet(), gfx_sheets(), mutable_gfx_sheet(), mutable_gfx_sheets(), and NotifySheetModified().

textures_

std::unordered_map<TextureHandle, std::unique_ptr<SDL_Texture, util::SDL_Texture_Deleter> > yaze::gfx::Arena::textures_

private

Definition at line 344 of file arena.h.

Referenced by GetTextureCount(), and Shutdown().

surfaces_

std::unordered_map<SDL_Surface*, std::unique_ptr<SDL_Surface, util::SDL_Surface_Deleter> > yaze::gfx::Arena::surfaces_

private

Definition at line 348 of file arena.h.

Referenced by AllocateSurface(), FreeSurface(), GetSurfaceCount(), and Shutdown().

texture_pool_

struct yaze::gfx::Arena::TexturePool yaze::gfx::Arena::texture_pool_

private

Referenced by GetPooledTextureCount(), and Shutdown().

surface_pool_

struct yaze::gfx::Arena::SurfacePool yaze::gfx::Arena::surface_pool_

private

Referenced by AllocateSurface(), FreeSurface(), GetPooledSurfaceCount(), and Shutdown().

texture_command_queue_

std::vector<TextureCommand> yaze::gfx::Arena::texture_command_queue_

private

Definition at line 364 of file arena.h.

Referenced by ClearTextureQueue(), HasPendingTextures(), ProcessSingleTexture(), ProcessTextureQueue(), ProcessTextureQueueWithBudget(), QueueTextureCommand(), Shutdown(), and texture_command_queue_size().

renderer_

IRenderer* yaze::gfx::Arena::renderer_ = nullptr

private

Definition at line 365 of file arena.h.

Referenced by Initialize(), ProcessSingleTexture(), ProcessTextureQueue(), ProcessTextureQueueWithBudget(), and Shutdown().

texture_queue_stats_

TextureQueueStats yaze::gfx::Arena::texture_queue_stats_

private

Definition at line 366 of file arena.h.

Referenced by GetTextureQueueStats(), ProcessTextureQueueWithBudget(), and ResetTextureQueueStats().

palette_listeners_

std::unordered_map<int, PaletteChangeCallback> yaze::gfx::Arena::palette_listeners_

private

Definition at line 369 of file arena.h.

Referenced by NotifyPaletteModified(), RegisterPaletteListener(), and UnregisterPaletteListener().

next_palette_listener_id_

int yaze::gfx::Arena::next_palette_listener_id_ = 1

private

Definition at line 370 of file arena.h.

Referenced by RegisterPaletteListener().

sheet_lru_list_

std::list<int> yaze::gfx::Arena::sheet_lru_list_

private

Definition at line 374 of file arena.h.

Referenced by ClearSheetCache(), EvictLRUSheets(), and TouchSheet().

sheet_lru_map_

std::unordered_map<int, std::list<int>::iterator> yaze::gfx::Arena::sheet_lru_map_

private

Definition at line 376 of file arena.h.

Referenced by ClearSheetCache(), EvictLRUSheets(), GetCachedSheetCount(), GetSheetWithCache(), SetSheetCacheSize(), and TouchSheet().

sheet_cache_max_size_

size_t yaze::gfx::Arena::sheet_cache_max_size_ = 64

private

Definition at line 377 of file arena.h.

Referenced by EvictLRUSheets(), GetSheetCacheSize(), GetSheetWithCache(), and SetSheetCacheSize().

sheet_cache_stats_

SheetCacheStats yaze::gfx::Arena::sheet_cache_stats_

private

Definition at line 378 of file arena.h.

Referenced by ClearSheetCache(), EvictLRUSheets(), GetSheetCacheStats(), GetSheetWithCache(), and ResetSheetCacheStats().

---

The documentation for this class was generated from the following files:

• src/app/gfx/resource/arena.h
• src/app/gfx/resource/arena.cc
