yaze::editor::music::MusicPlayer Class Reference

Handles audio playback for the music editor using the SNES APU emulator. More...

#include <music_player.h>

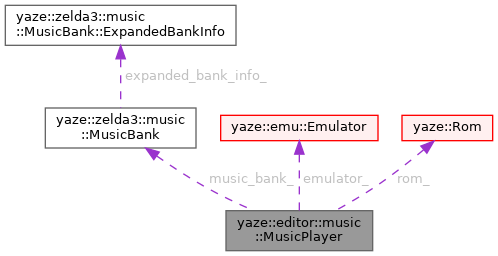

Collaboration diagram for yaze::editor::music::MusicPlayer:

Public Member Functions
	MusicPlayer (zelda3::music::MusicBank *music_bank)
	~MusicPlayer ()
void	SetRom (Rom *rom)
void	SetEmulator (emu::Emulator *emulator)
	Set the main emulator instance to use for playback.
void	SetAudioExclusivityCallback (std::function< void(bool)> callback)
	Set a callback to be called when audio playback starts/stops.
emu::Emulator *	emulator ()
void	Update ()
	Call once per frame to update playback state.
void	PlaySong (int song_index)
	Start playing a song by index.
void	Pause ()
	Pause the current playback.
void	Resume ()
	Resume paused playback.
void	Stop ()
	Stop playback completely.
void	TogglePlayPause ()
	Toggle between play/pause states.
void	PreviewNote (const zelda3::music::MusicSong &song, const zelda3::music::TrackEvent &event, int segment_index, int channel_index)
	Preview a single note with the current instrument.
void	PreviewSegment (const zelda3::music::MusicSong &song, int segment_index)
	Preview a specific segment of a song.
void	PreviewInstrument (int instrument_index)
	Preview an instrument at middle C.
void	PreviewSample (int sample_index)
	Preview a raw BRR sample.
void	PreviewCustomSong (int song_index)
	Preview a custom (modified) song from memory.
void	SetVolume (float volume)
	Set the master volume (0.0 to 1.0).
void	SetPlaybackSpeed (float speed)
	Set the playback speed (0.25x to 2.0x).
void	SetInterpolationType (int type)
	Set the DSP interpolation type for audio quality.
void	SetDirectSpcMode (bool enabled)
	Enable/disable direct SPC mode (bypasses game CPU).
void	SeekToSegment (int segment_index)
	Seek to a specific segment in the current song.
PlaybackState	GetState () const
PlaybackMode	GetMode () const

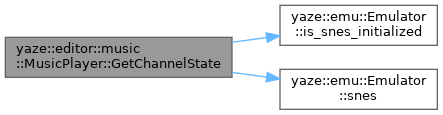

ChannelState	GetChannelState (int channel_index) const

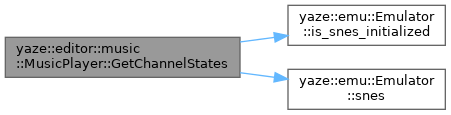

std::array< ChannelState, 8 >	GetChannelStates () const
bool	IsAudioReady () const
	Check if the audio system is ready for playback.
bool	IsPlaying () const
	Check if currently playing.
bool	IsPaused () const
	Check if currently paused.
int	GetPlayingSongIndex () const
	Get the index of the currently playing song, or -1 if none.
const zelda3::music::MusicInstrument *	ResolveInstrumentForEvent (const zelda3::music::MusicSegment &segment, int channel_index, uint16_t tick) const
	Resolve the instrument used at a specific tick in a track.
DspDebugStatus	GetDspStatus () const
	Get DSP buffer diagnostic status.
ApuDebugStatus	GetApuStatus () const
	Get APU timing diagnostic status.
AudioQueueStatus	GetAudioQueueStatus () const
	Get audio queue diagnostic status.
void	ClearAudioQueue ()
	Clear the audio queue (stops sound immediately).
void	ResetDspBuffer ()
	Reset the DSP sample buffer.
void	ForceNewFrame ()
	Force a DSP NewFrame() call.
void	ReinitAudio ()
	Reinitialize the audio system.

Private Member Functions
bool	EnsureAudioReady ()

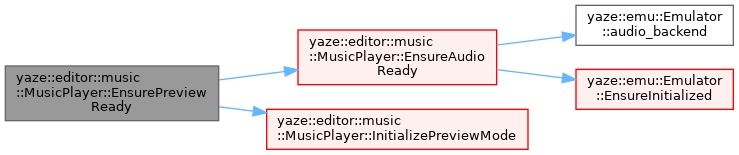

bool	EnsurePreviewReady ()
void	InitializeDirectSpc ()

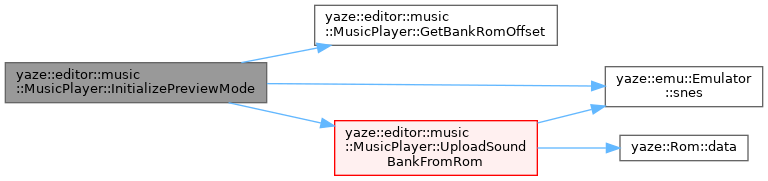

void	InitializePreviewMode ()
void	PlaySongDirect (int song_id)

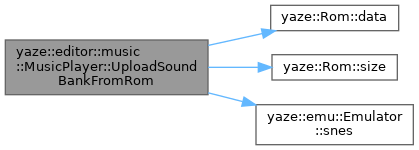

void	UploadSoundBankFromRom (uint32_t rom_offset)
void	UploadSongToAram (const std::vector< uint8_t > &data, uint16_t aram_address)
uint32_t	GetBankRomOffset (uint8_t bank) const
int	GetSongIndexInBank (int song_id, uint8_t bank) const
float	CalculateTicksPerSecond (uint8_t tempo) const
uint32_t	GetCurrentPlaybackTick () const
uint8_t	GetSongTempo (const zelda3::music::MusicSong &song) const
void	TransitionTo (PlaybackMode new_mode)
void	PrepareAudioPlayback ()
	Prepare audio pipeline for playback.

Private Attributes
zelda3::music::MusicBank *	music_bank_ = nullptr
emu::Emulator *	emulator_ = nullptr
Rom *	rom_ = nullptr
PlaybackMode	mode_ = PlaybackMode::Stopped
int	playing_song_index_ = -1
bool	use_direct_spc_ = true
float	volume_ = 1.0f
int	interpolation_type_ = 2
bool	spc_initialized_ = false
bool	preview_initialized_ = false
uint8_t	current_spc_bank_ = 0xFF
std::chrono::steady_clock::time_point	playback_start_time_
std::chrono::steady_clock::time_point	last_frame_time_
uint32_t	playback_start_tick_ = 0
float	ticks_per_second_ = 0.0f
int	playback_segment_index_ = 0
std::function< void(bool)>	audio_exclusivity_callback_

Detailed Description

Handles audio playback for the music editor using the SNES APU emulator.

The MusicPlayer manages playback of songs from ROM or memory, providing:

• Song playback with varispeed control (0.25x to 2.0x)
• Note and segment preview for editing
• Instrument and sample preview
• Real-time DSP channel state monitoring

Playback uses direct SPC700/DSP emulation for authentic SNES audio.

Definition at line 122 of file music_player.h.

Constructor & Destructor Documentation

MusicPlayer()

yaze::editor::music::MusicPlayer::MusicPlayer ( zelda3::music::MusicBank * music_bank )

explicit

Definition at line 20 of file music_player.cc.

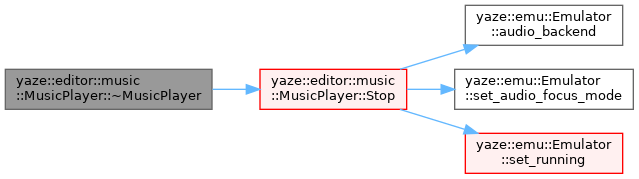

~MusicPlayer()

yaze::editor::music::MusicPlayer::~MusicPlayer

(

)

Definition at line 23 of file music_player.cc.

References Stop().

Here is the call graph for this function:

Member Function Documentation

SetRom()

void yaze::editor::music::MusicPlayer::SetRom

(

Rom *

rom

)

Definition at line 31 of file music_player.cc.

References rom_.

SetEmulator()

void yaze::editor::music::MusicPlayer::SetEmulator

(

emu::Emulator *

emulator

)

Set the main emulator instance to use for playback.

MusicPlayer controls this emulator directly for audio playback.

Parameters

emulator

The emulator instance (must outlive MusicPlayer)

Definition at line 27 of file music_player.cc.

References emulator(), and emulator_.

Here is the call graph for this function:

SetAudioExclusivityCallback()

void yaze::editor::music::MusicPlayer::SetAudioExclusivityCallback ( std::function< void(bool)> callback )

inline

Set a callback to be called when audio playback starts/stops.

This allows external systems (like EditorManager) to pause/mute other audio sources (like the main emulator) when MusicPlayer takes control.

Parameters

callback

Function called with (true) when playback starts, and (false) when playback stops.

Definition at line 148 of file music_player.h.

References audio_exclusivity_callback_.

emulator()

emu::Emulator * yaze::editor::music::MusicPlayer::emulator ( )

inline

Definition at line 153 of file music_player.h.

References emulator_.

Referenced by yaze::editor::MusicAudioDebugPanel::Draw(), and SetEmulator().

Update()

void yaze::editor::music::MusicPlayer::Update

(

)

Call once per frame to update playback state.

This polls the emulator for current song info and updates timing state. Note: The actual audio processing is done by the emulator's RunAudioFrame().

Definition at line 149 of file music_player.cc.

References yaze::emu::Emulator::audio_backend(), CalculateTicksPerSecond(), emulator_, yaze::zelda3::music::MusicBank::GetSong(), GetSongTempo(), yaze::emu::Emulator::is_audio_focus_mode(), yaze::emu::Emulator::is_snes_initialized(), yaze::editor::music::kNativeSampleRate, last_frame_time_, LOG_DEBUG, LOG_ERROR, LOG_INFO, mode_, music_bank_, playback_segment_index_, playback_start_tick_, playback_start_time_, yaze::editor::music::Playing, playing_song_index_, yaze::emu::Emulator::RunAudioFrame(), yaze::emu::Emulator::RunFrameOnly(), yaze::emu::Emulator::running(), yaze::emu::Emulator::snes(), yaze::editor::music::Stopped, ticks_per_second_, TransitionTo(), use_direct_spc_, and yaze::emu::Emulator::wanted_frames().

PlaySong()

void yaze::editor::music::MusicPlayer::PlaySong

(

int

song_index

)

Start playing a song by index.

Parameters

song_index

Zero-based song index in the music bank.

Definition at line 402 of file music_player.cc.

References yaze::emu::Emulator::audio_backend(), audio_exclusivity_callback_, CalculateTicksPerSecond(), emulator_, EnsureAudioReady(), yaze::zelda3::music::MusicBank::GetSong(), GetSongTempo(), interpolation_type_, yaze::editor::music::kNativeSampleRate, last_frame_time_, LOG_INFO, LOG_WARN, mode_, music_bank_, playback_segment_index_, playback_start_tick_, playback_start_time_, yaze::editor::music::Playing, playing_song_index_, PlaySongDirect(), rom_, yaze::emu::Emulator::running(), yaze::emu::Emulator::set_interpolation_type(), yaze::emu::Emulator::set_running(), yaze::emu::Emulator::snes(), Stop(), yaze::editor::music::Stopped, ticks_per_second_, TransitionTo(), and use_direct_spc_.

Referenced by yaze::editor::MusicPlaybackControlPanel::DrawToolset(), and TogglePlayPause().

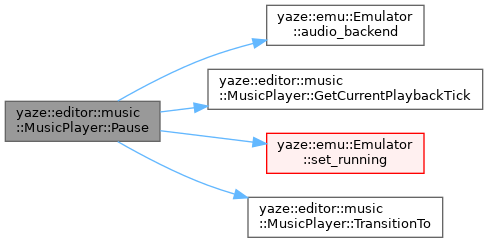

Pause()

void yaze::editor::music::MusicPlayer::Pause

(

)

Pause the current playback.

Definition at line 622 of file music_player.cc.

References yaze::emu::Emulator::audio_backend(), emulator_, GetCurrentPlaybackTick(), LOG_DEBUG, mode_, yaze::editor::music::Paused, playback_start_tick_, yaze::editor::music::Playing, yaze::editor::music::Previewing, yaze::emu::Emulator::set_running(), and TransitionTo().

Referenced by yaze::editor::MusicPlaybackControlPanel::DrawToolset(), and TogglePlayPause().

Here is the call graph for this function:

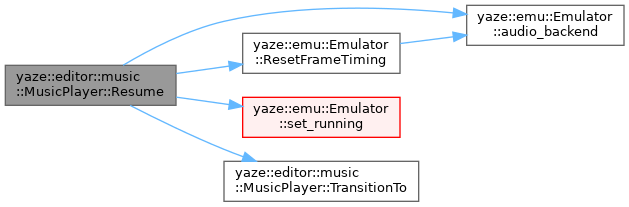

Resume()

void yaze::editor::music::MusicPlayer::Resume

(

)

Resume paused playback.

Definition at line 639 of file music_player.cc.

References yaze::emu::Emulator::audio_backend(), emulator_, last_frame_time_, LOG_DEBUG, mode_, yaze::editor::music::Paused, playback_start_tick_, playback_start_time_, yaze::editor::music::Playing, yaze::emu::Emulator::ResetFrameTiming(), yaze::emu::Emulator::set_running(), and TransitionTo().

Referenced by yaze::editor::MusicPlaybackControlPanel::DrawToolset(), and TogglePlayPause().

Here is the call graph for this function:

Stop()

void yaze::editor::music::MusicPlayer::Stop

(

)

Stop playback completely.

Definition at line 662 of file music_player.cc.

References yaze::emu::Emulator::audio_backend(), emulator_, yaze::editor::music::kSpcStopCycles, LOG_DEBUG, mode_, playback_segment_index_, playback_start_tick_, yaze::emu::Emulator::set_audio_focus_mode(), yaze::emu::Emulator::set_running(), yaze::emu::Emulator::snes(), yaze::editor::music::Stopped, ticks_per_second_, and TransitionTo().

Referenced by yaze::editor::MusicPlaybackControlPanel::DrawToolset(), PlaySong(), ReinitAudio(), and ~MusicPlayer().

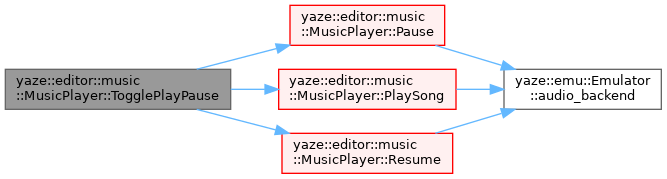

TogglePlayPause()

void yaze::editor::music::MusicPlayer::TogglePlayPause

(

)

Toggle between play/pause states.

Definition at line 132 of file music_player.cc.

References mode_, Pause(), yaze::editor::music::Paused, yaze::editor::music::Playing, playing_song_index_, PlaySong(), yaze::editor::music::Previewing, Resume(), and yaze::editor::music::Stopped.

Here is the call graph for this function:

PreviewNote()

void yaze::editor::music::MusicPlayer::PreviewNote	(	const zelda3::music::MusicSong &	song,
		const zelda3::music::TrackEvent &	event,
		int	segment_index,
		int	channel_index )

Preview a single note with the current instrument.

Definition at line 810 of file music_player.cc.

References yaze::zelda3::music::TrackEvent::Command, emulator_, EnsureAudioReady(), yaze::zelda3::music::MusicBank::GetInstrument(), yaze::zelda3::music::Note::IsNote(), yaze::editor::music::kDspAdsr1, yaze::editor::music::kDspAdsr2, yaze::editor::music::kDspKeyOn, yaze::editor::music::kDspPitchHigh, yaze::editor::music::kDspPitchLow, yaze::editor::music::kDspSrcn, yaze::editor::music::kDspVolL, yaze::editor::music::kDspVolR, yaze::editor::music::kSpcPreviewCycles, yaze::zelda3::music::LookupNSpcPitch(), music_bank_, yaze::zelda3::music::TrackEvent::Note, yaze::zelda3::music::TrackEvent::note, yaze::zelda3::music::Note::pitch, PrepareAudioPlayback(), yaze::editor::music::Previewing, yaze::zelda3::music::MusicInstrument::sample_index, yaze::zelda3::music::MusicSong::segments, yaze::emu::Emulator::snes(), yaze::zelda3::music::TrackEvent::tick, yaze::zelda3::music::MusicSegment::tracks, TransitionTo(), and yaze::zelda3::music::TrackEvent::type.

Referenced by yaze::editor::MusicPianoRollPanel::Draw().

PreviewSegment()

void yaze::editor::music::MusicPlayer::PreviewSegment	(	const zelda3::music::MusicSong &	song,
		int	segment_index )

Preview a specific segment of a song.

Definition at line 906 of file music_player.cc.

References yaze::zelda3::music::MusicSong::bank, CalculateTicksPerSecond(), emulator_, EnsureAudioReady(), GetSongTempo(), yaze::zelda3::music::kSongTableAram, LOG_DEBUG, LOG_ERROR, yaze::zelda3::music::MusicSong::loop_point, yaze::zelda3::music::MusicSong::name, playback_segment_index_, playback_start_tick_, playback_start_time_, PrepareAudioPlayback(), yaze::editor::music::Previewing, yaze::zelda3::music::MusicSong::segments, yaze::zelda3::music::SpcSerializer::SerializeSong(), yaze::emu::Emulator::snes(), ticks_per_second_, TransitionTo(), and UploadSongToAram().

Referenced by yaze::editor::MusicPianoRollPanel::Draw().

PreviewInstrument()

void yaze::editor::music::MusicPlayer::PreviewInstrument

(

int

instrument_index

)

Preview an instrument at middle C.

Definition at line 953 of file music_player.cc.

References yaze::emu::Emulator::audio_backend(), emulator_, EnsurePreviewReady(), yaze::zelda3::music::MusicBank::GetInstrument(), yaze::editor::music::kDspAdsr1, yaze::editor::music::kDspAdsr2, yaze::editor::music::kDspGain, yaze::editor::music::kDspKeyOff, yaze::editor::music::kDspKeyOn, yaze::editor::music::kDspPitchHigh, yaze::editor::music::kDspPitchLow, yaze::editor::music::kDspSrcn, yaze::editor::music::kDspVolL, yaze::editor::music::kDspVolR, yaze::zelda3::music::LookupNSpcPitch(), music_bank_, PrepareAudioPlayback(), yaze::editor::music::Previewing, yaze::emu::Emulator::snes(), and TransitionTo().

PreviewSample()

void yaze::editor::music::MusicPlayer::PreviewSample

(

int

sample_index

)

Preview a raw BRR sample.

Definition at line 991 of file music_player.cc.

References yaze::emu::Emulator::audio_backend(), emulator_, EnsurePreviewReady(), yaze::zelda3::music::MusicBank::GetSample(), yaze::editor::music::kDspAdsr1, yaze::editor::music::kDspAdsr2, yaze::editor::music::kDspGain, yaze::editor::music::kDspKeyOff, yaze::editor::music::kDspKeyOn, yaze::editor::music::kDspPitchHigh, yaze::editor::music::kDspPitchLow, yaze::editor::music::kDspSrcn, yaze::editor::music::kDspVolL, yaze::editor::music::kDspVolR, music_bank_, PrepareAudioPlayback(), yaze::editor::music::Previewing, yaze::emu::Emulator::snes(), TransitionTo(), and UploadSongToAram().

PreviewCustomSong()

void yaze::editor::music::MusicPlayer::PreviewCustomSong

(

int

song_index

)

Preview a custom (modified) song from memory.

Definition at line 1039 of file music_player.cc.

References CalculateTicksPerSecond(), emulator_, EnsureAudioReady(), yaze::zelda3::music::MusicBank::GetSong(), GetSongTempo(), yaze::zelda3::music::kSongTableAram, yaze::editor::music::kSpcInitCycles, LOG_ERROR, LOG_INFO, music_bank_, playback_segment_index_, playback_start_tick_, playback_start_time_, playing_song_index_, PrepareAudioPlayback(), yaze::editor::music::Previewing, yaze::zelda3::music::SpcSerializer::SerializeSong(), yaze::emu::Emulator::snes(), ticks_per_second_, TransitionTo(), and UploadSongToAram().

Referenced by PlaySongDirect().

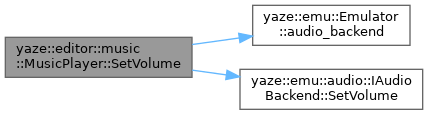

SetVolume()

void yaze::editor::music::MusicPlayer::SetVolume

(

float

volume

)

Set the master volume (0.0 to 1.0).

Definition at line 695 of file music_player.cc.

References yaze::emu::Emulator::audio_backend(), emulator_, and yaze::emu::audio::IAudioBackend::SetVolume().

Referenced by yaze::editor::MusicPlaybackControlPanel::DrawToolset().

Here is the call graph for this function:

SetPlaybackSpeed()

void yaze::editor::music::MusicPlayer::SetPlaybackSpeed

(

float

speed

)

Set the playback speed (0.25x to 2.0x).

This affects both tempo and pitch (tape-style varispeed).

Definition at line 701 of file music_player.cc.

Referenced by yaze::editor::MusicPlaybackControlPanel::DrawToolset().

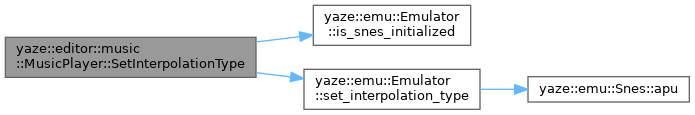

SetInterpolationType()

void yaze::editor::music::MusicPlayer::SetInterpolationType

(

int

type

)

Set the DSP interpolation type for audio quality.

Parameters

type	0=Linear, 1=Hermite, 2=Gaussian, 3=Cosine, 4=Cubic

Definition at line 706 of file music_player.cc.

References emulator_, interpolation_type_, yaze::emu::Emulator::is_snes_initialized(), and yaze::emu::Emulator::set_interpolation_type().

Here is the call graph for this function:

SetDirectSpcMode()

void yaze::editor::music::MusicPlayer::SetDirectSpcMode

(

bool

enabled

)

Enable/disable direct SPC mode (bypasses game CPU).

Definition at line 713 of file music_player.cc.

References use_direct_spc_.

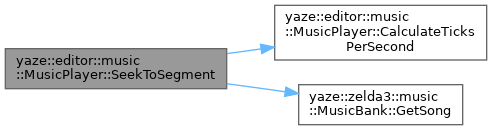

SeekToSegment()

void yaze::editor::music::MusicPlayer::SeekToSegment

(

int

segment_index

)

Seek to a specific segment in the current song.

Definition at line 1084 of file music_player.cc.

References CalculateTicksPerSecond(), yaze::zelda3::music::TrackEvent::Command, yaze::zelda3::music::MusicBank::GetSong(), yaze::editor::music::kOpcodeTempo, music_bank_, playback_segment_index_, playback_start_tick_, playback_start_time_, playing_song_index_, yaze::zelda3::music::MusicSong::segments, and ticks_per_second_.

Here is the call graph for this function:

GetState()

PlaybackState yaze::editor::music::MusicPlayer::GetState

(

)

const

Definition at line 35 of file music_player.cc.

References yaze::editor::music::PlaybackState::current_segment_index, yaze::editor::music::PlaybackState::current_tick, GetCurrentPlaybackTick(), yaze::editor::music::PlaybackState::is_paused, yaze::editor::music::PlaybackState::is_playing, mode_, yaze::editor::music::Paused, playback_segment_index_, yaze::editor::music::PlaybackState::playback_speed, yaze::editor::music::Playing, yaze::editor::music::PlaybackState::playing_song_index, playing_song_index_, yaze::editor::music::Previewing, yaze::editor::music::PlaybackState::ticks_per_second, and ticks_per_second_.

Referenced by yaze::editor::MusicPianoRollPanel::Draw(), yaze::editor::MusicPlaybackControlPanel::DrawPlaybackStatus(), yaze::editor::MusicAudioDebugPanel::DrawResamplingStatus(), and yaze::editor::MusicPlaybackControlPanel::DrawToolset().

Here is the call graph for this function:

GetMode()

PlaybackMode yaze::editor::music::MusicPlayer::GetMode ( ) const

inline

Definition at line 250 of file music_player.h.

References mode_.

GetChannelState()

ChannelState yaze::editor::music::MusicPlayer::GetChannelState

(

int

channel_index

)

const

Definition at line 869 of file music_player.cc.

References yaze::editor::music::ChannelState::adsr_state, emulator_, yaze::editor::music::ChannelState::gain, yaze::emu::Emulator::is_snes_initialized(), yaze::editor::music::ChannelState::key_on, yaze::editor::music::ChannelState::pitch, yaze::editor::music::ChannelState::sample_index, yaze::emu::Emulator::snes(), yaze::editor::music::ChannelState::volume_l, and yaze::editor::music::ChannelState::volume_r.

Here is the call graph for this function:

GetChannelStates()

std::array< ChannelState, 8 > yaze::editor::music::MusicPlayer::GetChannelStates

(

)

const

Definition at line 886 of file music_player.cc.

References emulator_, yaze::emu::Emulator::is_snes_initialized(), and yaze::emu::Emulator::snes().

Referenced by yaze::editor::MusicPlaybackControlPanel::DrawDebugControls().

Here is the call graph for this function:

IsAudioReady()

bool yaze::editor::music::MusicPlayer::IsAudioReady

(

)

const

Check if the audio system is ready for playback.

Definition at line 275 of file music_player.cc.

References rom_.

Referenced by yaze::editor::MusicPlaybackControlPanel::DrawToolset().

IsPlaying()

bool yaze::editor::music::MusicPlayer::IsPlaying ( ) const

inline

Check if currently playing.

Definition at line 262 of file music_player.h.

References mode_, and yaze::editor::music::Playing.

IsPaused()

bool yaze::editor::music::MusicPlayer::IsPaused ( ) const

inline

Check if currently paused.

Definition at line 267 of file music_player.h.

References mode_, and yaze::editor::music::Paused.

GetPlayingSongIndex()

int yaze::editor::music::MusicPlayer::GetPlayingSongIndex ( ) const

inline

Get the index of the currently playing song, or -1 if none.

Definition at line 272 of file music_player.h.

References playing_song_index_.

ResolveInstrumentForEvent()

const zelda3::music::MusicInstrument * yaze::editor::music::MusicPlayer::ResolveInstrumentForEvent	(	const zelda3::music::MusicSegment &	segment,
		int	channel_index,
		uint16_t	tick ) const

Resolve the instrument used at a specific tick in a track.

Definition at line 1114 of file music_player.cc.

References yaze::zelda3::music::TrackEvent::Command, yaze::zelda3::music::MusicBank::GetInstrument(), music_bank_, and yaze::zelda3::music::MusicSegment::tracks.

Here is the call graph for this function:

GetDspStatus()

DspDebugStatus yaze::editor::music::MusicPlayer::GetDspStatus

(

)

const

Get DSP buffer diagnostic status.

Definition at line 1136 of file music_player.cc.

References yaze::editor::music::DspDebugStatus::echo_delay, yaze::editor::music::DspDebugStatus::echo_enabled, emulator_, yaze::editor::music::DspDebugStatus::frame_boundary, yaze::emu::Emulator::is_snes_initialized(), yaze::editor::music::DspDebugStatus::master_vol_l, yaze::editor::music::DspDebugStatus::master_vol_r, yaze::editor::music::DspDebugStatus::mute, yaze::editor::music::DspDebugStatus::reset, yaze::editor::music::DspDebugStatus::sample_offset, and yaze::emu::Emulator::snes().

Referenced by yaze::editor::MusicPlaybackControlPanel::DrawDebugControls(), and yaze::editor::MusicAudioDebugPanel::DrawDspStatus().

Here is the call graph for this function:

GetApuStatus()

ApuDebugStatus yaze::editor::music::MusicPlayer::GetApuStatus

(

)

const

Get APU timing diagnostic status.

Definition at line 1154 of file music_player.cc.

References yaze::editor::music::ApuDebugStatus::cycles, emulator_, yaze::emu::Emulator::is_snes_initialized(), yaze::editor::music::ApuDebugStatus::port0_in, yaze::editor::music::ApuDebugStatus::port0_out, yaze::editor::music::ApuDebugStatus::port1_in, yaze::editor::music::ApuDebugStatus::port1_out, yaze::emu::Emulator::snes(), yaze::editor::music::ApuDebugStatus::timer0_counter, yaze::editor::music::ApuDebugStatus::timer0_enabled, yaze::editor::music::ApuDebugStatus::timer0_target, yaze::editor::music::ApuDebugStatus::timer1_counter, yaze::editor::music::ApuDebugStatus::timer1_enabled, yaze::editor::music::ApuDebugStatus::timer1_target, yaze::editor::music::ApuDebugStatus::timer2_counter, yaze::editor::music::ApuDebugStatus::timer2_enabled, and yaze::editor::music::ApuDebugStatus::timer2_target.

Referenced by yaze::editor::MusicAudioDebugPanel::DrawApuStatus(), and yaze::editor::MusicPlaybackControlPanel::DrawDebugControls().

Here is the call graph for this function:

GetAudioQueueStatus()

AudioQueueStatus yaze::editor::music::MusicPlayer::GetAudioQueueStatus

(

)

const

Get audio queue diagnostic status.

Definition at line 1190 of file music_player.cc.

References yaze::emu::Emulator::audio_backend(), yaze::editor::music::AudioQueueStatus::backend_name, emulator_, yaze::editor::music::AudioQueueStatus::has_underrun, yaze::editor::music::AudioQueueStatus::is_playing, yaze::editor::music::AudioQueueStatus::queued_bytes, yaze::editor::music::AudioQueueStatus::queued_frames, and yaze::editor::music::AudioQueueStatus::sample_rate.

Referenced by yaze::editor::MusicPlaybackControlPanel::DrawDebugControls().

Here is the call graph for this function:

ClearAudioQueue()

void yaze::editor::music::MusicPlayer::ClearAudioQueue

(

)

Clear the audio queue (stops sound immediately).

Definition at line 1213 of file music_player.cc.

References yaze::emu::Emulator::audio_backend(), emulator_, and LOG_INFO.

Referenced by yaze::editor::MusicAudioDebugPanel::DrawDebugActions(), and yaze::editor::MusicPlaybackControlPanel::DrawDebugControls().

Here is the call graph for this function:

ResetDspBuffer()

void yaze::editor::music::MusicPlayer::ResetDspBuffer

(

)

Reset the DSP sample buffer.

Definition at line 1222 of file music_player.cc.

References emulator_, yaze::emu::Emulator::is_snes_initialized(), LOG_INFO, and yaze::emu::Emulator::snes().

Referenced by yaze::editor::MusicAudioDebugPanel::DrawDebugActions(), and yaze::editor::MusicPlaybackControlPanel::DrawDebugControls().

Here is the call graph for this function:

ForceNewFrame()

void yaze::editor::music::MusicPlayer::ForceNewFrame

(

)

Force a DSP NewFrame() call.

Definition at line 1230 of file music_player.cc.

References emulator_, yaze::emu::Emulator::is_snes_initialized(), LOG_INFO, and yaze::emu::Emulator::snes().

Referenced by yaze::editor::MusicAudioDebugPanel::DrawDebugActions(), and yaze::editor::MusicPlaybackControlPanel::DrawDebugControls().

Here is the call graph for this function:

ReinitAudio()

void yaze::editor::music::MusicPlayer::ReinitAudio

(

)

Reinitialize the audio system.

Definition at line 1238 of file music_player.cc.

References current_spc_bank_, emulator_, LOG_INFO, preview_initialized_, spc_initialized_, and Stop().

Referenced by yaze::editor::MusicAudioDebugPanel::DrawDebugActions(), and yaze::editor::MusicPlaybackControlPanel::DrawDebugControls().

Here is the call graph for this function:

EnsureAudioReady()

bool yaze::editor::music::MusicPlayer::EnsureAudioReady ( )

private

Definition at line 280 of file music_player.cc.

References yaze::emu::Emulator::audio_backend(), emulator_, yaze::emu::Emulator::EnsureInitialized(), InitializeDirectSpc(), interpolation_type_, yaze::emu::Emulator::is_snes_initialized(), yaze::editor::music::kNativeSampleRate, LOG_ERROR, LOG_INFO, LOG_WARN, yaze::emu::Emulator::mark_audio_stream_configured(), rom_, yaze::emu::Emulator::set_interpolation_type(), yaze::emu::Emulator::set_use_sdl_audio_stream(), spc_initialized_, and yaze::emu::Emulator::wanted_samples().

Referenced by EnsurePreviewReady(), PlaySong(), PlaySongDirect(), PreviewCustomSong(), PreviewNote(), and PreviewSegment().

EnsurePreviewReady()

bool yaze::editor::music::MusicPlayer::EnsurePreviewReady ( )

private

Definition at line 336 of file music_player.cc.

References EnsureAudioReady(), InitializePreviewMode(), and preview_initialized_.

Referenced by PreviewInstrument(), and PreviewSample().

Here is the call graph for this function:

InitializeDirectSpc()

void yaze::editor::music::MusicPlayer::InitializeDirectSpc ( )

private

Definition at line 345 of file music_player.cc.

References current_spc_bank_, emulator_, GetBankRomOffset(), yaze::editor::music::kDriverEntryPoint, yaze::editor::music::kSpcResetCycles, LOG_INFO, preview_initialized_, rom_, yaze::emu::Emulator::snes(), spc_initialized_, and UploadSoundBankFromRom().

Referenced by EnsureAudioReady(), and PlaySongDirect().

Here is the call graph for this function:

InitializePreviewMode()

void yaze::editor::music::MusicPlayer::InitializePreviewMode ( )

private

Definition at line 376 of file music_player.cc.

References emulator_, GetBankRomOffset(), yaze::editor::music::kDspDir, yaze::editor::music::kDspEchoVolL, yaze::editor::music::kDspEchoVolR, yaze::editor::music::kDspFlg, yaze::editor::music::kDspKeyOff, yaze::editor::music::kDspKeyOn, yaze::editor::music::kDspMainVolL, yaze::editor::music::kDspMainVolR, LOG_INFO, preview_initialized_, rom_, yaze::emu::Emulator::snes(), and UploadSoundBankFromRom().

Referenced by EnsurePreviewReady().

Here is the call graph for this function:

PlaySongDirect()

void yaze::editor::music::MusicPlayer::PlaySongDirect ( int song_id )

private

Definition at line 468 of file music_player.cc.

References yaze::emu::Emulator::audio_backend(), audio_exclusivity_callback_, yaze::zelda3::music::MusicSong::bank, CalculateTicksPerSecond(), current_spc_bank_, emulator_, EnsureAudioReady(), GetBankRomOffset(), yaze::zelda3::music::MusicBank::GetSong(), GetSongTempo(), yaze::zelda3::music::MusicBank::HasExpandedMusicPatch(), InitializeDirectSpc(), interpolation_type_, yaze::editor::music::kNativeSampleRate, yaze::editor::music::kSpcInitCycles, last_frame_time_, LOG_INFO, yaze::zelda3::music::MusicSong::modified, music_bank_, yaze::zelda3::music::MusicSong::name, playback_segment_index_, playback_start_tick_, playback_start_time_, yaze::editor::music::Playing, playing_song_index_, preview_initialized_, PreviewCustomSong(), yaze::emu::Emulator::ResetFrameTiming(), rom_, yaze::emu::Emulator::set_audio_focus_mode(), yaze::emu::Emulator::set_interpolation_type(), yaze::emu::Emulator::set_running(), yaze::emu::Emulator::snes(), ticks_per_second_, TransitionTo(), and UploadSoundBankFromRom().

Referenced by PlaySong().

UploadSoundBankFromRom()

void yaze::editor::music::MusicPlayer::UploadSoundBankFromRom ( uint32_t rom_offset )

private

Definition at line 717 of file music_player.cc.

References yaze::Rom::data(), emulator_, LOG_INFO, LOG_WARN, rom_, yaze::Rom::size(), and yaze::emu::Emulator::snes().

Referenced by InitializeDirectSpc(), InitializePreviewMode(), and PlaySongDirect().

Here is the call graph for this function:

UploadSongToAram()

void yaze::editor::music::MusicPlayer::UploadSongToAram ( const std::vector< uint8_t > & data, uint16_t aram_address )

private

Definition at line 747 of file music_player.cc.

References emulator_, and yaze::emu::Emulator::snes().

Referenced by PreviewCustomSong(), PreviewSample(), and PreviewSegment().

Here is the call graph for this function:

GetBankRomOffset()

uint32_t yaze::editor::music::MusicPlayer::GetBankRomOffset ( uint8_t bank ) const

private

Definition at line 755 of file music_player.cc.

References yaze::editor::music::kSoundBankOffsets.

Referenced by InitializeDirectSpc(), InitializePreviewMode(), and PlaySongDirect().

GetSongIndexInBank()

int yaze::editor::music::MusicPlayer::GetSongIndexInBank ( int song_id, uint8_t bank ) const

private

Definition at line 762 of file music_player.cc.

CalculateTicksPerSecond()

float yaze::editor::music::MusicPlayer::CalculateTicksPerSecond ( uint8_t tempo ) const

private

Definition at line 787 of file music_player.cc.

Referenced by PlaySong(), PlaySongDirect(), PreviewCustomSong(), PreviewSegment(), SeekToSegment(), and Update().

GetCurrentPlaybackTick()

uint32_t yaze::editor::music::MusicPlayer::GetCurrentPlaybackTick ( ) const

private

Definition at line 798 of file music_player.cc.

References mode_, playback_start_tick_, playback_start_time_, yaze::editor::music::Playing, yaze::editor::music::Previewing, and ticks_per_second_.

Referenced by GetState(), and Pause().

GetSongTempo()

uint8_t yaze::editor::music::MusicPlayer::GetSongTempo ( const zelda3::music::MusicSong & song ) const

private

Definition at line 771 of file music_player.cc.

References yaze::zelda3::music::TrackEvent::Command, yaze::editor::music::kOpcodeTempo, and yaze::zelda3::music::MusicSong::segments.

Referenced by PlaySong(), PlaySongDirect(), PreviewCustomSong(), PreviewSegment(), and Update().

TransitionTo()

void yaze::editor::music::MusicPlayer::TransitionTo ( PlaybackMode new_mode )

private

Definition at line 47 of file music_player.cc.

References audio_exclusivity_callback_, LOG_DEBUG, LOG_INFO, mode_, yaze::editor::music::Playing, and yaze::editor::music::Previewing.

Referenced by Pause(), PlaySong(), PlaySongDirect(), PreviewCustomSong(), PreviewInstrument(), PreviewNote(), PreviewSample(), PreviewSegment(), Resume(), Stop(), and Update().

PrepareAudioPlayback()

void yaze::editor::music::MusicPlayer::PrepareAudioPlayback ( )

private

Prepare audio pipeline for playback.

Consolidates the common audio priming pattern used by all playback methods:

• Resets DSP sample buffer
• Runs one audio frame to generate initial samples
• Queues initial samples to audio backend
• Starts audio playback and emulator

Definition at line 73 of file music_player.cc.

References yaze::emu::Emulator::audio_backend(), emulator_, yaze::editor::music::kNativeSampleRate, last_frame_time_, LOG_ERROR, LOG_INFO, yaze::emu::Emulator::ResetFrameTiming(), yaze::emu::Emulator::set_audio_focus_mode(), yaze::emu::Emulator::set_running(), and yaze::emu::Emulator::snes().

Referenced by PreviewCustomSong(), PreviewInstrument(), PreviewNote(), PreviewSample(), and PreviewSegment().

Member Data Documentation

music_bank_

zelda3::music::MusicBank* yaze::editor::music::MusicPlayer::music_bank_ = nullptr

private

Definition at line 346 of file music_player.h.

Referenced by PlaySong(), PlaySongDirect(), PreviewCustomSong(), PreviewInstrument(), PreviewNote(), PreviewSample(), ResolveInstrumentForEvent(), SeekToSegment(), and Update().

emulator_

emu::Emulator* yaze::editor::music::MusicPlayer::emulator_ = nullptr

private

Definition at line 347 of file music_player.h.

Referenced by ClearAudioQueue(), emulator(), EnsureAudioReady(), ForceNewFrame(), GetApuStatus(), GetAudioQueueStatus(), GetChannelState(), GetChannelStates(), GetDspStatus(), InitializeDirectSpc(), InitializePreviewMode(), Pause(), PlaySong(), PlaySongDirect(), PrepareAudioPlayback(), PreviewCustomSong(), PreviewInstrument(), PreviewNote(), PreviewSample(), PreviewSegment(), ReinitAudio(), ResetDspBuffer(), Resume(), SetEmulator(), SetInterpolationType(), SetVolume(), Stop(), Update(), UploadSongToAram(), and UploadSoundBankFromRom().

rom_

Rom* yaze::editor::music::MusicPlayer::rom_ = nullptr

private

Definition at line 348 of file music_player.h.

Referenced by EnsureAudioReady(), InitializeDirectSpc(), InitializePreviewMode(), IsAudioReady(), PlaySong(), PlaySongDirect(), SetRom(), and UploadSoundBankFromRom().

mode_

PlaybackMode yaze::editor::music::MusicPlayer::mode_ = PlaybackMode::Stopped

private

Definition at line 351 of file music_player.h.

Referenced by GetCurrentPlaybackTick(), GetMode(), GetState(), IsPaused(), IsPlaying(), Pause(), PlaySong(), Resume(), Stop(), TogglePlayPause(), TransitionTo(), and Update().

playing_song_index_

int yaze::editor::music::MusicPlayer::playing_song_index_ = -1

private

Definition at line 352 of file music_player.h.

Referenced by GetPlayingSongIndex(), GetState(), PlaySong(), PlaySongDirect(), PreviewCustomSong(), SeekToSegment(), TogglePlayPause(), and Update().

use_direct_spc_

bool yaze::editor::music::MusicPlayer::use_direct_spc_ = true

private

Definition at line 355 of file music_player.h.

Referenced by PlaySong(), SetDirectSpcMode(), and Update().

volume_

float yaze::editor::music::MusicPlayer::volume_ = 1.0f

private

Definition at line 356 of file music_player.h.

interpolation_type_

int yaze::editor::music::MusicPlayer::interpolation_type_ = 2

private

Definition at line 357 of file music_player.h.

Referenced by EnsureAudioReady(), PlaySong(), PlaySongDirect(), and SetInterpolationType().

spc_initialized_

bool yaze::editor::music::MusicPlayer::spc_initialized_ = false

private

Definition at line 360 of file music_player.h.

Referenced by EnsureAudioReady(), InitializeDirectSpc(), and ReinitAudio().

preview_initialized_

bool yaze::editor::music::MusicPlayer::preview_initialized_ = false

private

Definition at line 361 of file music_player.h.

Referenced by EnsurePreviewReady(), InitializeDirectSpc(), InitializePreviewMode(), PlaySongDirect(), and ReinitAudio().

current_spc_bank_

uint8_t yaze::editor::music::MusicPlayer::current_spc_bank_ = 0xFF

private

Definition at line 362 of file music_player.h.

Referenced by InitializeDirectSpc(), PlaySongDirect(), and ReinitAudio().

playback_start_time_

std::chrono::steady_clock::time_point yaze::editor::music::MusicPlayer::playback_start_time_

private

Definition at line 365 of file music_player.h.

Referenced by GetCurrentPlaybackTick(), PlaySong(), PlaySongDirect(), PreviewCustomSong(), PreviewSegment(), Resume(), SeekToSegment(), and Update().

last_frame_time_

std::chrono::steady_clock::time_point yaze::editor::music::MusicPlayer::last_frame_time_

private

Definition at line 366 of file music_player.h.

Referenced by PlaySong(), PlaySongDirect(), PrepareAudioPlayback(), Resume(), and Update().

playback_start_tick_

uint32_t yaze::editor::music::MusicPlayer::playback_start_tick_ = 0

private

Definition at line 367 of file music_player.h.

Referenced by GetCurrentPlaybackTick(), Pause(), PlaySong(), PlaySongDirect(), PreviewCustomSong(), PreviewSegment(), Resume(), SeekToSegment(), Stop(), and Update().

ticks_per_second_

float yaze::editor::music::MusicPlayer::ticks_per_second_ = 0.0f

private

Definition at line 368 of file music_player.h.

Referenced by GetCurrentPlaybackTick(), GetState(), PlaySong(), PlaySongDirect(), PreviewCustomSong(), PreviewSegment(), SeekToSegment(), Stop(), and Update().

playback_segment_index_

int yaze::editor::music::MusicPlayer::playback_segment_index_ = 0

private

Definition at line 369 of file music_player.h.

Referenced by GetState(), PlaySong(), PlaySongDirect(), PreviewCustomSong(), PreviewSegment(), SeekToSegment(), Stop(), and Update().

audio_exclusivity_callback_

std::function<void(bool)> yaze::editor::music::MusicPlayer::audio_exclusivity_callback_

private

Definition at line 372 of file music_player.h.

Referenced by PlaySong(), PlaySongDirect(), SetAudioExclusivityCallback(), and TransitionTo().

---

The documentation for this class was generated from the following files:

• src/app/editor/music/music_player.h
• src/app/editor/music/music_player.cc
