yaze::zelda3::music::MusicBank Class Reference

Manages the collection of songs, instruments, and samples from a ROM. More...

#include <music_bank.h>

Collaboration diagram for yaze::zelda3::music::MusicBank:

Classes
struct	BankSongRange
struct	ExpandedBankInfo
struct	SpaceInfo

Public Types
enum class	Bank : uint8_t {   Overworld = 0 , Dungeon = 1 , Credits = 2 , OverworldExpanded = 3 ,   Auxiliary = 4 }

Public Member Functions
	MusicBank ()=default
	~MusicBank ()=default
	MusicBank (const MusicBank &)=delete
MusicBank &	operator= (const MusicBank &)=delete
	MusicBank (MusicBank &&)=default
MusicBank &	operator= (MusicBank &&)=default
absl::Status	LoadFromRom (Rom &rom)
	Load all music data from a ROM.
absl::Status	SaveToRom (Rom &rom)
	Save all modified music data back to ROM.
bool	IsLoaded () const
	Check if music data has been loaded.
size_t	GetSongCount () const
	Get the number of songs loaded.
MusicSong *	GetSong (int index)
	Get a song by index.
const MusicSong *	GetSong (int index) const
MusicSong *	GetSongById (int song_id)
	Get a song by vanilla ID (1-based).
int	CreateNewSong (const std::string &name, Bank bank)
	Create a new empty song.
absl::Status	DeleteSong (int index)
	Delete a song by index.
int	DuplicateSong (int index)
	Duplicate a song.
bool	IsVanilla (int index) const
	Check if a song is a vanilla (original) song.
bool	HasExpandedMusicPatch () const
	Check if the ROM has the Oracle of Secrets expanded music patch.
bool	IsExpandedSong (int index) const
	Check if a song is from an expanded bank.
const ExpandedBankInfo &	GetExpandedBankInfo () const
	Get information about the expanded bank configuration.
std::vector< MusicSong * >	GetSongsInBank (Bank bank)
	Get all songs in a specific bank.
size_t	GetInstrumentCount () const
	Get the number of instruments.
MusicInstrument *	GetInstrument (int index)
	Get an instrument by index.
const MusicInstrument *	GetInstrument (int index) const
int	CreateNewInstrument (const std::string &name)
	Create a new instrument.
size_t	GetSampleCount () const
	Get the number of samples.
MusicSample *	GetSample (int index)
	Get a sample by index.
const MusicSample *	GetSample (int index) const
absl::StatusOr< int >	ImportSampleFromWav (const std::string &filepath, const std::string &name)
	Import a WAV file as a new sample.
SpaceInfo	CalculateSpaceUsage (Bank bank) const
	Calculate space usage for a bank.
bool	AllSongsFit () const
	Check if all songs fit in their banks.
bool	HasModifications () const
	Check if any music data has been modified.
void	ClearModifications ()
	Mark all data as unmodified (after save).
nlohmann::json	ToJson () const
absl::Status	LoadFromJson (const nlohmann::json &j)

Static Public Member Functions
static int	GetBankMaxSize (Bank bank)
	Get the maximum size for a bank.
static uint32_t	GetBankRomAddress (Bank bank)
	Get the ROM address for a bank.

Private Member Functions
absl::Status	LoadSongTable (Rom &rom, Bank bank, std::vector< MusicSong > *custom_songs)
absl::Status	LoadInstruments (Rom &rom)
absl::Status	LoadSamples (Rom &rom)
absl::Status	DetectExpandedMusicPatch (Rom &rom)
absl::Status	LoadExpandedSongTable (Rom &rom, std::vector< MusicSong > *custom_songs)
absl::Status	SaveSongTable (Rom &rom, Bank bank)
absl::Status	SaveInstruments (Rom &rom)
absl::Status	SaveSamples (Rom &rom)
int	CalculateSongSize (const MusicSong &song) const

Static Private Member Functions
static BankSongRange	GetBankSongRange (Bank bank)
static uint8_t	GetSpcBankId (Bank bank)
static constexpr uint16_t	GetSongTableAddress ()

Private Attributes
std::vector< MusicSong >	songs_
std::vector< MusicInstrument >	instruments_
std::vector< MusicSample >	samples_
bool	loaded_ = false
bool	instruments_modified_ = false
bool	samples_modified_ = false
int	overworld_song_count_ = 0
int	dungeon_song_count_ = 0
int	credits_song_count_ = 0
int	expanded_song_count_ = 0
int	auxiliary_song_count_ = 0
ExpandedBankInfo	expanded_bank_info_

Detailed Description

Manages the collection of songs, instruments, and samples from a ROM.

The MusicBank handles:

• Loading all music data from ROM
• Saving modified music data back to ROM
• Managing instrument and sample definitions
• Tracking space usage within ROM banks

Definition at line 27 of file music_bank.h.

Member Enumeration Documentation

Bank

enum class yaze::zelda3::music::MusicBank::Bank : uint8_t

strong

Enumerator
Overworld
Dungeon
Credits
OverworldExpanded
Auxiliary

Definition at line 30 of file music_bank.h.

Constructor & Destructor Documentation

MusicBank() [1/3]

yaze::zelda3::music::MusicBank::MusicBank ( )

default

~MusicBank()

yaze::zelda3::music::MusicBank::~MusicBank ( )

default

MusicBank() [2/3]

yaze::zelda3::music::MusicBank::MusicBank ( const MusicBank & )

delete

MusicBank() [3/3]

yaze::zelda3::music::MusicBank::MusicBank ( MusicBank && )

default

Member Function Documentation

operator=() [1/2]

MusicBank & yaze::zelda3::music::MusicBank::operator= ( const MusicBank & )

delete

operator=() [2/2]

MusicBank & yaze::zelda3::music::MusicBank::operator= ( MusicBank && )

default

LoadFromRom()

absl::Status yaze::zelda3::music::MusicBank::LoadFromRom

(

Rom &

rom

)

Load all music data from a ROM.

Parameters

rom	The ROM to load from.

Returns

Status indicating success or failure.

Definition at line 169 of file music_bank.cc.

References auxiliary_song_count_, Credits, yaze::zelda3::music::MusicBank::ExpandedBankInfo::detected, DetectExpandedMusicPatch(), Dungeon, expanded_bank_info_, expanded_song_count_, instruments_, yaze::Rom::is_loaded(), loaded_, LoadExpandedSongTable(), LoadInstruments(), LoadSamples(), LoadSongTable(), Overworld, samples_, and songs_.

Referenced by yaze::editor::MusicEditor::DrawToolset(), and yaze::editor::MusicEditor::Load().

SaveToRom()

absl::Status yaze::zelda3::music::MusicBank::SaveToRom

(

Rom &

rom

)

Save all modified music data back to ROM.

Parameters

rom	The ROM to save to.

Returns

Status indicating success or failure.

Definition at line 220 of file music_bank.cc.

References AllSongsFit(), ClearModifications(), Credits, Dungeon, instruments_modified_, yaze::Rom::is_loaded(), loaded_, Overworld, samples_modified_, SaveInstruments(), SaveSamples(), and SaveSongTable().

Referenced by yaze::editor::MusicEditor::Save().

IsLoaded()

bool yaze::zelda3::music::MusicBank::IsLoaded ( ) const

inline

Check if music data has been loaded.

Definition at line 88 of file music_bank.h.

References loaded_.

GetSongCount()

size_t yaze::zelda3::music::MusicBank::GetSongCount ( ) const

inline

Get the number of songs loaded.

Definition at line 97 of file music_bank.h.

References songs_.

Referenced by yaze::editor::music::SongBrowserView::Draw(), yaze::editor::MusicEditor::OpenSongPianoRoll(), and yaze::editor::MusicEditor::RestoreState().

GetSong() [1/2]

MusicSong * yaze::zelda3::music::MusicBank::GetSong

(

int

index

)

Get a song by index.

Parameters

index

The song index (0-based).

Returns

Pointer to the song, or nullptr if index is invalid.

Definition at line 261 of file music_bank.cc.

References songs_.

Referenced by yaze::editor::MusicPianoRollPanel::Draw(), yaze::editor::music::SongBrowserView::Draw(), yaze::editor::MusicEditor::DrawPianoRollView(), yaze::editor::MusicEditor::DrawPlaybackControl(), yaze::editor::MusicPlaybackControlPanel::DrawPlaybackStatus(), yaze::editor::MusicPlaybackControlPanel::DrawSongInfo(), yaze::editor::MusicEditor::DrawSongTrackerWindow(), yaze::editor::MusicEditor::DrawToolset(), yaze::editor::MusicPlaybackControlPanel::DrawToolset(), yaze::editor::MusicEditor::DrawTrackerView(), DuplicateSong(), yaze::editor::MusicEditor::ExportSongToAsm(), yaze::editor::MusicEditor::ImportAsmBufferToSong(), yaze::editor::MusicEditor::OpenSong(), yaze::editor::MusicEditor::OpenSongPianoRoll(), yaze::editor::music::MusicPlayer::PlaySong(), yaze::editor::music::MusicPlayer::PlaySongDirect(), yaze::editor::music::MusicPlayer::PreviewCustomSong(), yaze::editor::MusicEditor::PushUndoState(), yaze::editor::MusicEditor::Redo(), yaze::editor::MusicEditor::RestoreState(), yaze::editor::music::MusicPlayer::SeekToSegment(), yaze::editor::MusicEditor::Undo(), yaze::editor::music::MusicPlayer::Update(), and yaze::editor::MusicEditor::Update().

GetSong() [2/2]

const MusicSong * yaze::zelda3::music::MusicBank::GetSong

(

int

index

)

const

Definition at line 268 of file music_bank.cc.

References songs_.

GetSongById()

MusicSong * yaze::zelda3::music::MusicBank::GetSongById

(

int

song_id

)

Get a song by vanilla ID (1-based).

Parameters

song_id

The vanilla song ID (1-34).

Returns

Pointer to the song, or nullptr if not found.

Definition at line 275 of file music_bank.cc.

References songs_.

CreateNewSong()

int yaze::zelda3::music::MusicBank::CreateNewSong	(	const std::string &	name,
		Bank	bank )

Create a new empty song.

Parameters

name	The name of the new song.
bank	The bank to place the song in.

Returns

Index of the new song, or -1 on failure.

Definition at line 283 of file music_bank.cc.

References yaze::zelda3::music::MusicSong::bank, yaze::zelda3::music::TrackEvent::MakeEnd(), yaze::zelda3::music::MusicSong::modified, yaze::zelda3::name, yaze::zelda3::music::MusicSong::name, yaze::zelda3::music::MusicSong::segments, songs_, and yaze::zelda3::music::MusicSegment::tracks.

Referenced by yaze::editor::music::SongBrowserView::Draw().

Here is the call graph for this function:

DeleteSong()

absl::Status yaze::zelda3::music::MusicBank::DeleteSong

(

int

index

)

Delete a song by index.

Parameters

index

The song index to delete.

Returns

Status indicating success or failure.

Definition at line 317 of file music_bank.cc.

References IsVanilla(), and songs_.

Referenced by yaze::editor::music::SongBrowserView::Draw().

Here is the call graph for this function:

DuplicateSong()

int yaze::zelda3::music::MusicBank::DuplicateSong

(

int

index

)

Duplicate a song.

Parameters

index

The song index to duplicate.

Returns

Index of the new song, or -1 on failure.

Definition at line 301 of file music_bank.cc.

References GetSong(), yaze::zelda3::music::MusicSong::modified, yaze::zelda3::music::MusicSong::name, and songs_.

Referenced by yaze::editor::music::SongBrowserView::Draw().

Here is the call graph for this function:

IsVanilla()

bool yaze::zelda3::music::MusicBank::IsVanilla

(

int

index

)

const

Check if a song is a vanilla (original) song.

Parameters

index

The song index to check.

Returns

True if vanilla, false if custom.

Definition at line 313 of file music_bank.cc.

Referenced by DeleteSong(), and yaze::editor::music::SongBrowserView::Draw().

HasExpandedMusicPatch()

bool yaze::zelda3::music::MusicBank::HasExpandedMusicPatch ( ) const

inline

Check if the ROM has the Oracle of Secrets expanded music patch.

Returns

True if expanded music is detected.

Definition at line 147 of file music_bank.h.

References yaze::zelda3::music::MusicBank::ExpandedBankInfo::detected, and expanded_bank_info_.

Referenced by yaze::editor::music::SongBrowserView::Draw(), and yaze::editor::music::MusicPlayer::PlaySongDirect().

IsExpandedSong()

bool yaze::zelda3::music::MusicBank::IsExpandedSong

(

int

index

)

const

Check if a song is from an expanded bank.

Parameters

index

The song index to check.

Returns

True if the song is in OverworldExpanded or Auxiliary bank.

Definition at line 631 of file music_bank.cc.

References Auxiliary, OverworldExpanded, and songs_.

Referenced by yaze::editor::MusicEditor::ExportSongToAsm().

GetExpandedBankInfo()

const ExpandedBankInfo & yaze::zelda3::music::MusicBank::GetExpandedBankInfo ( ) const

inline

Get information about the expanded bank configuration.

Returns

ExpandedBankInfo with detection details.

Definition at line 160 of file music_bank.h.

References expanded_bank_info_.

Referenced by yaze::editor::music::SongBrowserView::Draw().

GetSongsInBank()

std::vector< MusicSong * > yaze::zelda3::music::MusicBank::GetSongsInBank

(

Bank

bank

)

Get all songs in a specific bank.

Definition at line 330 of file music_bank.cc.

References songs_.

Referenced by SaveSongTable().

GetInstrumentCount()

size_t yaze::zelda3::music::MusicBank::GetInstrumentCount ( ) const

inline

Get the number of instruments.

Definition at line 176 of file music_bank.h.

References instruments_.

Referenced by yaze::editor::music::InstrumentEditorView::Draw(), yaze::editor::music::TrackerView::DrawEventCell(), yaze::editor::music::InstrumentEditorView::DrawInstrumentList(), and yaze::editor::music::PianoRollView::DrawToolbar().

GetInstrument() [1/2]

MusicInstrument * yaze::zelda3::music::MusicBank::GetInstrument

(

int

index

)

Get an instrument by index.

Definition at line 340 of file music_bank.cc.

References instruments_.

Referenced by yaze::editor::music::InstrumentEditorView::Draw(), yaze::editor::music::TrackerView::DrawEventCell(), yaze::editor::music::InstrumentEditorView::DrawInstrumentList(), yaze::editor::music::PianoRollView::DrawToolbar(), yaze::editor::music::MusicPlayer::PreviewInstrument(), yaze::editor::music::MusicPlayer::PreviewNote(), and yaze::editor::music::MusicPlayer::ResolveInstrumentForEvent().

GetInstrument() [2/2]

const MusicInstrument * yaze::zelda3::music::MusicBank::GetInstrument

(

int

index

)

const

Definition at line 347 of file music_bank.cc.

References instruments_.

CreateNewInstrument()

int yaze::zelda3::music::MusicBank::CreateNewInstrument

(

const std::string &

name

)

Create a new instrument.

Parameters

name	The name of the new instrument.

Returns

Index of the new instrument, or -1 on failure.

Definition at line 354 of file music_bank.cc.

References yaze::zelda3::music::MusicInstrument::attack, yaze::zelda3::music::MusicInstrument::decay, instruments_, instruments_modified_, yaze::zelda3::name, yaze::zelda3::music::MusicInstrument::name, yaze::zelda3::music::MusicInstrument::pitch_mult, yaze::zelda3::music::MusicInstrument::sample_index, yaze::zelda3::music::MusicInstrument::sustain_level, and yaze::zelda3::music::MusicInstrument::sustain_rate.

Referenced by yaze::editor::music::InstrumentEditorView::DrawInstrumentList().

GetSampleCount()

size_t yaze::zelda3::music::MusicBank::GetSampleCount ( ) const

inline

Get the number of samples.

Definition at line 198 of file music_bank.h.

References samples_.

Referenced by yaze::editor::music::SampleEditorView::Draw(), yaze::editor::music::InstrumentEditorView::DrawProperties(), and yaze::editor::music::SampleEditorView::DrawSampleList().

GetSample() [1/2]

MusicSample * yaze::zelda3::music::MusicBank::GetSample

(

int

index

)

Get a sample by index.

Definition at line 369 of file music_bank.cc.

References samples_.

Referenced by yaze::editor::music::SampleEditorView::Draw(), yaze::editor::music::InstrumentEditorView::DrawProperties(), yaze::editor::music::SampleEditorView::DrawSampleList(), and yaze::editor::music::MusicPlayer::PreviewSample().

GetSample() [2/2]

const MusicSample * yaze::zelda3::music::MusicBank::GetSample

(

int

index

)

const

Definition at line 376 of file music_bank.cc.

References samples_.

ImportSampleFromWav()

absl::StatusOr< int > yaze::zelda3::music::MusicBank::ImportSampleFromWav	(	const std::string &	filepath,
		const std::string &	name )

Import a WAV file as a new sample.

Parameters

filepath	Path to the WAV file.
name	Name for the sample.

Returns

Index of the new sample, or -1 on failure.

Todo

Implement proper WAV loading and BRR encoding

Definition at line 383 of file music_bank.cc.

References yaze::zelda3::name, yaze::zelda3::music::MusicSample::name, yaze::zelda3::music::MusicSample::pcm_data, samples_, and samples_modified_.

Referenced by yaze::editor::music::SampleEditorView::DrawSampleList().

CalculateSpaceUsage()

MusicBank::SpaceInfo yaze::zelda3::music::MusicBank::CalculateSpaceUsage

(

Bank

bank

)

const

Calculate space usage for a bank.

Parameters

bank	The bank to check.

Returns

SpaceInfo with usage statistics.

Definition at line 402 of file music_bank.cc.

References CalculateSongSize(), yaze::zelda3::music::MusicBank::ExpandedBankInfo::detected, expanded_bank_info_, yaze::zelda3::music::MusicBank::SpaceInfo::free_bytes, GetBankMaxSize(), yaze::zelda3::music::MusicBank::SpaceInfo::is_critical, yaze::zelda3::music::MusicBank::SpaceInfo::is_warning, Overworld, OverworldExpanded, yaze::zelda3::music::MusicBank::SpaceInfo::recommendation, songs_, yaze::zelda3::music::MusicBank::SpaceInfo::total_bytes, yaze::zelda3::music::MusicBank::SpaceInfo::usage_percent, and yaze::zelda3::music::MusicBank::SpaceInfo::used_bytes.

Referenced by AllSongsFit(), and yaze::editor::music::SongBrowserView::Draw().

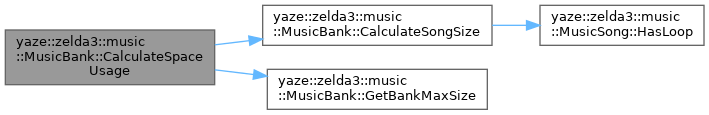

Here is the call graph for this function:

AllSongsFit()

bool yaze::zelda3::music::MusicBank::AllSongsFit

(

)

const

Check if all songs fit in their banks.

Returns

True if all songs fit, false if any bank overflows.

Definition at line 438 of file music_bank.cc.

References CalculateSpaceUsage(), Credits, Dungeon, yaze::zelda3::music::MusicBank::SpaceInfo::free_bytes, and Overworld.

Referenced by yaze::editor::music::SongBrowserView::Draw(), and SaveToRom().

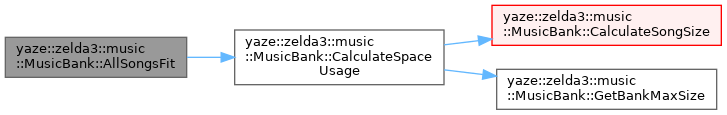

Here is the call graph for this function:

GetBankMaxSize()

int yaze::zelda3::music::MusicBank::GetBankMaxSize ( Bank bank )

static

Get the maximum size for a bank.

Definition at line 444 of file music_bank.cc.

References Auxiliary, Credits, Dungeon, yaze::zelda3::music::kAuxBankMaxSize, yaze::zelda3::music::kCreditsBankMaxSize, yaze::zelda3::music::kDungeonBankMaxSize, yaze::zelda3::music::kExpandedOverworldBankMaxSize, yaze::zelda3::music::kOverworldBankMaxSize, Overworld, and OverworldExpanded.

Referenced by CalculateSpaceUsage(), and SaveSongTable().

GetBankRomAddress()

uint32_t yaze::zelda3::music::MusicBank::GetBankRomAddress ( Bank bank )

static

Get the ROM address for a bank.

Definition at line 455 of file music_bank.cc.

References Auxiliary, Credits, Dungeon, yaze::zelda3::music::kCreditsBankRom, yaze::zelda3::music::kDungeonBankRom, yaze::zelda3::music::kExpandedAuxBankRom, yaze::zelda3::music::kExpandedOverworldBankRom, yaze::zelda3::music::kOverworldBankRom, Overworld, and OverworldExpanded.

Referenced by SaveSongTable().

HasModifications()

bool yaze::zelda3::music::MusicBank::HasModifications

(

)

const

Check if any music data has been modified.

Definition at line 466 of file music_bank.cc.

References instruments_modified_, samples_modified_, and songs_.

Referenced by yaze::editor::MusicEditor::Update().

ClearModifications()

void yaze::zelda3::music::MusicBank::ClearModifications

(

)

Mark all data as unmodified (after save).

Definition at line 478 of file music_bank.cc.

References instruments_modified_, samples_modified_, and songs_.

Referenced by SaveToRom().

ToJson()

nlohmann::json yaze::zelda3::music::MusicBank::ToJson

(

)

const

Definition at line 996 of file music_bank.cc.

References yaze::zelda3::music::TrackEvent::Command, credits_song_count_, dungeon_song_count_, yaze::zelda3::music::TrackEvent::End, instruments_, yaze::zelda3::music::TrackEvent::Note, overworld_song_count_, samples_, songs_, and yaze::zelda3::music::TrackEvent::SubroutineCall.

Referenced by yaze::editor::MusicEditor::PersistMusicState().

LoadFromJson()

absl::Status yaze::zelda3::music::MusicBank::LoadFromJson

(

const nlohmann::json &

j

)

Definition at line 1092 of file music_bank.cc.

References yaze::zelda3::music::MusicInstrument::attack, yaze::zelda3::music::MusicSong::bank, yaze::zelda3::music::MusicSample::brr_data, yaze::zelda3::music::TrackEvent::Command, yaze::zelda3::music::TrackEvent::command, credits_song_count_, yaze::zelda3::music::MusicInstrument::decay, dungeon_song_count_, yaze::zelda3::music::Note::duration, yaze::zelda3::music::TrackEvent::End, yaze::zelda3::music::MusicInstrument::gain, yaze::zelda3::music::Note::has_duration_prefix, instruments_, yaze::zelda3::music::kNoteRest, loaded_, yaze::zelda3::music::MusicSong::loop_point, yaze::zelda3::music::MusicSample::loop_point, yaze::zelda3::music::MusicSample::loops, yaze::zelda3::music::MusicSong::modified, yaze::zelda3::music::MusicSong::name, yaze::zelda3::music::MusicInstrument::name, yaze::zelda3::music::MusicSample::name, yaze::zelda3::music::TrackEvent::Note, yaze::zelda3::music::TrackEvent::note, yaze::zelda3::music::MusicCommand::opcode, overworld_song_count_, yaze::zelda3::music::MusicCommand::params, yaze::zelda3::music::MusicSample::pcm_data, yaze::zelda3::music::Note::pitch, yaze::zelda3::music::MusicInstrument::pitch_mult, yaze::zelda3::music::MusicSegment::rom_address, yaze::zelda3::music::MusicSong::rom_address, yaze::zelda3::music::TrackEvent::rom_offset, yaze::zelda3::music::MusicInstrument::sample_index, samples_, yaze::zelda3::music::MusicSong::segments, songs_, yaze::zelda3::music::TrackEvent::SubroutineCall, yaze::zelda3::music::MusicInstrument::sustain_level, yaze::zelda3::music::MusicInstrument::sustain_rate, yaze::zelda3::music::TrackEvent::tick, yaze::zelda3::music::MusicSegment::tracks, yaze::zelda3::music::TrackEvent::type, and yaze::zelda3::music::Note::velocity.

Referenced by yaze::editor::MusicEditor::RestoreMusicState().

LoadSongTable()

absl::Status yaze::zelda3::music::MusicBank::LoadSongTable ( Rom & rom, Bank bank, std::vector< MusicSong > * custom_songs )

private

Definition at line 640 of file music_bank.cc.

References yaze::zelda3::music::MusicSong::bank, yaze::zelda3::music::MusicBank::BankSongRange::Count(), Credits, credits_song_count_, Dungeon, dungeon_song_count_, GetBankSongRange(), GetSongTableAddress(), GetSpcBankId(), yaze::zelda3::music::GetVanillaSongName(), yaze::zelda3::music::TrackEvent::MakeEnd(), yaze::zelda3::music::MusicSong::modified, yaze::zelda3::music::MusicSong::name, Overworld, overworld_song_count_, yaze::zelda3::music::SpcParser::ParseSong(), yaze::zelda3::music::SpcParser::ReadSongPointerTable(), yaze::zelda3::music::MusicSong::rom_address, yaze::zelda3::music::MusicSong::segments, songs_, yaze::zelda3::music::MusicBank::BankSongRange::start_id, and yaze::zelda3::music::MusicSegment::tracks.

Referenced by LoadFromRom().

LoadInstruments()

absl::Status yaze::zelda3::music::MusicBank::LoadInstruments ( Rom & rom )

private

Definition at line 862 of file music_bank.cc.

References ASSIGN_OR_RETURN, yaze::zelda3::music::MusicInstrument::gain, instruments_, yaze::zelda3::music::kInstrumentTableAram, yaze::zelda3::music::MusicInstrument::name, yaze::zelda3::music::MusicInstrument::pitch_mult, yaze::Rom::ReadByteVector(), yaze::zelda3::music::MusicInstrument::sample_index, yaze::zelda3::music::MusicInstrument::SetFromBytes(), yaze::Rom::size(), and yaze::zelda3::music::SpcParser::SpcAddressToRomOffset().

Referenced by LoadFromRom().

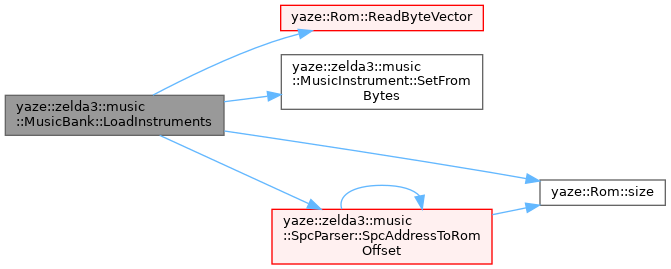

Here is the call graph for this function:

LoadSamples()

absl::Status yaze::zelda3::music::MusicBank::LoadSamples ( Rom & rom )

private

Definition at line 901 of file music_bank.cc.

References yaze::zelda3::music::MusicSample::brr_data, yaze::Rom::data(), yaze::zelda3::music::BrrCodec::Decode(), yaze::zelda3::music::SpcParser::GetSpcData(), yaze::zelda3::music::kSampleTableAram, yaze::zelda3::music::MusicSample::loop_point, yaze::zelda3::music::MusicSample::loops, yaze::zelda3::music::MusicSample::name, yaze::zelda3::music::MusicSample::pcm_data, samples_, yaze::Rom::size(), and yaze::zelda3::music::SpcParser::SpcAddressToRomOffset().

Referenced by LoadFromRom().

DetectExpandedMusicPatch()

absl::Status yaze::zelda3::music::MusicBank::DetectExpandedMusicPatch ( Rom & rom )

private

Definition at line 490 of file music_bank.cc.

References yaze::zelda3::music::MusicBank::ExpandedBankInfo::aux_aram_address, yaze::zelda3::music::MusicBank::ExpandedBankInfo::aux_rom_offset, yaze::zelda3::music::MusicBank::ExpandedBankInfo::detected, expanded_bank_info_, yaze::zelda3::music::MusicBank::ExpandedBankInfo::hook_address, yaze::zelda3::music::kAuxSongTableAram, yaze::zelda3::music::kExpandedAuxBankRom, yaze::zelda3::music::kExpandedMusicHookAddress, yaze::zelda3::music::kExpandedOverworldBankRom, yaze::zelda3::music::kJslOpcode, yaze::zelda3::music::MusicBank::ExpandedBankInfo::main_rom_offset, yaze::Rom::ReadByte(), and yaze::Rom::size().

Referenced by LoadFromRom().

Here is the call graph for this function:

LoadExpandedSongTable()

absl::Status yaze::zelda3::music::MusicBank::LoadExpandedSongTable ( Rom & rom, std::vector< MusicSong > * custom_songs )

private

Todo

Load auxiliary bank songs from $2B00 if needed

Definition at line 544 of file music_bank.cc.

References yaze::zelda3::music::MusicSong::bank, yaze::zelda3::music::MusicBank::ExpandedBankInfo::detected, expanded_bank_info_, expanded_song_count_, yaze::zelda3::music::kExpandedOverworldBankMaxSize, yaze::zelda3::music::kSongTableAram, yaze::zelda3::music::MusicBank::ExpandedBankInfo::main_rom_offset, yaze::zelda3::music::TrackEvent::MakeEnd(), yaze::zelda3::music::MusicSong::modified, yaze::zelda3::music::MusicSong::name, OverworldExpanded, yaze::zelda3::music::SpcParser::ParseSong(), yaze::Rom::ReadByteVector(), yaze::zelda3::music::SpcParser::ReadSongPointerTable(), yaze::zelda3::music::MusicSong::segments, yaze::Rom::size(), songs_, and yaze::zelda3::music::MusicSegment::tracks.

Referenced by LoadFromRom().

SaveSongTable()

absl::Status yaze::zelda3::music::MusicBank::SaveSongTable ( Rom & rom, Bank bank )

private

Definition at line 766 of file music_bank.cc.

References yaze::zelda3::music::SpcSerializer::ApplyBaseAddress(), GetBankMaxSize(), GetBankRomAddress(), GetSongsInBank(), GetSongTableAddress(), yaze::zelda3::music::SpcSerializer::SerializeSong(), yaze::Rom::size(), and yaze::Rom::WriteVector().

Referenced by SaveToRom().

SaveInstruments()

absl::Status yaze::zelda3::music::MusicBank::SaveInstruments ( Rom & rom )

private

Todo

Implement instrument serialization

Definition at line 896 of file music_bank.cc.

Referenced by SaveToRom().

SaveSamples()

absl::Status yaze::zelda3::music::MusicBank::SaveSamples ( Rom & rom )

private

Todo

Implement BRR encoding and sample saving

Definition at line 966 of file music_bank.cc.

Referenced by SaveToRom().

CalculateSongSize()

int yaze::zelda3::music::MusicBank::CalculateSongSize ( const MusicSong & song ) const

private

Definition at line 971 of file music_bank.cc.

References yaze::zelda3::music::MusicSong::HasLoop(), and yaze::zelda3::music::MusicSong::segments.

Referenced by CalculateSpaceUsage().

Here is the call graph for this function:

GetBankSongRange()

MusicBank::BankSongRange yaze::zelda3::music::MusicBank::GetBankSongRange ( Bank bank )

staticprivate

Definition at line 1216 of file music_bank.cc.

Referenced by LoadSongTable().

GetSpcBankId()

uint8_t yaze::zelda3::music::MusicBank::GetSpcBankId ( Bank bank )

staticprivate

Definition at line 1224 of file music_bank.cc.

Referenced by LoadSongTable().

GetSongTableAddress()

static constexpr uint16_t yaze::zelda3::music::MusicBank::GetSongTableAddress ( )

inlinestaticconstexprprivate

Definition at line 312 of file music_bank.h.

References yaze::zelda3::music::kSongTableAram.

Referenced by LoadSongTable(), and SaveSongTable().

Member Data Documentation

songs_

std::vector<MusicSong> yaze::zelda3::music::MusicBank::songs_

private

Definition at line 281 of file music_bank.h.

Referenced by CalculateSpaceUsage(), ClearModifications(), CreateNewSong(), DeleteSong(), DuplicateSong(), GetSong(), GetSong(), GetSongById(), GetSongCount(), GetSongsInBank(), HasModifications(), IsExpandedSong(), LoadExpandedSongTable(), LoadFromJson(), LoadFromRom(), LoadSongTable(), and ToJson().

instruments_

std::vector<MusicInstrument> yaze::zelda3::music::MusicBank::instruments_

private

Definition at line 282 of file music_bank.h.

Referenced by CreateNewInstrument(), GetInstrument(), GetInstrument(), GetInstrumentCount(), LoadFromJson(), LoadFromRom(), LoadInstruments(), and ToJson().

samples_

std::vector<MusicSample> yaze::zelda3::music::MusicBank::samples_

private

Definition at line 283 of file music_bank.h.

Referenced by GetSample(), GetSample(), GetSampleCount(), ImportSampleFromWav(), LoadFromJson(), LoadFromRom(), LoadSamples(), and ToJson().

loaded_

bool yaze::zelda3::music::MusicBank::loaded_ = false

private

Definition at line 286 of file music_bank.h.

Referenced by IsLoaded(), LoadFromJson(), LoadFromRom(), and SaveToRom().

instruments_modified_

bool yaze::zelda3::music::MusicBank::instruments_modified_ = false

private

Definition at line 287 of file music_bank.h.

Referenced by ClearModifications(), CreateNewInstrument(), HasModifications(), and SaveToRom().

samples_modified_

bool yaze::zelda3::music::MusicBank::samples_modified_ = false

private

Definition at line 288 of file music_bank.h.

Referenced by ClearModifications(), HasModifications(), ImportSampleFromWav(), and SaveToRom().

overworld_song_count_

int yaze::zelda3::music::MusicBank::overworld_song_count_ = 0

private

Definition at line 291 of file music_bank.h.

Referenced by LoadFromJson(), LoadSongTable(), and ToJson().

dungeon_song_count_

int yaze::zelda3::music::MusicBank::dungeon_song_count_ = 0

private

Definition at line 292 of file music_bank.h.

Referenced by LoadFromJson(), LoadSongTable(), and ToJson().

credits_song_count_

int yaze::zelda3::music::MusicBank::credits_song_count_ = 0

private

Definition at line 293 of file music_bank.h.

Referenced by LoadFromJson(), LoadSongTable(), and ToJson().

expanded_song_count_

int yaze::zelda3::music::MusicBank::expanded_song_count_ = 0

private

Definition at line 294 of file music_bank.h.

Referenced by LoadExpandedSongTable(), and LoadFromRom().

auxiliary_song_count_

int yaze::zelda3::music::MusicBank::auxiliary_song_count_ = 0

private

Definition at line 295 of file music_bank.h.

Referenced by LoadFromRom().

expanded_bank_info_

ExpandedBankInfo yaze::zelda3::music::MusicBank::expanded_bank_info_

private

Definition at line 298 of file music_bank.h.

Referenced by CalculateSpaceUsage(), DetectExpandedMusicPatch(), GetExpandedBankInfo(), HasExpandedMusicPatch(), LoadExpandedSongTable(), and LoadFromRom().

---

The documentation for this class was generated from the following files:

• src/zelda3/music/music_bank.h
• src/zelda3/music/music_bank.cc
