yaze::editor::OverworldCanvasRenderer Class Reference

Handles all canvas drawing and panel rendering for the overworld editor. More...

#include <overworld_canvas_renderer.h>

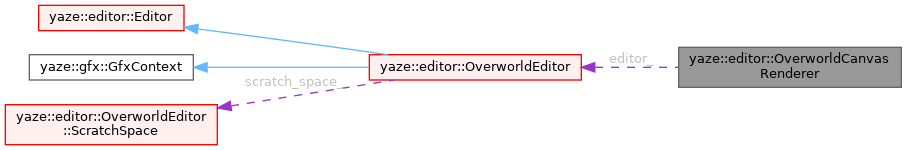

Collaboration diagram for yaze::editor::OverworldCanvasRenderer:

Classes
struct	OverlayLayer

Public Member Functions
	OverworldCanvasRenderer (OverworldEditor *editor)
void	DrawOverworldCanvas ()
	Draw the main overworld canvas with toolbar, maps, and entities. This is the primary entry point called from the OverworldCanvasPanel.
absl::Status	DrawTile16Selector ()
	Draw the tile16 selector panel.
void	DrawTile8Selector ()
	Draw the tile8 selector panel (graphics bin)
absl::Status	DrawAreaGraphics ()
	Draw the area graphics panel.
void	DrawV3Settings ()
	Draw the v3 settings panel.
void	DrawMapProperties ()
	Draw the map properties panel (sidebar-based)
void	DrawOverworldProperties ()
	Draw the overworld properties grid (debug/info view)
const std::vector< int > &	tile16_usage_counts () const
int	tile16_usage_count (int tile_id) const
std::string	Tile16ScopeLabel () const

Private Types
enum class	Tile16UsageScope { kAllMaps , kCurrentWorld , kCurrentArea , kArea }

Private Member Functions
void	DrawOverworldMaps ()
	Render the 64 overworld map bitmaps to the canvas.
void	DrawMapWithAreaLayers (int map_index, int map_x, int map_y, float scale)
OverlayLayer *	EnsureOverlayLayer (int map_index)
bool	PrepareContextMenu (const ImVec2 &screen_position)
void	FilterHoveredEntityByMode ()
	In an entity mode only that entity type responds to hover/drag/menu.
void	DrawEntityHoverTooltip ()
void	DrawTile16ViewControls ()
void	DrawTile16AreaPicker ()
std::vector< int >	Tile16ScopeMaps () const
void	RefreshTile16Order (bool grid_hovered)
void	ResetTile16Order ()
	Shows every tile in ID order and forces a recount on the next refresh.

Private Attributes
std::unordered_map< int, OverlayLayer >	overlay_layers_
OverworldEditor *	editor_
	Non-owning pointer to the parent editor.
std::optional< ImVec2 >	entity_drag_origin_
gui::AdaptiveSheetScaleMode	tile16_scale_mode_
gui::AdaptiveSheetScaleMode	area_graphics_scale_mode_
zelda3::Tile16SortMode	tile16_sort_ = zelda3::Tile16SortMode::kUsage
Tile16UsageScope	tile16_scope_ = Tile16UsageScope::kAllMaps
int	tile16_scope_area_ = 0
bool	tile16_hide_unused_ = false
bool	tile16_order_dirty_ = true
bool	tile16_grid_hovered_ = false
double	tile16_last_count_time_ = -1.0
int	tile16_counted_world_ = -1
int	tile16_counted_parent_ = -1
std::vector< int >	tile16_usage_counts_
char	tile16_area_search_ [64] = {}

Detailed Description

Handles all canvas drawing and panel rendering for the overworld editor.

Extracted from OverworldEditor to separate rendering concerns from editing logic. This class handles:

• Main overworld canvas drawing (map bitmaps, entities, tile edits)
• Panel rendering (tile16 selector, tile8 selector, area graphics, etc.)
• Properties panel rendering

All state is accessed through a pointer to the owning OverworldEditor. The renderer is declared as a friend class of OverworldEditor for direct member access.

Definition at line 38 of file overworld_canvas_renderer.h.

Member Enumeration Documentation

Tile16UsageScope

enum class yaze::editor::OverworldCanvasRenderer::Tile16UsageScope

strongprivate

Enumerator
kAllMaps
kCurrentWorld
kCurrentArea
kArea

Definition at line 108 of file overworld_canvas_renderer.h.

Constructor & Destructor Documentation

OverworldCanvasRenderer()

yaze::editor::OverworldCanvasRenderer::OverworldCanvasRenderer ( OverworldEditor * editor )

explicit

Definition at line 70 of file overworld_canvas_renderer.cc.

References editor_, yaze::editor::OverworldEditor::ow_map_canvas_, PrepareContextMenu(), yaze::gui::Canvas::SetContextMenuOpenCallback(), and yaze::gui::Canvas::SetShowBuiltinContextMenu().

Here is the call graph for this function:

Member Function Documentation

DrawOverworldCanvas()

void yaze::editor::OverworldCanvasRenderer::DrawOverworldCanvas

(

)

Draw the main overworld canvas with toolbar, maps, and entities. This is the primary entry point called from the OverworldCanvasPanel.

Definition at line 85 of file overworld_canvas_renderer.cc.

References yaze::editor::OverworldEditor::current_map_, yaze::editor::OverworldEditor::current_map_lock_, yaze::editor::OverworldEditor::current_mode, yaze::editor::OverworldEditor::current_world_, yaze::editor::Editor::dependencies_, editor_, yaze::editor::OverworldEditor::entity_edit_mode_, yaze::editor::OverworldEditor::game_state_, yaze::Rom::InspectLyraLayout(), yaze::gui::WidgetIdRegistry::Instance(), yaze::Rom::is_loaded(), yaze::zelda3::Overworld::is_loaded(), yaze::zelda3::Overworld::is_lyra_preview(), yaze::editor::OverworldEditor::JumpToMap(), yaze::editor::OverworldEditor::lyra_a0_terrain_writable(), yaze::editor::OverworldEditor::lyra_terrain_brush_, yaze::editor::OverworldEditor::NormalizeCurrentSelectionState(), yaze::editor::OverworldEditor::overworld_, yaze::editor::EditorDependencies::project, yaze::gui::WidgetIdRegistry::RegisterWidget(), yaze::editor::OverworldEditor::rom_, yaze::editor::EditorDependencies::shortcut_manager, yaze::editor::OverworldEditor::toolbar_, and yaze::editor::EditorDependencies::window_manager.

DrawTile16Selector()

absl::Status yaze::editor::OverworldCanvasRenderer::DrawTile16Selector

(

)

Draw the tile16 selector panel.

Definition at line 575 of file overworld_canvas_renderer.cc.

References yaze::gui::TileSelectorWidget::Config::display_scale, yaze::gui::TileSelectorWidget::Config::draw_offset, yaze::gui::TileSelectorWidget::Config::enable_drag, yaze::gui::TileSelectorWidget::Config::highlight_color, yaze::zelda3::kNumTile16Individual, yaze::editor::kTile16SelectorColumns, yaze::editor::kTile16SelectorDrawOffsetX, yaze::editor::kTile16SelectorScale, yaze::gui::TileSelectorWidget::Config::show_hover_tooltip, yaze::gui::TileSelectorWidget::Config::tile_size, yaze::gui::TileSelectorWidget::Config::tiles_per_row, and yaze::gui::TileSelectorWidget::Config::total_tiles.

DrawTile8Selector()

void yaze::editor::OverworldCanvasRenderer::DrawTile8Selector

(

)

Draw the tile8 selector panel (graphics bin)

Definition at line 959 of file overworld_canvas_renderer.cc.

References yaze::gui::BeginCanvas(), yaze::gui::CanvasFrameOptions::canvas_size, yaze::gui::CanvasFrameOptions::draw_context_menu, yaze::gui::CanvasFrameOptions::draw_grid, yaze::gui::CanvasFrameOptions::draw_overlay, yaze::gui::EndCanvas(), yaze::gfx::Arena::Get(), yaze::gfx::Arena::gfx_sheets(), yaze::gui::CanvasFrameOptions::grid_step, yaze::editor::kGraphicsBinCanvasSize(), yaze::gui::CanvasFrameOptions::render_popups, and yaze::gui::CanvasFrameOptions::use_child_window.

DrawAreaGraphics()

absl::Status yaze::editor::OverworldCanvasRenderer::DrawAreaGraphics

(

)

Draw the area graphics panel.

Definition at line 993 of file overworld_canvas_renderer.cc.

References yaze::gui::BeginCanvas(), yaze::gui::BeginChildWithScrollbar(), yaze::gui::BeginPadding(), yaze::gui::CanvasFrameOptions::canvas_size, yaze::gfx::Arena::CREATE, yaze::gui::AdaptiveSheetLayout::display_scale, yaze::gui::AdaptiveSheetLayout::displayed_height, yaze::gui::AdaptiveSheetLayout::displayed_width, yaze::gui::CanvasFrameOptions::draw_context_menu, yaze::gui::CanvasFrameOptions::draw_grid, yaze::gui::CanvasFrameOptions::draw_overlay, yaze::editor::DrawSheetScaleControl(), yaze::gui::EndCanvas(), yaze::gui::EndPadding(), yaze::gfx::Arena::Get(), yaze::gui::CanvasFrameOptions::grid_step, yaze::editor::kOverworldMapSize, yaze::gfx::Arena::QueueTextureCommand(), yaze::gui::CanvasFrameOptions::render_popups, yaze::gui::ResolveAdaptiveSheetLayout(), RETURN_IF_ERROR, and yaze::gui::CanvasFrameOptions::use_child_window.

DrawV3Settings()

void yaze::editor::OverworldCanvasRenderer::DrawV3Settings

(

)

Draw the v3 settings panel.

Definition at line 1072 of file overworld_canvas_renderer.cc.

References yaze::gui::CenterText(), ICON_MD_SAVE, and yaze::zelda3::OverworldCustomASMHasBeenApplied.

Here is the call graph for this function:

DrawMapProperties()

void yaze::editor::OverworldCanvasRenderer::DrawMapProperties

(

)

Draw the map properties panel (sidebar-based)

Definition at line 1213 of file overworld_canvas_renderer.cc.

DrawOverworldProperties()

void yaze::editor::OverworldCanvasRenderer::DrawOverworldProperties

(

)

Draw the overworld properties grid (debug/info view)

Definition at line 1235 of file overworld_canvas_renderer.cc.

References yaze::gui::BeginWindowWithDisplaySettings(), and yaze::gui::EndWindowWithDisplaySettings().

Here is the call graph for this function:

tile16_usage_counts()

const std::vector< int > & yaze::editor::OverworldCanvasRenderer::tile16_usage_counts ( ) const

inline

Definition at line 72 of file overworld_canvas_renderer.h.

References tile16_usage_counts_.

tile16_usage_count()

int yaze::editor::OverworldCanvasRenderer::tile16_usage_count ( int tile_id ) const

inline

Definition at line 75 of file overworld_canvas_renderer.h.

References tile16_usage_counts_.

Tile16ScopeLabel()

std::string yaze::editor::OverworldCanvasRenderer::Tile16ScopeLabel

(

)

const

Definition at line 719 of file overworld_canvas_renderer.cc.

References yaze::zelda3::GetOverworldMapLabel().

Here is the call graph for this function:

DrawOverworldMaps()

void yaze::editor::OverworldCanvasRenderer::DrawOverworldMaps ( )

private

Render the 64 overworld map bitmaps to the canvas.

Definition at line 471 of file overworld_canvas_renderer.cc.

References IM_PI, and yaze::editor::kOverworldMapSize.

DrawMapWithAreaLayers()

void yaze::editor::OverworldCanvasRenderer::DrawMapWithAreaLayers ( int map_index, int map_x, int map_y, float scale )

private

Definition at line 393 of file overworld_canvas_renderer.cc.

References yaze::editor::kOverworldMapSize.

EnsureOverlayLayer()

OverworldCanvasRenderer::OverlayLayer * yaze::editor::OverworldCanvasRenderer::EnsureOverlayLayer ( int map_index )

private

Definition at line 426 of file overworld_canvas_renderer.cc.

References yaze::gfx::Arena::CREATE, yaze::gfx::Arena::Get(), yaze::editor::OverworldCanvasRenderer::OverlayLayer::has_overlay, yaze::editor::kOverworldMapSize, yaze::gfx::Arena::QueueTextureCommand(), yaze::zelda3::SubscreenOverlayScreen(), and yaze::gfx::Arena::UPDATE.

Here is the call graph for this function:

PrepareContextMenu()

bool yaze::editor::OverworldCanvasRenderer::PrepareContextMenu ( const ImVec2 & screen_position )

private

Definition at line 12 of file overworld_context_actions.cc.

References yaze::gui::Canvas::ClearContextMenuItems(), yaze::editor::OverworldEditor::current_map_lock_, yaze::editor::OverworldEditor::current_mode, yaze::editor::OverworldEditor::current_world_, yaze::editor::Editor::dependencies_, yaze::editor::OverworldEditor::DisplayedMapCount(), yaze::editor::LyraTerrainCanvas::document(), editor_, yaze::editor::OverworldEditor::entity_renderer_, yaze::editor::OverworldEditor::game_state_, yaze::Rom::is_loaded(), yaze::zelda3::Overworld::is_loaded(), yaze::zelda3::Overworld::is_lyra_preview(), yaze::editor::OverworldEditor::IsProjectTerrainMap(), yaze::editor::LyraTerrainCanvas::loaded(), yaze::editor::OverworldEditor::lyra_canvas_, yaze::editor::OverworldEditor::map_properties_system_, yaze::editor::MOUSE, yaze::zelda3::Overworld::mutable_map_tiles(), yaze::editor::OverworldEditor::overworld_, yaze::zelda3::Overworld::overworld_map(), yaze::editor::OverworldEditor::ow_map_canvas_, yaze::editor::EditorDependencies::project, yaze::editor::ResolveOverworldContextTarget(), yaze::editor::OverworldEditor::rom_, yaze::editor::EditorDependencies::shared_clipboard, and yaze::core::LyraTerrainDocument::tile().

Referenced by OverworldCanvasRenderer().

FilterHoveredEntityByMode()

void yaze::editor::OverworldCanvasRenderer::FilterHoveredEntityByMode ( )

private

In an entity mode only that entity type responds to hover/drag/menu.

Definition at line 1126 of file overworld_canvas_renderer.cc.

DrawEntityHoverTooltip()

void yaze::editor::OverworldCanvasRenderer::DrawEntityHoverTooltip ( )

private

Definition at line 1154 of file overworld_canvas_renderer.cc.

References ICON_MD_CYCLONE, ICON_MD_DOOR_BACK, ICON_MD_DOOR_FRONT, ICON_MD_GRASS, ICON_MD_PEST_CONTROL_RODENT, yaze::zelda3::GameEntity::kEntrance, yaze::zelda3::GameEntity::kExit, yaze::zelda3::GameEntity::kItem, yaze::zelda3::kSecretItemNames, and yaze::zelda3::GameEntity::kSprite.

DrawTile16ViewControls()

void yaze::editor::OverworldCanvasRenderer::DrawTile16ViewControls ( )

private

Definition at line 869 of file overworld_canvas_renderer.cc.

References yaze::gui::AutoRegisterLastItem(), ICON_MD_FILTER_LIST, yaze::zelda3::kTileId, yaze::zelda3::kUsage, and yaze::gui::ScaledSize().

Here is the call graph for this function:

DrawTile16AreaPicker()

void yaze::editor::OverworldCanvasRenderer::DrawTile16AreaPicker ( )

private

Definition at line 923 of file overworld_canvas_renderer.cc.

References yaze::zelda3::GetOverworldMapLabel(), and yaze::gui::ScaledSize().

Here is the call graph for this function:

Tile16ScopeMaps()

std::vector< int > yaze::editor::OverworldCanvasRenderer::Tile16ScopeMaps ( ) const

private

Definition at line 741 of file overworld_canvas_renderer.cc.

RefreshTile16Order()

void yaze::editor::OverworldCanvasRenderer::RefreshTile16Order ( bool grid_hovered )

private

Recounts placements at most twice a second, and never while the mouse is down or over the grid, so tiles don't move under the cursor.

Definition at line 779 of file overworld_canvas_renderer.cc.

References yaze::zelda3::AccumulateTile16MapUsage(), yaze::zelda3::BuildTile16DisplayOrder(), yaze::core::LyraTerrainDocument::kFirstMap, yaze::core::LyraTerrainDocument::kMapCount, yaze::zelda3::kNumTile16Individual, and yaze::zelda3::kTileId.

Here is the call graph for this function:

ResetTile16Order()

void yaze::editor::OverworldCanvasRenderer::ResetTile16Order ( )

private

Shows every tile in ID order and forces a recount on the next refresh.

Definition at line 861 of file overworld_canvas_renderer.cc.

Member Data Documentation

overlay_layers_

std::unordered_map<int, OverlayLayer> yaze::editor::OverworldCanvasRenderer::overlay_layers_

private

Definition at line 102 of file overworld_canvas_renderer.h.

editor_

OverworldEditor* yaze::editor::OverworldCanvasRenderer::editor_

private

Non-owning pointer to the parent editor.

Definition at line 122 of file overworld_canvas_renderer.h.

Referenced by DrawOverworldCanvas(), OverworldCanvasRenderer(), and PrepareContextMenu().

entity_drag_origin_

std::optional<ImVec2> yaze::editor::OverworldCanvasRenderer::entity_drag_origin_

private

Definition at line 123 of file overworld_canvas_renderer.h.

tile16_scale_mode_

gui::AdaptiveSheetScaleMode yaze::editor::OverworldCanvasRenderer::tile16_scale_mode_

private

Initial value:

=
      gui::AdaptiveSheetScaleMode::kFit

Definition at line 124 of file overworld_canvas_renderer.h.

area_graphics_scale_mode_

gui::AdaptiveSheetScaleMode yaze::editor::OverworldCanvasRenderer::area_graphics_scale_mode_

private

Initial value:

=
      gui::AdaptiveSheetScaleMode::kFit

Definition at line 126 of file overworld_canvas_renderer.h.

tile16_sort_

zelda3::Tile16SortMode yaze::editor::OverworldCanvasRenderer::tile16_sort_ = zelda3::Tile16SortMode::kUsage

private

Definition at line 129 of file overworld_canvas_renderer.h.

tile16_scope_

Tile16UsageScope yaze::editor::OverworldCanvasRenderer::tile16_scope_ = Tile16UsageScope::kAllMaps

private

Definition at line 130 of file overworld_canvas_renderer.h.

tile16_scope_area_

int yaze::editor::OverworldCanvasRenderer::tile16_scope_area_ = 0

private

Definition at line 131 of file overworld_canvas_renderer.h.

tile16_hide_unused_

bool yaze::editor::OverworldCanvasRenderer::tile16_hide_unused_ = false

private

Definition at line 132 of file overworld_canvas_renderer.h.

tile16_order_dirty_

bool yaze::editor::OverworldCanvasRenderer::tile16_order_dirty_ = true

private

Definition at line 133 of file overworld_canvas_renderer.h.

tile16_grid_hovered_

bool yaze::editor::OverworldCanvasRenderer::tile16_grid_hovered_ = false

private

Definition at line 134 of file overworld_canvas_renderer.h.

tile16_last_count_time_

double yaze::editor::OverworldCanvasRenderer::tile16_last_count_time_ = -1.0

private

Definition at line 135 of file overworld_canvas_renderer.h.

tile16_counted_world_

int yaze::editor::OverworldCanvasRenderer::tile16_counted_world_ = -1

private

Definition at line 137 of file overworld_canvas_renderer.h.

tile16_counted_parent_

int yaze::editor::OverworldCanvasRenderer::tile16_counted_parent_ = -1

private

Definition at line 138 of file overworld_canvas_renderer.h.

tile16_usage_counts_

std::vector<int> yaze::editor::OverworldCanvasRenderer::tile16_usage_counts_

private

Definition at line 139 of file overworld_canvas_renderer.h.

Referenced by tile16_usage_count(), and tile16_usage_counts().

tile16_area_search_

char yaze::editor::OverworldCanvasRenderer::tile16_area_search_[64] = {}

private

Definition at line 140 of file overworld_canvas_renderer.h.

---

The documentation for this class was generated from the following files:

• src/app/editor/overworld/canvas/overworld_canvas_renderer.h
• src/app/editor/overworld/canvas/overworld_canvas_renderer.cc
• src/app/editor/overworld/canvas/overworld_context_actions.cc
