yaze::cli::RomDoctorCommandHandler Class Reference

ROM doctor command for file integrity validation. More...

#include <rom_doctor_commands.h>

Inheritance diagram for yaze::cli::RomDoctorCommandHandler:

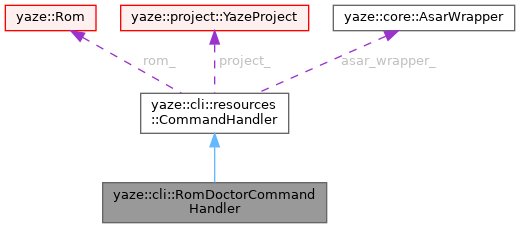

Collaboration diagram for yaze::cli::RomDoctorCommandHandler:

Public Member Functions
std::string	GetName () const override
	Get the command name.
std::string	GetDescription () const
std::string	GetUsage () const override
	Get the command usage string.
std::string	GetDefaultFormat () const override
	Get the default output format ("json" or "text")
std::string	GetOutputTitle () const override
	Get the output title for formatting.
Descriptor	Describe () const override
	Provide metadata for TUI/help summaries.
absl::Status	ValidateArgs (const resources::ArgumentParser &parser) override
	Validate command arguments.
absl::Status	Execute (Rom *rom, const resources::ArgumentParser &parser, resources::OutputFormatter &formatter) override
	Execute the command business logic.
Public Member Functions inherited from yaze::cli::resources::CommandHandler
virtual	~CommandHandler ()=default
absl::Status	Run (const std::vector< std::string > &args, Rom *rom_context, std::string *captured_output=nullptr)
	Execute the command.
virtual bool	RequiresRom () const
	Check if the command requires a loaded ROM.
virtual bool	RequiresLabels () const
	Check if the command requires ROM labels.
virtual void	SetProjectContext (project::YazeProject *project)
	Set the YazeProject context. Default implementation does nothing, override if tool needs project info.
virtual void	SetAsarWrapper (core::AsarWrapper *asar_wrapper)
	Set the AsarWrapper context. Default implementation does nothing, override if tool needs Asar access.
virtual void	SetRomContext (Rom *rom)
	Set the ROM context for tools that need ROM access. Default implementation stores the ROM pointer for subclass use.

Additional Inherited Members
Protected Attributes inherited from yaze::cli::resources::CommandHandler
Rom *	rom_ = nullptr
project::YazeProject *	project_ = nullptr
core::AsarWrapper *	asar_wrapper_ = nullptr

Detailed Description

ROM doctor command for file integrity validation.

Diagnoses ROM-level issues:

• File size and header validation
• SNES checksum verification
• Expansion status detection
• Version marker checks
• Free space analysis

Supports structured JSON output for agent consumption.

Definition at line 20 of file rom_doctor_commands.h.

Member Function Documentation

GetName()

std::string yaze::cli::RomDoctorCommandHandler::GetName ( ) const

inlineoverridevirtual

Get the command name.

Override this to provide a unique identifier for the command. This is used for command registration and lookup.

Implements yaze::cli::resources::CommandHandler.

Definition at line 22 of file rom_doctor_commands.h.

GetDescription()

std::string yaze::cli::RomDoctorCommandHandler::GetDescription ( ) const

inline

Definition at line 24 of file rom_doctor_commands.h.

GetUsage()

std::string yaze::cli::RomDoctorCommandHandler::GetUsage ( ) const

inlineoverridevirtual

Get the command usage string.

Implements yaze::cli::resources::CommandHandler.

Definition at line 28 of file rom_doctor_commands.h.

GetDefaultFormat()

std::string yaze::cli::RomDoctorCommandHandler::GetDefaultFormat ( ) const

inlineoverridevirtual

Get the default output format ("json" or "text")

Reimplemented from yaze::cli::resources::CommandHandler.

Definition at line 32 of file rom_doctor_commands.h.

GetOutputTitle()

std::string yaze::cli::RomDoctorCommandHandler::GetOutputTitle ( ) const

inlineoverridevirtual

Get the output title for formatting.

Reimplemented from yaze::cli::resources::CommandHandler.

Definition at line 34 of file rom_doctor_commands.h.

Describe()

Descriptor yaze::cli::RomDoctorCommandHandler::Describe ( ) const

inlineoverridevirtual

Provide metadata for TUI/help summaries.

Reimplemented from yaze::cli::resources::CommandHandler.

Definition at line 36 of file rom_doctor_commands.h.

References yaze::cli::resources::CommandHandler::Descriptor::display_name, yaze::cli::resources::CommandHandler::Descriptor::summary, and yaze::cli::resources::CommandHandler::Descriptor::todo_reference.

ValidateArgs()

absl::Status yaze::cli::RomDoctorCommandHandler::ValidateArgs ( const resources::ArgumentParser & parser )

inlineoverridevirtual

Validate command arguments.

Override this to check required arguments and perform custom validation. Called before Execute().

Implements yaze::cli::resources::CommandHandler.

Definition at line 45 of file rom_doctor_commands.h.

Execute()

absl::Status yaze::cli::RomDoctorCommandHandler::Execute ( Rom * rom, const resources::ArgumentParser & parser, resources::OutputFormatter & formatter )

overridevirtual

Execute the command business logic.

Override this to implement command-specific functionality. The ROM is guaranteed to be loaded and labels initialized.

Implements yaze::cli::resources::CommandHandler.

Definition at line 283 of file rom_doctor_commands.cc.

References yaze::cli::resources::OutputFormatter::AddArrayItem(), yaze::cli::resources::OutputFormatter::AddField(), yaze::cli::DiagnosticReport::AddFinding(), yaze::cli::resources::OutputFormatter::AddHexField(), yaze::cli::resources::OutputFormatter::BeginArray(), yaze::cli::DiagnosticReport::critical_count, yaze::Rom::data(), yaze::cli::resources::OutputFormatter::EndArray(), yaze::cli::DiagnosticReport::error_count, yaze::cli::DiagnosticReport::features, yaze::Rom::filename(), yaze::cli::DiagnosticReport::findings, yaze::cli::DiagnosticFinding::fixable, yaze::cli::RomFeatures::GetVersionString(), yaze::cli::RomFeatures::has_expanded_pointer_tables, yaze::cli::RomFeatures::has_expanded_tile16, yaze::cli::RomFeatures::has_expanded_tile32, yaze::rom::HyruleMagicValidator::HasBank00Erasure(), yaze::cli::resources::ArgumentParser::HasFlag(), yaze::cli::DiagnosticReport::HasProblems(), yaze::cli::DiagnosticFinding::id, yaze::cli::DiagnosticReport::info_count, yaze::cli::RomFeatures::is_vanilla, yaze::cli::resources::OutputFormatter::IsJson(), yaze::rom::HyruleMagicValidator::IsParallelWorlds(), yaze::cli::kChecksumComplementPos, yaze::cli::kCritical, yaze::cli::kError, yaze::cli::kInfo, yaze::cli::kWarning, yaze::cli::DiagnosticFinding::location, yaze::cli::DiagnosticFinding::message, yaze::cli::DiagnosticReport::rom_path, yaze::cli::DiagnosticFinding::severity, yaze::Rom::size(), yaze::cli::DiagnosticFinding::suggested_action, yaze::cli::DiagnosticReport::TotalFindings(), and yaze::cli::DiagnosticReport::warning_count.

---

The documentation for this class was generated from the following files:

• src/cli/handlers/tools/rom_doctor_commands.h
• src/cli/handlers/tools/rom_doctor_commands.cc
