Modern C++ wrapper for Asar 65816 assembler integration. More...

#include <asar_wrapper.h>

Public Member Functions
	AsarWrapper ()

	~AsarWrapper ()

	AsarWrapper (const AsarWrapper &)=delete

AsarWrapper &	operator= (const AsarWrapper &)=delete

	AsarWrapper (AsarWrapper &&)=default

AsarWrapper &	operator= (AsarWrapper &&)=default

absl::Status	Initialize ()

void	Shutdown ()

bool	IsInitialized () const

std::string	GetVersion () const

int	GetApiVersion () const

absl::StatusOr< AsarPatchResult >	ApplyPatch (const std::string &patch_path, std::vector< uint8_t > &rom_data, const std::vector< std::string > &include_paths={})

absl::StatusOr< AsarPatchResult >	ApplyPatchFromString (const std::string &patch_content, std::vector< uint8_t > &rom_data, const std::string &base_path="")

absl::StatusOr< std::vector< AsarSymbol > >	ExtractSymbols (const std::string &asm_path, const std::vector< std::string > &include_paths={})

absl::Status	LoadSymbolsFromFile (const std::string &symbol_path)

std::map< std::string, AsarSymbol >	GetSymbolTable () const

std::optional< AsarSymbol >	FindSymbol (const std::string &name) const

std::vector< AsarSymbol >	GetSymbolsAtAddress (uint32_t address) const

void	Reset ()

std::vector< std::string >	GetLastErrors () const

std::vector< std::string >	GetLastWarnings () const

absl::Status	CreatePatch (const std::vector< uint8_t > &original_rom, const std::vector< uint8_t > &modified_rom, const std::string &patch_path)

absl::Status	ValidateAssembly (const std::string &asm_path)

Private Member Functions
absl::StatusOr< AsarPatchResult >	ApplyPatchWithBinary (const std::string &patch_path, std::vector< uint8_t > &rom_data, const std::vector< std::string > &include_paths)

absl::StatusOr< AsarPatchResult >	ApplyPatchWithLibrary (const std::string &patch_path, std::vector< uint8_t > &rom_data, const std::vector< std::string > &include_paths)

std::optional< std::string >	ResolveAsarBinary () const

void	ProcessErrors ()

void	ProcessWarnings ()

void	ExtractSymbolsFromLastOperation ()

AsarSymbol	ConvertAsarSymbol (const void *asar_symbol_data) const

Private Attributes
bool	initialized_

bool	library_enabled_

std::map< std::string, AsarSymbol >	symbol_table_

std::vector< std::string >	last_errors_

std::vector< std::string >	last_warnings_

Detailed Description

Modern C++ wrapper for Asar 65816 assembler integration.

Provides a high-level interface for:

Patching ROMs with assembly code
Extracting symbol names and opcodes
Cross-platform compatibility (Windows, macOS, Linux)

Definition at line 48 of file asar_wrapper.h.

Constructor & Destructor Documentation

◆ AsarWrapper() [1/3]

yaze::core::AsarWrapper::AsarWrapper ( )

Definition at line 23 of file asar_wrapper.cc.

◆ ~AsarWrapper()

yaze::core::AsarWrapper::~AsarWrapper ( )

Definition at line 25 of file asar_wrapper.cc.

References initialized_, and Shutdown().

Here is the call graph for this function:

◆ AsarWrapper() [2/3]

yaze::core::AsarWrapper::AsarWrapper ( const AsarWrapper & )

delete

◆ AsarWrapper() [3/3]

yaze::core::AsarWrapper::AsarWrapper ( AsarWrapper && )

default

Member Function Documentation

◆ operator=() [1/2]

AsarWrapper & yaze::core::AsarWrapper::operator= ( const AsarWrapper & )

delete

◆ operator=() [2/2]

AsarWrapper & yaze::core::AsarWrapper::operator= ( AsarWrapper && )

default

◆ Initialize()

absl::Status yaze::core::AsarWrapper::Initialize ( )

Definition at line 31 of file asar_wrapper.cc.

References initialized_, and library_enabled_.

Referenced by yaze::core::PatchManager::ApplyEnabledPatches(), yaze::editor::AssemblyEditor::ApplyPatchToRom(), yaze::cli::anonymous_namespace{overworld_doctor_commands.cc}::ApplyTailExpansion(), yaze::cli::handlers::ProjectBuildCommandHandler::Execute(), and yaze::editor::AssemblyEditor::ValidateCurrentFile().

◆ Shutdown()

void yaze::core::AsarWrapper::Shutdown ( )

Definition at line 56 of file asar_wrapper.cc.

References initialized_, and library_enabled_.

Referenced by ~AsarWrapper().

◆ IsInitialized()

bool yaze::core::AsarWrapper::IsInitialized ( ) const

inline

Definition at line 61 of file asar_wrapper.h.

References initialized_.

◆ GetVersion()

std::string yaze::core::AsarWrapper::GetVersion ( ) const

Definition at line 64 of file asar_wrapper.cc.

References initialized_, and library_enabled_.

◆ GetApiVersion()

int yaze::core::AsarWrapper::GetApiVersion ( ) const

Definition at line 85 of file asar_wrapper.cc.

References initialized_, and library_enabled_.

◆ ApplyPatch()

absl::Status yaze::core::AsarWrapper::ApplyPatch	(	const std::string &	patch_path,
		std::vector< uint8_t > &	rom_data,
		const std::vector< std::string > &	include_paths = {} )

Definition at line 95 of file asar_wrapper.cc.

References ApplyPatchWithBinary(), ApplyPatchWithLibrary(), initialized_, last_errors_, library_enabled_, and Reset().

Referenced by yaze::core::PatchManager::ApplyEnabledPatches(), ApplyPatchFromString(), yaze::editor::AssemblyEditor::ApplyPatchToRom(), yaze::cli::anonymous_namespace{overworld_doctor_commands.cc}::ApplyTailExpansion(), yaze::cli::handlers::ProjectBuildCommandHandler::Execute(), ExtractSymbols(), and ValidateAssembly().

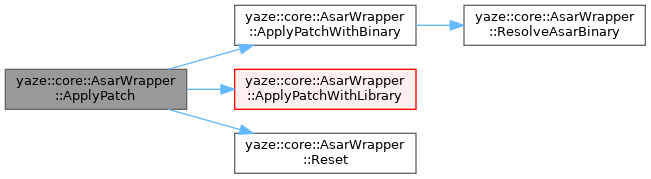

Here is the call graph for this function:

◆ ApplyPatchFromString()

absl::StatusOr< AsarPatchResult > yaze::core::AsarWrapper::ApplyPatchFromString	(	const std::string &	patch_content,
		std::vector< uint8_t > &	rom_data,
		const std::string &	base_path = "" )

Definition at line 121 of file asar_wrapper.cc.

References ApplyPatch(), initialized_, and Reset().

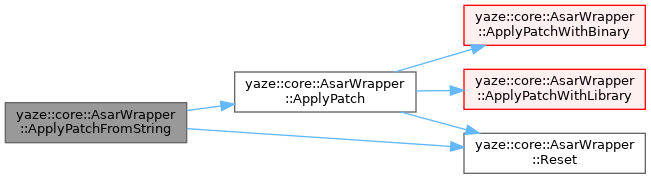

Here is the call graph for this function:

◆ ExtractSymbols()

absl::StatusOr< std::vector< AsarSymbol > > yaze::core::AsarWrapper::ExtractSymbols	(	const std::string &	asm_path,
		const std::vector< std::string > &	include_paths = {} )

Definition at line 154 of file asar_wrapper.cc.

References ApplyPatch(), initialized_, library_enabled_, and Reset().

Here is the call graph for this function:

◆ LoadSymbolsFromFile()

absl::Status yaze::core::AsarWrapper::LoadSymbolsFromFile ( const std::string & symbol_path )

Definition at line 478 of file asar_wrapper.cc.

References yaze::core::AsarSymbol::address, yaze::core::AsarSymbol::name, and symbol_table_.

Referenced by yaze::editor::AssemblyEditor::DrawAssembleMenu().

◆ GetSymbolTable()

std::map< std::string, AsarSymbol > yaze::core::AsarWrapper::GetSymbolTable ( ) const

Definition at line 182 of file asar_wrapper.cc.

References symbol_table_.

Referenced by yaze::editor::AssemblyEditor::ApplyPatchToRom(), yaze::editor::AssemblyEditor::DrawAssembleMenu(), and yaze::cli::agent::tools::ProjectGraphTool::GetSymbolTable().

◆ FindSymbol()

std::optional< AsarSymbol > yaze::core::AsarWrapper::FindSymbol ( const std::string & name ) const

Definition at line 186 of file asar_wrapper.cc.

References symbol_table_.

◆ GetSymbolsAtAddress()

std::vector< AsarSymbol > yaze::core::AsarWrapper::GetSymbolsAtAddress ( uint32_t address ) const

Definition at line 194 of file asar_wrapper.cc.

References symbol_table_.

◆ Reset()

void yaze::core::AsarWrapper::Reset ( )

Definition at line 204 of file asar_wrapper.cc.

References initialized_, last_errors_, last_warnings_, library_enabled_, and symbol_table_.

Referenced by ApplyPatch(), ApplyPatchFromString(), and ExtractSymbols().

◆ GetLastErrors()

std::vector< std::string > yaze::core::AsarWrapper::GetLastErrors ( ) const

inline

Definition at line 86 of file asar_wrapper.h.

References last_errors_.

◆ GetLastWarnings()

std::vector< std::string > yaze::core::AsarWrapper::GetLastWarnings ( ) const

inline

Definition at line 87 of file asar_wrapper.h.

References last_warnings_.

◆ CreatePatch()

absl::Status yaze::core::AsarWrapper::CreatePatch	(	const std::vector< uint8_t > &	original_rom,
		const std::vector< uint8_t > &	modified_rom,
		const std::string &	patch_path )

Definition at line 215 of file asar_wrapper.cc.

◆ ValidateAssembly()

absl::Status yaze::core::AsarWrapper::ValidateAssembly ( const std::string & asm_path )

Definition at line 227 of file asar_wrapper.cc.

References ApplyPatch(), and library_enabled_.

Referenced by yaze::editor::AssemblyEditor::ValidateCurrentFile().

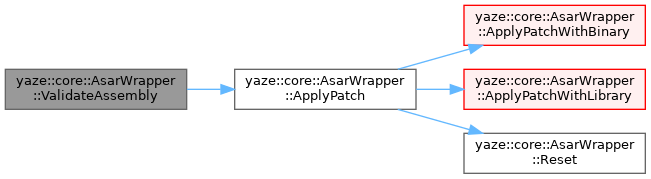

Here is the call graph for this function:

◆ ApplyPatchWithBinary()

absl::StatusOr< AsarPatchResult > yaze::core::AsarWrapper::ApplyPatchWithBinary	(	const std::string &	patch_path,
		std::vector< uint8_t > &	rom_data,
		const std::vector< std::string > &	include_paths )

private

Todo: CRC32 for CLI path

Definition at line 346 of file asar_wrapper.cc.

References yaze::core::AsarPatchResult::crc32, last_errors_, last_warnings_, ResolveAsarBinary(), yaze::core::AsarPatchResult::rom_size, and yaze::core::AsarPatchResult::success.

Referenced by ApplyPatch().

Here is the call graph for this function:

◆ ApplyPatchWithLibrary()

absl::StatusOr< AsarPatchResult > yaze::core::AsarWrapper::ApplyPatchWithLibrary	(	const std::string &	patch_path,
		std::vector< uint8_t > &	rom_data,
		const std::vector< std::string > &	include_paths )

private

Definition at line 282 of file asar_wrapper.cc.

References yaze::core::AsarPatchResult::crc32, yaze::core::AsarPatchResult::errors, ExtractSymbolsFromLastOperation(), initialized_, last_errors_, last_warnings_, library_enabled_, ProcessErrors(), ProcessWarnings(), yaze::core::AsarPatchResult::rom_size, yaze::core::AsarPatchResult::success, symbol_table_, yaze::core::AsarPatchResult::symbols, and yaze::core::AsarPatchResult::warnings.

Referenced by ApplyPatch().

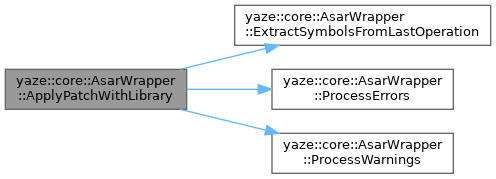

Here is the call graph for this function:

◆ ResolveAsarBinary()

std::optional< std::string > yaze::core::AsarWrapper::ResolveAsarBinary ( ) const

private

Definition at line 454 of file asar_wrapper.cc.

Referenced by ApplyPatchWithBinary().

◆ ProcessErrors()

void yaze::core::AsarWrapper::ProcessErrors ( )

private

Definition at line 256 of file asar_wrapper.cc.

References last_errors_.

Referenced by ApplyPatchWithLibrary().

◆ ProcessWarnings()

void yaze::core::AsarWrapper::ProcessWarnings ( )

private

Definition at line 269 of file asar_wrapper.cc.

References last_warnings_.

Referenced by ApplyPatchWithLibrary().

◆ ExtractSymbolsFromLastOperation()

void yaze::core::AsarWrapper::ExtractSymbolsFromLastOperation ( )

private

Definition at line 527 of file asar_wrapper.cc.

References yaze::core::AsarSymbol::address, yaze::core::AsarSymbol::comment, yaze::core::AsarSymbol::file, yaze::core::AsarSymbol::line, yaze::core::AsarSymbol::name, yaze::core::AsarSymbol::opcode, and symbol_table_.

Referenced by ApplyPatchWithLibrary().

◆ ConvertAsarSymbol()

AsarSymbol yaze::core::AsarWrapper::ConvertAsarSymbol ( const void * asar_symbol_data ) const

private

Definition at line 549 of file asar_wrapper.cc.

Member Data Documentation

◆ initialized_

bool yaze::core::AsarWrapper::initialized_

private

Definition at line 106 of file asar_wrapper.h.

Referenced by ApplyPatch(), ApplyPatchFromString(), ApplyPatchWithLibrary(), ExtractSymbols(), GetApiVersion(), GetVersion(), Initialize(), IsInitialized(), Reset(), Shutdown(), and ~AsarWrapper().

◆ library_enabled_

bool yaze::core::AsarWrapper::library_enabled_

private

Definition at line 107 of file asar_wrapper.h.

Referenced by ApplyPatch(), ApplyPatchWithLibrary(), ExtractSymbols(), GetApiVersion(), GetVersion(), Initialize(), Reset(), Shutdown(), and ValidateAssembly().

◆ symbol_table_

std::map<std::string, AsarSymbol> yaze::core::AsarWrapper::symbol_table_

private

Definition at line 108 of file asar_wrapper.h.

Referenced by ApplyPatchWithLibrary(), ExtractSymbolsFromLastOperation(), FindSymbol(), GetSymbolsAtAddress(), GetSymbolTable(), LoadSymbolsFromFile(), and Reset().

◆ last_errors_

std::vector<std::string> yaze::core::AsarWrapper::last_errors_

private

Definition at line 109 of file asar_wrapper.h.

Referenced by ApplyPatch(), ApplyPatchWithBinary(), ApplyPatchWithLibrary(), GetLastErrors(), ProcessErrors(), and Reset().

◆ last_warnings_

std::vector<std::string> yaze::core::AsarWrapper::last_warnings_

private

Definition at line 110 of file asar_wrapper.h.

Referenced by ApplyPatchWithBinary(), ApplyPatchWithLibrary(), GetLastWarnings(), ProcessWarnings(), and Reset().

The documentation for this class was generated from the following files:
