yaze::editor::CanvasNavigationManager Class Reference

#include <canvas_navigation_manager.h>

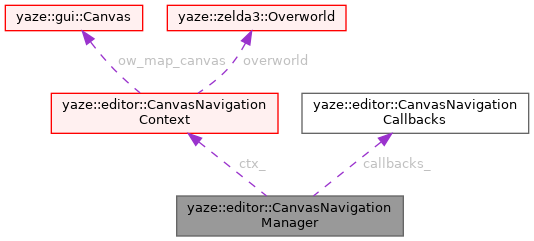

Collaboration diagram for yaze::editor::CanvasNavigationManager:

Public Member Functions
	CanvasNavigationManager ()=default
void	Initialize (const CanvasNavigationContext &context, const CanvasNavigationCallbacks &callbacks)
	Initialize with shared state and callbacks.
absl::Status	CheckForCurrentMap ()
	Detect which map the mouse is over, trigger lazy loading, draw the selection outline, and refresh textures if modified.
void	HandleMapInteraction ()
	Handle tile-mode right-click (eyedropper) and middle-click (lock/properties toggle), plus double-click to open properties.
void	HandleOverworldPan ()
	Pan the overworld canvas via middle-click or left-click drag (in MOUSE mode when not hovering an entity).
void	HandleOverworldZoom ()
	No-op stub preserved for API compatibility.
void	ZoomIn ()
	Increase canvas zoom by one step.
void	ZoomOut ()
	Decrease canvas zoom by one step.
void	ClampOverworldScroll ()
	No-op stub – ImGui handles scroll clamping automatically.
void	ResetOverworldView ()
	Reset scroll to top-left and scale to 1.0.
void	CenterOverworldView ()
	Center the viewport on the current map.
void	CheckForMousePan ()
	Legacy wrapper – delegates to HandleOverworldPan().
void	ScrollBlocksetCanvasToCurrentTile ()
	Scroll the blockset (tile16 selector) to show the currently selected tile16.
void	UpdateBlocksetSelectorState ()
	Push current tile count and selection into the blockset widget.
void	QueueAdjacentMapsForPreload (int center_map)
	Queue the 4-connected neighbors of center_map for lazy build.
void	ProcessPreloadQueue ()
	Process one map from the preload queue (call once per frame).

Private Attributes
CanvasNavigationContext	ctx_
CanvasNavigationCallbacks	callbacks_
int	last_hovered_map_ = -1
float	hover_time_ = 0.0f
std::vector< int >	preload_queue_

Static Private Attributes
static constexpr float	kHoverBuildDelay = 0.15f
static constexpr float	kPreloadStartDelay = 0.3f

Detailed Description

Definition at line 79 of file canvas_navigation_manager.h.

Constructor & Destructor Documentation

CanvasNavigationManager()

yaze::editor::CanvasNavigationManager::CanvasNavigationManager ( )

default

Member Function Documentation

Initialize()

void yaze::editor::CanvasNavigationManager::Initialize	(	const CanvasNavigationContext &	context,
		const CanvasNavigationCallbacks &	callbacks )

Initialize with shared state and callbacks.

Definition at line 47 of file canvas_navigation_manager.cc.

References callbacks_, and ctx_.

CheckForCurrentMap()

absl::Status yaze::editor::CanvasNavigationManager::CheckForCurrentMap

(

)

Detect which map the mouse is over, trigger lazy loading, draw the selection outline, and refresh textures if modified.

Definition at line 58 of file canvas_navigation_manager.cc.

References yaze::gfx::Tilemap::atlas, callbacks_, ctx_, yaze::editor::CanvasNavigationContext::current_map, yaze::editor::CanvasNavigationContext::current_map_lock, yaze::editor::CanvasNavigationContext::current_mode, yaze::editor::CanvasNavigationContext::current_parent, yaze::editor::CanvasNavigationContext::current_world, yaze::gui::Canvas::DrawOutline(), yaze::editor::CanvasNavigationCallbacks::ensure_map_texture, yaze::zelda3::Overworld::EnsureMapBuilt(), yaze::gfx::Arena::Get(), yaze::core::FeatureFlags::get(), yaze::zelda3::OverworldVersionHelper::GetVersion(), yaze::gui::Canvas::global_scale(), yaze::gui::Canvas::hover_mouse_pos(), hover_time_, yaze::gfx::Bitmap::is_active(), yaze::core::FeatureFlags::Flags::Overworld::kEnableSpecialWorldExpansion, kHoverBuildDelay, yaze::editor::kOverworldMapSize, kPreloadStartDelay, last_hovered_map_, yaze::editor::CanvasNavigationContext::maps_bmp, yaze::editor::MOUSE, yaze::editor::CanvasNavigationContext::overworld, yaze::core::FeatureFlags::Flags::overworld, yaze::zelda3::Overworld::overworld_map(), yaze::editor::CanvasNavigationContext::ow_map_canvas, preload_queue_, ProcessPreloadQueue(), QueueAdjacentMapsForPreload(), yaze::gfx::Arena::QueueTextureCommand(), yaze::editor::CanvasNavigationCallbacks::refresh_overworld_map, yaze::editor::CanvasNavigationCallbacks::refresh_tile16_blockset, RETURN_IF_ERROR, yaze::editor::CanvasNavigationContext::rom, yaze::zelda3::OverworldVersionHelper::SupportsAreaEnum(), yaze::editor::CanvasNavigationContext::tile16_blockset, and yaze::gfx::Arena::UPDATE.

HandleMapInteraction()

void yaze::editor::CanvasNavigationManager::HandleMapInteraction

(

)

Handle tile-mode right-click (eyedropper) and middle-click (lock/properties toggle), plus double-click to open properties.

Definition at line 266 of file canvas_navigation_manager.cc.

References callbacks_, ctx_, yaze::editor::CanvasNavigationContext::current_map, yaze::editor::CanvasNavigationContext::current_map_lock, yaze::editor::CanvasNavigationContext::current_mode, yaze::editor::CanvasNavigationContext::current_world, yaze::editor::DRAW_TILE, yaze::gui::Canvas::drawn_tile_position(), yaze::editor::FILL_TILE, yaze::gui::Canvas::global_scale(), yaze::editor::kOverworldMapSize, yaze::editor::CanvasNavigationContext::ow_map_canvas, yaze::editor::CanvasNavigationCallbacks::pick_tile16_from_hovered_canvas, and yaze::editor::CanvasNavigationContext::show_map_properties_panel.

Here is the call graph for this function:

HandleOverworldPan()

void yaze::editor::CanvasNavigationManager::HandleOverworldPan

(

)

Pan the overworld canvas via middle-click or left-click drag (in MOUSE mode when not hovering an entity).

Definition at line 317 of file canvas_navigation_manager.cc.

References callbacks_, ctx_, yaze::editor::CanvasNavigationContext::current_mode, yaze::editor::CanvasNavigationContext::is_dragging_entity, yaze::editor::CanvasNavigationCallbacks::is_entity_hovered, and yaze::editor::MOUSE.

Referenced by CheckForMousePan().

HandleOverworldZoom()

void yaze::editor::CanvasNavigationManager::HandleOverworldZoom

(

)

No-op stub preserved for API compatibility.

Definition at line 357 of file canvas_navigation_manager.cc.

ZoomIn()

void yaze::editor::CanvasNavigationManager::ZoomIn

(

)

Increase canvas zoom by one step.

Definition at line 362 of file canvas_navigation_manager.cc.

References ctx_, yaze::gui::Canvas::global_scale(), yaze::editor::kOverworldMaxZoom, yaze::editor::kOverworldZoomStep, yaze::editor::CanvasNavigationContext::ow_map_canvas, and yaze::gui::Canvas::set_global_scale().

Here is the call graph for this function:

ZoomOut()

void yaze::editor::CanvasNavigationManager::ZoomOut

(

)

Decrease canvas zoom by one step.

Definition at line 370 of file canvas_navigation_manager.cc.

References ctx_, yaze::gui::Canvas::global_scale(), yaze::editor::kOverworldMinZoom, yaze::editor::kOverworldZoomStep, yaze::editor::CanvasNavigationContext::ow_map_canvas, and yaze::gui::Canvas::set_global_scale().

Here is the call graph for this function:

ClampOverworldScroll()

void yaze::editor::CanvasNavigationManager::ClampOverworldScroll

(

)

No-op stub – ImGui handles scroll clamping automatically.

Definition at line 378 of file canvas_navigation_manager.cc.

ResetOverworldView()

void yaze::editor::CanvasNavigationManager::ResetOverworldView

(

)

Reset scroll to top-left and scale to 1.0.

Definition at line 383 of file canvas_navigation_manager.cc.

References ctx_, yaze::editor::CanvasNavigationContext::ow_map_canvas, and yaze::gui::Canvas::set_global_scale().

Here is the call graph for this function:

CenterOverworldView()

void yaze::editor::CanvasNavigationManager::CenterOverworldView

(

)

Center the viewport on the current map.

Definition at line 390 of file canvas_navigation_manager.cc.

References ctx_, yaze::editor::CanvasNavigationContext::current_map, yaze::gui::Canvas::global_scale(), yaze::editor::kOverworldMapSize, and yaze::editor::CanvasNavigationContext::ow_map_canvas.

Here is the call graph for this function:

CheckForMousePan()

void yaze::editor::CanvasNavigationManager::CheckForMousePan

(

)

Legacy wrapper – delegates to HandleOverworldPan().

Definition at line 419 of file canvas_navigation_manager.cc.

References HandleOverworldPan().

Here is the call graph for this function:

ScrollBlocksetCanvasToCurrentTile()

void yaze::editor::CanvasNavigationManager::ScrollBlocksetCanvasToCurrentTile

(

)

Scroll the blockset (tile16 selector) to show the currently selected tile16.

Definition at line 428 of file canvas_navigation_manager.cc.

References yaze::editor::CanvasNavigationContext::blockset_selector, ctx_, and yaze::editor::CanvasNavigationContext::current_tile16.

UpdateBlocksetSelectorState()

void yaze::editor::CanvasNavigationManager::UpdateBlocksetSelectorState

(

)

Push current tile count and selection into the blockset widget.

Definition at line 445 of file canvas_navigation_manager.cc.

References yaze::editor::CanvasNavigationContext::blockset_selector, ctx_, yaze::editor::CanvasNavigationContext::current_tile16, and yaze::zelda3::kNumTile16Individual.

QueueAdjacentMapsForPreload()

void yaze::editor::CanvasNavigationManager::QueueAdjacentMapsForPreload

(

int

center_map

)

Queue the 4-connected neighbors of center_map for lazy build.

Definition at line 458 of file canvas_navigation_manager.cc.

References ctx_, yaze::zelda3::kNumOverworldMaps, yaze::zelda3::kSpecialWorldMapIdStart, yaze::editor::CanvasNavigationContext::overworld, yaze::zelda3::Overworld::overworld_map(), and preload_queue_.

Referenced by CheckForCurrentMap().

Here is the call graph for this function:

ProcessPreloadQueue()

void yaze::editor::CanvasNavigationManager::ProcessPreloadQueue

(

)

Process one map from the preload queue (call once per frame).

Definition at line 498 of file canvas_navigation_manager.cc.

References ctx_, yaze::zelda3::Overworld::EnsureMapBuilt(), LOG_DEBUG, yaze::editor::CanvasNavigationContext::overworld, and preload_queue_.

Referenced by CheckForCurrentMap().

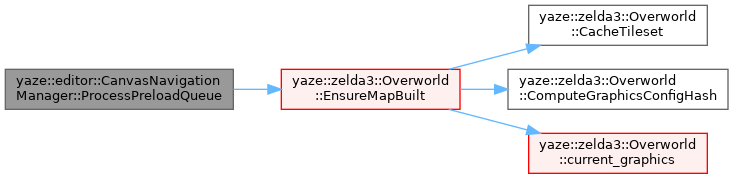

Here is the call graph for this function:

Member Data Documentation

ctx_

CanvasNavigationContext yaze::editor::CanvasNavigationManager::ctx_

private

Definition at line 154 of file canvas_navigation_manager.h.

Referenced by CenterOverworldView(), CheckForCurrentMap(), HandleMapInteraction(), HandleOverworldPan(), Initialize(), ProcessPreloadQueue(), QueueAdjacentMapsForPreload(), ResetOverworldView(), ScrollBlocksetCanvasToCurrentTile(), UpdateBlocksetSelectorState(), ZoomIn(), and ZoomOut().

callbacks_

CanvasNavigationCallbacks yaze::editor::CanvasNavigationManager::callbacks_

private

Definition at line 155 of file canvas_navigation_manager.h.

Referenced by CheckForCurrentMap(), HandleMapInteraction(), HandleOverworldPan(), and Initialize().

last_hovered_map_

int yaze::editor::CanvasNavigationManager::last_hovered_map_ = -1

private

Definition at line 158 of file canvas_navigation_manager.h.

Referenced by CheckForCurrentMap().

hover_time_

float yaze::editor::CanvasNavigationManager::hover_time_ = 0.0f

private

Definition at line 159 of file canvas_navigation_manager.h.

Referenced by CheckForCurrentMap().

kHoverBuildDelay

constexpr float yaze::editor::CanvasNavigationManager::kHoverBuildDelay = 0.15f

staticconstexprprivate

Definition at line 160 of file canvas_navigation_manager.h.

Referenced by CheckForCurrentMap().

preload_queue_

std::vector<int> yaze::editor::CanvasNavigationManager::preload_queue_

private

Definition at line 163 of file canvas_navigation_manager.h.

Referenced by CheckForCurrentMap(), ProcessPreloadQueue(), and QueueAdjacentMapsForPreload().

kPreloadStartDelay

constexpr float yaze::editor::CanvasNavigationManager::kPreloadStartDelay = 0.3f

staticconstexprprivate

Definition at line 164 of file canvas_navigation_manager.h.

Referenced by CheckForCurrentMap().

---

The documentation for this class was generated from the following files:

• src/app/editor/overworld/canvas_navigation_manager.h
• src/app/editor/overworld/canvas_navigation_manager.cc
