yaze::editor::BaseEntityHandler Class Reference

Abstract base class for entity interaction handlers. More...

#include <base_entity_handler.h>

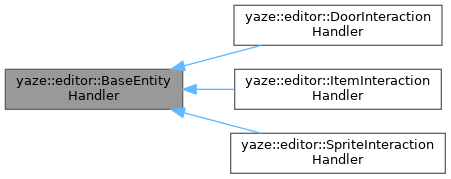

Inheritance diagram for yaze::editor::BaseEntityHandler:

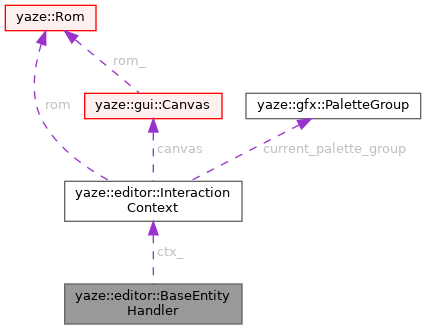

Collaboration diagram for yaze::editor::BaseEntityHandler:

Public Member Functions
virtual	~BaseEntityHandler ()=default
void	SetContext (InteractionContext *ctx)
	Set the interaction context.
InteractionContext *	context () const
	Get the interaction context.
virtual void	BeginPlacement ()=0
	Begin placement mode.
virtual void	CancelPlacement ()=0
	Cancel current placement.
virtual bool	IsPlacementActive () const =0
	Check if placement mode is active.
virtual bool	HandleClick (int canvas_x, int canvas_y)=0
	Handle mouse click at canvas position.
virtual void	HandleDrag (ImVec2 current_pos, ImVec2 delta)=0
	Handle mouse drag.
virtual void	HandleRelease ()=0
	Handle mouse release.
virtual bool	HandleMouseWheel (float delta)
virtual void	DrawGhostPreview ()=0
	Draw ghost preview during placement.
virtual void	DrawSelectionHighlight ()=0
	Draw selection highlight for selected entities.
virtual std::optional< size_t >	GetEntityAtPosition (int canvas_x, int canvas_y) const =0
	Get entity at canvas position.
void	DrawPostPlacementToast ()

Protected Member Functions
void	TriggerSuccessToast ()
void	DrawSuccessToastOverlay (const char *msg, ImU32 color) const
std::pair< int, int >	RoomToCanvas (int room_x, int room_y) const
	Convert room tile coordinates to canvas pixel coordinates.
std::pair< int, int >	CanvasToRoom (int canvas_x, int canvas_y) const
	Convert canvas pixel coordinates to room tile coordinates.
bool	IsWithinBounds (int canvas_x, int canvas_y) const
	Check if coordinates are within room bounds.
ImVec2	GetCanvasZeroPoint () const
	Get canvas zero point (for screen coordinate conversion)
float	GetCanvasScale () const
	Get canvas global scale.
bool	HasValidContext () const
	Check if context is valid.
zelda3::Room *	GetCurrentRoom () const
	Get current room (convenience method)

Protected Attributes
InteractionContext *	ctx_ = nullptr
float	toast_expire_time_ = 0.0f

Static Protected Attributes
static constexpr float	kToastDuration = 1.5f

Detailed Description

Abstract base class for entity interaction handlers.

Each entity type (object, door, sprite, item) has its own handler that implements this interface. This provides consistent interaction patterns while allowing specialized behavior.

The InteractionCoordinator manages mode switching and dispatches calls to the appropriate handler.

Definition at line 26 of file base_entity_handler.h.

Constructor & Destructor Documentation

~BaseEntityHandler()

virtual yaze::editor::BaseEntityHandler::~BaseEntityHandler ( )

virtualdefault

Member Function Documentation

SetContext()

void yaze::editor::BaseEntityHandler::SetContext ( InteractionContext * ctx )

inline

Set the interaction context.

Must be called before using any other methods. The context provides access to canvas, room data, and callbacks.

Definition at line 36 of file base_entity_handler.h.

References ctx_.

Referenced by yaze::editor::InteractionCoordinator::SetContext(), and yaze::editor::TileObjectHandler::TileObjectHandler().

context()

InteractionContext * yaze::editor::BaseEntityHandler::context ( ) const

inline

Get the interaction context.

Definition at line 41 of file base_entity_handler.h.

References ctx_.

BeginPlacement()

virtual void yaze::editor::BaseEntityHandler::BeginPlacement ( )

pure virtual

Begin placement mode.

Called when user selects an entity to place from the palette. Override to initialize placement state.

Implemented in yaze::editor::DoorInteractionHandler, yaze::editor::ItemInteractionHandler, yaze::editor::SpriteInteractionHandler, and yaze::editor::TileObjectHandler.

CancelPlacement()

virtual void yaze::editor::BaseEntityHandler::CancelPlacement ( )

pure virtual

Cancel current placement.

Called when user presses Escape or switches modes. Override to clean up placement state.

Implemented in yaze::editor::DoorInteractionHandler, yaze::editor::ItemInteractionHandler, yaze::editor::SpriteInteractionHandler, and yaze::editor::TileObjectHandler.

IsPlacementActive()

virtual bool yaze::editor::BaseEntityHandler::IsPlacementActive ( ) const

pure virtual

Check if placement mode is active.

Implemented in yaze::editor::DoorInteractionHandler, yaze::editor::ItemInteractionHandler, yaze::editor::SpriteInteractionHandler, and yaze::editor::TileObjectHandler.

HandleClick()

virtual bool yaze::editor::BaseEntityHandler::HandleClick ( int canvas_x, int canvas_y )

pure virtual

Handle mouse click at canvas position.

Parameters

canvas_x	Unscaled X position relative to canvas origin
canvas_y	Unscaled Y position relative to canvas origin

Returns

true if click was handled by this handler

Implemented in yaze::editor::DoorInteractionHandler, yaze::editor::ItemInteractionHandler, yaze::editor::SpriteInteractionHandler, and yaze::editor::TileObjectHandler.

HandleDrag()

virtual void yaze::editor::BaseEntityHandler::HandleDrag ( ImVec2 current_pos, ImVec2 delta )

pure virtual

Handle mouse drag.

Parameters

current_pos	Current mouse position (screen coords)
delta	Mouse movement since last frame

Implemented in yaze::editor::DoorInteractionHandler, yaze::editor::ItemInteractionHandler, yaze::editor::SpriteInteractionHandler, and yaze::editor::TileObjectHandler.

HandleRelease()

virtual void yaze::editor::BaseEntityHandler::HandleRelease ( )

pure virtual

Handle mouse release.

Called when left mouse button is released after a drag.

Implemented in yaze::editor::DoorInteractionHandler, yaze::editor::ItemInteractionHandler, yaze::editor::SpriteInteractionHandler, and yaze::editor::TileObjectHandler.

HandleMouseWheel()

virtual bool yaze::editor::BaseEntityHandler::HandleMouseWheel ( float delta )

inlinevirtual

Reimplemented in yaze::editor::TileObjectHandler.

Definition at line 95 of file base_entity_handler.h.

Referenced by yaze::editor::InteractionCoordinator::HandleMouseWheel().

DrawGhostPreview()

virtual void yaze::editor::BaseEntityHandler::DrawGhostPreview ( )

pure virtual

Draw ghost preview during placement.

Called every frame when placement mode is active. Shows preview of entity at cursor position.

Implemented in yaze::editor::DoorInteractionHandler, yaze::editor::ItemInteractionHandler, yaze::editor::SpriteInteractionHandler, and yaze::editor::TileObjectHandler.

DrawSelectionHighlight()

virtual void yaze::editor::BaseEntityHandler::DrawSelectionHighlight ( )

pure virtual

Draw selection highlight for selected entities.

Called every frame to show selection state.

Implemented in yaze::editor::DoorInteractionHandler, yaze::editor::ItemInteractionHandler, yaze::editor::SpriteInteractionHandler, and yaze::editor::TileObjectHandler.

GetEntityAtPosition()

virtual std::optional< size_t > yaze::editor::BaseEntityHandler::GetEntityAtPosition ( int canvas_x, int canvas_y ) const

pure virtual

Get entity at canvas position.

Parameters

canvas_x	Unscaled X position relative to canvas origin
canvas_y	Unscaled Y position relative to canvas origin

Returns

Entity index if found, nullopt otherwise

Implemented in yaze::editor::DoorInteractionHandler, yaze::editor::ItemInteractionHandler, yaze::editor::SpriteInteractionHandler, and yaze::editor::TileObjectHandler.

DrawPostPlacementToast()

void yaze::editor::BaseEntityHandler::DrawPostPlacementToast ( )

inline

Definition at line 133 of file base_entity_handler.h.

References DrawSuccessToastOverlay(), and yaze::editor::AgentUI::GetTheme().

Referenced by yaze::editor::InteractionCoordinator::DrawPostPlacementOverlays().

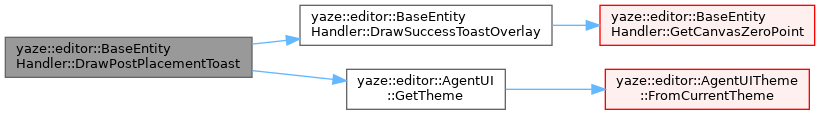

Here is the call graph for this function:

TriggerSuccessToast()

void yaze::editor::BaseEntityHandler::TriggerSuccessToast ( )

inlineprotected

Definition at line 148 of file base_entity_handler.h.

References kToastDuration, and toast_expire_time_.

Referenced by yaze::editor::DoorInteractionHandler::PlaceDoorAtSnappedPosition(), yaze::editor::TileObjectHandler::PlaceObjectAt(), and yaze::editor::SpriteInteractionHandler::PlaceSpriteAtPosition().

DrawSuccessToastOverlay()

void yaze::editor::BaseEntityHandler::DrawSuccessToastOverlay ( const char * msg, ImU32 color ) const

inlineprotected

Definition at line 157 of file base_entity_handler.h.

References GetCanvasZeroPoint(), and toast_expire_time_.

Referenced by DrawPostPlacementToast().

Here is the call graph for this function:

RoomToCanvas()

std::pair< int, int > yaze::editor::BaseEntityHandler::RoomToCanvas ( int room_x, int room_y ) const

inlineprotected

Convert room tile coordinates to canvas pixel coordinates.

Definition at line 191 of file base_entity_handler.h.

References yaze::editor::dungeon_coords::RoomToCanvas().

Referenced by yaze::editor::DoorInteractionHandler::DrawGhostPreview(), and yaze::editor::TileObjectHandler::DrawGhostPreview().

Here is the call graph for this function:

CanvasToRoom()

std::pair< int, int > yaze::editor::BaseEntityHandler::CanvasToRoom ( int canvas_x, int canvas_y ) const

inlineprotected

Convert canvas pixel coordinates to room tile coordinates.

Definition at line 198 of file base_entity_handler.h.

References yaze::editor::dungeon_coords::CanvasToRoom().

Referenced by yaze::editor::TileObjectHandler::DrawGhostPreview(), and yaze::editor::TileObjectHandler::HandleClick().

Here is the call graph for this function:

IsWithinBounds()

bool yaze::editor::BaseEntityHandler::IsWithinBounds ( int canvas_x, int canvas_y ) const

inlineprotected

Check if coordinates are within room bounds.

Definition at line 205 of file base_entity_handler.h.

References yaze::editor::dungeon_coords::IsWithinBounds().

Referenced by yaze::editor::TileObjectHandler::DrawGhostPreview(), and yaze::editor::TileObjectHandler::HandleClick().

Here is the call graph for this function:

GetCanvasZeroPoint()

ImVec2 yaze::editor::BaseEntityHandler::GetCanvasZeroPoint ( ) const

inlineprotected

Get canvas zero point (for screen coordinate conversion)

Definition at line 212 of file base_entity_handler.h.

References yaze::editor::InteractionContext::canvas, ctx_, and yaze::gui::Canvas::zero_point().

Referenced by yaze::editor::TileObjectHandler::DrawGhostPreview(), yaze::editor::DoorInteractionHandler::DrawSelectionHighlight(), yaze::editor::ItemInteractionHandler::DrawSelectionHighlight(), yaze::editor::SpriteInteractionHandler::DrawSelectionHighlight(), yaze::editor::DoorInteractionHandler::DrawSnapIndicators(), and DrawSuccessToastOverlay().

Here is the call graph for this function:

GetCanvasScale()

float yaze::editor::BaseEntityHandler::GetCanvasScale ( ) const

inlineprotected

Get canvas global scale.

Definition at line 220 of file base_entity_handler.h.

References yaze::editor::InteractionContext::canvas, ctx_, and yaze::gui::Canvas::global_scale().

Referenced by yaze::editor::SpriteInteractionHandler::CanvasToSpriteCoords(), yaze::editor::DoorInteractionHandler::DrawGhostPreview(), yaze::editor::ItemInteractionHandler::DrawGhostPreview(), yaze::editor::SpriteInteractionHandler::DrawGhostPreview(), yaze::editor::TileObjectHandler::DrawGhostPreview(), yaze::editor::DoorInteractionHandler::DrawSelectionHighlight(), yaze::editor::ItemInteractionHandler::DrawSelectionHighlight(), yaze::editor::SpriteInteractionHandler::DrawSelectionHighlight(), yaze::editor::DoorInteractionHandler::DrawSnapIndicators(), yaze::editor::DoorInteractionHandler::GetEntityAtPosition(), yaze::editor::ItemInteractionHandler::GetEntityAtPosition(), yaze::editor::SpriteInteractionHandler::GetEntityAtPosition(), yaze::editor::ItemInteractionHandler::HandleRelease(), and yaze::editor::ItemInteractionHandler::PlaceItemAtPosition().

Here is the call graph for this function:

HasValidContext()

bool yaze::editor::BaseEntityHandler::HasValidContext ( ) const

inlineprotected

Check if context is valid.

Definition at line 229 of file base_entity_handler.h.

References ctx_, and yaze::editor::InteractionContext::IsValid().

Referenced by yaze::editor::DoorInteractionHandler::DeleteSelected(), yaze::editor::ItemInteractionHandler::DeleteSelected(), yaze::editor::SpriteInteractionHandler::DeleteSelected(), yaze::editor::DoorInteractionHandler::DrawGhostPreview(), yaze::editor::ItemInteractionHandler::DrawGhostPreview(), yaze::editor::SpriteInteractionHandler::DrawGhostPreview(), yaze::editor::TileObjectHandler::DrawGhostPreview(), yaze::editor::DoorInteractionHandler::DrawSelectionHighlight(), yaze::editor::ItemInteractionHandler::DrawSelectionHighlight(), yaze::editor::SpriteInteractionHandler::DrawSelectionHighlight(), yaze::editor::TileObjectHandler::DrawSelectionHighlight(), yaze::editor::DoorInteractionHandler::DrawSnapIndicators(), yaze::editor::DoorInteractionHandler::GetEntityAtPosition(), yaze::editor::ItemInteractionHandler::GetEntityAtPosition(), yaze::editor::SpriteInteractionHandler::GetEntityAtPosition(), yaze::editor::DoorInteractionHandler::HandleClick(), yaze::editor::ItemInteractionHandler::HandleClick(), yaze::editor::SpriteInteractionHandler::HandleClick(), yaze::editor::TileObjectHandler::HandleClick(), yaze::editor::TileObjectHandler::HandleMouseWheel(), yaze::editor::DoorInteractionHandler::PlaceDoorAtSnappedPosition(), yaze::editor::ItemInteractionHandler::PlaceItemAtPosition(), and yaze::editor::SpriteInteractionHandler::PlaceSpriteAtPosition().

Here is the call graph for this function:

GetCurrentRoom()

zelda3::Room * yaze::editor::BaseEntityHandler::GetCurrentRoom ( ) const

inlineprotected

Get current room (convenience method)

Definition at line 234 of file base_entity_handler.h.

References ctx_, and yaze::editor::InteractionContext::GetCurrentRoom().

Referenced by yaze::editor::DoorInteractionHandler::DeleteSelected(), yaze::editor::ItemInteractionHandler::DeleteSelected(), yaze::editor::SpriteInteractionHandler::DeleteSelected(), yaze::editor::DoorInteractionHandler::DrawGhostPreview(), yaze::editor::SpriteInteractionHandler::DrawGhostPreview(), yaze::editor::DoorInteractionHandler::DrawSelectionHighlight(), yaze::editor::ItemInteractionHandler::DrawSelectionHighlight(), yaze::editor::SpriteInteractionHandler::DrawSelectionHighlight(), yaze::editor::TileObjectHandler::DrawSelectionHighlight(), yaze::editor::DoorInteractionHandler::DrawSnapIndicators(), yaze::editor::DoorInteractionHandler::HandleRelease(), yaze::editor::ItemInteractionHandler::HandleRelease(), yaze::editor::SpriteInteractionHandler::HandleRelease(), yaze::editor::DoorInteractionHandler::PlaceDoorAtSnappedPosition(), yaze::editor::ItemInteractionHandler::PlaceItemAtPosition(), and yaze::editor::SpriteInteractionHandler::PlaceSpriteAtPosition().

Here is the call graph for this function:

Member Data Documentation

ctx_

InteractionContext* yaze::editor::BaseEntityHandler::ctx_ = nullptr

protected

Definition at line 140 of file base_entity_handler.h.

Referenced by yaze::editor::TileObjectHandler::BeginMarqueeSelection(), context(), yaze::editor::TileObjectHandler::DeleteAllObjects(), yaze::editor::TileObjectHandler::DeleteObjects(), yaze::editor::DoorInteractionHandler::DeleteSelected(), yaze::editor::ItemInteractionHandler::DeleteSelected(), yaze::editor::SpriteInteractionHandler::DeleteSelected(), yaze::editor::DoorInteractionHandler::DrawGhostPreview(), yaze::editor::ItemInteractionHandler::DrawGhostPreview(), yaze::editor::SpriteInteractionHandler::DrawGhostPreview(), yaze::editor::TileObjectHandler::DrawGhostPreview(), yaze::editor::TileObjectHandler::DrawSelectionHighlight(), yaze::editor::TileObjectHandler::DuplicateObjects(), GetCanvasScale(), GetCanvasZeroPoint(), GetCurrentRoom(), yaze::editor::DoorInteractionHandler::GetEntityAtPosition(), yaze::editor::ItemInteractionHandler::GetEntityAtPosition(), yaze::editor::SpriteInteractionHandler::GetEntityAtPosition(), yaze::editor::TileObjectHandler::GetEntityAtPosition(), yaze::editor::TileObjectHandler::GetRoom(), yaze::editor::TileObjectHandler::HandleClick(), yaze::editor::TileObjectHandler::HandleDrag(), yaze::editor::TileObjectHandler::HandleMarqueeSelection(), yaze::editor::TileObjectHandler::HandleMouseWheel(), yaze::editor::DoorInteractionHandler::HandleRelease(), yaze::editor::ItemInteractionHandler::HandleRelease(), yaze::editor::SpriteInteractionHandler::HandleRelease(), yaze::editor::TileObjectHandler::HandleRelease(), HasValidContext(), yaze::editor::TileObjectHandler::MoveBackward(), yaze::editor::TileObjectHandler::MoveForward(), yaze::editor::TileObjectHandler::MoveObjects(), yaze::editor::TileObjectHandler::NotifyChange(), yaze::editor::TileObjectHandler::PasteFromClipboard(), yaze::editor::DoorInteractionHandler::PlaceDoorAtSnappedPosition(), yaze::editor::ItemInteractionHandler::PlaceItemAtPosition(), yaze::editor::TileObjectHandler::PlaceObjectAt(), yaze::editor::SpriteInteractionHandler::PlaceSpriteAtPosition(), yaze::editor::TileObjectHandler::RenderGhostPreviewBitmap(), yaze::editor::TileObjectHandler::ResizeObjects(), yaze::editor::DoorInteractionHandler::SelectDoor(), yaze::editor::ItemInteractionHandler::SelectItem(), yaze::editor::SpriteInteractionHandler::SelectSprite(), yaze::editor::TileObjectHandler::SendToBack(), yaze::editor::TileObjectHandler::SendToFront(), SetContext(), yaze::editor::TileObjectHandler::UpdateObjectsId(), yaze::editor::TileObjectHandler::UpdateObjectsLayer(), and yaze::editor::TileObjectHandler::UpdateObjectsSize().

toast_expire_time_

float yaze::editor::BaseEntityHandler::toast_expire_time_ = 0.0f

protected

Definition at line 180 of file base_entity_handler.h.

Referenced by DrawSuccessToastOverlay(), and TriggerSuccessToast().

kToastDuration

constexpr float yaze::editor::BaseEntityHandler::kToastDuration = 1.5f

staticconstexprprotected

Definition at line 182 of file base_entity_handler.h.

Referenced by TriggerSuccessToast().

---

The documentation for this class was generated from the following file:

• src/app/editor/dungeon/interaction/base_entity_handler.h
