yaze::editor::MapRefreshCoordinator Class Reference

#include <map_refresh_coordinator.h>

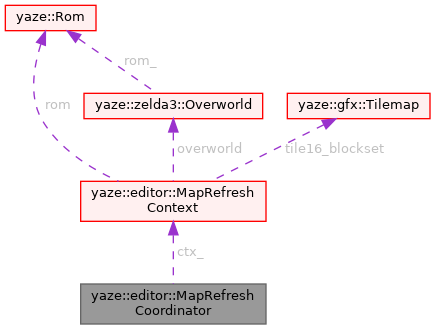

Collaboration diagram for yaze::editor::MapRefreshCoordinator:

Public Member Functions
	MapRefreshCoordinator (const MapRefreshContext &ctx)
void	InvalidateGraphicsCache (int map_id=-1)
	Invalidate cached graphics for a specific map or all maps.
void	RefreshChildMap (int map_index)
	Refresh a child map's graphics pipeline (legacy full rebuild)
void	RefreshOverworldMap ()
	Refresh the current overworld map.
void	RefreshOverworldMapOnDemand (int map_index)
	On-demand map refresh that only updates what's actually needed.
void	RefreshChildMapOnDemand (int map_index)
	On-demand child map refresh with selective updates.
void	RefreshMultiAreaMapsSafely (int map_index, zelda3::OverworldMap *map)
	Safely refresh multi-area maps without recursion.
absl::Status	RefreshMapPalette ()
	Refresh map palette after palette property changes.
void	ForceRefreshGraphics (int map_index)
	Force refresh graphics for a specific map.
void	RefreshSiblingMapGraphics (int map_index, bool include_self=false)
	Refresh sibling map graphics for multi-area maps.
void	RefreshMapProperties ()
	Refresh map properties (copy parent properties to siblings)
absl::Status	RefreshTile16Blockset ()
	Refresh the tile16 blockset after graphics/palette changes.
void	UpdateBlocksetWithPendingTileChanges ()
	Update blockset atlas with pending tile16 editor changes.

Private Attributes
MapRefreshContext	ctx_

Detailed Description

Definition at line 65 of file map_refresh_coordinator.h.

Constructor & Destructor Documentation

MapRefreshCoordinator()

yaze::editor::MapRefreshCoordinator::MapRefreshCoordinator ( const MapRefreshContext & ctx )

inlineexplicit

Definition at line 67 of file map_refresh_coordinator.h.

Member Function Documentation

InvalidateGraphicsCache()

void yaze::editor::MapRefreshCoordinator::InvalidateGraphicsCache

(

int

map_id = -1

)

Invalidate cached graphics for a specific map or all maps.

Parameters

map_id

The map to invalidate (-1 to invalidate all maps)

Definition at line 20 of file map_refresh_coordinator.cc.

References yaze::zelda3::Overworld::ClearGraphicsConfigCache(), ctx_, yaze::editor::MapRefreshContext::current_graphics_set, yaze::zelda3::Overworld::InvalidateSiblingMapCaches(), and yaze::editor::MapRefreshContext::overworld.

Here is the call graph for this function:

RefreshChildMap()

void yaze::editor::MapRefreshCoordinator::RefreshChildMap

(

int

map_index

)

Refresh a child map's graphics pipeline (legacy full rebuild)

Definition at line 33 of file map_refresh_coordinator.cc.

References ctx_, yaze::editor::MapRefreshContext::current_world, yaze::zelda3::Overworld::GetMapTiles(), yaze::editor::MapRefreshContext::maps_bmp, yaze::zelda3::Overworld::mutable_overworld_map(), yaze::zelda3::Overworld::mutable_tiles16(), yaze::editor::MapRefreshContext::overworld, PRINT_IF_ERROR, yaze::editor::MapRefreshContext::status, and yaze::zelda3::Overworld::tiles16().

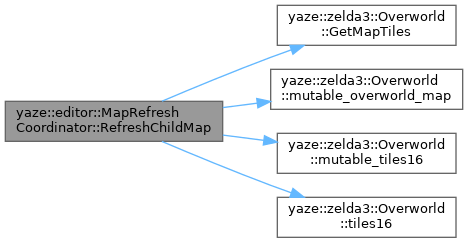

Here is the call graph for this function:

RefreshOverworldMap()

void yaze::editor::MapRefreshCoordinator::RefreshOverworldMap

(

)

Refresh the current overworld map.

Definition at line 50 of file map_refresh_coordinator.cc.

References ctx_, yaze::editor::MapRefreshContext::current_map, and RefreshOverworldMapOnDemand().

Here is the call graph for this function:

RefreshOverworldMapOnDemand()

void yaze::editor::MapRefreshCoordinator::RefreshOverworldMapOnDemand

(

int

map_index

)

On-demand map refresh that only updates what's actually needed.

This method intelligently determines what needs to be refreshed based on the type of change and only updates the necessary components, avoiding expensive full rebuilds when possible.

Definition at line 62 of file map_refresh_coordinator.cc.

References ctx_, yaze::editor::MapRefreshContext::current_map, yaze::editor::MapRefreshContext::current_world, yaze::zelda3::kNumOverworldMaps, yaze::editor::MapRefreshContext::maps_bmp, and RefreshChildMapOnDemand().

Referenced by RefreshOverworldMap().

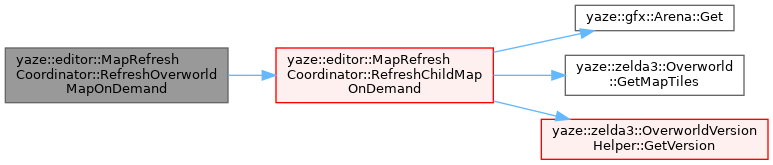

Here is the call graph for this function:

RefreshChildMapOnDemand()

void yaze::editor::MapRefreshCoordinator::RefreshChildMapOnDemand

(

int

map_index

)

On-demand child map refresh with selective updates.

Definition at line 86 of file map_refresh_coordinator.cc.

References yaze::gfx::Arena::CREATE, ctx_, yaze::editor::MapRefreshContext::current_world, yaze::gfx::Arena::Get(), yaze::zelda3::Overworld::GetMapTiles(), yaze::zelda3::OverworldVersionHelper::GetVersion(), LOG_ERROR, LOG_WARN, yaze::editor::MapRefreshContext::maps_bmp, yaze::zelda3::Overworld::mutable_overworld_map(), yaze::zelda3::Overworld::mutable_tiles16(), yaze::editor::MapRefreshContext::overworld, yaze::gfx::Arena::QueueTextureCommand(), RefreshMultiAreaMapsSafely(), yaze::editor::MapRefreshContext::rom, yaze::zelda3::OverworldVersionHelper::SupportsAreaEnum(), yaze::zelda3::Overworld::tiles16(), and yaze::gfx::Arena::UPDATE.

Referenced by RefreshOverworldMapOnDemand(), and RefreshSiblingMapGraphics().

RefreshMultiAreaMapsSafely()

void yaze::editor::MapRefreshCoordinator::RefreshMultiAreaMapsSafely	(	int	map_index,
		zelda3::OverworldMap *	map )

Safely refresh multi-area maps without recursion.

This function handles the coordination of large, wide, and tall area maps by using a non-recursive approach with explicit map list processing. It always works from the parent perspective to ensure consistent behavior whether the trigger map is the parent or a child.

Key improvements:

• Uses parameter-based recursion guard instead of static set
• Always works from parent perspective for consistent sibling coordination
• Respects ZScream area size logic for v3+ ROMs
• Falls back to large_map flag for vanilla/v2 ROMs

Definition at line 179 of file map_refresh_coordinator.cc.

References yaze::zelda3::OverworldMap::area_size(), ctx_, yaze::editor::MapRefreshContext::current_map, yaze::editor::MapRefreshContext::current_world, yaze::editor::MapRefreshContext::ensure_map_texture, yaze::gfx::Arena::Get(), yaze::zelda3::Overworld::GetMapTiles(), yaze::zelda3::kNumOverworldMaps, LOG_DEBUG, LOG_ERROR, LOG_WARN, yaze::editor::MapRefreshContext::maps_bmp, yaze::zelda3::Overworld::mutable_overworld_map(), yaze::zelda3::Overworld::mutable_tiles16(), yaze::editor::MapRefreshContext::overworld, yaze::zelda3::OverworldMap::parent(), yaze::gfx::Arena::QueueTextureCommand(), yaze::zelda3::Overworld::tiles16(), and yaze::gfx::Arena::UPDATE.

Referenced by RefreshChildMapOnDemand().

RefreshMapPalette()

absl::Status yaze::editor::MapRefreshCoordinator::RefreshMapPalette

(

)

Refresh map palette after palette property changes.

Definition at line 328 of file map_refresh_coordinator.cc.

References ctx_, yaze::zelda3::Overworld::current_area_palette(), yaze::editor::MapRefreshContext::current_gfx_bmp, yaze::editor::MapRefreshContext::current_map, yaze::gfx::Arena::Get(), yaze::zelda3::OverworldVersionHelper::GetVersion(), yaze::gfx::Bitmap::is_active(), yaze::zelda3::kNumOverworldMaps, yaze::editor::MapRefreshContext::maps_bmp, yaze::zelda3::Overworld::mutable_overworld_map(), yaze::editor::MapRefreshContext::overworld, yaze::editor::MapRefreshContext::palette, yaze::gfx::Arena::QueueTextureCommand(), RETURN_IF_ERROR, yaze::editor::MapRefreshContext::rom, yaze::gfx::Bitmap::set_modified(), yaze::editor::Tile16Editor::set_palette(), yaze::gfx::Bitmap::SetPalette(), yaze::zelda3::OverworldVersionHelper::SupportsAreaEnum(), yaze::editor::MapRefreshContext::tile16_editor, and yaze::gfx::Arena::UPDATE.

ForceRefreshGraphics()

void yaze::editor::MapRefreshCoordinator::ForceRefreshGraphics

(

int

map_index

)

Force refresh graphics for a specific map.

Definition at line 433 of file map_refresh_coordinator.cc.

References ctx_, yaze::editor::MapRefreshContext::current_blockset, yaze::zelda3::Overworld::InvalidateSiblingMapCaches(), LOG_DEBUG, yaze::editor::MapRefreshContext::maps_bmp, and yaze::editor::MapRefreshContext::overworld.

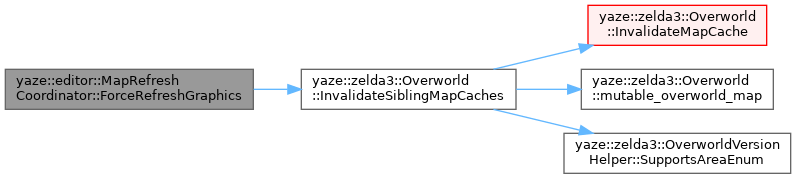

Here is the call graph for this function:

RefreshSiblingMapGraphics()

void yaze::editor::MapRefreshCoordinator::RefreshSiblingMapGraphics	(	int	map_index,
		bool	include_self = false )

Refresh sibling map graphics for multi-area maps.

Definition at line 450 of file map_refresh_coordinator.cc.

References ctx_, yaze::zelda3::LargeArea, LOG_DEBUG, yaze::editor::MapRefreshContext::maps_bmp, yaze::zelda3::Overworld::mutable_overworld_map(), yaze::editor::MapRefreshContext::overworld, RefreshChildMapOnDemand(), yaze::zelda3::SmallArea, yaze::zelda3::TallArea, and yaze::zelda3::WideArea.

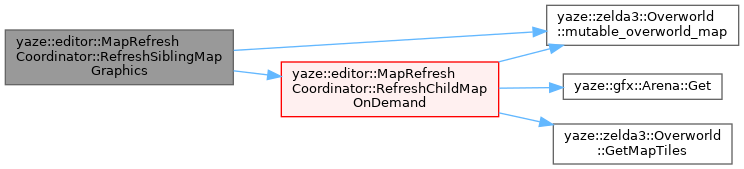

Here is the call graph for this function:

RefreshMapProperties()

void yaze::editor::MapRefreshCoordinator::RefreshMapProperties

(

)

Refresh map properties (copy parent properties to siblings)

Definition at line 502 of file map_refresh_coordinator.cc.

References ctx_, yaze::editor::MapRefreshContext::current_map, yaze::editor::MapRefreshContext::game_state, yaze::zelda3::OverworldVersionHelper::GetVersion(), yaze::zelda3::kNumOverworldMaps, yaze::zelda3::Overworld::mutable_overworld_map(), yaze::editor::MapRefreshContext::overworld, yaze::editor::MapRefreshContext::rom, and yaze::zelda3::OverworldVersionHelper::SupportsAreaEnum().

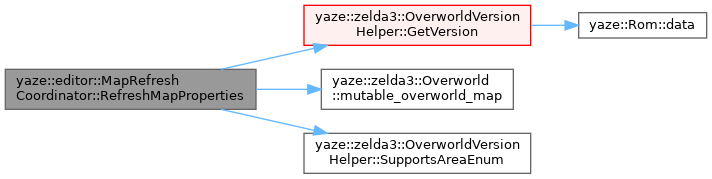

Here is the call graph for this function:

RefreshTile16Blockset()

absl::Status yaze::editor::MapRefreshCoordinator::RefreshTile16Blockset

(

)

Refresh the tile16 blockset after graphics/palette changes.

Definition at line 581 of file map_refresh_coordinator.cc.

References yaze::gfx::Tilemap::atlas, yaze::gfx::Arena::CREATE, ctx_, yaze::zelda3::Overworld::current_area_palette(), yaze::editor::MapRefreshContext::current_blockset, yaze::editor::MapRefreshContext::current_gfx_bmp, yaze::editor::MapRefreshContext::current_map, yaze::gfx::Arena::Get(), yaze::gfx::Bitmap::is_active(), LOG_DEBUG, yaze::editor::MapRefreshContext::overworld, yaze::zelda3::Overworld::overworld_map(), yaze::editor::MapRefreshContext::palette, yaze::gfx::Arena::QueueTextureCommand(), yaze::editor::MapRefreshContext::renderer, yaze::zelda3::Overworld::set_current_map(), yaze::gfx::Bitmap::set_modified(), yaze::editor::Tile16Editor::set_palette(), yaze::gfx::Bitmap::SetPalette(), yaze::gfx::Bitmap::texture(), yaze::editor::MapRefreshContext::tile16_blockset, yaze::zelda3::Overworld::tile16_blockset_data(), yaze::editor::MapRefreshContext::tile16_editor, yaze::gfx::Arena::UPDATE, and yaze::gfx::UpdateTilemap().

UpdateBlocksetWithPendingTileChanges()

void yaze::editor::MapRefreshCoordinator::UpdateBlocksetWithPendingTileChanges

(

)

Update blockset atlas with pending tile16 editor changes.

Definition at line 620 of file map_refresh_coordinator.cc.

References yaze::gfx::Tilemap::atlas, ctx_, yaze::gfx::Arena::Get(), yaze::editor::Tile16Editor::GetPendingTileBitmap(), yaze::editor::Tile16Editor::has_pending_changes(), yaze::gfx::Bitmap::height(), yaze::gfx::Bitmap::is_active(), yaze::editor::Tile16Editor::is_tile_modified(), yaze::zelda3::kNumTile16Individual, yaze::editor::MapRefreshContext::map_blockset_loaded, yaze::gfx::Bitmap::mutable_data(), yaze::gfx::Arena::QueueTextureCommand(), yaze::gfx::Bitmap::set_modified(), yaze::gfx::Bitmap::texture(), yaze::editor::MapRefreshContext::tile16_blockset, yaze::editor::MapRefreshContext::tile16_editor, yaze::gfx::Arena::UPDATE, yaze::gfx::Bitmap::vector(), and yaze::gfx::Bitmap::width().

Member Data Documentation

ctx_

MapRefreshContext yaze::editor::MapRefreshCoordinator::ctx_

private

Definition at line 111 of file map_refresh_coordinator.h.

Referenced by ForceRefreshGraphics(), InvalidateGraphicsCache(), RefreshChildMap(), RefreshChildMapOnDemand(), RefreshMapPalette(), RefreshMapProperties(), RefreshMultiAreaMapsSafely(), RefreshOverworldMap(), RefreshOverworldMapOnDemand(), RefreshSiblingMapGraphics(), RefreshTile16Blockset(), and UpdateBlocksetWithPendingTileChanges().

---

The documentation for this class was generated from the following files:

• src/app/editor/overworld/map_refresh_coordinator.h
• src/app/editor/overworld/map_refresh_coordinator.cc
