yaze::editor::MemoryEditor Struct Reference

#include <memory_editor.h>

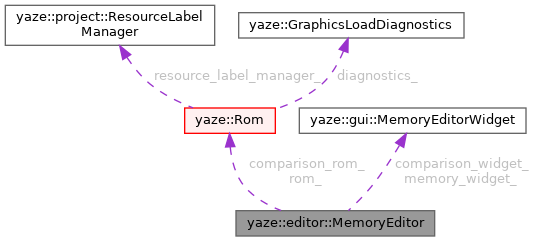

Collaboration diagram for yaze::editor::MemoryEditor:
Collaboration graph
[legend]

Classes

struct  Bookmark


Public Member Functions

 MemoryEditor (Rom *rom=nullptr)

void Update (bool &show_memory_editor)

void SetRom (Rom *rom)

Rom * rom () const


Private Member Functions

void DrawToolbar ()

void DrawJumpToAddressPopup ()

void DrawSearchPopup ()

void DrawBookmarksPopup ()


Private Attributes

Rom * rom_

gui::MemoryEditorWidget memory_widget_

gui::MemoryEditorWidget comparison_widget_

bool show_compare_rom_ = false

Rom comparison_rom_

char jump_address_ [16] = "0x000000"

char search_pattern_ [256] = ""

uint32_t current_address_ = 0

std::vector< Bookmark > bookmarks_


Detailed Description

Definition at line 20 of file memory_editor.h.

Constructor & Destructor Documentation

◆ MemoryEditor()

yaze::editor::MemoryEditor::MemoryEditor ( Rom * rom = nullptr)
inlineexplicit

Definition at line 21 of file memory_editor.h.

Member Function Documentation

◆ Update()

void yaze::editor::MemoryEditor::Update ( bool & show_memory_editor)

Definition at line 11 of file memory_editor.cc.

References BEGIN_TABLE, comparison_rom_, comparison_widget_, yaze::gui::MemoryEditorWidget::DrawContents(), DrawToolbar(), END_TABLE, yaze::Rom::filename(), yaze::gui::InputHex(), yaze::Rom::LoadFromFile(), memory_widget_, NEXT_COLUMN, PRINT_IF_ERROR, rom(), yaze::gui::MemoryEditorWidget::SetComparisonData(), SETUP_COLUMN, show_compare_rom_, yaze::util::FileDialogWrapper::ShowOpenFileDialog(), yaze::Rom::size(), and yaze::SnesToPc().

◆ SetRom()

void yaze::editor::MemoryEditor::SetRom ( Rom * rom)
inline

Definition at line 26 of file memory_editor.h.

References rom(), and rom_.

Here is the call graph for this function:

◆ rom()

Rom * yaze::editor::MemoryEditor::rom ( ) const
inline

Definition at line 29 of file memory_editor.h.

References rom_.

Referenced by SetRom(), and Update().

◆ DrawToolbar()

void yaze::editor::MemoryEditor::DrawToolbar ( )
private

Definition at line 50 of file memory_editor.cc.

References current_address_, DrawBookmarksPopup(), DrawJumpToAddressPopup(), DrawSearchPopup(), ICON_MD_BOOKMARK, ICON_MD_LOCATION_ON, ICON_MD_LOCATION_SEARCHING, ICON_MD_MORE_VERT, and ICON_MD_SEARCH.

Referenced by Update().

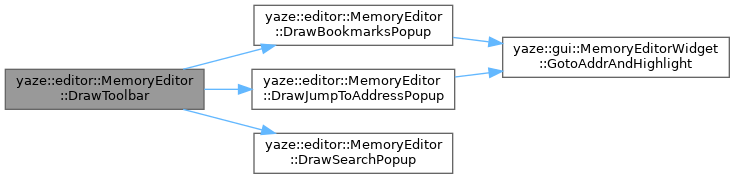

Here is the call graph for this function:

◆ DrawJumpToAddressPopup()

void yaze::editor::MemoryEditor::DrawJumpToAddressPopup ( )
private

Definition at line 96 of file memory_editor.cc.

References current_address_, yaze::gui::MemoryEditorWidget::GotoAddrAndHighlight(), ICON_MD_CANCEL, ICON_MD_CHECK, ICON_MD_LOCATION_SEARCHING, jump_address_, and memory_widget_.

Referenced by DrawToolbar().

Here is the call graph for this function:

◆ DrawSearchPopup()

void yaze::editor::MemoryEditor::DrawSearchPopup ( )
private
Todo
Implement search
Todo
Implement search using hex-search handler

Definition at line 139 of file memory_editor.cc.

References ICON_MD_CANCEL, ICON_MD_LIST, ICON_MD_SEARCH, and search_pattern_.

Referenced by DrawToolbar().

◆ DrawBookmarksPopup()

void yaze::editor::MemoryEditor::DrawBookmarksPopup ( )
private

Definition at line 187 of file memory_editor.cc.

References yaze::editor::MemoryEditor::Bookmark::address, bookmarks_, current_address_, yaze::editor::MemoryEditor::Bookmark::description, yaze::gui::MemoryEditorWidget::GotoAddrAndHighlight(), ICON_MD_ADD, ICON_MD_BOOKMARK, ICON_MD_CLEAR_ALL, ICON_MD_CLOSE, ICON_MD_INFO, memory_widget_, and yaze::editor::MemoryEditor::Bookmark::name.

Referenced by DrawToolbar().

Here is the call graph for this function:

Member Data Documentation

◆ rom_

Rom* yaze::editor::MemoryEditor::rom_
private

Definition at line 37 of file memory_editor.h.

Referenced by rom(), and SetRom().

◆ memory_widget_

gui::MemoryEditorWidget yaze::editor::MemoryEditor::memory_widget_
private

Definition at line 38 of file memory_editor.h.

Referenced by DrawBookmarksPopup(), DrawJumpToAddressPopup(), and Update().

◆ comparison_widget_

gui::MemoryEditorWidget yaze::editor::MemoryEditor::comparison_widget_
private

Definition at line 39 of file memory_editor.h.

Referenced by Update().

◆ show_compare_rom_

bool yaze::editor::MemoryEditor::show_compare_rom_ = false
private

Definition at line 40 of file memory_editor.h.

Referenced by Update().

◆ comparison_rom_

Rom yaze::editor::MemoryEditor::comparison_rom_
private

Definition at line 41 of file memory_editor.h.

Referenced by Update().

◆ jump_address_

char yaze::editor::MemoryEditor::jump_address_[16] = "0x000000"
private

Definition at line 44 of file memory_editor.h.

Referenced by DrawJumpToAddressPopup().

◆ search_pattern_

char yaze::editor::MemoryEditor::search_pattern_[256] = ""
private

Definition at line 45 of file memory_editor.h.

Referenced by DrawSearchPopup().

◆ current_address_

uint32_t yaze::editor::MemoryEditor::current_address_ = 0
private

Definition at line 46 of file memory_editor.h.

Referenced by DrawBookmarksPopup(), DrawJumpToAddressPopup(), and DrawToolbar().

◆ bookmarks_

std::vector<Bookmark> yaze::editor::MemoryEditor::bookmarks_
private

Definition at line 53 of file memory_editor.h.

Referenced by DrawBookmarksPopup().

The documentation for this struct was generated from the following files:
