#include <imgui_memory_editor.h>

Classes
struct	Sizes

Public Types
enum	DataFormat { DataFormat_Bin = 0 , DataFormat_Dec = 1 , DataFormat_Hex = 2 , DataFormat_COUNT }

Public Member Functions
void	SetComparisonData (void *data)

	MemoryEditorWidget ()

void	GotoAddrAndHighlight (size_t addr_min, size_t addr_max)

void	CalcSizes (Sizes &s, size_t mem_size, size_t base_display_addr)

void	DrawWindow (const char title, void mem_data, size_t mem_size, size_t base_display_addr=0x0000)

void	DrawContents (void *mem_data_void, size_t mem_size, size_t base_display_addr=0x0000)

void	DrawOptionsLine (const Sizes &s, void *mem_data, size_t mem_size, size_t base_display_addr)

void	DrawPreviewLine (const Sizes &s, void *mem_data_void, size_t mem_size, size_t base_display_addr)

const char *	DataTypeGetDesc (ImGuiDataType data_type) const

size_t	DataTypeGetSize (ImGuiDataType data_type) const

const char *	DataFormatGetDesc (DataFormat data_format) const

bool	IsBigEndian () const

void *	EndianessCopy (void dst, void src, size_t size) const

const char *	FormatBinary (const uint8_t *buf, int width) const

void	DrawPreviewData (size_t addr, const ImU8 mem_data, size_t mem_size, ImGuiDataType data_type, DataFormat data_format, char out_buf, size_t out_buf_size) const

Static Public Member Functions
static void *	EndianessCopyBigEndian (void _dst, void _src, size_t s, int is_little_endian)

static void *	EndianessCopyLittleEndian (void _dst, void _src, size_t s, int is_little_endian)

Public Attributes
bool	Open

bool	ReadOnly

int	Cols

bool	OptShowOptions

bool	OptShowDataPreview

bool	OptShowHexII

bool	OptShowAscii

bool	OptGreyOutZeroes

bool	OptUpperCaseHex

int	OptMidColsCount

int	OptAddrDigitsCount

float	OptFooterExtraHeight

ImU32	HighlightColor

ImU8(*	ReadFn )(const ImU8 *data, size_t off)

void(*	WriteFn )(ImU8 *data, size_t off, ImU8 d)

bool(*	HighlightFn )(const ImU8 *data, size_t off)

bool	ContentsWidthChanged

size_t	DataPreviewAddr

size_t	DataEditingAddr

bool	DataEditingTakeFocus

char	DataInputBuf [32]

char	AddrInputBuf [32]

size_t	GotoAddr

size_t	HighlightMin

size_t	HighlightMax

int	PreviewEndianess

ImGuiDataType	PreviewDataType

ImU8 *	ComparisonData

Detailed Description

Definition at line 25 of file imgui_memory_editor.h.

Member Enumeration Documentation

◆ DataFormat

enum yaze::gui::MemoryEditorWidget::DataFormat

Enumerator
DataFormat_Bin
DataFormat_Dec
DataFormat_Hex
DataFormat_COUNT

Definition at line 26 of file imgui_memory_editor.h.

Constructor & Destructor Documentation

◆ MemoryEditorWidget()

yaze::gui::MemoryEditorWidget::MemoryEditorWidget ( )

inline

Definition at line 87 of file imgui_memory_editor.h.

References AddrInputBuf, Cols, ContentsWidthChanged, DataEditingAddr, DataEditingTakeFocus, DataInputBuf, DataPreviewAddr, GotoAddr, HighlightColor, HighlightFn, HighlightMax, HighlightMin, Open, OptAddrDigitsCount, OptFooterExtraHeight, OptGreyOutZeroes, OptMidColsCount, OptShowAscii, OptShowDataPreview, OptShowHexII, OptShowOptions, OptUpperCaseHex, PreviewDataType, PreviewEndianess, ReadFn, ReadOnly, and WriteFn.

Member Function Documentation

◆ SetComparisonData()

void yaze::gui::MemoryEditorWidget::SetComparisonData ( void * data )

inline

Definition at line 85 of file imgui_memory_editor.h.

References ComparisonData.

Referenced by yaze::editor::MemoryEditor::Update().

◆ GotoAddrAndHighlight()

void yaze::gui::MemoryEditorWidget::GotoAddrAndHighlight	(	size_t	addr_min,
		size_t	addr_max )

inline

Definition at line 118 of file imgui_memory_editor.h.

References GotoAddr, HighlightMax, and HighlightMin.

Referenced by yaze::editor::MemoryEditor::DrawBookmarksPopup(), and yaze::editor::MemoryEditor::DrawJumpToAddressPopup().

◆ CalcSizes()

void yaze::gui::MemoryEditorWidget::CalcSizes	(	Sizes &	s,
		size_t	mem_size,
		size_t	base_display_addr )

inline

Definition at line 139 of file imgui_memory_editor.h.

Referenced by DrawContents(), and DrawWindow().

◆ DrawWindow()

void yaze::gui::MemoryEditorWidget::DrawWindow	(	const char *	title,
		void *	mem_data,
		size_t	mem_size,
		size_t	base_display_addr = 0x0000 )

inline

Definition at line 171 of file imgui_memory_editor.h.

References CalcSizes(), ContentsWidthChanged, DrawContents(), Open, and yaze::gui::MemoryEditorWidget::Sizes::WindowWidth.

Referenced by yaze::editor::GraphicsEditor::DrawMemoryEditor().

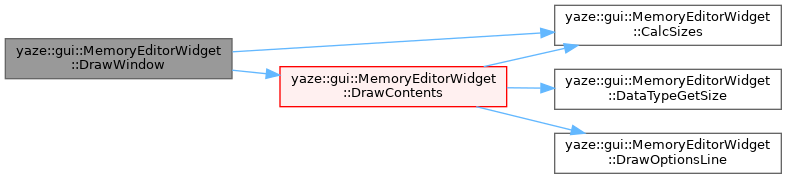

Here is the call graph for this function:

◆ DrawContents()

void yaze::gui::MemoryEditorWidget::DrawContents	(	void *	mem_data_void,
		size_t	mem_size,
		size_t	base_display_addr = 0x0000 )

inline

Definition at line 195 of file imgui_memory_editor.h.

Referenced by DrawWindow(), yaze::gui::MemoryEditorPopup(), yaze::emu::ui::RenderMemoryViewer(), and yaze::editor::MemoryEditor::Update().

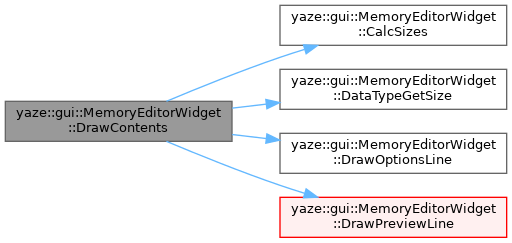

Here is the call graph for this function:

◆ DrawOptionsLine()

void yaze::gui::MemoryEditorWidget::DrawOptionsLine	(	const Sizes &	s,
		void *	mem_data,
		size_t	mem_size,
		size_t	base_display_addr )

inline

◆ DrawPreviewLine()

void yaze::gui::MemoryEditorWidget::DrawPreviewLine	(	const Sizes &	s,
		void *	mem_data_void,
		size_t	mem_size,
		size_t	base_display_addr )

inline

Definition at line 571 of file imgui_memory_editor.h.

References DataFormat_Bin, DataFormat_Dec, DataFormat_Hex, DataPreviewAddr, DataTypeGetDesc(), DrawPreviewData(), yaze::gui::MemoryEditorWidget::Sizes::GlyphWidth, ICON_MD_DATA_ARRAY, ICON_MD_HEXAGON, ICON_MD_NUMBERS, ICON_MD_SEARCH, PreviewDataType, and PreviewEndianess.

Referenced by DrawContents().

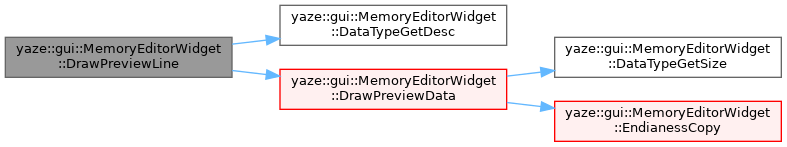

Here is the call graph for this function:

◆ DataTypeGetDesc()

const char * yaze::gui::MemoryEditorWidget::DataTypeGetDesc ( ImGuiDataType data_type ) const

inline

Definition at line 621 of file imgui_memory_editor.h.

Referenced by DrawPreviewLine().

◆ DataTypeGetSize()

size_t yaze::gui::MemoryEditorWidget::DataTypeGetSize ( ImGuiDataType data_type ) const

inline

Definition at line 628 of file imgui_memory_editor.h.

Referenced by DrawContents(), and DrawPreviewData().

◆ DataFormatGetDesc()

const char * yaze::gui::MemoryEditorWidget::DataFormatGetDesc ( DataFormat data_format ) const

inline

Definition at line 635 of file imgui_memory_editor.h.

References DataFormat_COUNT.

◆ IsBigEndian()

bool yaze::gui::MemoryEditorWidget::IsBigEndian ( ) const

inline

Definition at line 641 of file imgui_memory_editor.h.

Referenced by EndianessCopy().

◆ EndianessCopyBigEndian()

static void * yaze::gui::MemoryEditorWidget::EndianessCopyBigEndian	(	void *	_dst,
		void *	_src,
		size_t	s,
		int	is_little_endian )

inlinestatic

Definition at line 648 of file imgui_memory_editor.h.

Referenced by EndianessCopy().

◆ EndianessCopyLittleEndian()

static void * yaze::gui::MemoryEditorWidget::EndianessCopyLittleEndian	(	void *	_dst,
		void *	_src,
		size_t	s,
		int	is_little_endian )

inlinestatic

Definition at line 661 of file imgui_memory_editor.h.

Referenced by EndianessCopy().

◆ EndianessCopy()

void * yaze::gui::MemoryEditorWidget::EndianessCopy	(	void *	dst,
		void *	src,
		size_t	size ) const

inline

Definition at line 674 of file imgui_memory_editor.h.

References EndianessCopyBigEndian(), EndianessCopyLittleEndian(), IsBigEndian(), and PreviewEndianess.

Referenced by DrawPreviewData().

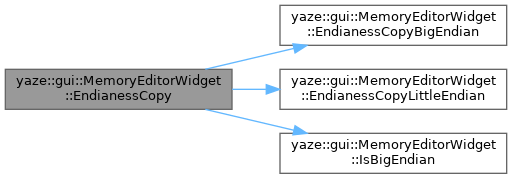

Here is the call graph for this function:

◆ FormatBinary()

const char * yaze::gui::MemoryEditorWidget::FormatBinary	(	const uint8_t *	buf,
		int	width ) const

inline

Definition at line 681 of file imgui_memory_editor.h.

Referenced by DrawPreviewData().

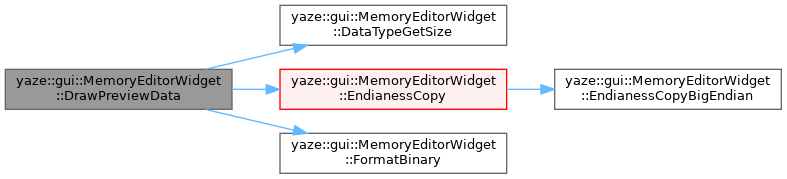

◆ DrawPreviewData()

void yaze::gui::MemoryEditorWidget::DrawPreviewData	(	size_t	addr,
		const ImU8 *	mem_data,
		size_t	mem_size,
		ImGuiDataType	data_type,
		DataFormat	data_format,
		char *	out_buf,
		size_t	out_buf_size ) const
