Classes
struct	SegmentSpec

Functions
float	CalcIconButtonWidth (const char *icon, float button_height)

float	CalcIconToggleButtonWidth (const char icon_on, const char icon_off, float button_height)

float	CalcPaneSegmentHeight (float button_size)

bool	ShouldStackSegments (float available_width, int item_count, float min_item_width)

void	DrawPaneTitle (const char icon, const char title, const char compact_title, bool compact, const char subtitle=nullptr)

void	DrawSectionLabel (const char icon, const char label, const char *tooltip=nullptr)

bool	DrawHeaderIconAction (const char id, const char icon, float button_size, const char *tooltip, bool active=false)

void	DrawPaneHeader (const char table_id, const char icon, const char title, const char compact_title, const char *subtitle, bool compact, float action_width, const std::function< void()> &draw_actions)

void	DrawSegmentedControls (const char *id, std::span< const SegmentSpec > segments, int selected_index, float height, float min_item_width, const std::function< void(int)> &on_select, bool force_stack=false)

bool	HasEditableRoomObjectSize (std::span< const zelda3::RoomObject > objects, std::span< const size_t > selected_indices)

bool	DrawObjectSizeControls (const zelda3::RoomObject &object, uint8_t *requested_size)

void	DrawInspectorSectionHeader (const char *label)

bool	BeginInspectorSection (const char *label, bool default_open)

bool	DrawActionButton (const char *label, const ImVec2 &size)

Function Documentation

◆ CalcIconButtonWidth()

float yaze::editor::workbench::CalcIconButtonWidth	(	const char *	icon,
		float	button_height )

inline

Definition at line 23 of file dungeon_workbench_chrome.h.

Referenced by CalcIconToggleButtonWidth(), yaze::editor::anonymous_namespace{dungeon_workbench_toolbar.cc}::DrawCanvasModeSelector(), yaze::editor::DungeonWorkbenchContent::DrawInspectorHeader(), yaze::editor::DungeonWorkbenchContent::DrawInspectorPrimarySelector(), yaze::editor::anonymous_namespace{dungeon_workbench_toolbar.cc}::DrawRecentRoomsMenu(), yaze::editor::DungeonWorkbenchContent::DrawSidebarHeader(), yaze::editor::anonymous_namespace{dungeon_workbench_toolbar.cc}::DrawToolbarOverflowMenu(), yaze::editor::anonymous_namespace{dungeon_workbench_toolbar.cc}::DrawViewOptionsButton(), yaze::editor::anonymous_namespace{dungeon_workbench_toolbar.cc}::ToolbarEstimatedWidth(), and yaze::editor::anonymous_namespace{dungeon_workbench_toolbar.cc}::ToolbarRightActionsWidth().

◆ CalcIconToggleButtonWidth()

float yaze::editor::workbench::CalcIconToggleButtonWidth	(	const char *	icon_on,
		const char *	icon_off,
		float	button_height )

inline

Definition at line 36 of file dungeon_workbench_chrome.h.

References CalcIconButtonWidth().

Referenced by yaze::editor::anonymous_namespace{dungeon_workbench_toolbar.cc}::IconToggleButton(), and yaze::editor::anonymous_namespace{dungeon_workbench_toolbar.cc}::ToolbarEstimatedWidth().

Here is the call graph for this function:

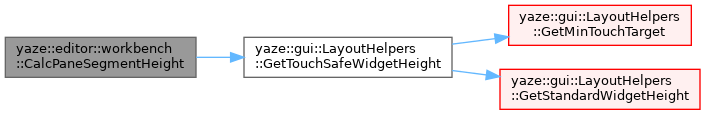

◆ CalcPaneSegmentHeight()

float yaze::editor::workbench::CalcPaneSegmentHeight ( float button_size )

inline

Definition at line 43 of file dungeon_workbench_chrome.h.

References yaze::gui::LayoutHelpers::GetTouchSafeWidgetHeight().

Here is the call graph for this function:

◆ ShouldStackSegments()

bool yaze::editor::workbench::ShouldStackSegments	(	float	available_width,
		int	item_count,
		float	min_item_width )

inline

Definition at line 48 of file dungeon_workbench_chrome.h.

Referenced by DrawSegmentedControls().

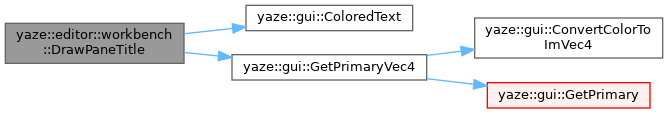

◆ DrawPaneTitle()

void yaze::editor::workbench::DrawPaneTitle	(	const char *	icon,
		const char *	title,
		const char *	compact_title,
		bool	compact,
		const char *	subtitle = nullptr )

inline

Definition at line 60 of file dungeon_workbench_chrome.h.

References yaze::gui::ColoredText(), and yaze::gui::GetPrimaryVec4().

Referenced by DrawPaneHeader().

Here is the call graph for this function:

◆ DrawSectionLabel()

void yaze::editor::workbench::DrawSectionLabel	(	const char *	icon,
		const char *	label,
		const char *	tooltip = nullptr )

inline

Definition at line 80 of file dungeon_workbench_chrome.h.

References yaze::gui::ColoredText(), and yaze::gui::GetPrimaryVec4().

Here is the call graph for this function:

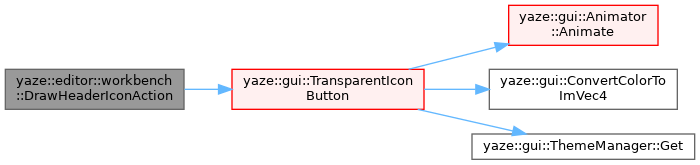

◆ DrawHeaderIconAction()

bool yaze::editor::workbench::DrawHeaderIconAction	(	const char *	id,
		const char *	icon,
		float	button_size,
		const char *	tooltip,
		bool	active = false )

inline

Definition at line 94 of file dungeon_workbench_chrome.h.

References yaze::gui::TransparentIconButton().

Referenced by yaze::editor::DungeonWorkbenchToolbar::Draw(), yaze::editor::DungeonWorkbenchContent::DrawInspectorHeader(), and yaze::editor::DungeonWorkbenchContent::DrawSidebarHeader().

Here is the call graph for this function:

◆ DrawPaneHeader()

void yaze::editor::workbench::DrawPaneHeader	(	const char *	table_id,
		const char *	icon,
		const char *	title,
		const char *	compact_title,
		const char *	subtitle,
		bool	compact,
		float	action_width,
		const std::function< void()> &	draw_actions )

inline

Definition at line 105 of file dungeon_workbench_chrome.h.

References DrawPaneTitle().

Referenced by yaze::editor::DungeonWorkbenchContent::DrawInspectorHeader(), and yaze::editor::DungeonWorkbenchContent::DrawSidebarHeader().

Here is the call graph for this function:

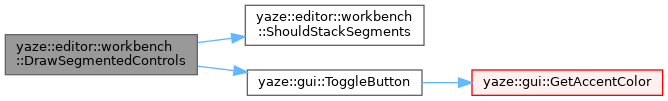

◆ DrawSegmentedControls()

void yaze::editor::workbench::DrawSegmentedControls	(	const char *	id,
		std::span< const SegmentSpec >	segments,
		int	selected_index,
		float	height,
		float	min_item_width,
		const std::function< void(int)> &	on_select,
		bool	force_stack = false )
