yaze::editor::PaletteGroupPanel Class Reference

Base class for palette group editing cards. More...

#include <palette_group_panel.h>

Inherits yaze::editor::EditorPanel.

Inherited by yaze::editor::DungeonMainPalettePanel, yaze::editor::EquipmentPalettePanel, yaze::editor::OverworldAnimatedPalettePanel, yaze::editor::OverworldMainPalettePanel, yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, and yaze::editor::SpritesAux3PalettePanel.

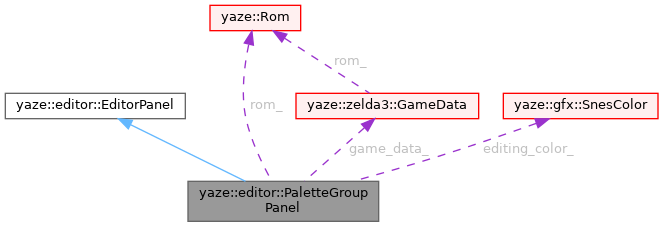

Collaboration diagram for yaze::editor::PaletteGroupPanel:

Public Member Functions
	PaletteGroupPanel (const std::string &group_name, const std::string &display_name, Rom *rom, zelda3::GameData *game_data=nullptr)
	Construct a new Palette Group Panel.
void	SetGameData (zelda3::GameData *game_data)
virtual	~PaletteGroupPanel ()=default
void	Draw (bool *p_open) override
	Draw the card's ImGui UI.
std::string	GetId () const override
	Unique identifier for this panel.
std::string	GetDisplayName () const override
	Human-readable name shown in menus and title bars.
std::string	GetIcon () const override
	Material Design icon for this panel.
std::string	GetEditorCategory () const override
	Editor category this panel belongs to.
int	GetPriority () const override
	Get display priority for menu ordering.
void	Show ()
void	Hide ()
bool	IsVisible () const
bool *	visibility_flag ()
absl::Status	SaveToRom ()
	Save all modified palettes to ROM.
void	DiscardChanges ()
	Discard all unsaved changes.
void	ResetPalette (int palette_index)
	Reset a specific palette to original ROM values.
void	ResetColor (int palette_index, int color_index)
	Reset a specific color to original ROM value.
void	SetColor (int palette_index, int color_index, const gfx::SnesColor &new_color)
	Set a color value (records change for undo)
void	Undo ()
void	Redo ()
bool	CanUndo () const
bool	CanRedo () const
void	ClearHistory ()
bool	HasUnsavedChanges () const
bool	IsPaletteModified (int palette_index) const
bool	IsColorModified (int palette_index, int color_index) const
int	GetSelectedPaletteIndex () const
void	SetSelectedPaletteIndex (int index)
int	GetSelectedColorIndex () const
void	SetSelectedColorIndex (int index)
std::string	ExportToJson () const
absl::Status	ImportFromJson (const std::string &json)
std::string	ExportToClipboard () const
absl::Status	ImportFromClipboard ()
Public Member Functions inherited from yaze::editor::EditorPanel
virtual	~EditorPanel ()=default
virtual void	OnOpen ()
	Called when panel becomes visible.
virtual void	OnClose ()
	Called when panel is hidden.
virtual void	OnFocus ()
	Called when panel receives focus.
virtual PanelCategory	GetPanelCategory () const
	Get the lifecycle category for this panel.
virtual bool	IsEnabled () const
	Check if this panel is currently enabled.
virtual std::string	GetDisabledTooltip () const
	Get tooltip text when panel is disabled.
virtual std::string	GetShortcutHint () const
	Get keyboard shortcut hint for display.
virtual float	GetPreferredWidth () const
	Get preferred width for this panel (optional)
virtual bool	IsVisibleByDefault () const
	Whether this panel should be visible by default.
virtual std::string	GetParentPanelId () const
	Get parent panel ID for cascade behavior.
virtual bool	CascadeCloseChildren () const
	Whether closing this panel should close child panels.

Protected Member Functions
virtual gfx::PaletteGroup *	GetPaletteGroup ()=0
	Get the palette group for this card.
virtual const gfx::PaletteGroup *	GetPaletteGroup () const =0
virtual const PaletteGroupMetadata &	GetMetadata () const =0
	Get metadata for this palette group.
virtual void	DrawPaletteGrid ()=0
	Draw the palette grid specific to this palette type.
virtual int	GetColorsPerRow () const =0
	Get the number of colors per row for grid layout.
virtual void	DrawCustomToolbarButtons ()
	Draw additional toolbar buttons (called after standard buttons)
virtual void	DrawCustomPanels ()
	Draw additional panels (called after main content)
void	DrawToolbar ()
	Draw standard toolbar with save/discard/undo/redo.
void	DrawPaletteSelector ()
	Draw palette selector dropdown.
void	DrawColorPicker ()
	Draw color picker for selected color.
void	DrawColorInfo ()
	Draw color info panel with RGB/SNES/Hex values.
void	DrawMetadataInfo ()
	Draw palette metadata info panel.
void	DrawBatchOperationsPopup ()
	Draw batch operations popup.
gfx::SnesPalette *	GetMutablePalette (int index)
	Get mutable palette by index.
gfx::SnesColor	GetOriginalColor (int palette_index, int color_index) const
	Get original color from ROM (for reset/comparison)
absl::Status	WriteColorToRom (int palette_index, int color_index, const gfx::SnesColor &color)
	Write a single color to ROM.
void	MarkModified (int palette_index, int color_index)
	Mark palette as modified.
void	ClearModified (int palette_index)
	Clear modified flags for palette.

Protected Attributes
std::string	group_name_
std::string	display_name_
Rom *	rom_
zelda3::GameData *	game_data_ = nullptr
bool	show_ = false
int	selected_palette_ = 0
int	selected_color_ = -1
gfx::SnesColor	editing_color_
bool	auto_save_enabled_ = false
bool	show_snes_format_ = true
bool	show_hex_format_ = true

Detailed Description

Base class for palette group editing cards.

Provides common functionality for all palette group editors:

• ROM persistence with transaction-based writes
• Undo/redo history management
• Modified state tracking with visual indicators
• Save/discard workflow
• Common toolbar and color picker UI
• PanelManager integration

Derived classes implement specific grid layouts and palette access.

Definition at line 70 of file palette_group_panel.h.

Constructor & Destructor Documentation

PaletteGroupPanel()

yaze::editor::PaletteGroupPanel::PaletteGroupPanel	(	const std::string &	group_name,
		const std::string &	display_name,
		Rom *	rom,
		zelda3::GameData *	game_data = nullptr )

Construct a new Palette Group Panel.

Parameters

group_name	Internal palette group name (e.g., "ow_main", "dungeon_main")
display_name	Human-readable name for UI
rom	ROM instance for reading/writing palettes
game_data	GameData instance for palette access

Definition at line 24 of file palette_group_panel.cc.

~PaletteGroupPanel()

virtual yaze::editor::PaletteGroupPanel::~PaletteGroupPanel ( )

virtualdefault

Member Function Documentation

SetGameData()

void yaze::editor::PaletteGroupPanel::SetGameData ( zelda3::GameData * game_data )

inline

Definition at line 84 of file palette_group_panel.h.

References game_data_.

Draw()

void yaze::editor::PaletteGroupPanel::Draw ( bool * p_open )

overridevirtual

Draw the card's ImGui UI.

Draw the card's ImGui UI

Implements yaze::editor::EditorPanel.

Definition at line 34 of file palette_group_panel.cc.

References DrawBatchOperationsPopup(), DrawColorInfo(), DrawColorPicker(), DrawCustomPanels(), DrawMetadataInfo(), DrawPaletteGrid(), DrawPaletteSelector(), DrawToolbar(), yaze::Rom::is_loaded(), rom_, and selected_color_.

GetId()

std::string yaze::editor::PaletteGroupPanel::GetId ( ) const

inlineoverridevirtual

Unique identifier for this panel.

Returns

Panel ID in format "{category}.{name}" (e.g., "dungeon.room_selector")

IDs should be:

• Lowercase with underscores
• Prefixed with editor category
• Unique across all panels

Implements yaze::editor::EditorPanel.

Definition at line 99 of file palette_group_panel.h.

References group_name_.

GetDisplayName()

std::string yaze::editor::PaletteGroupPanel::GetDisplayName ( ) const

inlineoverridevirtual

Human-readable name shown in menus and title bars.

Returns

Display name (e.g., "Room Selector")

Implements yaze::editor::EditorPanel.

Definition at line 100 of file palette_group_panel.h.

References display_name_.

GetIcon()

std::string yaze::editor::PaletteGroupPanel::GetIcon ( ) const

inlineoverridevirtual

Material Design icon for this panel.

Returns

Icon constant (e.g., ICON_MD_LIST)

Implements yaze::editor::EditorPanel.

Reimplemented in yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, and yaze::editor::SpritesAux3PalettePanel.

Definition at line 101 of file palette_group_panel.h.

References ICON_MD_PALETTE.

GetEditorCategory()

std::string yaze::editor::PaletteGroupPanel::GetEditorCategory ( ) const

inlineoverridevirtual

Editor category this panel belongs to.

Returns

Category name matching EditorType (e.g., "Dungeon", "Overworld")

Implements yaze::editor::EditorPanel.

Definition at line 102 of file palette_group_panel.h.

GetPriority()

int yaze::editor::PaletteGroupPanel::GetPriority ( ) const

inlineoverridevirtual

Get display priority for menu ordering.

Returns

Priority value (lower = higher in list, default 50)

Reimplemented from yaze::editor::EditorPanel.

Reimplemented in yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, and yaze::editor::SpritesAux3PalettePanel.

Definition at line 103 of file palette_group_panel.h.

Show()

void yaze::editor::PaletteGroupPanel::Show ( )

inline

Definition at line 107 of file palette_group_panel.h.

References show_.

Referenced by yaze::editor::PaletteEditor::JumpToPalette().

Hide()

void yaze::editor::PaletteGroupPanel::Hide ( )

inline

Definition at line 108 of file palette_group_panel.h.

References show_.

IsVisible()

bool yaze::editor::PaletteGroupPanel::IsVisible ( ) const

inline

Definition at line 109 of file palette_group_panel.h.

References show_.

visibility_flag()

bool * yaze::editor::PaletteGroupPanel::visibility_flag ( )

inline

Definition at line 110 of file palette_group_panel.h.

References show_.

SaveToRom()

absl::Status yaze::editor::PaletteGroupPanel::SaveToRom

(

)

Save all modified palettes to ROM.

Definition at line 418 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), group_name_, and yaze::gfx::PaletteManager::SaveGroup().

Referenced by DrawToolbar().

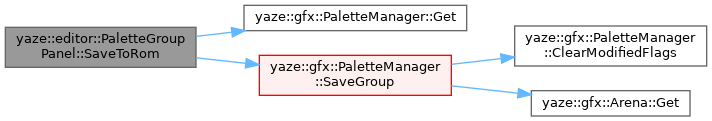

Here is the call graph for this function:

DiscardChanges()

void yaze::editor::PaletteGroupPanel::DiscardChanges

(

)

Discard all unsaved changes.

Definition at line 423 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::DiscardGroup(), yaze::gfx::PaletteManager::Get(), group_name_, and selected_color_.

Referenced by DrawBatchOperationsPopup(), and DrawToolbar().

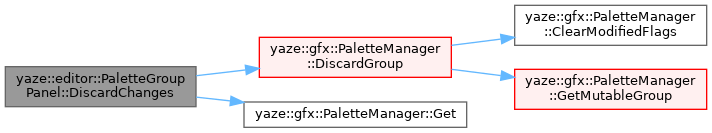

Here is the call graph for this function:

ResetPalette()

void yaze::editor::PaletteGroupPanel::ResetPalette

(

int

palette_index

)

Reset a specific palette to original ROM values.

Definition at line 431 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), group_name_, and yaze::gfx::PaletteManager::ResetPalette().

Referenced by DrawPaletteSelector().

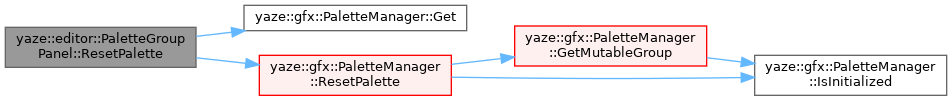

Here is the call graph for this function:

ResetColor()

void yaze::editor::PaletteGroupPanel::ResetColor	(	int	palette_index,
		int	color_index )

Reset a specific color to original ROM value.

Definition at line 436 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), group_name_, and yaze::gfx::PaletteManager::ResetColor().

Referenced by DrawColorPicker().

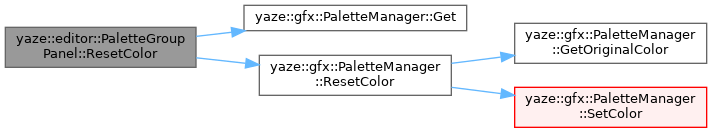

Here is the call graph for this function:

SetColor()

void yaze::editor::PaletteGroupPanel::SetColor	(	int	palette_index,
		int	color_index,
		const gfx::SnesColor &	new_color )

Set a color value (records change for undo)

Todo

Show error notification

Definition at line 402 of file palette_group_panel.cc.

References auto_save_enabled_, yaze::gfx::PaletteManager::Get(), group_name_, yaze::gfx::PaletteManager::SetColor(), and WriteColorToRom().

Referenced by DrawColorPicker().

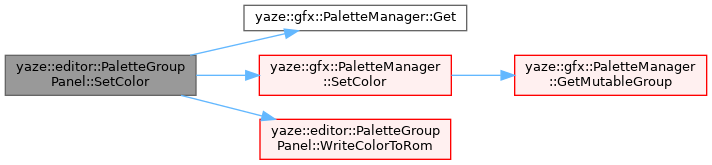

Here is the call graph for this function:

Undo()

void yaze::editor::PaletteGroupPanel::Undo

(

)

Definition at line 444 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), and yaze::gfx::PaletteManager::Undo().

Referenced by DrawToolbar().

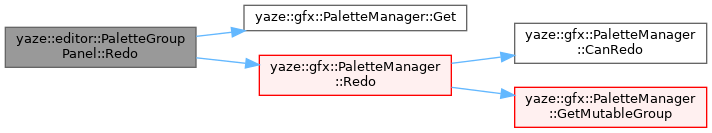

Here is the call graph for this function:

Redo()

void yaze::editor::PaletteGroupPanel::Redo

(

)

Definition at line 449 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), and yaze::gfx::PaletteManager::Redo().

Referenced by DrawToolbar().

Here is the call graph for this function:

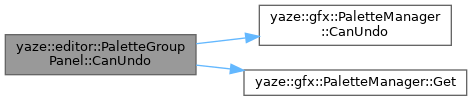

CanUndo()

bool yaze::editor::PaletteGroupPanel::CanUndo

(

)

const

Definition at line 479 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::CanUndo(), and yaze::gfx::PaletteManager::Get().

Referenced by DrawToolbar().

Here is the call graph for this function:

CanRedo()

bool yaze::editor::PaletteGroupPanel::CanRedo

(

)

const

Definition at line 484 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::CanRedo(), and yaze::gfx::PaletteManager::Get().

Referenced by DrawToolbar().

Here is the call graph for this function:

ClearHistory()

void yaze::editor::PaletteGroupPanel::ClearHistory

(

)

Definition at line 454 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::ClearHistory(), and yaze::gfx::PaletteManager::Get().

Here is the call graph for this function:

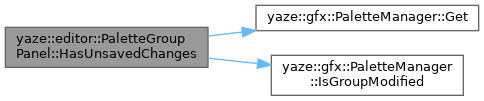

HasUnsavedChanges()

bool yaze::editor::PaletteGroupPanel::HasUnsavedChanges

(

)

const

Definition at line 474 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), group_name_, and yaze::gfx::PaletteManager::IsGroupModified().

Referenced by yaze::editor::PaletteEditor::DrawControlPanel().

Here is the call graph for this function:

IsPaletteModified()

bool yaze::editor::PaletteGroupPanel::IsPaletteModified

(

int

palette_index

)

const

Definition at line 461 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), group_name_, and yaze::gfx::PaletteManager::IsPaletteModified().

Referenced by DrawPaletteSelector(), and DrawToolbar().

Here is the call graph for this function:

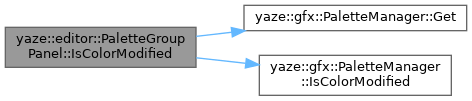

IsColorModified()

bool yaze::editor::PaletteGroupPanel::IsColorModified	(	int	palette_index,
		int	color_index ) const

Definition at line 467 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), group_name_, and yaze::gfx::PaletteManager::IsColorModified().

Referenced by DrawColorPicker(), yaze::editor::OverworldMainPalettePanel::DrawPaletteGrid(), yaze::editor::OverworldAnimatedPalettePanel::DrawPaletteGrid(), yaze::editor::DungeonMainPalettePanel::DrawPaletteGrid(), yaze::editor::SpritePalettePanel::DrawPaletteGrid(), yaze::editor::SpritesAux1PalettePanel::DrawPaletteGrid(), yaze::editor::SpritesAux2PalettePanel::DrawPaletteGrid(), yaze::editor::SpritesAux3PalettePanel::DrawPaletteGrid(), and yaze::editor::EquipmentPalettePanel::DrawPaletteGrid().

Here is the call graph for this function:

GetSelectedPaletteIndex()

int yaze::editor::PaletteGroupPanel::GetSelectedPaletteIndex ( ) const

inline

Definition at line 154 of file palette_group_panel.h.

References selected_palette_.

SetSelectedPaletteIndex()

void yaze::editor::PaletteGroupPanel::SetSelectedPaletteIndex ( int index )

inline

Definition at line 155 of file palette_group_panel.h.

References selected_palette_.

Referenced by yaze::editor::PaletteEditor::JumpToPalette().

GetSelectedColorIndex()

int yaze::editor::PaletteGroupPanel::GetSelectedColorIndex ( ) const

inline

Definition at line 157 of file palette_group_panel.h.

References selected_color_.

SetSelectedColorIndex()

void yaze::editor::PaletteGroupPanel::SetSelectedColorIndex ( int index )

inline

Definition at line 158 of file palette_group_panel.h.

References selected_color_.

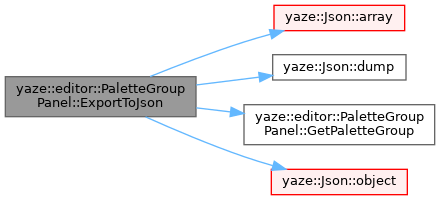

ExportToJson()

std::string yaze::editor::PaletteGroupPanel::ExportToJson

(

)

const

Todo

Implement JSON export

Definition at line 518 of file palette_group_panel.cc.

ImportFromJson()

absl::Status yaze::editor::PaletteGroupPanel::ImportFromJson

(

const std::string &

json

)

Todo

Implement JSON import

Definition at line 523 of file palette_group_panel.cc.

ExportToClipboard()

std::string yaze::editor::PaletteGroupPanel::ExportToClipboard

(

)

const

Definition at line 528 of file palette_group_panel.cc.

References GetPaletteGroup(), and selected_palette_.

Referenced by DrawBatchOperationsPopup(), and DrawToolbar().

Here is the call graph for this function:

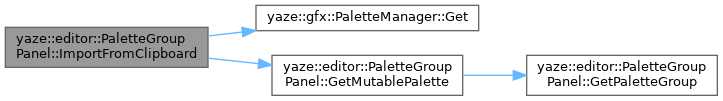

ImportFromClipboard()

absl::Status yaze::editor::PaletteGroupPanel::ImportFromClipboard

(

)

Todo

Implement clipboard import

Definition at line 548 of file palette_group_panel.cc.

Referenced by DrawBatchOperationsPopup(), and DrawToolbar().

GetPaletteGroup() [1/2]

virtual gfx::PaletteGroup * yaze::editor::PaletteGroupPanel::GetPaletteGroup ( )

protectedpure virtual

Get the palette group for this card.

Implemented in yaze::editor::OverworldMainPalettePanel, yaze::editor::OverworldAnimatedPalettePanel, yaze::editor::DungeonMainPalettePanel, yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, yaze::editor::SpritesAux3PalettePanel, and yaze::editor::EquipmentPalettePanel.

Referenced by DrawPaletteSelector(), DrawToolbar(), ExportToClipboard(), and GetMutablePalette().

GetPaletteGroup() [2/2]

virtual const gfx::PaletteGroup * yaze::editor::PaletteGroupPanel::GetPaletteGroup ( ) const

protectedpure virtual

Implemented in yaze::editor::OverworldMainPalettePanel, yaze::editor::OverworldAnimatedPalettePanel, yaze::editor::DungeonMainPalettePanel, yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, yaze::editor::SpritesAux3PalettePanel, and yaze::editor::EquipmentPalettePanel.

GetMetadata()

virtual const PaletteGroupMetadata & yaze::editor::PaletteGroupPanel::GetMetadata ( ) const

protectedpure virtual

Get metadata for this palette group.

Implemented in yaze::editor::OverworldMainPalettePanel, yaze::editor::OverworldAnimatedPalettePanel, yaze::editor::DungeonMainPalettePanel, yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, yaze::editor::SpritesAux3PalettePanel, and yaze::editor::EquipmentPalettePanel.

Referenced by DrawMetadataInfo().

DrawPaletteGrid()

virtual void yaze::editor::PaletteGroupPanel::DrawPaletteGrid ( )

protectedpure virtual

Draw the palette grid specific to this palette type.

Implemented in yaze::editor::OverworldMainPalettePanel, yaze::editor::OverworldAnimatedPalettePanel, yaze::editor::DungeonMainPalettePanel, yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, yaze::editor::SpritesAux3PalettePanel, and yaze::editor::EquipmentPalettePanel.

Referenced by Draw().

GetColorsPerRow()

virtual int yaze::editor::PaletteGroupPanel::GetColorsPerRow ( ) const

protectedpure virtual

Get the number of colors per row for grid layout.

Implemented in yaze::editor::OverworldMainPalettePanel, yaze::editor::OverworldAnimatedPalettePanel, yaze::editor::DungeonMainPalettePanel, yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, yaze::editor::SpritesAux3PalettePanel, and yaze::editor::EquipmentPalettePanel.

DrawCustomToolbarButtons()

virtual void yaze::editor::PaletteGroupPanel::DrawCustomToolbarButtons ( )

inlineprotectedvirtual

Draw additional toolbar buttons (called after standard buttons)

Definition at line 197 of file palette_group_panel.h.

Referenced by DrawToolbar().

DrawCustomPanels()

virtual void yaze::editor::PaletteGroupPanel::DrawCustomPanels ( )

inlineprotectedvirtual

Draw additional panels (called after main content)

Reimplemented in yaze::editor::SpritePalettePanel.

Definition at line 202 of file palette_group_panel.h.

Referenced by Draw().

DrawToolbar()

void yaze::editor::PaletteGroupPanel::DrawToolbar ( )

protected

Draw standard toolbar with save/discard/undo/redo.

Todo

Show error toast

Definition at line 89 of file palette_group_panel.cc.

References CanRedo(), CanUndo(), yaze::gui::DangerButton(), DiscardChanges(), DrawCustomToolbarButtons(), ExportToClipboard(), yaze::gfx::PaletteManager::Get(), GetPaletteGroup(), group_name_, ICON_MD_EDIT, ICON_MD_FILE_DOWNLOAD, ICON_MD_FILE_UPLOAD, ICON_MD_MORE_VERT, ICON_MD_REDO, ICON_MD_SAVE, ICON_MD_UNDO, ImportFromClipboard(), yaze::gfx::PaletteManager::IsGroupModified(), IsPaletteModified(), yaze::gui::PrimaryButton(), Redo(), SaveToRom(), yaze::gui::ThemedIconButton(), and Undo().

Referenced by Draw().

DrawPaletteSelector()

void yaze::editor::PaletteGroupPanel::DrawPaletteSelector ( )

protected

Draw palette selector dropdown.

Definition at line 170 of file palette_group_panel.cc.

References GetPaletteGroup(), yaze::gui::LayoutHelpers::GetStandardInputWidth(), ICON_MD_RESTORE, IsPaletteModified(), ResetPalette(), selected_color_, selected_palette_, and yaze::gui::ThemedIconButton().

Referenced by Draw().

DrawColorPicker()

void yaze::editor::PaletteGroupPanel::DrawColorPicker ( )

protected

Draw color picker for selected color.

Definition at line 213 of file palette_group_panel.cc.

References yaze::gui::ConvertImVec4ToSnesColor(), yaze::gui::ConvertSnesColorToImVec4(), editing_color_, GetMutablePalette(), GetOriginalColor(), yaze::gui::LayoutHelpers::HelpMarker(), ICON_MD_RESTORE, IsColorModified(), ResetColor(), yaze::gui::SectionHeader(), selected_color_, selected_palette_, SetColor(), and yaze::gui::ThemedButton().

Referenced by Draw().

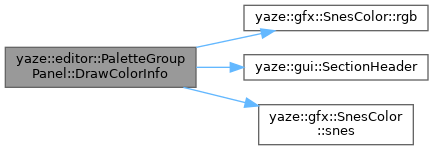

DrawColorInfo()

void yaze::editor::PaletteGroupPanel::DrawColorInfo ( )

protected

Draw color info panel with RGB/SNES/Hex values.

Definition at line 272 of file palette_group_panel.cc.

References editing_color_, yaze::gfx::SnesColor::rgb(), yaze::gui::SectionHeader(), selected_color_, show_hex_format_, show_snes_format_, and yaze::gfx::SnesColor::snes().

Referenced by Draw().

Here is the call graph for this function:

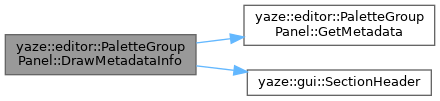

DrawMetadataInfo()

void yaze::editor::PaletteGroupPanel::DrawMetadataInfo ( )

protected

Draw palette metadata info panel.

Definition at line 310 of file palette_group_panel.cc.

References GetMetadata(), yaze::gui::SectionHeader(), and selected_palette_.

Referenced by Draw().

Here is the call graph for this function:

DrawBatchOperationsPopup()

void yaze::editor::PaletteGroupPanel::DrawBatchOperationsPopup ( )

protected

Draw batch operations popup.

Definition at line 375 of file palette_group_panel.cc.

References DiscardChanges(), ExportToClipboard(), ImportFromClipboard(), yaze::gui::SectionHeader(), and yaze::gui::ThemedButton().

Referenced by Draw().

GetMutablePalette()

gfx::SnesPalette * yaze::editor::PaletteGroupPanel::GetMutablePalette ( int index )

protected

Get mutable palette by index.

Definition at line 491 of file palette_group_panel.cc.

References GetPaletteGroup().

Referenced by DrawColorPicker(), yaze::editor::OverworldMainPalettePanel::DrawPaletteGrid(), yaze::editor::OverworldAnimatedPalettePanel::DrawPaletteGrid(), yaze::editor::DungeonMainPalettePanel::DrawPaletteGrid(), yaze::editor::SpritePalettePanel::DrawPaletteGrid(), yaze::editor::SpritesAux1PalettePanel::DrawPaletteGrid(), yaze::editor::SpritesAux2PalettePanel::DrawPaletteGrid(), yaze::editor::SpritesAux3PalettePanel::DrawPaletteGrid(), and yaze::editor::EquipmentPalettePanel::DrawPaletteGrid().

Here is the call graph for this function:

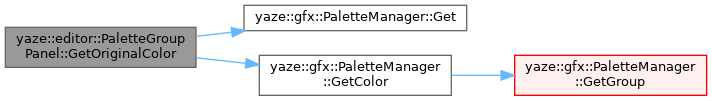

GetOriginalColor()

gfx::SnesColor yaze::editor::PaletteGroupPanel::GetOriginalColor ( int palette_index, int color_index ) const

protected

Get original color from ROM (for reset/comparison)

Definition at line 499 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), yaze::gfx::PaletteManager::GetColor(), and group_name_.

Referenced by DrawColorPicker().

Here is the call graph for this function:

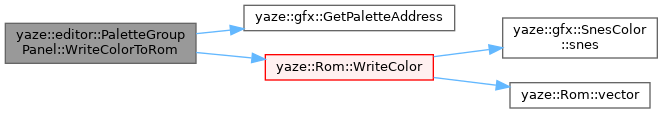

WriteColorToRom()

absl::Status yaze::editor::PaletteGroupPanel::WriteColorToRom ( int palette_index, int color_index, const gfx::SnesColor & color )

protected

Write a single color to ROM.

Definition at line 506 of file palette_group_panel.cc.

References yaze::gfx::GetPaletteAddress(), group_name_, rom_, and yaze::Rom::WriteColor().

Referenced by SetColor().

Here is the call graph for this function:

MarkModified()

void yaze::editor::PaletteGroupPanel::MarkModified ( int palette_index, int color_index )

protected

Mark palette as modified.

ClearModified()

void yaze::editor::PaletteGroupPanel::ClearModified ( int palette_index )

protected

Clear modified flags for palette.

Member Data Documentation

group_name_

std::string yaze::editor::PaletteGroupPanel::group_name_

protected

Definition at line 266 of file palette_group_panel.h.

Referenced by DiscardChanges(), DrawToolbar(), GetId(), GetOriginalColor(), HasUnsavedChanges(), IsColorModified(), IsPaletteModified(), ResetColor(), ResetPalette(), SaveToRom(), SetColor(), and WriteColorToRom().

display_name_

std::string yaze::editor::PaletteGroupPanel::display_name_

protected

Definition at line 267 of file palette_group_panel.h.

Referenced by GetDisplayName().

rom_

Rom* yaze::editor::PaletteGroupPanel::rom_

protected

Definition at line 268 of file palette_group_panel.h.

Referenced by Draw(), and WriteColorToRom().

game_data_

zelda3::GameData* yaze::editor::PaletteGroupPanel::game_data_ = nullptr

protected

Definition at line 269 of file palette_group_panel.h.

Referenced by yaze::editor::OverworldMainPalettePanel::GetPaletteGroup(), yaze::editor::OverworldAnimatedPalettePanel::GetPaletteGroup(), yaze::editor::DungeonMainPalettePanel::GetPaletteGroup(), yaze::editor::SpritePalettePanel::GetPaletteGroup(), yaze::editor::SpritesAux1PalettePanel::GetPaletteGroup(), yaze::editor::SpritesAux2PalettePanel::GetPaletteGroup(), yaze::editor::SpritesAux3PalettePanel::GetPaletteGroup(), yaze::editor::EquipmentPalettePanel::GetPaletteGroup(), yaze::editor::OverworldMainPalettePanel::GetPaletteGroup(), yaze::editor::OverworldAnimatedPalettePanel::GetPaletteGroup(), yaze::editor::DungeonMainPalettePanel::GetPaletteGroup(), yaze::editor::SpritePalettePanel::GetPaletteGroup(), yaze::editor::SpritesAux1PalettePanel::GetPaletteGroup(), yaze::editor::SpritesAux2PalettePanel::GetPaletteGroup(), yaze::editor::SpritesAux3PalettePanel::GetPaletteGroup(), yaze::editor::EquipmentPalettePanel::GetPaletteGroup(), and SetGameData().

show_

bool yaze::editor::PaletteGroupPanel::show_ = false

protected

Definition at line 270 of file palette_group_panel.h.

Referenced by Hide(), IsVisible(), Show(), and visibility_flag().

selected_palette_

int yaze::editor::PaletteGroupPanel::selected_palette_ = 0

protected

Definition at line 273 of file palette_group_panel.h.

Referenced by DrawColorPicker(), yaze::editor::SpritePalettePanel::DrawCustomPanels(), DrawMetadataInfo(), yaze::editor::OverworldMainPalettePanel::DrawPaletteGrid(), yaze::editor::OverworldAnimatedPalettePanel::DrawPaletteGrid(), yaze::editor::DungeonMainPalettePanel::DrawPaletteGrid(), yaze::editor::SpritePalettePanel::DrawPaletteGrid(), yaze::editor::SpritesAux1PalettePanel::DrawPaletteGrid(), yaze::editor::SpritesAux2PalettePanel::DrawPaletteGrid(), yaze::editor::SpritesAux3PalettePanel::DrawPaletteGrid(), yaze::editor::EquipmentPalettePanel::DrawPaletteGrid(), DrawPaletteSelector(), ExportToClipboard(), GetSelectedPaletteIndex(), and SetSelectedPaletteIndex().

selected_color_

int yaze::editor::PaletteGroupPanel::selected_color_ = -1

protected

Definition at line 274 of file palette_group_panel.h.

Referenced by DiscardChanges(), Draw(), DrawColorInfo(), DrawColorPicker(), yaze::editor::OverworldMainPalettePanel::DrawPaletteGrid(), yaze::editor::OverworldAnimatedPalettePanel::DrawPaletteGrid(), yaze::editor::DungeonMainPalettePanel::DrawPaletteGrid(), yaze::editor::SpritePalettePanel::DrawPaletteGrid(), yaze::editor::SpritesAux1PalettePanel::DrawPaletteGrid(), yaze::editor::SpritesAux2PalettePanel::DrawPaletteGrid(), yaze::editor::SpritesAux3PalettePanel::DrawPaletteGrid(), yaze::editor::EquipmentPalettePanel::DrawPaletteGrid(), DrawPaletteSelector(), GetSelectedColorIndex(), and SetSelectedColorIndex().

editing_color_

gfx::SnesColor yaze::editor::PaletteGroupPanel::editing_color_

protected

Definition at line 275 of file palette_group_panel.h.

Referenced by DrawColorInfo(), DrawColorPicker(), yaze::editor::OverworldMainPalettePanel::DrawPaletteGrid(), yaze::editor::OverworldAnimatedPalettePanel::DrawPaletteGrid(), yaze::editor::DungeonMainPalettePanel::DrawPaletteGrid(), yaze::editor::SpritePalettePanel::DrawPaletteGrid(), yaze::editor::SpritesAux1PalettePanel::DrawPaletteGrid(), yaze::editor::SpritesAux2PalettePanel::DrawPaletteGrid(), yaze::editor::SpritesAux3PalettePanel::DrawPaletteGrid(), and yaze::editor::EquipmentPalettePanel::DrawPaletteGrid().

auto_save_enabled_

bool yaze::editor::PaletteGroupPanel::auto_save_enabled_ = false

protected

Definition at line 278 of file palette_group_panel.h.

Referenced by SetColor().

show_snes_format_

bool yaze::editor::PaletteGroupPanel::show_snes_format_ = true

protected

Definition at line 279 of file palette_group_panel.h.

Referenced by DrawColorInfo().

show_hex_format_

bool yaze::editor::PaletteGroupPanel::show_hex_format_ = true

protected

Definition at line 280 of file palette_group_panel.h.

Referenced by DrawColorInfo().

---

The documentation for this class was generated from the following files:

• src/app/editor/palette/palette_group_panel.h
• src/app/editor/palette/palette_group_panel.cc
