Base class for visual analysis tools. More...

#include <visual_analysis_tool.h>

Inherits yaze::cli::resources::CommandHandler.

Inherited by yaze::cli::agent::tools::PaletteUsageTool, yaze::cli::agent::tools::SpritesheetAnalysisTool, yaze::cli::agent::tools::TileHistogramTool, and yaze::cli::agent::tools::TileSimilarityTool.

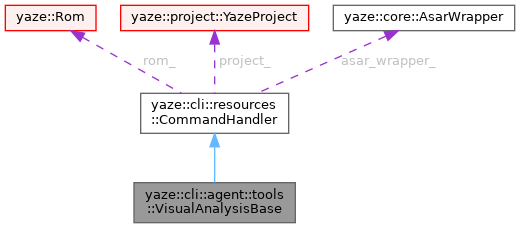

Collaboration diagram for yaze::cli::agent::tools::VisualAnalysisBase:

[legend]

Static Public Attributes
static constexpr int	kTileWidth = 8

static constexpr int	kTileHeight = 8

static constexpr int	kTilePixels = kTileWidth * kTileHeight

static constexpr int	kSheetWidth = 128

static constexpr int	kSheetHeight = 32

static constexpr int	kTilesPerRow = kSheetWidth / kTileWidth

static constexpr int	kMaxSheets = 223

Protected Member Functions
double	ComputePixelDifference (const std::vector< uint8_t > &tile_a, const std::vector< uint8_t > &tile_b) const
	Compute simple pixel difference (Mean Absolute Error)

double	ComputeStructuralSimilarity (const std::vector< uint8_t > &tile_a, const std::vector< uint8_t > &tile_b) const
	Compute structural similarity index (SSIM-like)

absl::StatusOr< std::vector< uint8_t > >	ExtractTile (Rom *rom, int sheet_index, int tile_index) const
	Extract 8x8 tile data from ROM graphics.

absl::StatusOr< std::vector< uint8_t > >	ExtractTileAtPosition (Rom *rom, int sheet_index, int x, int y) const
	Extract 8x8 tile at specific pixel coordinates.

bool	IsRegionEmpty (const std::vector< uint8_t > &data) const
	Check if a tile region is empty (all 0x00 or 0xFF)

int	GetTileCountForSheet (int sheet_index) const
	Get the number of tiles in a graphics sheet.

std::string	FormatMatchesAsJson (const std::vector< TileSimilarityMatch > &matches) const
	Format similarity matches as JSON.

std::string	FormatRegionsAsJson (const std::vector< UnusedRegion > &regions) const
	Format unused regions as JSON.

std::string	FormatPaletteUsageAsJson (const std::vector< PaletteUsageStats > &stats) const
	Format palette usage as JSON.

std::string	FormatHistogramAsJson (const std::vector< TileUsageEntry > &entries) const
	Format tile histogram as JSON.

Protected Member Functions inherited from yaze::cli::resources::CommandHandler
virtual absl::Status	ValidateArgs (const ArgumentParser &parser)=0
	Validate command arguments.

virtual absl::Status	Execute (Rom *rom, const ArgumentParser &parser, OutputFormatter &formatter)=0
	Execute the command business logic.

virtual std::string	GetDefaultFormat () const
	Get the default output format ("json" or "text")

virtual std::string	GetOutputTitle () const
	Get the output title for formatting.

Additional Inherited Members
Public Member Functions inherited from yaze::cli::resources::CommandHandler
virtual	~CommandHandler ()=default

absl::Status	Run (const std::vector< std::string > &args, Rom rom_context, std::string captured_output=nullptr)
	Execute the command.

virtual std::string	GetName () const =0
	Get the command name.

virtual Descriptor	Describe () const
	Provide metadata for TUI/help summaries.

virtual std::string	GetUsage () const =0
	Get the command usage string.

virtual bool	RequiresRom () const
	Check if the command requires a loaded ROM.

virtual bool	RequiresLabels () const
	Check if the command requires ROM labels.

virtual void	SetProjectContext (project::YazeProject *project)
	Set the YazeProject context. Default implementation does nothing, override if tool needs project info.

virtual void	SetAsarWrapper (core::AsarWrapper *asar_wrapper)
	Set the AsarWrapper context. Default implementation does nothing, override if tool needs Asar access.

virtual void	SetRomContext (Rom *rom)
	Set the ROM context for tools that need ROM access. Default implementation stores the ROM pointer for subclass use.

Protected Attributes inherited from yaze::cli::resources::CommandHandler
Rom *	rom_ = nullptr

project::YazeProject *	project_ = nullptr

core::AsarWrapper *	asar_wrapper_ = nullptr

Detailed Description

Base class for visual analysis tools.

Provides common functionality for tile and graphics analysis:

Pixel difference computation
Structural similarity metrics
Tile extraction from bitmaps
Empty region detection

Definition at line 81 of file visual_analysis_tool.h.

Member Function Documentation

◆ ComputePixelDifference()

double yaze::cli::agent::tools::VisualAnalysisBase::ComputePixelDifference	(	const std::vector< uint8_t > &	tile_a,
		const std::vector< uint8_t > &	tile_b ) const

protected

Compute simple pixel difference (Mean Absolute Error)

Parameters

tile_a	First tile data (64 bytes for 8x8)
tile_b	Second tile data (64 bytes for 8x8)

Returns: Similarity score 0.0-100.0 (100 = identical)

Definition at line 32 of file visual_analysis_tool.cc.

Referenced by yaze::cli::agent::tools::TileSimilarityTool::Execute().

◆ ComputeStructuralSimilarity()

double yaze::cli::agent::tools::VisualAnalysisBase::ComputeStructuralSimilarity	(	const std::vector< uint8_t > &	tile_a,
		const std::vector< uint8_t > &	tile_b ) const

protected

Compute structural similarity index (SSIM-like)

Parameters

tile_a	First tile data
tile_b	Second tile data

Returns: Similarity score 0.0-100.0 (100 = identical)

More robust than MAE for tiles with similar structure but different colors.

Definition at line 54 of file visual_analysis_tool.cc.

Referenced by yaze::cli::agent::tools::TileSimilarityTool::Execute().

◆ ExtractTile()

absl::StatusOr< std::vector< uint8_t > > yaze::cli::agent::tools::VisualAnalysisBase::ExtractTile	(	Rom *	rom,
		int	sheet_index,
		int	tile_index ) const

protected

Extract 8x8 tile data from ROM graphics.

Parameters

rom	ROM to extract from
sheet_index	Graphics sheet index (0-222)
tile_index	Tile index within sheet

Returns: Tile pixel data (64 bytes)

Definition at line 99 of file visual_analysis_tool.cc.

References ExtractTileAtPosition(), kMaxSheets, kSheetHeight, kSheetWidth, kTileHeight, kTilesPerRow, and kTileWidth.

Referenced by yaze::cli::agent::tools::TileSimilarityTool::Execute().

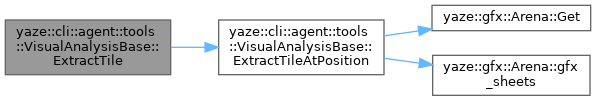

Here is the call graph for this function:

◆ ExtractTileAtPosition()

absl::StatusOr< std::vector< uint8_t > > yaze::cli::agent::tools::VisualAnalysisBase::ExtractTileAtPosition	(	Rom *	rom,
		int	sheet_index,
		int	x,
		int	y ) const

protected

Extract 8x8 tile at specific pixel coordinates.

Parameters

rom	ROM to extract from
sheet_index	Graphics sheet index
x	X coordinate in pixels
y	Y coordinate in pixels

Returns: Tile pixel data (64 bytes)

Definition at line 123 of file visual_analysis_tool.cc.

References yaze::gfx::Arena::Get(), yaze::gfx::Arena::gfx_sheets(), kSheetWidth, kTileHeight, kTilePixels, and kTileWidth.

Referenced by ExtractTile(), and yaze::cli::agent::tools::SpritesheetAnalysisTool::FindUnusedRegions().

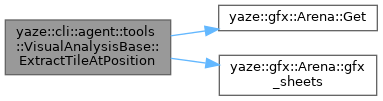

Here is the call graph for this function:

◆ IsRegionEmpty()

bool yaze::cli::agent::tools::VisualAnalysisBase::IsRegionEmpty ( const std::vector< uint8_t > & data ) const

protected

Check if a tile region is empty (all 0x00 or 0xFF)

Parameters

data	Tile data to check

Returns: true if the region appears unused

Definition at line 178 of file visual_analysis_tool.cc.

Referenced by yaze::cli::agent::tools::SpritesheetAnalysisTool::FindUnusedRegions().

◆ GetTileCountForSheet()

int yaze::cli::agent::tools::VisualAnalysisBase::GetTileCountForSheet ( int sheet_index ) const

protected

Get the number of tiles in a graphics sheet.

Parameters

sheet_index Graphics sheet index

Returns: Number of 8x8 tiles

Definition at line 207 of file visual_analysis_tool.cc.

References kSheetHeight, kSheetWidth, kTileHeight, and kTileWidth.

Referenced by yaze::cli::agent::tools::TileSimilarityTool::Execute().

◆ FormatMatchesAsJson()

std::string yaze::cli::agent::tools::VisualAnalysisBase::FormatMatchesAsJson ( const std::vector< TileSimilarityMatch > & matches ) const

protected

Format similarity matches as JSON.

Definition at line 212 of file visual_analysis_tool.cc.

Referenced by yaze::cli::agent::tools::TileSimilarityTool::Execute().

◆ FormatRegionsAsJson()

std::string yaze::cli::agent::tools::VisualAnalysisBase::FormatRegionsAsJson ( const std::vector< UnusedRegion > & regions ) const

protected

Format unused regions as JSON.

Definition at line 238 of file visual_analysis_tool.cc.

Referenced by yaze::cli::agent::tools::SpritesheetAnalysisTool::Execute().

◆ FormatPaletteUsageAsJson()

std::string yaze::cli::agent::tools::VisualAnalysisBase::FormatPaletteUsageAsJson ( const std::vector< PaletteUsageStats > & stats ) const

protected

Format palette usage as JSON.

Definition at line 270 of file visual_analysis_tool.cc.

Referenced by yaze::cli::agent::tools::PaletteUsageTool::Execute().

◆ FormatHistogramAsJson()

std::string yaze::cli::agent::tools::VisualAnalysisBase::FormatHistogramAsJson ( const std::vector< TileUsageEntry > & entries ) const

protected

Format tile histogram as JSON.

Definition at line 299 of file visual_analysis_tool.cc.

Referenced by yaze::cli::agent::tools::TileHistogramTool::Execute().

Member Data Documentation

◆ kTileWidth

constexpr int yaze::cli::agent::tools::VisualAnalysisBase::kTileWidth = 8

staticconstexpr

Definition at line 84 of file visual_analysis_tool.h.

Referenced by yaze::cli::agent::tools::TileSimilarityTool::Execute(), ExtractTile(), ExtractTileAtPosition(), and GetTileCountForSheet().

◆ kTileHeight

constexpr int yaze::cli::agent::tools::VisualAnalysisBase::kTileHeight = 8

staticconstexpr

Definition at line 85 of file visual_analysis_tool.h.

Referenced by yaze::cli::agent::tools::TileSimilarityTool::Execute(), ExtractTile(), ExtractTileAtPosition(), and GetTileCountForSheet().

◆ kTilePixels

constexpr int yaze::cli::agent::tools::VisualAnalysisBase::kTilePixels = kTileWidth * kTileHeight

staticconstexpr

Definition at line 86 of file visual_analysis_tool.h.

Referenced by ExtractTileAtPosition().

◆ kSheetWidth

constexpr int yaze::cli::agent::tools::VisualAnalysisBase::kSheetWidth = 128

staticconstexpr

Definition at line 87 of file visual_analysis_tool.h.

Referenced by ExtractTile(), ExtractTileAtPosition(), yaze::cli::agent::tools::SpritesheetAnalysisTool::FindUnusedRegions(), and GetTileCountForSheet().

◆ kSheetHeight

constexpr int yaze::cli::agent::tools::VisualAnalysisBase::kSheetHeight = 32

staticconstexpr

Definition at line 88 of file visual_analysis_tool.h.

Referenced by ExtractTile(), yaze::cli::agent::tools::SpritesheetAnalysisTool::FindUnusedRegions(), and GetTileCountForSheet().

◆ kTilesPerRow

constexpr int yaze::cli::agent::tools::VisualAnalysisBase::kTilesPerRow = kSheetWidth / kTileWidth

staticconstexpr

Definition at line 89 of file visual_analysis_tool.h.

Referenced by yaze::cli::agent::tools::TileSimilarityTool::Execute(), and ExtractTile().

◆ kMaxSheets

constexpr int yaze::cli::agent::tools::VisualAnalysisBase::kMaxSheets = 223

staticconstexpr

Definition at line 90 of file visual_analysis_tool.h.

Referenced by yaze::cli::agent::tools::TileSimilarityTool::Execute(), yaze::cli::agent::tools::SpritesheetAnalysisTool::Execute(), and ExtractTile().

The documentation for this class was generated from the following files:

src/cli/service/agent/tools/visual_analysis_tool.h
src/cli/service/agent/tools/visual_analysis_tool.cc
