Public Member Functions | Private Member Functions | Private Attributes | List of all members
yaze::editor::PaletteEditor Class Reference

Allows the user to view and edit in game palettes. More...

#include <palette_editor.h>

Inheritance diagram for yaze::editor::PaletteEditor:
Inheritance graph
[legend]

Public Member Functions

 PaletteEditor (Rom *rom=nullptr)

void Initialize () override

absl::Status Load () override

absl::Status Update () override

absl::Status Cut () override

absl::Status Copy () override

absl::Status Paste () override

absl::Status Undo () override

absl::Status Redo () override

absl::Status Find () override

absl::Status Save () override

void DrawQuickAccessTab ()

void DrawCustomPalette ()

absl::Status DrawPaletteGroup (int category, bool right_side=false)

absl::Status EditColorInPalette (gfx::SnesPalette &palette, int index)

absl::Status ResetColorToOriginal (gfx::SnesPalette &palette, int index, const gfx::SnesPalette &originalPalette)

void AddRecentlyUsedColor (const gfx::SnesColor &color)

void set_rom (Rom *rom)

Rom * rom () const

- Public Member Functions inherited from yaze::editor::Editor
 Editor ()=default

virtual ~Editor ()=default

virtual absl::Status Clear ()

EditorType type () const

void set_context (EditorContext *context)

bool * active ()

void set_active (bool active)


Private Member Functions

absl::Status HandleColorPopup (gfx::SnesPalette &palette, int i, int j, int n)


Private Attributes

absl::Status status_

gfx::SnesColor current_color_

GfxGroupEditor gfx_group_editor_

std::vector< gfx::SnesColor > custom_palette_

std::vector< gfx::SnesColor > recently_used_colors_

int edit_palette_index_ = -1

ImVec4 saved_palette_ [256] = {}

palette_internal::PaletteEditorHistory history_

Rom * rom_


Additional Inherited Members

- Protected Attributes inherited from yaze::editor::Editor
bool active_ = false

EditorType type_

EditorContext * context_ = nullptr


Detailed Description

Allows the user to view and edit in game palettes.

Definition at line 80 of file palette_editor.h.

Constructor & Destructor Documentation

◆ PaletteEditor()

yaze::editor::PaletteEditor::PaletteEditor ( Rom * rom = nullptr)
inlineexplicit

Definition at line 82 of file palette_editor.h.

References custom_palette_, yaze::editor::kPalette, rom(), rom_, and yaze::editor::Editor::type_.

Here is the call graph for this function:

Member Function Documentation

◆ Initialize()

void yaze::editor::PaletteEditor::Initialize ( )
overridevirtual

Implements yaze::editor::Editor.

Definition at line 171 of file palette_editor.cc.

◆ Load()

absl::Status yaze::editor::PaletteEditor::Load ( )
overridevirtual

Implements yaze::editor::Editor.

Definition at line 173 of file palette_editor.cc.

References yaze::ResourceLabelManager::CreateOrGetLabel(), yaze::gfx::kNumPalettes, yaze::Rom::resource_label(), and rom().

Here is the call graph for this function:

◆ Update()

absl::Status yaze::editor::PaletteEditor::Update ( )
overridevirtual

Implements yaze::editor::Editor.

Definition at line 187 of file palette_editor.cc.

References DrawPaletteGroup(), DrawQuickAccessTab(), yaze::gfx::kNumPalettes, yaze::editor::kPaletteTableFlags, rom(), and status_.

Here is the call graph for this function:

◆ Cut()

absl::Status yaze::editor::PaletteEditor::Cut ( )
inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 90 of file palette_editor.h.

◆ Copy()

absl::Status yaze::editor::PaletteEditor::Copy ( )
inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 91 of file palette_editor.h.

◆ Paste()

absl::Status yaze::editor::PaletteEditor::Paste ( )
inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 92 of file palette_editor.h.

◆ Undo()

absl::Status yaze::editor::PaletteEditor::Undo ( )
inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 93 of file palette_editor.h.

◆ Redo()

absl::Status yaze::editor::PaletteEditor::Redo ( )
inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 94 of file palette_editor.h.

◆ Find()

absl::Status yaze::editor::PaletteEditor::Find ( )
inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 95 of file palette_editor.h.

◆ Save()

absl::Status yaze::editor::PaletteEditor::Save ( )
inlineoverridevirtual

Implements yaze::editor::Editor.

Definition at line 96 of file palette_editor.h.

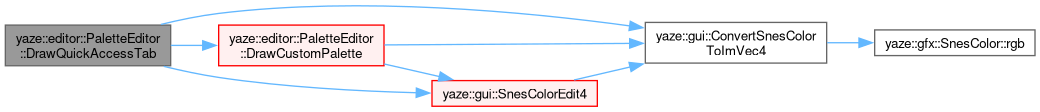

◆ DrawQuickAccessTab()

void yaze::editor::PaletteEditor::DrawQuickAccessTab ( )

Definition at line 233 of file palette_editor.cc.

References yaze::gui::ConvertSnesColorToImVec4(), current_color_, DrawCustomPalette(), F32_TO_INT8_SAT, yaze::editor::kColorPopupFlags, recently_used_colors_, and yaze::gui::SnesColorEdit4().

Referenced by Update().

Here is the call graph for this function:

◆ DrawCustomPalette()

void yaze::editor::PaletteEditor::DrawCustomPalette ( )

Definition at line 284 of file palette_editor.cc.

References AddRecentlyUsedColor(), yaze::gui::ConvertSnesColorToImVec4(), current_color_, custom_palette_, edit_palette_index_, yaze::editor::kColorPopupFlags, and yaze::gui::SnesColorEdit4().

Referenced by DrawQuickAccessTab().

Here is the call graph for this function:

◆ DrawPaletteGroup()

absl::Status yaze::editor::PaletteEditor::DrawPaletteGroup ( int category,
bool right_side = false )

Definition at line 369 of file palette_editor.cc.

References AddRecentlyUsedColor(), yaze::gui::ConvertSnesColorToImVec4(), current_color_, HandleColorPopup(), yaze::gfx::PaletteGroup::mutable_palette(), yaze::Rom::mutable_palette_group(), yaze::Rom::resource_label(), RETURN_IF_ERROR, rom(), yaze::ResourceLabelManager::SelectableLabelWithNameEdit(), yaze::gfx::PaletteGroup::size(), and yaze::gfx::SnesPalette::size().

Referenced by Update().

◆ EditColorInPalette()

absl::Status yaze::editor::PaletteEditor::EditColorInPalette ( gfx::SnesPalette & palette,
int index )

Definition at line 495 of file palette_editor.cc.

References AddRecentlyUsedColor(), yaze::gui::ConvertImVec4ToSnesColor(), and yaze::gfx::SnesPalette::size().

Here is the call graph for this function:

◆ ResetColorToOriginal()

absl::Status yaze::editor::PaletteEditor::ResetColorToOriginal ( gfx::SnesPalette & palette,
int index,
const gfx::SnesPalette & originalPalette )

Definition at line 514 of file palette_editor.cc.

References yaze::gui::ConvertImVec4ToSnesColor(), and yaze::gfx::SnesPalette::size().

Here is the call graph for this function:

◆ AddRecentlyUsedColor()

void yaze::editor::PaletteEditor::AddRecentlyUsedColor ( const gfx::SnesColor & color)

Definition at line 420 of file palette_editor.cc.

References recently_used_colors_.

Referenced by DrawCustomPalette(), DrawPaletteGroup(), EditColorInPalette(), and HandleColorPopup().

◆ set_rom()

void yaze::editor::PaletteEditor::set_rom ( Rom * rom)
inline

Definition at line 108 of file palette_editor.h.

References rom(), and rom_.

Here is the call graph for this function:

◆ rom()

Rom * yaze::editor::PaletteEditor::rom ( ) const
inline

Definition at line 109 of file palette_editor.h.

References rom_.

Referenced by DrawPaletteGroup(), Load(), PaletteEditor(), set_rom(), and Update().

◆ HandleColorPopup()

absl::Status yaze::editor::PaletteEditor::HandleColorPopup ( gfx::SnesPalette & palette,
int i,
int j,
int n )
private

Definition at line 440 of file palette_editor.cc.

References AddRecentlyUsedColor(), yaze::gfx::ConvertRgbToSnes(), custom_palette_, F32_TO_INT8_SAT, history_, yaze::editor::kColorPopupFlags, yaze::gui::SnesColorEdit4(), and yaze::gfx::ToFloatArray().

Referenced by DrawPaletteGroup().

Here is the call graph for this function:

Member Data Documentation

◆ status_

absl::Status yaze::editor::PaletteEditor::status_
private

Definition at line 114 of file palette_editor.h.

Referenced by Update().

◆ current_color_

gfx::SnesColor yaze::editor::PaletteEditor::current_color_
private

Definition at line 115 of file palette_editor.h.

Referenced by DrawCustomPalette(), DrawPaletteGroup(), and DrawQuickAccessTab().

◆ gfx_group_editor_

GfxGroupEditor yaze::editor::PaletteEditor::gfx_group_editor_
private

Definition at line 117 of file palette_editor.h.

◆ custom_palette_

std::vector<gfx::SnesColor> yaze::editor::PaletteEditor::custom_palette_
private

Definition at line 119 of file palette_editor.h.

Referenced by DrawCustomPalette(), HandleColorPopup(), and PaletteEditor().

◆ recently_used_colors_

std::vector<gfx::SnesColor> yaze::editor::PaletteEditor::recently_used_colors_
private

Definition at line 120 of file palette_editor.h.

Referenced by AddRecentlyUsedColor(), and DrawQuickAccessTab().

◆ edit_palette_index_

int yaze::editor::PaletteEditor::edit_palette_index_ = -1
private

Definition at line 122 of file palette_editor.h.

Referenced by DrawCustomPalette().

◆ saved_palette_

ImVec4 yaze::editor::PaletteEditor::saved_palette_[256] = {}
private

Definition at line 124 of file palette_editor.h.

◆ history_

palette_internal::PaletteEditorHistory yaze::editor::PaletteEditor::history_
private

Definition at line 126 of file palette_editor.h.

Referenced by HandleColorPopup().

◆ rom_

Rom* yaze::editor::PaletteEditor::rom_
private

Definition at line 128 of file palette_editor.h.

Referenced by PaletteEditor(), rom(), and set_rom().

The documentation for this class was generated from the following files:
