yaze::gui Namespace Reference

Graphical User Interface (GUI) components for the application. More...

Namespaces

namespace  anonymous_namespace{canvas.cc}

namespace  anonymous_namespace{style.cc}

namespace  zeml
 Zelda Editor Markup Language Functions.


Classes

struct  AssetObject

class  Bitmap
 Represents a bitmap image. More...

struct  Button

class  Canvas
 Represents a canvas for drawing and manipulating graphics. More...

struct  Color

struct  DungeonAsset

struct  ExampleSelectionWithDeletion

struct  GfxSheetAssetBrowser

struct  Layout

struct  MenuItem

class  MultiSelect

struct  OverworldAsset

class  Renderer
 The Renderer class represents the renderer for the Yaze application. More...

struct  SpriteAsset

struct  Table

struct  Text

struct  TextBox

struct  Theme

struct  UnsortedAsset


Typedefs

using ItemLabelFlags

using GuiElement = std::variant<std::function<void()>, std::string>

using Menu = std::vector<MenuItem>

using BitmapTable


Enumerations

enum class  CanvasType { kTile , kBlock , kMap }

enum class  CanvasMode { kPaint , kSelect }

enum class  CanvasGridSize { k8x8 , k16x16 , k32x32 , k64x64 }


Functions

void BeginCanvas (Canvas &canvas, ImVec2 child_size)

void EndCanvas (Canvas &canvas)

void GraphicsBinCanvasPipeline (int width, int height, int tile_size, int num_sheets_to_load, int canvas_id, bool is_loaded, gfx::BitmapTable &graphics_bin)

void BitmapCanvasPipeline (gui::Canvas &canvas, gfx::Bitmap &bitmap, int width, int height, int tile_size, bool is_loaded, bool scrollbar, int canvas_id)

ImVec4 ConvertSnesColorToImVec4 (const gfx::SnesColor &color)

gfx::SnesColor ConvertImVec4ToSnesColor (const ImVec4 &color)

IMGUI_API bool SnesColorButton (absl::string_view id, gfx::SnesColor &color, ImGuiColorEditFlags flags, const ImVec2 &size_arg)

IMGUI_API bool SnesColorEdit4 (absl::string_view label, gfx::SnesColor *color, ImGuiColorEditFlags flags)

IMGUI_API bool DisplayPalette (gfx::SnesPalette &palette, bool loaded)

void SelectablePalettePipeline (uint64_t &palette_id, bool &refresh_graphics, gfx::SnesPalette &palette)

absl::Status DisplayEditablePalette (gfx::SnesPalette &palette, const std::string &title, bool show_color_picker, int colors_per_row, ImGuiColorEditFlags flags)

ImVec4 ConvertColorToImVec4 (const Color &color)

std::string ColorToHexString (const Color &color)

bool InputHex (const char *label, uint64_t *data)

bool InputHex (const char *label, int *data, int num_digits, float input_width)

bool InputHexShort (const char *label, uint32_t *data)

bool InputHexWord (const char *label, uint16_t *data, float input_width, bool no_step)

bool InputHexWord (const char *label, int16_t *data, float input_width, bool no_step)

bool InputHexByte (const char *label, uint8_t *data, float input_width, bool no_step)

bool InputHexByte (const char *label, uint8_t *data, uint8_t max_value, float input_width, bool no_step)

void Paragraph (const std::string &text)

bool ClickableText (const std::string &text)

void ItemLabel (absl::string_view title, ItemLabelFlags flags)

bool ListBox (const char *label, int *current_item, const std::vector< std::string > &items, int height_in_items)

bool InputTileInfo (const char *label, gfx::TileInfo *tile_info)

ImGuiID GetID (const std::string &id)

ImGuiKey MapKeyToImGuiKey (char key)

void AddTableColumn (Table &table, const std::string &label, GuiElement element)

void DrawTable (Table &params)

void DrawMenu (Menu &menu)

bool OpenUrl (const std::string &url)

void RenderLayout (const Layout &layout)

void MemoryEditorPopup (const std::string &label, std::span< uint8_t > memory)

absl::StatusOr< ThemeLoadTheme (const std::string &filename)

absl::Status SaveTheme (const Theme &theme)

void ApplyTheme (const Theme &theme)

void ColorsYaze ()

void DrawBitmapViewer (const std::vector< gfx::Bitmap > &bitmaps, float scale, int &current_bitmap_id)

TextEditor::LanguageDefinition GetAssemblyLanguageDef ()

void BeginWindowWithDisplaySettings (const char *id, bool *active, const ImVec2 &size, ImGuiWindowFlags flags)

void EndWindowWithDisplaySettings ()

void BeginPadding (int i)

void EndPadding ()

void BeginNoPadding ()

void EndNoPadding ()

void BeginChildWithScrollbar (const char *str_id)

void BeginChildBothScrollbars (int id)

void DrawDisplaySettings (ImGuiStyle *ref)

void TextWithSeparators (const absl::string_view &text)

void DrawFontManager ()


Variables

constexpr uint32_t kBlackColor = IM_COL32(0, 0, 0, 255)

constexpr uint32_t kRectangleColor = IM_COL32(32, 32, 32, 255)

constexpr uint32_t kWhiteColor = IM_COL32(255, 255, 255, 255)

constexpr uint32_t kOutlineRect = IM_COL32(255, 255, 255, 200)

constexpr ImGuiButtonFlags kMouseFlags

const int kStepOneHex = 0x01

const int kStepFastHex = 0x0F

constexpr ImVec2 kDefaultModalSize = ImVec2(200, 0)

constexpr ImVec2 kZeroPos = ImVec2(0, 0)

constexpr std::string kSeparator = "-"


Detailed Description

Graphical User Interface (GUI) components for the application.

Typedef Documentation

◆ ItemLabelFlags

Initial value:
enum ItemLabelFlag {
Left = 1u << 0u,
Right = 1u << 1u,
Default = Left,
}

Definition at line 49 of file input.h.

◆ GuiElement

using yaze::gui::GuiElement = std::variant<std::function<void()>, std::string>

Definition at line 61 of file input.h.

◆ Menu

using yaze::gui::Menu = std::vector<MenuItem>

Definition at line 85 of file input.h.

◆ BitmapTable

Definition at line 199 of file bitmap.h.

Enumeration Type Documentation

◆ CanvasType

enum class yaze::gui::CanvasType
strong
Enumerator
kTile
kBlock
kMap

Definition at line 25 of file canvas.h.

◆ CanvasMode

enum class yaze::gui::CanvasMode
strong
Enumerator
kPaint
kSelect

Definition at line 26 of file canvas.h.

◆ CanvasGridSize

enum class yaze::gui::CanvasGridSize
strong
Enumerator
k8x8
k16x16
k32x32
k64x64

Definition at line 27 of file canvas.h.

Function Documentation

◆ BeginCanvas()

void yaze::gui::BeginCanvas ( Canvas & canvas,
ImVec2 child_size )

◆ EndCanvas()

void yaze::gui::EndCanvas ( Canvas & canvas)

Definition at line 872 of file canvas.cc.

References yaze::gui::Canvas::DrawGrid(), and yaze::gui::Canvas::DrawOverlay().

Referenced by yaze::editor::MessageEditor::DrawFontAtlas().

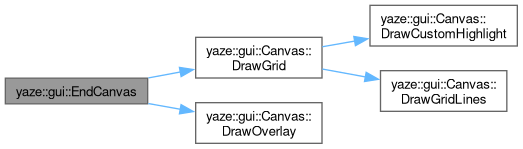

Here is the call graph for this function:

◆ GraphicsBinCanvasPipeline()

void yaze::gui::GraphicsBinCanvasPipeline ( int width,
int height,
int tile_size,
int num_sheets_to_load,
int canvas_id,
bool is_loaded,
gfx::BitmapTable & graphics_bin )

◆ BitmapCanvasPipeline()

◆ ConvertSnesColorToImVec4()

ImVec4 yaze::gui::ConvertSnesColorToImVec4 ( const gfx::SnesColor & color)

◆ ConvertImVec4ToSnesColor()

gfx::SnesColor yaze::gui::ConvertImVec4ToSnesColor ( const ImVec4 & color)

◆ SnesColorButton()

IMGUI_API bool yaze::gui::SnesColorButton ( absl::string_view id,
gfx::SnesColor & color,
ImGuiColorEditFlags flags,
const ImVec2 & size_arg )

◆ SnesColorEdit4()

IMGUI_API bool yaze::gui::SnesColorEdit4 ( absl::string_view label,
gfx::SnesColor * color,
ImGuiColorEditFlags flags )

◆ DisplayPalette()

IMGUI_API bool yaze::gui::DisplayPalette ( gfx::SnesPalette & palette,
bool loaded )

Definition at line 54 of file color.cc.

References yaze::gfx::SnesPalette::size().

Referenced by yaze::editor::MessageEditor::DrawCurrentMessage(), and yaze::editor::ScreenEditor::DrawInventoryMenuEditor().

Here is the call graph for this function:

◆ SelectablePalettePipeline()

void yaze::gui::SelectablePalettePipeline ( uint64_t & palette_id,
bool & refresh_graphics,
gfx::SnesPalette & palette )

◆ DisplayEditablePalette()

IMGUI_API absl::Status yaze::gui::DisplayEditablePalette ( gfx::SnesPalette & palette,
const std::string & title,
bool show_color_picker,
int colors_per_row,
ImGuiColorEditFlags flags )

◆ ConvertColorToImVec4()

ImVec4 yaze::gui::ConvertColorToImVec4 ( const Color & color)
inline

◆ ColorToHexString()

std::string yaze::gui::ColorToHexString ( const Color & color)
inline

◆ InputHex() [1/2]

◆ InputHex() [2/2]

IMGUI_API bool yaze::gui::InputHex ( const char * label,
int * data,
int num_digits,
float input_width )

Definition at line 149 of file input.cc.

References ImGui::InputScalarLeft(), kStepFastHex, and kStepOneHex.

Here is the call graph for this function:

◆ InputHexShort()

IMGUI_API bool yaze::gui::InputHexShort ( const char * label,
uint32_t * data )

Definition at line 156 of file input.cc.

References kStepFastHex, and kStepOneHex.

◆ InputHexWord() [1/2]

◆ InputHexWord() [2/2]

IMGUI_API bool yaze::gui::InputHexWord ( const char * label,
int16_t * data,
float input_width,
bool no_step )

Definition at line 169 of file input.cc.

References ImGui::InputScalarLeft(), kStepFastHex, and kStepOneHex.

Here is the call graph for this function:

◆ InputHexByte() [1/2]

◆ InputHexByte() [2/2]

IMGUI_API bool yaze::gui::InputHexByte ( const char * label,
uint8_t * data,
uint8_t max_value,
float input_width,
bool no_step )

Definition at line 183 of file input.cc.

References ImGui::InputScalarLeft(), kStepFastHex, and kStepOneHex.

Here is the call graph for this function:

◆ Paragraph()

IMGUI_API void yaze::gui::Paragraph ( const std::string & text)

Definition at line 196 of file input.cc.

◆ ClickableText()

IMGUI_API bool yaze::gui::ClickableText ( const std::string & text)
Todo
Setup themes and text/clickable colors

Definition at line 201 of file input.cc.

Referenced by yaze::editor::EditorManager::DrawHomepage().

◆ ItemLabel()

IMGUI_API void yaze::gui::ItemLabel ( absl::string_view title,
ItemLabelFlags flags )

Definition at line 237 of file input.cc.

Referenced by yaze::editor::MusicEditor::DrawToolset().

◆ ListBox()

IMGUI_API bool yaze::gui::ListBox ( const char * label,
int * current_item,
const std::vector< std::string > & items,
int height_in_items )

Definition at line 280 of file input.cc.

◆ InputTileInfo()

bool yaze::gui::InputTileInfo ( const char * label,
gfx::TileInfo * tile_info )

◆ GetID()

IMGUI_API ImGuiID yaze::gui::GetID ( const std::string & id)

◆ MapKeyToImGuiKey()

ImGuiKey yaze::gui::MapKeyToImGuiKey ( char key)

Definition at line 308 of file input.cc.

Referenced by yaze::editor::ParseShortcut().

◆ AddTableColumn()

void yaze::gui::AddTableColumn ( Table & table,
const std::string & label,
GuiElement element )

◆ DrawTable()

◆ DrawMenu()

void yaze::gui::DrawMenu ( Menu & menu)

Definition at line 398 of file input.cc.

References kSeparator.

Referenced by yaze::editor::EditorManager::DrawMenuBar().

◆ OpenUrl()

IMGUI_API bool yaze::gui::OpenUrl ( const std::string & url)

Definition at line 427 of file input.cc.

Referenced by yaze::editor::EditorManager::DrawHomepage().

◆ RenderLayout()

void yaze::gui::RenderLayout ( const Layout & layout)

Definition at line 432 of file input.cc.

References yaze::gui::Layout::elements.

◆ MemoryEditorPopup()

void yaze::gui::MemoryEditorPopup ( const std::string & label,
std::span< uint8_t > memory )

Definition at line 446 of file input.cc.

Referenced by yaze::editor::MessageEditor::DrawCurrentMessage().

◆ LoadTheme()

absl::StatusOr< Theme > yaze::gui::LoadTheme ( const std::string & filename)

Definition at line 48 of file style.cc.

References yaze::core::LoadFile(), and RETURN_IF_ERROR.

Here is the call graph for this function:

◆ SaveTheme()

◆ ApplyTheme()

◆ ColorsYaze()

void yaze::gui::ColorsYaze ( )

◆ DrawBitmapViewer()

void yaze::gui::DrawBitmapViewer ( const std::vector< gfx::Bitmap > & bitmaps,
float scale,
int & current_bitmap_id )

Definition at line 231 of file style.cc.

References yaze::gfx::Bitmap::height(), yaze::gfx::Bitmap::texture(), and yaze::gfx::Bitmap::width().

Here is the call graph for this function:

◆ GetAssemblyLanguageDef()

◆ BeginWindowWithDisplaySettings()

void yaze::gui::BeginWindowWithDisplaySettings ( const char * id,
bool * active,
const ImVec2 & size,
ImGuiWindowFlags flags )
Todo
Add more display settings to popup windows.

Definition at line 347 of file style.cc.

Referenced by yaze::editor::OverworldEditor::DrawOverworldProperties(), and yaze::editor::OverworldEditor::DrawToolset().

◆ EndWindowWithDisplaySettings()

void yaze::gui::EndWindowWithDisplaySettings ( )

◆ BeginPadding()

◆ EndPadding()

void yaze::gui::EndPadding ( )

◆ BeginNoPadding()

void yaze::gui::BeginNoPadding ( )

◆ EndNoPadding()

◆ BeginChildWithScrollbar()

◆ BeginChildBothScrollbars()

void yaze::gui::BeginChildBothScrollbars ( int id)

Definition at line 389 of file style.cc.

Referenced by yaze::editor::OverworldEditor::DrawOverworldCanvas().

◆ DrawDisplaySettings()

void yaze::gui::DrawDisplaySettings ( ImGuiStyle * ref)

Definition at line 396 of file style.cc.

Referenced by yaze::editor::EditorManager::DrawMenuBar().

◆ TextWithSeparators()

◆ DrawFontManager()

void yaze::gui::DrawFontManager ( )

Definition at line 759 of file style.cc.

Referenced by yaze::editor::SettingsEditor::Update().

Variable Documentation

◆ kBlackColor

uint32_t yaze::gui::kBlackColor = IM_COL32(0, 0, 0, 255)
constexpr

Definition at line 36 of file canvas.cc.

Referenced by yaze::gui::Canvas::DrawRect(), and yaze::gui::Canvas::DrawText().

◆ kRectangleColor

uint32_t yaze::gui::kRectangleColor = IM_COL32(32, 32, 32, 255)
constexpr

Definition at line 37 of file canvas.cc.

Referenced by yaze::gui::Canvas::DrawBackground().

◆ kWhiteColor

◆ kOutlineRect

uint32_t yaze::gui::kOutlineRect = IM_COL32(255, 255, 255, 200)
constexpr

Definition at line 39 of file canvas.cc.

Referenced by yaze::gui::Canvas::DrawOutline().

◆ kMouseFlags

ImGuiButtonFlags yaze::gui::kMouseFlags
constexpr
Initial value:
=
ImGuiButtonFlags_MouseButtonLeft | ImGuiButtonFlags_MouseButtonRight

Definition at line 41 of file canvas.cc.

Referenced by yaze::gui::Canvas::DrawBackground().

◆ kStepOneHex

const int yaze::gui::kStepOneHex = 0x01

◆ kStepFastHex

const int yaze::gui::kStepFastHex = 0x0F

◆ kDefaultModalSize

◆ kZeroPos

ImVec2 yaze::gui::kZeroPos = ImVec2(0, 0)
constexpr

◆ kSeparator

std::string yaze::gui::kSeparator = "-"
constexpr

Definition at line 91 of file input.h.

Referenced by DrawMenu(), and yaze::editor::EditorManager::Initialize().
