Generates ASM patches for table-based diggable tile lookup. More...

#include <diggable_tiles_patch.h>

Static Public Member Functions
static std::string	GeneratePatch (const DiggableTiles &diggable_tiles, const DiggableTilesPatchConfig &config={})
	Generate ASM patch code for the diggable tiles table.

static absl::Status	ExportPatchFile (const DiggableTiles &diggable_tiles, const std::string &output_path, const DiggableTilesPatchConfig &config={})
	Export ASM patch to a file.

static bool	DetectZSDiggingHooks (const Rom &rom)
	Detect if ROM has ZSCustomOverworld modifications to digging code.

static DiggableTilesPatchConfig	GetRecommendedConfig (const Rom &rom)
	Get recommended patch configuration based on ROM analysis.

Static Private Member Functions
static std::string	GenerateVanillaRoutine (const DiggableTiles &diggable_tiles, const DiggableTilesPatchConfig &config)
	Generate the vanilla-mode lookup routine ASM.

static std::string	GenerateZSCompatibleRoutine (const DiggableTiles &diggable_tiles, const DiggableTilesPatchConfig &config)
	Generate the ZS-compatible lookup routine ASM.

static std::string	GenerateDataTable (const DiggableTiles &diggable_tiles, uint32_t table_address)
	Generate the data table section of the patch.

Detailed Description

Generates ASM patches for table-based diggable tile lookup.

Replaces the vanilla hardcoded CMP chain at $1BBDF4 with a bitfield table lookup, allowing dynamic configuration of which Map16 tiles are diggable.

Definition at line 41 of file diggable_tiles_patch.h.

Member Function Documentation

◆ GeneratePatch()

std::string yaze::zelda3::DiggableTilesPatch::GeneratePatch	(	const DiggableTiles &	diggable_tiles,
		const DiggableTilesPatchConfig &	config = {} )

static

Generate ASM patch code for the diggable tiles table.

Parameters

diggable_tiles	The diggable tiles bitfield data
config	Patch configuration (addresses, mode, etc.)

Returns: ASM patch code as a string

Definition at line 28 of file diggable_tiles_patch.cc.

References GenerateVanillaRoutine(), GenerateZSCompatibleRoutine(), and yaze::zelda3::DiggableTilesPatchConfig::use_zs_compatible_mode.

Referenced by yaze::editor::DrawDiggableTilesEditorPopup(), and ExportPatchFile().

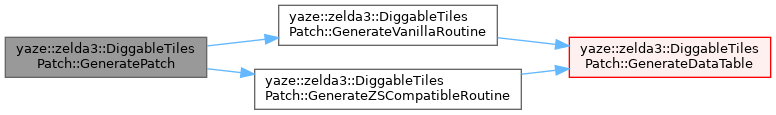

Here is the call graph for this function:

◆ ExportPatchFile()

absl::Status yaze::zelda3::DiggableTilesPatch::ExportPatchFile	(	const DiggableTiles &	diggable_tiles,
		const std::string &	output_path,
		const DiggableTilesPatchConfig &	config = {} )

static

Export ASM patch to a file.

Parameters

diggable_tiles	The diggable tiles bitfield data
output_path	Path to write the .asm file
config	Patch configuration

Returns: Status of the file write operation

Definition at line 218 of file diggable_tiles_patch.cc.

References GeneratePatch().

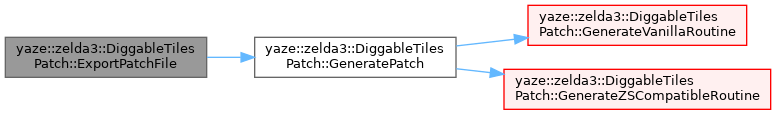

Here is the call graph for this function:

◆ DetectZSDiggingHooks()

bool yaze::zelda3::DiggableTilesPatch::DetectZSDiggingHooks ( const Rom & rom )

static

Detect if ROM has ZSCustomOverworld modifications to digging code.

Checks if the bytes at the hook address differ from vanilla expectations.

Parameters

rom	The ROM to check

Returns: true if ZS modifications are detected

Definition at line 241 of file diggable_tiles_patch.cc.

References yaze::Rom::data(), yaze::Rom::is_loaded(), and yaze::Rom::size().

Referenced by GetRecommendedConfig().

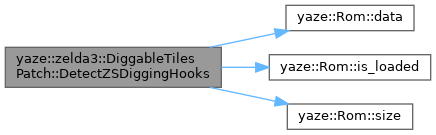

Here is the call graph for this function:

◆ GetRecommendedConfig()

DiggableTilesPatchConfig yaze::zelda3::DiggableTilesPatch::GetRecommendedConfig ( const Rom & rom )

static

Get recommended patch configuration based on ROM analysis.

Analyzes the ROM to determine if ZS modifications are present and returns an appropriate configuration.

Parameters

rom	The ROM to analyze

Returns: Recommended patch configuration

Definition at line 271 of file diggable_tiles_patch.cc.

References DetectZSDiggingHooks(), yaze::zelda3::DiggableTilesPatchConfig::freespace_address, and yaze::zelda3::DiggableTilesPatchConfig::use_zs_compatible_mode.

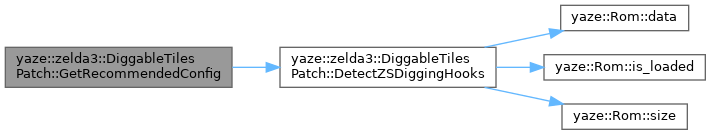

Here is the call graph for this function:

◆ GenerateVanillaRoutine()

std::string yaze::zelda3::DiggableTilesPatch::GenerateVanillaRoutine	(	const DiggableTiles &	diggable_tiles,
		const DiggableTilesPatchConfig &	config )

staticprivate

Generate the vanilla-mode lookup routine ASM.

Definition at line 53 of file diggable_tiles_patch.cc.

References yaze::zelda3::DiggableTilesPatchConfig::diggable_handler, yaze::zelda3::DiggableTilesPatchConfig::exit_address, yaze::zelda3::DiggableTilesPatchConfig::freespace_address, GenerateDataTable(), yaze::zelda3::DiggableTilesPatchConfig::hook_address, and yaze::zelda3::DiggableTilesPatchConfig::table_address.

Referenced by GeneratePatch().

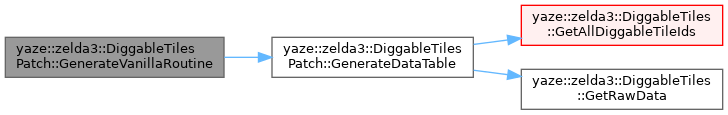

Here is the call graph for this function:

◆ GenerateZSCompatibleRoutine()

std::string yaze::zelda3::DiggableTilesPatch::GenerateZSCompatibleRoutine	(	const DiggableTiles &	diggable_tiles,
		const DiggableTilesPatchConfig &	config )
