yaze::zelda3::DiggableTiles Class Reference

Manages diggable tile state as a 512-bit bitfield. More...

#include <diggable_tiles.h>

Public Member Functions
	DiggableTiles ()=default
bool	IsDiggable (uint16_t tile_id) const
	Check if a Map16 tile ID is marked as diggable.
void	SetDiggable (uint16_t tile_id, bool diggable)
	Set or clear the diggable bit for a Map16 tile ID.
void	Clear ()
	Clear all diggable bits.
void	SetVanillaDefaults ()
	Reset to vanilla diggable tiles.
std::vector< uint16_t >	GetAllDiggableTileIds () const
	Get all tile IDs that are currently marked as diggable.
int	GetDiggableCount () const
	Get the count of tiles marked as diggable.
void	FromBytes (const uint8_t *data)
	Load bitfield from raw bytes (64 bytes).
void	ToBytes (uint8_t *data) const
	Write bitfield to raw bytes (64 bytes).
const std::array< uint8_t, kDiggableTilesBitfieldSize > &	GetRawData () const
	Get raw bitfield data for direct ROM writing.

Static Public Member Functions
static bool	IsTile16Diggable (const gfx::Tile16 &tile16, const std::array< uint8_t, 0x200 > &all_tiles_types)
	Check if a Tile16 should be diggable based on its component tiles.

Private Attributes
std::array< uint8_t, kDiggableTilesBitfieldSize >	bitfield_ = {}

Detailed Description

Manages diggable tile state as a 512-bit bitfield.

Each Map16 tile ID (0-511) has one bit indicating if it's diggable. Used to replace the hardcoded CMP chain in bank 1B with a table lookup.

Definition at line 37 of file diggable_tiles.h.

Constructor & Destructor Documentation

DiggableTiles()

yaze::zelda3::DiggableTiles::DiggableTiles ( )

default

Member Function Documentation

IsDiggable()

bool yaze::zelda3::DiggableTiles::IsDiggable

(

uint16_t

tile_id

)

const

Check if a Map16 tile ID is marked as diggable.

Definition at line 7 of file diggable_tiles.cc.

References bitfield_, and yaze::zelda3::kMaxDiggableTileId.

Referenced by yaze::editor::DrawDiggableTilesEditorPopup(), GetAllDiggableTileIds(), and GetDiggableCount().

SetDiggable()

void yaze::zelda3::DiggableTiles::SetDiggable	(	uint16_t	tile_id,
		bool	diggable )

Set or clear the diggable bit for a Map16 tile ID.

Definition at line 16 of file diggable_tiles.cc.

References bitfield_, and yaze::zelda3::kMaxDiggableTileId.

Referenced by yaze::zelda3::Overworld::AutoDetectDiggableTiles(), yaze::editor::DrawDiggableTilesEditorPopup(), and SetVanillaDefaults().

Clear()

void yaze::zelda3::DiggableTiles::Clear

(

)

Clear all diggable bits.

Definition at line 29 of file diggable_tiles.cc.

References bitfield_.

Referenced by yaze::zelda3::Overworld::AutoDetectDiggableTiles(), yaze::editor::DrawDiggableTilesEditorPopup(), and SetVanillaDefaults().

SetVanillaDefaults()

void yaze::zelda3::DiggableTiles::SetVanillaDefaults

(

)

Reset to vanilla diggable tiles.

Definition at line 33 of file diggable_tiles.cc.

References Clear(), yaze::zelda3::kNumVanillaDiggableTiles, yaze::zelda3::kVanillaDiggableTiles, and SetDiggable().

Referenced by yaze::editor::DrawDiggableTilesEditorPopup(), and yaze::zelda3::Overworld::LoadDiggableTiles().

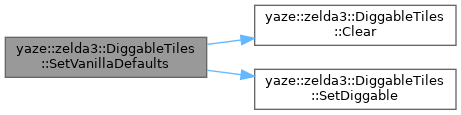

Here is the call graph for this function:

GetAllDiggableTileIds()

std::vector< uint16_t > yaze::zelda3::DiggableTiles::GetAllDiggableTileIds

(

)

const

Get all tile IDs that are currently marked as diggable.

Definition at line 40 of file diggable_tiles.cc.

References IsDiggable(), and yaze::zelda3::kMaxDiggableTileId.

Referenced by yaze::zelda3::DiggableTilesPatch::GenerateDataTable().

Here is the call graph for this function:

GetDiggableCount()

int yaze::zelda3::DiggableTiles::GetDiggableCount

(

)

const

Get the count of tiles marked as diggable.

Definition at line 50 of file diggable_tiles.cc.

References IsDiggable(), and yaze::zelda3::kMaxDiggableTileId.

Referenced by yaze::zelda3::Overworld::AutoDetectDiggableTiles(), and yaze::editor::DrawDiggableTilesEditorPopup().

Here is the call graph for this function:

FromBytes()

void yaze::zelda3::DiggableTiles::FromBytes

(

const uint8_t *

data

)

Load bitfield from raw bytes (64 bytes).

Definition at line 60 of file diggable_tiles.cc.

References bitfield_, and yaze::zelda3::kDiggableTilesBitfieldSize.

Referenced by yaze::zelda3::Overworld::LoadDiggableTiles().

ToBytes()

void yaze::zelda3::DiggableTiles::ToBytes

(

uint8_t *

data

)

const

Write bitfield to raw bytes (64 bytes).

Definition at line 64 of file diggable_tiles.cc.

References bitfield_, and yaze::zelda3::kDiggableTilesBitfieldSize.

GetRawData()

const std::array< uint8_t, kDiggableTilesBitfieldSize > & yaze::zelda3::DiggableTiles::GetRawData ( ) const

inline

Get raw bitfield data for direct ROM writing.

Definition at line 84 of file diggable_tiles.h.

References bitfield_.

Referenced by yaze::zelda3::DiggableTilesPatch::GenerateDataTable(), and yaze::zelda3::Overworld::SaveDiggableTiles().

IsTile16Diggable()

bool yaze::zelda3::DiggableTiles::IsTile16Diggable ( const gfx::Tile16 & tile16, const std::array< uint8_t, 0x200 > & all_tiles_types )

static

Check if a Tile16 should be diggable based on its component tiles.

A Tile16 is considered diggable if ALL 4 of its component Tile8s have tile type 0x48 or 0x4A (diggable ground) in the tile types array.

Parameters

tile16	The Tile16 to check
all_tiles_types	The tile types array from ROM (512 entries)

Returns

true if all 4 component tiles are diggable types

Definition at line 68 of file diggable_tiles.cc.

References yaze::zelda3::kTileTypeDiggable1, yaze::zelda3::kTileTypeDiggable2, yaze::gfx::Tile16::tile0_, yaze::gfx::Tile16::tile1_, yaze::gfx::Tile16::tile2_, and yaze::gfx::Tile16::tile3_.

Referenced by yaze::zelda3::Overworld::AutoDetectDiggableTiles(), and yaze::editor::DrawDiggableTilesEditorPopup().

Member Data Documentation

bitfield_

std::array<uint8_t, kDiggableTilesBitfieldSize> yaze::zelda3::DiggableTiles::bitfield_ = {}

private

Definition at line 103 of file diggable_tiles.h.

Referenced by Clear(), FromBytes(), GetRawData(), IsDiggable(), SetDiggable(), and ToBytes().

---

The documentation for this class was generated from the following files:

• src/zelda3/overworld/diggable_tiles.h
• src/zelda3/overworld/diggable_tiles.cc
