yaze::editor::DungeonRoomPanel Class Reference

ResourcePanel for editing individual dungeon rooms. More...

#include <dungeon_room_panel.h>

Inheritance diagram for yaze::editor::DungeonRoomPanel:

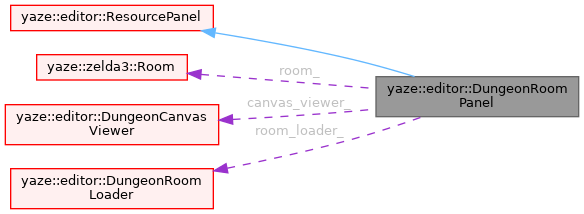

Collaboration diagram for yaze::editor::DungeonRoomPanel:

Public Member Functions
	DungeonRoomPanel (size_t session_id, int room_id, zelda3::Room *room, DungeonCanvasViewer *canvas_viewer, DungeonRoomLoader *room_loader)
	Construct a room panel.
int	GetResourceId () const override
	The numeric ID of the resource.
std::string	GetResourceType () const override
	The resource type name.
std::string	GetResourceName () const override
	Human-readable resource name.
std::string	GetIcon () const override
	Material Design icon for this panel.
std::string	GetEditorCategory () const override
	Editor category this panel belongs to.
int	GetPriority () const override
	Get display priority for menu ordering.
void	Draw (bool *p_open) override
	Draw the panel content.
void	OnResourceModified () override
	Called when resource data changes externally.
zelda3::Room *	room () const
int	room_id () const
Public Member Functions inherited from yaze::editor::ResourcePanel
virtual	~ResourcePanel ()=default
std::string	GetId () const override
	Generated panel ID from resource type and ID.
std::string	GetDisplayName () const override
	Generated display name from resource name.
PanelCategory	GetPanelCategory () const override
	Resource panels use CrossEditor category for opt-in persistence.
virtual bool	AllowMultipleInstances () const
	Whether multiple instances of this resource type can be open.
virtual size_t	GetSessionId () const
	Get the session ID this resource belongs to.
void	SetSessionId (size_t session_id)
	Set the session ID for this resource panel.
virtual void	OnResourceDeleted ()
	Called when resource is deleted from ROM.
Public Member Functions inherited from yaze::editor::EditorPanel
virtual	~EditorPanel ()=default
virtual void	OnOpen ()
	Called when panel becomes visible.
virtual void	OnClose ()
	Called when panel is hidden.
virtual void	OnFocus ()
	Called when panel receives focus.
virtual bool	IsEnabled () const
	Check if this panel is currently enabled.
virtual std::string	GetDisabledTooltip () const
	Get tooltip text when panel is disabled.
virtual std::string	GetShortcutHint () const
	Get keyboard shortcut hint for display.
virtual float	GetPreferredWidth () const
	Get preferred width for this panel (optional)
virtual bool	IsVisibleByDefault () const
	Whether this panel should be visible by default.
virtual std::string	GetParentPanelId () const
	Get parent panel ID for cascade behavior.
virtual bool	CascadeCloseChildren () const
	Whether closing this panel should close child panels.

Private Attributes
int	room_id_ = 0
zelda3::Room *	room_ = nullptr
DungeonCanvasViewer *	canvas_viewer_ = nullptr
DungeonRoomLoader *	room_loader_ = nullptr

Additional Inherited Members
Protected Attributes inherited from yaze::editor::ResourcePanel
size_t	session_id_ = 0
	Session ID for multi-ROM editing (0 = single session)

Detailed Description

ResourcePanel for editing individual dungeon rooms.

This panel provides a tabbed view for editing a specific dungeon room. Multiple rooms can be open simultaneously (up to kMaxRoomPanels). Each panel shows the room canvas with objects, sprites, and layers.

Features

• Room canvas with pan/zoom
• Object selection and manipulation
• Sprite editing
• Layer visibility toggles
• Lazy loading of room data

See also

ResourcePanel - Base class for resource-bound panels

DungeonCanvasViewer - The canvas rendering component

Definition at line 37 of file dungeon_room_panel.h.

Constructor & Destructor Documentation

DungeonRoomPanel()

yaze::editor::DungeonRoomPanel::DungeonRoomPanel ( size_t session_id, int room_id, zelda3::Room * room, DungeonCanvasViewer * canvas_viewer, DungeonRoomLoader * room_loader )

inline

Construct a room panel.

Parameters

session_id	The session this room belongs to
room_id	The room ID (0-295)
room	Pointer to the room data (must outlive panel)
canvas_viewer	Pointer to canvas viewer for rendering
room_loader	Pointer to room loader for lazy loading

Definition at line 47 of file dungeon_room_panel.h.

References yaze::editor::ResourcePanel::session_id_.

Member Function Documentation

GetResourceId()

int yaze::editor::DungeonRoomPanel::GetResourceId ( ) const

inlineoverridevirtual

The numeric ID of the resource.

Returns

Resource ID (room_id, song_index, sheet_id, map_id, etc.)

This is the primary key for the resource within its type.

Implements yaze::editor::ResourcePanel.

Definition at line 61 of file dungeon_room_panel.h.

References room_id_.

GetResourceType()

std::string yaze::editor::DungeonRoomPanel::GetResourceType ( ) const

inlineoverridevirtual

The resource type name.

Returns

Type string (e.g., "room", "song", "sheet", "map")

Used in panel ID generation and display.

Implements yaze::editor::ResourcePanel.

Definition at line 62 of file dungeon_room_panel.h.

GetResourceName()

std::string yaze::editor::DungeonRoomPanel::GetResourceName ( ) const

inlineoverridevirtual

Human-readable resource name.

Returns

Friendly name (e.g., "Hyrule Castle Entrance", "Overworld Theme")

Default implementation returns "{type} {id}". Override to provide game-specific names from ROM data.

Reimplemented from yaze::editor::ResourcePanel.

Definition at line 64 of file dungeon_room_panel.h.

References yaze::zelda3::GetRoomLabel(), and room_id_.

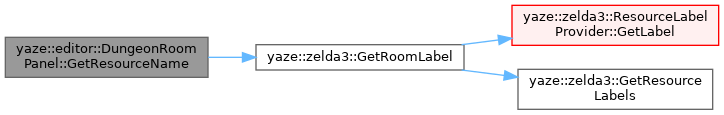

Here is the call graph for this function:

GetIcon()

std::string yaze::editor::DungeonRoomPanel::GetIcon ( ) const

inlineoverridevirtual

Material Design icon for this panel.

Returns

Icon constant (e.g., ICON_MD_LIST)

Implements yaze::editor::EditorPanel.

Definition at line 70 of file dungeon_room_panel.h.

References ICON_MD_GRID_ON.

GetEditorCategory()

std::string yaze::editor::DungeonRoomPanel::GetEditorCategory ( ) const

inlineoverridevirtual

Editor category this panel belongs to.

Returns

Category name matching EditorType (e.g., "Dungeon", "Overworld")

Implements yaze::editor::EditorPanel.

Definition at line 71 of file dungeon_room_panel.h.

GetPriority()

int yaze::editor::DungeonRoomPanel::GetPriority ( ) const

inlineoverridevirtual

Get display priority for menu ordering.

Returns

Priority value (lower = higher in list, default 50)

Reimplemented from yaze::editor::EditorPanel.

Definition at line 72 of file dungeon_room_panel.h.

References room_id_.

Draw()

void yaze::editor::DungeonRoomPanel::Draw ( bool * p_open )

inlineoverridevirtual

Draw the panel content.

Parameters

p_open

Pointer to visibility flag (nullptr if not closable)

Called by PanelManager when the panel is visible. Do NOT call ImGui::Begin/End - the PanelWindow wrapper handles that. Just draw your content directly.

Implements yaze::editor::EditorPanel.

Definition at line 78 of file dungeon_room_panel.h.

References yaze::zelda3::Room::bg1_buffer(), yaze::zelda3::Room::blocks(), yaze::zelda3::Room::blockset, canvas_viewer_, yaze::zelda3::Room::ClearTileObjects(), yaze::editor::DungeonCanvasViewer::DrawDungeonCanvas(), yaze::zelda3::Room::floor1(), yaze::zelda3::Room::floor2(), yaze::zelda3::Room::GetTileObjects(), ICON_MD_CHECK, ICON_MD_CLEANING_SERVICES, ICON_MD_PENDING, ICON_MD_REFRESH, yaze::zelda3::Room::IsLoaded(), yaze::zelda3::Room::LoadObjects(), yaze::editor::DungeonRoomLoader::LoadRoom(), yaze::zelda3::Room::LoadRoomGraphics(), yaze::zelda3::Room::RenderRoomGraphics(), yaze::zelda3::Room::rom(), room_, room_id_, room_loader_, yaze::zelda3::Room::set_floor1(), and yaze::zelda3::Room::set_floor2().

OnResourceModified()

void yaze::editor::DungeonRoomPanel::OnResourceModified ( )

inlineoverridevirtual

Called when resource data changes externally.

Override to refresh panel state when the underlying ROM data is modified by another editor or operation.

Reimplemented from yaze::editor::ResourcePanel.

Definition at line 173 of file dungeon_room_panel.h.

References yaze::zelda3::Room::IsLoaded(), yaze::zelda3::Room::RenderRoomGraphics(), and room_.

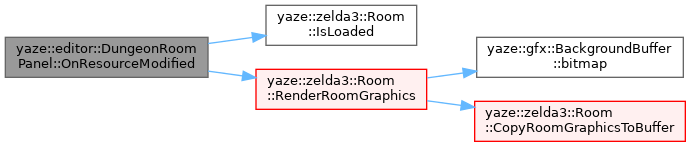

Here is the call graph for this function:

room()

zelda3::Room * yaze::editor::DungeonRoomPanel::room ( ) const

inline

Definition at line 184 of file dungeon_room_panel.h.

References room_.

room_id()

int yaze::editor::DungeonRoomPanel::room_id ( ) const

inline

Definition at line 185 of file dungeon_room_panel.h.

References room_id_.

Member Data Documentation

room_id_

int yaze::editor::DungeonRoomPanel::room_id_ = 0

private

Definition at line 188 of file dungeon_room_panel.h.

Referenced by Draw(), GetPriority(), GetResourceId(), GetResourceName(), and room_id().

room_

zelda3::Room* yaze::editor::DungeonRoomPanel::room_ = nullptr

private

Definition at line 189 of file dungeon_room_panel.h.

Referenced by Draw(), OnResourceModified(), and room().

canvas_viewer_

DungeonCanvasViewer* yaze::editor::DungeonRoomPanel::canvas_viewer_ = nullptr

private

Definition at line 190 of file dungeon_room_panel.h.

Referenced by Draw().

room_loader_

DungeonRoomLoader* yaze::editor::DungeonRoomPanel::room_loader_ = nullptr

private

Definition at line 191 of file dungeon_room_panel.h.

Referenced by Draw().

---

The documentation for this class was generated from the following file:

• src/app/editor/dungeon/panels/dungeon_room_panel.h
