Base class for code generation tools. More...

#include <code_gen_tool.h>

Inherits yaze::cli::resources::CommandHandler.

Inherited by yaze::cli::agent::tools::CodeGenAsmHookTool, yaze::cli::agent::tools::CodeGenEventHandlerTool, yaze::cli::agent::tools::CodeGenFreespacePatchTool, and yaze::cli::agent::tools::CodeGenSpriteTemplateTool.

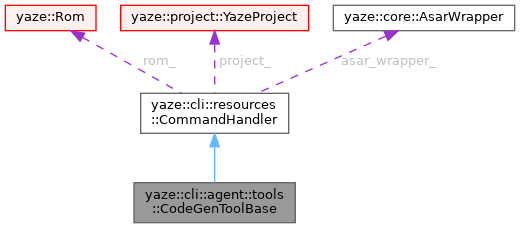

Collaboration diagram for yaze::cli::agent::tools::CodeGenToolBase:

[legend]

Protected Member Functions
absl::Status	ValidateHookAddress (Rom *rom, uint32_t address) const
	Validate that an address is safe for hooking.

std::vector< FreeSpaceRegion >	DetectFreeSpace (Rom *rom, size_t min_size=0x100) const
	Detect available free space regions in ROM.

std::string	SubstitutePlaceholders (const std::string &template_code, const std::map< std::string, std::string > &params) const
	Substitute placeholders in template with parameter values.

absl::StatusOr< AsmTemplate >	GetTemplate (const std::string &name) const
	Get a built-in ASM template by name.

const std::vector< AsmTemplate > &	GetAllTemplates () const
	Get all available built-in templates.

std::string	FormatResultAsJson (const CodeGenerationResult &result) const
	Format code generation result as JSON.

std::string	FormatResultAsText (const CodeGenerationResult &result) const
	Format code generation result as text.

bool	IsKnownHookLocation (uint32_t address) const
	Check if an address is within a known safe hook location.

std::string	GetHookLocationDescription (uint32_t address) const
	Get description of a known hook location.

Protected Member Functions inherited from yaze::cli::resources::CommandHandler
virtual absl::Status	ValidateArgs (const ArgumentParser &parser)=0
	Validate command arguments.

virtual absl::Status	Execute (Rom *rom, const ArgumentParser &parser, OutputFormatter &formatter)=0
	Execute the command business logic.

virtual std::string	GetDefaultFormat () const
	Get the default output format ("json" or "text")

virtual std::string	GetOutputTitle () const
	Get the output title for formatting.

Static Private Member Functions
static std::vector< AsmTemplate >	InitializeTemplates ()

Static Private Attributes
static const std::vector< AsmTemplate >	kTemplates

static const std::map< std::string, uint32_t >	kKnownHooks

Additional Inherited Members
Public Member Functions inherited from yaze::cli::resources::CommandHandler
virtual	~CommandHandler ()=default

absl::Status	Run (const std::vector< std::string > &args, Rom rom_context, std::string captured_output=nullptr)
	Execute the command.

virtual std::string	GetName () const =0
	Get the command name.

virtual Descriptor	Describe () const
	Provide metadata for TUI/help summaries.

virtual std::string	GetUsage () const =0
	Get the command usage string.

virtual bool	RequiresRom () const
	Check if the command requires a loaded ROM.

virtual bool	RequiresLabels () const
	Check if the command requires ROM labels.

virtual void	SetProjectContext (project::YazeProject *project)
	Set the YazeProject context. Default implementation does nothing, override if tool needs project info.

virtual void	SetAsarWrapper (core::AsarWrapper *asar_wrapper)
	Set the AsarWrapper context. Default implementation does nothing, override if tool needs Asar access.

virtual void	SetRomContext (Rom *rom)
	Set the ROM context for tools that need ROM access. Default implementation stores the ROM pointer for subclass use.

Protected Attributes inherited from yaze::cli::resources::CommandHandler
Rom *	rom_ = nullptr

project::YazeProject *	project_ = nullptr

core::AsarWrapper *	asar_wrapper_ = nullptr

Detailed Description

Base class for code generation tools.

Provides common functionality for ASM code generation:

Template management and substitution
Freespace detection and validation
Address validation
Hook location checking

Definition at line 106 of file code_gen_tool.h.

Member Function Documentation

◆ ValidateHookAddress()

absl::Status yaze::cli::agent::tools::CodeGenToolBase::ValidateHookAddress	(	Rom *	rom,
		uint32_t	address ) const

protected

Validate that an address is safe for hooking.

Definition at line 84 of file code_gen_tool.cc.

◆ DetectFreeSpace()

std::vector< FreeSpaceRegion > yaze::cli::agent::tools::CodeGenToolBase::DetectFreeSpace	(	Rom *	rom,
		size_t	min_size = 0x100 ) const

protected

Detect available free space regions in ROM.

Definition at line 121 of file code_gen_tool.cc.

◆ SubstitutePlaceholders()

std::string yaze::cli::agent::tools::CodeGenToolBase::SubstitutePlaceholders	(	const std::string &	template_code,
		const std::map< std::string, std::string > &	params ) const

protected

Substitute placeholders in template with parameter values.

Replaces {{PLACEHOLDER}} with corresponding values from params map.

Definition at line 178 of file code_gen_tool.cc.

◆ GetTemplate()

absl::StatusOr< AsmTemplate > yaze::cli::agent::tools::CodeGenToolBase::GetTemplate ( const std::string & name ) const

protected

Get a built-in ASM template by name.

Definition at line 192 of file code_gen_tool.cc.

◆ GetAllTemplates()

const std::vector< AsmTemplate > & yaze::cli::agent::tools::CodeGenToolBase::GetAllTemplates ( ) const

protected

Get all available built-in templates.

Definition at line 203 of file code_gen_tool.cc.

◆ FormatResultAsJson()

std::string yaze::cli::agent::tools::CodeGenToolBase::FormatResultAsJson ( const CodeGenerationResult & result ) const

protected

Format code generation result as JSON.

Definition at line 225 of file code_gen_tool.cc.

References yaze::cli::agent::tools::FreeSpaceRegion::description, yaze::cli::agent::tools::FreeSpaceRegion::end, yaze::cli::agent::tools::FreeSpaceRegion::free_percent, and yaze::cli::agent::tools::FreeSpaceRegion::start.

Referenced by yaze::cli::agent::tools::CodeGenFreespacePatchTool::Execute(), and yaze::cli::agent::tools::CodeGenSpriteTemplateTool::Execute().

◆ FormatResultAsText()

std::string yaze::cli::agent::tools::CodeGenToolBase::FormatResultAsText ( const CodeGenerationResult & result ) const

protected

Format code generation result as text.

Definition at line 275 of file code_gen_tool.cc.

Referenced by yaze::cli::agent::tools::CodeGenFreespacePatchTool::Execute(), and yaze::cli::agent::tools::CodeGenSpriteTemplateTool::Execute().

◆ IsKnownHookLocation()

bool yaze::cli::agent::tools::CodeGenToolBase::IsKnownHookLocation ( uint32_t address ) const

protected

Check if an address is within a known safe hook location.

Definition at line 207 of file code_gen_tool.cc.

◆ GetHookLocationDescription()

std::string yaze::cli::agent::tools::CodeGenToolBase::GetHookLocationDescription ( uint32_t address ) const

protected

Get description of a known hook location.

Definition at line 216 of file code_gen_tool.cc.

◆ InitializeTemplates()

std::vector< AsmTemplate > yaze::cli::agent::tools::CodeGenToolBase::InitializeTemplates ( )

staticprivate

Definition at line 39 of file code_gen_tool.cc.

Member Data Documentation

◆ kTemplates

const std::vector< AsmTemplate > yaze::cli::agent::tools::CodeGenToolBase::kTemplates

staticprivate

Initial value:

=

CodeGenToolBase::InitializeTemplates()

yaze::cli::agent::tools::CodeGenToolBase::InitializeTemplates

static std::vector< AsmTemplate > InitializeTemplates()

Definition code_gen_tool.cc:39

Definition at line 159 of file code_gen_tool.h.

◆ kKnownHooks

const std::map< std::string, uint32_t > yaze::cli::agent::tools::CodeGenToolBase::kKnownHooks

staticprivate

Initial value:

= {
    {"EnableForceBlank", 0x00893D},
    {"Overworld_LoadMapProperties", 0x02AB08},
    {"Overworld_LoadSubscreenAndSilenceSFX1", 0x02AF19},
    {"Sprite_OverworldReloadAll", 0x09C499},
}

Definition at line 162 of file code_gen_tool.h.

The documentation for this class was generated from the following files:

src/cli/service/agent/tools/code_gen_tool.h
src/cli/service/agent/tools/code_gen_tool.cc
