Full-editing properties panel for selected entities. More...

#include <selection_properties_panel.h>

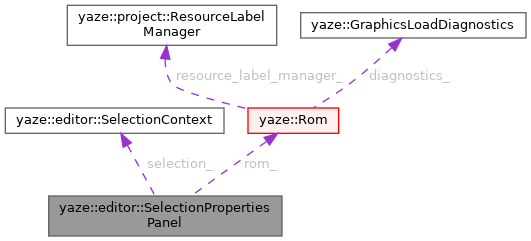

Collaboration diagram for yaze::editor::SelectionPropertiesPanel:

[legend]

Public Types
using	ChangeCallback = std::function<void(const SelectionContext&)>

Public Member Functions
	SelectionPropertiesPanel ()=default

	~SelectionPropertiesPanel ()=default

	SelectionPropertiesPanel (const SelectionPropertiesPanel &)=delete

SelectionPropertiesPanel &	operator= (const SelectionPropertiesPanel &)=delete

void	SetRom (Rom *rom)

void	SetChangeCallback (ChangeCallback callback)

void	SetSelection (const SelectionContext &context)
	Set the current selection to display/edit.

void	ClearSelection ()
	Clear the current selection.

const SelectionContext &	GetSelection () const
	Get the current selection context.

bool	HasSelection () const
	Check if there's an active selection.

void	Draw ()
	Draw the properties panel content.

Private Member Functions
void	DrawNoSelection ()

void	DrawDungeonRoomProperties ()

void	DrawDungeonObjectProperties ()

void	DrawDungeonSpriteProperties ()

void	DrawDungeonEntranceProperties ()

void	DrawOverworldMapProperties ()

void	DrawOverworldTileProperties ()

void	DrawOverworldSpriteProperties ()

void	DrawOverworldEntranceProperties ()

void	DrawOverworldExitProperties ()

void	DrawOverworldItemProperties ()

void	DrawGraphicsSheetProperties ()

void	DrawPaletteProperties ()

void	DrawPropertyHeader (const char icon, const char title)

bool	DrawPositionEditor (const char label, int x, int *y, int min_val=0, int max_val=512)

bool	DrawSizeEditor (const char label, int width, int *height)

bool	DrawByteProperty (const char label, uint8_t value, const char *tooltip=nullptr)

bool	DrawWordProperty (const char label, uint16_t value, const char *tooltip=nullptr)

bool	DrawComboProperty (const char label, int current_item, const char *const items[], int items_count)

bool	DrawFlagsProperty (const char label, uint8_t flags, const char *const flag_names[], int flag_count)

void	DrawReadOnlyText (const char label, const char value)

void	DrawReadOnlyHex (const char *label, uint32_t value, int digits=4)

void	NotifyChange ()

Private Attributes
SelectionContext	selection_

Rom *	rom_ = nullptr

ChangeCallback	on_change_

bool	show_advanced_ = false

bool	show_raw_data_ = false

Detailed Description

Full-editing properties panel for selected entities.

This panel displays and allows editing of properties for whatever entity is currently selected in the active editor. It adapts its UI based on the selection type and provides appropriate editing controls.

Usage:

SelectionPropertiesPanel panel;
panel.SetRom(rom);

// When selection changes:
SelectionContext ctx;
ctx.type = SelectionType::kDungeonObject;
ctx.id = object_id;
ctx.data = &object;
panel.SetSelection(ctx);

// In render loop:
panel.Draw();

Definition at line 81 of file selection_properties_panel.h.

Member Typedef Documentation

◆ ChangeCallback

using yaze::editor::SelectionPropertiesPanel::ChangeCallback = std::function<void(const SelectionContext&)>

Definition at line 83 of file selection_properties_panel.h.

Constructor & Destructor Documentation

◆ SelectionPropertiesPanel() [1/2]

yaze::editor::SelectionPropertiesPanel::SelectionPropertiesPanel ( )

default

◆ ~SelectionPropertiesPanel()

yaze::editor::SelectionPropertiesPanel::~SelectionPropertiesPanel ( )

default

◆ SelectionPropertiesPanel() [2/2]

yaze::editor::SelectionPropertiesPanel::SelectionPropertiesPanel ( const SelectionPropertiesPanel & )

delete

Member Function Documentation

◆ operator=()

SelectionPropertiesPanel & yaze::editor::SelectionPropertiesPanel::operator= ( const SelectionPropertiesPanel & )

delete

◆ SetRom()

void yaze::editor::SelectionPropertiesPanel::SetRom ( Rom * rom )

inline

Definition at line 96 of file selection_properties_panel.h.

References rom_.

Referenced by yaze::editor::EditorManager::ConfigureEditorDependencies(), and yaze::editor::EditorManager::OnSessionSwitched().

◆ SetChangeCallback()

void yaze::editor::SelectionPropertiesPanel::SetChangeCallback ( ChangeCallback callback )

inline

Definition at line 97 of file selection_properties_panel.h.

References on_change_.

◆ SetSelection()

void yaze::editor::SelectionPropertiesPanel::SetSelection ( const SelectionContext & context )

Set the current selection to display/edit.

Definition at line 45 of file selection_properties_panel.cc.

References selection_.

◆ ClearSelection()

void yaze::editor::SelectionPropertiesPanel::ClearSelection ( )

Clear the current selection.

Definition at line 49 of file selection_properties_panel.cc.

References selection_.

◆ GetSelection()

const SelectionContext & yaze::editor::SelectionPropertiesPanel::GetSelection ( ) const

inline

Get the current selection context.

Definition at line 118 of file selection_properties_panel.h.

References selection_.

◆ HasSelection()

bool yaze::editor::SelectionPropertiesPanel::HasSelection ( ) const

inline

Check if there's an active selection.

Definition at line 123 of file selection_properties_panel.h.

References yaze::editor::kNone, selection_, and yaze::editor::SelectionContext::type.

◆ Draw()

void yaze::editor::SelectionPropertiesPanel::Draw ( )

Draw the properties panel content.

Should be called from within an ImGui context (e.g., inside a window).

Definition at line 53 of file selection_properties_panel.cc.

References DrawDungeonEntranceProperties(), DrawDungeonObjectProperties(), DrawDungeonRoomProperties(), DrawDungeonSpriteProperties(), DrawGraphicsSheetProperties(), DrawNoSelection(), DrawOverworldEntranceProperties(), DrawOverworldExitProperties(), DrawOverworldItemProperties(), DrawOverworldMapProperties(), DrawOverworldSpriteProperties(), DrawOverworldTileProperties(), DrawPaletteProperties(), yaze::editor::kDungeonEntrance, yaze::editor::kDungeonObject, yaze::editor::kDungeonRoom, yaze::editor::kDungeonSprite, yaze::editor::kGraphicsSheet, yaze::editor::kNone, yaze::editor::kOverworldEntrance, yaze::editor::kOverworldExit, yaze::editor::kOverworldItem, yaze::editor::kOverworldMap, yaze::editor::kOverworldSprite, yaze::editor::kOverworldTile, yaze::editor::kPalette, selection_, show_advanced_, show_raw_data_, and yaze::editor::SelectionContext::type.

Referenced by yaze::editor::RightPanelManager::DrawPropertiesPanel().

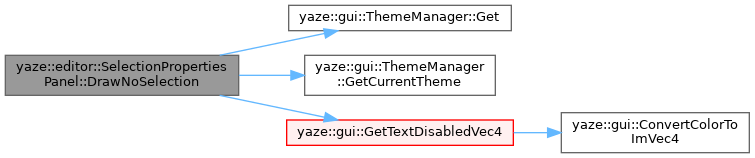

◆ DrawNoSelection()

void yaze::editor::SelectionPropertiesPanel::DrawNoSelection ( )

private

Definition at line 105 of file selection_properties_panel.cc.

References yaze::gui::ThemeManager::Get(), yaze::gui::ThemeManager::GetCurrentTheme(), yaze::gui::GetTextDisabledVec4(), and ICON_MD_TOUCH_APP.

Referenced by Draw().

Here is the call graph for this function:

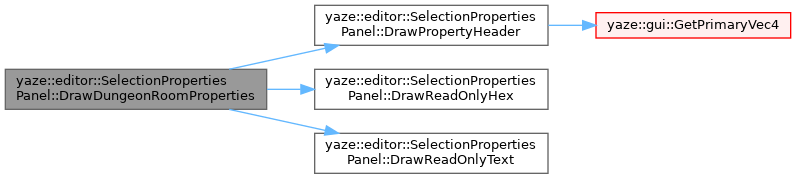

◆ DrawDungeonRoomProperties()

void yaze::editor::SelectionPropertiesPanel::DrawDungeonRoomProperties ( )

private

Definition at line 305 of file selection_properties_panel.cc.

References yaze::editor::SelectionContext::display_name, DrawPropertyHeader(), DrawReadOnlyHex(), DrawReadOnlyText(), ICON_MD_GRID_VIEW, yaze::editor::SelectionContext::id, selection_, and show_advanced_.

Referenced by Draw().

Here is the call graph for this function:

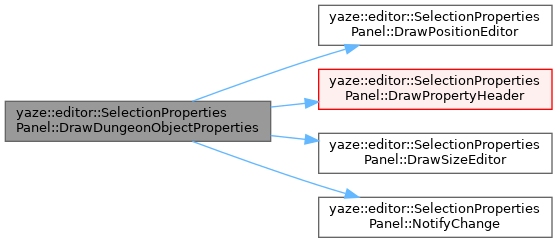

◆ DrawDungeonObjectProperties()

void yaze::editor::SelectionPropertiesPanel::DrawDungeonObjectProperties ( )

private

Definition at line 331 of file selection_properties_panel.cc.

References DrawPositionEditor(), DrawPropertyHeader(), DrawSizeEditor(), ICON_MD_CATEGORY, NotifyChange(), and show_raw_data_.

Referenced by Draw().

Here is the call graph for this function:

◆ DrawDungeonSpriteProperties()

void yaze::editor::SelectionPropertiesPanel::DrawDungeonSpriteProperties ( )

private

Definition at line 361 of file selection_properties_panel.cc.

References DrawPositionEditor(), DrawPropertyHeader(), ICON_MD_PEST_CONTROL, and NotifyChange().

Referenced by Draw().

Here is the call graph for this function:

◆ DrawDungeonEntranceProperties()

void yaze::editor::SelectionPropertiesPanel::DrawDungeonEntranceProperties ( )

private

Definition at line 378 of file selection_properties_panel.cc.

References DrawPropertyHeader(), and ICON_MD_DOOR_FRONT.

Referenced by Draw().

Here is the call graph for this function:

◆ DrawOverworldMapProperties()

void yaze::editor::SelectionPropertiesPanel::DrawOverworldMapProperties ( )

private

Definition at line 392 of file selection_properties_panel.cc.

References yaze::editor::SelectionContext::display_name, DrawPropertyHeader(), DrawReadOnlyHex(), DrawReadOnlyText(), ICON_MD_MAP, yaze::editor::SelectionContext::id, and selection_.

Referenced by Draw().

Here is the call graph for this function:

◆ DrawOverworldTileProperties()

void yaze::editor::SelectionPropertiesPanel::DrawOverworldTileProperties ( )

private

Definition at line 414 of file selection_properties_panel.cc.

References DrawPropertyHeader(), DrawReadOnlyHex(), ICON_MD_GRID_ON, yaze::editor::SelectionContext::id, selection_, and show_advanced_.

Referenced by Draw().

Here is the call graph for this function:

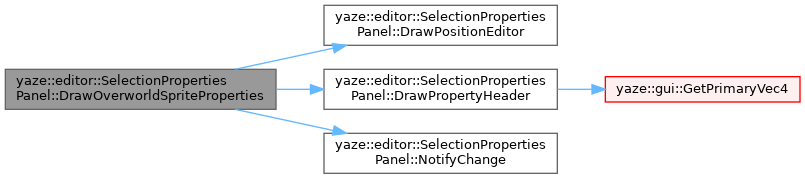

◆ DrawOverworldSpriteProperties()

void yaze::editor::SelectionPropertiesPanel::DrawOverworldSpriteProperties ( )

private

Definition at line 431 of file selection_properties_panel.cc.

References DrawPositionEditor(), DrawPropertyHeader(), ICON_MD_PEST_CONTROL, and NotifyChange().

Referenced by Draw().

Here is the call graph for this function:

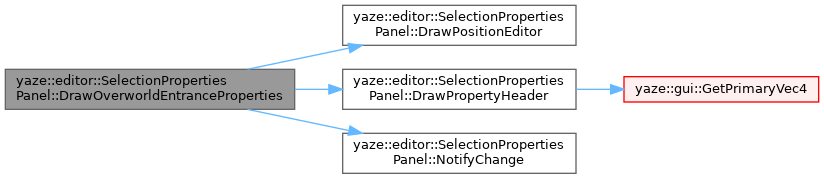

◆ DrawOverworldEntranceProperties()

void yaze::editor::SelectionPropertiesPanel::DrawOverworldEntranceProperties ( )

private

Definition at line 447 of file selection_properties_panel.cc.

References DrawPositionEditor(), DrawPropertyHeader(), ICON_MD_DOOR_FRONT, and NotifyChange().

Referenced by Draw().

Here is the call graph for this function:

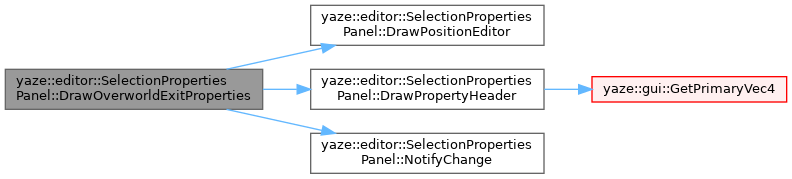

◆ DrawOverworldExitProperties()

void yaze::editor::SelectionPropertiesPanel::DrawOverworldExitProperties ( )

private

Definition at line 463 of file selection_properties_panel.cc.

References DrawPositionEditor(), DrawPropertyHeader(), ICON_MD_EXIT_TO_APP, and NotifyChange().

Referenced by Draw().

Here is the call graph for this function:

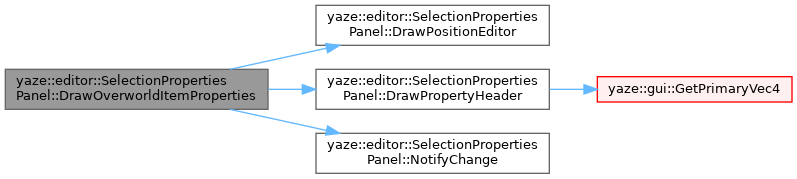

◆ DrawOverworldItemProperties()

void yaze::editor::SelectionPropertiesPanel::DrawOverworldItemProperties ( )

private

Definition at line 480 of file selection_properties_panel.cc.

References DrawPositionEditor(), DrawPropertyHeader(), ICON_MD_STAR, and NotifyChange().

Referenced by Draw().

Here is the call graph for this function:

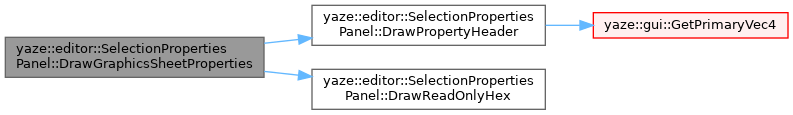

◆ DrawGraphicsSheetProperties()

void yaze::editor::SelectionPropertiesPanel::DrawGraphicsSheetProperties ( )

private

Definition at line 496 of file selection_properties_panel.cc.

References DrawPropertyHeader(), DrawReadOnlyHex(), ICON_MD_IMAGE, yaze::editor::SelectionContext::id, selection_, and show_advanced_.

Referenced by Draw().

Here is the call graph for this function:

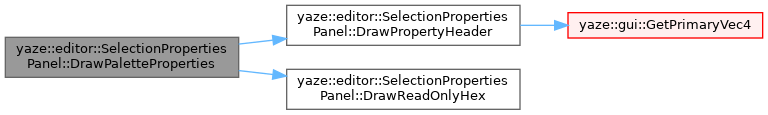

◆ DrawPaletteProperties()

void yaze::editor::SelectionPropertiesPanel::DrawPaletteProperties ( )

private

Definition at line 513 of file selection_properties_panel.cc.

References DrawPropertyHeader(), DrawReadOnlyHex(), ICON_MD_PALETTE, yaze::editor::SelectionContext::id, and selection_.

Referenced by Draw().

Here is the call graph for this function:

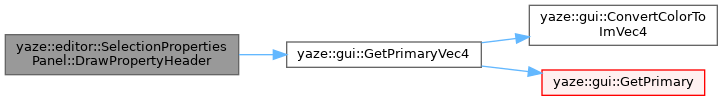

◆ DrawPropertyHeader()

void yaze::editor::SelectionPropertiesPanel::DrawPropertyHeader	(	const char *	icon,
		const char *	title )

private

Definition at line 127 of file selection_properties_panel.cc.

References yaze::editor::SelectionContext::display_name, yaze::gui::GetPrimaryVec4(), yaze::editor::SelectionContext::read_only, and selection_.

Referenced by DrawDungeonEntranceProperties(), DrawDungeonObjectProperties(), DrawDungeonRoomProperties(), DrawDungeonSpriteProperties(), DrawGraphicsSheetProperties(), DrawOverworldEntranceProperties(), DrawOverworldExitProperties(), DrawOverworldItemProperties(), DrawOverworldMapProperties(), DrawOverworldSpriteProperties(), DrawOverworldTileProperties(), and DrawPaletteProperties().

Here is the call graph for this function:

◆ DrawPositionEditor()

bool yaze::editor::SelectionPropertiesPanel::DrawPositionEditor	(	const char *	label,
		int *	x,
		int *	y,
		int	min_val = 0,
		int	max_val = 512 )

private

Definition at line 149 of file selection_properties_panel.cc.

Referenced by DrawDungeonObjectProperties(), DrawDungeonSpriteProperties(), DrawOverworldEntranceProperties(), DrawOverworldExitProperties(), DrawOverworldItemProperties(), and DrawOverworldSpriteProperties().

◆ DrawSizeEditor()

bool yaze::editor::SelectionPropertiesPanel::DrawSizeEditor	(	const char *	label,
		int *	width,
		int *	height )

private

Definition at line 179 of file selection_properties_panel.cc.

Referenced by DrawDungeonObjectProperties().

◆ DrawByteProperty()

bool yaze::editor::SelectionPropertiesPanel::DrawByteProperty	(	const char *	label,
		uint8_t *	value,
		const char *	tooltip = nullptr )

private

Definition at line 208 of file selection_properties_panel.cc.

◆ DrawWordProperty()

bool yaze::editor::SelectionPropertiesPanel::DrawWordProperty	(	const char *	label,
		uint16_t *	value,
		const char *	tooltip = nullptr )

private

Definition at line 228 of file selection_properties_panel.cc.

◆ DrawComboProperty()

bool yaze::editor::SelectionPropertiesPanel::DrawComboProperty	(	const char *	label,
		int *	current_item,
		const char *const	items[],
		int	items_count )

private

Definition at line 248 of file selection_properties_panel.cc.

◆ DrawFlagsProperty()

bool yaze::editor::SelectionPropertiesPanel::DrawFlagsProperty	(	const char *	label,
		uint8_t *	flags,
		const char *const	flag_names[],
		int	flag_count )

private

Definition at line 255 of file selection_properties_panel.cc.

◆ DrawReadOnlyText()

void yaze::editor::SelectionPropertiesPanel::DrawReadOnlyText	(	const char *	label,
		const char *	value )

private

Definition at line 279 of file selection_properties_panel.cc.

Referenced by DrawDungeonRoomProperties(), and DrawOverworldMapProperties().

◆ DrawReadOnlyHex()

void yaze::editor::SelectionPropertiesPanel::DrawReadOnlyHex	(	const char *	label,
		uint32_t	value,
		int	digits = 4 )

private

Definition at line 286 of file selection_properties_panel.cc.

Referenced by DrawDungeonRoomProperties(), DrawGraphicsSheetProperties(), DrawOverworldMapProperties(), DrawOverworldTileProperties(), and DrawPaletteProperties().

◆ NotifyChange()

void yaze::editor::SelectionPropertiesPanel::NotifyChange ( )

private

Definition at line 295 of file selection_properties_panel.cc.

References on_change_, and selection_.

Referenced by DrawDungeonObjectProperties(), DrawDungeonSpriteProperties(), DrawOverworldEntranceProperties(), DrawOverworldExitProperties(), DrawOverworldItemProperties(), and DrawOverworldSpriteProperties().

Member Data Documentation

◆ selection_

SelectionContext yaze::editor::SelectionPropertiesPanel::selection_

private

Definition at line 171 of file selection_properties_panel.h.

Referenced by ClearSelection(), Draw(), DrawDungeonRoomProperties(), DrawGraphicsSheetProperties(), DrawOverworldMapProperties(), DrawOverworldTileProperties(), DrawPaletteProperties(), DrawPropertyHeader(), GetSelection(), HasSelection(), NotifyChange(), and SetSelection().

◆ rom_

Rom* yaze::editor::SelectionPropertiesPanel::rom_ = nullptr

private

Definition at line 172 of file selection_properties_panel.h.

Referenced by SetRom().

◆ on_change_

ChangeCallback yaze::editor::SelectionPropertiesPanel::on_change_

private

Definition at line 173 of file selection_properties_panel.h.

Referenced by NotifyChange(), and SetChangeCallback().

◆ show_advanced_

bool yaze::editor::SelectionPropertiesPanel::show_advanced_ = false

private

Definition at line 176 of file selection_properties_panel.h.

Referenced by Draw(), DrawDungeonRoomProperties(), DrawGraphicsSheetProperties(), and DrawOverworldTileProperties().

◆ show_raw_data_

bool yaze::editor::SelectionPropertiesPanel::show_raw_data_ = false

private

Definition at line 177 of file selection_properties_panel.h.

Referenced by Draw(), and DrawDungeonObjectProperties().

The documentation for this class was generated from the following files:

src/app/editor/ui/selection_properties_panel.h
src/app/editor/ui/selection_properties_panel.cc

	yaze 0.3.2 Link to the Past ROM Editor

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ChangeCallback

Constructor & Destructor Documentation

◆ SelectionPropertiesPanel() [1/2]

◆ ~SelectionPropertiesPanel()

◆ SelectionPropertiesPanel() [2/2]

Member Function Documentation

◆ operator=()

◆ SetRom()

◆ SetChangeCallback()

◆ SetSelection()

◆ ClearSelection()

◆ GetSelection()

◆ HasSelection()

◆ Draw()

◆ DrawNoSelection()

◆ DrawDungeonRoomProperties()

◆ DrawDungeonObjectProperties()

◆ DrawDungeonSpriteProperties()

◆ DrawDungeonEntranceProperties()

◆ DrawOverworldMapProperties()

◆ DrawOverworldTileProperties()

◆ DrawOverworldSpriteProperties()

◆ DrawOverworldEntranceProperties()

◆ DrawOverworldExitProperties()

◆ DrawOverworldItemProperties()

◆ DrawGraphicsSheetProperties()

◆ DrawPaletteProperties()

◆ DrawPropertyHeader()

◆ DrawPositionEditor()

◆ DrawSizeEditor()

◆ DrawByteProperty()

◆ DrawWordProperty()

◆ DrawComboProperty()

◆ DrawFlagsProperty()

◆ DrawReadOnlyText()

◆ DrawReadOnlyHex()

◆ NotifyChange()

Member Data Documentation

◆ selection_

◆ rom_

◆ on_change_

◆ show_advanced_

◆ show_raw_data_
