Loads and queries the hack manifest JSON for yaze-ASM integration. More...

#include <hack_manifest.h>

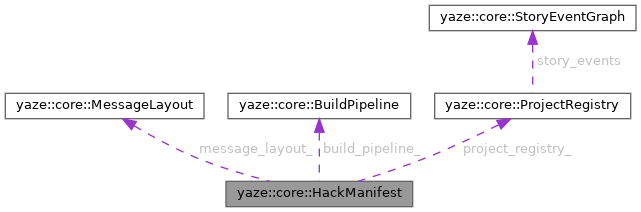

Collaboration diagram for yaze::core::HackManifest:

[legend]

Public Member Functions
	HackManifest ()=default

absl::Status	LoadFromFile (const std::string &filepath)
	Load manifest from a JSON file path.

absl::Status	LoadFromString (const std::string &json_content)
	Load manifest from a JSON string.

bool	loaded () const
	Check if the manifest has been loaded.

void	Clear ()
	Clear any loaded manifest state.

AddressOwnership	ClassifyAddress (uint32_t address) const
	Classify a ROM address by ownership.

bool	IsWriteOverwritten (uint32_t address) const
	Check if a ROM write at this address would be overwritten by asar.

bool	IsProtected (uint32_t address) const
	Check if an address is in a protected region.

std::optional< AddressOwnership >	GetBankOwnership (uint8_t bank) const
	Get the bank ownership for a given bank number.

std::string	GetRoomTagLabel (uint8_t tag_id) const
	Get the human-readable label for a room tag ID.

std::optional< RoomTagEntry >	GetRoomTag (uint8_t tag_id) const
	Get the full room tag entry for a tag ID.

const std::vector< RoomTagEntry > &	room_tags () const
	Get all room tags.

bool	IsFeatureEnabled (const std::string &flag_name) const

const std::vector< FeatureFlag > &	feature_flags () const

std::string	GetSramVariableName (uint32_t address) const

const std::vector< SramVariable > &	sram_variables () const

const MessageLayout &	message_layout () const

bool	IsExpandedMessage (uint16_t message_id) const

const std::vector< ProtectedRegion > &	protected_regions () const

const std::unordered_map< uint8_t, OwnedBank > &	owned_banks () const

std::vector< WriteConflict >	AnalyzeWriteRanges (const std::vector< std::pair< uint32_t, uint32_t > > &ranges) const
	Analyze a set of address ranges for write conflicts.

std::vector< WriteConflict >	AnalyzePcWriteRanges (const std::vector< std::pair< uint32_t, uint32_t > > &pc_ranges) const
	Analyze a set of PC-offset ranges for write conflicts.

absl::Status	LoadProjectRegistry (const std::string &code_folder)
	Load project registry data from the code folder.

const ProjectRegistry &	project_registry () const

bool	HasProjectRegistry () const

void	SetOracleProgressionState (const OracleProgressionState &state)

void	ClearOracleProgressionState ()

std::optional< OracleProgressionState >	oracle_progression_state () const

const BuildPipeline &	build_pipeline () const

const std::string &	hack_name () const

int	manifest_version () const

int	total_hooks () const

Private Member Functions
void	Reset ()

Private Attributes
bool	loaded_ = false

int	manifest_version_ = 0

std::string	hack_name_

int	total_hooks_ = 0

std::vector< ProtectedRegion >	protected_regions_

std::unordered_map< uint8_t, OwnedBank >	owned_banks_

std::unordered_map< uint8_t, RoomTagEntry >	room_tag_map_

std::vector< RoomTagEntry >	room_tags_

std::unordered_map< std::string, FeatureFlag >	feature_flag_map_

std::vector< FeatureFlag >	feature_flags_

std::unordered_map< uint32_t, SramVariable >	sram_map_

std::vector< SramVariable >	sram_variables_

MessageLayout	message_layout_ {}

BuildPipeline	build_pipeline_

ProjectRegistry	project_registry_

std::optional< OracleProgressionState >	oracle_progression_state_

Detailed Description

Loads and queries the hack manifest JSON for yaze-ASM integration.

The manifest describes which ROM addresses belong to the ASM hack layer versus the yaze editing layer. This enables yaze to:

Skip writing to hook addresses (asar overwrites them anyway)
Warn when the user edits shared data that requires a rebuild
Display room tag labels and SRAM variable names
Show feature flag status in the project settings panel

Usage: HackManifest manifest; auto status = manifest.LoadFromFile("hack_manifest.json"); if (status.ok()) { auto ownership = manifest.ClassifyAddress(0x0085C4); // ownership == AddressOwnership::kHookPatched

auto tag_name = manifest.GetRoomTagLabel(0x39); // tag_name == "CustomTag" }

Definition at line 223 of file hack_manifest.h.

Constructor & Destructor Documentation

◆ HackManifest()

yaze::core::HackManifest::HackManifest ( )

default

Member Function Documentation

◆ LoadFromFile()

absl::Status yaze::core::HackManifest::LoadFromFile ( const std::string & filepath )

Load manifest from a JSON file path.

Definition at line 119 of file hack_manifest.cc.

References LoadFromString().

Referenced by yaze::project::YazeProject::TryLoadHackManifest().

Here is the call graph for this function:

◆ LoadFromString()

absl::Status yaze::core::HackManifest::LoadFromString ( const std::string & json_content )

Load manifest from a JSON string.

Definition at line 129 of file hack_manifest.cc.

References yaze::core::RoomTagEntry::address, yaze::core::SramVariable::address, yaze::core::BuildPipeline::assembler, ASSIGN_OR_RETURN, yaze::core::OwnedBank::bank, yaze::core::OwnedBank::bank_end, yaze::core::OwnedBank::bank_start, build_pipeline_, yaze::core::BuildPipeline::build_script, yaze::Json::contains(), yaze::core::MessageLayout::data_end, yaze::core::MessageLayout::data_start, yaze::core::BuildPipeline::dev_rom, yaze::core::RoomTagEntry::enabled, yaze::core::FeatureFlag::enabled, yaze::core::ProtectedRegion::end, yaze::core::BuildPipeline::entry_point, yaze::core::MessageLayout::expanded_count, yaze::core::RoomTagEntry::feature_flag, feature_flag_map_, feature_flags_, yaze::core::MessageLayout::first_expanded_id, hack_name_, yaze::core::MessageLayout::hook_address, yaze::core::ProtectedRegion::hook_count, yaze::core::MessageLayout::last_expanded_id, loaded_, manifest_version_, message_layout_, yaze::core::RoomTagEntry::name, yaze::core::FeatureFlag::name, yaze::core::SramVariable::name, owned_banks_, yaze::core::OwnedBank::ownership, yaze::core::OwnedBank::ownership_note, yaze::Json::parse(), yaze::core::BuildPipeline::patched_rom, protected_regions_, yaze::core::RoomTagEntry::purpose, yaze::core::SramVariable::purpose, Reset(), room_tag_map_, room_tags_, yaze::core::RoomTagEntry::source, yaze::core::FeatureFlag::source, sram_map_, sram_variables_, yaze::core::ProtectedRegion::start, yaze::core::RoomTagEntry::tag_id, total_hooks_, yaze::core::FeatureFlag::value, yaze::Json::value(), and yaze::core::MessageLayout::vanilla_count.

Referenced by LoadFromFile().

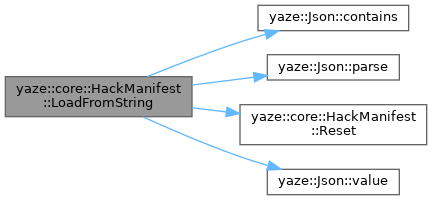

Here is the call graph for this function:

◆ loaded()

bool yaze::core::HackManifest::loaded ( ) const

inline

Check if the manifest has been loaded.

Definition at line 240 of file hack_manifest.h.

References loaded_.

Referenced by yaze::editor::RomLifecycleManager::CheckOracleRomSafetyPreSave(), yaze::editor::ManifestPanel::DrawManifestStatus(), yaze::editor::SettingsPanel::DrawProjectSettings(), yaze::editor::ManifestPanel::DrawProtectedRegions(), yaze::editor::RoomTagEditorPanel::DrawQuickAssign(), yaze::editor::RoomTagEditorPanel::DrawTagTable(), yaze::zelda3::ResourceLabelProvider::GetLabel(), yaze::project::YazeProject::InitializeResourceLabelProvider(), yaze::editor::SramViewerPanel::LoadVariablesFromManifest(), yaze::editor::ProgressionDashboardPanel::PushStateToManifestIfNeeded(), yaze::editor::FeatureFlagEditorPanel::RefreshFromManifest(), yaze::editor::EditorManager::RefreshResourceLabelProvider(), yaze::editor::MessageEditor::ResolveExpandedMessageBaseId(), yaze::editor::OverworldEditor::Save(), yaze::editor::EditorManager::SaveRom(), yaze::editor::DungeonEditorV2::SaveRoomData(), and yaze::project::YazeProject::TryLoadHackManifest().

◆ Clear()

void yaze::core::HackManifest::Clear ( )

inline

Clear any loaded manifest state.

This is primarily used when switching projects to ensure we never keep a stale manifest across loads.

Definition at line 248 of file hack_manifest.h.

References Reset().

Referenced by yaze::project::YazeProject::TryLoadHackManifest().

Here is the call graph for this function:

◆ ClassifyAddress()

AddressOwnership yaze::core::HackManifest::ClassifyAddress ( uint32_t address ) const

Classify a ROM address by ownership.

Checks in order:

Is it in an owned/shared/expansion bank?
Is it in a protected region (vanilla hook)?
Otherwise: vanilla safe

Definition at line 292 of file hack_manifest.cc.

References IsProtected(), yaze::core::kHookPatched, yaze::core::kVanillaSafe, loaded_, and owned_banks_.

Referenced by IsWriteOverwritten().

Here is the call graph for this function:

◆ IsWriteOverwritten()

bool yaze::core::HackManifest::IsWriteOverwritten ( uint32_t address ) const

Check if a ROM write at this address would be overwritten by asar.

Returns true for hook_patched, asm_owned, and asm_expansion addresses. For shared addresses, returns false (yaze can write, but must rebuild).

Definition at line 313 of file hack_manifest.cc.

References ClassifyAddress(), yaze::core::kAsmExpansion, yaze::core::kAsmOwned, and yaze::core::kHookPatched.

Here is the call graph for this function:

◆ IsProtected()

bool yaze::core::HackManifest::IsProtected ( uint32_t address ) const

Check if an address is in a protected region.

Definition at line 320 of file hack_manifest.cc.

References protected_regions_.

Referenced by ClassifyAddress().

◆ GetBankOwnership()

std::optional< AddressOwnership > yaze::core::HackManifest::GetBankOwnership ( uint8_t bank ) const

Get the bank ownership for a given bank number.

Definition at line 339 of file hack_manifest.cc.

References owned_banks_.

◆ GetRoomTagLabel()

std::string yaze::core::HackManifest::GetRoomTagLabel ( uint8_t tag_id ) const

Get the human-readable label for a room tag ID.

Definition at line 350 of file hack_manifest.cc.

References room_tag_map_.

Referenced by yaze::zelda3::ResourceLabelProvider::GetLabel().

◆ GetRoomTag()

std::optional< RoomTagEntry > yaze::core::HackManifest::GetRoomTag ( uint8_t tag_id ) const

Get the full room tag entry for a tag ID.

Definition at line 357 of file hack_manifest.cc.

References room_tag_map_.

Referenced by yaze::editor::RoomTagEditorPanel::DrawQuickAssign(), and yaze::editor::RoomTagEditorPanel::DrawTagTable().

◆ room_tags()

const std::vector< RoomTagEntry > & yaze::core::HackManifest::room_tags ( ) const

inline

Get all room tags.

Definition at line 296 of file hack_manifest.h.

References room_tags_.

Referenced by yaze::editor::SettingsPanel::DrawProjectSettings().

◆ IsFeatureEnabled()

bool yaze::core::HackManifest::IsFeatureEnabled ( const std::string & flag_name ) const

Definition at line 364 of file hack_manifest.cc.

References feature_flag_map_.

◆ feature_flags()

const std::vector< FeatureFlag > & yaze::core::HackManifest::feature_flags ( ) const

inline

Definition at line 304 of file hack_manifest.h.

References feature_flags_.

Referenced by yaze::editor::SettingsPanel::DrawProjectSettings(), and yaze::editor::FeatureFlagEditorPanel::RefreshFromManifest().

◆ GetSramVariableName()

std::string yaze::core::HackManifest::GetSramVariableName ( uint32_t address ) const

Definition at line 473 of file hack_manifest.cc.

References sram_map_.

◆ sram_variables()

const std::vector< SramVariable > & yaze::core::HackManifest::sram_variables ( ) const

inline

Definition at line 312 of file hack_manifest.h.

References sram_variables_.

Referenced by yaze::editor::SramViewerPanel::LoadVariablesFromManifest().

◆ message_layout()

const MessageLayout & yaze::core::HackManifest::message_layout ( ) const

inline

Definition at line 318 of file hack_manifest.h.

References message_layout_.

Referenced by yaze::editor::SettingsPanel::DrawProjectSettings(), and yaze::editor::MessageEditor::ResolveExpandedMessageBaseId().

◆ IsExpandedMessage()

bool yaze::core::HackManifest::IsExpandedMessage ( uint16_t message_id ) const

Definition at line 480 of file hack_manifest.cc.

References yaze::core::MessageLayout::first_expanded_id, yaze::core::MessageLayout::last_expanded_id, and message_layout_.

◆ protected_regions()

const std::vector< ProtectedRegion > & yaze::core::HackManifest::protected_regions ( ) const

inline

Definition at line 326 of file hack_manifest.h.

References protected_regions_.

Referenced by yaze::editor::ManifestPanel::DrawProtectedRegions().

◆ owned_banks()

const std::unordered_map< uint8_t, OwnedBank > & yaze::core::HackManifest::owned_banks ( ) const

inline

Definition at line 330 of file hack_manifest.h.

References owned_banks_.

◆ AnalyzeWriteRanges()

std::vector< WriteConflict > yaze::core::HackManifest::AnalyzeWriteRanges ( const std::vector< std::pair< uint32_t, uint32_t > > & ranges ) const

Analyze a set of address ranges for write conflicts.

For each range [start, end), checks if any addresses are owned by the ASM layer. Returns one WriteConflict per conflicting region (not per byte). Useful for pre-save diagnostics in the dungeon/overworld editors.

Definition at line 371 of file hack_manifest.cc.

References yaze::core::WriteConflict::address, yaze::core::kHookPatched, loaded_, owned_banks_, yaze::core::WriteConflict::ownership, and protected_regions_.

Referenced by AnalyzePcWriteRanges().

◆ AnalyzePcWriteRanges()

std::vector< WriteConflict > yaze::core::HackManifest::AnalyzePcWriteRanges ( const std::vector< std::pair< uint32_t, uint32_t > > & pc_ranges ) const

Analyze a set of PC-offset ranges for write conflicts.

Editors typically operate on raw ROM offsets (PC). The hack manifest uses SNES addresses (LoROM) as emitted by org $XXXXXX in ASM.

This helper converts PC ranges to SNES ranges (splitting at LoROM bank boundaries) and then runs the same conflict analysis.

Definition at line 441 of file hack_manifest.cc.

References AnalyzeWriteRanges(), loaded_, and yaze::PcToSnes().

Referenced by yaze::editor::EditorManager::SaveRom().

Here is the call graph for this function:
