yaze::cli::agent::tools::ProjectGraphTool Class Reference

Provides the AI agent with structured information about the project. More...

#include <project_graph_tool.h>

Inheritance diagram for yaze::cli::agent::tools::ProjectGraphTool:
Inheritance graph
[legend]

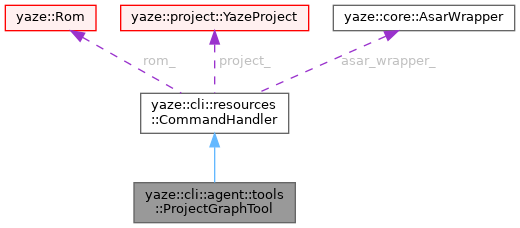

Collaboration diagram for yaze::cli::agent::tools::ProjectGraphTool:
Collaboration graph
[legend]

Public Member Functions

 ProjectGraphTool ()=default

 ~ProjectGraphTool () override=default

std::string GetName () const override
 Get the command name.

std::string GetUsage () const override
 Get the command usage string.

bool RequiresRom () const override
 Check if the command requires a loaded ROM.

void SetProjectContext (project::YazeProject *project) override
 Set the YazeProject context. Default implementation does nothing, override if tool needs project info.

void SetAsarWrapper (core::AsarWrapper *asar_wrapper) override
 Set the AsarWrapper context. Default implementation does nothing, override if tool needs Asar access.

- Public Member Functions inherited from yaze::cli::resources::CommandHandler
virtual ~CommandHandler ()=default

absl::Status Run (const std::vector< std::string > &args, Rom *rom_context, std::string *captured_output=nullptr)
 Execute the command.

virtual Descriptor Describe () const
 Provide metadata for TUI/help summaries.

virtual bool RequiresLabels () const
 Check if the command requires ROM labels.

virtual void SetRomContext (Rom *rom)
 Set the ROM context for tools that need ROM access. Default implementation stores the ROM pointer for subclass use.


Protected Member Functions

absl::Status ValidateArgs (const resources::ArgumentParser &parser) override
 Validate command arguments.

absl::Status Execute (Rom *rom, const resources::ArgumentParser &parser, resources::OutputFormatter &formatter) override
 Execute the command business logic.

- Protected Member Functions inherited from yaze::cli::resources::CommandHandler
virtual std::string GetDefaultFormat () const
 Get the default output format ("json" or "text")

virtual std::string GetOutputTitle () const
 Get the output title for formatting.


Private Member Functions

absl::Status GetProjectInfo (resources::OutputFormatter &formatter) const

absl::Status GetFileStructure (const std::string &path, resources::OutputFormatter &formatter) const

absl::Status GetSymbolTable (resources::OutputFormatter &formatter) const


Additional Inherited Members

- Protected Attributes inherited from yaze::cli::resources::CommandHandler
Rom * rom_ = nullptr

project::YazeProject * project_ = nullptr

core::AsarWrapper * asar_wrapper_ = nullptr


Detailed Description

Provides the AI agent with structured information about the project.

This tool allows the agent to query:

  • Basic project information (name, paths)
  • File structure of the code folder
  • Loaded symbol table from Asar

Definition at line 27 of file project_graph_tool.h.

Constructor & Destructor Documentation

◆ ProjectGraphTool()

yaze::cli::agent::tools::ProjectGraphTool::ProjectGraphTool ( )
default

◆ ~ProjectGraphTool()

yaze::cli::agent::tools::ProjectGraphTool::~ProjectGraphTool ( )
overridedefault

Member Function Documentation

◆ GetName()

std::string yaze::cli::agent::tools::ProjectGraphTool::GetName ( ) const
inlineoverridevirtual

Get the command name.

Override this to provide a unique identifier for the command. This is used for command registration and lookup.

Implements yaze::cli::resources::CommandHandler.

Definition at line 32 of file project_graph_tool.h.

◆ GetUsage()

std::string yaze::cli::agent::tools::ProjectGraphTool::GetUsage ( ) const
inlineoverridevirtual

Get the command usage string.

Implements yaze::cli::resources::CommandHandler.

Definition at line 33 of file project_graph_tool.h.

◆ RequiresRom()

bool yaze::cli::agent::tools::ProjectGraphTool::RequiresRom ( ) const
inlineoverridevirtual

Check if the command requires a loaded ROM.

Override to return false if ROM is not needed (e.g., filesystem tools).

Reimplemented from yaze::cli::resources::CommandHandler.

Definition at line 36 of file project_graph_tool.h.

◆ SetProjectContext()

void yaze::cli::agent::tools::ProjectGraphTool::SetProjectContext ( project::YazeProject * project)
inlineoverridevirtual

Set the YazeProject context. Default implementation does nothing, override if tool needs project info.

Reimplemented from yaze::cli::resources::CommandHandler.

Definition at line 39 of file project_graph_tool.h.

References yaze::cli::resources::CommandHandler::project_.

◆ SetAsarWrapper()

void yaze::cli::agent::tools::ProjectGraphTool::SetAsarWrapper ( core::AsarWrapper * asar_wrapper)
inlineoverridevirtual

Set the AsarWrapper context. Default implementation does nothing, override if tool needs Asar access.

Reimplemented from yaze::cli::resources::CommandHandler.

Definition at line 40 of file project_graph_tool.h.

References yaze::cli::resources::CommandHandler::asar_wrapper_.

◆ ValidateArgs()

absl::Status yaze::cli::agent::tools::ProjectGraphTool::ValidateArgs ( const resources::ArgumentParser & parser)
overrideprotectedvirtual

Validate command arguments.

Override this to check required arguments and perform custom validation. Called before Execute().

Implements yaze::cli::resources::CommandHandler.

Definition at line 17 of file project_graph_tool.cc.

References yaze::cli::resources::ArgumentParser::RequireArgs().

Here is the call graph for this function:

◆ Execute()

absl::Status yaze::cli::agent::tools::ProjectGraphTool::Execute ( Rom * rom,
const resources::ArgumentParser & parser,
resources::OutputFormatter & formatter )
overrideprotectedvirtual

Execute the command business logic.

Override this to implement command-specific functionality. The ROM is guaranteed to be loaded and labels initialized.

Implements yaze::cli::resources::CommandHandler.

Definition at line 21 of file project_graph_tool.cc.

References yaze::cli::resources::CommandHandler::asar_wrapper_, yaze::project::YazeProject::code_folder, GetFileStructure(), GetProjectInfo(), yaze::cli::resources::ArgumentParser::GetString(), GetSymbolTable(), and yaze::cli::resources::CommandHandler::project_.

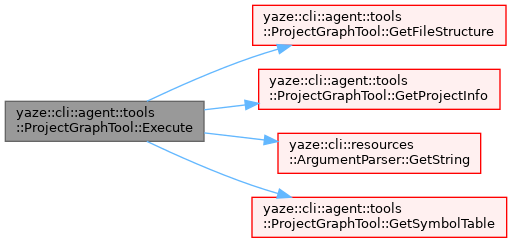

Here is the call graph for this function:

◆ GetProjectInfo()

absl::Status yaze::cli::agent::tools::ProjectGraphTool::GetProjectInfo ( resources::OutputFormatter & formatter) const
private

Definition at line 45 of file project_graph_tool.cc.

References yaze::cli::resources::OutputFormatter::AddField(), yaze::project::YazeProject::build_script, yaze::project::YazeProject::code_folder, yaze::project::ProjectMetadata::description, yaze::project::YazeProject::filepath, yaze::project::YazeProject::git_repository, yaze::project::YazeProject::last_build_hash, yaze::project::YazeProject::metadata, yaze::project::YazeProject::name, yaze::cli::resources::CommandHandler::project_, yaze::project::YazeProject::rom_filename, and yaze::project::YazeProject::symbols_filename.

Referenced by Execute().

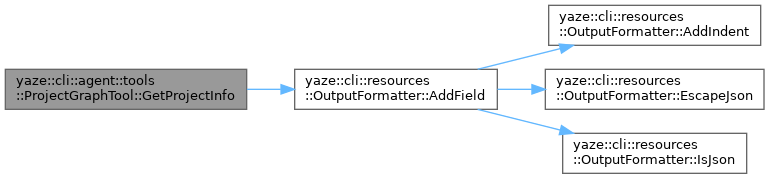

Here is the call graph for this function:

◆ GetFileStructure()

absl::Status yaze::cli::agent::tools::ProjectGraphTool::GetFileStructure ( const std::string & path,
resources::OutputFormatter & formatter ) const
private

Definition at line 58 of file project_graph_tool.cc.

References yaze::cli::resources::OutputFormatter::AddField(), yaze::cli::resources::OutputFormatter::BeginArray(), yaze::cli::resources::OutputFormatter::BeginObject(), yaze::cli::resources::OutputFormatter::EndArray(), yaze::cli::resources::OutputFormatter::EndObject(), yaze::project::YazeProject::GetAbsolutePath(), yaze::project::YazeProject::GetRelativePath(), and yaze::cli::resources::CommandHandler::project_.

Referenced by Execute().

◆ GetSymbolTable()

absl::Status yaze::cli::agent::tools::ProjectGraphTool::GetSymbolTable ( resources::OutputFormatter & formatter) const
private

Definition at line 77 of file project_graph_tool.cc.

References yaze::cli::resources::OutputFormatter::AddField(), yaze::cli::resources::CommandHandler::asar_wrapper_, yaze::cli::resources::OutputFormatter::BeginArray(), yaze::cli::resources::OutputFormatter::BeginObject(), yaze::cli::resources::OutputFormatter::EndArray(), yaze::cli::resources::OutputFormatter::EndObject(), yaze::core::AsarWrapper::GetSymbolTable(), and yaze::zelda3::name.

Referenced by Execute().

The documentation for this class was generated from the following files:
