Room-level annotation management for Oracle projects. More...

#include <annotation_overlay_panel.h>

Inheritance diagram for yaze::editor::AnnotationOverlayPanel:

Collaboration diagram for yaze::editor::AnnotationOverlayPanel:

Public Member Functions
std::string	GetId () const override
	Unique identifier for this panel.

std::string	GetDisplayName () const override
	Human-readable name shown in menus and title bars.

std::string	GetIcon () const override
	Material Design icon for this panel.

std::string	GetEditorCategory () const override
	Editor category this panel belongs to.

PanelCategory	GetPanelCategory () const override
	Get the lifecycle category for this panel.

void	SetAnnotationsPath (const std::string &path)

void	Draw (bool *) override
	Draw the panel content.

std::vector< const AnnotationEntry * >	GetAnnotationsForRoom (int room_id) const
	Get annotations for a specific room.

int	GetMaxPriorityForRoom (int room_id) const
	Get the highest priority for a room (for dot color). Returns -1 if no annotations.

Public Member Functions inherited from yaze::editor::EditorPanel
virtual	~EditorPanel ()=default

virtual void	OnFirstDraw ()
	Called once before the first Draw() in a session.

virtual bool	RequiresLazyInit () const
	Whether this panel uses lazy initialization.

void	InvalidateLazyInit ()
	Reset lazy init state so OnFirstDraw() runs again.

virtual void	OnOpen ()
	Called when panel becomes visible.

virtual void	OnClose ()
	Called when panel is hidden.

virtual void	OnFocus ()
	Called when panel receives focus.

virtual PanelContextScope	GetContextScope () const
	Optional context binding for this panel (room/selection/etc)

virtual PanelScope	GetScope () const
	Get the registration scope for this panel.

virtual bool	IsEnabled () const
	Check if this panel is currently enabled.

virtual std::string	GetDisabledTooltip () const
	Get tooltip text when panel is disabled.

virtual std::string	GetShortcutHint () const
	Get keyboard shortcut hint for display.

virtual int	GetPriority () const
	Get display priority for menu ordering.

virtual float	GetPreferredWidth () const
	Get preferred width for this panel (optional)

virtual bool	IsVisibleByDefault () const
	Whether this panel should be visible by default.

virtual std::string	GetParentPanelId () const
	Get parent panel ID for cascade behavior.

virtual bool	CascadeCloseChildren () const
	Whether closing this panel should close child panels.

void	DrawWithLazyInit (bool *p_open)
	Execute lazy initialization if needed, then call Draw()

Static Public Member Functions
static ImU32	GetPriorityColor (AnnotationPriority priority)

Private Member Functions
void	LoadAnnotations ()

void	SaveAnnotations ()

Private Attributes
std::string	annotations_path_

std::vector< AnnotationEntry >	annotations_

int	filter_room_id_ = -1

int	filter_priority_ = 0

int	selected_index_ = -1

int	edit_room_ = 0

char	edit_text_ [256] = {0}

int	edit_priority_ = 0

char	edit_category_ [64] = {0}

Additional Inherited Members
Protected Member Functions inherited from yaze::editor::EditorPanel
void	InvalidateCache ()
	Invalidate all cached computations.

template<typename T >
T &	GetCached (const std::string &key, std::function< T()> compute)
	Get or compute a cached value.

bool	IsCacheValid () const
	Check if cache has been invalidated.

void	ClearCache ()
	Clear all cached values (more aggressive than InvalidateCache)

Detailed Description

Room-level annotation management for Oracle projects.

Reads/writes annotations from annotations.json in the project folder. Provides a list view for browsing and editing annotations.

On iOS (F3), annotations sync via CloudKit. On desktop, this JSON file can be committed to git for version-controlled notes.

Integration with DungeonMapPanel: colored dots drawn on rooms (red=blocker, orange=bug, blue=note).

Definition at line 53 of file annotation_overlay_panel.h.

Member Function Documentation

◆ GetId()

std::string yaze::editor::AnnotationOverlayPanel::GetId ( ) const

inlineoverridevirtual

Unique identifier for this panel.

Returns: Panel ID in format "{category}.{name}" (e.g., "dungeon.room_selector")

IDs should be:

Lowercase with underscores
Prefixed with editor category
Unique across all panels

Implements yaze::editor::EditorPanel.

Definition at line 55 of file annotation_overlay_panel.h.

◆ GetDisplayName()

std::string yaze::editor::AnnotationOverlayPanel::GetDisplayName ( ) const

inlineoverridevirtual

Human-readable name shown in menus and title bars.

Returns: Display name (e.g., "Room Selector")

Implements yaze::editor::EditorPanel.

Definition at line 56 of file annotation_overlay_panel.h.

◆ GetIcon()

std::string yaze::editor::AnnotationOverlayPanel::GetIcon ( ) const

inlineoverridevirtual

Material Design icon for this panel.

Returns: Icon constant (e.g., ICON_MD_LIST)

Implements yaze::editor::EditorPanel.

Definition at line 57 of file annotation_overlay_panel.h.

References ICON_MD_NOTES.

◆ GetEditorCategory()

std::string yaze::editor::AnnotationOverlayPanel::GetEditorCategory ( ) const

inlineoverridevirtual

Editor category this panel belongs to.

Returns: Category name matching EditorType (e.g., "Dungeon", "Overworld")

Implements yaze::editor::EditorPanel.

Definition at line 58 of file annotation_overlay_panel.h.

◆ GetPanelCategory()

PanelCategory yaze::editor::AnnotationOverlayPanel::GetPanelCategory ( ) const

inlineoverridevirtual

Get the lifecycle category for this panel.

Returns: PanelCategory determining visibility behavior on editor switch

Default is EditorBound (hidden when switching editors).

Reimplemented from yaze::editor::EditorPanel.

Definition at line 59 of file annotation_overlay_panel.h.

References yaze::editor::CrossEditor.

◆ SetAnnotationsPath()

void yaze::editor::AnnotationOverlayPanel::SetAnnotationsPath ( const std::string & path )

inline

Definition at line 63 of file annotation_overlay_panel.h.

References annotations_path_, and LoadAnnotations().

Referenced by Draw().

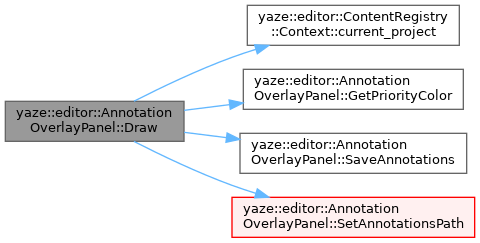

Here is the call graph for this function:

◆ Draw()

void yaze::editor::AnnotationOverlayPanel::Draw ( bool * p_open )

inlineoverridevirtual

Draw the panel content.

Parameters

p_open Pointer to visibility flag (nullptr if not closable)

Called by PanelManager when the panel is visible. Do NOT call ImGui::Begin/End - the PanelWindow wrapper handles that. Just draw your content directly.

Implements yaze::editor::EditorPanel.

Definition at line 68 of file annotation_overlay_panel.h.

References annotations_, annotations_path_, yaze::editor::AnnotationEntry::category, yaze::editor::ContentRegistry::Context::current_project(), edit_category_, edit_priority_, edit_room_, edit_text_, filter_priority_, filter_room_id_, GetPriorityColor(), yaze::editor::AnnotationEntry::priority, yaze::editor::AnnotationEntry::room_id, SaveAnnotations(), selected_index_, SetAnnotationsPath(), and yaze::editor::AnnotationEntry::text.
