yaze::zelda3::PaletteDebugger Class Reference

#include <palette_debug.h>

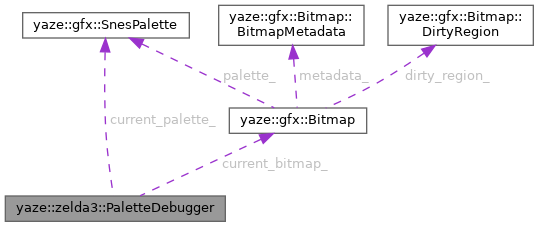

Collaboration diagram for yaze::zelda3::PaletteDebugger:
Collaboration graph
[legend]

Public Member Functions

void LogPaletteLoad (const std::string &location, int palette_id, const gfx::SnesPalette &palette)

void LogPaletteApplication (const std::string &location, int palette_id, bool success, const std::string &reason="")

void LogTextureCreation (const std::string &location, bool has_palette, int color_count)

void LogSurfaceState (const std::string &location, SDL_Surface *surface)

void SetCurrentPalette (const gfx::SnesPalette &palette)

void SetCurrentBitmap (gfx::Bitmap *bitmap)

ColorComparison SamplePixelAt (int x, int y) const

std::vector< ColorComparison > GetColorComparisons () const

void AddComparison (const ColorComparison &comp)

void ClearComparisons ()

uint32_t ComputePaletteChecksum (const gfx::SnesPalette &palette) const

const std::vector< PaletteDebugEvent > & GetEvents () const

void Clear ()


Static Public Member Functions

static PaletteDebugger & Get ()


Static Public Attributes

static constexpr size_t kMaxEvents = 1000

static constexpr size_t kMaxComparisons = 500


Private Member Functions

 PaletteDebugger ()=default

void AddEvent (const PaletteDebugEvent &event)

void AddComparisonLimited (const ColorComparison &comp)


Private Attributes

std::vector< PaletteDebugEvent > events_

std::vector< ColorComparison > comparisons_

gfx::SnesPalette current_palette_

gfx::Bitmap * current_bitmap_ = nullptr

int sequence_counter_ = 0


Detailed Description

Definition at line 39 of file palette_debug.h.

Constructor & Destructor Documentation

◆ PaletteDebugger()

yaze::zelda3::PaletteDebugger::PaletteDebugger ( )
privatedefault

Member Function Documentation

◆ Get()

PaletteDebugger & yaze::zelda3::PaletteDebugger::Get ( )
static

Definition at line 24 of file palette_debug.cc.

Referenced by clearPaletteDebugEvents(), getColorComparisons(), getDiagnosticSummary(), getDungeonPaletteEvents(), getEventTimeline(), getFullPaletteState(), getHypothesisAnalysis(), getPaletteData(), yaze::gfx::Arena::ProcessTextureQueue(), yaze::zelda3::Room::RenderRoomGraphics(), and samplePixelAt().

◆ LogPaletteLoad()

void yaze::zelda3::PaletteDebugger::LogPaletteLoad ( const std::string & location,
int palette_id,
const gfx::SnesPalette & palette )

Definition at line 29 of file palette_debug.cc.

References AddEvent(), yaze::zelda3::PaletteDebugEvent::color_count, yaze::zelda3::INFO, yaze::zelda3::PaletteDebugEvent::location, LOG_INFO, yaze::zelda3::PaletteDebugEvent::message, yaze::zelda3::PaletteDebugEvent::sample_colors, sequence_counter_, and yaze::gfx::SnesPalette::size().

Referenced by yaze::zelda3::Room::RenderRoomGraphics().

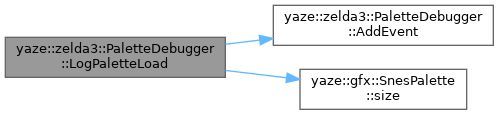

Here is the call graph for this function:

◆ LogPaletteApplication()

void yaze::zelda3::PaletteDebugger::LogPaletteApplication ( const std::string & location,
int palette_id,
bool success,
const std::string & reason = "" )

Definition at line 62 of file palette_debug.cc.

References AddEvent(), yaze::zelda3::ERROR, yaze::zelda3::INFO, yaze::zelda3::PaletteDebugEvent::location, LOG_ERROR, LOG_INFO, yaze::zelda3::PaletteDebugEvent::message, and sequence_counter_.

Referenced by yaze::gfx::Arena::ProcessTextureQueue(), and yaze::zelda3::Room::RenderRoomGraphics().

Here is the call graph for this function:

◆ LogTextureCreation()

void yaze::zelda3::PaletteDebugger::LogTextureCreation ( const std::string & location,
bool has_palette,
int color_count )

Definition at line 84 of file palette_debug.cc.

References AddEvent(), yaze::zelda3::INFO, yaze::zelda3::PaletteDebugEvent::location, LOG_WARN, yaze::zelda3::PaletteDebugEvent::message, sequence_counter_, and yaze::zelda3::WARNING.

Referenced by yaze::gfx::Arena::ProcessTextureQueue().

Here is the call graph for this function:

◆ LogSurfaceState()

void yaze::zelda3::PaletteDebugger::LogSurfaceState ( const std::string & location,
SDL_Surface * surface )

Definition at line 106 of file palette_debug.cc.

References AddEvent(), yaze::zelda3::ERROR, yaze::platform::GetSurfaceFormat(), yaze::platform::GetSurfacePalette(), yaze::zelda3::INFO, yaze::zelda3::PaletteDebugEvent::location, LOG_ERROR, LOG_INFO, yaze::zelda3::PaletteDebugEvent::message, sequence_counter_, and yaze::zelda3::WARNING.

Referenced by yaze::gfx::Arena::ProcessTextureQueue(), and yaze::zelda3::Room::RenderRoomGraphics().

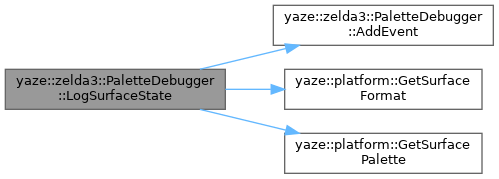

Here is the call graph for this function:

◆ SetCurrentPalette()

void yaze::zelda3::PaletteDebugger::SetCurrentPalette ( const gfx::SnesPalette & palette)

Definition at line 167 of file palette_debug.cc.

References current_palette_.

Referenced by yaze::zelda3::Room::RenderRoomGraphics().

◆ SetCurrentBitmap()

void yaze::zelda3::PaletteDebugger::SetCurrentBitmap ( gfx::Bitmap * bitmap)

Definition at line 171 of file palette_debug.cc.

References current_bitmap_.

Referenced by yaze::zelda3::Room::RenderRoomGraphics().

◆ SamplePixelAt()

ColorComparison yaze::zelda3::PaletteDebugger::SamplePixelAt ( int x,
int y ) const

Definition at line 175 of file palette_debug.cc.

References yaze::zelda3::ColorComparison::actual_b, yaze::zelda3::ColorComparison::actual_g, yaze::zelda3::ColorComparison::actual_r, current_bitmap_, current_palette_, yaze::gfx::Bitmap::data(), yaze::zelda3::ColorComparison::expected_b, yaze::zelda3::ColorComparison::expected_g, yaze::zelda3::ColorComparison::expected_r, yaze::platform::GetSurfacePalette(), yaze::gfx::Bitmap::height(), yaze::zelda3::ColorComparison::matches, yaze::zelda3::ColorComparison::palette_index, yaze::gfx::Bitmap::size(), yaze::gfx::SnesPalette::size(), yaze::gfx::Bitmap::surface(), yaze::gfx::Bitmap::width(), yaze::zelda3::ColorComparison::x, and yaze::zelda3::ColorComparison::y.

◆ GetColorComparisons()

std::vector< ColorComparison > yaze::zelda3::PaletteDebugger::GetColorComparisons ( ) const
inline

Definition at line 61 of file palette_debug.h.

References comparisons_.

◆ AddComparison()

void yaze::zelda3::PaletteDebugger::AddComparison ( const ColorComparison & comp)
inline

Definition at line 62 of file palette_debug.h.

References AddComparisonLimited().

Here is the call graph for this function:

◆ ClearComparisons()

void yaze::zelda3::PaletteDebugger::ClearComparisons ( )
inline

Definition at line 63 of file palette_debug.h.

References comparisons_.

◆ ComputePaletteChecksum()

uint32_t yaze::zelda3::PaletteDebugger::ComputePaletteChecksum ( const gfx::SnesPalette & palette) const

Definition at line 235 of file palette_debug.cc.

References yaze::gfx::SnesPalette::size().

Here is the call graph for this function:

◆ GetEvents()

const std::vector< PaletteDebugEvent > & yaze::zelda3::PaletteDebugger::GetEvents ( ) const
inline

Definition at line 68 of file palette_debug.h.

References events_.

◆ Clear()

void yaze::zelda3::PaletteDebugger::Clear ( )
inline

Definition at line 69 of file palette_debug.h.

References comparisons_, and events_.

Referenced by clearPaletteDebugEvents().

◆ AddEvent()

void yaze::zelda3::PaletteDebugger::AddEvent ( const PaletteDebugEvent & event)
inlineprivate

Definition at line 91 of file palette_debug.h.

References events_, and kMaxEvents.

Referenced by LogPaletteApplication(), LogPaletteLoad(), LogSurfaceState(), and LogTextureCreation().

◆ AddComparisonLimited()

void yaze::zelda3::PaletteDebugger::AddComparisonLimited ( const ColorComparison & comp)
inlineprivate

Definition at line 100 of file palette_debug.h.

References comparisons_, and kMaxComparisons.

Referenced by AddComparison().

Member Data Documentation

◆ kMaxEvents

constexpr size_t yaze::zelda3::PaletteDebugger::kMaxEvents = 1000
staticconstexpr

Definition at line 42 of file palette_debug.h.

Referenced by AddEvent().

◆ kMaxComparisons

constexpr size_t yaze::zelda3::PaletteDebugger::kMaxComparisons = 500
staticconstexpr

Definition at line 43 of file palette_debug.h.

Referenced by AddComparisonLimited().

◆ events_

std::vector<PaletteDebugEvent> yaze::zelda3::PaletteDebugger::events_
private

Definition at line 107 of file palette_debug.h.

Referenced by AddEvent(), Clear(), and GetEvents().

◆ comparisons_

std::vector<ColorComparison> yaze::zelda3::PaletteDebugger::comparisons_
private

Definition at line 108 of file palette_debug.h.

Referenced by AddComparisonLimited(), Clear(), ClearComparisons(), and GetColorComparisons().

◆ current_palette_

gfx::SnesPalette yaze::zelda3::PaletteDebugger::current_palette_
private

Definition at line 109 of file palette_debug.h.

Referenced by SamplePixelAt(), and SetCurrentPalette().

◆ current_bitmap_

gfx::Bitmap* yaze::zelda3::PaletteDebugger::current_bitmap_ = nullptr
private

Definition at line 110 of file palette_debug.h.

Referenced by SamplePixelAt(), and SetCurrentBitmap().

◆ sequence_counter_

int yaze::zelda3::PaletteDebugger::sequence_counter_ = 0
private

Definition at line 111 of file palette_debug.h.

Referenced by LogPaletteApplication(), LogPaletteLoad(), LogSurfaceState(), and LogTextureCreation().

The documentation for this class was generated from the following files:
