yaze::cli::OverworldValidateCommandHandler Class Reference

Validate overworld map32 pointers and decompression. More...

#include <overworld_validate_commands.h>

Inheritance diagram for yaze::cli::OverworldValidateCommandHandler:

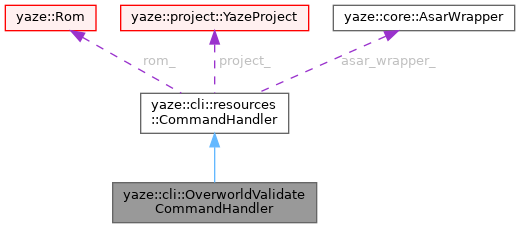

Collaboration diagram for yaze::cli::OverworldValidateCommandHandler:

Public Member Functions
std::string	GetName () const override
	Get the command name.
std::string	GetDescription () const
std::string	GetUsage () const override
	Get the command usage string.
std::string	GetDefaultFormat () const override
	Get the default output format ("json" or "text")
std::string	GetOutputTitle () const override
	Get the output title for formatting.
Descriptor	Describe () const override
	Provide metadata for TUI/help summaries.
absl::Status	ValidateArgs (const resources::ArgumentParser &parser) override
	Validate command arguments.
absl::Status	Execute (Rom *rom, const resources::ArgumentParser &parser, resources::OutputFormatter &formatter) override
	Execute the command business logic.
Public Member Functions inherited from yaze::cli::resources::CommandHandler
virtual	~CommandHandler ()=default
absl::Status	Run (const std::vector< std::string > &args, Rom *rom_context, std::string *captured_output=nullptr)
	Execute the command.
virtual bool	RequiresRom () const
	Check if the command requires a loaded ROM.
virtual bool	RequiresLabels () const
	Check if the command requires ROM labels.
virtual void	SetProjectContext (project::YazeProject *project)
	Set the YazeProject context. Default implementation does nothing, override if tool needs project info.
virtual void	SetAsarWrapper (core::AsarWrapper *asar_wrapper)
	Set the AsarWrapper context. Default implementation does nothing, override if tool needs Asar access.
virtual void	SetRomContext (Rom *rom)
	Set the ROM context for tools that need ROM access. Default implementation stores the ROM pointer for subclass use.

Additional Inherited Members
Protected Attributes inherited from yaze::cli::resources::CommandHandler
Rom *	rom_ = nullptr
project::YazeProject *	project_ = nullptr
core::AsarWrapper *	asar_wrapper_ = nullptr

Detailed Description

Validate overworld map32 pointers and decompression.

Checks each map's pointer table entries and attempts to decompress the referenced data to verify integrity. Useful for detecting ROM corruption or invalid pointer modifications.

Supports structured JSON output for agent consumption.

Definition at line 17 of file overworld_validate_commands.h.

Member Function Documentation

GetName()

std::string yaze::cli::OverworldValidateCommandHandler::GetName ( ) const

inlineoverridevirtual

Get the command name.

Override this to provide a unique identifier for the command. This is used for command registration and lookup.

Implements yaze::cli::resources::CommandHandler.

Definition at line 19 of file overworld_validate_commands.h.

GetDescription()

std::string yaze::cli::OverworldValidateCommandHandler::GetDescription ( ) const

inline

Definition at line 21 of file overworld_validate_commands.h.

GetUsage()

std::string yaze::cli::OverworldValidateCommandHandler::GetUsage ( ) const

inlineoverridevirtual

Get the command usage string.

Implements yaze::cli::resources::CommandHandler.

Definition at line 25 of file overworld_validate_commands.h.

GetDefaultFormat()

std::string yaze::cli::OverworldValidateCommandHandler::GetDefaultFormat ( ) const

inlineoverridevirtual

Get the default output format ("json" or "text")

Reimplemented from yaze::cli::resources::CommandHandler.

Definition at line 30 of file overworld_validate_commands.h.

GetOutputTitle()

std::string yaze::cli::OverworldValidateCommandHandler::GetOutputTitle ( ) const

inlineoverridevirtual

Get the output title for formatting.

Reimplemented from yaze::cli::resources::CommandHandler.

Definition at line 32 of file overworld_validate_commands.h.

Describe()

Descriptor yaze::cli::OverworldValidateCommandHandler::Describe ( ) const

inlineoverridevirtual

Provide metadata for TUI/help summaries.

Reimplemented from yaze::cli::resources::CommandHandler.

Definition at line 34 of file overworld_validate_commands.h.

References yaze::cli::resources::CommandHandler::Descriptor::display_name, yaze::cli::resources::CommandHandler::Descriptor::summary, and yaze::cli::resources::CommandHandler::Descriptor::todo_reference.

ValidateArgs()

absl::Status yaze::cli::OverworldValidateCommandHandler::ValidateArgs ( const resources::ArgumentParser & parser )

inlineoverridevirtual

Validate command arguments.

Override this to check required arguments and perform custom validation. Called before Execute().

Implements yaze::cli::resources::CommandHandler.

Definition at line 43 of file overworld_validate_commands.h.

Execute()

absl::Status yaze::cli::OverworldValidateCommandHandler::Execute ( Rom * rom, const resources::ArgumentParser & parser, resources::OutputFormatter & formatter )

overridevirtual

Execute the command business logic.

Override this to implement command-specific functionality. The ROM is guaranteed to be loaded and labels initialized.

Implements yaze::cli::resources::CommandHandler.

Definition at line 213 of file overworld_validate_commands.cc.

References yaze::cli::resources::OutputFormatter::AddArrayItem(), yaze::cli::resources::OutputFormatter::AddField(), ASSIGN_OR_RETURN, yaze::cli::resources::OutputFormatter::BeginArray(), yaze::cli::resources::OutputFormatter::EndArray(), yaze::cli::resources::ArgumentParser::HasFlag(), yaze::cli::resources::OutputFormatter::IsJson(), yaze::cli::kMap16TilesExpanded, yaze::zelda3::kNumOverworldMaps, yaze::zelda3::Overworld::Load(), and RETURN_IF_ERROR.

---

The documentation for this class was generated from the following files:

• src/cli/handlers/tools/overworld_validate_commands.h
• src/cli/handlers/tools/overworld_validate_commands.cc
